Nailer Fuel Cells: How Paslode Gas Cartridges Work, Which One Fits Your Gun, and What to Buy

A first-fix carpenter turns up on a Monday morning to nail up stud walls in a new extension. Temperature outside is 3°C. He pulls the trigger on his Paslode IM350+ and it fires once, then coughs, then stops. He strips it down, blames the igniter, orders a service kit from Paslode, and loses a day. The real problem was a cold fuel cell that had been sitting in an unheated van overnight. A new cell warmed in a jacket pocket for five minutes would have had him nailing studs by 09:15.

Fuel cells are the cheapest consumable on a gas-powered nail gun and the most likely to stop it. Buy the right one for your gun. Keep a spare on site. And in winter, treat them like living things that hate the cold.

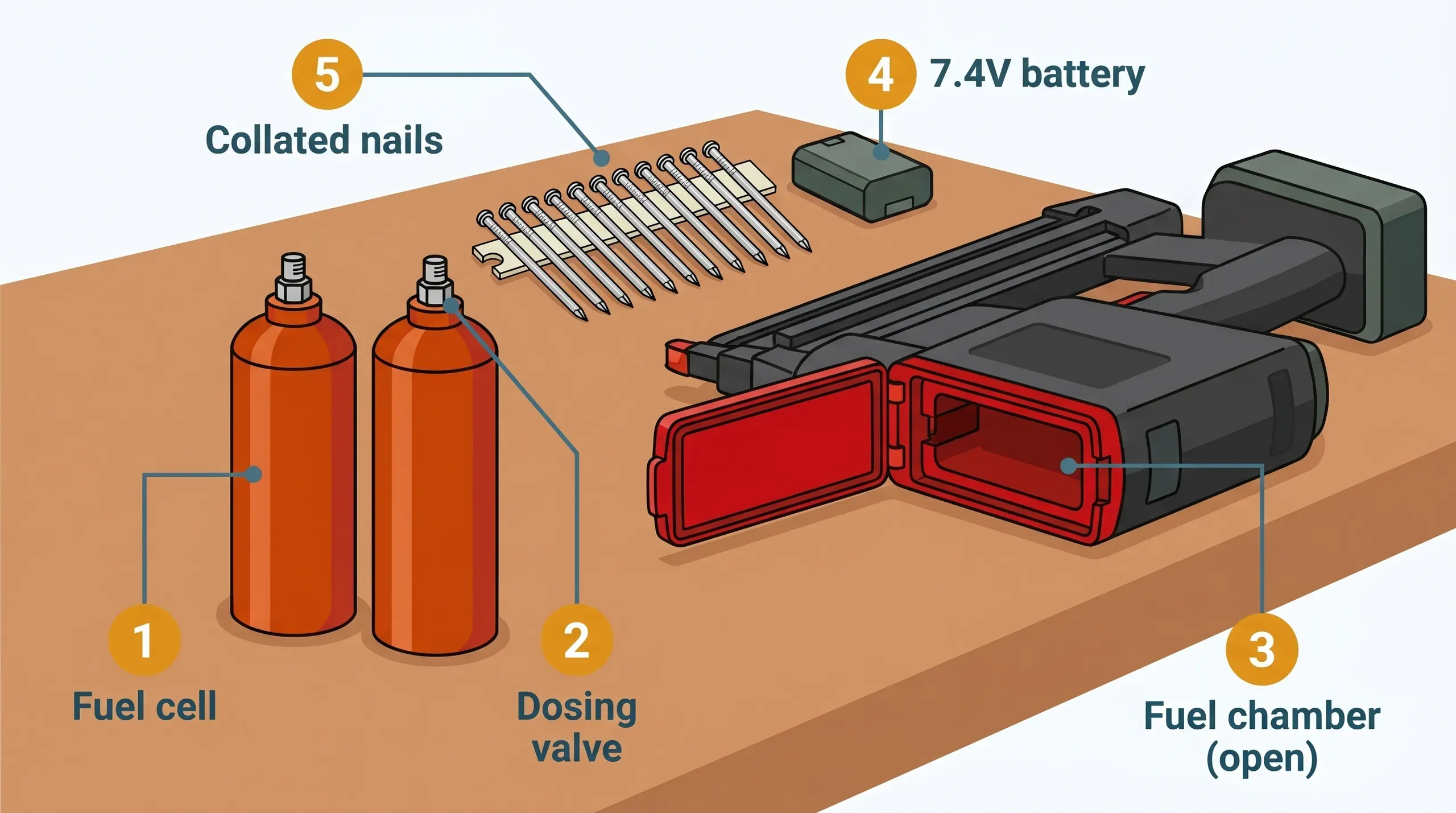

What a nailer fuel cell actually is

The fuel cell is not a battery and not a can of aerosol. It's a small pressurised canister containing a metered mix of propene and but-1-ene gas, fitted with a dosing valve at the top that releases a precise shot of gas each time the tool cycles. The battery on a Paslode (7.4V Li-ion on most current models) supplies the spark. The cell supplies the fuel. Take either away and the tool does nothing.

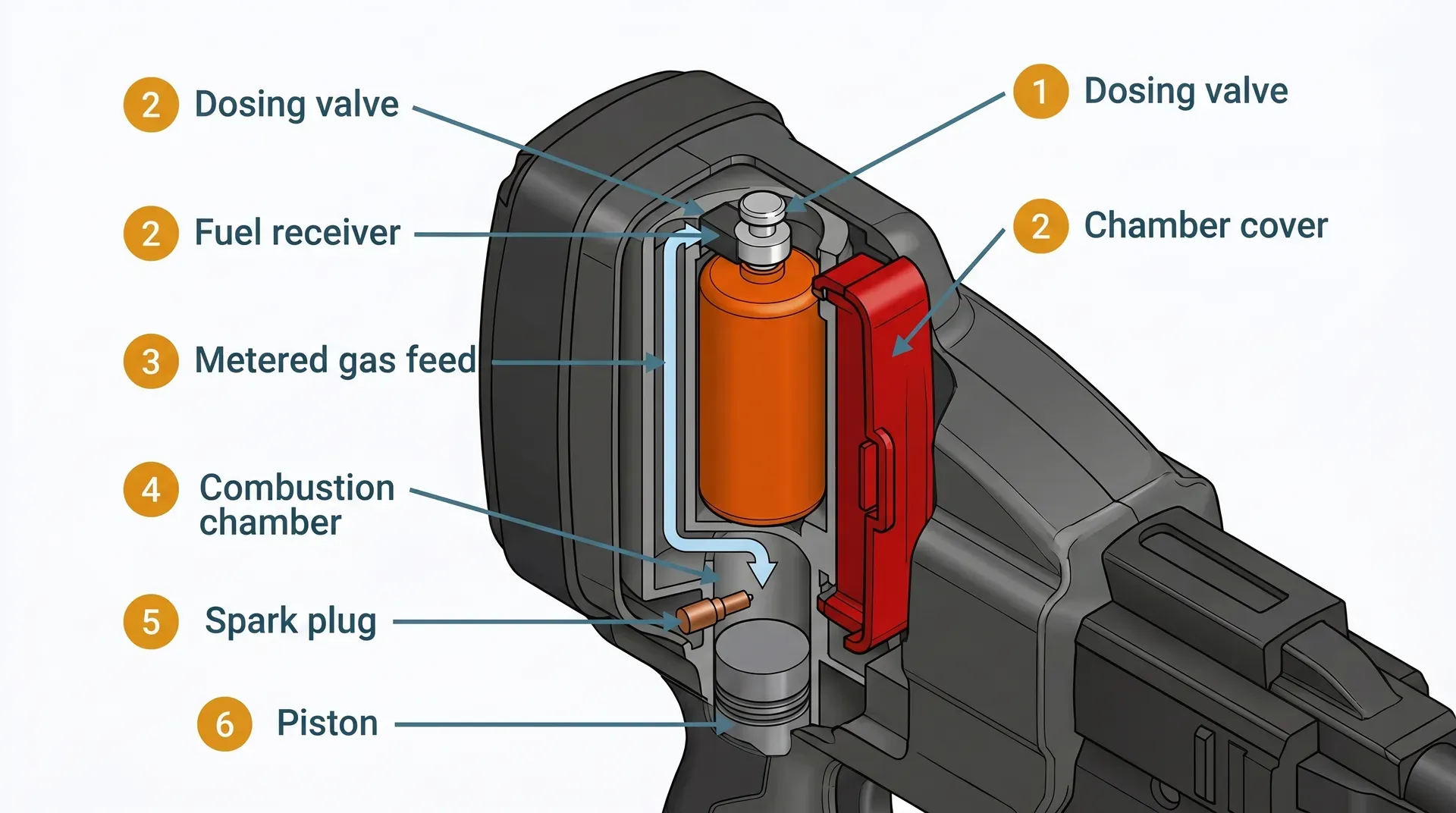

The mechanism is closer to a two-stroke engine than an air tool. Press the tool's contact tip against timber and you seal a small combustion chamber inside the nailer. The dosing valve injects its metered gas charge. Pull the trigger and the spark plug (powered by the battery) ignites the mixture. The controlled combustion, not an explosion drives a piston down the barrel, which drives the nail. An onboard fan, also battery-powered, clears the exhaust before the next cycle.

That's why gas nailers are loud, warm to the touch after a few minutes, and smell faintly of combustion. And it's why the tool has two consumables, not one.

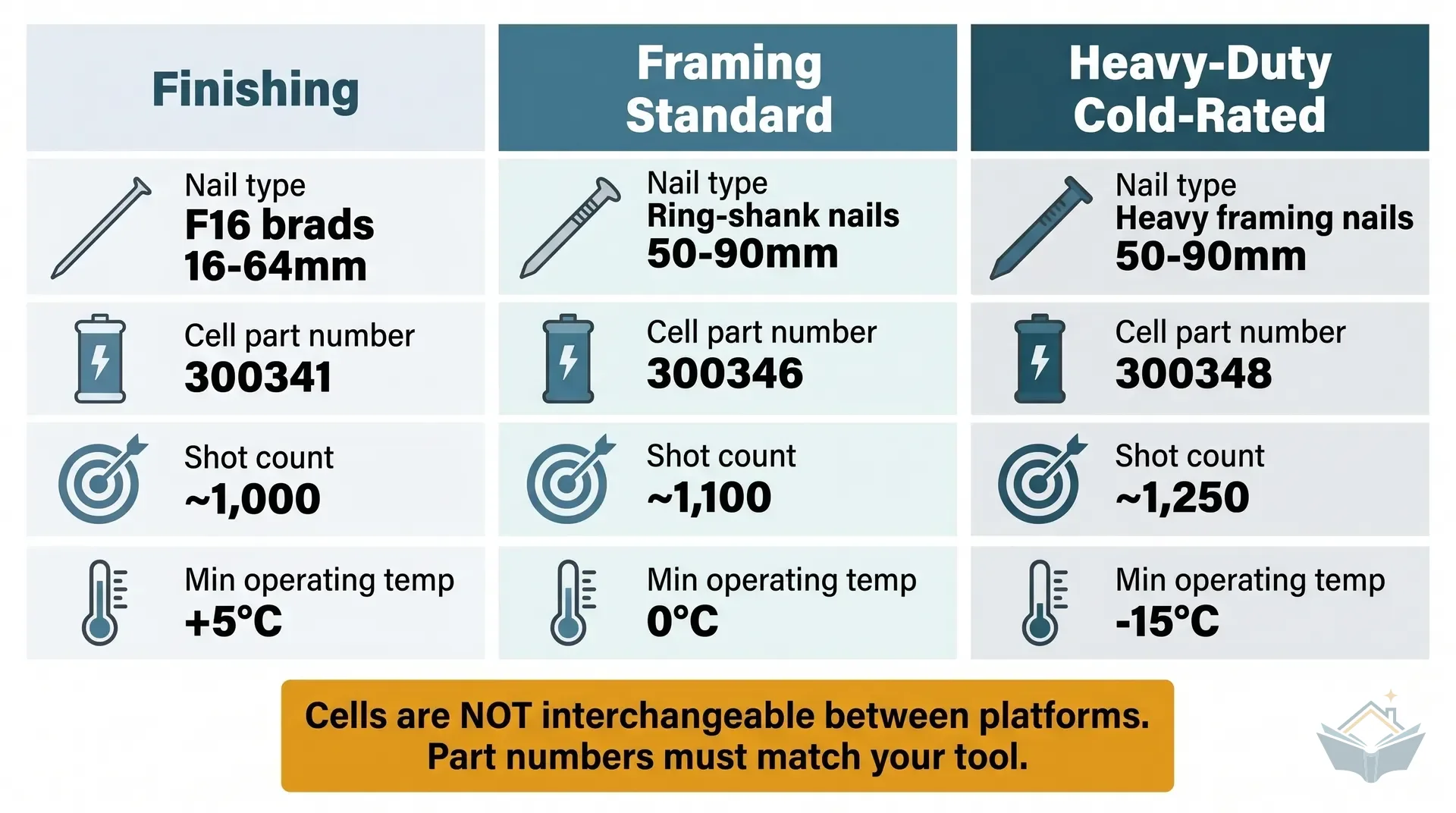

The three platforms and their incompatible cells

Paslode sells three distinct fuel cells that look superficially similar and are not interchangeable. Fitting the wrong cell to the wrong gun does nothing on a good day and damages the dosing valve on a bad one.

The key point: the Series-i platform uses a different fuel system, with a dosing valve that compensates for ambient temperature down to -15°C. That platform exists because the IM350's 0°C lower limit and the IM65's +5°C lower limit are marginal in a UK winter. If you're hiring or buying a gun specifically for a cold-weather first fix (November through February), the Series-i is worth the price jump. Its cells cost roughly double, but the gun actually fires.

Paslode IM350+ framing cells

The IM350+ is the UK workhorse gas framing nailer. Used on almost every extension that involves timber framing and site power isn't conveniently available. Its fuel cell (Paslode 300346) is the most commonly stocked consumable at Screwfix, Toolstation, and Travis Perkins.

£20–£21 per cell at the major UK merchants, usually sold in a 2-pack at the typical 2-pack rate. Screwfix and Selco both stock the 2-pack at broadly similar prices, with Travis Perkins tending to be marginally cheaper for trade account holders. All three are store-collection only. Fuel cells are classified as pressurised flammable gas under the Carriage of Dangerous Goods regulations, so they don't ship by courier.

Shot count: 1,100 per cell is Paslode's official figure and holds in moderate conditions. Expect 700–900 if the cell gets cold mid-day and you don't rotate it. On a 30m² kitchen extension with a stud-framed internal partition, rafter noggings, and a flat-roof deck to fix down, you'll get through 2–4 cells across the first-fix phase. Stock three in advance and you won't run out.

Click to enlarge

Paslode IM65 and IM65A finishing cells

The IM65 (straight) and IM65A (angled) are the second-fix equivalents, firing 16-gauge F16 brads for skirting, architrave, scotia, and loose trim. The finishing fuel cell (Paslode 300341) is smaller than the framing cell but uses an identical attachment format within its own platform.

£20–£22 per cell, again typically sold as a 2-pack at the major merchants. Shot count is 1,000 per cell, slightly lower than the framing cell. The practical difference for extension work is modest: a full second-fix run of skirting and architrave across a 30m² extension uses about 1–2 cells in total.

The IM65 has a stricter cold-weather envelope than the IM350+. Its official lower operating limit is +5°C, not 0°C. That matters because second-fix work often takes place in autumn or winter after the roof is watertight but before central heating is running. Unheated new-build interiors at this stage routinely sit at 4–8°C. The IM65 will start to misfire well before you've noticed how cold your hands are. Keep a spare cell in a trouser pocket, close to body heat. Swap the in-tool cell for the pocket-warmed one every 20–30 brads in sub-10°C conditions.

Series-i fuel cells

The Series-i platform (IM360Ci, 360Xi, PPN35Ci, PPNXi) is Paslode's heavy-duty line, rated to -15°C and delivering noticeably more power (105 Joules vs 82 Joules on the IM350+). Its cells use a different dosing valve that adjusts gas quantity dynamically for ambient temperature.

[Unknown price: nailer-fuel-cell-series-i-single] per cell, sold as a single rather than a 2-pack. That feels expensive next to a typical framing cell, until you work out the per-shot cost: roughly £0.030 per shot for the Series-i (£38 across 1,250 shots) vs roughly £0.019 per shot on the IM350+ (£21 across 1,100 shots). The Series-i runs about 60% more expensive per shot but only pays off if you actually work in cold conditions the other platforms can't handle. For a typical one-off UK extension build starting in spring or summer, an IM350+ on 300346 cells is the economically correct choice. For a November-to-February heavy-framing job, the Series-i earns its price.

Battery, the other consumable

The fuel cell gets most of the attention but the Paslode Li-ion battery is also a wear part. The current 7.4V battery (part 018880, compatible across IM350+, IM65/IM65A/IM50, 360Xi, IM360Ci, PPNXi, PPN35Ci) delivers around 9,000–10,000 shots per full charge on the framing and finishing platforms, and lasts 2–3 years of moderate site use before cells fatigue and hold less charge.

[Unknown price: paslode-7-4v-li-ion-battery] depending on whether you buy OEM Paslode or aftermarket. Aftermarket 7.4V replacements (Amazon UK and eBay) start at approximately £35 and perform acceptably. OEM Paslode 018880 batteries from Screwfix list at around £63, with Screwfix currently selling them at the discounted price of £47.99 (April 2026). The difference is warranty coverage and, anecdotally, slightly more consistent spark delivery in the cold. For a homeowner with a hired-in gun, OEM isn't worth it. For someone buying a new gun and expecting several years of use, it is.

Shelf life and the UK short-dated stock problem

Sealed Paslode cells carry a 2-year shelf life from date of manufacture, stored above 0°C. Once you fit a cell to the tool, that shelf life drops sharply: 6 months once fitted or opened is the practical rule, because even a sealed dosing valve leaks a trace of gas per month when pressed against the tool's receiver.

The use-by date is printed on the base of the can. Check it before you buy.

This matters in the UK because trade merchants routinely sell cells with less than 6 months left before the use-by date. Amazon reviews for both genuine Paslode and third-party Firmahold cells repeatedly flag stock arriving with 8 months remaining vs the expected 18+. A BuildHub thread has a Toolstation employee claiming the date is "manufacture, not use-by", which is wrong. Paslode's own fault-finding guide confirms the date is a "Best Used By" figure and performance degrades after it.

Rules for buying:

• Check the base of the can. Use-by date should be at least 12 months in the future.
• If it's 6 months or less, ask for fresher stock from the back of the shelf, or buy from a different retailer.
• Don't stockpile fuel cells. Buy 2–4 at a time for a specific job, not a case for "next year".
• Cells stored in a cold garage or unheated van lose pressure faster than cells kept in a warm workshop. Store indoors if you have the space.

Why third-party cells misfire (and why the saving isn't worth it)

Firmahold (by TIMCO), Tacwise, and a handful of unbranded cells sell as "Paslode-compatible" at typically lower prices than genuine cells. The saving is real. So is the failure rate.

Third-party cells fail for three reasons:

Propellant mix. Paslode's cells contain a specific mix of propene and but-1-ene. Third-party cells use propane/butane or isobutane/propane blends, which ignite at different pressures and burn with different flame speeds. The Paslode dosing valve is calibrated for the Paslode mix. Feed it a different propellant and the combustion stroke comes out under-powered (nail doesn't fully seat) or over-rich (excessive carbon fouling on the igniter).

Nozzle geometry. The Paslode fuel receiver inside the tool has a precise rubber seat designed for the Paslode valve stem. Third-party valve stems are close but not identical. Some seat fine. Some leak gas past the seal, reducing the charge that reaches the chamber. A DIYnot user tested 20 Firmahold cells on a freshly serviced IM65 and every one failed to fire reliably, while genuine Paslode gas worked first time.

Warranty. Paslode's 3-year tool warranty explicitly requires original consumables. Use third-party cells, break a dosing valve seal on the tool, and you're paying for the repair out of pocket. A typical Paslode service visit at a UK service centre costs more than the few pounds you would have saved by going third-party in the first place.

Net position: stick with genuine Paslode cells. If you need a budget consumable, save on nails (Timco nails in Paslode-compatible strips sit at the lower end of the £20 – £30 range while Paslode-branded strips sit at the upper end) and spend the saving on proper fuel.

Cold weather: the pocket trick and the dosing valve

Every cold-weather thread about Paslodes on BuildHub, DIYnot, and Fine Homebuilding ends with the same advice: keep a spare cell in your trouser pocket. It's not folk wisdom. It's physics.

Propene and but-1-ene are liquid inside the pressurised cell at room temperature. The dosing valve releases a small volume of the liquid, which flashes to gas as it enters the combustion chamber at near-atmospheric pressure. That flash vaporisation depends on the liquid's internal pressure, which drops as the cell cools. At 10°C you get a weaker flash than at 20°C. At 0°C the pressure is marginal on the IM350 platform. At -5°C the tool won't reliably fire without a warmed cell.

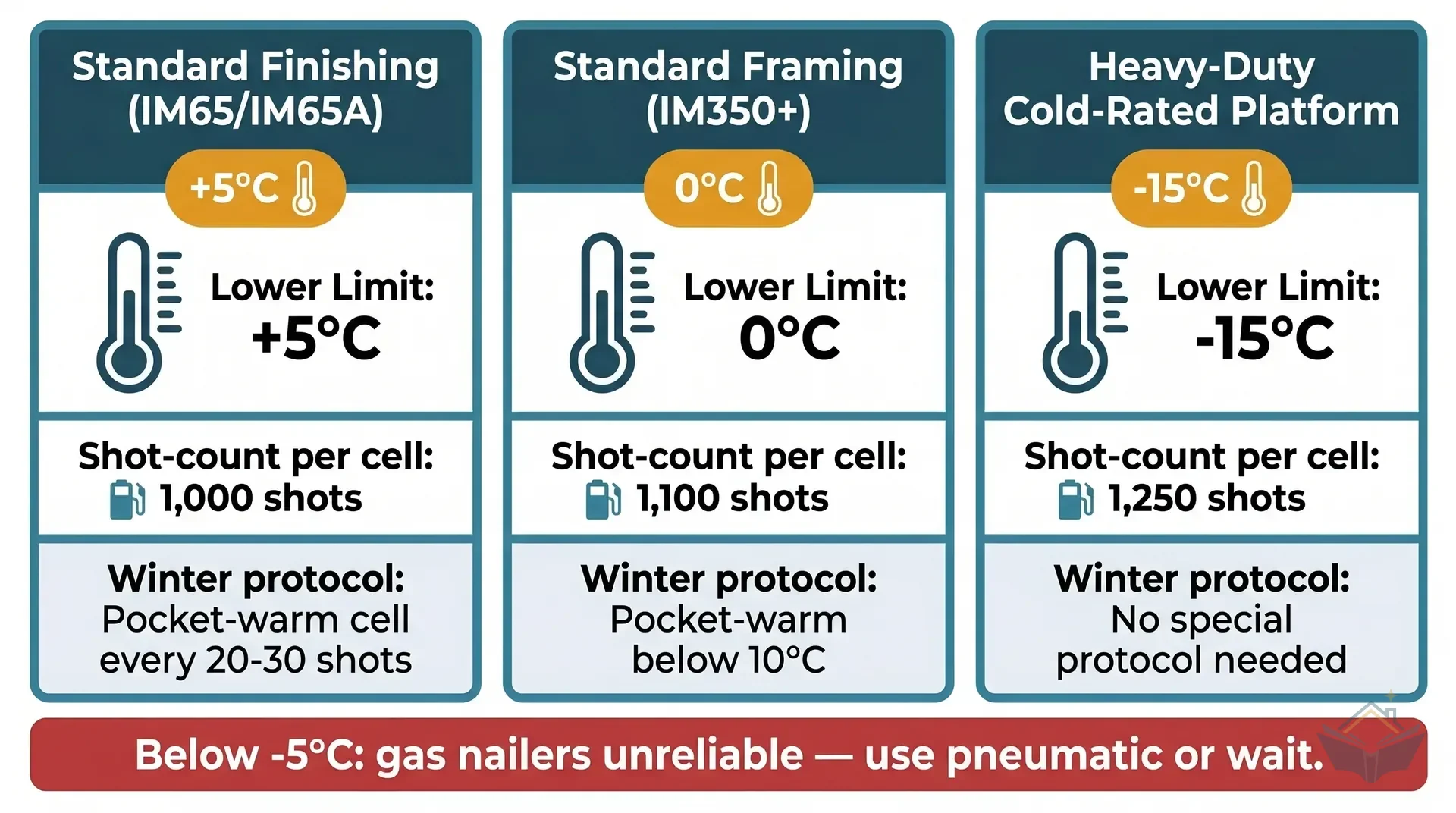

Cold-weather protocol:

• Above 10°C: no special handling needed. Fit, fire, move on.
• 5°C to 10°C: warm the cell in your pocket for 5 minutes before fitting. Once in the gun, it stays at tool temperature during use.
• Below 5°C (IM65 region): keep a second cell in your pocket at all times. Rotate every 3–4 nail strips. Let the "cooling" cell warm up while the freshly warmed one is in the tool.
• Below 0°C (IM350 minimum): either switch to the Series-i platform or accept that you'll be rotating cells every strip and still getting occasional misfires. Consider hiring a pneumatic setup for the week.
• Below -5°C: don't use a gas nailer. Use a compressor and a pneumatic gun, or wait for a warmer day.

The tool itself also gets cold if left outside overnight. A frozen tool plus a cold cell equals zero fires. Bring the whole tool indoors overnight in winter.

Alternatives: pneumatic and all-electric

Two alternatives exist for homeowners who want to avoid the gas-cell life cycle entirely.

Compressor plus pneumatic nailer is the long-standing professional alternative. A £60–£120 entry-level framing nailer plus a £80–£200 small oilless compressor gets you up and running for a typical combined outlay in the low-to-mid hundreds. Running cost is pennies per 1,000 nails (a shot of air) vs the cost of a fresh fuel cell every 1,100 shots on gas. No fuel cells, no cold-weather misfires, no shelf life. The trade-offs: compressor noise (loud enough to annoy neighbours), hose tether (you're tied to wherever the compressor sits), and needing mains power on site. For a one-off extension where site power is available, the pneumatic setup is often the cheaper total cost of ownership, especially if you already own a compressor for tyres and paint spraying.

All-electric battery nailers (DeWalt DCN692, DCN890, Milwaukee M18 FUEL 2744) have closed most of the performance gap to gas Paslodes in the last 5 years and sidestep the fuel cell problem entirely. A DCN692 bare tool runs at approximately the £240–£260 mark and delivers comparable framing performance on an 18V XR 5Ah battery. Running cost is effectively zero, the tool works at any temperature the battery will hold charge, and there's no secondary consumable. The drawback is weight (4.1kg bare vs 3.3kg for an IM350+, rising to roughly 5kg with a 5Ah battery fitted) and up-front cost if you're not already invested in a DeWalt XR or Milwaukee M18 platform. Paslode has started responding with battery-only models, notably for second fix where the weight penalty is less significant.

For a one-off kitchen extension, the economic question is total cost across the job, not the cheapest tool on day one. A hired Paslode IM350+ at typical HSS daily-hire rates plus 3 fuel cells and a strip of nails across 4 days runs to a few hundred pounds all-in. A bought pneumatic kit at the low-to-mid hundreds keeps working for the next job. A bought Paslode (around the £450 mark) plus cells plus nails is the most expensive option unless you're using it for a second project.

How many cells for a typical UK extension

A 30m² rear kitchen extension typically needs:

• First fix framing (IM350+): 2–4 cells. Covers stud-wall framing to any internal partitions, rafter noggings, joist fixings, flat-roof decking, and any timber carcassing for soffits or eaves. Roughly 1,500–3,500 nails total.
• Second fix trim (IM65/IM65A): 1–2 cells. Covers skirting (typically 35–45m run), architrave (8–12 door openings at around 5m per opening), picture rails if fitted, and scotia. Roughly 700–1,500 brads total.
• Contingency: +1 cell per platform. Cold snaps, expired cells, and the one you dropped in wet concrete justify a spare.

Total fuel cell spend across the build typically lands in the low three figures inc VAT for a standard-framing, standard-finishing job, with a modest uplift if the job runs into winter and you burn through more. A rounding error on a £120,000 build. Budget a round £150 for fuel cells and you're covered.

Nails are a separate consumable at £20 – £30 per 1,000–1,100. A full first fix and second fix adds an additional contribution to consumables on top.

Disposal and transport

Used Paslode cells are pressurised containers even when "empty". They retain a small residual charge of unburned propellant and are classified as extremely flammable gas (GHS02) under UK CLP regulations.

Don't put them in the general-waste wheelie bin. A crushed cell in the back of a refuse truck has set bin lorries on fire in the UK before. Take spent cells to your local household waste recycling centre (HWRC) and hand them to the attendant for the hazardous chemicals skip. Use the GOV.UK postcode lookup if you're not sure where your nearest HWRC is.

Transport on the road falls under the Carriage of Dangerous Goods and Use of Transportable Pressure Equipment Regulations 2009 (SI 2009/1348). Small quantities (a few cells in a van) for personal use have practical exemptions, but if you're moving a box of 20+ cells you're into ADR territory. That's why Screwfix, Toolstation, Selco, and Travis Perkins all sell cells as store collection only. They ship tools and nails by courier, but not gas.

For storage during a build:

• Keep cells indoors, out of direct sunlight, below 50°C.
• Don't store them next to a boiler, radiator, or vehicle cab heater.
• Don't store them in a locked van in summer. Internal van temperatures in July can exceed 60°C, at which point the dosing valve starts to leak.
• Keep them away from any ignition source. That includes smoking, spark sources, and in extreme cases, static discharge from synthetic clothing.

Where you'll need this

• Nailers appear at every stage of timber framing and finish work. First-fix carpentry (stud walls, joists, noggings, flat-roof decking) is the heaviest usage phase and the main demand on framing cells.
• Second-fix joinery (skirting, architrave, scotia, and any pinned trim) uses the finishing cells sparingly across the run.
• Roof structure work on timber-framed builds or large extensions may also burn through framing cells, particularly where rafter-to-wall-plate connections are nailed rather than strapped.

These cells turn up on any extension, loft conversion, garden room, or garage conversion where a gas-powered Paslode is in use. The tool is universal across UK site carpentry.

Common mistakes

Using the wrong cell for the platform. Buying finishing cells for an IM350+ or framing cells for an IM65 wastes a cell's worth of money and stops the tool. Check the part number (300346 for framing, 300341 for finishing, 300348 for Series-i) before paying.

Leaving the cell fitted overnight in a cold van. The gun and cell both drop to ambient temperature, and the cell's dosing valve can ice up or leak. Bring the tool indoors. Or at minimum, remove the cell and store it inside.

Running third-party cells to save a few pounds. Some users report Firmahold cells work fine in their IM350. Others report systematic IM65 failures. The inconsistency is the problem. On a time-critical site day, you can't afford a gun that works on one cell and fails on the next from the same pack.

Not keeping a spare cell on site. Cells run out mid-job. A spare that's been warmed in a pocket or the tool bag in the kitchen gets you through to lunch. A spare in the merchant's shelf 40 minutes away does not.

Storing cells near heat sources. Radiators, boilers, vehicle cab heaters, direct summer sun. Any of these can push cell temperature above the 50°C storage limit and start the dosing valve leaking.

Assuming the battery is fine when the cell is new. Both consumables can fail independently. If a fresh cell still won't fire, swap to a known-good battery before stripping the tool. The light-code sequence on the IM350+ (flashing red vs solid red) tells you which consumable the tool blames. Check the manual.

Binning spent cells in general waste. HWRC or bust. A cell in a refuse truck is a fire waiting to happen, and refuse operators have been injured by them in the UK.
