Scrim Tape: The UK Homeowner's Complete Guide to Plasterboard Joint Tape

Your plasterer skims the new extension on a Tuesday. By the following weekend a hairline crack appears down the wall above the new bifold doors. Three weeks later there's another one running across the ceiling. You repaint. They come back. They paint again. They come back. The cracks are coming from joints between plasterboard sheets that weren't taped, or were taped badly. A 90m roll of scrim tape costs £4 – £6. The repaint and repair after it's missed costs ten times that.

What it is and what it's for

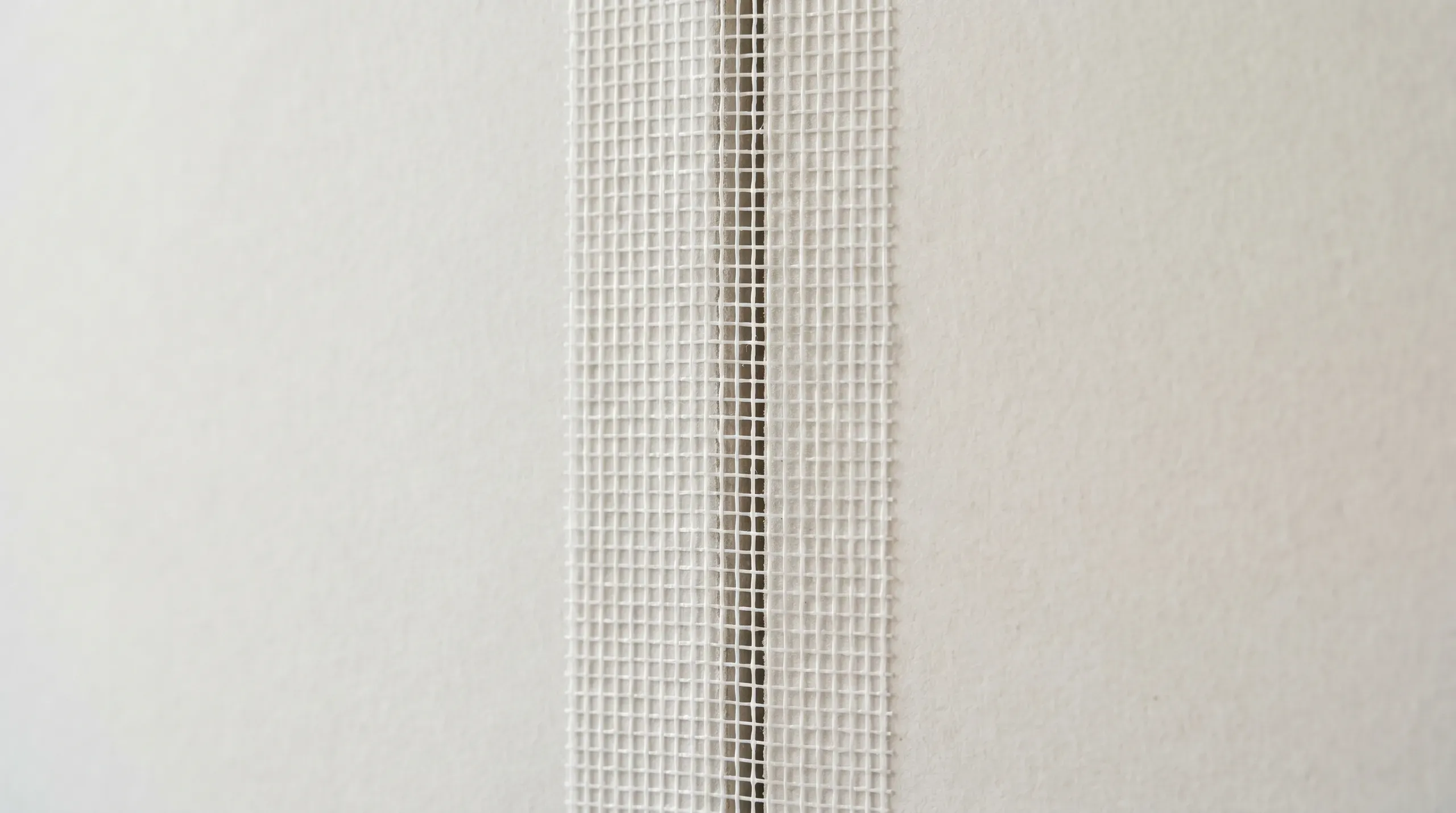

Scrim tape is a thin self-adhesive strip of fibreglass mesh, usually 50mm wide and supplied on 90m rolls. It goes on every joint between two plasterboard sheets before the plasterer skims, and it stops the joint cracking through the finished surface as the building moves and dries.

The mesh works because gypsum plaster is brittle. A solid wall of dried plaster has no give in it. Plasterboard, the timber framing behind it, and the surrounding masonry all expand and contract slightly with temperature and humidity. Without reinforcement, the weakest line on a freshly plastered wall is the seam between two boards, and that's exactly where every crack wants to form. Embedding a strip of fibreglass mesh in the plaster across the joint distributes the movement across a 50mm band instead of letting it tear at a single line. The mesh is what holds the skim coat together when the boards behind it shift by a fraction of a millimetre.

The word "scrim" itself comes from the muslin and burlap cloth Victorian plasterers used to bridge timber lath joints. The fibreglass mesh version turned up in the UK in the 1970s and is now standard on every domestic build. The job hasn't changed in 150 years; the material has.

NHBC Standards Chapter 9.2 require every plasterboard joint to be "neatly formed, flush, and suitably finished with scrim tape or paper tape where boards are to be plastered." If a snagging inspector finds a visible joint, an untaped joint, or scrim tape that can be felt or seen through the skim, that's a recorded defect. Your plasterer fixes it at their cost or yours.

The standard governing the product itself is more nuanced than most guides claim. BS EN 13963:2014 is often cited as the relevant standard, but its scope explicitly excludes tapes made from materials other than paper. Fibreglass mesh scrim tape sits outside BS EN 13963 entirely. Branded fibreglass tapes such as Gyproc FibaTape Xtreme are certified under ETA-09/0075 instead, the European Technical Assessment route used for products that fall outside harmonised standards. You'll see ETA-09/0075 quoted on Gyproc FibaTape Xtreme packaging. Own-brand mesh tapes are not always assessed under any formal scheme.

Match the tape to the system

This is the part most guides skip and where most homeowners get confused. There are two finishing systems for plasterboard, they use different tapes, and the choice of tape follows the choice of system.

If your plasterer is skimming the extension (the standard UK approach), they want square-edge or tapered-edge boards, scrim on the flat joints, and paper tape on the internal corners. If they're tape-and-jointing instead (no skim, sanded flat for direct paint), they want tapered-edge boards and paper tape on every joint with jointing compound. The systems aren't interchangeable and using the wrong tape on the wrong system is a recipe for cracks within months.

A direct test: ask your plasterer "are you skimming or tape-and-jointing?" If they say "skimming" and they only have fibreglass mesh on the van, they're about to use scrim on internal corners. That's the issue worth raising before they start.

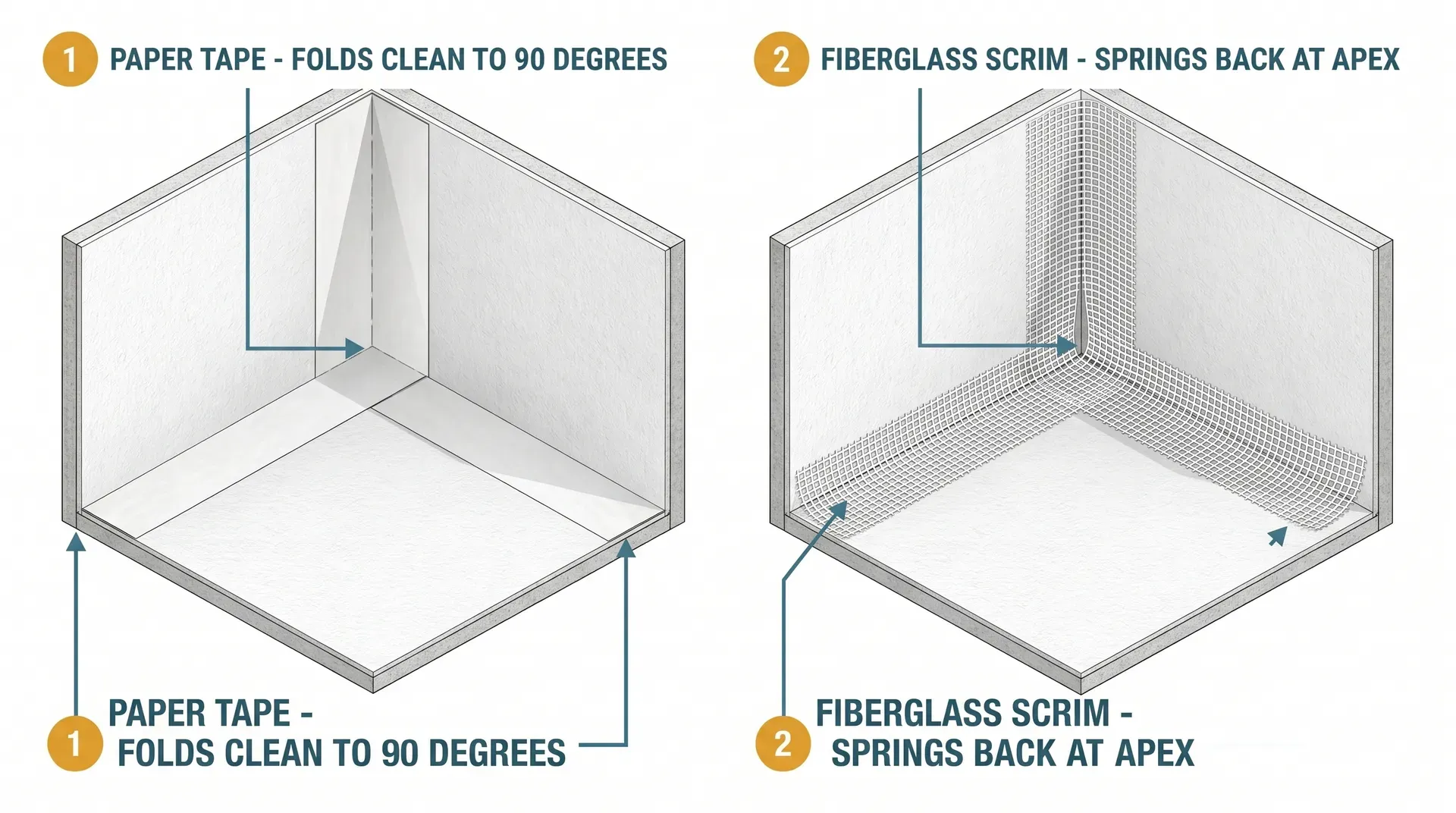

The internal corner problem

Both British Gypsum and Knauf publish the same recommendation: paper tape, not fibreglass mesh, for every internal corner. Wall-to-ceiling, wall-to-wall, around window reveals. The Federation of Master Builders trade press confirms this. So does Knauf's own technical specification, which states that paper tape "provides a stronger joint versus joints done with fibre tape and also less likely to be cut by trowel when pushing into an internal angle."

The problem with using mesh on a corner is geometric. Fibreglass scrim doesn't fold to a clean 90 degree angle. It bends, but the mesh wants to spring back, and it's stiff enough that the trowel point lifts the edge of the tape as the plaster gets pushed into the corner. Paper tape comes pre-creased down the centreline, folds to a sharp internal angle, and stays put under the trowel. The Siniat tape-and-joint system warranty actually requires their cross-fibre paper tape; substituting scrim at the corners voids the warranty.

In practice: most UK plasterers use scrim everywhere because it's faster. Self-adhesive mesh sticks straight to the board and doesn't need a bedding coat of compound underneath. Paper tape needs to be bedded in compound, scraped flush, and dried before the next coat goes on. That's an extra trip per wall. The shortcut is real, the saving is fifteen minutes per room, and the consequence is the cracked corner that appears nine months later when the building has been through one heating season.

The internal corner crack is the single most common plastering callback on a UK extension. If your plasterer is using scrim on corners, ask them why they aren't following the manufacturer specification. Most will tell you they always have done it and it always works. Some will be right. Some will not.

Click to enlarge

External corners are different. Use angle bead, not tape of any kind. A galvanised metal or PVC angle bead bedded into the plaster gives a hard straight protected edge that takes everyday knocks from furniture and doors. Trying to use scrim or paper on an external corner produces a soft edge that chips the moment something hits it. Angle beads are a separate product, fixed before the corner is plastered, and they're priced per metre rather than per roll.

Widths and what they're for

The 50mm width is the workhorse. It covers a standard 12.5mm plasterboard joint with about 25mm of tape on each side of the seam, which is enough to develop a strong bond on each board without leaving so much excess that the plasterer has to feather it across a wide band. Standard rolls are 90m long, which works out at around 36 to 40 metres of joint per board (one wall plus the ceiling joints in a typical extension room).

A 100mm wide tape is a different product for a different job. It's used for repair work over existing cracked plaster, where you don't know exactly where the movement line will run. The wider tape gives you a margin of error each side of the visible crack. It's also useful for joints between two materials that move at different rates, such as the seam where a new extension wall meets the original house wall. That junction is going to move regardless of how good the plastering is, and a wide scrim gives the skim coat a fighting chance of holding together. Ask your plasterer how they're treating the new-to-old wall junction before they start: "scrim tape" alone isn't an answer; "100mm wide scrim with an expansion bead" is.

100mm rolls usually come in 75m lengths rather than 90m, so don't assume an extra roll covers the same distance.

There's also a 25mm width sold in some merchants. It's fiddly and doesn't really save money on the cost-per-metre. Skip it. The 50mm is the right call for almost every domestic job.

How it gets applied

The application is fast in the hands of a plasterer who's done it a thousand times, but the technique is simple enough to describe. The plasterer or a labourer:

1. Wipes the joint clean of dust with a dry brush. Plasterboard offcuts shed gypsum dust and the self-adhesive backing won't stick to a dusty board.
2. Peels back the first 100mm of tape from the roll, presses it onto the joint at one end, and rolls the rest down the joint with one continuous pass, smoothing as they go.
3. Cuts the tape at the far end with a sharp utility knife or the edge of a finishing trowel.
4. Where two lengths of tape meet (long joints), butts them end-to-end. Never overlaps. An overlap creates a double-thickness lump that telegraphs through the skim coat as a visible bump.
5. Presses the tape firmly across its full width with the back of a trowel or a clean hand, eliminating any air bubbles or curled edges.

That's it. The scrim is now sitting on the board ready for the first plaster coat to go over it. The first scratch coat of multi-finish or bonding fully embeds the mesh in plaster; the second finishing coat polishes the surface flat.

The Gyproc FibaTape technical guidance specifies one detail most installers miss: tape over joints "no wider than 2mm." If two boards have been butted with a 5mm gap between them, fill the gap with jointing compound or bonding plaster first, let it set, then tape over the filled joint. Stretching scrim across an open 5mm void leaves the mesh unsupported in the middle, and the plaster pushed into the gap from above sags through the mesh as it dries.

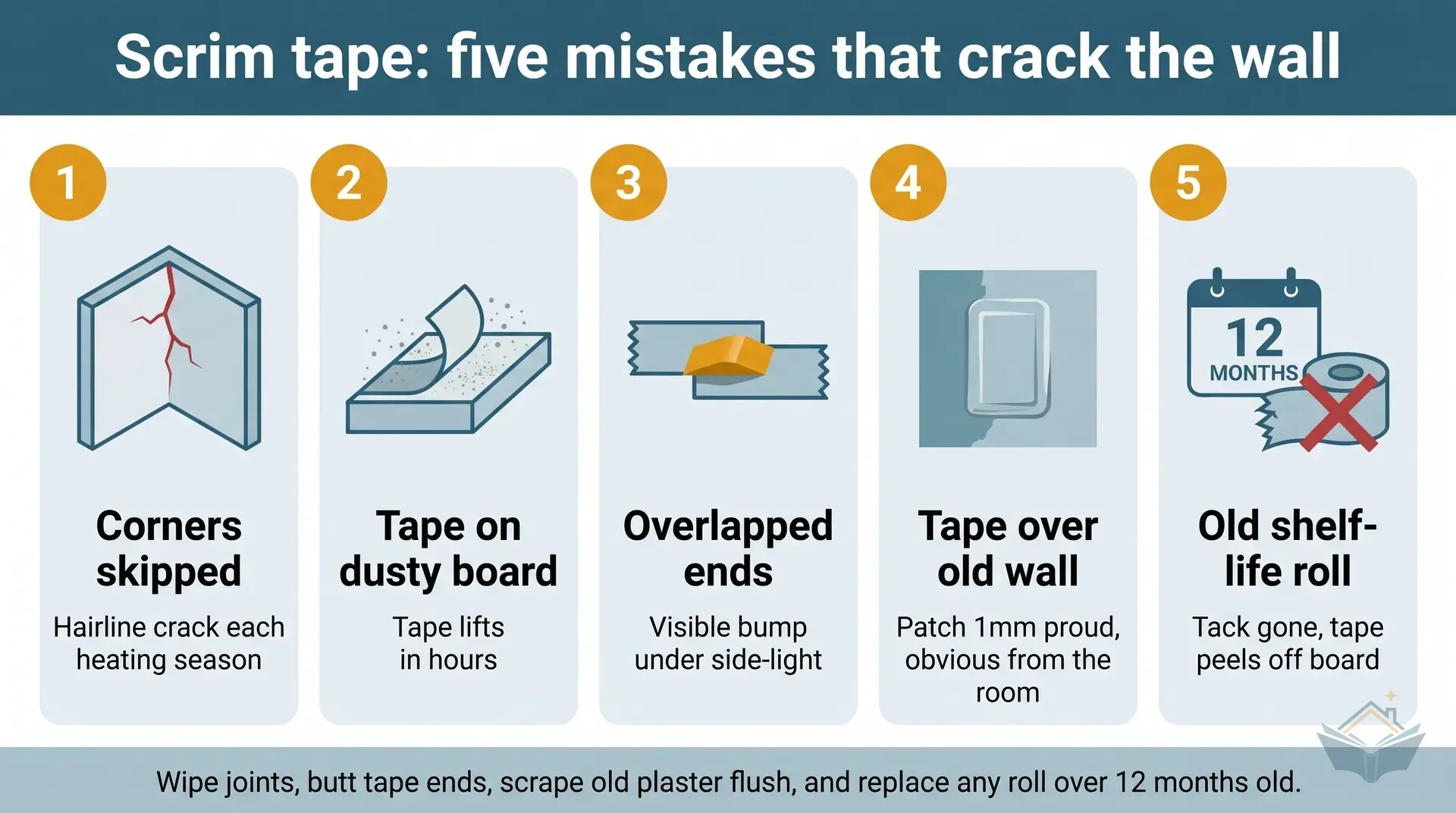

Common mistakes

Skipping internal corners entirely. A surprising number of plastering callbacks trace to this single error: scrim on the flat joints, nothing on the corners. The corner relies on the skim coat alone to hold itself together, and a single heating season is enough to put a hairline crack down every internal angle. The fix is a re-skim of the corners after the cracks have shown up; the cost is one to two days of trade time. Better to verify before the plaster goes on.

Applying scrim over a dusty board. The self-adhesive backing is a contact adhesive that needs a clean dry surface. On a freshly cut board, gypsum dust on the cut edge defeats the adhesive and the tape lifts within hours. The labourer should wipe every joint with a soft brush before taping. Dot-and-dab installations are the worst for this because the adhesive squeeze-out leaves smears across the joint line.

Overlapping tape ends. Wherever a long wall needs more than one length of tape, the temptation is to overlap by an inch "to be safe." It's the worst thing you can do. The double-thickness ridge under the skim coat creates a visible bump that catches every shaft of side-light from a window. Butt the ends together and let the plaster bridge the small gap.

Using scrim over an existing wall crack without scraping it flush. Scrim has thickness. About half a millimetre of mesh plus a similar thickness of adhesive backing means the tape sits roughly 1mm proud of the surface. On a fresh plasterboard joint that's fine because the skim coat covers it. On an existing painted wall, the tape sits visibly proud of the surface and the patch is obvious from across the room. Scrape any old plaster away to a depth that lets the tape sit flush, then build back up with bonding plaster and a finishing coat.

Leaving rolls in a damp shed for two years. The self-adhesive backing has a shelf life. Manufacturers quote 12 months stored at 15-25°C with minimal humidity. A roll left in a cold damp garage over two winters will have lost most of its tack and the tape lifts off the board within minutes of being applied. If you've got an old roll, test a 100mm strip on an offcut before relying on it across the whole extension. If it peels off without lifting paper from the board, throw the roll out. The cost of a fresh roll at £4 – £6 is trivial compared to the cost of redoing failed joints.

Tape visible through the skim coat. This is a plastering defect, not a tape defect, but homeowners blame the tape. NHBC standards are explicit: scrim that can be seen or felt through the finished surface means the skim coat is too thin. The minimum total skim depth is 2-3mm of multi-finish in two passes. If you can run your hand across a finished wall and feel the cross-weave of the mesh, the plasterer hasn't put enough plaster on. That's a re-skim, not a tape problem.

How much do you need

Rule of thumb: one 90m roll covers roughly 90 linear metres of joint. A standard 4m x 6m kitchen extension with a 2.4m ceiling typically has 30 to 40 metres of plasterboard joint per room (perimeter joints between wall boards, internal-corner joints, ceiling joints between adjacent ceiling boards). Buy one roll per medium room as a baseline and have a spare on site.

A worked example for a typical 4m x 6m single-storey extension:

• Ceiling boards (running across the joists): roughly 12 metres of joint between adjacent boards
• Wall-to-wall internal corners: 4 corners x 2.4m = 9.6 metres
• Wall-to-ceiling internal corners: perimeter (20m) = 20 metres of paper tape, not scrim
• Vertical joints between wall boards: typically 2 to 3 per wall x 4 walls x 2.4m height = 24 to 28 metres
• Total scrim tape on flat joints: about 36 to 40 metres
• Total paper tape on corners: about 30 metres

One 90m roll of scrim and one 90m roll of paper tape cover an average kitchen extension comfortably with offcuts to spare.

Cost and where to buy

Own-brand fibreglass scrim tape (Wickes, Toolstation, Screwfix) costs £4 – £6 per 90m roll. The cheap end of the market and perfectly serviceable for a domestic skim job. Screwfix No Nonsense, Wickes own-brand, and Toolstation Ultratape all cluster within pennies of each other. Adhesion is consistent enough that most professionals use one of these on their day-to-day work.

Branded Gyproc FibaTape (the British Gypsum product) runs £7 – £10 per 48mm x 90m roll. The premium variants (FibaTape Xtreme orange, with higher tack and an alkali-resistant ALKAMAXX coating that protects the adhesive from the high-pH environment of fresh plaster) are at the upper end of that range. The Xtreme won the Professional Builder Top Product 2021 award and is the right call for ceilings where adhesion failure is a known issue, particularly on new-builds where the boards are cold and the structure is still drying.

Wider 100mm scrim for repair work runs £8 – £11 per 75m roll. Toolstation stocks Gyproc Xtreme Xtrawide; Wickes stocks Hippo Ultimate Orange at the cheaper end of the range.

Paper jointing tape for internal corners and tape-and-joint systems is £4 – £12 per roll, depending on length (90m or 150m). Screwfix No Nonsense stocks the cheap 90m option; Wickes carries Knauf 50mm x 150m at the upper end of the range. Per-metre, paper is cheaper than scrim. The reason most plasterers prefer scrim is speed of application, not cost.

A Marshalltown mesh tape applicator gun runs £30 – £40. It's a niche tool. Worth it for a plasterer doing tape-and-joint work all day. Not worth it for a homeowner taping their own extension.

Buy the tape at the same time as the plasterboard. Most builders' merchants stock all the major options. The price difference between own-brand and Gyproc is small enough that paying the extra for a flagship roll on a ceiling is not a stretch. Clarify with the plasterer who's supplying materials before they arrive, or you'll lose half a day to a merchant trip while a tradesperson stands around waiting.

Where you'll need this

• Plastering - applied across every plasterboard joint before the skim coat goes on, paper tape preferred at internal corners, angle bead at external corners
• Walls and Blockwork - relevant where stud partitions are clad in plasterboard within the new structure, before plastering proceeds

These joints occur on every internal stud wall and every plasterboarded ceiling on any extension or renovation project. The tape is also part of crack-repair work on existing walls that have settled. A roll of 50mm scrim and a roll of 50mm paper tape are worth keeping in any homeowner's tool stash for repairs after the build, because a wall that cracks two years after the extension was finished is a one-evening fix with the right materials and a small bag of multi-finish.
