Moisture-Resistant Plasterboard (Green Board): When You Need It and When You Don't

Click to enlarge

You tile a kitchen splashback onto standard white plasterboard, grout it, and it looks great for six months. Then the grout starts darkening. The tiles near the sink feel slightly soft when you press them. Within a year the adhesive has failed behind two tiles, and when your tiler pulls them off to investigate, the plasterboard behind is swollen and black with mould. The board absorbed moisture through the grout joints, expanded, and lost its bond. Stripping, re-boarding with the correct material, and re-tiling costs three times what the original job did. All because nobody mentioned that the area behind a kitchen sink needs moisture-resistant board.

What it is and what it's for

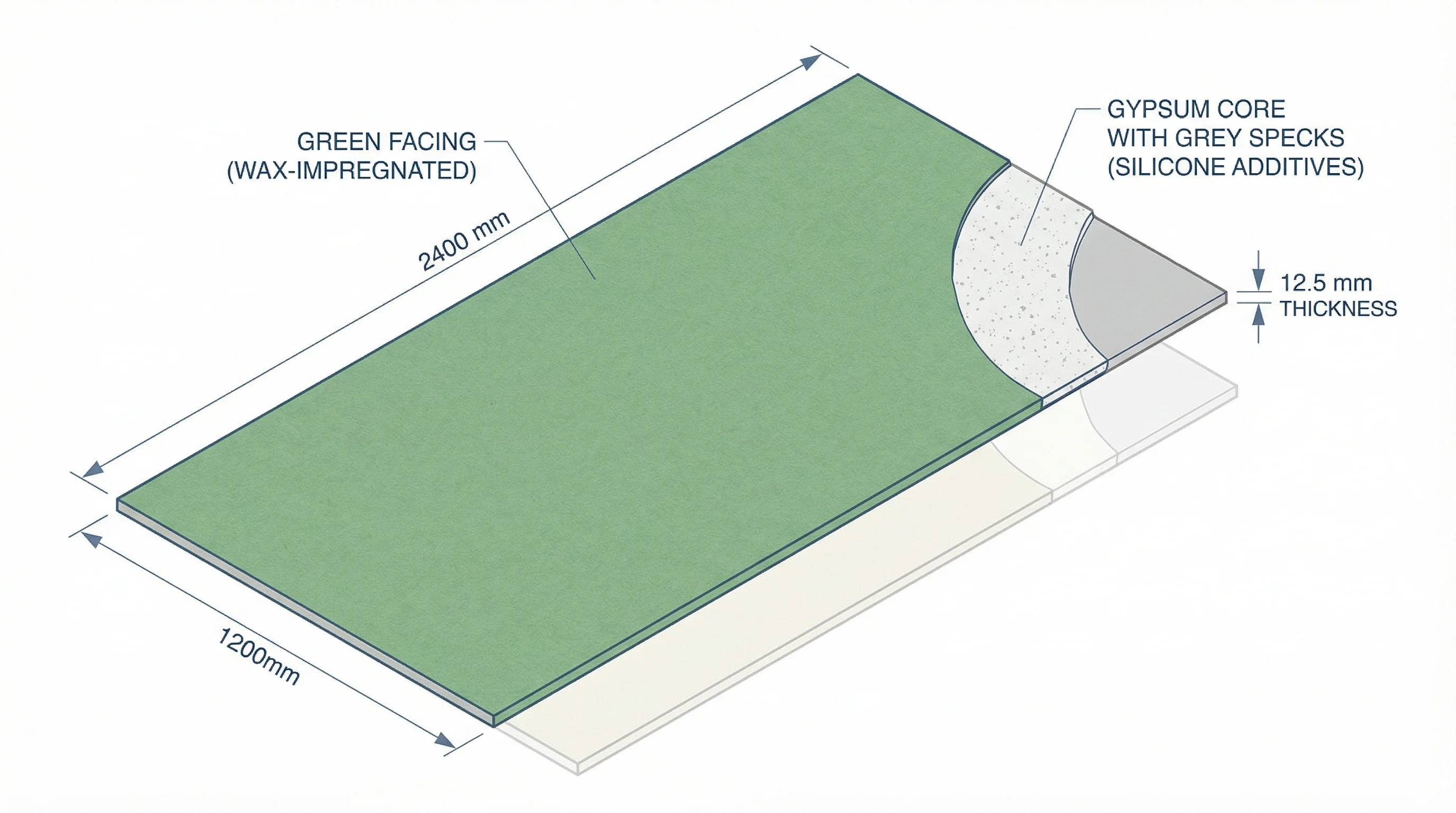

Moisture-resistant plasterboard (MR board, commonly called "green board" because of its distinctive green paper facing) is a modified version of standard plasterboard designed for areas exposed to intermittent moisture. Kitchens. Bathrooms. Utility rooms. Anywhere steam or splashing water is part of daily life.

The modification is threefold. The paper facings are impregnated with wax to repel surface moisture. The gypsum core contains silicone additives that reduce water absorption. And the crystal structure of the gypsum itself is modified during manufacture to resist moisture penetration. The result is a board that resists moisture far better than standard plasterboard, which absorbs water readily and swells when damp.

That 5% figure comes from BS EN 520, the European standard for gypsum plasterboard. MR boards are classified as Type H1 (the highest moisture resistance grade, absorbing 5% or less by weight). You'll occasionally see H2 (up to 10%) and H3 (up to 25%) mentioned in technical literature, but every MR board sold by British Gypsum, Knauf, and Siniat in the UK is H1. If it's green, it's H1.

The colour coding is universal across all UK manufacturers. Green means moisture-resistant. White or ivory is standard. Pink or red is fire-rated. Blue is acoustic. If you're in an older property trying to identify existing boards, that colour tells you exactly what's behind the plaster.

What building regulations say

Approved Document C (Site Preparation and Resistance to Contaminants and Moisture) requires moisture-resistant materials in areas where water may be spilled. For domestic properties, that means bathrooms, shower rooms, kitchens, and utility rooms. LABC (Local Authority Building Control) confirms that boards in these areas must be "laid, fixed and jointed in the manner recommended by the manufacturer."

A point of clarity: Approved Document C doesn't specify MR board by name on walls. It sets a performance requirement, and MR plasterboard is the standard way to meet it. Your building control officer will expect to see green board on bathroom walls and in moisture-prone kitchen areas. Using standard white board in a bathroom is a building control inspection failure waiting to happen.

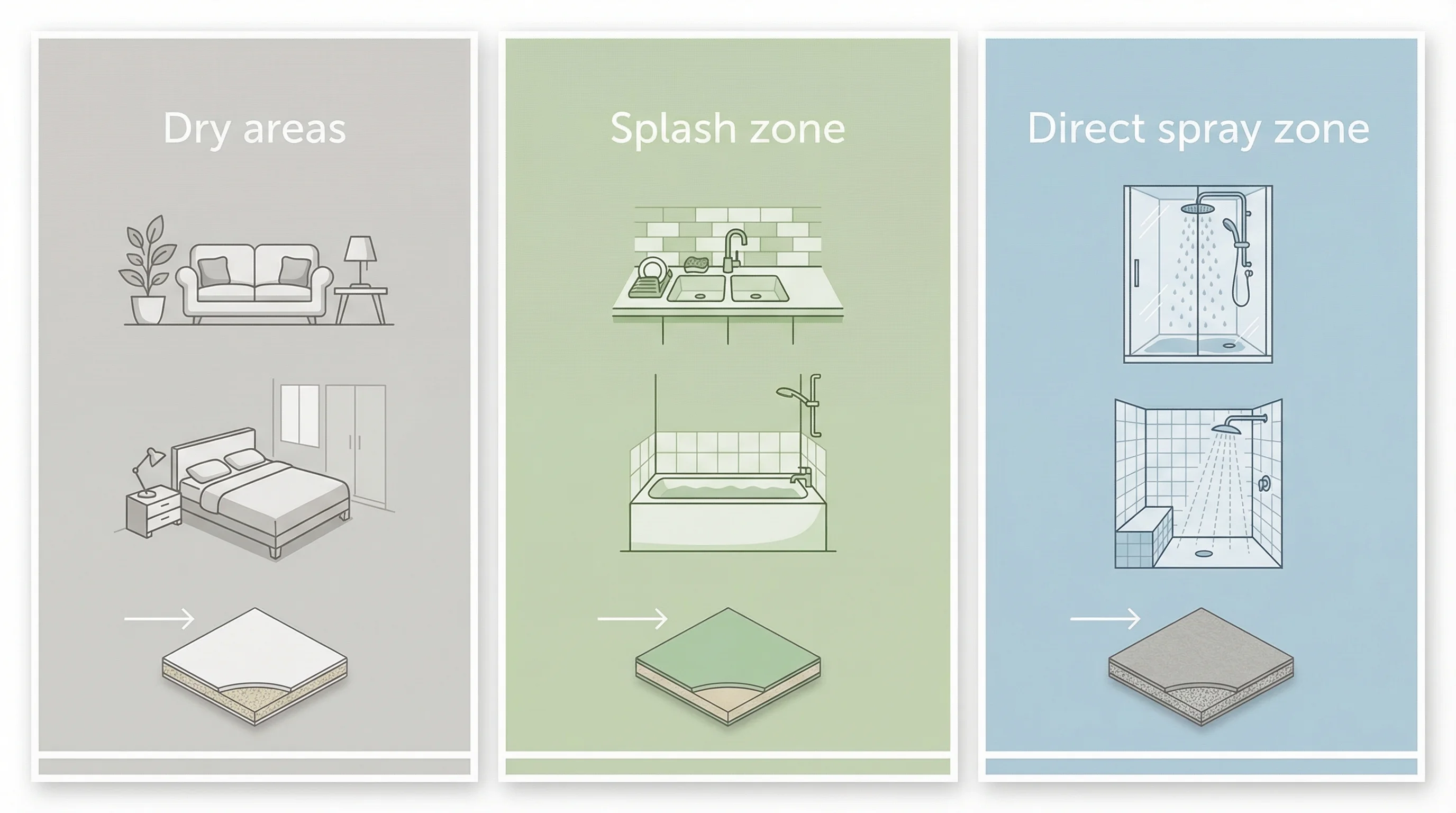

The three-zone decision: which board goes where

This is the single most useful piece of guidance on this page, and no competitor explains it clearly. Every wet area in your home falls into one of three zones, and each zone needs a different approach.

Click to enlarge

Zone 1: Dry areas. Living rooms, bedrooms, hallways, kitchen ceilings (unless directly below a bathroom). Standard white plasterboard. No need for MR board. Don't waste the money.

Zone 2: Splash and humidity areas. Around kitchen sinks, behind hobs, bathroom walls away from the shower, en-suite basin areas, utility rooms. This is where MR green board earns its keep. The board handles occasional splashing and elevated humidity without swelling or degrading. Tile directly onto it with flexible cement-based adhesive (more on that below).

Zone 3: Direct water spray. Inside shower enclosures (floor to ceiling), wet rooms, and any area that gets sustained water contact. MR board alone is not enough here. You have two options: cement board (HardieBacker, Knauf Aquapanel), which is fully waterproof and manufactured to BS EN 12467; or MR green board with an EAD-certified liquid tanking membrane applied over the top before tiling.

The NHBC update you need to know about

From January 2025, NHBC-registered new-build homes have stricter requirements for shower areas. Any shower with a flow rate above 12 litres per minute (which includes most power showers and many modern thermostatic showers) now requires an EAD-certified tanking system regardless of the substrate. That applies whether you're using MR board or cement board.

For standard-flow showers below 12 litres per minute, tanking is required if the substrate manufacturer's guidance says so. British Gypsum's guidance for Gyproc MR does recommend tanking in shower areas.

The practical takeaway: if you're tiling a shower enclosure, apply a tanking membrane. Products like BAL Waterproof 1C (a roll-on liquid membrane) are EAD-certified and allow tiling within 2 hours of application. It adds around £70 – £80 to the material cost per shower (one 5-litre tub covers a standard three-wall enclosure) and eliminates the waterproofing argument entirely.

Types, sizes, and specifications

MR board is simpler than standard plasterboard in one respect: there are fewer variants to confuse you. The main choices are thickness and edge type.

For a domestic kitchen or bathroom, 12.5mm is the standard. The 15mm board is overkill unless your specification requires it (some commercial kitchen fit-outs mandate 15mm minimum).

Edge types follow the same logic as standard plasterboard: tapered edge for tape-and-joint finishing, square edge for skim plastering. Ask your plasterer which they want before you order.

Brands: they're all the same

British Gypsum sells Gyproc Moisture Resistant. Knauf sells Moisture Panel. Both are manufactured to BS EN 520 Type H1 and perform identically. The Gyproc board has a slightly lower thermal conductivity (0.19 vs 0.24 W/mK), but in practice neither brand has a meaningful advantage. Buy whichever your merchant stocks or whichever is cheaper on the day.

How to work with it

MR board cuts, screws, and handles the same as standard plasterboard. If you've worked with white board, green board feels identical in the hand. The differences are in what happens after fixing.

Cutting

Score the green face with a sharp utility knife along a straight edge, to about one-third of the board depth. Snap the board along the score line. Cut through the backing paper with the knife. For socket and pipe cutouts, use a padsaw or jab saw. The wax-impregnated paper is slightly tougher than standard paper but not noticeably so when cutting.

Fixing to studs or battens

Same method as standard board. 38mm drywall screws into timber studs at 300mm centres on walls, 230mm centres on ceilings. The screw must penetrate at least 25mm into the timber. Keep screws 13mm from board edges and 10mm from corners.

Leave a 10mm gap at floor level. Moisture wicks upward through gypsum by capillary action. That gap (hidden by the skirting board) prevents the bottom edge of the board from sitting in any surface water.

Dot and dab

Dot-and-dab adhesive fixing works on solid, dry masonry walls. Apply adhesive dabs in the same pattern as standard board. Some manufacturers recommend mechanical fixings in addition to adhesive in wet areas, because the moisture-repellent surface can reduce adhesive bond strength over time. If in doubt, add three supplementary screws through the board into the masonry using concrete screws.

Skimming: the Thistle Bond-it step everyone forgets

Here's where MR board differs from standard board in a way that matters. The water-repellent additives that make the green face resist moisture also prevent plaster from bonding to it. Standard multi-finish plaster applied directly to untreated MR board will not bond. It will crack, bubble, and eventually fall off the wall in sheets.

The fix is a product called Thistle Bond-it, made by British Gypsum. It's a bonding agent that contains grit particles, creating a rough mechanical key for the plaster to grip. Brush or roll it onto the green face and let it dry (typically 2-3 hours) before your plasterer skims. No exceptions. Skip this step and the plaster fails. Every plasterer who's worked with green board knows this, but if you're DIY-skimming or using a plasterer who hasn't encountered MR board before, make sure Bond-it goes on first.

Tiling directly onto MR board

For Zone 2 (splash areas), you can tile directly onto the green face without skimming first. Use a flexible cement-based tile adhesive (Mapei Keraquick, BAL Rapid-Flex, or Weber Set Rapid are all suitable). The flexible formulation accommodates slight board movement without cracking.

Two critical rules when tiling onto MR board:

Do not apply PVA before tiling. This is a common beginner mistake. PVA is water-based. When you spread tile adhesive over a PVA-coated surface, the moisture in the adhesive reactivates and degrades the PVA film. The tiles feel solid initially, then start dropping off weeks or months later. PVA has no place between MR board and tile adhesive. Apply the adhesive directly to the green face.

Respect the 32 kg/m2 tile weight limit. A standard ceramic wall tile (6mm thick) weighs roughly 14 kg/m2. Porcelain at 10mm thick runs closer to 24 kg/m2. Large-format porcelain or natural stone can exceed 32 kg/m2. If your tiles are above this threshold, the board cannot support them safely, and you need cement board or a mechanically fixed tile backer system.

How much do you need

For a kitchen extension, MR board typically goes on the walls around the sink, behind the hob, and on any walls where splashing or steam exposure is likely. You don't need it everywhere. The ceiling and dry walls get standard white board.

Worked example: kitchen extension splashback and wet walls

Assume a 3m run of worktop with sink, plus a 1.5m hob area. Wall height 2.4m. The area behind the sink and worktop run: 3m x 2.4m = 7.2m2. Hob wall: 1.5m x 2.4m = 3.6m2. Total MR board area: 10.8m2.

10.8 / 2.88 (coverage per board) = 3.75 boards. Add 10% waste = 4.1 boards. Round up to 5 boards.

For a full bathroom refit (all walls MR board): perimeter of a typical bathroom (2.5m x 2m) = 9m. At 2.4m height = 21.6m2. Minus door (1.7m2) and window (0.6m2) = 19.3m2. Divide by 2.88 = 6.7 boards, plus 10% = 7.4 boards. Order 8.

Cost and where to buy

MR board costs roughly 40-70% more than standard plasterboard. For a 12.5mm board at 2400x1200mm, current UK pricing:

For comparison, standard 12.5mm plasterboard runs £9 – £13 per board. The premium for MR is real but not dramatic when you're only boarding a few walls. Five MR boards for a kitchen costs £65 – £120 depending on where you buy. That's the cost of getting it right.

Online insulation and plasterboard specialists consistently undercut the national merchants. If you're ordering 5+ boards, compare prices at Trade Insulations, Cut Price Insulation, and Builders Shop Online before defaulting to Wickes or Screwfix. Delivery on plasterboard is typically free above £200 – £300, and five MR boards alone won't hit that threshold, so combine with your standard board order.

For trade counter pricing at Travis Perkins or Jewson, even a basic trade account drops the price significantly. Your plasterer almost certainly buys at trade rates. If they're supplying materials, ask what they're charging per board.

Standard board for comparison

A quick sanity check. Standard 12.5mm plasterboard: £9 – £13 per board. MR 12.5mm: £13 – £19 from online suppliers, £25 at Wickes. The cheapest MR board costs roughly the same as the most expensive standard board. For a 5-board kitchen job, the difference between standard and MR is £20 – £50. Not worth economising on.

Alternatives

Cement board (HardieBacker 12mm, Knauf Aquapanel 12.5mm) is the right choice for Zone 3 (direct water spray). It's manufactured to BS EN 12467, fully waterproof, and doesn't need tanking in most applications. The trade-off is cost (around £24 per board for a smaller 900x1200mm Aquapanel sheet, which works out to roughly £22/m2 versus £5 – £8/m2 for MR board) and workability. Cement board is harder to cut (you need a scoring tool or diamond blade, not a Stanley knife) and heavier. Use it where you need it. Don't use it everywhere.

Standard plasterboard with tanking membrane. Some tilers argue that standard board plus a liquid tanking membrane is as effective as MR board for splash zones, at lower material cost. Technically true for the tiled surface. But the MR board provides insurance for any area the tanking doesn't cover perfectly, such as above the tile line, around the edges, and at board joints. Belt and braces.

Plywood substrate (WBP marine ply, 12mm). An older method still used by some tilers, particularly for floor tiles. Moisture-resistant, strong, and provides excellent screw grip for heavy tiles. But it's expensive (£25 – £35 per 2440x1220mm sheet), heavy, and not standard practice for wall tiling in new builds.

Where you'll need this

• Plastering - green board on kitchen walls subject to moisture, behind the sink, around cooking areas, and on any walls likely to get wet
• Tiling - MR board as tile substrate for intermittent moisture areas where cement board is not needed

Moisture-resistant plasterboard appears in any project with a kitchen, bathroom, en-suite, or utility room. It's not specific to extensions. Bathroom refits, loft conversions with en-suites, and garage conversions with utility areas all use MR board in the wet zones.

Common mistakes

Using standard white board in a bathroom. The most expensive version of this mistake. Standard gypsum plasterboard absorbs moisture, swells, and loses structural integrity. In a bathroom with daily shower use, you'll see the plaster bubbling within 12-18 months. Re-boarding an entire bathroom after the tiling is done is destructive and expensive.

Assuming green board is waterproof. It isn't. It resists humidity and occasional splashing. Inside a shower enclosure with daily use, it will eventually absorb enough moisture to fail. Shower enclosures need either cement board or MR board with EAD-certified tanking.

Applying PVA before tiling. PVA breaks down under tile adhesive moisture. The tiles bond to the PVA, the PVA loses adhesion to the board, and you get tiles falling off the wall. Use flexible cement-based adhesive directly onto the green face. No PVA. No exceptions.

Skimming without Thistle Bond-it. The plaster won't stick. It might look fine for a week while it dries. Then it cracks, hollows, and detaches in sheets. Bond-it contains grit that creates a mechanical key. Brush it on, let it dry, then skim.

Ordering standard plasterboard when your specification says MR. This happens when someone at the builders' merchant picks the wrong item and the person collecting doesn't check. MR board is green. Standard board is white or ivory. Check every board that comes off the delivery truck. If it's white, send it back.
