Fire-Rated Plasterboard (Pink Board): Where You Need It, How It Works, and What to Buy
UK guide to fire-rated plasterboard: where Part B requires it, fire ratings by thickness, installation differences, the system concept, and prices by board thickness and dimensions.
By Ian
Project managed a £182k Oxfordshire kitchen extension
Building control turns up to inspect your garage conversion ceiling. The ceiling looks fine, neatly boarded and skimmed. The inspector asks what's behind the plaster. You say standard plasterboard, because that's what the builder used. The inspector says strip it, reboard with fire-rated, and rebook the inspection. That's a ceiling's worth of plasterboard, labour, plastering, and decoration, ripped out and redone because somebody used white board where pink board was required. The building regulations don't have a "near enough" clause. Get the board specification right first time.
What it is and what it's for

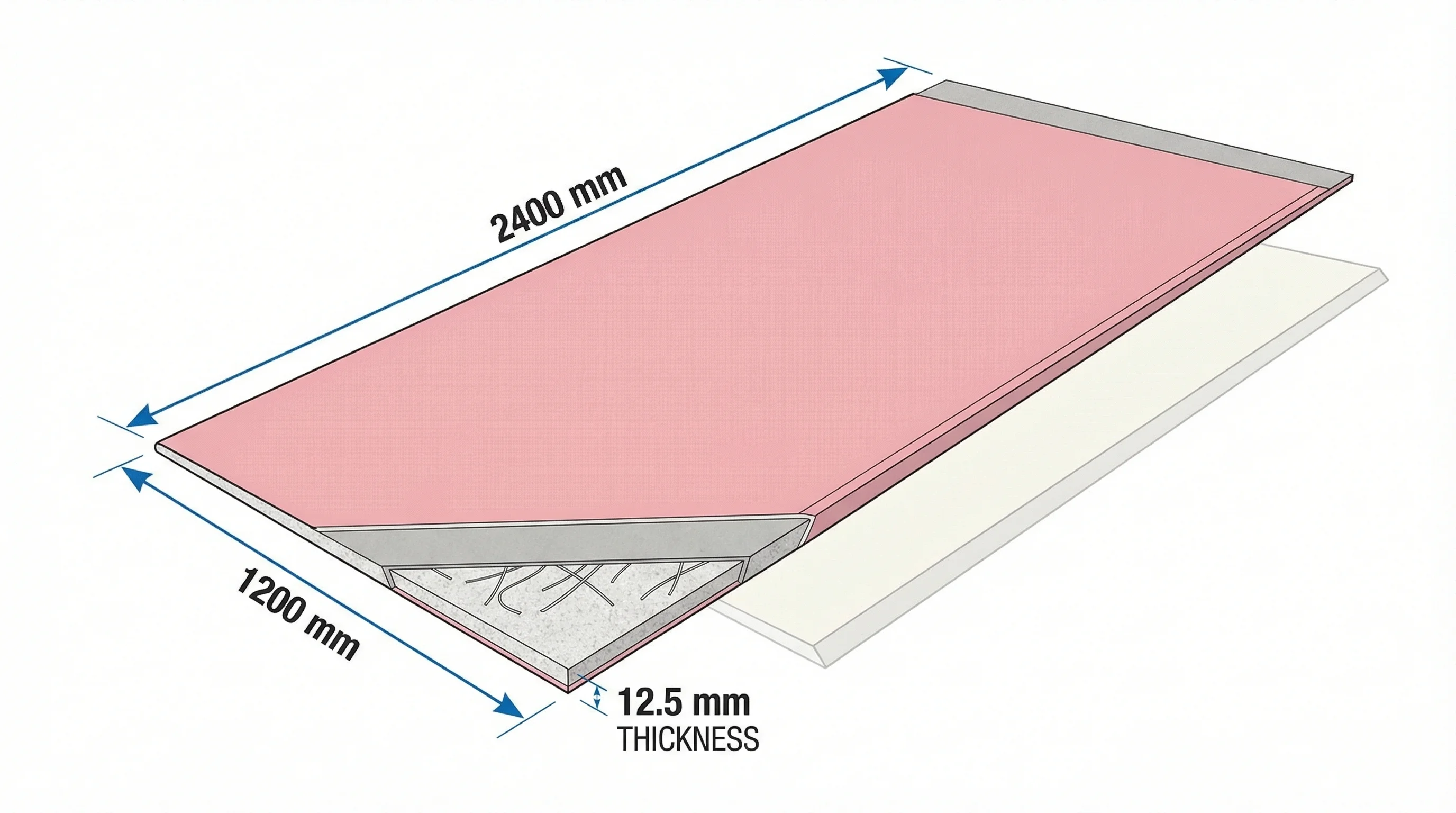

Fire-rated plasterboard (universally called "pink board" because of its distinctive pink paper facing) is a modified version of standard plasterboard designed to resist fire for a defined period. The gypsum core contains added glass fibres and other additives that hold the board together as it heats up. Standard plasterboard crumbles and falls apart once the crystalline water in the gypsum evaporates. Fire-rated board stays intact longer because the glass fibres act as reinforcement, keeping the board in place even after the gypsum begins to calcine (lose its water content at high temperature).
It's classified as Type F under BS EN 520, the European standard for gypsum plasterboard. That "F" means it meets enhanced core cohesion requirements under fire conditions. The Euroclass fire reaction rating is A2-s1,d0, which means it's non-combustible, produces virtually no smoke, and no flaming droplets. Standard plasterboard carries the same A2-s1,d0 reaction-to-fire class; what sets fire-rated board apart is the Type F core, which holds together for longer in a fire.
The colour coding is consistent across all UK manufacturers. Pink means fire-rated. White or ivory is standard. Green is moisture-resistant. Blue is acoustic. Your building control officer identifies fire-rated board by its pink face during inspections, which is one reason the colour matters beyond aesthetics.
Three manufacturers dominate the UK market: British Gypsum (Gyproc FireLine), Knauf (Fire Panel), and Siniat (Fire Board). All produce boards to BS EN 520 Type F and perform identically in practice. Gyproc FireLine is the most commonly stocked at builders' merchants and the name most trades use interchangeably with "pink board" or "fireline."
The concept that changes everything: it's the system, not just the board
This is the single most important thing on this page. Read it twice.

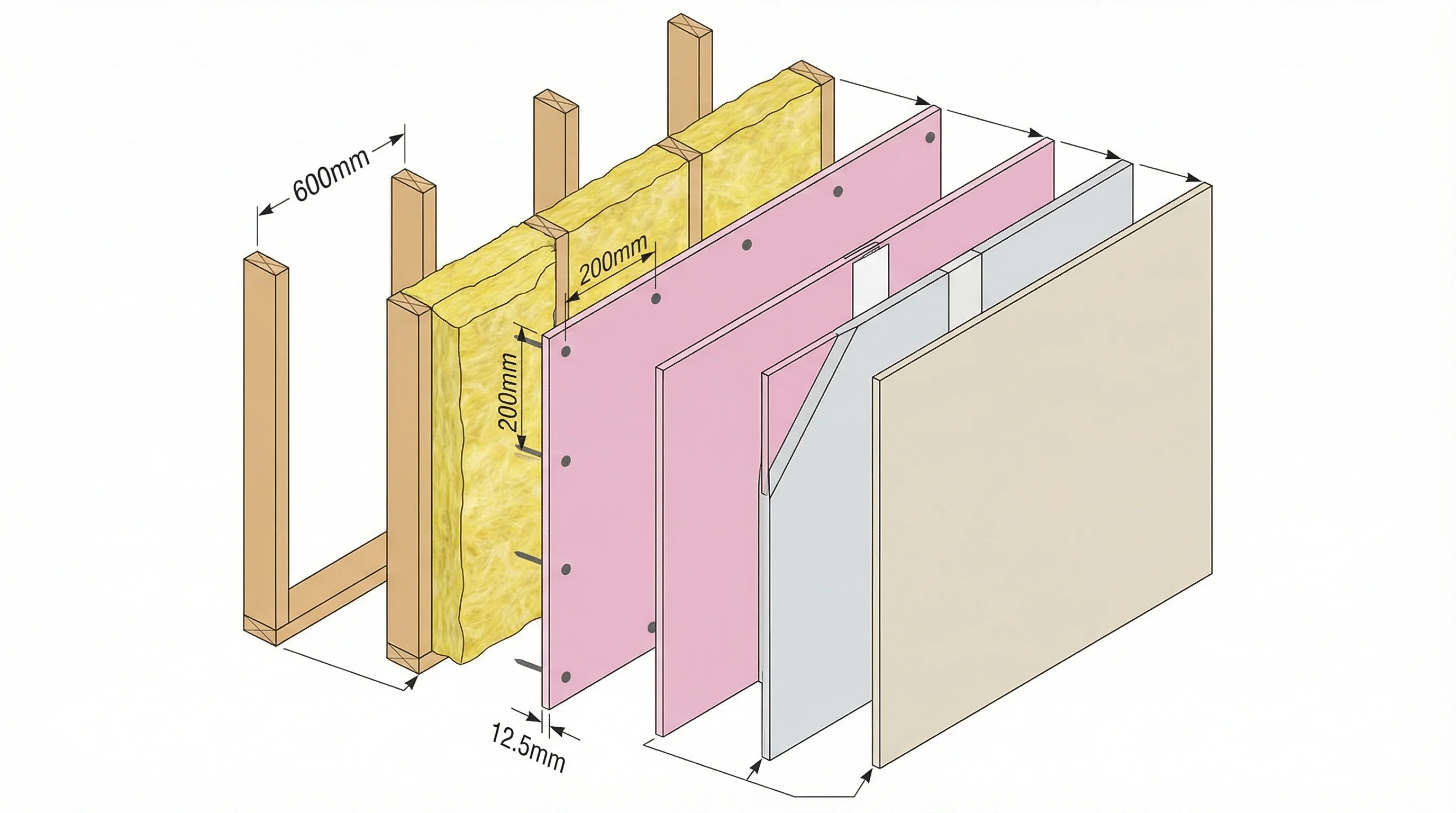

The fire resistance rating doesn't come from the board. It comes from the complete assembly: the board, the framing behind it, the fixing centres, the screw lengths, the insulation in the cavity, and the joint treatment. A single sheet of 12.5mm pink board achieves 30-minute fire resistance only when it's fixed at the correct centres to the correct framing with the correct screws and the joints are treated with fire-rated compound and paper tape. Change any one of those variables and the tested rating no longer applies.
Manufacturers like British Gypsum publish tested systems in their White Book (technical guidance document). Each system specifies every component. If your building control officer wants evidence that a particular wall or ceiling achieves 30-minute fire resistance, they're looking for a tested system reference, not just proof that you used pink board.
In practice, for most domestic work (garage ceilings, steel boxing, escape route walls), a single layer of 12.5mm Gyproc FireLine on timber framing at 600mm centres with at least 32 mm drywall screws at 200 mm centres, joints taped with paper tape and three coats of fire-rated joint compound, achieves 30 minutes. That system is the bread and butter of domestic fire protection. But the principle stands: the board alone is not the rating.
Tip
Where building regulations require fire-rated board
Approved Document B (Fire Safety) Volume 1 sets the rules for dwellings in England. The core requirement: structural elements must maintain stability for a minimum period during a fire. For a typical two-storey house (top floor no more than 5 m above ground), that minimum period is 30 minutes. A three-storey house, which is what most loft conversions create, stays at a minimum of 30 minutes (Table B2, note 5), and its protected stairway needs 30 minutes. The 60-minute figures apply to party walls and to houses of four or more storeys.
Here's where pink board is mandatory on a domestic build.
Integral garage ceilings and walls. Any ceiling separating an integral garage from a habitable room above needs 30-minute fire resistance. Building control officers routinely require fire-rated board on all garage walls too, not just the ceiling, particularly where the walls are timber-framed and load-bearing. The logic is straightforward: if a timber-framed wall burns through and collapses, the ceiling it was supporting comes down too, regardless of what board is on it.
Protected escape routes. In a two-storey house the upstairs rooms usually rely on escape windows, so the staircase only needs a 30-minute enclosure where a room goes without one. A loft conversion changes that. Once a storey sits more than 4.5m above ground, the stair has to become a protected stairway at 30 minutes, running the full height from the new loft room down to a final exit (usually the front door), with a fire-rated ceiling or cavity barriers above it and fire doors onto it at every level. The extra work is in the extent of the enclosure, not in a thicker board.
Loft conversions. The floor/ceiling assembly below a new loft room must achieve 30 minutes (Approved Document B allows reduced integrity and insulation where the conversion adds one storey of no more than two habitable rooms and 50m²). Joists at maximum 600mm centres, minimum 38mm wide. Fire-rated board on the underside of the joists (the ceiling of the room below).
Party walls. The wall between semi-detached or terraced houses needs 60 minutes fire resistance. This is a separating wall, not a simple partition, and the fire rating prevents fire spreading from one property to the next.
Steel beam boxing. Exposed structural steel (lintels, RSJs, universal beams) that carries a floor or a loadbearing wall needs fire protection to maintain structural stability. For a standard two-storey dwelling, that's 30 minutes. Steel that supports only a roof is usually exempt (Approved Document B Volume 1, paragraph 5.3a), though many building control officers still ask for it. The standard method is to box the steel in with fire-rated plasterboard. A single layer of 15mm FireLine with a gypsum skim coat is the most common domestic solution. Larger universal beam sections (UBs carrying heavy loads) may need more protection; your structural engineer or building control officer will specify.
Warning
Fire ratings by thickness and configuration
The fire resistance period depends on the board thickness, how many layers, and the rest of the system. These are the standard domestic configurations.
| Configuration | Typical fire resistance | Common domestic use |
|---|---|---|
| Single layer 12.5mm fire-rated | 30 minutes | Garage ceilings/walls, protected stairways, loft conversion floor/ceiling, steel lintels |
| Single layer 15mm fire-rated | Up to 60 minutes (system-dependent) | Party walls, larger steel beams |
| Double layer 12.5mm fire-rated (joints staggered) | 60-90 minutes | Party walls, high-spec escape routes |
| Double layer 15mm fire-rated (joints staggered) | Up to 120 minutes | Commercial applications, rarely needed domestically |
The "system-dependent" qualifier on 15mm single-layer is genuine. Siniat's Fire Board 15mm achieves 60 minutes in their tested system configuration. Gyproc FireLine 15mm achieves similar in specific tested configurations. But the stud type, spacing, insulation, and joint treatment all affect the result. A single 15mm board on the wrong framing may not hit 60 minutes.
For most domestic work, single-layer 12.5mm gives you 30 minutes. That covers garage conversions, loft conversions (floor and stair enclosure), protected stairways, and steel boxing. The common domestic scenario requiring 60 minutes is a party wall.
The March 2025 regulatory change
The 2025 amendments to Approved Document B began the transition from the old British standard (BS 476) to the European standard (BS EN 13501) for fire testing. Manufacturers have a five-year transition period for fire resistance products, meaning by 2029-2030, all fire resistance classifications must reference BS EN 13501. Reaction to fire classifications (the Euroclass A2-s1,d0 rating) transitioned within six months.
For homeowners, this changes nothing in practice right now. All current fire-rated plasterboard products already carry both classifications. But if you're looking at manufacturer datasheets, you'll see both BS 476 and BS EN references during the transition period. Both are valid.
How to work with it
Handling and weight
Fire-rated board is denser than standard. A 12.5mm sheet (2400x1200mm) weighs approximately 28-30kg compared to 24kg for standard. At 15mm, expect 37-38kg per board. That weight difference is noticeable when you're lifting sheets above your head to fix a ceiling. Budget for two people on ceiling work, and consider a board lifter (ratchet prop) as non-negotiable if you're boarding a garage ceiling with pink board.
Cutting
Same method as standard plasterboard: score the pink face with a sharp Stanley knife along a straight edge, snap along the score, cut through the back paper. The denser core is slightly harder to snap cleanly, so score deeper than you would with standard board. A plasterboard saw handles cutouts for sockets and switches. The glass fibres in the core will blunt knife blades faster than standard board. Have spare blades.
Fixing centres: tighter than standard
This is where fire-rated installation differs from standard plasterboard and where mistakes happen.

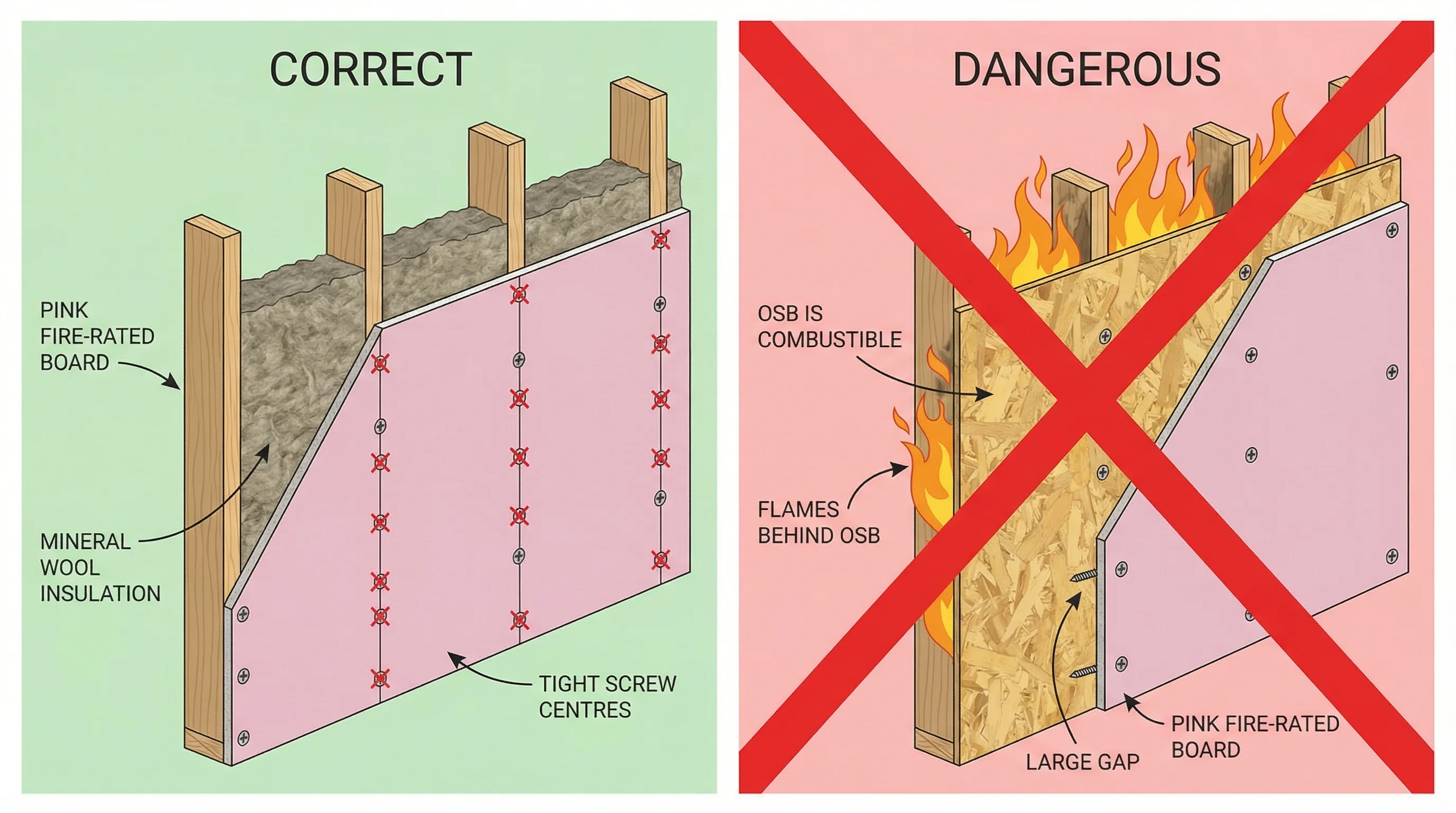

Fire-rated assemblies require tighter fixing centres to maintain the board's integrity during a fire. Where standard board uses 300mm screw centres on walls, fire-rated boards in tested systems typically specify 200mm centres along supports. Stud centres should be 400 mm (not the 600mm that's acceptable for standard partitions) in fire-rated partition systems. In practice, many domestic applications on existing timber framing at 600mm centres still achieve 30 minutes with 12.5mm fire-rated board, but the tighter fixing centres are what the tested systems specify.
Screw length is the board thickness plus at least 25mm into timber (10mm into metal studs): 38mm for a single layer of 12.5mm board on timber, 42mm for 15mm board. For double-layer work the face-layer screws must still reach 25mm into the timber, so take the lengths from the board maker's system sheet.
Joint treatment: paper tape, not mesh
This catches people out. Fire-rated joint treatment requires paper tape, not self-adhesive mesh tape. Paper tape, bedded in fire-rated jointing compound, provides better fire resistance at the joint because the paper charring creates a more effective seal than mesh, which has open holes that allow heat transfer.
Three coats of fire-rated joint compound over paper tape. Not one coat. Not two. Three, with sanding between coats. If you're using a plasterer who plans to skim the whole surface, the skim coat provides the final seal, but the joints still need paper tape underneath.
Board orientation
Vertical installation is preferred for fire-rated partitions because it minimises horizontal joints. Each horizontal joint is a potential weak point in a fire. Where horizontal joints are unavoidable, stagger them at least 300mm between layers in double-board applications.
In double-layer installations, stagger the joints between the first and second layer so no two joints align. Back-to-back electrical outlets through fire-rated walls are not permitted; offset them by at least 300 mm.
Warning
Fire-rated is not heat-rated
Pink board resists the spread of fire. It does not resist direct, sustained heat. This distinction matters for one specific and increasingly common scenario: media walls and log burner installations.
If you're building a feature wall with an electric fire or a media wall with a recessed electric fire, 12.5mm fire-rated board is appropriate for the stud wall construction. But if you're installing a wood-burning stove or a gas fire with live flames, fire-rated plasterboard is the wrong material for the zone immediately behind and around the appliance. The sustained radiant heat dries out the gypsum core, causing it to crack, crumble, and eventually fail.
For stove and fireplace surrounds, use calcium silicate board (Supalux, Promat) or a proprietary fireboard rated for continuous high-temperature exposure. Your HETAS-registered installer will specify the correct material and clearances. Don't assume pink plasterboard covers it.
Cost and where to buy
Fire-rated plasterboard typically costs 40-60% more than standard board of the same size and thickness from the same retailer. For 12.5mm boards in the standard 2400x1200mm size, expect to pay between £17 and £28 per board depending on the retailer.
| Retailer | Product | Size | Price (March 2026) |
|---|---|---|---|
| Builder Depot (online) | Gyproc FireLine 12.5mm TE | 2400x1200 | £17.39 |
| Wickes | Knauf Fire Panel 12.5mm TE | 2400x1200 | £20.00 |
| Insulation Superstore (online) | Gyproc FireLine 12.5mm TE | 2400x1200 | £21.00 |
| MP Moran (trade) | GTEC Fire Board 12.5mm TE | 2400x1200 | £18.42 (£17.48 bulk) |
| Jewson | Gyproc FireLine 12.5mm TE | 2400x1200 | £28.14 |
| Builder Depot (online) | Gyproc FireLine 15mm TE | 2400x1200 | £23.63 |
| MP Moran (trade) | GTEC Fire Board 15mm TE | 2400x1200 | £25.21 (£23.95 bulk) |
That's a £10+ spread between the cheapest online supplier and a national builders' merchant for the identical product. For 20 boards (the garage ceiling and walls in the example below), the difference is over £200. Online trade suppliers like Builder Depot and MP Moran consistently undercut the high-street merchants.
Smaller boards (1800x900mm, 15mm thick) are available from specialist suppliers at around £10 – £12 each. These are easier to handle for one person but aren't commonly stocked at general DIY sheds, and the cost per square metre is higher.
Tip
Storage on site
Store boards flat on a level surface, raised off the ground on timber bearers. Keep them dry. Fire-rated board is more susceptible to moisture damage than you'd expect for a product associated with fire protection. A damp pink board still installs, but it's heavier, harder to cut cleanly, and the skim coat may not bond properly. If boards have been left outside and rained on, stand them on edge indoors for a few days to dry before fixing.
Where to buy Plasterboard Fire Rated (Pink Board)
Check current prices from UK suppliers.
These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.
Alternatives
Standard plasterboard (double layer). A tested assembly may use multiple layers of standard plasterboard to achieve the required fire resistance. Follow its exact board, fixing, joint and support specification. Approved Document B compliance depends on the complete construction; neither two generic layers nor a single pink board guarantees a particular rating.
Specialised fireboard (Glasroc F, Supalux). Where you need 60+ minutes from a single layer or need a non-combustible (Euroclass A1) board, specialised fireboards exist with density of 1000-1200 kg/m³. They cost 3-5 times more than standard fire-rated board and are noticeably heavier and harder to work with. Rarely needed domestically unless your structural engineer specifies it for a particular steel or your BCO has unusual requirements.
Garage ceiling protection. Specify a tested complete ceiling/floor assembly achieving the fire resistance required by Approved Document B Volume 1, Section 5 and Appendix B. The current document does not provide the claimed Table A2 approval for any 12.5mm board with skim. Board layers, fixings, joints, supports and penetrations all matter; use the manufacturer's tested system and confirm the project requirement with building control. Pink board alone does not establish the assembly's fire resistance.
How much do you need
Measure the area to be fire-boarded in square metres. Divide by 2.88 (the coverage of a standard 2400x1200mm board). Add 10% for waste and offcuts.
A worked example for a typical integral garage conversion (single garage, approximately 3m x 6m, 2.4m ceiling height):
- Ceiling: 3 x 6 = 18m²
- Three walls requiring fire protection (two long walls and one end wall, other end is the garage door infill): (6 + 6 + 3) x 2.4 = 36m², approximately 34m² after deducting the internal connecting door
- Total fire-rated area: 52m²
- Boards needed: 52 / 2.88 = 18.1 boards
- With 10% waste: 19.9, so 20 boards of 12.5mm fire-rated plasterboard
Using the prices from the retailer comparison above, that's a few hundred pounds for the boards alone. The drywall screws, jointing compound, and paper tape add roughly £30 – £50.
Tip
Common mistakes
Using standard board where fire-rated is specified. The most common and most expensive mistake. Standard white board and fire-rated pink board look identical once skimmed over. Building control officers know this, which is why they ask to see the board before plastering, or check during the boarding stage. If they miss it and discover it later, they can require you to strip the plaster and reboard.
Insulated plasterboard instead of separate insulation plus fire board. Homeowners fitting out a garage ceiling sometimes buy insulated plasterboard (standard plasterboard bonded to a layer of insulation) thinking it covers both thermal and fire requirements. It doesn't. Insulated plasterboard products almost never have a fire rating. You need to treat insulation and fire protection as two separate layers: insulation between the joists, fire-rated plasterboard on the underside.
Using mesh tape instead of paper tape. Self-adhesive mesh tape is faster to apply and perfectly fine for standard plasterboard joints. For fire-rated assemblies, it compromises the fire integrity at every joint. Paper tape, bedded in fire-rated joint compound, is what the tested systems specify.
Short screws that conduct heat. Using screws that are too short (under 38mm for a single 12.5mm layer on timber) means less penetration into the framing timber. Under fire conditions, shorter screws also conduct heat more directly to the timber, potentially causing premature failure. Use the correct length: board thickness plus 25mm into timber.
Mixing old and new boards during refurbishment. If you're repairing or extending a fire-rated wall and the existing boards are from a different era, don't patch in new boards alongside old ones. Historic formulations are unknown, and the mixed assembly has no tested fire rating. Strip and reboard the full surface.
Warning
Where you'll need this
- Steels and lintels - fire-rated plasterboard is the standard method for boxing in exposed steels to achieve the 30-minute fire resistance Part B requires for steel carrying a floor or loadbearing wall
These knowledge pages are shared across all project types. Fire-rated plasterboard appears in any project involving garage conversions, loft conversions, party wall construction, or structural steel that requires fire protection to comply with Approved Document B.
