Cement Board (Tile Backer Board): The Substrate That Stops Your Tiles Falling Off

UK guide to cement board for tiling: HardieBacker 250 vs 500, cement board vs XPS foam, cutting safely, fixing methods, NHBC 2025 rules, and product-specific pricing.

By Ian

Project managed a £182k Oxfordshire kitchen extension

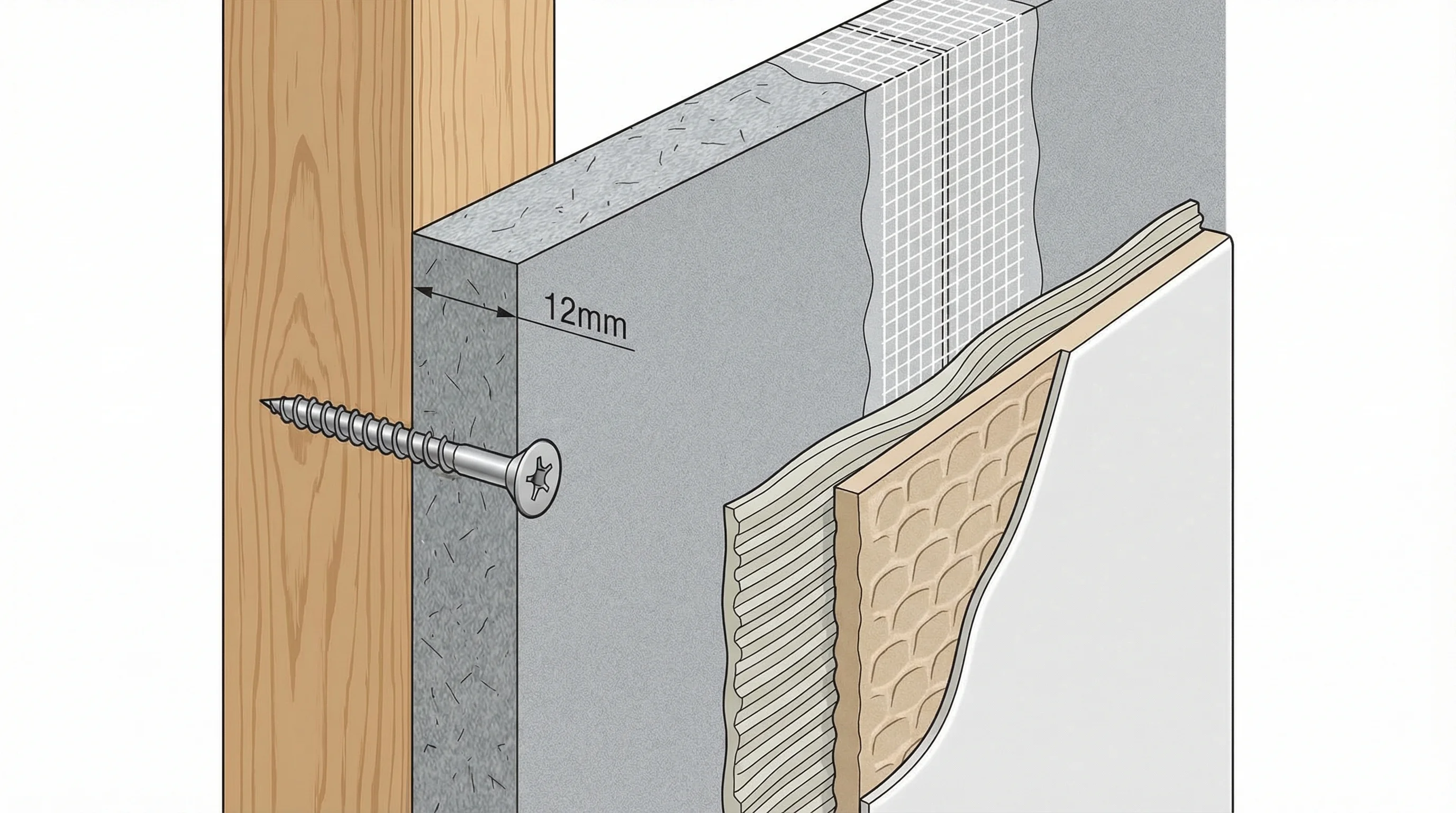

The complete assembly: timber stud, cement board, sealed joints, tile adhesive, and tile. Each layer matters.

A tiler strips six shower wall tiles that have been up for eighteen months. Behind them, the plasterboard is black with mould, swollen to twice its original thickness, and crumbles when touched. The tiles didn't fail. The adhesive didn't fail. The substrate rotted from the inside because water migrated through grout joints into gypsum board that was never designed to get wet. The fix is a full strip-out, new backer board, tanking, and re-tiling. Triple the cost of doing it right the first time. Cement board exists to prevent exactly this.

What it is and what it's for

Cement board is a rigid sheet material made from Portland cement reinforced with cellulose or glass fibres. It's manufactured specifically as a substrate for tiling in areas that get wet. Showers. Bath surrounds. Kitchen splashbacks behind sinks. Anywhere water contacts tiled surfaces regularly.

The key property is that cement board doesn't degrade when wet. Standard plasterboard has a gypsum core that absorbs water, swells, loses structural integrity, and grows mould. Cement board does none of that. Water can sit on it, run over it, soak into it, and the board stays dimensionally stable. It won't swell, won't crumble, won't lose its bond with tile adhesive.

But here's the distinction that catches people out: cement board is water-resistant, not waterproof. Water won't damage the board itself, but water still passes through it. Through joints, through screw holes, through cut edges. If you tile onto cement board in a shower without sealing those joints and penetrations, water reaches whatever is behind the board (timber studs, insulation, masonry) and causes damage there instead.

Warning

Cement board does not make your shower waterproof by itself. You must seal every joint with alkaline-resistant fibreglass mesh tape and cement-based adhesive, seal every screw head, and consider a full tanking membrane for continuous wet areas like showers and wet rooms. The board resists water damage, but it doesn't stop water passing through.

The board is a cement-based composite reinforced with fibres; exact composition varies by product. It's classified A1 for fire resistance (non-combustible), carries BBA Certificate No. 04/4100 for the HardieBacker range, and complies with BS EN 12467 (the European standard for fibre-cement flat sheets). Load capacity is 200 kg/m² on residential timber studs, compared to 32 kg/m² for bare plasterboard (20 kg/m² once it has been skimmed). That sixfold difference matters when you're hanging large-format porcelain tiles.

200 kg/m² on timber studs

Load capacity (vs 32 kg/m² for bare plasterboard). Essential for large-format tiles.

Types, sizes, and specifications

HardieBacker: the UK market standard

James Hardie dominates the UK cement board market. Their naming convention confuses everyone, so here's the plain version:

HardieBacker 250 is the 6mm board. It's designed for floor applications, where you're overboarding existing floorboards or plywood before tiling. The "250" is a product designation, not a measurement. Each board is 1200mm x 800mm, weighs 9 kg, and covers 0.96 m².

HardieBacker 500 is the 12mm board. It's designed for wall applications in bathrooms, showers, and wet areas. Same 1200mm x 800mm size, but weighs 13.8 kg per board. The extra thickness provides rigidity on stud walls where the board spans between fixings.

Both carry the same BBA certificate, the same A1 fire rating, and the same MouldBlock Technology (an antimicrobial treatment in the board surface). Both have a 10-year warranty from James Hardie.

FeatureHardieBacker 250 (6mm)HardieBacker 500 (12mm)
Primary useFloors and countertopsWalls and wet areas
Thickness6mm12mm
Board size1200 x 800mm1200 x 800mm
Coverage per board0.96 m²0.96 m²
Weight per board9 kg13.8 kg
Fire ratingA1 (non-combustible)A1 (non-combustible)
Price range (2026)See current 6mm product priceSee current 12mm product price
BBA Certificate04/410004/4100

Other brands

Knauf Aquapanel Indoor is the main alternative. It's a glass-fibre-reinforced cement board at 12.5mm thickness, supplied in larger sheets (900 x 1200mm or 2400 x 900mm). It costs more per board (£24 – £38 depending on size) but covers more area per sheet. Check the sheet size, handling weight and cutting method in the current Aquapanel guide.

NoMorePly offers fibre cement boards, including a pre-primed 6mm version. Check whether the selected board and waterproofing system require further preparation. Prices are competitive with HardieBacker: around £11 for 6mm (1200 x 600mm) and £15 for 12mm (1200 x 800mm) at Wickes.

XPS foam boards: a different product category

Wedi, Marmox Multiboard, Jackoboard, and Schluter KERDI-BOARD are not cement boards. They're extruded polystyrene (XPS) foam boards with a cementitious or fleece coating. They solve a different problem in a different way.

XPS boards are genuinely waterproof at the core. Water can't pass through them at all. You only need to seal joints and screw penetrations, not tank the whole surface. They're lighter (a Marmox 6mm board weighs roughly half what a HardieBacker does), easier to cut (a Stanley knife, no dust), and provide thermal insulation as a bonus.

The trade-off is cost. A Marmox Multiboard 1200 x 600mm starts around £10 for 6mm, but larger panels run to £65. Wedi boards carry a further premium. Check the compressive performance and fire classification of the exact board; neither should be inferred from another product in the category.

Professional tilers increasingly prefer XPS boards for shower enclosures. The genuine waterproofing, lighter weight, and no silica dust make for a faster, safer installation. If you're tiling a shower and aren't on a tight budget, XPS boards are worth the premium.

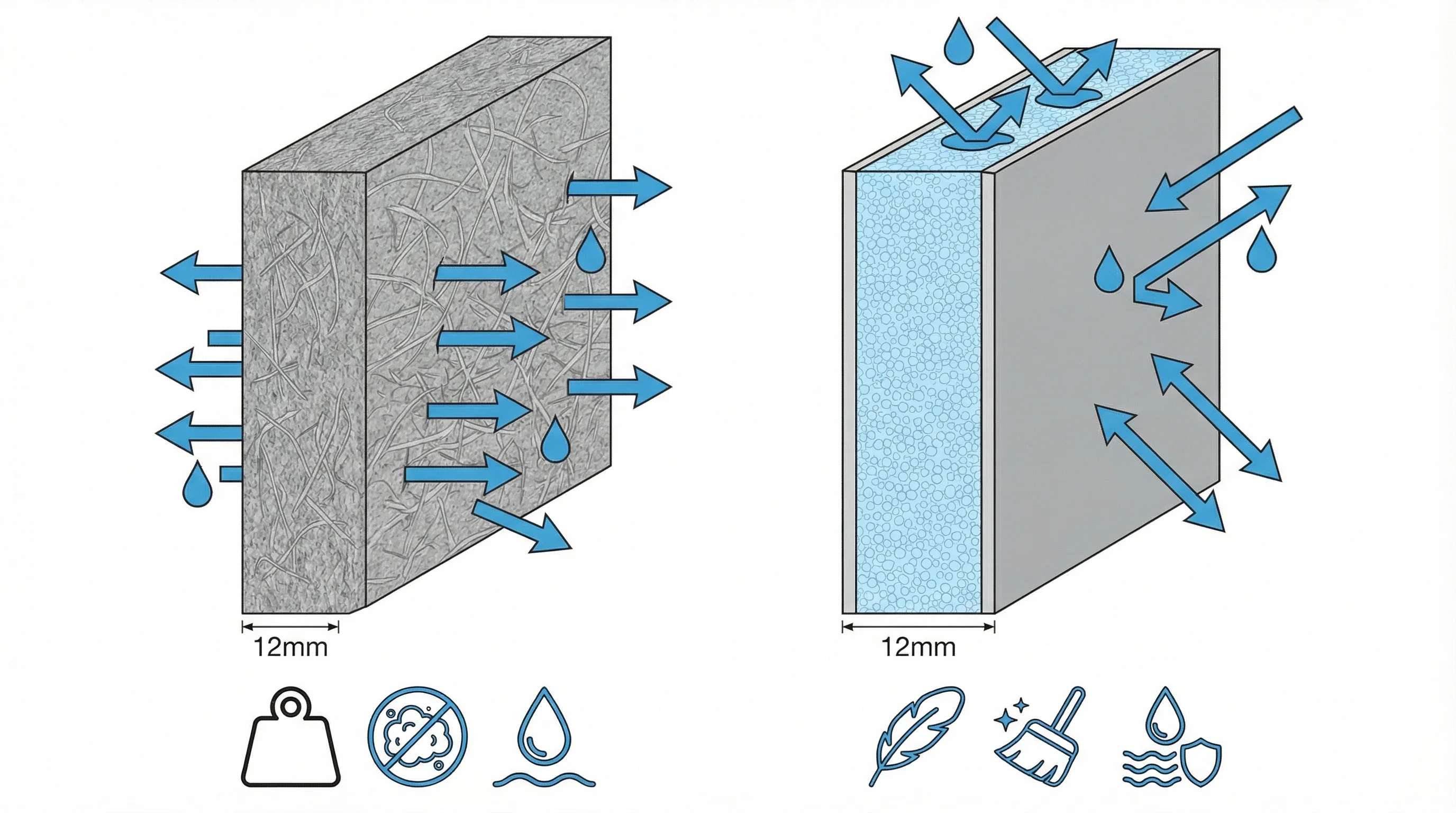

Cement board (left) is water-resistant, meaning water passes through it. XPS foam board (right) is genuinely waterproof at the core.
FeatureCement boardXPS foam boardMR plasterboard
Water behaviourWater-resistant (passes through)Waterproof at coreMoisture-resistant only
Tanking needed?Yes, for showers/wet roomsJoints and penetrations onlyYes, always for wet areas
Weight (12mm, per m²)~14 kg~4-6 kg~10 kg
Fire ratingA1 (non-combustible)Varies (typically B-s1,d0)A2
Cutting dustCrystalline silica (hazardous)None (knife cut)Gypsum (low risk)
Tile load capacity200 kg/m²100+ kg/m²32 kg/m² (20 if skimmed)
Cost per boardCheck exact board and sizeCheck exact board and sizeCheck exact board and size
Best forShower walls, bath surroundsWet rooms, power showersSplash zones, general bathroom

How to work with it

Cutting: score-and-snap is the safe method

Cement board contains crystalline silica. Cutting it with a circular saw, angle grinder, or jigsaw generates fine silica dust that causes silicosis (irreversible lung scarring) with repeated exposure. This is a genuine occupational health hazard, not an overcaution.

Score-and-snap avoids the problem entirely. Use a carbide-tipped scoring tool (or a heavy-duty Stanley knife with a fresh blade) to score a line along the face of the board, pressing firmly enough to cut through the surface layer. Score three or four times along the same line. Then snap the board over a straight edge, just like scoring glass. The break follows the score line cleanly. Smooth any rough edges with a coarse rasp.

For curved cuts or holes (around pipes, for example), a carbide-tipped hole saw in a drill works. Do this outside if possible. If you must cut indoors with any power tool, wear an FFP3 respirator (not a paper dust mask, not an FFP2), open windows, and wet the cut line to suppress dust.

Warning

Power-cutting cement board generates crystalline silica dust. Prolonged inhalation causes silicosis, a serious and incurable lung disease. Always score-and-snap where possible. If you must use power tools, wear an FFP3 respirator and cut outdoors or with wet-cutting methods.

Tip

XPS foam boards (Wedi, Marmox, Jackoboard) produce zero silica dust because they contain no cement. If you're doing a large shower installation and want to avoid the dust hazard entirely, foam boards are the safer option from a health perspective.

Fixing to walls

The method depends on what's behind.

On timber stud walls (the most common scenario in UK bathrooms), fix 12mm HardieBacker 500 directly to studs at no more than 600mm centres using the manufacturer's 32mm or 35mm backer-board screws at 200 mm centres, kept 15mm from board edges and 50mm from corners. Use the corrosion-resistant fixings specified by the board manufacturer for that substrate. Drive screws flush with the board surface but don't countersink them into the cement, which weakens the board around the fixing. All board joints should land on a stud.

On masonry walls (brick or block), the official James Hardie method is three vertical beads of high-strength grab adhesive (Grip Fill or similar) plus 9 anchors per board (6 x 60 mm). Some professional tilers prefer full-bed adhesive instead of three beads, arguing it prevents board deflection under tile weight. Both approaches work. The adhesive-and-anchor combination is necessary because adhesive alone won't hold the board if the adhesive bond fails.

On existing plasterboard on studs, the right answer is usually to remove the plasterboard and fix cement board directly to the studs. Fixing cement board over plasterboard adds unnecessary thickness and creates a weak layer. If removal isn't practical, you can screw through both layers into the studs with longer screws (65mm minimum), but accept that the plasterboard behind is still a potential moisture trap.

Fixing to floors

Use 6mm HardieBacker 250 over timber floorboards or plywood subfloors. Apply a continuous layer of flexible tile adhesive to the subfloor with a 6mm notched trowel, press the board into it, then secure with at least 12 screws per board (four rows of three), keeping fixings 15mm from edges and 50mm from corners. Stagger board joints so they don't line up with the floorboard joints beneath.

Sealing joints

Every joint between boards must be taped with alkaline-resistant fibreglass mesh tape and bedded in cement-based flexible tile adhesive. Standard paper jointing tape or plasterboard tape won't work; the alkalinity of the cement degrades them. The mesh tape bridges the joint and prevents cracking as the building moves seasonally.

Tanking

For shower enclosures and wet rooms, apply a tanking membrane over the sealed cement board before tiling. Products like BAL Waterproof 1C, Mapei Mapelastic AquaDefense, or Weber Tec Superflex D24 are roll-on liquid membranes that cure to form a continuous waterproof layer. Apply to the board, into the mesh tape joints, around all screw heads, and pay special attention to the joint where walls meet the shower tray. That floor-wall junction is the most common leak point.

For standard-flow showers, follow the substrate and waterproofing manufacturer's full detail. NHBC's November 2024 alternative to a tanking system also requires suitable moisture-resistant backing, water-resistant adhesive and grout, and an integrated or proprietary tray/bath upstand behind the tiles. Sealed board joints alone are not that complete detail.

How much do you need

Cement board coverage is straightforward to calculate because the boards are a standard size.

Each HardieBacker board (1200 x 800mm) covers 0.96 m². For practical purposes, call it one board per square metre.

Shower enclosure example: A standard shower enclosure is roughly 900mm x 900mm, tiled to 2100mm height on three sides (one side is glass). That's three walls at 0.9m x 2.1m = 1.89 m² each, totalling 5.67 m². You need 6 boards, plus one spare for cuts and waste. Buy 7 boards of HardieBacker 500 (12mm).

Kitchen splashback: A typical 3m splashback run at 600mm height is 1.8 m². Two boards, plus a spare. Buy 3 boards.

Full bathroom refit: Measure every wall that will be tiled. Subtract window and door openings. Add 10% for cuts and waste. Divide total area by 0.96 to get board count.

Tip

Board offcuts from wall sheets often work for smaller areas like bath panel returns or basin splashbacks. Plan your cutting layout before you start and you'll reduce waste to under 10%.

Cost and where to buy

HardieBacker is the most widely stocked cement board in UK merchants and online retailers.

HardieBacker 250 (6mm, 1200x800mm)

£11 – £14

per board

HardieBacker 500 (12mm, 1200x800mm)

£13 – £16

per board

For the three-wall shower example above, budget £91 – £112, £10 – £15 and £8 – £12. The 5.67m² of wall exceeds one Mapei 4m² kit's stated coverage: two kits cost £99.98 at the checked retailer. This gives an illustrative subtotal of £208.98 – £238.98, excluding fixings, delivery and extra waste. Check the measured waterproofed area, application rate and system approval for your project; the board, mesh and bedding figures remain estimates.

That's less than one-tenth of what a strip-out-and-redo costs when tiles fall off plasterboard.

Knauf Aquapanel Indoor is more expensive at £24 – £38 per board depending on sheet size (1200 x 900mm or 2400 x 900mm). The larger sheets cover more area per board but are heavier and harder to handle solo.

Where to buy: Builder Depot and Tiling Supplies Direct consistently offer the best prices on HardieBacker. Wickes stocks NoMorePly in-store. Toolstation and Screwfix carry tile backer boards but stock varies by location. For Aquapanel, Wickes and Insulation Superstore are your best options. All deliver nationally.

Bulk orders (10+ boards) attract modest discounts from online suppliers. If you're boarding an entire bathroom, buy all your boards from one supplier to save on delivery charges, which typically run £10 – £30 depending on the merchant and whether you can collect.

Where to buy Cement Board (HardieBacker)

Check current prices from UK suppliers.

These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.

What the regulations say

Two documents matter for cement board selection, though neither is a Building Regulation.

BS 5385 provides tiling guidance. Have the tiler specify the complete backing, waterproofing, adhesive and grout system for the exposure; tiles and grout alone should not be assumed to waterproof the backing.

NHBC Technical Guidance 9.2/06 (November 2024) applies to NHBC-registered homes whose foundations begin on or after 1 January 2025. For wet rooms and power-shower enclosures, gypsum substrates need a suitable independent assessment acceptable to NHBC; they are not banned without exception. MgO boards are not accepted. Tables 1 and 2 set out the substrate and waterproofing-system assessment routes.

NHBC guidance (foundation starts from January 2025). Choose the complete substrate and waterproofing system for the exposure category in Table 1. Gypsum-based systems require the specified independent assessment; magnesium oxide boards are not accepted.

For renovation projects on non-NHBC properties, follow the board, adhesive, waterproofing and tiling specifications for the complete installation. A warranty-specific assessment route is not a blanket approval for any plasterboard with a coat of tanking. Have the tiler confirm the proposed substrate and waterproofing system before ordering.

Alternatives

MR plasterboard (green board) is the standard substrate for bathroom walls outside the direct spray zone. It handles humidity and occasional splashing but degrades under sustained water exposure. Fine for the wall opposite the shower. Not fine behind the shower head. At £13 – £19 per board for full-size 2400 x 1200mm sheets, it covers more area for less money where waterproofing demands are lower.

XPS foam boards (Wedi, Marmox, Jackoboard) are the premium alternative for continuous wet areas. Genuinely waterproof at the core, lighter, no silica dust when cutting, and increasingly preferred by professional tilers for shower enclosures and wet rooms. The cost premium varies by brand and size, but for a typical shower enclosure the difference in material cost between cement board and XPS foam is £40 – £80. Whether that's worth it depends on how much you value the simpler waterproofing and safer cutting.

Tanked plasterboard must be part of a specified, suitable system for the exposure and tile load. Do not assume tanking makes any gypsum board suitable for a wet room or power shower. On NHBC work, check the independent assessment required by the current guidance and the warranty provider's acceptance.

Where you'll need this

  • Tiling - tile backer board behind splashback areas near sinks and hobs, and behind any shower or bath tiling during a bathroom fit-out

Common mistakes

Using plasterboard in the shower. This is the number one tile failure mode reported on UK tiling forums. Standard plasterboard (white or green) behind shower tiles absorbs moisture through grout joints, swells, loses bond, and tiles fall off. It sometimes takes two years. Sometimes six months. But it always fails eventually in a shower that gets daily use.

Thinking cement board means no waterproofing. The second most common mistake. Cement board won't rot, but water still migrates through joints and fixings to the structure behind. You still need to seal joints with mesh tape and flexible adhesive, and ideally apply a tanking membrane over the board surface before tiling.

Using the wrong screws. Use the exact fixing type, head, length and corrosion resistance required in the board manufacturer’s installation guide for the supporting wall or floor. A stainless wood screw is not automatically an approved backer-board fixing.

Confusing HardieBacker 250 and 500. The numbers are product codes, not thickness or strength ratings. 250 is the thin one (6mm) for floors. 500 is the thick one (12mm) for walls. Putting 6mm board straight onto open studs leaves too much flex between fixings, and tiles crack at the joints. The manufacturer only allows the 6mm board on walls where every edge is supported (on studs, battens or noggins) or over existing plasterboard.

Skimming cement board before tiling. Don't. A gypsum skim coat puts a water-sensitive layer back between the tile and the board, which defeats the purpose of using a water-resistant substrate (and gypsum plaster limits tile weight to 20 kg/m²). Tile directly onto the board with flexible cement-based adhesive.

Warning

NHBC Technical Guidance 9.2/06 does not accept magnesium oxide (MgO) boards as the tiling substrate in its specified applications. Use an accepted complete system; do not substitute a cheaper board without checking its assessment and exposure limitations.
