Membrane Lap Tape: When You Need It, Which Brand to Buy, and Why Generic Won't Do

Your roofer charges you a few hundred pounds extra to "tape the laps" on the new extension membrane, and it sounds like an upsell. Two years later your air leakage test fails because warm air is bypassing the membrane through every horizontal overlap, your insulation is performing 20% below spec, and the cold roof above the new kitchen drips condensation down a ceiling cornice in February. The tape would have cost under forty pounds in materials. The remedial work, paid back through your heating bills and a stripped ridge line, costs thousands. Whether you actually needed the tape depends on three things most homeowners are never told: your roof type, your wind zone, and which membrane is going on. Get those clear and the answer is obvious.

Membrane lap tape is one of the smallest line items in a roofing job. It is also the one that most often gets argued about on site, because trade practice and the British Standard disagree on when it is required. This guide explains exactly when you need it, which brand to buy, and how to spot a tape job that has been done badly.

What it is and what it's for

Membrane lap tape is a self-adhesive tape designed to seal the overlapping joints in a breathable roof underlay. It sticks one course of membrane to the next where they overlap horizontally, and it seals around any penetration through the membrane such as soil vent pipes, MVHR ducts (mechanical ventilation with heat recovery, the ducted system that draws stale air out of bathrooms and kitchens), and roof window upstands. It also seals the membrane against masonry where the roof meets a wall.

Two construction details matter here. The tape's adhesive is usually a modified acrylic or, less commonly, butyl rubber. The carrier (the backing strip the adhesive sits on) is a non-woven polypropylene, a thin polyethylene film, or in the case of DuPont Tyvek 2060B, the same HDPE flashspun material the membrane itself is made from. This matters because the tape and the membrane have to bond chemically. A tape with the wrong adhesive type will peel off a low-energy plastic membrane within a season.

Two British and European standards are in play. BS 5534:2014+A2:2018 (the code of practice for slating and tiling for pitched roofs and vertical cladding) sets out wind uplift requirements. It states that horizontal underlay laps must be restrained either by a batten or by a manufacturer-approved tape. BS 5250:2021 (the code of practice for managing moisture in buildings) covers the airtightness role the tape plays in warm and hybrid roof build-ups. NHBC inspectors check for both compliance routes, and BBA-certified membrane systems are tested with their specified tape. Use the wrong tape and you potentially void the wind-zone certification for the membrane itself.

If you've already read the breathable roof membrane guide, the tape is the accessory that turns the membrane from a wind-and-rain barrier into an airtight layer. Whether you need that depends entirely on your roof design.

Do you actually need it? The honest answer

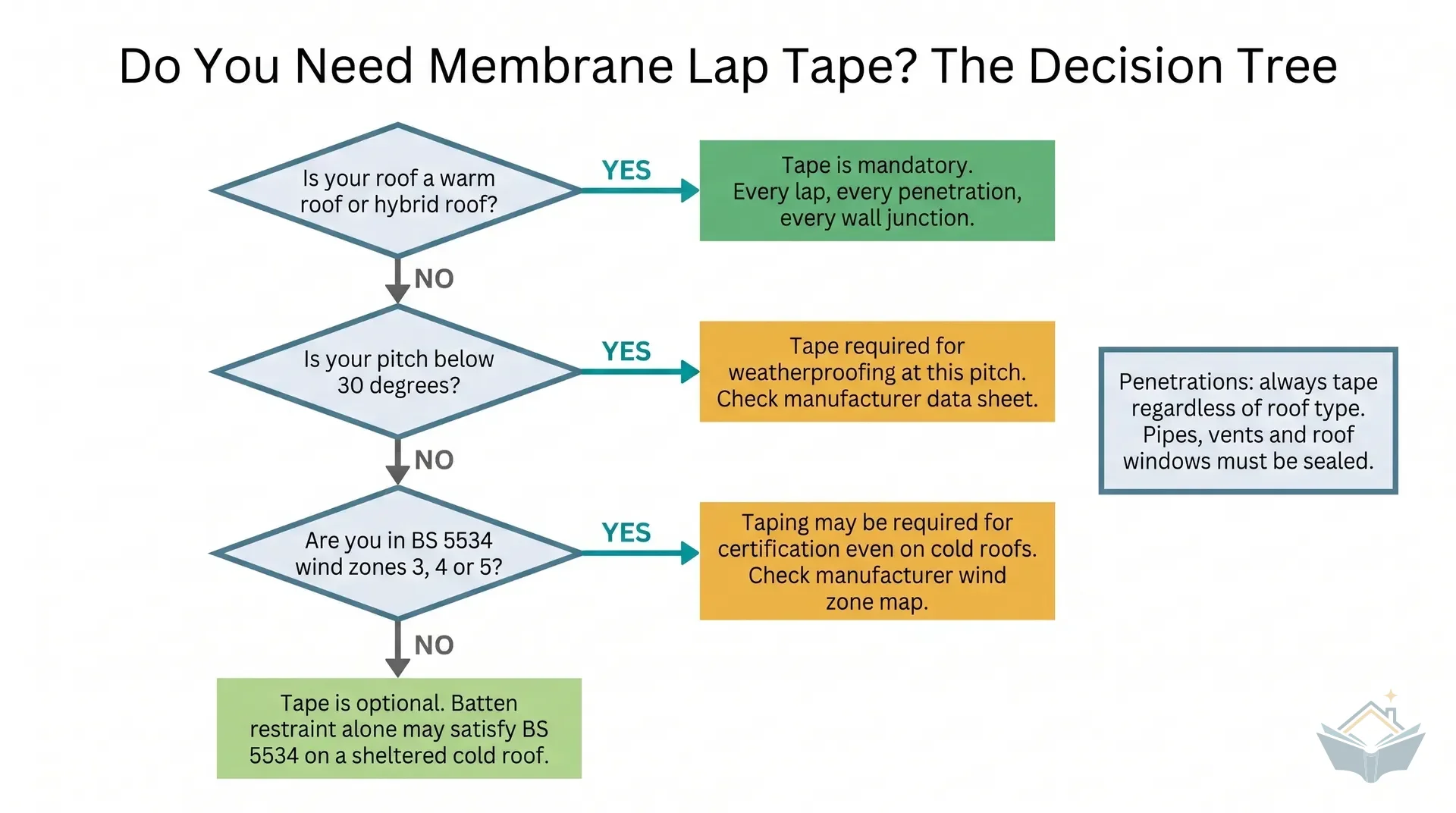

This is the question every homeowner Googles and almost no guide answers cleanly. Here is the decision tree.

Cold roof with full ventilation. If your extension has a traditional cold roof (insulation at ceiling level, ventilated void above, soffit vents and ridge vents drawing air through the loft), the membrane is not your air barrier. The vapour control layer at ceiling level handles airtightness. Lap tape is optional. Most UK roofers in this scenario skip it, and BS 5534 is satisfied as long as the membrane laps are restrained by the tile battens. Your wind zone matters here: in zones 1 and 2 (most of inland southern and central England) batten restraint with a heavier membrane meets the standard. In zones 3 to 5 (coastal areas, Scottish highlands, Welsh uplands, Northern Ireland), the manufacturer may require taping for compliance even on a cold roof.

Warm roof or hybrid roof. If the insulation sits at rafter level (above, between, or below the rafters) and the membrane forms part of the airtight envelope of the heated space, taping is mandatory. Every horizontal lap, every vertical lap, every penetration, every wall junction. No exceptions. Without it, warm moist air from the rooms below leaks into the cold zone above the insulation, condenses on the underside of the membrane and roof timbers, and rots them. This is the most expensive defect category for modern roofs.

Lower-pitch roofs (below 30 degrees). Most membrane manufacturers publish a "loose-laid threshold" pitch below which their product cannot be used without taped laps. For a typical product the threshold is around 22.5 degrees. Below that, water can track sideways under the lap during driving rain, so the seal becomes weatherproofing rather than just airtightness. Always check the manufacturer's data sheet for the specific membrane on your roof.

Penetrations. Anywhere something passes through the membrane (a soil vent pipe, a flue, an MVHR duct, the upstand of a roof window), the membrane has to be cut, dressed up around the penetration, and taped down to seal the gap. This applies on every roof type. There is no situation where untaped penetrations are acceptable.

Types and what's actually in the roll

Membrane lap tape is sold in three formats, and the wrong format for your installation creates real problems.

Single-sided tape. Sticks to the upper face of the lower membrane sheet, then the upper sheet is laid down on top of it. The most common format. Tyvek 2060B and Klober Permo TR Plus are single-sided. Easier to apply and the standard choice for sealing horizontal laps and penetrations.

Double-sided tape. Sticks both layers together with adhesive on both faces, separated by a release liner. Cromar Vent3 double-sided tape and Novia double-sided lap tape work this way. Better for full bonding (the tape is hidden between two membrane sheets and can't be lifted by wind), but harder to apply because you have to position the lower sheet, peel the liner, then lay the upper sheet down accurately first time. No second chances.

Integrated tape. Some premium membranes ship with adhesive strips already factory-bonded along one edge. Klober Permo Forte and DuPont Tyvek Supro Plus are examples. You peel a backing strip and press the next course onto it. Faster on site, no separate roll to manage, and the tape-to-membrane bond is guaranteed compatible. Costs more per roll of membrane but eliminates a tape line item.

The width matters more than people realise. A 38mm tape on a 100mm membrane lap leaves only 31mm of adhesive contact each side of the joint line, which is the absolute minimum and unforgiving of any membrane misalignment. A 75mm tape gives much more contact area and tolerance for small gaps. For a homeowner specifying or checking the spec, 60mm minimum is the practical recommendation, and 75mm is preferred where the lap is the air barrier.

Why brand-pairing actually matters

Roofing forums are full of homeowners asking why they can't just buy the cheapest double-sided tape on Screwfix and use it on any membrane. The honest technical answer is that you sometimes can. The honest commercial answer is that doing so voids the warranty on the membrane and the BBA wind uplift certification for the system.

Here's why. BBA (the British Board of Agrément) certifies a roofing membrane as a complete system. The certificate names the specific tape products tested with the membrane and the wind zones the system has passed in. Klober Permo Forte has a BBA certificate that allows compliance in BS 5534 wind zones 1 to 5 (the entire UK including the most exposed coastlines), but only when paired with Klober's own Permo TR Plus tape. Use a generic tape and the certified compliance route disappears. If a wind event lifts your roof, your insurer asks for the system's BBA certificate, and yours doesn't apply because you used a different tape.

The other reason is chemical. Breathable membranes are made from low-energy plastics (polypropylene, polyethylene, HDPE) which are notoriously hard to bond to. Manufacturers formulate their tape adhesives specifically to grip their own membrane material. A generic acrylic tape may stick beautifully on day one and lift in wind a year later when the adhesive has cold-flowed away from the membrane surface.

How to apply it (and how to spot a bad job)

You won't be doing this yourself, but you should know what right looks like because the tape is buried under battens and tiles within a few hours of being applied. The window for catching mistakes is narrow.

Surface preparation. The membrane has to be clean and dry where the tape goes. Dust from a recent slate cut, frost on an early morning, or rain spray on the membrane will all prevent the adhesive from bonding. A roofer who lays membrane in the rain and tapes immediately is creating a guaranteed failure point. The lap surface should be wiped down if it has been sitting for more than a day.

Temperature. Most membrane lap tapes require a substrate temperature of at least +5°C for reliable bonding. Easy-Trim's SP38 specifies a +1°C minimum. Novia's acrylic dispersion tape can be applied down to −10°C with care, which is unusually low and useful for UK winter roofing. The actual roof surface temperature matters more than the air temperature; on a frosty morning a roof can be 3 to 4 degrees colder than the ambient air. If your roof is being taped in cold weather, ask the roofer which product they're using and check the technical data sheet for the temperature range.

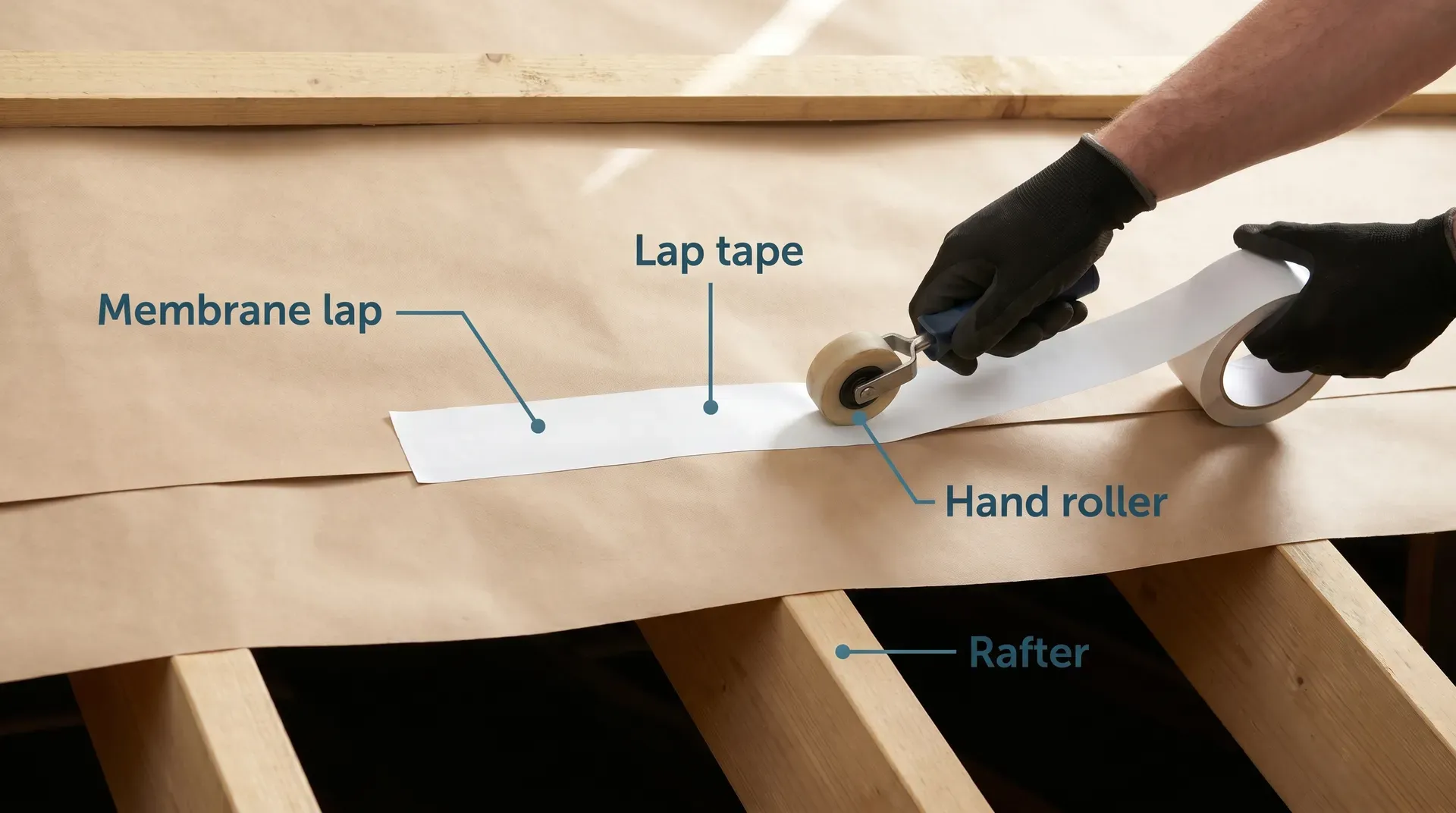

Pressure. The tape needs firm even pressure across its full width to wet out (spread) the adhesive against the membrane. Roofers do this with a hand roller or a wide putty knife. A finger smear leaves air pockets and will lift. On unsupported membrane between rafters this is genuinely difficult; one person needs to be below holding a plank under the membrane to give the roofer above something to push against.

Sequence. Tape goes on as each course is laid, not at the end. If a roofer lays the entire roof's membrane and then climbs back up to tape it, they're doing it wrong. The reason is wind: an untaped lap can flap in even a light breeze and pull the membrane out of position before the next course is taped down. Taping immediately also means the membrane is at the right tension and drape (10 to 15mm sag between rafters per BS 5534) when the seal is made.

Click to enlarge

Where the tape goes. Horizontal laps run along the slope direction (the long edges of the membrane rolls). The tape sits along this lap line, sandwiched between the upper and lower membrane sheets. Vertical laps occur where one roll ends and the next begins along the rafter line; these should be lapped onto a rafter and tape-sealed, with the upper sheet always on top. At penetrations (pipes through the membrane), the membrane is cut with an asterisk-shaped cut, the flaps folded upward against the pipe, and tape wrapped around the collar to seal. At wall abutments, the membrane turns up against the wall by at least 100mm and is taped to the masonry or to a separate flashing detail.

How much do you need

Calculate the linear metres of tape your roof needs by adding up:

• Total length of horizontal laps. For a roof with 3 horizontal courses (typical for an extension at 22.5 degrees with 1m wide rolls and 100mm laps), this is roof length x 2 (lap lines).
• Total length of vertical laps where rolls join (one per join along each rafter run).
• Allowance for each penetration: roughly 1.5m of tape per pipe collar, more for chimneys and roof windows.
• 10% wastage allowance.

Worked example for a 6m x 4m extension roof at 30 degrees: roof slope length is roughly 4.6m on the slope. With 1m membrane rolls and 100mm laps, you need 5 courses, so 4 horizontal lap lines x 6m = 24m. Vertical laps: assume 1 join per course, 5 x 1m = 5m. One soil vent pipe: 1.5m. Total: 30.5m plus 10% = 33.6m. A single 25m roll won't cover this; you need 2 rolls (50m total) and have plenty for spares and any small repairs.

For a typical single-storey extension with no penetrations, one 25m roll is often enough. For anything with valleys, hips, or pipes, buy two.

Cost and where to buy

Tape pricing falls into three clear tiers based on brand and quality.

The budget options work well when paired with their compatible membranes. Cromar Vent3 tape is a perfectly valid choice for a Cromar Vent3 membrane on a sheltered cold roof, and it costs around £7 – £10 per roll. The premium Klober and Tyvek tapes only make sense if you're using their corresponding membrane systems and need certified wind zone compliance.

Per linear metre, budget tapes work out at around £0 – £0 while premium tapes hit £1 – £1. For a typical extension roof needing 30 to 50 metres, that's the difference between a modest line item at the budget end and a slightly larger one at premium rates. In the context of a roofing job that costs thousands, the saving is irrelevant; the wind-zone compliance is not.

Where to buy

Specialist roofing suppliers stock the full brand range. Roofing Megastore, JJ Roofing Supplies, Roof Giant, Burton Roofing and Insulation Superstore all carry Tyvek, Klober, Novia, and Cromar tapes. Delivery is typically 2 to 5 days. This is the right channel for matched brand pairings.

Builders' merchants (Travis Perkins, Jewson, SIG Roofing) stock the major brands but range and pricing varies by branch. SIG in particular has good roofing-specific stock. If your roofer has a trade account, they'll usually source through here.

Screwfix and Toolstation carry limited stock of generic and budget tapes. Useful for a forgotten extra roll on the day of installation, less useful for matching a specific membrane brand. Don't expect to find Tyvek 2060B or Klober TR Plus on a same-day collection.

Wickes stocks very limited roofing tape range. Skip this channel for membrane tape.

Alternatives

Counter-batten restraint instead of tape. Some experienced roofers run the membrane vertically (perpendicular to the rafters) and use counter-battens to pin the vertical joins. This avoids horizontal lap taping entirely and is BS 5534-compliant when done correctly. It uses more membrane (because vertical runs need more overlap) and adds a counter-batten layer to the build-up, which increases the height of the roof tile finish by 25 to 50mm. On extensions where roof height is constrained by planning permission or matching an existing roof line, this isn't always viable.

Membranes with integral tape. Klober Permo Forte and DuPont Tyvek Supro Plus have factory-bonded adhesive strips along the edge of each roll, eliminating the separate tape product. The membrane costs more per roll but you save on tape and on labour time. For a single-storey extension this is often the cleanest solution, especially if you want guaranteed brand compatibility without specifying tape separately.

Self-adhesive membranes. Some products (such as Klober Permo Self-Adhesive and certain Cromar lines) have a fully adhesive lower face that bonds the membrane to the rafters or sarking board below, plus integral lap tape. These are more expensive but eliminate both lap tape and lap-fastening as separate concerns. Used most often on low-pitch roofs and re-roofing work where the membrane has to seal more aggressively.

Where you'll need this

• Roof covering - sealing the breathable membrane laps and penetrations as the underlay is being installed, before battens and tiles cover them

These details apply across all extension and renovation projects with a pitched roof, not just kitchen extensions. Loft conversions, garage conversions, and full re-roofs all hit the same decision points around tape and the same brand-pairing requirements.

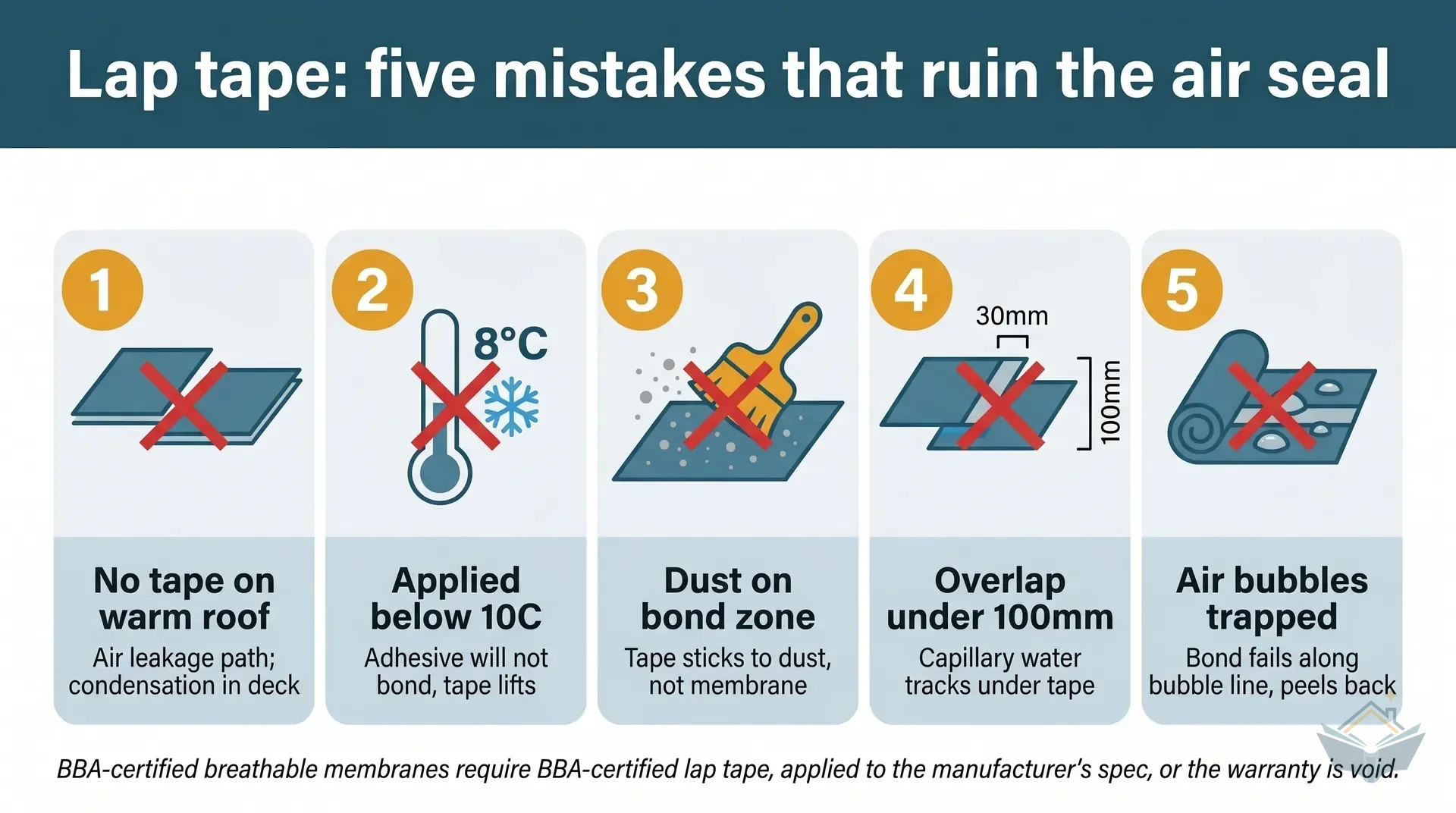

Common mistakes

Using generic tape with a branded membrane. The cheap double-sided tape from a builders' merchant looks identical to the manufacturer's branded tape and costs a fraction of the price. It also voids the membrane's BBA wind uplift certificate. If your roof fails a wind uplift event in an exposed location, your insurer will ask which tape was used. The few pounds you saved on tape is not worth the thousands-of-pounds conversation that follows.

Taping in the wrong conditions. Cold, wet, dusty, or frosty membrane will not bond. Adhesives need a clean dry surface above their minimum application temperature. The standard rule is +5°C and dry, though some products (Easy-Trim down to +1°C, Novia down to −10°C) are more forgiving. If your roof is being taped on a cold morning, ask the roofer to confirm the substrate temperature and the product's minimum spec. Don't accept "it'll be fine."

Taping after the fact. Tape is meant to be applied as each course is laid, not after the whole roof is membraned. Late taping means the membrane has already shifted and possibly absorbed dew or rain spray. The seal is unreliable.

Skipping penetrations. Horizontal laps get attention because they're visible. Penetrations (pipes, vents, roof window upstands) get rushed because they're fiddly. An untaped pipe collar is a guaranteed leak path and a guaranteed cold bridge for warm-roof condensation. Insist on seeing every penetration taped before the battens go on.

Confusing tape with sealant or fly battens. A "fly batten" is a narrow timber batten nailed along the lap line as an alternative to tape for restraint. It satisfies BS 5534 wind uplift but does nothing for airtightness. Mastic sealant is sometimes used at penetrations as a substitute for tape; it weathers badly and shrinks within 12 months. Tape is the only product designed for this specific job.

Buying too much. Tape rolls expire. Most acrylic adhesives have a 12-month shelf life from manufacture; cold-stored tapes from a slow-moving merchant can already be at 6 to 8 months when they reach you. If you have leftover tape from one job, write the date on the box and use it within a year.
