Breathable Roof Membrane: Types, Installation and What Your Roofer Should Be Doing

Your roofer lays the membrane on a Tuesday. It rains Wednesday. You look up into the roof space and see dripping. The membrane is supposed to keep water out, but it's pooling in sagging pockets between the rafters and leaking at the overlaps. The battens go on, the tiles go on, and you don't see the problem again until condensation starts running down the inside of your new extension ceiling eighteen months later. The membrane cost £80. The remedial work costs thousands, because by then someone has to strip the tiles, strip the battens, and start again.

Breathable roof membrane is one of the cheapest materials in your extension build and one of the easiest to get wrong. Understanding what it does, what type you need, and what correct installation looks like takes ten minutes. It saves you from the kind of defect that doesn't show up until long after your builder has been paid.

What it is and what it's for

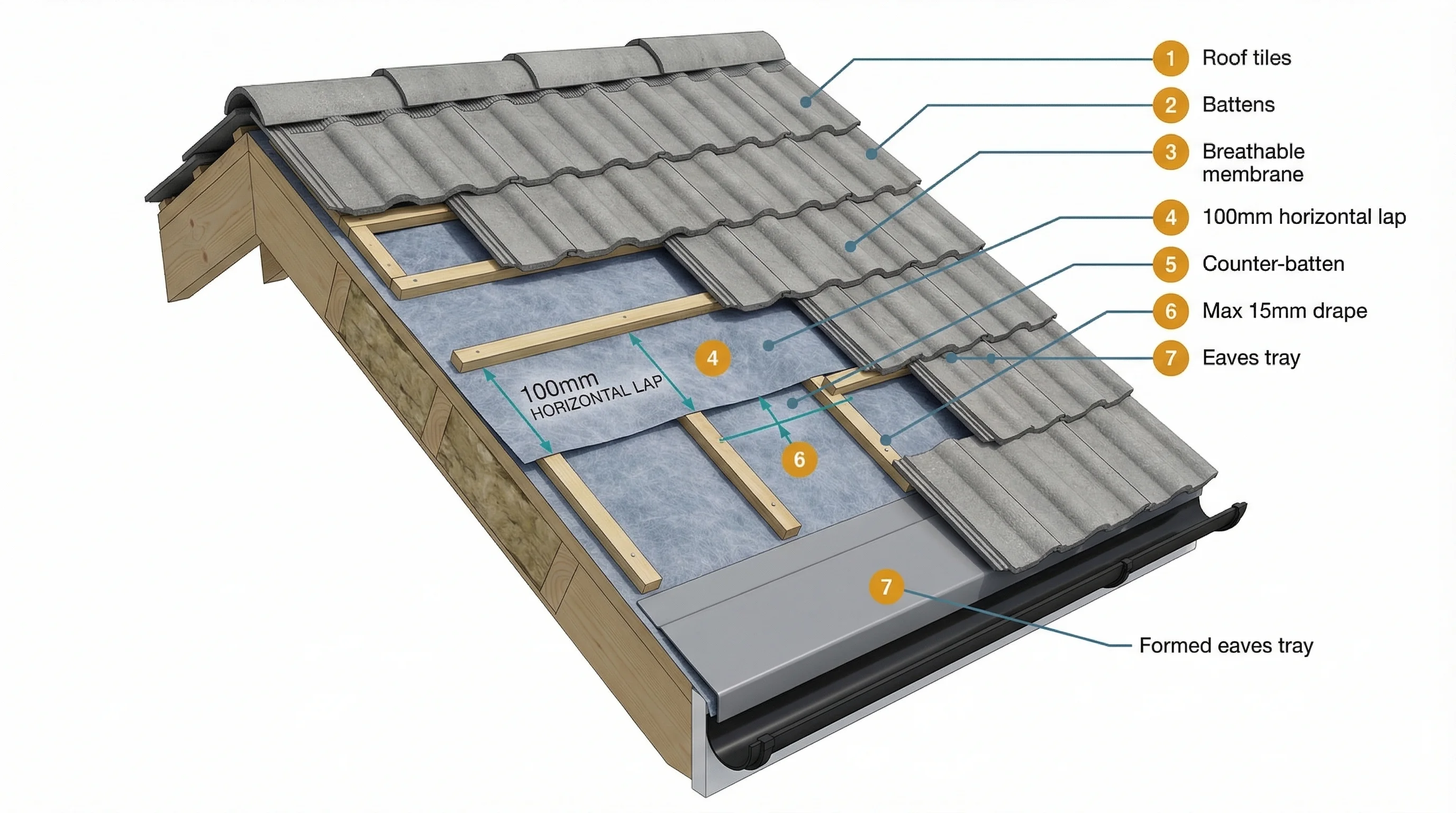

Breathable roof membrane (also called breather membrane, roofing underlay, or vapour permeable underlay) is a synthetic sheet material laid over the rafters of a pitched roof, beneath the battens and tiles. It does two jobs: it stops wind-driven rain and snow from getting into the roof space through gaps between tiles, and it lets water vapour escape upward from inside the building.

That second job is the important one. Traditional bitumen roofing felt (the black stuff you'll see if you look into the loft of a 1970s house) is waterproof in both directions. It keeps rain out but it also traps moisture rising from the rooms below. In a well-insulated modern extension, that trapped moisture condenses on the cold underside of the felt and drips onto timber, insulation, and ceilings. Over years, it causes rot.

Breathable membrane solved this by being vapour-permeable. Water vapour passes through the membrane from below and escapes into the ventilated batten space above. Rain hitting the membrane from above runs down to the eaves and into the gutter. The membrane only works in one direction, which is why installing it the right way up matters (more on that below).

Building Regulations Approved Document C requires roofs to resist moisture ingress and avoid harmful condensation. BS 5250:2021 (the code of practice for managing moisture in buildings) sets out how breathable membranes fit into the overall condensation control strategy. For new construction and extensions, breathable membrane has replaced bitumen felt as the standard underlay. If your roofer turns up with rolls of black bitumen felt, ask questions.

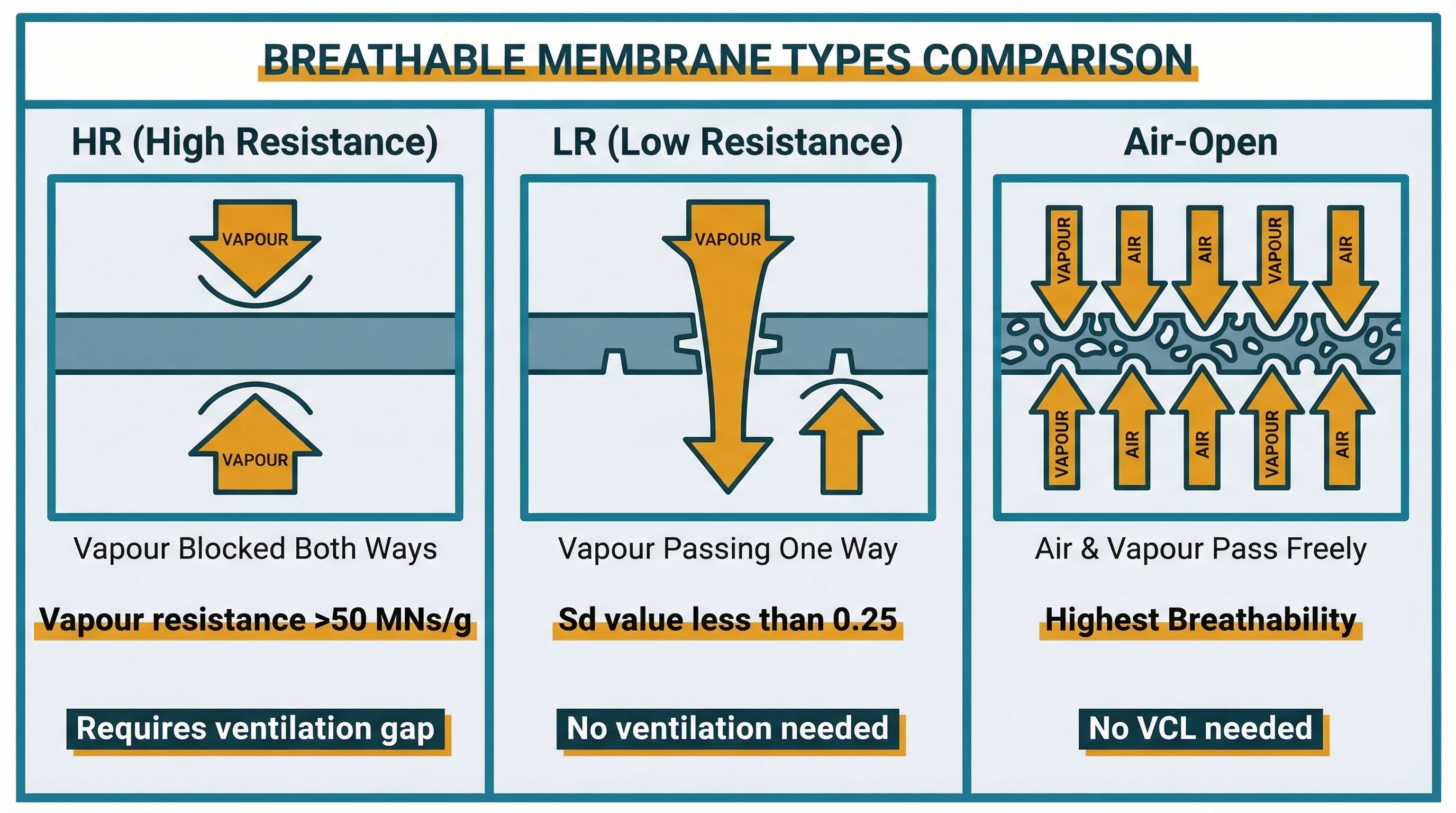

Types: HR, LR, and air-open

This is where most guides fail homeowners. "Breathable membrane" is a generic label that covers three distinct product types with different performance characteristics. Using the wrong type for your roof design causes condensation.

HR (High Resistance) membrane has a water vapour resistance above 50 MNs/g. It's effectively vapour-impermeable, which means it behaves like traditional felt. It blocks moisture from escaping. If you're using HR membrane, your roof space needs full ventilation (soffit vents, ridge vents, or tile vents) to remove moisture. HR membrane is cheaper and still available, but it's the wrong choice for most new extension roofs. It belongs on fully ventilated cold roofs where cost is the only consideration.

LR (Low Resistance) membrane has a water vapour resistance of 0.25 MNs/g or less. This is what people mean when they say "breathable membrane." Vapour passes through it. The key specification is the Sd value (a measure of how much the membrane resists vapour diffusion, expressed in metres). For NHBC-compliant non-ventilated cold roofs, the Sd value must not exceed 0.05m. That's a specific threshold, and products that just scrape under the LR classification at 0.25 MNs/g may not meet it. Check the data sheet, not just the label.

Air-open membrane is a step beyond standard LR. Products like A. Proctor Group's Roofshield use a spunbond-meltblown-spunbond (SMS) structure that allows both vapour and air to pass through. Roofshield has an Sd value of 0.013m, which is roughly four times more permeable than the NHBC threshold for standard LR. Air-open membranes give the best condensation performance and are BBA-certified for non-ventilated cold roofs without a separate vapour control layer (VCL) at ceiling level. They cost more (roughly 45% more per m2 than commodity LR membranes), but for complex roof geometries where ventilation is difficult, they're the safest choice.

Click to enlarge

The condensation misconception

Forum threads are full of homeowners who installed breathable membrane and still got condensation in their loft space. Seven out of eleven community threads reviewed for this guide reported exactly this problem.

The membrane is almost never the cause. The root cause is warm, moisture-laden air leaking from the rooms below into the roof void through gaps around downlights, loft hatches, pipe penetrations, and poorly fitted ceiling insulation. Breathable membrane lets vapour out through the roof, but it can't compensate for a torrent of warm air bypassing the ceiling. If you have condensation despite a breathable membrane, check the airtightness of your ceiling before blaming the underlay.

Roll sizes and specifications

Standard rolls come in two widths:

1m x 50m (50m2 per roll) is the most common. Lighter to handle, easier to manoeuvre on a roof. Suits narrow rafter bays and smaller roofs. This is what most extension roofs use.

1.5m x 50m (75m2 per roll) covers more ground per pass and reduces the number of horizontal laps. Better value per m2 on larger roofs where the width can be used efficiently. Heavier (8-12kg per roll vs 5-8kg for 1m).

Weight (measured in grams per square metre, or gsm) indicates durability and tear resistance. Budget membranes run 95-115gsm. Mid-range products sit at 135-165gsm. Premium products reach 170-190gsm. Heavier membranes withstand more foot traffic during installation and resist tearing in windy conditions, which matters if your roof is exposed to weather before tiles go on.

How to work with it

You won't be installing this yourself, but you need to know what correct installation looks like because getting it wrong is the single most common roofing defect found in community forums. These checks take five minutes when the membrane is visible, before battens and tiles cover it permanently.

Installation sequence

The membrane goes on after the roof structure (rafters, any ridge board, and any sarking boards) is complete. It goes on before the battens. Membrane first, battens on top. This sounds obvious, but one of the most-discussed forum threads involves a homeowner who had to strip 3.4 metres of battens because they'd been installed before the membrane.

Which way up

The printed side faces outward (toward the sky). The print usually includes the manufacturer name, product code, and often an arrow or text saying "this side out" or "external face." If you're looking up from inside the roof space, you should see the plain side. This matters because breathable membranes are directional; they let vapour through in one direction only.

Drape

The membrane should sag slightly between rafters, not be pulled taut. The target is 10 to 15mm of drape (sag) measured at the midpoint between rafters. Too tight and water can't run down to the eaves; it pools behind the battens. Too slack (more than 15mm per BS 5534) and the membrane flaps in the wind, makes noise, and can tear over time. NHBC inspectors specifically check drape.

Overlaps

Horizontal overlaps (where one row of membrane meets the next) vary by roof pitch. BS 5534 sets the minimums:

• Below 14 degrees: 150mm overlap
• 15 to 35 degrees: 100mm overlap
• Above 35 degrees: 75mm overlap

The upper sheet always laps over the lower sheet so water runs downhill over the joint, not into it. At vertical joints (where one roll meets the next along the rafter line), overlap by at least 100mm onto the next rafter.

Taping the laps

BS 5534 recommends taping horizontal laps as the preferred method over fly-battening (adding a narrow batten along the overlap line). Taping reduces wind infiltration and improves insulation performance.

Here's the honest reality: almost no roofers tape the laps. One BuildHub member observed that across years of watching roofs being built, not a single one had tape in sight. The gap between the standard's recommendation and actual trade practice is enormous.

Does it matter? In sheltered, inland locations (most of southern and central England, BS 5534 wind zones 1-2), untaped overlaps with adequate headlap are widely accepted and rarely cause problems. In exposed, coastal, or high-altitude locations (zones 3-5, covering much of Wales, Scotland, Northern Ireland, and the coasts), taping genuinely improves performance. If your extension is in an exposed location, insist on it. A roll of membrane tape costs under £10.

Eaves detail

At the bottom of the roof, the membrane must feed into an eaves support tray (a small plastic channel that sits between the last rafter and the fascia board). The tray prevents the membrane from sagging into the gutter, which causes pooling and eventual gutter damage. The membrane should overhang into the tray by about 150mm. Water hitting the membrane runs down, into the tray, and drops cleanly into the gutter.

Ridge and valleys

At the ridge, the membrane either laps over from both sides (if using a ventilated dry ridge system that provides airflow above the membrane) or is cut short to allow air movement through the ridge line. The choice depends on your ridge ventilation strategy. Ask your roofer which method they're using and why.

In valleys, the membrane should extend at least 300mm each side of the valley centre line. At abutments (where the extension roof meets an existing wall), turn the membrane up at least 100mm against the wall face. Lead flashing covers this upstand.

How much do you need

The calculation is straightforward, but you need to account for overlaps and wastage.

Step 1: Calculate your roof's slope area. If your architect's drawings show the plan area (horizontal footprint), multiply by the pitch correction factor: 1.08 at 22.5 degrees, 1.15 at 30 degrees, 1.41 at 45 degrees.

Step 2: Add 10-15% for overlaps. On a standard extension roof at 22.5 to 30 degrees (where horizontal laps are 100mm), 10% is sufficient. For complex roof shapes with valleys and hips, use 15%.

Step 3: Add 10% wastage for cuts, tears, and trim.

Step 4: Divide by the roll's coverage. A 1m x 50m roll covers 50m2 gross. A 1.5m x 50m roll covers 75m2 gross.

Worked example: an extension roof measuring 6m long by 4m rafter length at 30 degrees. Slope area: 6 x 4 = 24m2. Already measured on the slope, so no pitch correction needed. Add 10% overlaps: 26.4m2. Add 10% wastage: 29m2. Using 1m x 50m rolls (50m2 each): you need 1 roll. Using 1.5m rolls, 1 roll with plenty to spare.

For a typical single-storey extension, one roll is enough. Buy two if your roof has valleys or hips, or if you want a spare in case of tears during installation.

Cost and where to buy

Breathable membrane pricing falls into three clear tiers based on weight, breathability, and brand.

Entry-level rolls start under £100-£125 and are perfectly adequate for standard extension roofs in sheltered locations where the membrane will be tiled over within a few weeks. Mid-range products sit around £100 – £125 and offer heavier weight, better tear resistance, and longer UV tolerance. Worth the step up if your build schedule is uncertain. Premium and air-open membranes can exceed £100-£125 for specialist products designed for non-ventilated cold roofs and complex geometries where standard LR membranes with ventilation would be impractical. See the table below for specific products and prices.

For wider 1.5m rolls, expect to pay £115 – £174 for the same product tiers. Wider rolls cost more per roll but similar per m2, and they save installation time.

Where to buy

Screwfix and Toolstation carry the commodity brands (Cromar Vent3, Rhinovent, IKO Rubershield, Ondutiss). Stock is reliable and you can collect same-day. This is where most extension builders source membrane.

Wickes stocks a smaller range but occasionally has the lowest prices on IKO and Ondutiss products.

Specialist roofing suppliers (Roofing Superstore, JJ Roofing Supplies, Roof Giant, Burton Roofing) carry the premium brands: Tyvek Supro, Klober Permo Air, Glidevale VP400, Proctor Roofshield. Delivery times are typically 2-5 days. Prices on premium products are often 10-15% lower online than through builders' merchants.

Travis Perkins and Jewson stock breathable membrane but their range and pricing varies by branch. Worth checking if you're already ordering other materials from them to consolidate delivery.

For a single extension roof, you need one or two rolls. This isn't a bulk-buy item. Don't overthink the sourcing. Pick a product that matches your ventilation strategy and wind zone, buy it from whoever has it in stock, and make sure it arrives before your roofer is ready to start.

Alternatives

Traditional bitumen felt is the old-school option. Cheap (under £30 per roll), widely available, and your roofer has used it for decades. But it traps moisture, requires full ventilation (soffit vents, ridge vents, or tile vents), and doesn't meet current building regulations for new construction without that ventilation provision. On a lean-to extension roof where there's no ridge for a ridge vent, bitumen felt creates a condensation trap. Don't use it on new work unless your ventilation strategy specifically accounts for it.

Multi-foil insulation products (such as TLX Gold or Superfoil) serve a dual function as both membrane and insulation layer. They're not directly comparable on price because they replace multiple layers. They're used in specific warm-roof designs and add complexity. Discuss with your architect if they're proposing one.

EPDM rubber membrane and GRP fibreglass are flat-roof coverings, not pitched-roof underlays. If your extension has a flat roof, those are different products for a different purpose entirely.

Where you'll need this

• Roof covering - laid over rafters beneath battens on pitched roofs, required by building regulations as the standard underlay

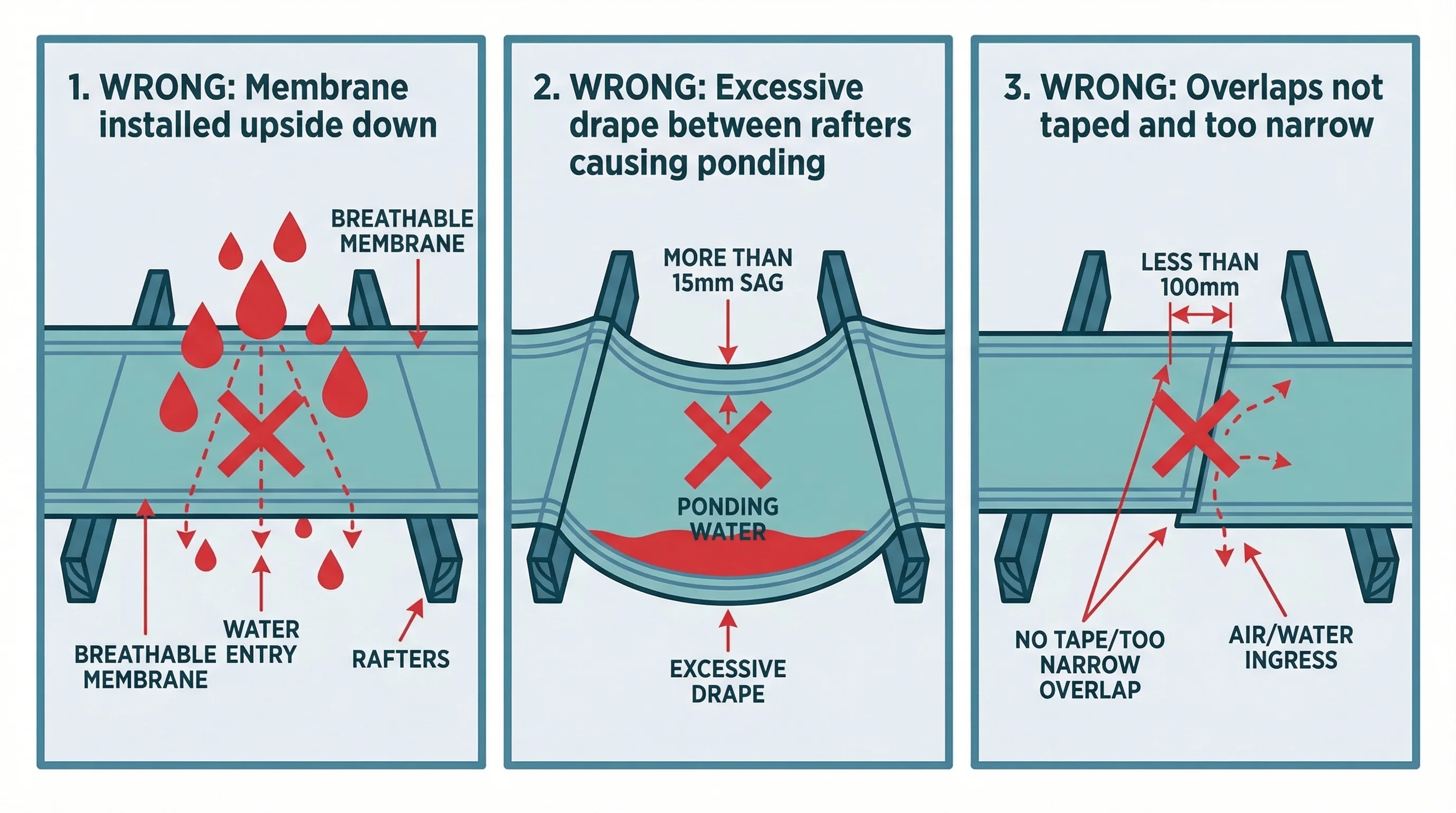

Common mistakes

Using the wrong type for your ventilation strategy. HR membrane on a non-ventilated cold roof traps moisture. Standard LR membrane used without ventilation on a cold roof is a grey area unless the product is specifically BBA-certified for that application. Check the BBA certificate number, not just the marketing claim.

Installing the membrane over the battens instead of under them. Water pools on top of the membrane if battens are underneath because it can't drain. The membrane goes on the rafters first. Battens go on top. If your builder does this backwards, every batten has to come off and go back on. It happens more often than you'd think.

Pulling the membrane too tight. No drape means no drainage path. Water sits behind the battens instead of running down to the eaves. The correct drape is 10 to 15mm between rafters. If you look up from inside the roof space before tiling, you should see a gentle sag, not a drum-skin.

Leaving the membrane exposed too long. UV degrades the membrane. Most products are rated for 3 to 4 months of exposure, but the exact limit varies, so check the product data sheet for your specific membrane. If your tiling is delayed past the UV limit, the membrane loses its W1 water resistance rating. On a long build programme, factor this into your scheduling or specify a product with longer UV tolerance.

Skipping the eaves support tray. Without it, the membrane sags into the gutter, blocking water flow and accelerating gutter degradation. A tray costs a few pounds per metre. It's a standard detail that some builders skip because they've "always done it without one."

Assuming breathable membrane eliminates all condensation risk. It doesn't. The membrane manages vapour that passes through the ceiling from below. If warm air is pouring into the roof void through unsealed downlights, an open loft hatch, or gaps around pipes, no membrane can compensate. A good ceiling-level vapour control layer and careful airtightness detailing are as important as the membrane choice.
