22mm Push-Fit Pipe: When to Use It, What to Buy, and How to Avoid Leaks

22mm push-fit pipe for heating and hot water: barrier vs non-barrier, Speedfit vs Hep2O, correct installation, indicative branded barrier-pipe prices of £8 – £12 per 3m length, and the mistakes that cause leaks.

By Ian

Project managed a £182k Oxfordshire kitchen extension

Plan the pipe routes, compatible fittings and access arrangements with your plumber before floors and walls are closed. Keep photographs and the pressure-test record with your project documents so future repairs do not depend on guesswork.

What it is and what it's for

22mm push-fit pipe is plastic plumbing pipe with a 22mm outside diameter, designed to carry water under pressure without soldering. You push the pipe into a fitting until it clicks, and an internal O-ring (a rubber gasket) seals watertight while a collet (a ring of stainless steel teeth) grips the pipe so it can't pull out. No flux, no blowtorch, no fire blanket behind the joint. That's the appeal.

The 22mm size handles higher flow rates than its 15mm sibling. Your plumber uses it for the main flow and return circuit on central heating systems, for the primary hot and cold distribution pipes from the cylinder or combi boiler, and for bath feeds where a 15mm pipe would restrict flow and take forever to fill. Anywhere the system needs to move a larger volume of water, 22mm is the standard domestic size. Check the boiler manual before plastic pipe goes near the boiler: most manufacturers require a length of copper straight off the boiler connections.

Check the exact pipe and fitting system's certification, permitted uses and installation instructions. BS 7291 covers relevant thermoplastic plumbing systems, but a brand name or a WRAS logo alone does not establish suitability for every installation.

Barrier vs non-barrier: the distinction that matters most

This is the single most common mistake homeowners make when buying push-fit pipe, and the consequences take years to show up.

Barrier pipe has a thin layer of aluminium or EVOH (ethylene vinyl alcohol, a plastic with very low oxygen permeability) bonded between the inner and outer walls. This layer stops oxygen from permeating through the plastic and dissolving into the water inside. Non-barrier pipe has no such layer.

Why does oxygen matter? In a sealed central heating circuit (the closed loop between your boiler and radiators), dissolved oxygen corrodes the steel components: radiators, the boiler heat exchanger, and steel fittings. The corrosion creates magnetite sludge (the black muck that comes out when you bleed a radiator). Sludge blocks radiator channels, reduces boiler efficiency, and eventually kills the boiler pump or heat exchanger. This doesn't happen in month one. It takes 2-5 years to become obvious, by which point the pipe is buried, the floor is down, and finding the cause is expensive.

Warning

Non-barrier pipe on a sealed central heating circuit will cause internal corrosion of radiators and boiler components within 2-5 years. The damage is gradual and invisible until radiators develop cold spots or the boiler loses efficiency. Always use barrier pipe for any heating circuit. Non-barrier pipe is only suitable for hot and cold water supply runs, where the water is constantly replaced and oxygen ingress is irrelevant.

At the builders' merchant, barrier pipe is usually labelled "B-PEX" (barrier cross-linked polyethylene) or "barrier PB" (barrier polybutylene). The packaging or the print on the pipe wall states "oxygen barrier" or "barrier pipe." If it doesn't say barrier, it isn't.

Types: PEX vs polybutylene

Both PEX and polybutylene are available as 22mm barrier pipe. Handling characteristics vary; operating limits belong to the specified system, not simply to the polymer name.

PropertyPEX (cross-linked polyethylene)Polybutylene (PB)
Temperature limitCheck exact system specificationCheck exact system specification
Pressure at operating temperatureCheck application and temperatureCheck application and temperature
Cold-water pressure ratingCheck exact system specificationCheck exact system specification
FlexibilityStiffer, holds straight runs wellMuch more flexible, threads through joists easily
Best forStraight runs along walls, exposed pipeworkRuns through floor joists, tight spaces, retrofit situations
Major brandsJG Speedfit B-PEX, Flomasta PE-XHep2O (Wavin), PolyPlumb, JG Speedfit PB
Typical price (22mm x 3m)£8-12£10-12
Guarantee50 years (Speedfit)25-50 years depending on brand

Select the complete pipe-and-fitting system for the design temperature and pressure. Do not infer that any PEX pipe is suitable for hotter water than any polybutylene pipe. Check the boiler or cylinder instructions as well as the pipe manufacturer's limits.

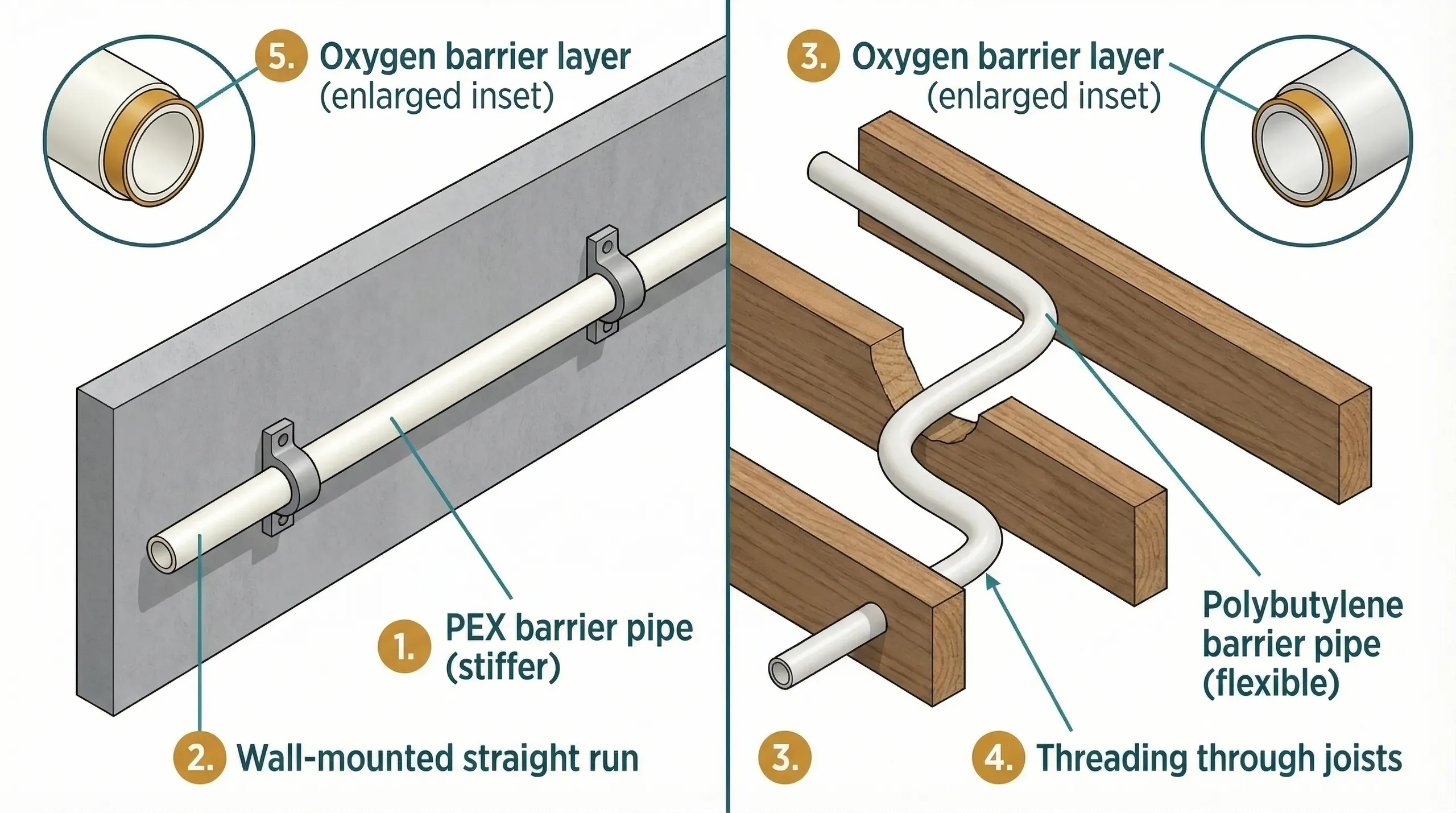

PEX holds straight runs well; polybutylene bends through joists without kinking

Tip

If you're buying pipe and aren't sure which to choose, ask your plumber what they prefer. Most plumbers have a system they've used for years and carry the matching fittings. What matters is that it's barrier pipe and that the fittings match the pipe brand. The PEX vs PB decision is secondary.

System compatibility: pick one brand and stick with it

JG Speedfit fittings are designed for JG Speedfit pipe. Hep2O fittings are designed for Hep2O pipe. The outside diameters are identical (22mm), so the pipe physically slides into either brand's fittings. But the internal diameters differ slightly between PEX and polybutylene, which means the pipe inserts (the small plastic stiffener that goes inside the pipe end to stop it collapsing under the O-ring pressure) are not interchangeable.

Use the insert specified for the pipe. Do not substitute an apparently similar insert without the manufacturer's approval; fit and support of the pipe wall matter to the joint.

This matters when you're topping up materials mid-job. If your plumber started with Speedfit, don't grab Hep2O pipe from a different merchant because it's in stock. The savings aren't worth the risk.

How to work with it

Cutting

Cut 22mm push-fit pipe with a proper pipe cutter, not a hacksaw. A ratchet pipe cutter makes a clean, square cut every time. A hacksaw leaves burrs on the cut edge, and those burrs damage the EPDM O-ring inside the fitting as the pipe slides past. Damaged O-ring means a slow leak that may not show up during pressure testing but develops over weeks or months as the damaged rubber degrades further.

After cutting, check the end is square. Hold it against a flat surface. If light shows under one side, the cut is angled and the pipe won't seal evenly. Cut again. Deburr the inside and outside edges with a utility knife or fine file, removing any plastic swarf.

Inserting into fittings

Insertion depth depends on the fitting. JG Speedfit lists a 35 mm stop distance for its 22mm fittings. Its pipe mark aligns with the collet head when correctly cut and fully inserted; the mark is not supposed to disappear. Follow another system's own instructions.

The correct sequence:

  1. Cut square and deburr.
  2. Fit the specified pipe insert fully. If it will not seat, check the pipe, cut and insert compatibility before proceeding.
  3. Push to the internal stop and check the manufacturer's insertion indicator. Complete any locking step specified for the fitting.
  4. Pull to check the joint is secure, then pressure test. A joint that pulls apart needs investigation and correct reassembly before use.

That pull test is not optional. Do it on every single joint. Professional plumbers do it by habit. The five seconds it takes prevents the catastrophic failure that happens when a joint releases under pressure inside a finished wall.

Warning

Use the correct stiffener wherever the plastic pipe system requires one. Check it before assembly; an apparently secure joint is not proof that all components are present.

Supporting and clipping

Support pipework without imposing strain on fittings, and allow for thermal movement. For surface-mounted 22mm Speedfit pipe, the manufacturer lists 500 mm horizontal and 800 mm vertical clip spacing. Other products and concealed runs need their own installation details. See the JG Speedfit technical guide, pages 4-8 and 19.

Pressure testing

Before any pipework gets concealed (boarded over, plastered in, screeded), the entire system must be pressure tested. For systems containing plastic pipe, the Water Fittings Regulations (Schedule 2, paragraph 12) set a longer test than for copper: 1.5 × working pressure for 30 minutes, then either a further 90 minutes at one third of that pressure without it dropping, or 150 minutes with only a small, limited pressure drop, with no visible leaks throughout. Your plumber fills the system, pumps it up using a manual test pump, and watches the gauge. Any drop means a leak.

Building control may require a pressure test certificate before signing off concealed pipework. Photograph the gauge at the start and end of the test. Keep the photographs with your project records. If a dispute arises later about installation quality, the pressure test evidence is your first line of defence.

How much do you need

For a typical extension plumbing layout, the 22mm pipe runs are relatively short compared to 15mm branches. You're using 22mm for:

  • Main flow and return from the boiler to a distribution point (manifold or tee) serving the new radiators: typically 5-15m depending on boiler location.
  • Primary hot and cold supply runs from the existing distribution to the new kitchen/utility: typically 3-8m each.
  • Bath feed (if the extension includes a bathroom): 2-4m.

A reasonable estimate for a single-storey rear extension is 15-30m of 22mm pipe. That's five to ten 3m lengths, or a single 25m coil for most of that range.

The rule of thumb for sizing: maintain 22mm for the main circuit and distribution runs, then branch down to 15mm for individual radiator connections and single tap feeds. Don't run more than three radiators off a single 15mm branch. If you have four or more radiators on one circuit, keep the main at 22mm and only reduce at each individual radiator tee.

Tip

Buy one extra 3m length beyond your estimate. Push-fit pipe is not expensive enough to justify a return trip to the merchant, and a botched cut or a measurement error on site will consume a length faster than you expect. The leftover piece stores flat and keeps indefinitely.

Cost and where to buy

Branded 22mm barrier pipe costs £8 – £12 per 3m length depending on brand and material. Buying a 25m coil brings the per-metre cost down by roughly a tenth compared to individual 3m lengths. The table below has current pricing from national retailers.

ProductSizePrice (March 2026)Source
JG Speedfit B-PEX barrier pipe22mm x 3m£11.18-11.21Screwfix / Toolstation
Flomasta PE-X barrier pipe22mm x 3m£7.98Screwfix
Hep2O polybutylene barrier pipe22mm x 3m£11.92Screwfix
JG Speedfit B-PEX barrier coil22mm x 25m£82-84Screwfix / Toolstation
Flomasta PE-X barrier coil22mm x 25m£59.98Screwfix
Unbranded PB barrier coil22mm x 25m£64.99Screwfix
PB barrier coil (Toolstation)22mm x 50m£79.97Toolstation

Screwfix and Toolstation carry the widest range. Travis Perkins and Jewson stock Speedfit and Hep2O but prices vary by branch and trade account. If your plumber has a trade account at a builders' merchant, the pipe will likely be cheaper than retail. Ask what brand they're using and whether the price includes barrier pipe specifically, not just "22mm plastic."

External resource

Screwfix - 22mm Pipe Range

Full 22mm pipe listing including barrier PEX, polybutylene, and copper for comparison.

screwfix.com

Where to buy Push-Fit Pipe 22mm (Speedfit)

Check current prices from UK suppliers.

These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.

Alternatives

22mm copper is an alternative where the system design and installation conditions suit it. Agree the material and jointing method with your plumber, including access, protection and maintenance requirements.

The trade-off is speed and skill. Soldering copper requires a blowtorch, flux, solder, a fire blanket, and the ability to make a clean joint. A plumber working in push-fit can complete a first-fix plumbing layout in roughly half the time. That labour saving is real money on your quote.

A common compromise, particularly popular on forum threads among experienced installers: use copper for the main concealed runs (under floors, inside walls) and push-fit for accessible connections (in airing cupboards, behind bath panels, at manifold points). You get copper's reliability where you can't access a failure, and push-fit's speed where you can.

For the 15mm branch runs off your 22mm main circuit, see the 15mm push-fit pipe page.

Insurance: a risk most guides don't mention

Keep installation records and check your buildings insurance terms for the proposed work. Ask the insurer about any unclear conditions before installation; this guide does not establish a particular policy's cover or exclusions.

A pressure-test record, photographs before concealment and installer details make future investigation easier. They do not guarantee that an insurance claim will be accepted.

Discuss access for inspection and repair with your plumber before agreeing the route.

Common mistakes

Forgetting pipe inserts. Check that the correct insert is fitted to each plastic pipe end before assembly. Do not assume it comes in the fitting pack or that a completed joint can be checked by looking through its body.

Using non-barrier pipe on heating circuits. The packaging doesn't always make it obvious. If the pipe or the packaging doesn't explicitly say "barrier" or "oxygen barrier," assume it isn't. Non-barrier pipe is cheaper because it's simpler to manufacture. It's fine for hot and cold water supply. It will slowly destroy your heating system.

Mixing brands. Speedfit pipe with Hep2O fittings, or grabbing whatever's in stock at the merchant without checking compatibility. The pipe slides in, the collet grips, and the joint looks identical to a correct one. But the insert doesn't match the pipe ID, and the O-ring seating is compromised. Stick to one brand throughout.

Concealing joints without pressure testing. Once the floorboards go down or the plasterboard goes up, accessing a failed joint means ripping out finished work. Every joint, every time, must be pressure tested before concealment, using the plastic-pipe test described above. Better still, keep push-fit joints out of concealed positions altogether: Water Regs UK guidance does not permit push-fit joints on concealed pipework, so hidden runs should be continuous pipe with any joints left accessible.

Not allowing for thermal movement. A 3m run of plastic pipe on a heating circuit expands noticeably between cold and full operating temperature. Clipping it rigid at every point along a straight run forces the expansion stress into the fittings at each end. Leave slight flex in the clips and allow a small loop or offset at direction changes.

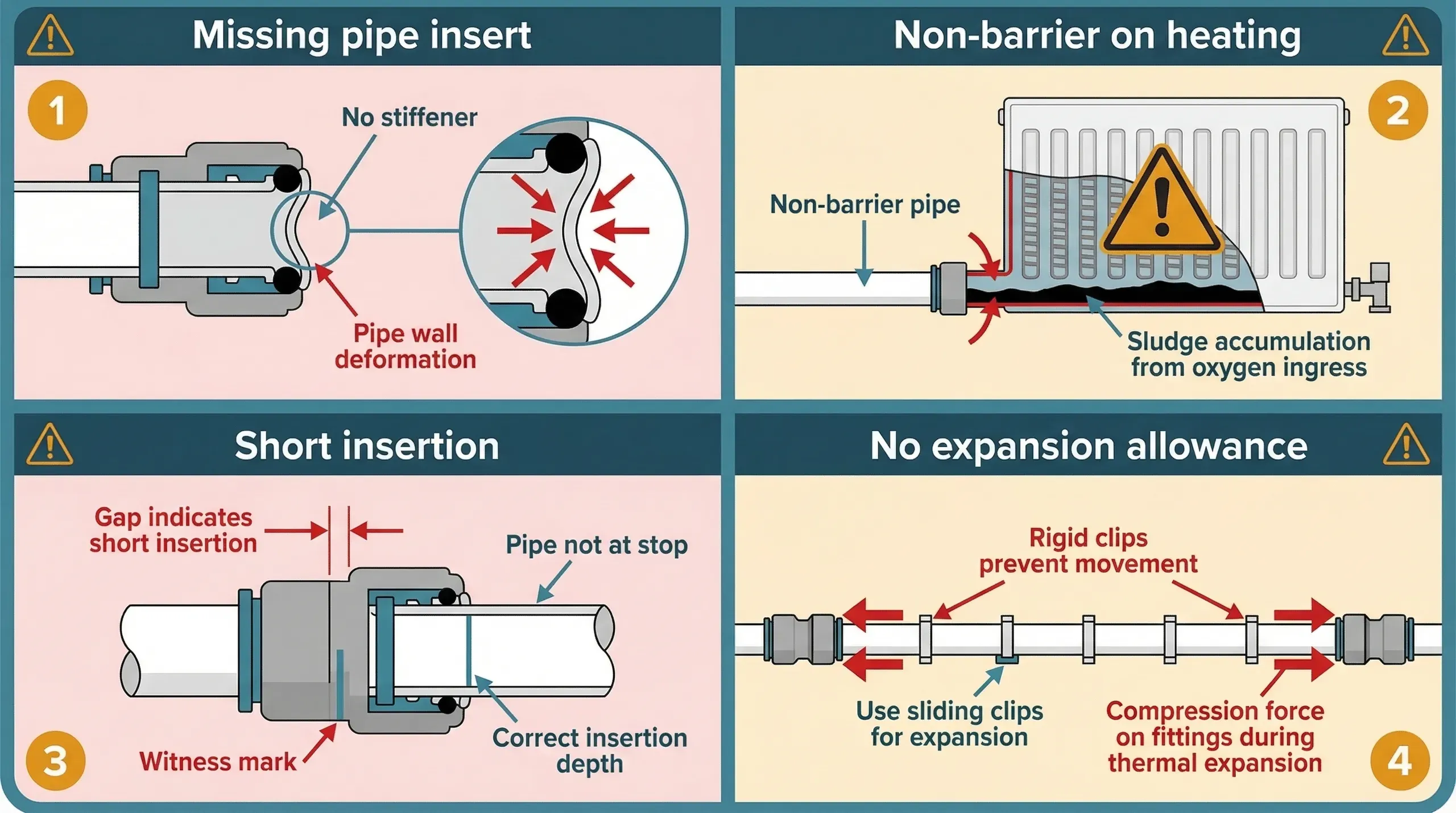

Four common joint mistakes, each one invisible until the damage is done

Not photographing before concealment. Approved Document L expects new heating and hot water pipework to be insulated where it runs outside the heated space and near the cylinder (paragraph 4.24). The formal photographic evidence requirement applies to new dwellings, but photographs of your pipework runs with insulation fitted, taken before the floor goes down, show building control the work was done. They also protect you in an insurance claim. Take them. Store them with your project file.

Where you'll need this

  • First-fix plumbing - main flow/return heating runs from the boiler to new radiator circuits, primary hot and cold distribution to the new kitchen

22mm push-fit pipe appears during the first-fix plumbing phase of any extension or renovation that adds radiators or extends the hot water distribution. It's one of the less expensive materials on the job, but getting it wrong (wrong type, poor installation, concealed joints without testing) creates the kind of slow, hidden failure that costs thousands to fix once the build is finished.
