15mm Push-Fit Pipe: Speedfit, Hep2O, and How to Get Leak-Free Joints
The complete UK guide to 15mm push-fit pipe - Speedfit vs Hep2O, barrier vs standard, how to cut and connect, and current prices from £5-8 per 3m length.
A plumber installs 40 metres of 15mm push-fit pipe in your extension on a Tuesday. By Thursday, the plasterboarder has boarded over every run. Two weeks later, a slow drip appears on a ceiling below. The cause: three joints where the pipe wasn't pushed in far enough, and two more where the pipe inserts were left out entirely. Stripping plasterboard, drying out timber, re-testing, re-boarding. That's a week's delay and a bill that didn't need to exist. Push-fit pipe is genuinely easy to use. But "easy" doesn't mean "foolproof," and the gap between a watertight system and a leaking one comes down to four things you can check yourself.
What it is and what it's for
Push-fit pipe is the plastic pipe used in most UK extension and new-build plumbing. It carries hot and cold water to taps, showers, baths, and radiators. The "push-fit" name refers to how it connects: you push the pipe into a fitting until it clicks, and a grab ring (a stainless steel ring with angled teeth) locks it in place while a rubber O-ring creates the watertight seal. No soldering, no flux, no blowtorch.
The pipe itself is either polybutylene (PB) or cross-linked polyethylene (PEX). Both are flexible enough to route through floor joists and around corners without needing an elbow fitting for every change of direction. A 15mm pipe has a 15mm outside diameter and is used for individual supply runs to taps, basins, showers, and radiators. The larger 22mm size handles main distribution runs from the boiler and cylinder.
Two brands dominate the UK market: JG Speedfit (made by John Guest, now RWC) and Hep2O (made by Wavin). Both carry WRAS approval (confirming compliance with UK Water Regulations) and are kite-marked to BS 7291 Class S. Merchant own-brands like Flomasta (Screwfix) and PolyFit (Plumbase) also exist and meet the same British Standards.
Push-fit has largely replaced copper for first-fix plumbing in UK extensions. It installs roughly 40% faster than soldered copper, costs less in materials, and doesn't require a qualified plumber with a blowtorch working near timber joists.

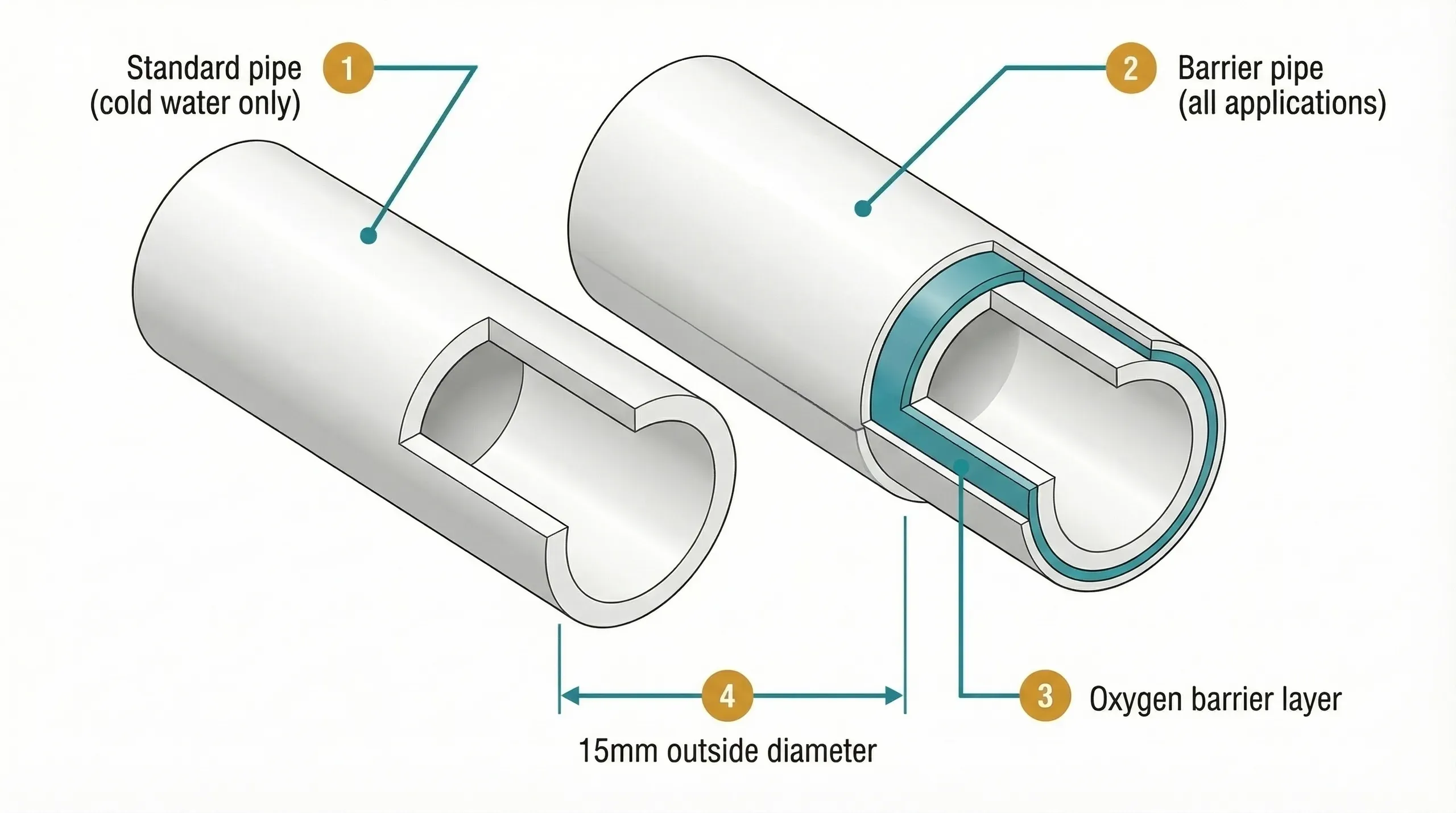

Types: barrier pipe, standard pipe, PB vs PEX
This is where most guides lose people. Walk into Screwfix and you'll find "15mm barrier pipe," "15mm push-fit pipe," "B-PEX," and "polybutylene" all on the same shelf. Here's what the labels mean.
| Type | Material | What it looks like | Use it for | Don't use it for |
|---|---|---|---|---|
| Standard (non-barrier) | Polybutylene (PB) or PEX | White or grey, single-layer wall | Cold water supply only | Central heating or underfloor heating (oxygen permeation corrodes metal components) |
| Barrier pipe | PB or PEX with aluminium or EVOH oxygen barrier layer | White with a visible coloured stripe or layer in the pipe wall | Everything: hot supply, cold supply, central heating, underfloor heating | Nothing domestic (barrier pipe works everywhere) |
| JG Speedfit B-PEX | Cross-linked polyethylene (PEX) with barrier | White, stiffer than PB, retains coil memory | All applications. The default choice at Screwfix and Toolstation | Tight routing through multiple joists where maximum flexibility matters |
| Hep2O | Polybutylene (PB) with barrier | White, noticeably more flexible, lays flat from coil | All applications. Preferred for long runs through floor voids | Nothing domestic, but requires Hep2O-specific Smart Sleeve inserts |
The rule is simple: buy barrier pipe for everything. It costs the same as standard pipe at retail and works on both heating and water circuits. There's no reason to buy non-barrier pipe for a new installation. If your plumber is quoting standard pipe for heating runs, that's wrong.
PB vs PEX in practice
PEX (Speedfit B-PEX) is stiffer. When you uncoil it, it springs back toward its coiled shape. This makes it slightly harder to route through multiple joists but easier to get a straight, neat run on exposed sections.
PB (Hep2O, Flomasta, PolyFit) is softer and more flexible. It lays flat when uncoiled, making it easier to thread through structures on long runs. Plumbers doing whole-house first fixes often prefer PB for this reason.
Both accept the same push-fit fittings (with brand-matched inserts). For a single extension, the choice is personal preference. Pick one system and stay with it.
The US polybutylene scare (and why it doesn't apply here)
If you've Googled "polybutylene pipe" you'll have found alarming results about class-action lawsuits, banned pipe, and whole-house replacements in the United States. That was a real problem, but it was caused by acetal resin fittings (a specific plastic used for the connectors) degrading when exposed to chlorinated water. The pipe itself wasn't the failure point.
UK push-fit systems don't use acetal resin fittings. They use polymer or brass fittings with Viton O-ring seals. The Polybutene Piping Systems Association confirms PB-1 pipe has been in continuous use across Europe and Asia for over 50 years without the US-style failures. UK water chlorination levels are also lower than US levels. This is not a concern for UK installations.
How to work with push-fit pipe
What you need
A plastic pipe cutter (sometimes called a pipe slice) is the only tool that matters. Not a hacksaw. A hacksaw leaves burrs and creates a slightly oval cut that can damage the O-ring when you push the pipe into a fitting. A rotary pipe cutter designed for plastic gives a clean, square cut every time. They cost under £10.
You'll also need the pipe inserts (stiffeners) that match your chosen brand. One insert goes inside the pipe end at every connection. Without it, the grab ring compresses the soft plastic pipe wall inward, deforming it away from the O-ring and breaking the seal. This is the single most common cause of push-fit leaks.
Pipe inserts are mandatory for every plastic pipe connection. Omitting them is the number one cause of push-fit leaks. A plumber once piped an entire house without inserts and every joint leaked. The inserts cost roughly 10-15p each. There is no situation where you skip them.
Cutting
Cut on the printed marks. Speedfit pipe has asterisk (*) marks at intervals along its length specifically for cutting. The pipe cutter blade goes right on the mark. Press the cutter closed in one smooth motion. Don't saw back and forth. Check the cut end is square and free of any raised edges. If there's a burr, trim it with a sharp knife.
Connecting

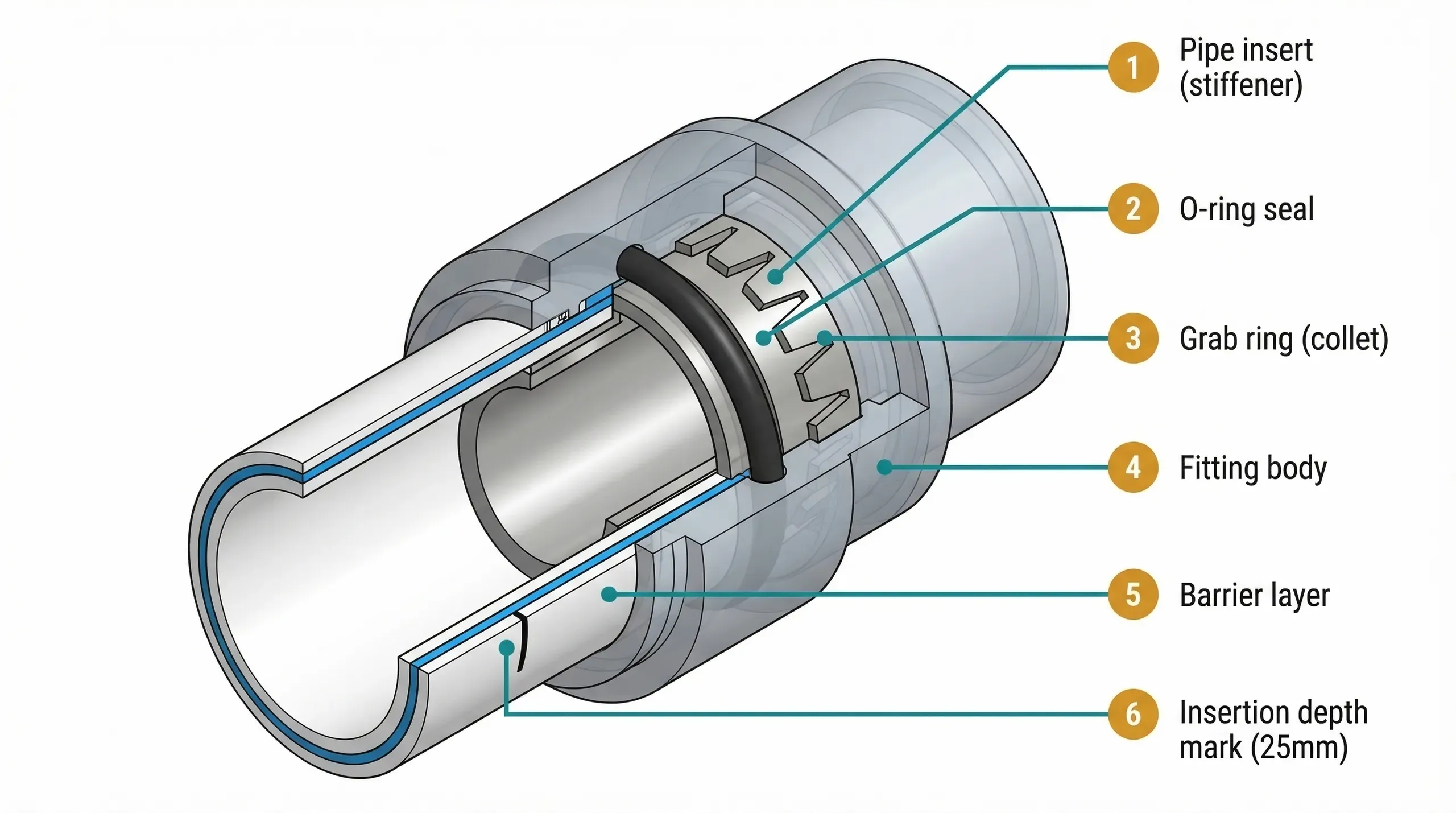

Push the pipe insert fully into the pipe bore. You'll feel it seat. Then push the pipe into the fitting until it stops. For 15mm pipe, the insertion depth is 25mm. Mark 25mm from the pipe end with a pen before you push it in, so you can confirm it went all the way home.
Once inserted, pull the pipe back firmly. It shouldn't move. This pull-test takes two seconds and catches any joint where the grab ring hasn't engaged properly. Do it on every single connection.

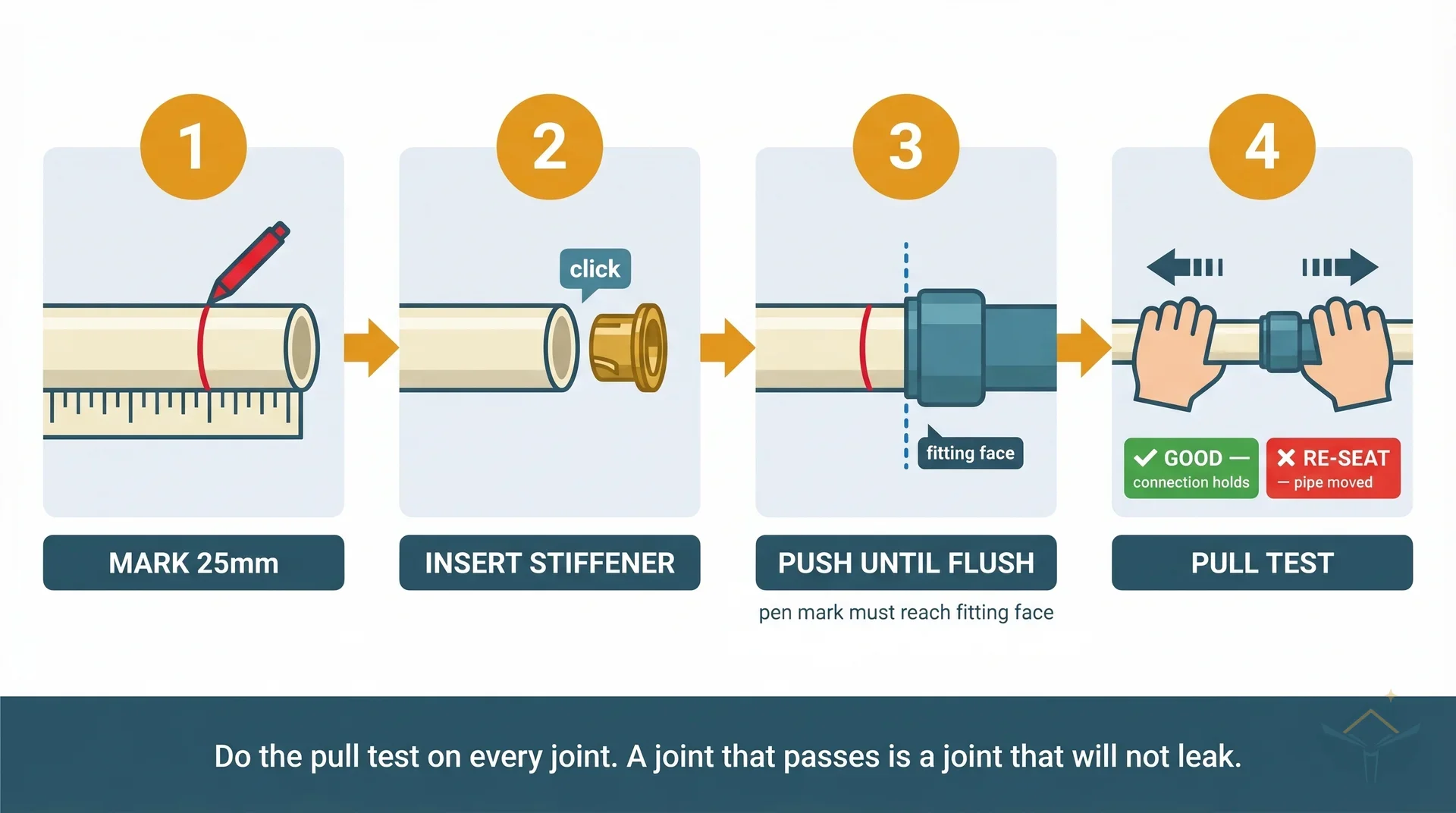

Mark the insertion depth on every pipe end before connecting. A pen line 25mm from the cut end tells you instantly whether the pipe is fully seated. After pushing in, the pen line should be right at the face of the fitting. If you can still see 5mm of gap, the pipe isn't home.
Disconnecting
Speedfit fittings release when you push the collet (the plastic ring around the pipe entry) toward the fitting body while pulling the pipe out. Hep2O requires a HepKey (a small plastic clip that wraps around the pipe and depresses the internal sleeve to release the grab ring). HepKeys are size-specific: 15mm pipe needs a 15mm HepKey. Keep one on site.
Bending without fittings
Push-fit pipe can be cold-bent around gentle curves without an elbow fitting. The minimum bend radius is roughly 150mm for 15mm pipe (about the size of a large mug). Sharper bends kink the pipe and restrict flow. For anything tighter than a gentle sweep, use an elbow fitting.
Clip spacing
Pipe clips hold the runs in place against joists and walls. Space them at 500mm intervals on horizontal runs and 1200mm on vertical runs. Leave a small gap (about 10mm) at fittings to allow for thermal expansion. Plastic pipe expands more than copper when hot water flows through it. Clips that are too tight cause the pipe to bow between fixings as it heats and cools.
How much you need
For a typical single-storey kitchen extension with a sink, dishwasher, and one radiator, you'll need roughly 15-25 metres of 15mm pipe (hot and cold runs combined, depending on pipe route lengths from the manifold or existing supply). A larger extension with a utility room, multiple radiators, and a bathroom above could need 40-60 metres.
Buy coils, not cut lengths, for first-fix work. A 25m coil costs £44 – £50 (roughly £2 – £2 per metre) compared with £5 – £8 for a 3m cut length (£2 – £3 per metre). The saving grows with longer runs. Keep a couple of 3m straight lengths for final connections and exposed sections where you need neat, rigid pipe.
Add 10-15% for wastage. Cuts at the wrong length, changes to the route mid-install, and test pieces all eat into your stock.
Inserts and fittings
Budget one pipe insert per connection point. A typical extension plumbing installation has 30-60 connection points (two per fitting, plus connections to valves and appliances). Buy a trade pack of 50 or 100. At 10-15p each, the total cost is negligible.
Fittings (elbows, tees, couplers, isolation valves) are a separate line item. Your plumber will know what's needed once the pipe routes are planned.
Cost and where to buy
Branded 15mm barrier pipe from the two main manufacturers runs £5 – £8 per 3m cut length at retail. The spread depends on which brand and which merchant.
| Product | Supplier | Price (inc VAT) | Notes |
|---|---|---|---|
| JG Speedfit B-PEX 15mm x 3m | Toolstation | £5.54 | PEX barrier pipe. 50-year warranty. 4.9/5 from 280 reviews |
| JG Speedfit B-PEX 15mm x 3m | Screwfix | £5.64 | Same product, marginally more |
| JG Speedfit 15mm x 3m | Wickes | ~£5.70 | Wickes own listing of Speedfit range |
| Hep2O 15mm x 3m | Screwfix | £7.60 | PB barrier pipe. Requires Hep2O Smart Sleeve inserts |
| Hep2O 15mm x 3m | Toolstation | £7.88 | Same product, slight price variation |
| Flomasta PB 15mm x 25m coil | Screwfix | £32.38 | Own-brand. Works out to ~£3.88 per 3m equivalent |
| PolyFit PB 15mm x 3m | Plumbase | £4.51 | Trade merchant. Lowest branded 3m price found |
| Push-fit PB 15mm x 100m coil | Screwfix | £129.99 | Bulk. £1.30/m. For whole-house first fixes |
Hep2O costs roughly 35% more than JG Speedfit for the same length. The performance difference doesn't justify the premium for most domestic installations. Speedfit B-PEX is the value pick.
A 25m coil works out slightly cheaper per metre and avoids offcut waste, though the saving per length is modest. The real benefit is having continuous pipe for long runs without joints -- fewer fittings, fewer potential leak points, and faster installation.
Own-brand barrier pipe (Flomasta from Screwfix, PolyFit from Plumbase) meets the same BS 7291 standard as Speedfit and Hep2O. At £4 – £5 per 3m, it's a genuine saving if you're buying volume. Use the matching brand inserts.
Things your plumber already knows (and you should too)
Barrier pipe on heating circuits is non-negotiable
Standard (non-barrier) pipe allows oxygen to permeate through the pipe wall into the water. In a sealed central heating system, that oxygen corrodes steel radiators, boiler heat exchangers, and pump components from the inside. Barrier pipe has an aluminium or EVOH layer that blocks oxygen transmission. NHBC standards require barrier pipe on all heating circuits. If your plumber is running standard pipe to radiators, stop the job.
Metallic detection tape on concealed runs
NHBC 2024 standards require metallic tape to be applied to any plastic pipe concealed in walls or ceilings. The reason: a metal detector can't find plastic pipe, and the next person who drills into that wall needs to know where the pipes are. This is a simple self-adhesive tape that runs along the pipe. It costs almost nothing and takes minutes to apply. Most DIY guides don't mention it. Your building inspector might.
Pressure testing before boarding
Water Regulations Schedule 2 covers two related requirements here. Paragraph 7 states that concealed joints should only be used where unavoidable, minimising the number of hidden connections that could leak. Paragraph 12 requires that pipework be tested before concealment. The standard protocol: fill the system, check for leaks at low pressure (0.5-1 bar), then test at 1.5 times working pressure (minimum 10 bar) for 45 minutes. If the pressure drops, you have a leak. Find it and fix it now, while the walls are still open.
Never board over push-fit pipework without a pressure test. Water Regulations require it, your building inspector may check for it, and a concealed leak that goes undetected for weeks will cause damage that costs ten times more than the test.
One brand per installation
Speedfit pipe will physically fit into a Hep2O fitting (and vice versa), but the manufacturers don't guarantee cross-brand compatibility. The pipe wall thickness and insert geometry differ slightly between systems. Plumbers who've seen leaks from mixed installations stick to one brand throughout. If you're extending an existing system and need to bridge between brands, use a short section of copper pipe as a transition piece. Both Speedfit and Hep2O seal reliably onto copper.
Don't hide joints you don't have to
Water Regulations say concealed joints "should only be considered where unavoidable." In practice, this means: run continuous lengths of pipe through floor voids and wall cavities, and locate your fittings where you can reach them (under baths, inside kitchen plinths, at manifold locations). Every joint is a potential leak point. Fewer concealed joints means less risk.
Where push-fit shouldn't be used
Push-fit pipe isn't suitable for everything. Keep it away from:
- Gas or oil supplies. Plastic pipe is not approved for gas in the UK. Full stop.
- Within 1 metre of a gas boiler flue. Heat from the flue can soften the pipe. Use copper for the final connection to the boiler.
- Solid fuel boiler systems. Temperature spikes from wood burners and solid fuel stoves can exceed the pipe's intermittent maximum (114C for Speedfit). Use copper.
- Underground runs. Push-fit is not rated for direct burial. Use MDPE (medium-density polyethylene) pipe for underground water supply.
- Exposed external runs. UV degrades plastic pipe over time, and freezing water in an uninsulated exposed plastic pipe will split it. Copper or insulated MDPE is the correct choice outdoors.
Alternatives
Copper pipe remains the traditional choice and still has genuine advantages. It's rodent-proof (plastic pipe gets chewed through in roof voids and accessible spaces), fully recyclable, and some insurance policies look more favourably on copper systems. If your pipe runs pass through areas where rodents are a known issue, copper is worth the premium.
For a typical extension first fix, push-fit is the right default. Your plumber will install it faster, the material is cheaper, and the risk of leaks is extremely low when installed correctly. The "correctly" part is what this page exists to help you verify.
Where you'll need this
- First-fix plumbing - the main installation stage where all supply pipe runs are routed through the structure
- Plumbing layout planning - where pipe sizing and routing decisions are made before any pipe is cut
Push-fit pipe appears across all stages of any extension or renovation project that involves plumbing. The principles here apply whether you're running pipe for a kitchen sink, a new bathroom, or a full central heating system.
Common mistakes
Forgetting pipe inserts. Worth repeating because it's worth repeating. Every plastic pipe end that enters a fitting needs an insert. No exceptions.
Mixing brand inserts with another brand's fittings. A Speedfit insert in a Hep2O fitting (or vice versa) creates a poor seal. The geometry is subtly different. Use matching inserts and fittings from the same manufacturer.
Cutting with a hacksaw. The burrs and oval cut from a hacksaw blade damage the O-ring on insertion. Use a proper plastic pipe cutter. Replace the blade every 200 cuts or so, or when cuts start looking ragged.
Not pushing the pipe in far enough. If the pipe isn't seated to the full 25mm insertion depth, the O-ring may not be engaging the pipe wall properly. The grab ring might still hold, but the seal won't be reliable. Mark it, push it, pull-test it.
Watch out for old imperial copper pipe. If you're connecting push-fit to existing pipework, check whether the copper is metric (15mm OD) or imperial (1/2 inch, which is slightly larger). Push-fit fittings designed for 15mm metric pipe may not seal properly on imperial copper. You'll need a specific imperial-to-metric adapter fitting.
Using standard pipe on heating circuits. Standard non-barrier pipe on a central heating system will corrode your radiators and boiler internals through oxygen permeation. Barrier pipe only for heating. Always.
Skipping the pressure test. "It looks fine" is not a test. Fill the system, pressurise it, and wait 45 minutes. A pressure gauge costs under £15. A concealed leak costs hundreds.
