Weep Vents: What They Do, Why They're Required, and How to Spot a Botched Job

You're walking past your nearly finished extension and you notice the bricklayers have rendered straight over the new wall above the patio doors. It looks tidy. The render is flawless. What's missing is any sign of the small plastic vents that should sit just above the lintel, draining the cavity. Six months later, when winter rain soaks the west elevation for a week solid, a damp patch appears on the inside wall above the doors. The render needs cutting back. The cavity has to be dried out. The bill runs to four figures. All because nobody insisted that ten plastic inserts costing fifty pence each were actually fitted, and not later painted over.

What it is and what it's for

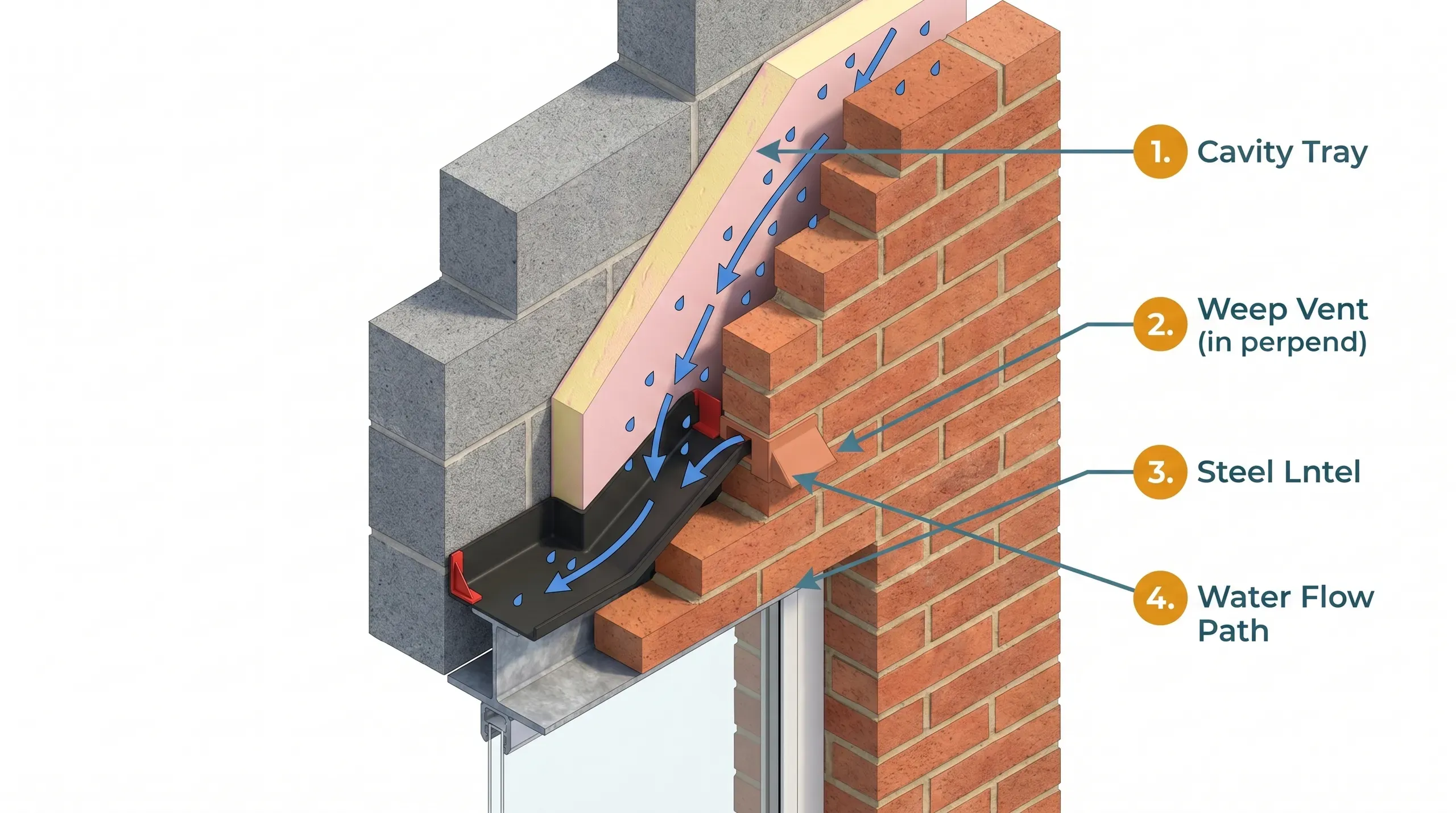

A weep vent is a small plastic or metal insert that sits in the vertical mortar joint of the outer leaf of a cavity wall. The vertical joint between two bricks is called a perpend, and that's where the vent goes. Standard size is 65mm tall (matching the height of one brick course), 10mm wide (matching a standard mortar joint), and around 100mm long (matching the thickness of the outer brick leaf).

The job of a weep vent is to let water out of the cavity. Cavity walls are not watertight. Wind-driven rain gets through hairline cracks in mortar, around window frames, and through the brick face itself. Once water is in the cavity, it runs down the back of the outer leaf until it hits something horizontal. That something is usually a cavity tray (a damp-proof membrane draped over a lintel above a window or door, designed to catch water and shed it outward) or the ground-level damp-proof course. Without weep vents, the water has nowhere to go. It pools on the tray, soaks into the mortar joints, and eventually finds its way through to the inner leaf, where it shows up as damp on your living-room wall.

This is not a theoretical risk. Missing or blocked weep vents are one of the most common causes of damp problems on extension projects, and they're one of the most preventable.

The Building Regulations that govern this are Approved Document C (site preparation and resistance to moisture) for England and Wales, with equivalent requirements in the Scottish Technical Handbook and Northern Ireland regulations. Approved Document C requires weep vents at a maximum of 900mm centres above any cavity tray or DPC. The relevant British Standard is BS 8215:1991, which specifies the same 900mm spacing as design practice. NHBC standards (Chapter 6.1.17) go further with a recommended 450mm maximum spacing above openings, which is the figure most builders work to in practice on new builds and warranty-backed extensions.

The two spacing numbers and which one applies

This is where homeowners get confused, because two spacing rules circulate online and they conflict.

900mm maximum centres is the legal Building Regulations figure. Approved Document C and BS 8215 both specify it. Below this spacing, you are non-compliant with the regs. A Building Control Officer can require you to expose and remedy the work.

450mm maximum centres above openings, with a minimum of two vents per opening is the NHBC recommended practice. NHBC standards apply to new-build homes warranted by NHBC and are widely used as the gold standard by Local Authority Building Control inspectors and by warranty providers like LABC and Premier Guarantee. Most extensions don't carry an NHBC warranty, but most BCOs will still reference NHBC 6.1.17 when assessing the work.

The practical position: ask your bricklayer to work to 450mm centres above all window and door openings, with two vents minimum per opening. Above the ground-floor DPC and at horizontal cavity tray runs in long walls, 900mm centres is acceptable. Stepped cavity trays at roof abutments need at least one vent at the lowest tray in the series. Parapet wall trays go at maximum 1m centres.

If your bricklayer pushes back and says "the regs only need 900mm," they're technically correct and practically wrong. The cost difference between fitting a vent every 450mm and every 900mm on a typical extension is a single box of fifty plastic inserts. Eleven pounds. Make them do it properly.

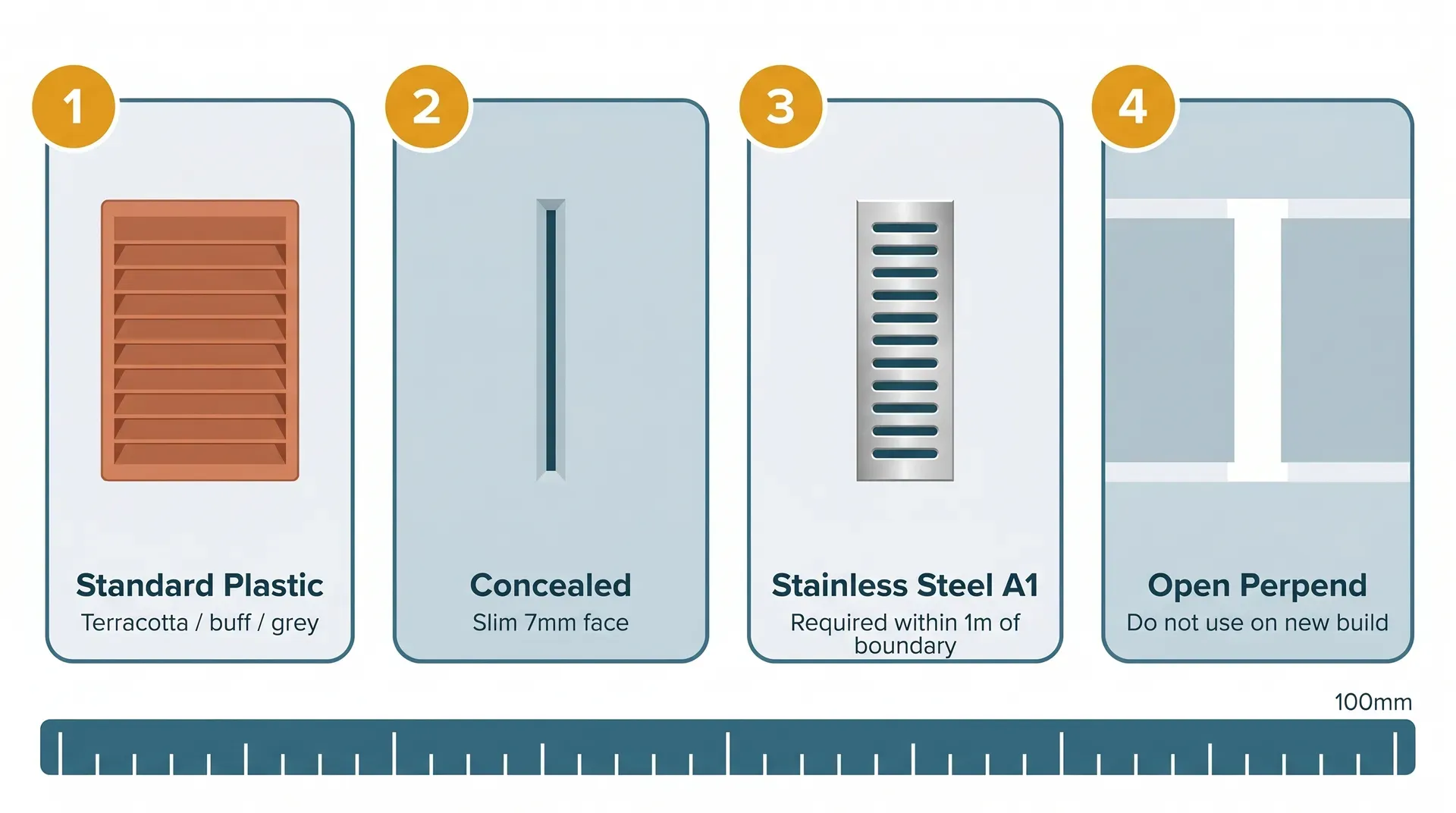

Types and variants

Five distinct product categories cover practically every situation a homeowner will encounter.

The standard plastic perpend vent is what most bricklayers will fit by default. They come in eight colours (terracotta, buff, brown, clear, white, grey, black, blue/black) at the same price. The colour matches the mortar, not the brick. A common mistake homeowners make is asking for vents that match their red bricks, then ending up with red plastic showing on grey mortar joints, which is far more visible than a grey or buff vent would be.

The concealed Timloc Invisiweep is worth specifying if you have visible facing brickwork on a prominent elevation. The face dimension is 7mm × 65mm rather than 10mm × 65mm, and the vent recesses slightly so it disappears into the mortar joint. The same price as a standard Timloc 1143 at most merchants, so there's no real reason not to use them on visible front elevations.

Telescopic vents are for awkward situations: walls thicker than 102mm, walls that will be rendered, or reveals where a standard vent would project too far or too little. They cost a few pence more per unit.

The non-combustible metal vent is now legally required in two situations. Buildings over 18m in height in England and Wales need A1 or A2-s1,d0 fire-rated external wall materials, including weep vents. More relevant to homeowners: residential buildings within 1m of any site boundary need plastic weep vents replaced with metal A1-rated alternatives. This rule came in with the 2022 Approved Document B amendments and catches a huge proportion of typical UK extensions, particularly terraced and semi-detached homes where one or both side walls sit close to the property line. If your extension wall is within a metre of the boundary fence, you need stainless steel weep vents, not plastic ones. Keyfix grade 304 stainless steel vents are the standard product, with a 125-year design life. They cost three to four times the price of plastic at £2 – £2 each. On a typical extension the total uplift is in the order of fifteen to forty pounds. Pay it.

The "open perpend" option (just leaving the perpend mortar joint empty) is sometimes proposed as a cost-saving measure. It's also documented as common practice in older buildings before plastic vents existed. Don't use it on a new build. The full 650mm² opening lets insects, spiders, and small mammals into the cavity. It's more visually intrusive than a coloured vent. And it's much more easily filled by accident during pointing or render work. Plastic vents have a baffle that prevents wind-driven rain entry while still allowing drainage. An open perpend has none of that.

Click to enlarge

How to work with it

Weep vents are fitted by the bricklayer during construction, not bolted on afterwards. The sequence matters and gets missed surprisingly often.

A cavity tray must be in place before the weep vent is fitted. The vent sits on top of the tray (or on top of the lintel front flange if the tray drapes over the lintel). The first course of brickwork above the tray contains the vents in their perpend joints. The vent should sit so that water collected on the tray can drain straight out through the vent, not a course higher, and not at any angle that would let water bypass the vent.

For ground-level installations, the weep vent goes in the first course of brickwork that sits above the horizontal DPC. That's typically two courses up from external ground level (the DPC must be at least 150mm above finished ground level under the regs).

The vent should project flush with the outer face of the brickwork. Not recessed (that lets water sit in the recess and freeze), not proud (that looks ugly and catches the eye). Just flush.

For walls that will be rendered, set the vent 18mm proud of the block face before rendering. The render coat then finishes flush with the vent face. After rendering, check every vent outlet. If the renderer has skinned over the face, drill it clear with a 2mm bit. If you don't, the vent is useless. This is a coordination problem between trades and the homeowner has to police it.

The cavity side of the vent has to stay clear of mortar droppings. As bricklayers build the wall, lumps of fresh mortar fall down the cavity and pile up on the cavity tray. If those droppings cover the inside of a weep vent, the drainage path is blocked from the back. The standard mitigation is a cavity batten, a length of timber lath laid on the tray during bricklaying, then pulled out at the end of the day to take the mortar droppings with it. Ask your bricklayer if they're using cavity battens. The honest ones will say yes. The lazy ones will say "we'll be careful."

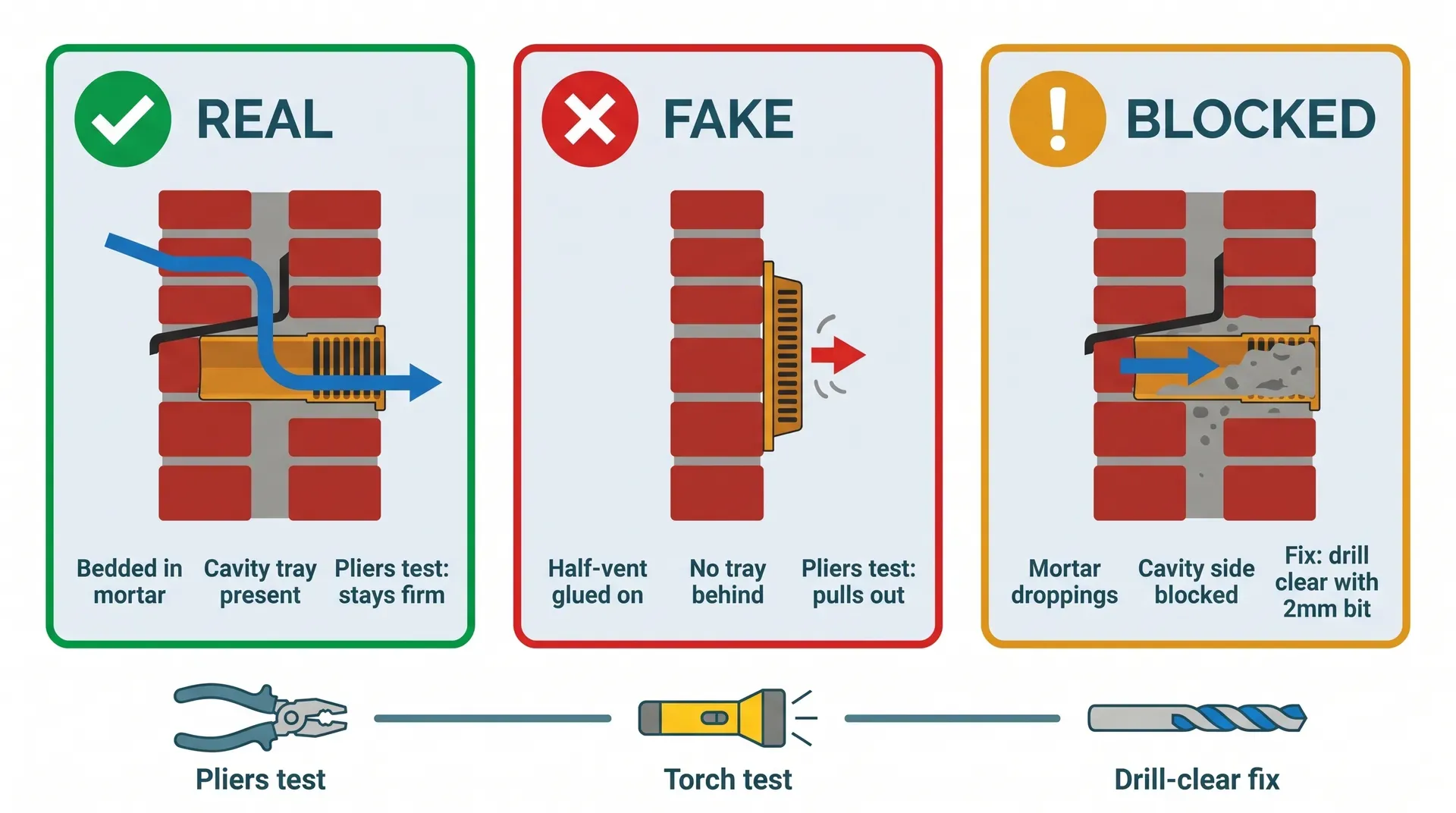

How to check the vents are real, in the right place, and not blocked

This is the section every other guide skips. You're paying for the work; you should be able to verify it.

During the build, before the BCO inspection: Walk every elevation of the new structure with a tape measure. Every external window and door head should have a cavity tray over the lintel. Look for at least two weep vents in the first course of brickwork above the lintel, no more than 450mm apart. At the ground-level DPC, check there are vents at maximum 900mm centres along all external walls. At any roof abutment where an extension roof meets an existing wall, check the cavity trays drain to weep vents.

The pliers test for fake vents: This is a known cowboy trick. The bricklayer forgets to fit weep vents, the wall gets built, the BCO is coming next week, and the bricklayer can't be bothered to take down a course. The fix? Cut a vent in half lengthwise, push the visible half into the mortar joint with PVA glue, and hope nobody notices. Detection is straightforward: grip the vent with small pliers and tug gently. A real vent is bedded in mortar inside the cavity and won't move. A fake one will pull out almost effortlessly. If you can pull it out, there's no cavity tray behind it, no drainage path, and no compliance with Approved Document C. This is grounds for a serious conversation with your contractor.

The mortar blockage test: Shine a torch through each vent face. You should see daylight or, with a cavity tray in place, the dark interior of the cavity. If you see fresh mortar blocking the back, the vent is non-functional. A 2mm or 3mm drill bit, run gently through the vent slot, will clear most blockages.

The render skin test: After rendering, inspect every vent face under raking light. The render should not bridge the vent outlet. Drill clear any vent that has been skinned over.

Photograph everything before render goes on. Your phone has a camera. Take pictures of every weep vent on every elevation before any render coat is applied. If a damp problem appears years later, those photos are the difference between an insurance claim and a fight.

Click to enlarge

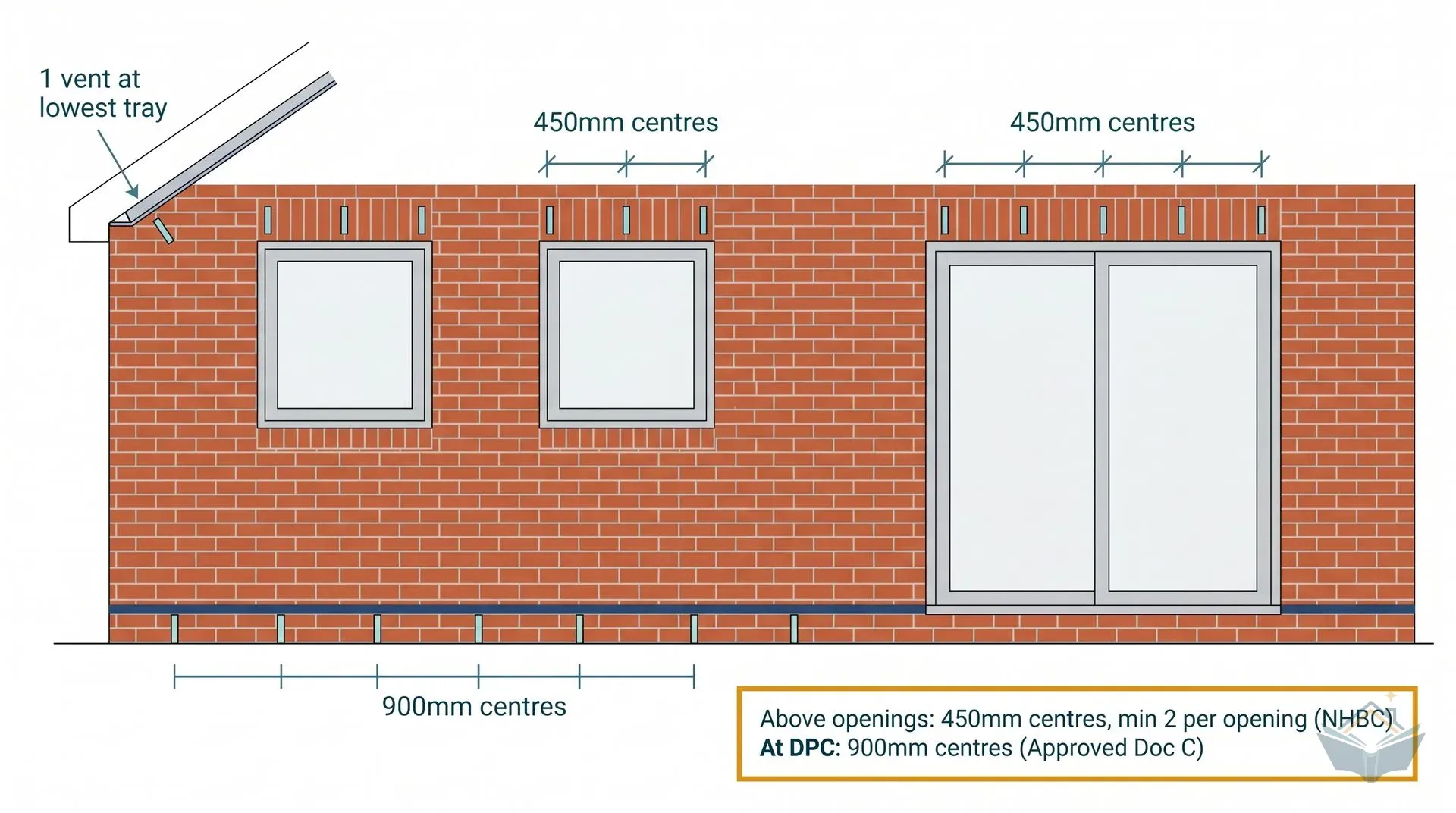

How many do you need

Counting weep vents is a simple exercise that nonetheless gets missed.

For each external window or door opening: a cavity tray with at least two vents at maximum 450mm centres above the opening. A standard 1.2m wide window therefore needs three vents in the course above the lintel. A 2.4m wide patio door set needs five or six.

For each ground-floor DPC run on every external wall: vents at maximum 900mm centres along the full length. A 6m rear wall needs seven vents along its base. A 4m flank wall needs five.

For each roof abutment cavity tray: at least one vent at the lowest tray in a stepped sequence; one at each end of any horizontal abutment tray.

For a typical 4m × 6m single-storey rear extension with one 2.4m patio door, two 1.2m windows on the rear, and one 1m window on a flank wall, you'll need:

• 5 vents above the patio door
• 3 vents above each rear window (6 total)
• 3 vents above the flank window
• 7 vents along the rear DPC
• 5 vents along each flank DPC (10 total)
• 2 vents at the roof abutment

That's around 33 vents. A box of 50 covers the lot with spares for breakages and the inevitable mid-job loss. Buy two boxes if your extension is wraparound or two-storey. They're cheap enough that running short on site is the real expense. Sending someone to a builders merchant for a box (see £13 – £28) is a wasted hour at forty to sixty pounds a head in labour.

Cost and where to buy

£0 – £1 for a standard plastic perpend vent. The lower end of that range is what you'll pay buying a box of 50 from an independent merchant. The upper end is what you'll pay walking into a DIY chain to grab one or two individually.

£13 – £28 for a box of 50, the standard trade pack. Timloc 1143 is the cheapest mainstream brand (bottom of that range, typically at Insulation Superstore). Manthorpe G950 sits at the top of the range, with no meaningful performance difference for a domestic extension.

£2 – £2 for stainless steel A1-rated non-combustible vents. These are required where your extension wall is within 1m of a site boundary, or on any building over 18m. Volume pricing tiers in around twenty pence per unit cheaper at 20+, 50+, and 250+ unit brackets. The Keyfix vent at BS Fixings is the standard product. For a typical extension you'll only ever buy in the under-50 quantity bracket.

Stocked at every major UK builders merchant: Travis Perkins, Jewson, Bradfords, Howarth Timber, Insulation Superstore, Wickes (limited range), Toolstation, and most independents. Manthorpe G950 and Timloc 1143 are the two brands you'll see most often. Both meet NHBC standards and BS 8215.

A clarification on a product code that circulates incorrectly online: Manthorpe's weep vent is the G950, not the G930. The G930 is a full-size airbrick (216 × 70 × 58mm) used for sub-floor ventilation and is not interchangeable with a weep vent. If you see a builder's merchant describe the G930 as a weep vent, ask for the G950 instead.

Alternatives and when each makes sense

The Timloc Invisiweep is worth specifying on visible facing brickwork where the standard 65mm × 10mm vent face would draw the eye. Same compliance, same price, far less visible.

Stainless steel non-combustible vents are not optional within 1m of a boundary on a residential building. They're also worth considering for premium spec or coastal locations where 100+ year material life starts to matter relative to plastic UV degradation. UV-stabilised polypropylene vents have a typical service life of around 50 years; stainless steel exceeds 125 years.

Open perpend joints (no vent insert) were standard practice on older UK housing before plastic vents became cheap and ubiquitous in the 1980s. They drain effectively but offer no insect protection and no rain baffling. They're not appropriate for new construction. If you find them in an existing wall, they're not a fault.

Where you'll need this

Weep vents are required wherever a cavity wall has a horizontal interruption that water can collect on:

• Walls and blockwork - fitted in the first course of outer-leaf brickwork above every cavity tray, lintel, and roof abutment during the structure phase
• Damp proof course - fitted at the first course above the ground-level DPC at maximum 900mm centres along every external wall

These appear at the structure stage of any extension or renovation project that involves cavity walling: single-storey rear, two-storey side, wraparound, or any new external masonry over openings.

Common mistakes

Plenty go wrong here. Watch for these specifically.

Omitting them entirely on rendered walls. This is by far the most common failure. The bricklayer fits them, the renderer covers them, and nobody coordinates. Or the bricklayer skips them on the assumption that "render covers the wall anyway." LABC warranty and most BCOs require weep vents in rendered walls regardless of whether the render returns onto window frames. Confirm with your specific BCO at the foundation stage what they expect.

Fitting a course too high. The vent must be in the first course of brickwork directly above the cavity tray or DPC. One course higher and the water level on the tray rises before reaching the vent, eventually overflowing into the inner leaf. Check vent positions against tray positions before mortar sets.

Cavity-side blockage. Mortar droppings on the back of the vent stop drainage. Cavity battens during construction are the prevention. A 2mm drill bit is the cure if blockage is found later.

Painting or rendering over the face. Closes the drainage path entirely. Tape during render work, drill clear afterwards.

Specifying plastic where metal is required. If any external wall on your extension is within 1m of a site boundary, all weep vents on that wall must be A1-rated non-combustible (stainless steel). Plastic vents in that location are non-compliant under Approved Document B 2022 and a fire risk assessor will flag them.

Using the wrong colour. Match the mortar, not the brick. Grey vents on grey mortar disappear. Red vents on grey mortar look like a row of warning lights. The eight standard colours all cost the same; pick the one that matches your jointing.

Treating them as optional. They're a Building Regulations requirement, a BCO inspection point, and the difference between a wall that drains and a wall that holds water against your inner leaf for the next thirty years. Ten plastic inserts at fifty pence each. There is no scenario where leaving them out makes sense.
