Polyethylene DPC Roll: Widths, Standards, and Installing It Without a Damp Bridge

A bricklayer lays the wrong width of damp-proof course at the base of a new extension. The DPC sits 5mm shy of each face on the outer leaf. Six months later, after the patio is laid and the render goes up over the bell-cast bead, a stain appears on the kitchen plaster two courses above the DPC line. The fix is unsealing the wall, knocking off render, lifting bricks, replacing the DPC, and rebuilding. The original DPC roll cost a few pounds. The remedial work runs into four figures. Width selection matters. So does every other detail on this page.

What it is and what it's for

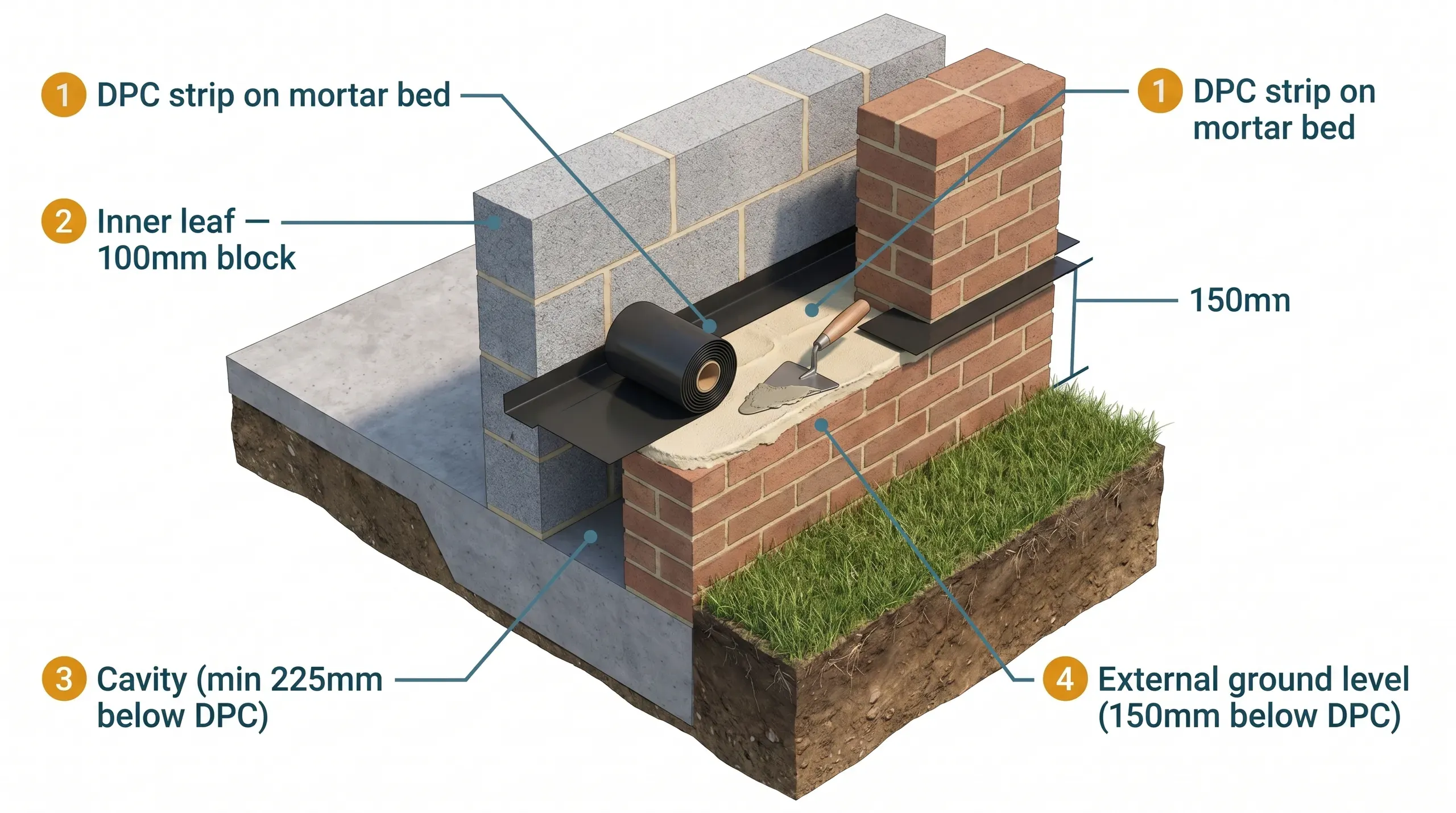

Polyethylene DPC is a thin, flexible plastic strip laid horizontally in the mortar bed near the base of a masonry wall to stop ground moisture rising up the wall by capillary action. The product is a low-density polyethylene (LDPE) sheet around

thick, embossed with a fine diamond pattern on both faces. The embossing prevents the strip from slipping out of the mortar before the wall above is built and gives the cement a mechanical grip.

In England and Wales, a damp-proof course is a legal requirement under Approved Document C of the Building Regulations (Requirement C2, Resistance to Moisture). Approved Document C lists the acceptable materials: bituminous material, polyethylene, engineering bricks or slates in cement mortar, or any other material that will prevent the passage of moisture. Polyethylene is the dominant choice for new domestic work because it's cheap, flexible, easy to handle, and fully compliant when correctly installed.

Two British Standards govern the product. BS 6515:1984 specifies polyethylene DPCs for masonry: minimum carbon black content (for UV stability), minimum thickness, and impermeability. BS EN 14909:2012 is the European harmonised standard for plastic and rubber DPCs, which the same products conform to as part of CE/UKCA marking. Look for both standards on the wrapper. Installation is governed by BS 8215:1991 (Code of practice for design and installation of damp-proof courses in masonry construction), which sets the 100mm minimum lap rule that has been UK practice for forty years.

Three things polyethylene DPC is NOT:

It is not a damp-proof membrane (DPM). DPM is the heavy-gauge polythene sheet (typically 1200 gauge) laid horizontally under the floor slab. DPC is the strip in the wall. They must connect at the wall-floor junction, but they're different products.

It is not a cavity tray. A cavity tray is a stepped or preformed DPC that bridges a cavity at vulnerable points (above lintels, where roofs meet walls, at complex junctions). Since 1 January 2023, NHBC no longer accepts low-density polyethylene conforming to BS 6515 alone as a cavity tray. Cavity tray products must now meet BS EN 14909 with third-party certification. This change does not affect ground-level horizontal DPC, which can still be standard polyethylene roll.

It is not an injected DPC. That's a chemical retrofit (silicone or siloxane cream injected into existing brickwork to create a chemical barrier) used on older houses where there's no working physical DPC. New-build and extensions use a physical strip laid in the mortar.

Types and specifications

Standard polyethylene DPC is a single product specification with multiple width and length options. The variants you'll encounter:

For a normal extension, you want LDPE polyethylene roll. Pitch-polymer (the IKO Hyload range) is a step up in cost and only justified where the spec calls for higher compressive strength or where the same product needs to function as both DPC and cavity tray with full third-party certification.

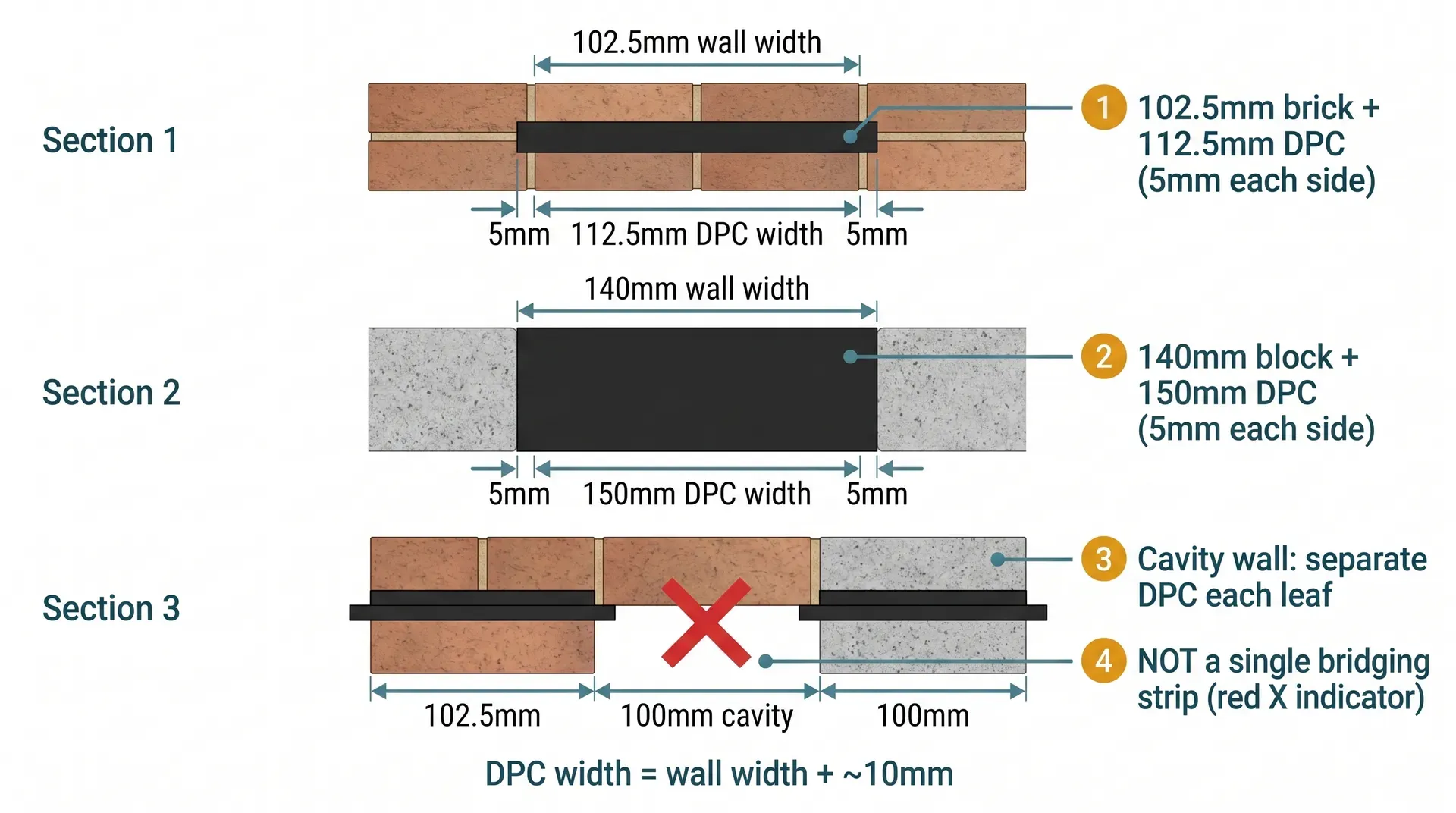

Width is the spec that catches people out

Polyethylene DPC comes in a range of widths to match different wall thicknesses. Selecting the wrong width is one of the most common ordering mistakes on extensions, and it's not a mistake your builder will always catch.

The rule: DPC width should exceed wall thickness by approximately 10mm, with around 5mm projection beyond the wall face on each side. If the DPC sits flush with the wall face or sits short, the mortar pointing or render finishing the joint can wick moisture across the edge of the DPC and create a damp bridge. If the DPC projects too far beyond the face, it concentrates rainwater behind any subsequent render or coating.

Best practice on a standard cavity wall is to DPC each leaf separately, leaving the cavity clear. A single wide DPC bridging both leaves at ground level will pond water in the cavity (the LABC has documented this exact failure mode on construction-fail case studies). The two-leaf approach also keeps the cavity open to its full

required by NHBC and AD C.

Widths typically stocked at UK merchants: 100mm, 112.5mm, 150mm, 225mm, 300mm, 337.5mm, 450mm, 600mm, 900mm, and 1200mm. Most extensions will use 112.5mm (brick leaf) and 150mm (block leaf), occasionally 225mm. Anything wider than 450mm needs supporting at 450mm centres with stainless steel or non-combustible fixing strips to stop it sagging into the cavity.

Click to enlarge

Material specs to look for on the packaging

You don't need to memorise these, but it helps to know what you're checking:

• Thickness: 0.5mm (sometimes labelled 500 micron, 0.50mm, or 2000 gauge - they all mean the same thing)
• Material: Recycled LDPE, minimum 85% recycled polyethylene content typical
• Carbon black content: Minimum 2% by mass (provides UV protection and the characteristic black colour)
• Compressive load: Up to 25 N/mm² (Capital Valley datasheet) - easily adequate for normal masonry above
• Surface: Diamond-embossed both faces
• Standards: BS 6515 and/or BS EN 14909
• Fire rating: Class F (combustible). Buildings over 18m height require Euroclass A1 non-combustible DPC, which rules out polyethylene

For a domestic extension, all mainstream products tick these boxes. Visqueen, Capital Valley, Damplas, and the merchant own-brand equivalents (Wickes NDC, Toolstation/Screwfix Damplas) are functionally identical in this application.

How to install it properly

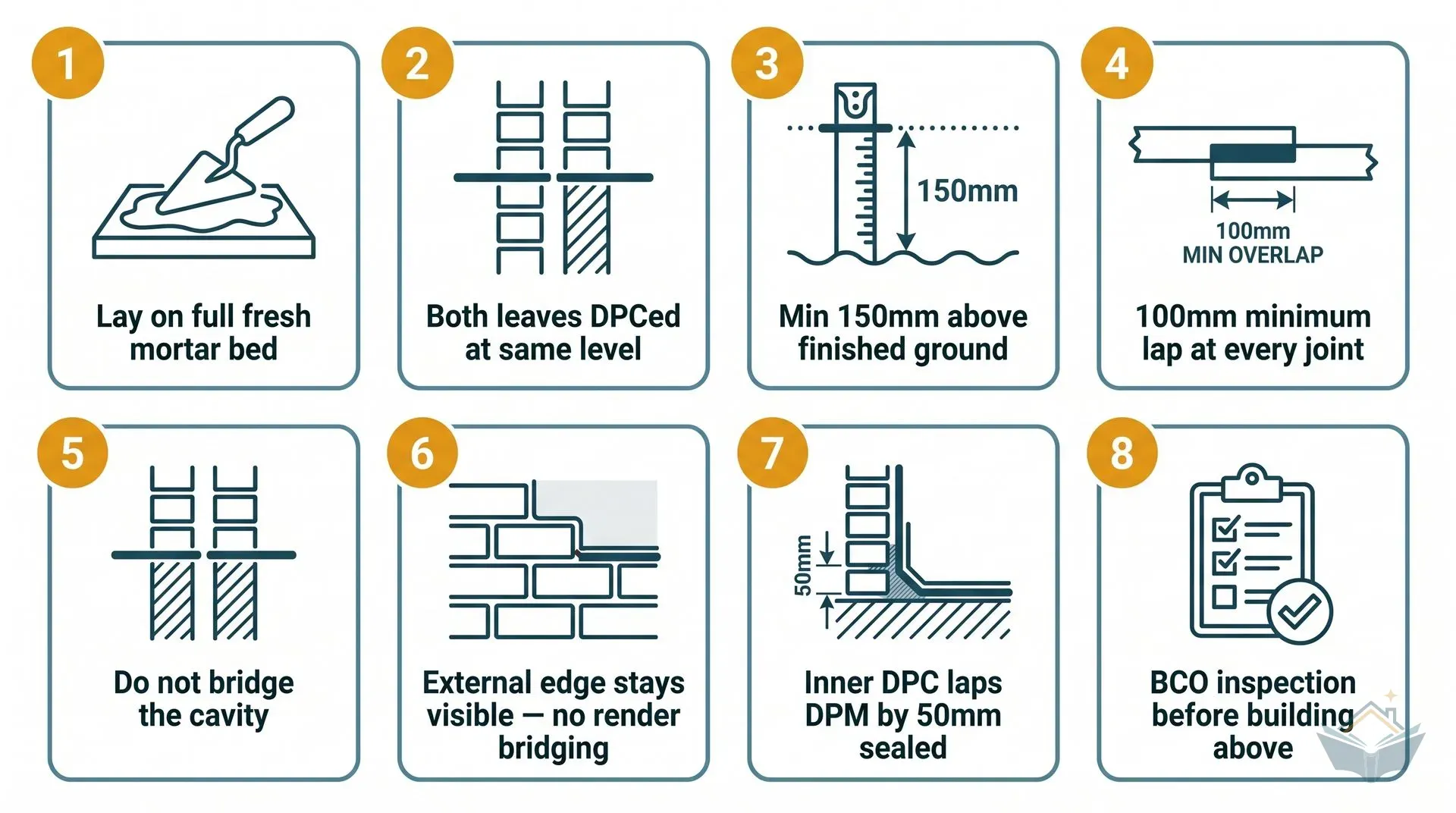

The eight rules below come from BS 8215:1991, Approved Document C, NHBC Standards Chapter 5.1, and Skill Builder/LABC Warranty practical guidance. They are non-negotiable. A failed DPC inspection means BCO won't sign off the next stage and your bricklayer is back on site re-doing courses they've already laid.

1. Lay it on a full, fresh, level mortar bed. The mortar must be a full-width, even bed of fresh mortar (not stiffened, not partial). Designation (iii) cement:lime:sand at 1:1:6 is the standard mix for above-DPC bedding; for below-DPC courses use Designation (ii) at 1:0.5:4.5. The DPC sits flat on this mortar and a second mortar bed goes on top before the next course of brick or block. Both surfaces of the DPC must be in continuous contact with mortar.

2. Both leaves of a cavity wall get a DPC at the same level. Inner leaf and outer leaf, both protected, both at the same horizontal line. This is checked at building control inspection. A common builder shortcut is DPC on the visible (outer) leaf only because the inner leaf will be hidden by plasterboard. Don't allow this. The inner leaf has its own moisture path through the cavity at junctions, around fixings, and from condensation.

3. The DPC must sit at least 150mm above external finished ground level. This is the headline requirement from AD C. It's measured to the finished ground level: paving, lawn, driveway, whatever's there at completion. Where ground levels rise after construction (a new patio added a year later, garden borders built up against the house), the DPC can end up too low retrospectively. The original install needs the 150mm clearance, and the homeowner needs to maintain it. On sloping sites, the DPC must step up the slope so that 150mm above ground is maintained at every point.

4. 100mm minimum lap at every joint. A 30m roll won't run a whole extension perimeter without joins. Every join needs the two ends overlapped by at least 100mm in the direction of moisture travel (which means the upper strip overlaps onto the lower one if the wall is stepped). Both lapping surfaces need to be clean and bedded into mortar so the joint is sealed by the mortar bond. Skipping the lap or leaving a butt joint creates a guaranteed damp bridge.

5. The DPC must not bridge the cavity. On a cavity wall, the DPC sits on the inner leaf and the outer leaf separately. It does not span across the cavity. Mortar droppings during bricklaying must be cleared from the cavity at DPC level before the next course is laid. NHBC require

(reduced to 150mm for timber-framed walls with adequate drainage). If lean-mix cavity fill has been cast at the bottom, it must finish at least 225mm below the planned DPC line.

6. The external edge of the DPC must remain visible and not be bridged by mortar or render. During pointing, mortar smeared over the visible DPC edge bridges the strip and routes water across it. During rendering, render taken down across the DPC line does the same thing. The correct render detail is a bell-cast bead (a metal or PVC profile) fixed at the DPC level: render runs above the bead only, the bead throws water clear of the masonry below, and the brick or block plinth below the DPC is left exposed (or treated with a breathable lime wash on heritage work).

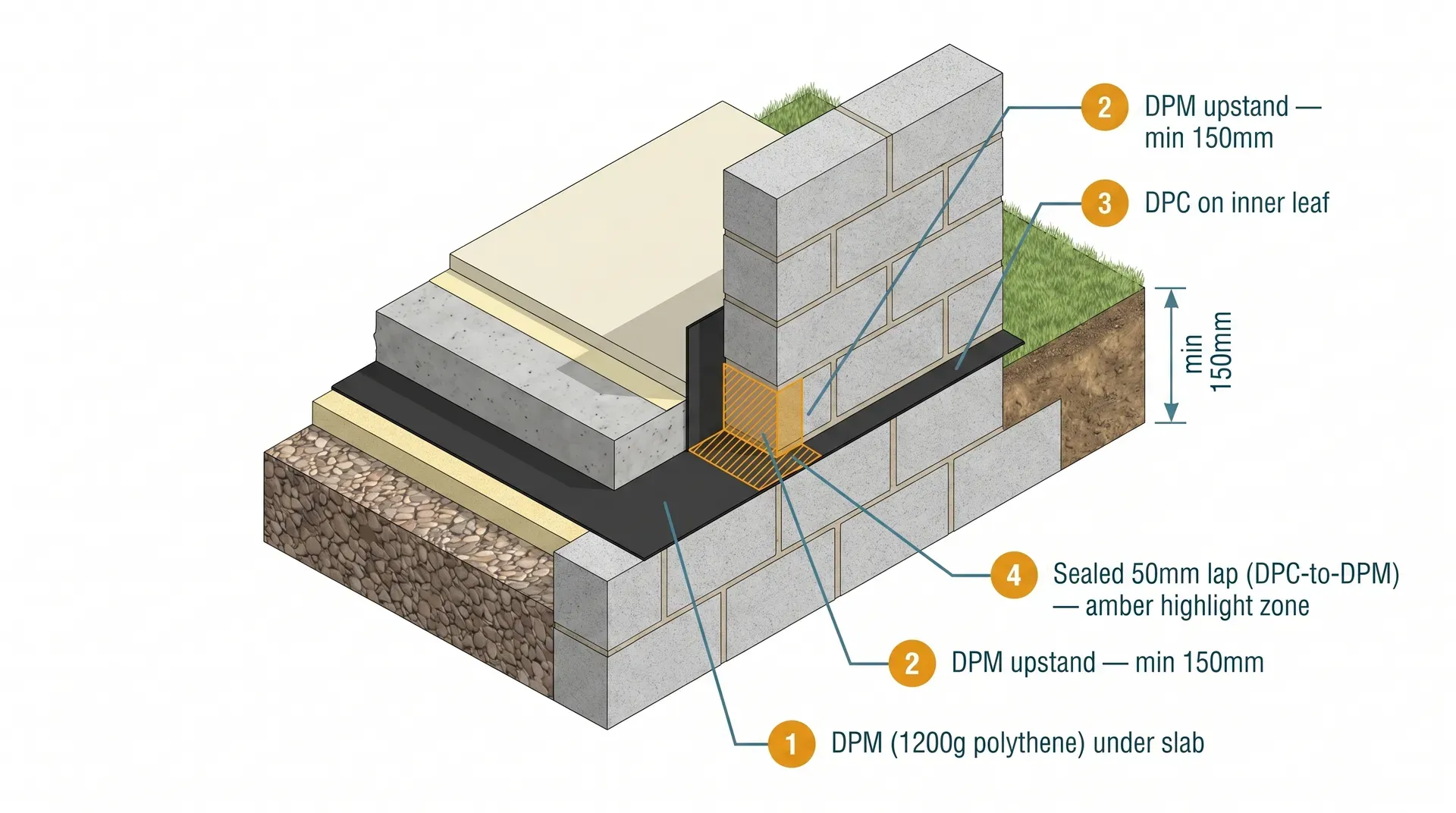

7. The inner leaf DPC must link to the floor DPM with a 50mm minimum sealed lap. This is the single weakest detail in most builds and it's the one that produces damp at the wall-floor junction years after completion. The DPM upstand at the perimeter of the slab needs to overlap the inner leaf DPC by at least 50mm and the joint needs to be sealed. Polyethylene resists ordinary adhesives and tapes - standard double-sided tape will not bond to it reliably. Use Orcon F or an equivalent product specifically formulated for polyethylene membrane bonding. A bag of black polythene scrap "tucked behind the skirting" is not a sealed lap.

8. Building control must inspect at the DPC stage before you build above it. DPC is a mandatory key-stage inspection in England and Wales. Your BCO will check height above ground, both leaves, lap joints, cavity clearance, and DPC-to-DPM linkage. Don't let your builder lay the next course until the inspection has happened. If the BCO doesn't attend on the day, wait and rearrange. Continuing without sign-off and getting the inspection later is risky: if any defect is found, the BCO can require you to expose completed work.

Click to enlarge

Engineering bricks below DPC

A common UK detail is two or three courses of Class B engineering bricks laid below the polyethylene DPC. These are not a substitute for the DPC - they're a complement. Engineering bricks have very low water absorption (Class A: ≤4.5%; Class B: ≤7%) and high frost resistance, which protects the base of the wall from splash-back, freeze-thaw cycling, and minor mechanical knocks. The polyethylene DPC sits on top of the engineering brick course as the primary moisture barrier.

You'll see this most often where the wall meets a paved area, where the ground level might rise in future, or where the architect has specified a brick plinth detail for appearance. On a basic extension where the cavity wall sits on a strip foundation with a wide trench at the base, engineering bricks below DPC are optional rather than mandatory. The polyethylene strip alone is fully AD C compliant. See engineering bricks for more on when they're worth specifying.

How much do you need

Calculation is straightforward: total perimeter of wall to be DPCed, multiplied by number of leaves, plus a 10% wastage allowance for laps and offcuts.

For a standard rectangular cavity wall extension with two leaves:

1. Measure the external perimeter of the extension footprint in metres
2. Multiply by 2 (for inner and outer leaves)
3. Add 10% wastage for laps (every 30m run needs a 100mm lap; offcuts at corners are unavoidable)
4. Divide by 30 to get the number of rolls per width

Worked example for a 4m x 5m rear extension:

• Perimeter (excluding wall against existing house): 4 + 5 + 4 = 13m
• Two leaves: 26m of DPC needed
• Plus 10% wastage: 28.6m
• Outer leaf (102.5mm brick): 13m of 112.5mm DPC, plus laps = ~14.5m. One 30m roll covers it.
• Inner leaf (100mm block): 13m of 112.5mm DPC, plus laps = ~14.5m. One 30m roll covers it.

For a small extension you'll rarely use more than one roll per width. For a larger or more complex layout (party wall, sloping site with stepped DPC), buy two rolls and have the spare on site. The cost difference is trivial and an unexpected mid-pour delay waiting on a delivery is not.

If your wall meets the existing house, you'll also need a vertical DPC at that abutment to prevent moisture passing between old and new structures. This is normally a separate detail your builder will handle; the same polyethylene roll material can be used.

Cost and where to buy

Polyethylene DPC is one of the cheapest items on the materials schedule for an extension. Width drives the price, not brand:

Wider widths (600mm to 1200mm) are stocked at builders' merchants on order rather than on the shelf and are priced per metre or per short roll. A 600mm x 30m roll runs around 40 pounds at trade prices.

The product is identical across mainstream brands. Damplas (the merchant own-brand sold by Toolstation, Screwfix, and Wickes), Capital Valley, Visqueen, and the rest all conform to the same standards and perform the same way in the wall. Buy whichever is cheapest at the merchant your builder uses.

A note on the Hyload Original (IKO) range: this is pitch-polymer, not LDPE. It comes in 20m rolls instead of 30m and costs roughly three to four times the price per metre. It's the right product for situations requiring higher compressive strength, multi-storey applications, or full third-party cavity tray certification. For a normal single-storey extension at ground level, it's overspec'd and you don't need it.

Alternatives and when to use them

For new domestic work above ground, polyethylene DPC is the default choice because it's cheap, flexible, code-compliant, and easy to handle. The alternatives have specific niche applications:

Pitch-polymer (IKO Hyload Original) is the upgrade route. Higher compressive strength (load-bearing applications), bituminous bond to mortar that's slightly stiffer to install, and the certified products in the range cover cavity tray duty as well as horizontal DPC. Cost is the trade-off: roughly 3-4x per metre. Specify it where the structural engineer has called for higher loads at DPC level or where you need a single product certified for cavity tray use.

Engineering brick courses below the polyethylene DPC are a complement, not a replacement. Use them where the wall base needs frost and mechanical protection (paved external areas, exposed plinths) or where the architect has called for a visible brick plinth detail. The polyethylene strip still goes on top as the primary moisture barrier.

Lead sheet DPC is used for parapet walls, chimney flashings, and the heads of unusual openings. It's not a competitor to polyethylene at ground level.

Bitumen-based hessian DPC is a legacy material being phased out for new build. Still occasionally encountered on heritage work or repointing/refurbishment of older buildings where matching the existing detail is appropriate.

Slates bedded in cement are a heritage detail - two courses of slates laid in mortar acted as the DPC on Victorian and early-Edwardian houses. They work well but have very low tolerance for movement (any settlement cracks them and breaks the moisture barrier). Use this only where matching original conservation work is required.

Where you'll need this

DPC roll appears whenever new masonry is laid on or near the ground:

• Damp proof course - the primary task. The DPC strip is laid in the mortar bed at the base of the new walls before any blockwork rises above DPC level.
• Walls and blockwork - the DPC course is built into both leaves of the cavity wall as the bricklayer reaches DPC level on each section of perimeter.
• Foundations and footings - the wall DPC ties into the floor DPM at the wall-floor junction with a sealed 50mm lap, completing the continuous moisture barrier from ground to floor.

DPC is laid on every new-build extension or renovation that involves new masonry walls, on any project type. Approved Document C applies in England and Wales; Scotland (Technical Handbook Domestic) and Northern Ireland (Technical Booklet C) have equivalent requirements with the same 150mm minimum height and the same acceptable material list.

Common mistakes

DPC laid below 150mm above finished ground level. Forum threads on DIYnot, BuildHub, and MoneySavingExpert document this repeatedly. Sometimes the builder gets it wrong on the day; sometimes the ground level rises after completion when a patio is laid or borders built up. The remedy is either lowering the external ground (digging a perimeter channel) or, in serious cases, rebuilding the lower courses. Worth checking at handover and again whenever landscaping is added.

Render bridging the DPC line. A render coat taken down across the DPC creates a continuous moisture path from ground level into the wall above the DPC. The fix is a bell-cast bead at the DPC level: render terminates at the bead and water drips clear of the masonry below. Some plasterers default to running render to ground level; push back and have the bead specified before render starts. Skill Builder and LABC have video guidance on this exact detail.

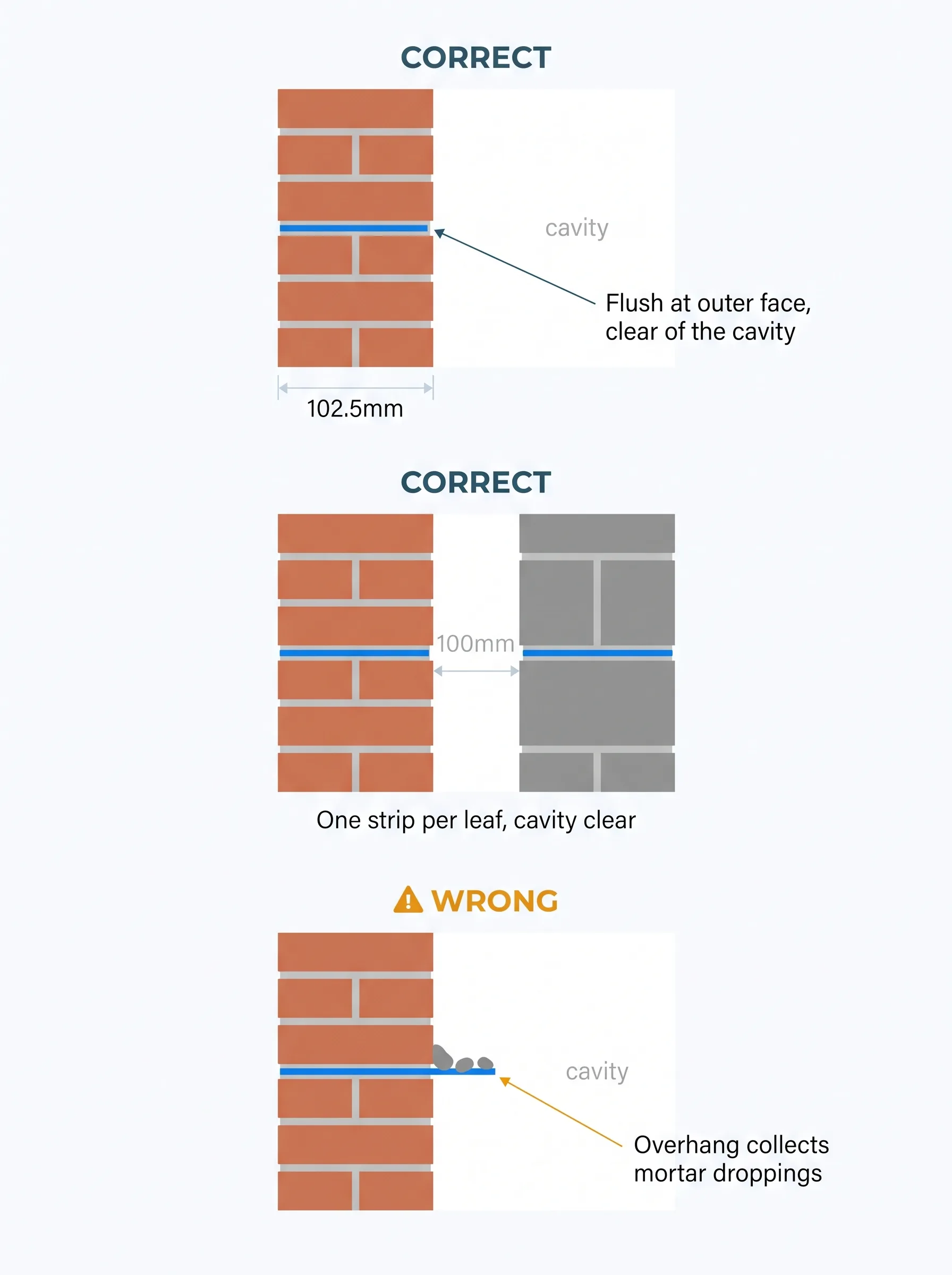

Bridging the cavity with a single wide DPC. On a cavity wall, two narrow DPCs (one per leaf) are correct. A single wide DPC laid across both leaves and the cavity is a documented LABC construction-fail pattern: water collects on top of the bridging strip and ponds in the cavity. NHBC require both leaves DPCed separately with the cavity left clear by 225mm minimum below DPC.

Mortar bridging the cavity at DPC level. Mortar dropping into the cavity during bricklaying that piles up on the DPC defeats the cavity entirely. The cavity must be cleared of debris before the next course goes on. Building control inspect for this at the DPC stage.

Buying the wrong width. 100mm DPC on a 102.5mm brick leaf is the textbook example. The 2.5mm shortfall on each face is enough to wick moisture across the edge of the DPC into the wall above. Use the width selection table earlier on this page; when in doubt, go a size up.

Skipping the BCO inspection at DPC stage. Building above DPC without sign-off is risky and can be expensive to remedy. The DPC inspection is short and the BCO is generally helpful at this stage. Don't be the homeowner whose builder buried the evidence and then had to expose two courses of completed brickwork because the height couldn't be verified.

Storing rolls in direct sunlight or where they'll get damaged. Polyethylene DPC is UV-stabilised but prolonged sun exposure on site, especially on the open ends of a part-used roll, can degrade the surface. Damaged or punctured strip should be cut out and discarded. The material is cheap; the rebuild if it fails in service is not.
