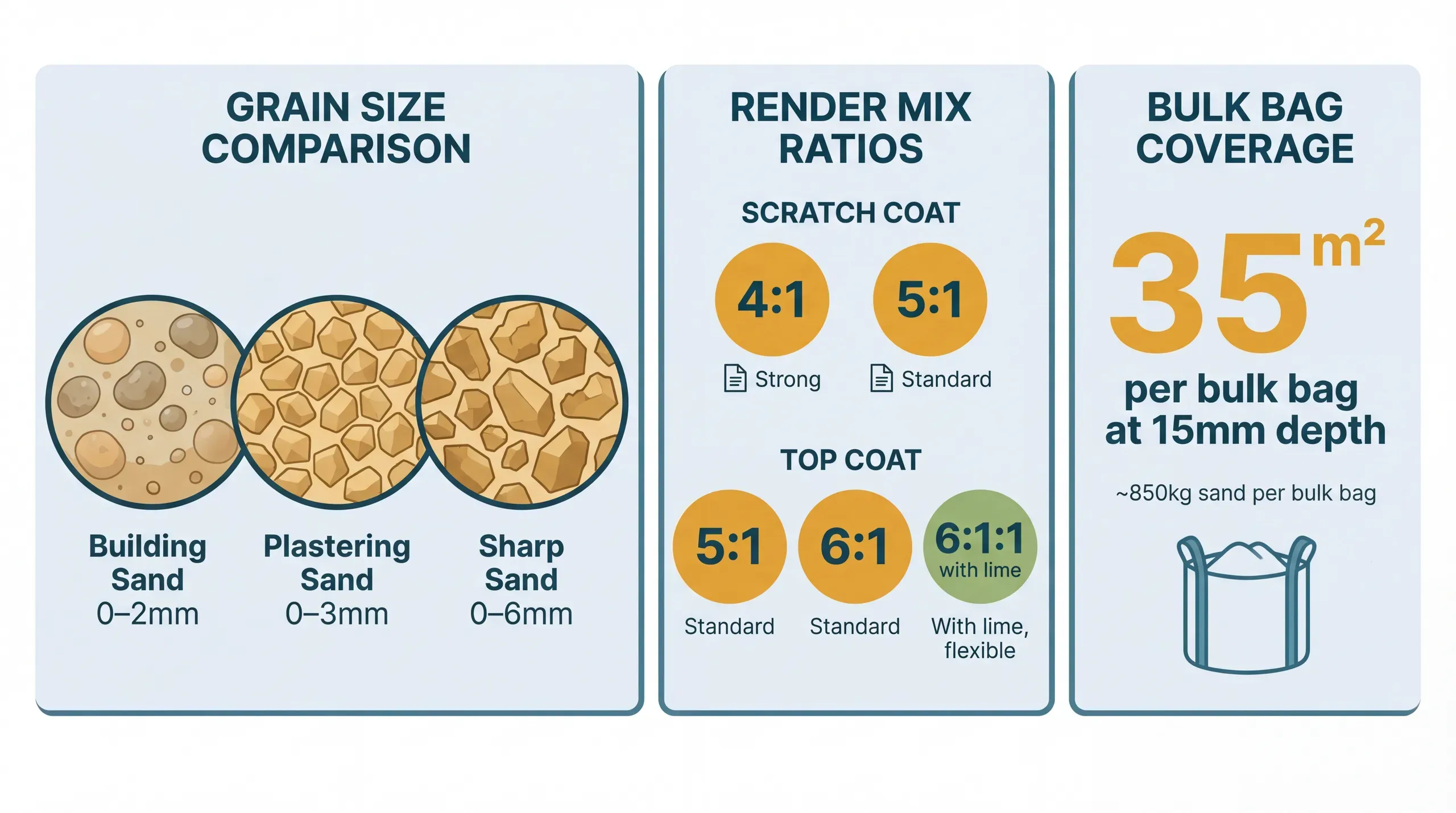

Plastering Sand: What It Is, How to Use It, and How Much You Need
The definitive UK guide to plastering sand (rendering sand): particle sizes, mix ratios, render coverage calculations, and where to buy. From £2.50 per 25kg bag.
Order building sand instead of plastering sand for your render mix and the render will crack. Not maybe. It will crack. Building sand carries residual clay and silt that demand more water in the mix, and that extra water evaporates during curing and causes shrinkage. On an extension wall that's 4 metres wide and 2.4 metres high, shrinkage cracking across a professionally applied render is a rework job at full cost. Plastering sand is not an expensive material. Using the wrong one is.
What it is and what it's for
Plastering sand (also sold as rendering sand, and often labelled as both on the same bag) is washed, fine-grained aggregate used as the bulk component in cement render and traditional lime plaster mixes. "Washed" is the key word. The washing process removes salts, clay, silt, and organic matter from the aggregate. That cleaning is what separates plastering sand from building sand, which retains those fines.
The particle size range is 0-3mm, with the majority of grains between 0.5mm and 2mm. Compared to building sand (0-2mm, primarily 0.5-1mm) it's marginally coarser. Compared to sharp sand (0-6mm concreting aggregate), it's considerably finer. It occupies the middle ground: fine enough to produce a smooth, workable mix, coarse enough to provide the body and texture that render needs to key properly and resist cracking.
The angular particle shape matters too. Plastering sand grains have irregular, angular profiles from the quarrying and washing process. That angularity creates mechanical interlock within the cured mix, improving both bond strength and crack resistance. Building sand grains are typically more rounded from longer water transport or further processing, giving a smoother texture but less structural bite.
All UK plastering sand must conform to BS EN 13139, the British/European standard for aggregates for mortar. The standard sets limits on particle size distribution, silt content (less than 3%), organic matter, and chloride content. Any bag or bulk bag from a reputable UK merchant will reference BS EN 13139 compliance. If you're buying from an unknown local aggregate yard and there's no standard reference on the delivery note, ask for the product data sheet.
One naming note: some aggregate suppliers, particularly in certain regions, label their rendering sand as "washed sharp sand" or "fine sharp sand." This causes genuine confusion. True sharp sand (concreting sand) at 0-6mm is too coarse for a smooth render finish. What these suppliers mean by "fine sharp" is a washed aggregate in the 0-3mm range that is functionally identical to plastering sand. If a supplier calls it "sharp" but the grading certificate shows a 0-3mm distribution, you have the right product.
Render mix ratios
Getting the mix ratio right matters more than almost any other variable in rendering. Too much cement causes shrinkage cracking. Too little and the render has no strength. The sand type affects how much water the mix needs, which is why the wrong sand changes everything.

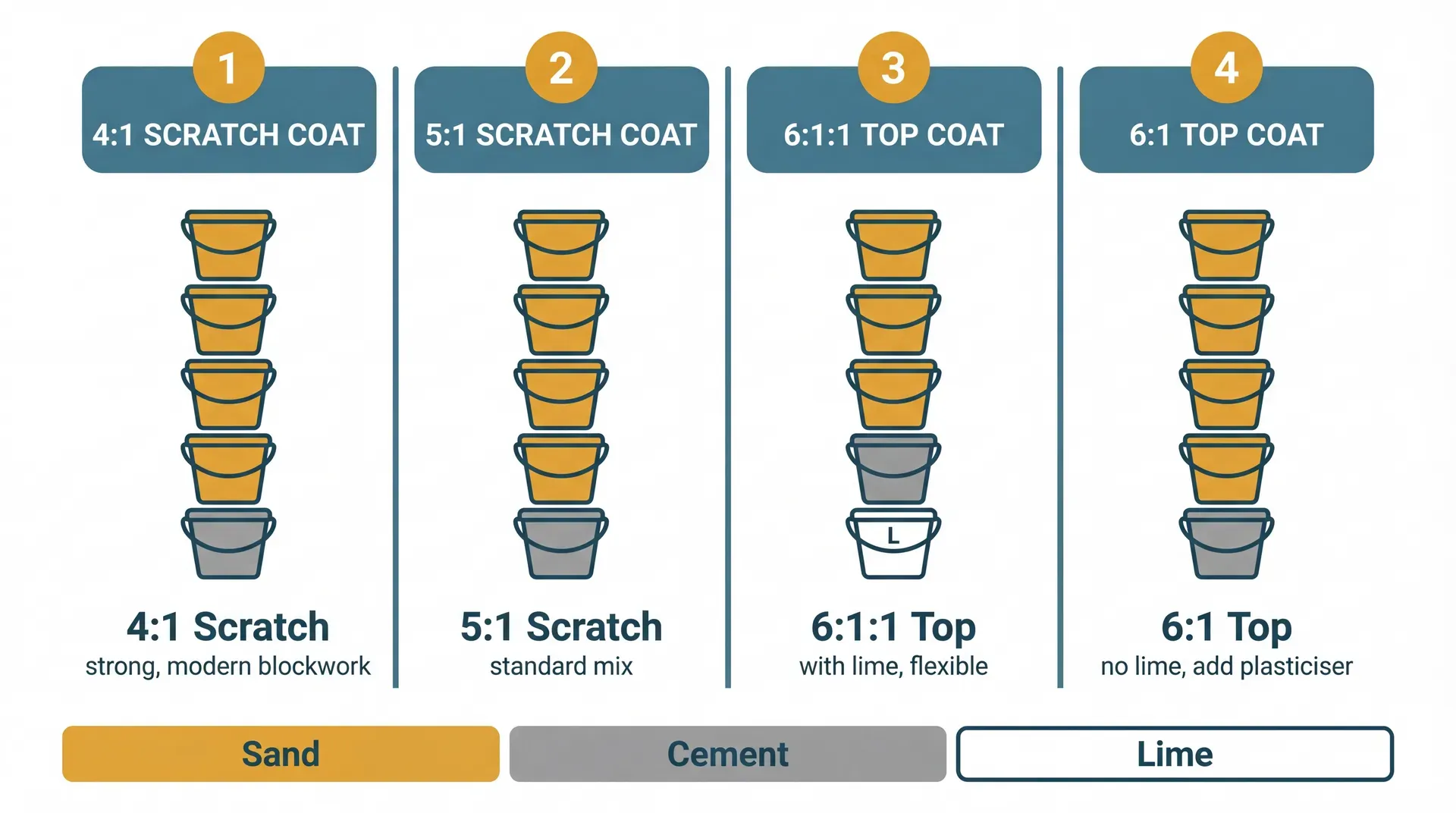

Standard UK render mixes for external cement render on modern blockwork:
| Coat | Mix (sand:cement) | Mix with lime (sand:cement:lime) | Thickness | When to use |
|---|---|---|---|---|
| Scratch coat | 4:1 or 5:1 | 4:1:1 or 5:1:1 | 8–10mm | First coat, keyed with a scarifier before curing |
| Top coat | 5:1 or 6:1 | 5:1:1 or 6:1:1 | 5–7mm | Final surface coat, floated smooth |
| Single coat (unpopular) | 5:1 | 5:1:1 | 10–15mm | Only for small repairs; two-coat is best practice |
The principle behind these ratios is that each coat must be weaker than the one beneath it. A stronger top coat will crack and pull away from a weaker scratch coat. A scratch coat stronger than the substrate will cause the render to debond from the blockwork. This cascading weakness rule is why you should never use a 3:1 mix thinking "stronger is better." It isn't.
Adding lime (hydrated lime, not hydraulite) to the mix changes the character of the render in useful ways. Lime makes the mix more workable and plastic, easier to apply and trowel. It also improves flexibility and breathability once cured, and has a self-healing property: if hairline cracking occurs, lime can re-carbonate within the crack and partially seal it. The professional plasterers' forums consistently recommend adding lime rather than chemical plasticiser where durability and crack resistance are priorities. A render additive (plasticiser conforming to BS4887) is acceptable where lime is not available, but lime is the better choice.
Do not use Mastercrete or other pre-plasticised cements for external render. Mastercrete contains a built-in plasticiser optimised for blockwork mortar, not render. For render, use ordinary Portland cement (OPC, CEM I or CEM II) and add lime or a render-specific plasticiser separately so you control the proportions precisely. This is the standard advice from professional renderers on the Screwfix forum and plasterers forums.
Do not add washing-up liquid as a plasticiser substitute. The surfactants and salts in dish soap degrade mortar over time and can cause surface staining and spalling. It's a widespread site shortcut that looks fine for months and causes problems years later.
How to work with plastering sand on site
Substrate preparation
Render does not bond to dust, grease, or friable surfaces. Before applying any render to new blockwork, brush the surface to remove loose particles and gently mist the wall with water. Not soaking it, just dampening. This prevents the dry blockwork from pulling water out of the render mix too rapidly during the initial set.
If you're rendering over an old wall or one with variable suction (e.g. a wall with patched areas), use an SBR (styrene-butadiene rubber) bonding agent diluted 1:3 with water as a primer coat. Apply it and allow it to become tacky before rendering. Do not use PVA externally as a bonding agent. PVA re-emulsifies when wet, which it will be repeatedly in an external exposure.
New blockwork must have cured for a minimum of 28 days before rendering. Rendering too early traps moisture in the blocks and causes the render to debond as the blocks continue drying and curing.
Mixing
Mix plastering sand and cement dry first, then add water progressively until you reach a workable consistency. The mix should be stiff enough to hold its shape when you cut a line through it with a trowel, but plastic enough to spread without dragging. Over-watering is the most common site error. A sloppy mix shrinks more.
A standard mechanical mixer (electric drum mixer, 150-200 litre capacity) is the practical tool for render production. Hand mixing in a bucket is only feasible for small repairs. Allow the mixer to run for 2-3 minutes after adding water so the mix becomes homogeneous.
Applying the scratch coat
Apply with a laying trowel, working in sections of approximately 1 m2 at a time. Press firmly to ensure good contact with the substrate. Aim for consistent 8-10mm thickness using gauge pins or screeding rods as depth guides. Once the scratch coat begins to stiffen (typically 2-4 hours after application, depending on temperature), key the surface with a scarifier (a toothed comb tool) or by scratching horizontal lines about 5mm deep. These scratches give the top coat mechanical anchorage. The scratch coat must be firm but not fully set before you key it.
Allow the scratch coat to cure for at least 24 hours before applying the top coat. In warm or windy weather, mist the scratch coat 2-3 times over the curing period to prevent rapid drying, which causes shrinkage cracks in the undercoat.
Do not render in temperatures below 5°C or when frost is forecast within 24 hours. Frozen render is permanently damaged and must be hacked off and replaced. The water in an incompletely cured mix expands on freezing and destroys the mortar structure. In borderline conditions, protect fresh render overnight with hessian or polythene sheeting.
Applying the top coat
Apply the top coat at 5-7mm thickness, working from the top of the wall downward. Use a screeding rod or feather edge to achieve a flat plane, then finish with a plastic or sponge float for a textured surface, or a steel trowel for a smooth finish. Smooth finishes show imperfections more clearly and are more prone to surface crazing; a textured float finish is more forgiving and widely preferred.
Protect fresh top coat from direct sun and wind for 48 hours. In hot, dry conditions, shade the wall if possible and mist periodically.
How much do you need
The calculation depends on wall area, number of coats, coat thickness, and mix ratio.
A reliable rule of thumb: 1.5kg of dry mix per m² per mm of thickness. At a 6:1 sand:cement mix, sand makes up 6/7 of that weight.
Worked example: rendering a 20m² external wall with scratch coat (9mm) and top coat (6mm):
- Total render thickness: 15mm
- Dry mix needed: 20 x 15 x 1.5 = 450kg
- At 6:1 ratio: sand fraction = 450 x (6/7) = 386kg
- Add 10% wastage: 386 x 1.1 = 425kg of plastering sand
- In bulk bags (approx 850kg): less than one bulk bag needed
- In 25kg bags: 17 bags (round up to 18 for safety)
For a typical single-storey extension with external render on three faces (front and two side walls), total rendered area might be 30-40m². At 15mm total render depth, that's 640-850kg of sand. One bulk bag (850-900kg) will cover it with a small margin. For larger areas or thicker render, order two bulk bags.
One bulk bag (800-900kg) from the data sheet of County Building Supplies covers approximately 35m² at 15mm depth. That figure is a useful cross-check against your own calculation.
Always add 10-15% for wastage. Render has more wastage than mortar because you're working on a vertical surface, keying is destructive by design, and edges and reveals generate off-cuts of cured material.
Cost and where to buy
£2.50 – £3.50 per 25kg bag at independent builders' merchants (ex VAT). National retailers sit higher. For small repairs or a handful of bags, 25kg bags are convenient. For any substantial rendering job, bulk bags are almost always the better value.
£55 – £75 per bulk bag (800-900kg) at UK merchants (inc VAT). Wickes and Clarkes sit at the upper end of this range. Independent merchants and direct aggregate suppliers typically land at the lower end. For a full extension rendering job needing one or two bulk bags, shopping around is worth the phone call.
Delivery charges can dominate the economics for small orders. Aggregate merchants who supply trade typically offer free local delivery on full bulk bag orders over a certain threshold. A national chain delivery charge on top of the bag price can double the effective cost compared to a local independent with free delivery. Always compare delivered prices, not shelf prices.

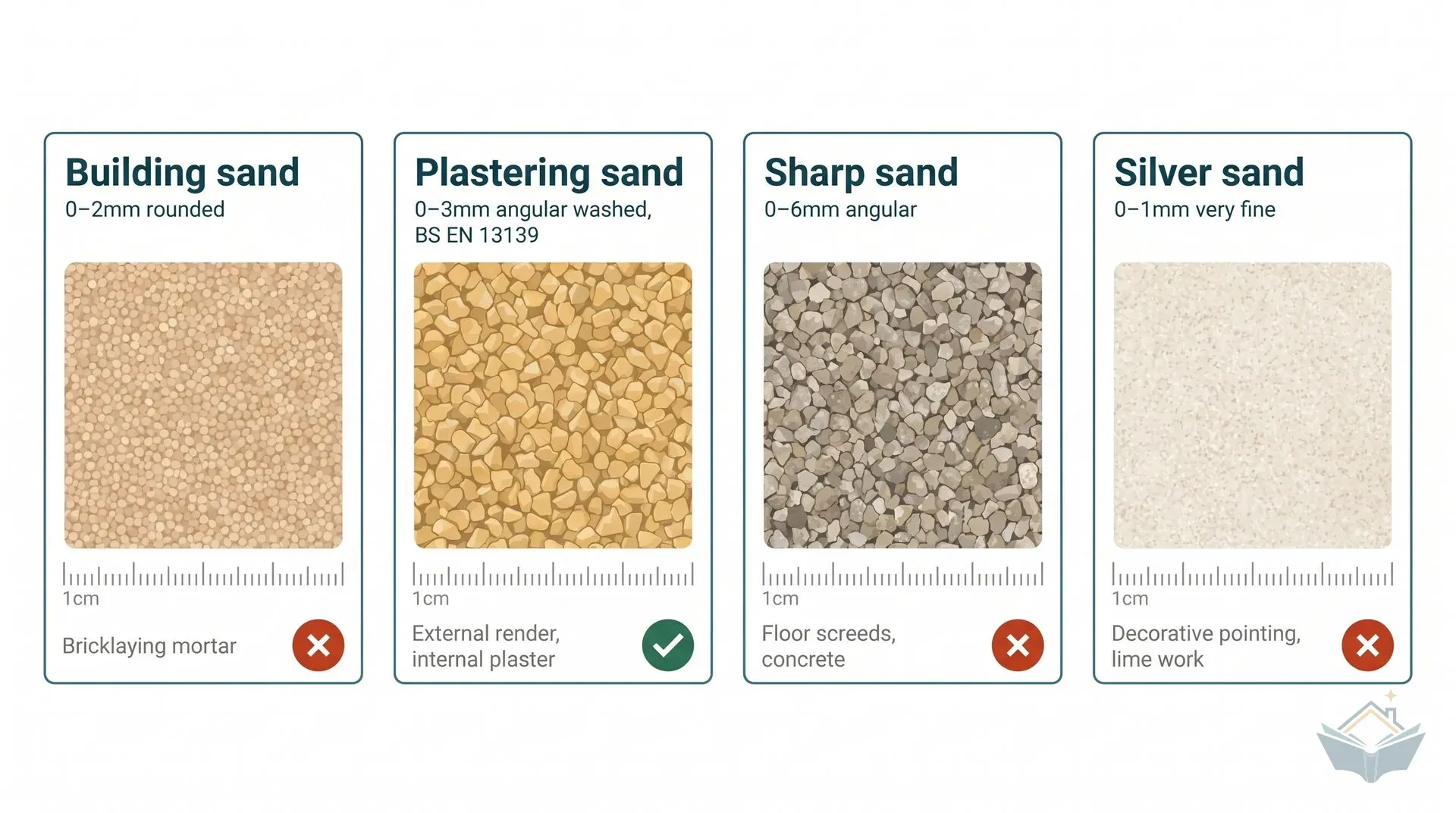

Sand types compared
Plastering sand sits between building sand and sharp sand in particle size, but the differences go beyond just grain size.
| Type | Particle size | Texture | Typical uses | Do not use for |
|---|---|---|---|---|
| Building sand | 0–2mm (rounded) | Fine, smooth, slightly silty | Bricklaying mortar, blockwork mortar, internal scratch coats (borderline) | Render (silt causes cracking) |
| Plastering sand | 0–3mm (angular, washed) | Fine-medium, clean, free-draining | External render (scratch and top coats), internal cement plaster, hydraulic lime mortars | Structural concrete mixes |
| Sharp sand | 0–6mm (angular) | Coarse, gritty | Floor screeds, concrete, drainage, base layers | Smooth render or fine plaster (too coarse) |
| Silver sand | Very fine, 0–1mm | Very fine, white | Jointing fine stonework, specialist lime work, decorative pointing | Standard render (too fine, expensive) |
The practical test on site: pick up a small handful and rub it between your fingers. Building sand feels slightly greasy or muddy. Plastering sand should feel clean and gritty with no stickiness. Sharp sand is clearly coarser and more granular. If you're unsure what has been delivered, wet a small amount in your palm and squeeze. Plastering sand will drain freely; building sand will hold moisture and feel slightly cohesive.
Alternatives
For external render on modern blockwork, plastering sand in a sand/cement mix is standard. But alternatives exist for specific situations.
Pre-mixed render (such as Weber Pral, K-Rend silicone render, or Parex monocouche systems) replaces the site-mixed sand/cement approach entirely. These products are factory-batched to a consistent mix, often polymer-modified, and applied in a single coat at 15-20mm. They're faster to apply, available in a wide colour range, and produce a more consistent finish than site-mixed work. The material cost is significantly higher, but labour time is reduced. For a homeowner managing a project with a professional renderer applying the product, monocouche is often the right choice. Pre-mixed render does not use plastering sand.
Lime putty or natural hydraulic lime (NHL) mortars for period properties (Victorian and Edwardian houses) require sharp sand rather than plastering sand. This is counterintuitive. Lime mortars on old buildings need the coarser, sharper aggregate for strength because lime is inherently weaker than cement. If you're matching render on a pre-1920s property or working in a Conservation Area, check with a lime specialist before ordering plastering sand.
Polymer-modified mortar systems (SBR-modified renders) use standard plastering sand but replace some of the cement with SBR latex. Better adhesion, improved flexibility. Used where differential movement is expected, such as rendering across a joint between old masonry and new blockwork on an extension.
Where you'll need this
Plastering sand appears at the external finishing stage of any build with rendered masonry walls:
- Plastering - external render coat on blockwork walls where a rendered finish is required to match the existing house or as a finished external surface; 0.5-1 tonne if external render is specified
These materials appear across rendered masonry projects of any scale.
Common mistakes
Using building sand instead of plastering sand. It looks similar. It often costs similar. The clay and silt content in building sand means the render mix demands more water to become workable. More water means more shrinkage. The result is crazing and cracking that appears within weeks of application, and it's not repairable by patching. The whole section needs to come off. Professional plasterers on the forums are consistent: "wrong sand" is the primary cause of crazing alongside "too much cement."
Too much cement in the mix. A 3:1 or even 4:1 render mix feels reassuringly strong. It isn't. Cement-heavy mixes are brittle, shrink more, and do not flex with the normal thermal movement of a masonry wall. Render cracks from thermal cycling, not structural movement. Use the correct ratio. If you want strength, add a second coat rather than strengthening the mix.
Rendering too early. Rendering over blockwork that hasn't hit the cure window described above traps moisture, and as the blocks continue to dry, they shrink slightly and pull away from the render. The render sounds hollow when knocked (the "hollow knock test") and must be hacked off and redone.
No key on the scratch coat. Applying a top coat over a smooth, uncured scratch coat is a common mistake when time is limited. Without keying, the top coat has no mechanical anchorage and will delaminate. Scratch the surface within the cure window (firm but not set) using a scratcher, nails in a board, or any toothed implement. The scratch marks should be 5mm deep and clearly visible before the top coat goes on.
Do not waterproof the scratch coat before applying the top coat. Some handbooks suggest adding a waterproofing admixture to the scratch coat for damp resistance. The problem is that a waterproofed scratch coat repels the top coat. The top coat cannot form a proper bond to a waterproof substrate. If waterproofing is needed, add it to both coats in equal proportion, or apply it to neither and rely on the render system's inherent rain resistance.
Storing bulk bags without cover. Plastering sand that sits in an open bulk bag through several weeks of rain becomes waterlogged. Wet sand can still be used, but you need to account for its moisture content in the mix water. More practically, some aggregate sources contain trace amounts of lignite (soft coal fragments), and wet storage can cause these to expand at the surface of cured render, appearing as dark spots or small blisters in the finished surface. Lignite contamination is inherent in the aggregate source and cannot be removed by the merchant, but covering stored sand prevents the moisture exposure that activates it.
