140mm Concrete Blocks: When Your Structural Engineer Upgrades from 100mm

Your structural engineer writes "140mm dense aggregate blocks below DPC" on the drawings and you wonder why. You've just ordered 100mm blocks for everything else. You might assume it's an oversight, or that 100mm will do just fine.

It won't. The 140mm specification isn't conservative caution. It's either a code requirement triggered by foundation depth, or a calculated decision about load capacity. Swapping in 100mm blocks will get flagged at building control inspection before backfilling, and you'll be digging it out at your own cost.

What they are and what they're for

A 140mm concrete block is a standard aggregate masonry unit, 440 mm long, 215 mm tall, and 140 mm wide. The extra 40mm compared to a 100mm block sounds minor. In practice it creates a wall that's roughly 40% thicker, with meaningfully better resistance to both compressive loads and eccentric loading (the kind of force that tries to tip a wall sideways, common below ground or in retaining applications).

Standard specification for domestic construction is 7.3 N/mm² compressive strength. The N/mm² figure (normalised mean compressive strength) tells you how much load per square millimetre the block can carry before structural failure. Your structural engineer's drawings will state the required minimum. A 7.3N block meets a "7N" specification. A 10.4N requirement needs 10.4N blocks.

Dense aggregate 140mm blocks are manufactured to BS EN 771-3, the harmonised UK standard for aggregate concrete masonry units. Any block from a reputable merchant carries CE marking and a Declaration of Performance showing the tested compressive strength, density, and thermal conductivity for that specific product.

The compressive strength on the 7.3N block is actually the same as a 100mm dense block. What changes is the shape factor: the ratio of block height to least horizontal dimension. A 140mm-wide block has a lower shape factor than a 100mm block (1.30 vs 1.38), which improves resistance to buckling under load. That's the physics behind why building regulations and BS 8103-2 specify 140mm for deep foundation walls.

When structural engineers specify 140mm over 100mm

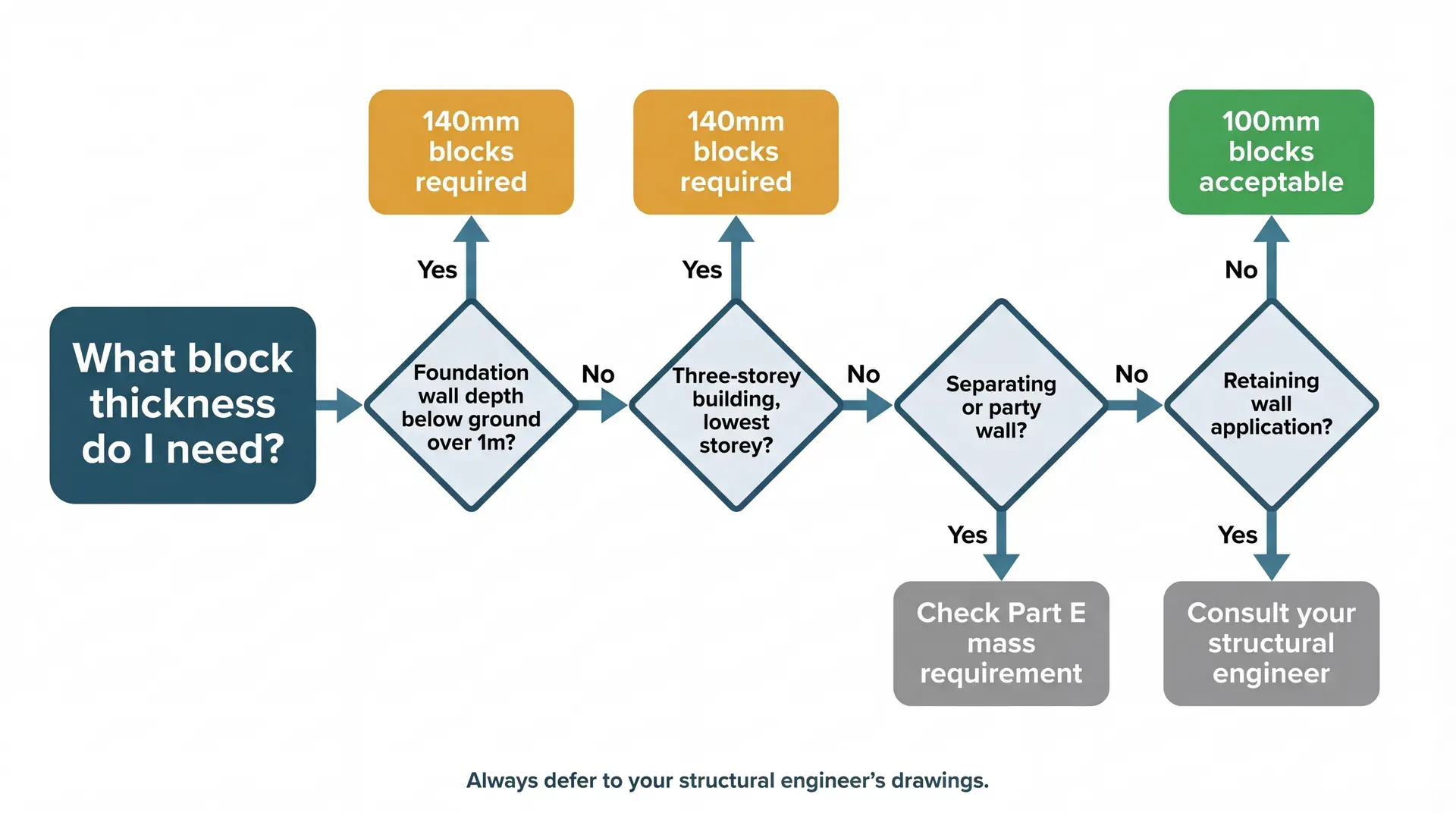

This is the question most guides never answer directly. There are five clear triggers:

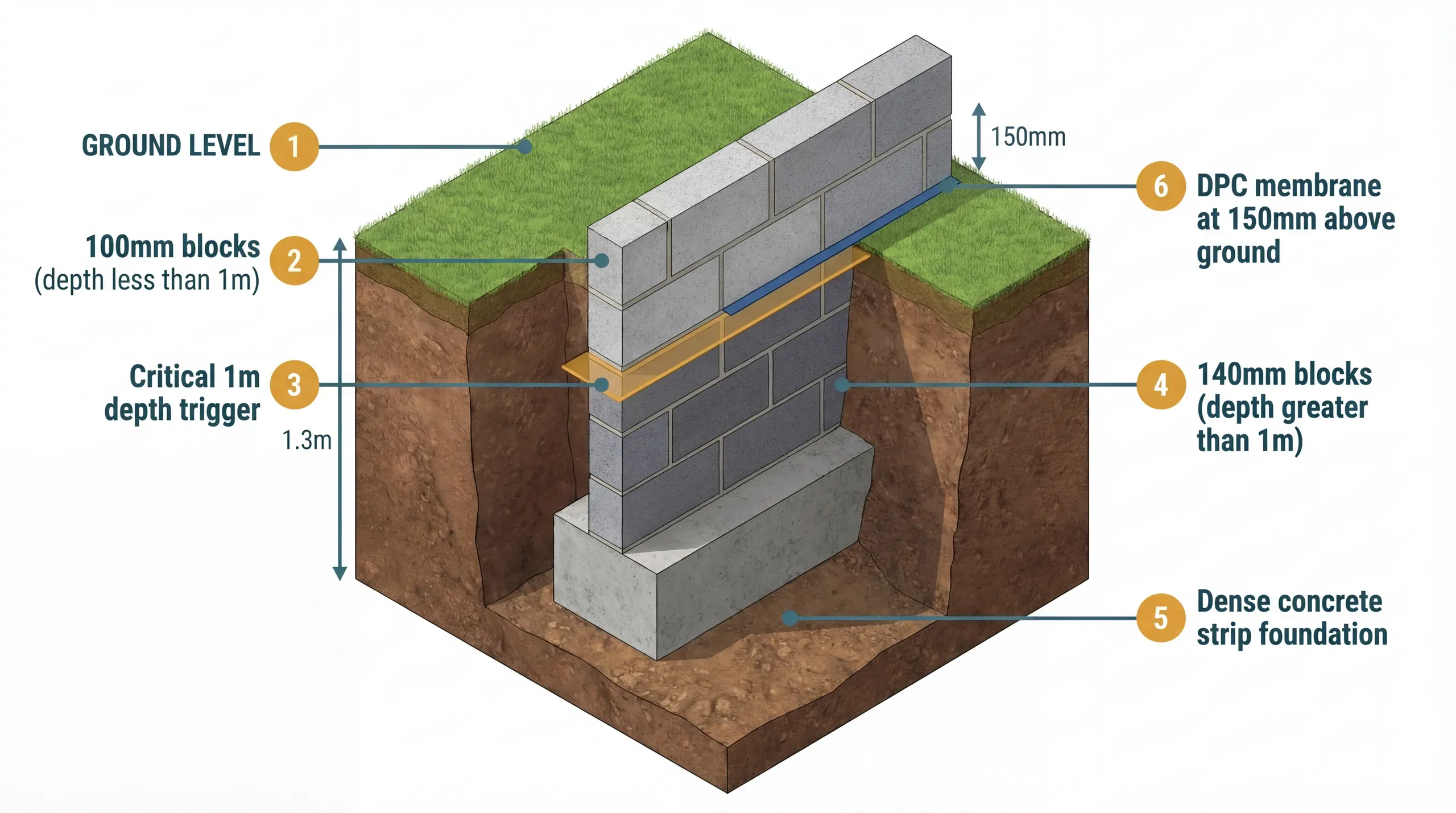

Foundation walls exceeding 1m below ground. BS 8103-2, referenced in both Approved Document A and standard structural design guidance, requires foundation walls built in blockwork to be at least 140mm thick if the height of that foundation wall below ground level exceeds 1 metre. This is the trigger you'll encounter on most extension projects with deeper-than-normal foundations, sloping sites, or steeply stepped foundations.

Lowest storey of a three-storey building. Approved Document A (Table 3) requires load-bearing walls in the lowest storey of a three-storey building, carrying load from both upper storeys, to be at least 140mm thick. Single-storey extensions don't trigger this. A rear extension to a three-storey terrace does.

Separating and party walls. Approved Document E (sound insulation) requires separating walls to achieve a minimum mass per unit area of 415 kg/m² including plaster. A 140mm dense block wall achieves this far more comfortably than 100mm, and for party wall applications where acoustic performance is part of the building control requirement, 140mm is often the practical minimum. Dense block walls provide the right substrate for additional acoustic treatments when needed.

Retaining walls. Any blockwork that retains soil rather than simply carrying vertical load needs improved eccentric loading resistance. The broader base of 140mm blocks is better suited to the lateral force from retained soil. Your structural engineer will specify reinforcement and piers in addition to block width for retaining walls beyond a few courses high.

Solid external walls. Where there's no cavity (less common but occasionally used in limited situations), 140mm provides the minimum wall thickness for structural stability at extension wall heights.

If you're on a straightforward single-storey rear extension with strip foundations shallower than 1m, you'll most likely use 100mm blocks throughout. If the SE says 140mm, there's a reason. Don't substitute.

Click to enlarge

Types, sizes, and specifications

The standard 140mm block is a dense aggregate solid or cellular unit. But there are multiple variants worth understanding before you order.

A few points this table doesn't fully convey. The 10.4N dense block at 140mm is not a stock item from most merchants (Forterra lists it as made to order), which means a lead time of weeks, not days. If your SE has specified 10.4N, confirm availability before the block-laying phase approaches. Don't assume it arrives with the 7.3N order.

The aerated blocks deserve more explanation. Standard aerated blocks at 3.6N/mm² are widely used for inner leaf construction above DPC. They're light (around 10 kg each), easy to cut with a hand saw, and have far superior thermal performance than dense blocks. But they're not suitable below ground without specific manufacturer approval, and they cost more than dense equivalents at 140mm width. The Hi-Strength (7.3N) aerated option from Forterra (Thermalite Hi-Strength 7) weighs 12.7 kg, has a thermal conductivity of 0.18 W/mK, and is designed for applications where you need structural strength with thermal and weight benefits. At £3.50 – £6.40 each it's expensive.

For below-DPC foundation work, dense 7.3N is almost always what's required and what gets specified.

Key brands for dense 140mm: Forterra Evalast and Conbloc, Thomas Armstrong, Build Bloc, WDL Concrete (Wales/Midlands), Denis May. Manufacturing tolerances are ±3mm to BS EN 771-3. Block dimensions vary fractionally between brands but all sit within the 440 x 215 x 140mm standard.

How to work with 140mm dense blocks

Weight: this is not a solo task

Each 140mm dense block weighs approximately 26-27 kg. That's the number that matters. The HSE Construction Sheet 37 threshold for high manual handling risk is 25 kg for a single-person repetitive lift. Every 140mm dense block you pick up exceeds it.

Your bricklayer knows this. Professional blocklayers work in pairs on 140mm courses, or take a mandatory risk assessment before solo laying. The NHBC notes that blocks over 20 kg need a specific manual handling risk assessment before use on site. At 26-27 kg, a full day of 140mm blocks laid solo will cause injury over time.

Practical implications: build time for 140mm blockwork is slower than 100mm. Labour costs are higher. Don't expect a crew to lay 140mm foundation courses at the same speed as above-DPC blockwork. When comparing builder quotes, check whether the method of working has been priced correctly. A quote that looks competitive may be based on the same laying rate as lighter blocks.

Delivery logistics also change. A standard pallet holds 44-48 blocks at 140mm width (versus 72-88 blocks at 100mm). At 27 kg each, 48 blocks per pallet equals 1.3 tonnes. Your site needs vehicle access for a flatbed with a crane arm (hiab), a firm level landing area for the pallet, and a realistic assessment of the distance from pallet to working position. Moving 140mm blocks across soft ground is slow.

Cutting 140mm blocks

You cannot hand-saw a 140mm dense block. The aggregate is too hard and the block is too wide.

A disc cutter (cut-off saw with a diamond or masonry blade) is the standard method. Score the cut line on all four faces, then cut through. For dense 140mm blocks you'll make two passes on a standard disc cutter. Always cut outside or under forced ventilation: concrete cutting generates fine silica dust that accumulates in the lungs. P3 dust mask (not a basic paper mask), safety glasses, and ear defenders are mandatory, not optional. Silica dust exposure causes silicosis, an irreversible lung condition.

A bolster chisel and lump hammer works for rough closing cuts where precision isn't needed. Score around all four faces, then strike along the line. The block splits along the score if the line is clean and consistent. Block splitters (guillotine hire from HSS or similar) are faster and cleaner for volume cutting.

For foundation blockwork, you'll encounter closing cuts at corners, window and door reveals, and course-end blocks. Budget extra time and cutting consumables when working with 140mm.

Laying 140mm blocks

Dense 140mm blocks use standard mortar, not thin-joint systems. Thin-joint mortar (Celfix and similar) is designed for the dimensional precision and low absorption of aerated blocks. Dense blocks need 10mm mortar beds.

Below DPC, in exposed locations, or where the spec requires it, use a 1:4 cement:sand mix (stronger than the standard 1:6 above-DPC mix). Your structural engineer's specification or building control drawing notes will state the mortar designation. Don't assume one mix works everywhere.

Frog orientation matters. Some 140mm blocks have a frog (the shallow depression on one face). They must be laid frog-up, with mortar filling the frog. Laying frog-down leaves a void in each mortar joint and reduces wall strength. NHBC common defect lists include this explicitly. Building control inspectors check it.

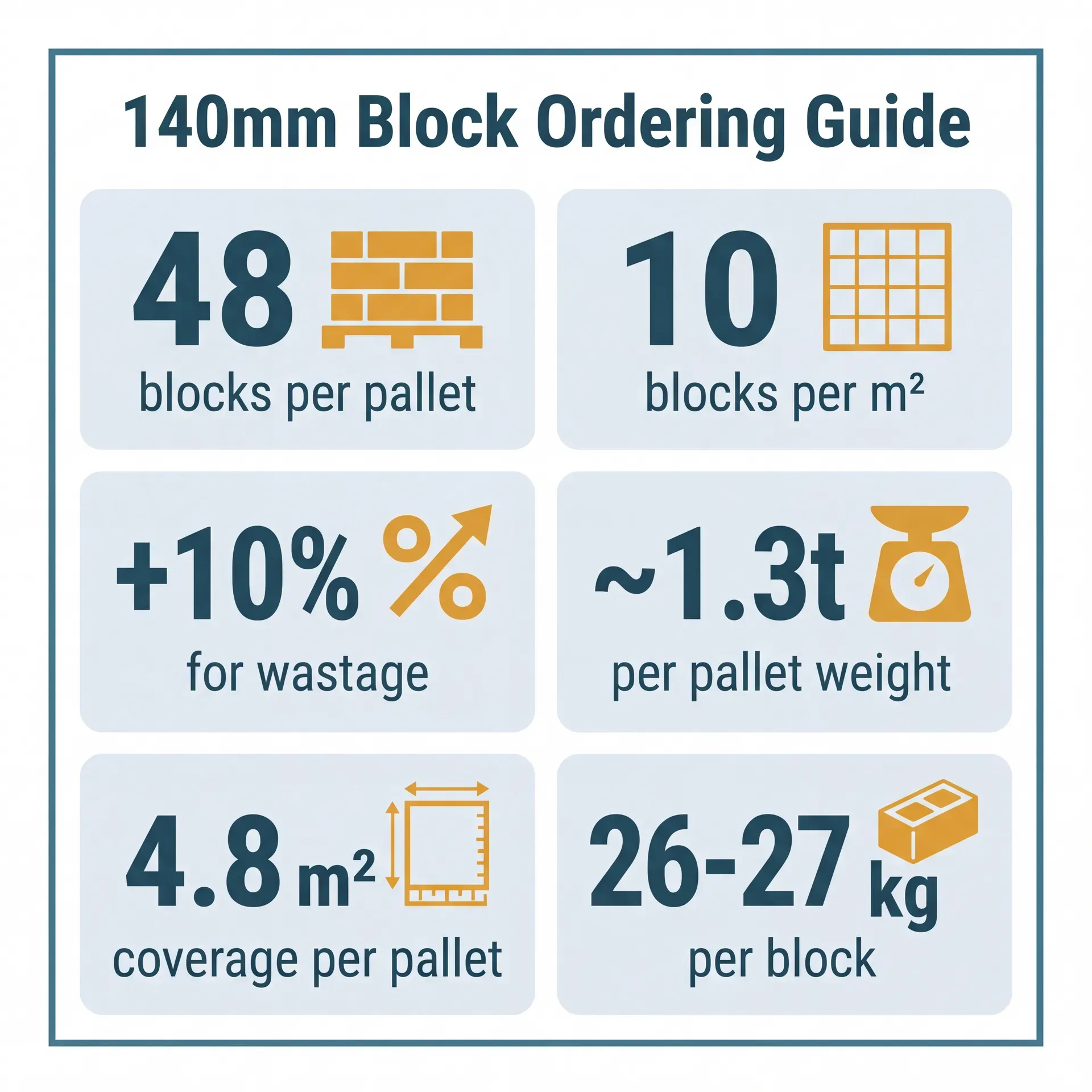

How many blocks do you need

The calculation uses the same module as 100mm blocks. Each 140mm block has a face area of 440 x 215mm. With a 10mm mortar joint, the effective module becomes 450 x 225mm = 101,250 mm² = 0.1013 m². Divide 1 m² by 0.1013: 9.87 blocks per m², rounded to 10.

Ten blocks per m² is the industry-standard figure from the MPA (Mineral Products Association). Use it.

Worked example: a foundation wall for a small extension, 3.5m x 2.4m footprint (14m perimeter), with a 1.2m-deep foundation wall below ground. One skin, no openings.

• Wall area: 14m perimeter x 1.2m height = 16.8 m²
• Blocks needed: 16.8 x 10 = 168 blocks
• Add 10% wastage: 168 x 1.1 = 185 blocks
• Pallet of 48 blocks: you need 4 pallets (192 blocks)

Always buy to the nearest whole pallet. The per-block saving on a full pallet versus part-order delivery adds up. One spare pallet costs less than a separate delivery charge, cheap insurance against a reorder mid-build.

One pallet of 48 blocks covers approximately 4.8 m² of wall face, allowing for wastage.

Click to enlarge

Cost and where to buy

Dense 140mm 7.3N blocks cost £2.30 – £3.30 per block ex VAT from UK builders' merchants in 2026. That range covers the gap between independent merchants at the lower end and national chains (Travis Perkins quoted online) at the higher end.

Compare that with 100mm dense blocks at £1.40 – £2.65 each. The 140mm version costs roughly 40-70% more per block at the same merchant, which for a typical extension foundation wall represents several hundred pounds more in materials. But foundation blockwork is a small proportion of total build cost, and you can't substitute.

Trade accounts consistently achieve lower pricing than online list rates. If you don't hold a trade account, call two or three independent builders' merchants before placing a national chain order. Independent merchants regularly undercut national chain list pricing by 20-30% per block, and on a 200-block order that saving covers delivery with change to spare.

For aerated 140mm blocks, expect to pay £3.50 – £6.40 per block ex VAT. The Hi-Strength 7.3N variant from Forterra (Thermalite Hi-Strength 7) sits at the top of that range and is often ordered through Jewson or direct from Forterra.

Delivery considerations apply with double force at 140mm. Two pallets of 48 blocks weighs 2.6 tonnes. You need vehicle access for a crane-arm lorry. Factor delivery costs into every merchant quote comparison. A price that looks competitive per block may be undercut when delivery charges are added.

Alternatives

100mm dense blocks are the obvious downgrade. For foundation walls shallower than 1m, above-DPC load-bearing work, and most domestic single-storey applications, 100mm dense blocks are what's specified. Read the drawings before assuming. The full comparison between the two is covered on the 100mm dense concrete blocks page.

Engineering bricks are sometimes specified instead of dense blocks below DPC, particularly in aggressive ground conditions or below the water table. They have higher compressive strength and near-zero water absorption. More expensive than blocks, and harder to source quickly. Your SE specifies engineering bricks when ground conditions demand it, not as a preference.

140mm aerated (3.6N) works for inner leaf above-DPC construction where thermal performance matters and the 7.3N strength of dense blocks isn't required. At 140mm width above DPC, an aerated inner leaf gives excellent Part L performance but costs more than the dense equivalent at the same width. Most extensions use 100mm aerated above DPC for the inner leaf.

140mm aerated Hi-Strength (7.3N) is the specialist option for applications where you need the structural strength of dense blocks with the thermal performance and lighter weight of aircrete. Thermalite Hi-Strength 7 at 12.7 kg and 0.18 W/mK is the main product in this category. The premium price reflects the engineering compromise it provides.

Where you'll need this

140mm blocks appear at the below-ground and structural phases of any masonry extension:

• Walls and blockwork - for foundation walls exceeding 1m depth, and for party wall or separating wall construction where the structural engineer has specified 140mm

These blocks appear in groundwork and substructure phases of any masonry project with deep foundations, separating walls, or specific loading requirements.

Common mistakes

Assuming your foundations are less than 1m deep. Many homeowners don't realise how deep strip foundations go, especially on sloped sites or where your SE has specified extra depth for tree roots or poor ground. The 1m trigger for 140mm is measured from the top of the foundation wall to ground level, not from the top of the concrete strip. If you're not sure, measure before ordering. A single building control inspection that flags the wrong block type before backfilling means exposing the entire foundation run.

Ordering 140mm blocks without confirming the strength grade. Your SE may specify 10.4N at 140mm for a heavily loaded wall. This is not a stock item. Ordering 7.3N by default and laying it to lintel height before realising the spec required 10.4N means demolition and rebuild. Confirm the exact strength specification with your SE, then confirm availability with your merchant, before a block is laid.

Not accounting for the weight in the build programme. At 26-27 kg each, 140mm blocks are slow work. A bricklayer who quotes based on a standard 100mm laying rate will either ask for more money mid-job or cut corners on joint quality to compensate. If your foundation wall requires 140mm, make sure the laying rate in any builder quote has been priced at the correct (slower) rate.

Ordering by block not by pallet. Packs of 48 blocks are always cheaper per unit than individual blocks, and a separate delivery for an extra 20 blocks will cost more in delivery than the blocks themselves. Add 10% to your calculated quantity, round up to full pallets, and order once.
