Cavity Trays: What They Are, Where They Go, and Why Your Builder Cannot Skip Them

A water stain appears on the bedroom wall above the new bifold doors, fourteen months after the extension was signed off. The plaster blisters, the paint peels, and the smell tells you what your damp surveyor will confirm: water has been tracking across the cavity onto the inner block leaf because nobody fitted a cavity tray above the lintel. Stripping the plaster, opening the brickwork, retrofitting a tray, and replastering will cost between fifteen hundred and twenty-five hundred pounds. The tray itself, fitted properly during the build, would have cost under three pounds. This is the most expensive component-by-component error in domestic cavity wall construction, and it is preventable if you know what to look for before the brickwork goes up.

What it is and what it's for

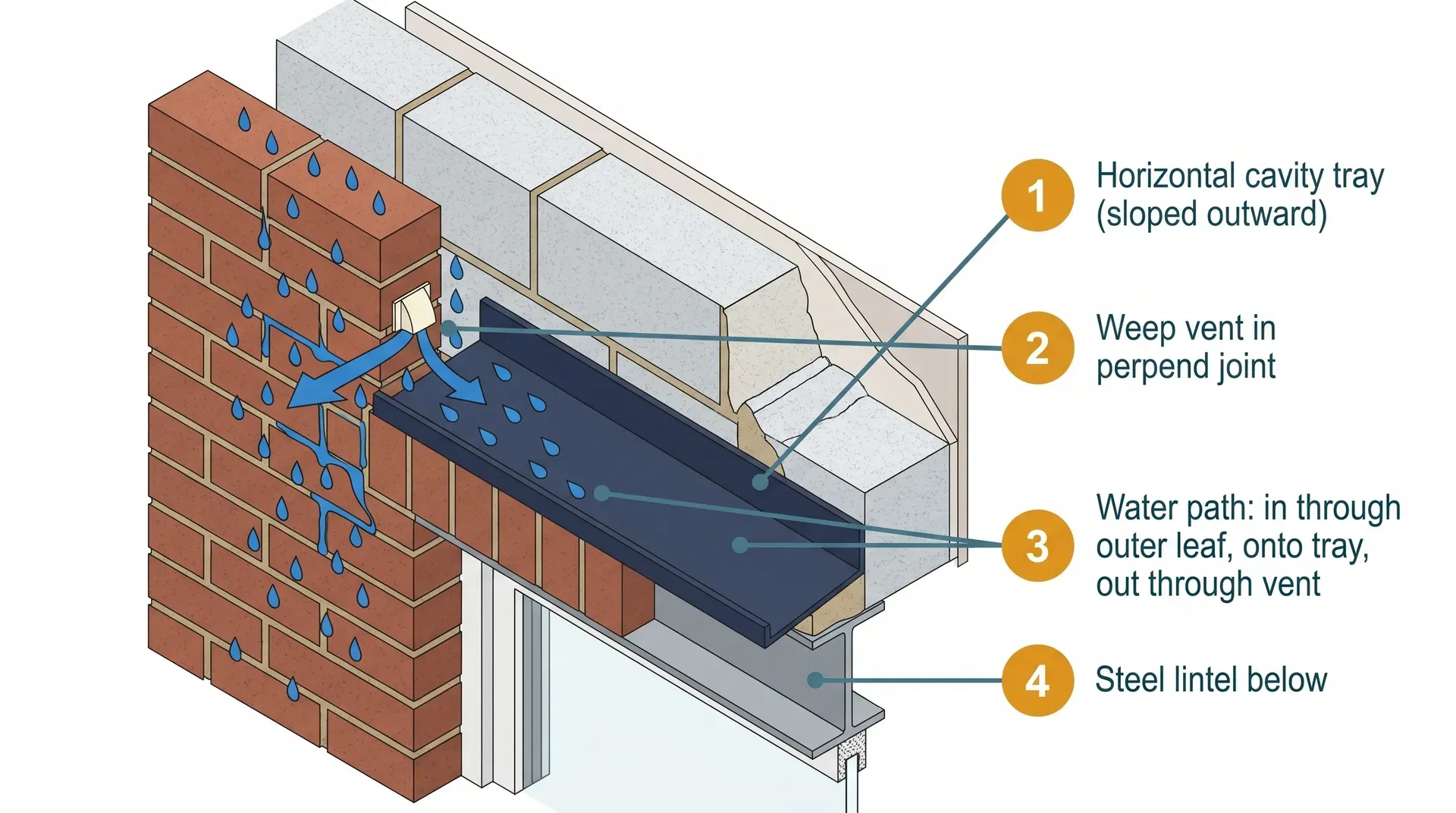

A cavity tray is a thin, sloped damp-proof barrier inside the cavity of a cavity wall. It catches rainwater that has penetrated the outer leaf (every brick wall lets some water through, regardless of what your builder says) and channels it back outside through small drainage holes called weep vents. Without one, water that gets into the cavity reaches the inner blockwork, soaks through the plaster, and shows up as damp on your interior wall.

The mental model that works: imagine a tiny gutter built into the wall, sloping from the inner blockwork down to the outer brick, with drainage holes punched into the brickwork every metre. Rain hits the outer face. Some seeps through the bricks and runs down the back of the outer leaf inside the cavity. The tray intercepts it before it can drop onto whatever is below (a lintel, a ceiling, a floor) and pushes it out through the weep vents. The lintel stays dry. The plaster stays dry. The wall works.

A cavity tray is not the same component as the horizontal damp proof course at floor level. A floor-level DPC stops rising damp coming up from the ground. A cavity tray stops descending damp at specific interruptions in the cavity: above lintels, at roof abutments, at changes in cavity width, around penetrations. They are both made from similar materials and both classified as DPC products under NHBC Standards 6.1.17, but they do different jobs at different points in the wall.

Approved Document C of the Building Regulations (Resistance to moisture, paragraph 5.9) requires a cavity tray:

• Above every lintel over a window or door opening
• At every junction where a roof meets a wall (pitched or flat)
• Above concrete ring beams and in-situ floor slabs that bridge the cavity
• Above airbricks, meter boxes, ducts, and cavity liners
• At any change in cavity width
• At the base of cladding systems and render carriers
• Anywhere the cavity is interrupted or bridged

Skip any one of those and your building control inspector will flag it. If they miss it (it happens) the failure shows up later as damp, and remediation is brutally expensive.

Click to enlarge

The NHBC 2024 rule that changed everything

Two regulatory updates in the last three years have changed what counts as an acceptable cavity tray, and most homeowner-facing guides have not caught up.

Effective 1 January 2023: the National House Building Council stopped accepting low-density polyethylene DPC (the cheap blue or black plastic strip sold in 30m rolls under BS 6515) as a cavity tray on its own. Products must now meet BS EN 14909 with independent third-party certification, typically a BBA certificate. This rules out the cheapest roll-DPC products that were routinely site-folded into trays for decades. It also means the polyethylene roll you can still legally use as a horizontal floor-level DPC is no longer compliant when used as a cavity tray.

Effective 1 January 2024: NHBC 6.1.17 was updated again, this time to mandate preformed cavity tray units (not site-folded DPC) at every "complicated junction" in any home where foundations were started on or after that date. Complicated junctions explicitly include:

• Pitched roof abutments (where an extension roof meets an existing house wall)
• Internal and external corners
• Steps in the horizontal level (stepped DPCs)
• T-junctions
• Door thresholds
• Penetrations through horizontal trays
• Interfaces with wind posts, balcony supports, and balustrades

Site-folded DPC is still permitted for straight horizontal runs where no complicated junction exists, for example a continuous run above a single straight lintel. Everywhere else, your builder must use preformed units made specifically for the geometry of the junction.

Why does this matter? Because folded DPC corners are one of the most common sources of cavity tray failure recorded in NHBC defect data. The folds pull open under brick load. The lap joints leak. The slope flattens. Preformed units are factory-shaped, self-supporting, and have integral weep channels built in. They cost a few pounds more per unit but eliminate most of the failure modes that plague site-folded trays.

If your home has an NHBC warranty, this rule applies to your build. If it does not (some self-build extensions opt for LABC or other warranty providers), the rule is not legally binding but most building control officers now follow the updated NHBC standard as best practice. In practical terms: if your builder proposes to fold DPC at a stepped roof abutment, ask them in writing why they are not using preformed units, and copy your BCO into the email.

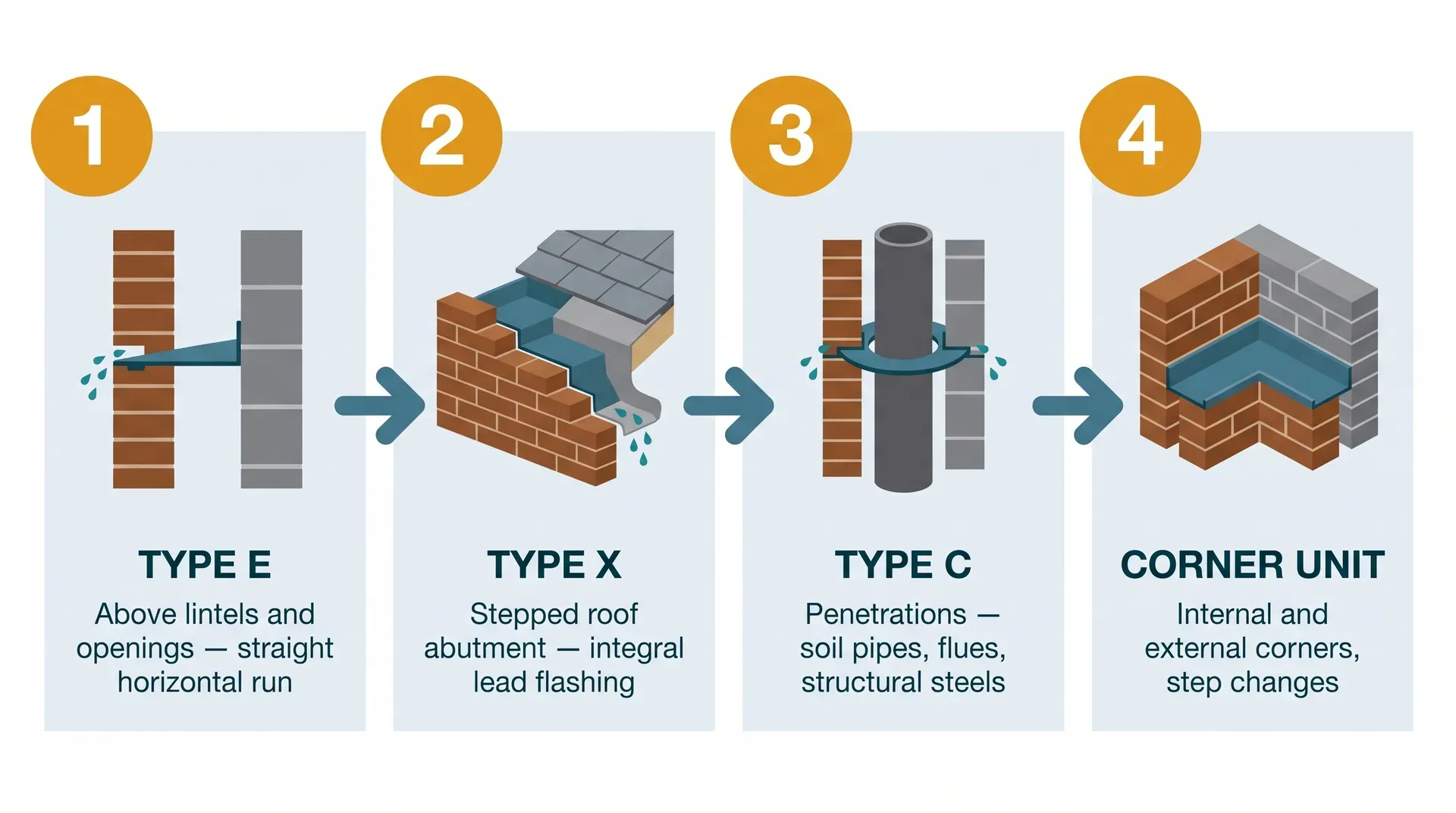

The four cavity tray types you need to know

Manufacturers use overlapping names, but every preformed cavity tray on the UK market falls into one of four functional types. Knowing which type you need (and which type your builder is fitting) is the difference between a working installation and a future damp problem.

The naming convention started with Cavity Trays Ltd (the original UK manufacturer, holders of the only European Technical Approval for stepped trays). Other brands use different names for equivalent products. Timloc sells the Everdry and Inter-Loc systems. Manthorpe sells the GW range. Yeovil markets the Advantage range. Glidevale sells the HT3. They all fit the same physical categories above. If your builder mentions a brand name you do not recognise, ask which type (E, X, C, or corner) it is.

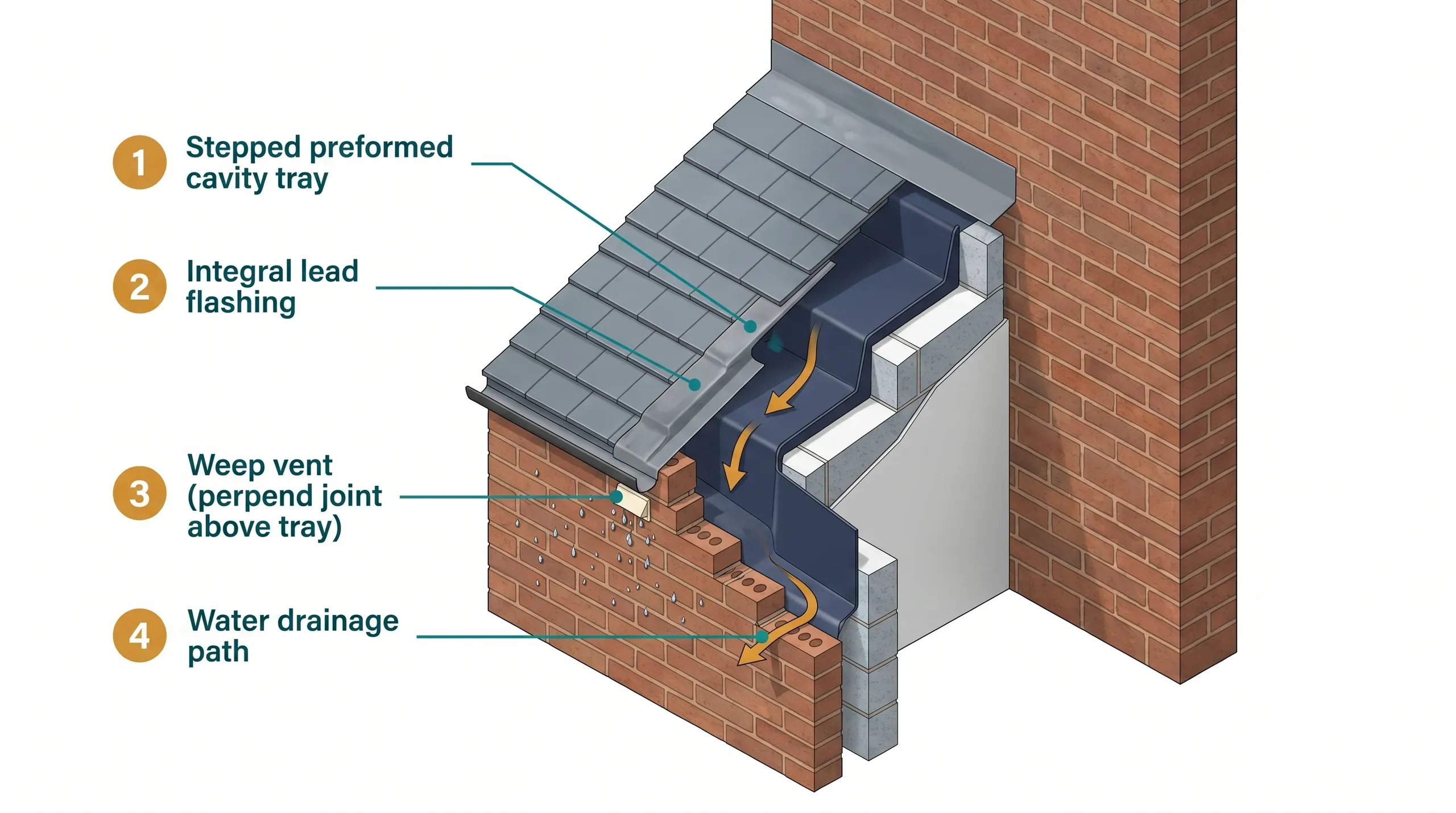

For a typical single-storey extension that joins the house at a pitched gable wall (the most common configuration), you will need:

• Type X stepped trays all the way up the abutment, one per brick course
• A starter/catchment tray at the lowest point (where the roof line meets the wall)
• A ridge tray at the top apex
• Stop ends at both ends of every horizontal section
• Weep vents in the outer leaf above each tray

Cavity Trays Ltd Type X is the recommended product for stepped abutments because it is the only stepped tray on the UK market with a European Technical Approval and integral lead flashing. The flashing dresses out over the roof tile course below to weather the joint between the tray and the roof itself. Lead-free alternatives exist (synthetic flashings) and are equally compliant, just less traditional.

Click to enlarge

Materials: pitch-polymer, CPT, polypropylene, and lead

The four material categories that make up modern compliant cavity trays each suit a different application. Your builder may use whatever the local merchant stocks. That is usually fine. The exception is below-DPC and load-bearing applications, where material choice matters more.

Pitch-polymer (bitumen-modified polymer): the workhorse. IKO Hyload Original and Hyload Trade are the dominant UK products, both BBA-certified to BS EN 14909. Sold in 100mm to 900mm widths in 20m rolls. Flexible down to -15°C. Used where the tray takes a horizontal run that needs to be cut and shaped on site. Suitable for straight runs above lintels.

CPT (co-polymer thermoplastic): higher-specification flexible material, typified by Visqueen Zedex CPT. 0.8mm thick, BBA-certified, with significantly higher puncture resistance than standard polyethylene. Doubles as a radon barrier where ground conditions require it. Specify CPT where the DPC takes direct bearing load (under a steel beam, for example), where puncture resistance matters, or where the tray sits in a basement or retaining wall.

Preformed polypropylene: the type required at all complicated junctions under the NHBC 2024 rule. Pre-shaped, self-supporting, with integral weep channels and stop ends. Timloc Everdry and Inter-Loc, Manthorpe GW-series, Yeovil Advantage, and Cavity Trays Ltd Type E are all polypropylene preformed systems. Standard 75mm coursing for brickwork stepped trays.

Preformed with integral lead flashing: Cavity Trays Ltd Type X and Kytun's range. Solid polyethylene tray body with Code 4 BS EN 12588 lead flashing factory-bonded into the bosom jaw of the tray. The lead dresses over the roof tile course below to weather the abutment. Synthetic flashing alternatives are available where lead is not preferred for environmental or theft reasons.

What you do not want, post-2023: low-density polyethylene roll DPC (BS 6515 alone) used as a cavity tray. Cheap, no longer compliant, and a documented source of failure. If a builder turns up with a roll of generic blue plastic and starts cutting it into corners at your roof abutment, that is a stop-the-job conversation.

How it gets installed (and what to check)

A cavity tray cannot be retrofitted cleanly. It is laid course by course as the brickwork goes up. Once the brickwork is complete and the render goes on, the tray is permanently buried inside the wall. Your only chance to verify it is during construction.

The installation sequence for a stepped tray at a pitched roof abutment:

1. The bricklayer marks a chalk line on the inner face of the outer leaf at the roof pitch angle.
2. Brickwork is built up to the lowest point of the abutment. A catchment tray (the starter unit, with an integral weep that discharges directly onto the roof surface) is bedded into fresh mortar.
3. Each subsequent course gets one stepped tray, alternating left-hand and right-hand depending on which direction the roof slopes. Each tray overlaps the tray below by a minimum of 100mm.
4. The lead flashing on each tray is dressed over the roof tiles below as the courses go up.
5. At the top, a ridge tray closes the apex.
6. Weep vents are built into the outer leaf in the perpend joint immediately above each tray, at maximum 450mm centres above lintels and openings, or 900mm centres along horizontal roof abutments.
7. Stop ends are fitted at both ends of every horizontal tray run.

The tray must slope outward (toward the external leaf) by a minimum of 150mm across the cavity per BS 5628-3:2005. The 150mm upstand from the outer leaf bedding course up onto the inner leaf is critical: it keeps the inner-leaf seating well clear of any water that pools on the tray, even with mortar droppings or detritus reducing the falls.

What the building control inspector will check at the structural stage:

• A tray is present above every lintel and at every roof abutment
• Weep vents are open and unblocked, at the correct spacing
• Stop ends are fitted at both ends of every tray run
• The tray slopes outward, not inward
• Lap joints are at least 100mm and properly sealed
• The cavity below the tray is clear of mortar droppings
• Preformed units are used at all complicated junctions (post-January 2024 builds with NHBC warranty)

What you should also check, walking the site before plaster goes on:

• Look up into the cavity at every weep vent. Can you see daylight? If yes, good. If no, the vent is blocked.
• Count the weep vents. Above any opening wider than 900mm, you should see at least two. Above a typical 1200mm window, three is typical.
• At a stepped roof abutment, follow the tray line up the wall. Is there a unit in every course? Are the steps consistent (75mm per course for standard brickwork)?
• Photograph everything before the rendering, plastering, or roof tile dressing covers it permanently.

How much do you need

Cavity tray quantity is a function of the geometry of your build, not the wall area. You need:

• One tray per brick course along every stepped roof abutment (so for a typical extension gable abutment that climbs 1.5m at a 30-degree pitch, expect 8 to 12 stepped trays plus a catchment and a ridge unit)
• One horizontal tray run above every window and door lintel (roughly 0.9m to 2.4m of tray per opening, sized to the lintel plus 150mm overlap each end)
• One corner unit at every internal and external corner where the cavity is interrupted
• One penetration tray at every soil pipe, flue, or structural element that passes through the cavity
• Two weep vents minimum above every horizontal tray, at maximum 450mm centres above lintels and 900mm centres along roof abutments

For a typical single-storey rear extension with one pitched-gable abutment, two large windows, and one door, the parts list might look like:

• 1 catchment tray
• 10 stepped intermediate trays (Type X with lead)
• 1 ridge tray
• 4 horizontal trays (above windows and door)
• 8 stop ends
• 18 to 24 weep vents
• 2 internal corner units (where the new walls meet the original house)

Order all of it before the bricklayer starts the abutment course. Running out mid-build means a stop-the-clock visit to the merchant, and trays from different brand systems are not always cross-compatible. Specify the exact cavity width to your supplier (almost all UK extensions are 100mm cavities, but some older houses have 50mm or 75mm and post-2014 high-performance builds may have 150mm). The wrong cavity width tray will not seat properly.

Cost and where to buy

Pricing varies dramatically by product type. The widely-quoted figure of eight to fifteen pounds per tray only applies to the Type X leaded products used at high-performance gable abutments. Basic lead-free preformed trays are far cheaper, and corner units sit at the upper end of the range.

For a typical single-storey extension build, the total cavity tray bill of materials including weep vents lands in the range of £30 - £120. Two-storey extensions and complex roof geometries push toward the upper end. Simple single-pitch lean-to extensions sit at the lower end.

Where to buy:

• Toolstation and Screwfix stock the basic lead-free Timloc and unleaded preformed trays at the cheapest end of the market. Good for horizontal lintel trays and basic stepped runs at standard exposure.
• Travis Perkins, Jewson, and independent builders' merchants stock the broader Cavity Trays Ltd, Manthorpe, and IKO Hyload ranges. This is where your bricklayer will go if they have a trade account. Trade rates are typically 15-25% below DIY-chain pricing.
• Specialist suppliers (Spechunter, Roof Giant, DPC Products Direct, Greengates, Cavity Trays Ltd direct) are the right call for Type X leaded systems and any non-standard cavity widths. They stock complete manufacturer kits including catchment, intermediate, ridge, and corner units pre-matched.

Alternatives

There are no real alternatives to a cavity tray at the points where one is required. Approved Document C and NHBC 6.1.17 specify that a tray (or compliant DPC, where a straight horizontal run is permitted) must be present at every interruption in the cavity. The only choices are which product to use, not whether to use one.

For straight horizontal runs above lintels in non-NHBC-warranted builds, polyethylene DPC roll meeting BS EN 14909 (such as IKO Hyload Original) is still legally compliant. Your bricklayer cuts the roll to length and beds it into the mortar with the required slope. Cheaper than preformed units, but more prone to installation error and now non-compliant for NHBC-warranted homes built since January 2024.

For retrofit situations (where a missing tray is discovered after the build is complete), specialist remedial trays exist. Cavity Trays Ltd's Type E remedial tray is inserted through a single course of removed brickwork and clips together inside the cavity. Cavitytrayman SMART TRAY and similar proprietary systems work through smaller cuts. Retrofit costs vary wildly, ranging from a simple 3m horizontal tray above one lintel up to complex render-and-rebuild remediation:

The labour to open the wall, fit the tray, replace the bricks, and repoint dwarfs the material cost. Get it right the first time.

For sites with severe waterproofing issues where retrofitting a tray is impractical, Vandex BB75 cementitious slurry can be applied to the inner cavity face as a waterproof barrier. This is a workaround, not an equivalent. It treats the symptom rather than redirecting the water. Building control officers may accept it as a remedy where retrofitting a tray is genuinely impossible, but it is not a substitute for a tray during new build.

Where you'll need this

Cavity trays are needed at every point where the cavity in a cavity wall is interrupted or bridged. On any extension, conversion, or new-build masonry project, that includes:

• Roof-to-wall abutments where a new pitched or flat roof meets an existing wall (the highest-priority application, and where most failures happen)
• Above every window and door lintel in any cavity wall
• At base of cladding, render carrier, or rainscreen systems
• Around penetrations: soil pipes, flues, structural steels passing through the cavity
• At changes in cavity width (typical at lower-floor to upper-floor transitions in some details)
• Above ring beams and in-situ floor slabs that bridge the cavity

These trays appear during structure work on any extension, conversion, or new build with cavity wall construction. The decisions are made during architect's detail design and the products are ordered before the bricklayer starts the wall. Get it specified, order before brickwork begins, and verify on site before plastering covers it.

Common mistakes

Letting the builder skip the tray above a window lintel. The single most common defect logged in NHBC inspection data. Often happens when the bricklayer is working quickly, the lintel is small, and nobody is on site to flag it. By the time the plaster is on, you cannot see whether the tray is there. This is why photograph-before-cover is the most important quality check on any extension build.

Accepting site-folded DPC at a stepped roof abutment. Since January 2024 (for NHBC-warranted homes), preformed units are mandatory at complicated junctions. If your bricklayer rolls out a length of polyethylene DPC and starts folding it into stepped shapes at the gable wall, that is non-compliant work. Stop the job, raise it with the builder, and ask for preformed units in writing.

No weep vents, or weep vents at the wrong spacing. A tray with no drainage path is a water collector, not a damp barrier. Weep vents must sit in the outer leaf perpend (vertical mortar joint) immediately above the tray. The maximum spacing is 450mm above lintels and openings (with a minimum of two per opening), or 900mm along horizontal roof abutments. Mortared-over weep vents are functionally the same as no weep vents at all.

Not specifying cavity width to the supplier. Trays come sized for specific cavity widths. A 100mm-cavity tray fitted into a 75mm cavity will not seat properly and may sag in the middle. A 75mm tray in a 100mm cavity leaves a gap on one side. Confirm your cavity width before ordering, and if your house has mixed cavity widths (common in extensions of older properties), specify each location separately.

No stop ends. Without stop ends, water that lands on the tray runs off both ends and drops back down into the cavity below, defeating the entire system. Most preformed trays come with integral stop ends or matching stop end units. Site-formed DPC trays need stop ends formed manually with mastic and overlap. The BCO checks this.

Using BS 6515 polyethylene DPC roll alone as a cavity tray. Since January 2023 this material is no longer accepted as a cavity tray under NHBC standards. Products must meet BS EN 14909. The roll DPC sold in 30m rolls at the cheapest end of the market may still be legally usable as a horizontal floor-level DPC, but if your builder is cutting it up to make cavity trays, that is non-compliant work.

Tray sloping inward instead of outward. Caused by incorrect installation, sagging mortar before the tray sets, or the tray being seated upside down on a poorly-marked course. Water collects, then drains the wrong way: into the inner leaf, onto the plasterboard, through to your interior wall. Visually verifiable from inside the cavity before the next course goes on. If you can see water pooling away from the outer leaf, raise it.

The tray is hidden, the failure is delayed, and the remediation cost is multiples of the original material cost. Every one of these mistakes is identifiable before the brickwork is finished, if you know what to look for and you photograph the work as it goes up.
