Boiling Water Taps for Kitchen Extensions: Quooker, Zip HydroTap and What to Know Before You Buy

The boiling water tap is the appliance that gets ordered last and causes the most retro-fit grief. You decide on it late, sometimes after the kitchen is half-installed, the box arrives during the fit, and then three different trades realise in turn that each of them needed to know about it weeks earlier. The plumber needed a cold feed and a waste point under the sink. The electrician needed a dedicated 13A spur inside the cabinet. The fitter needed the under-counter tank dimensions before they built the sink base unit, because the tank eats the space a drawer would otherwise use. None of those three jobs is hard on its own. They are only hard when they are discovered at second fix instead of being scoped at specification. Get the tap, the tank, and all three trades into the plan early, and the install is an afternoon. Leave it late and you are chasing first-fix provisions that should already exist.

What a boiling water tap is

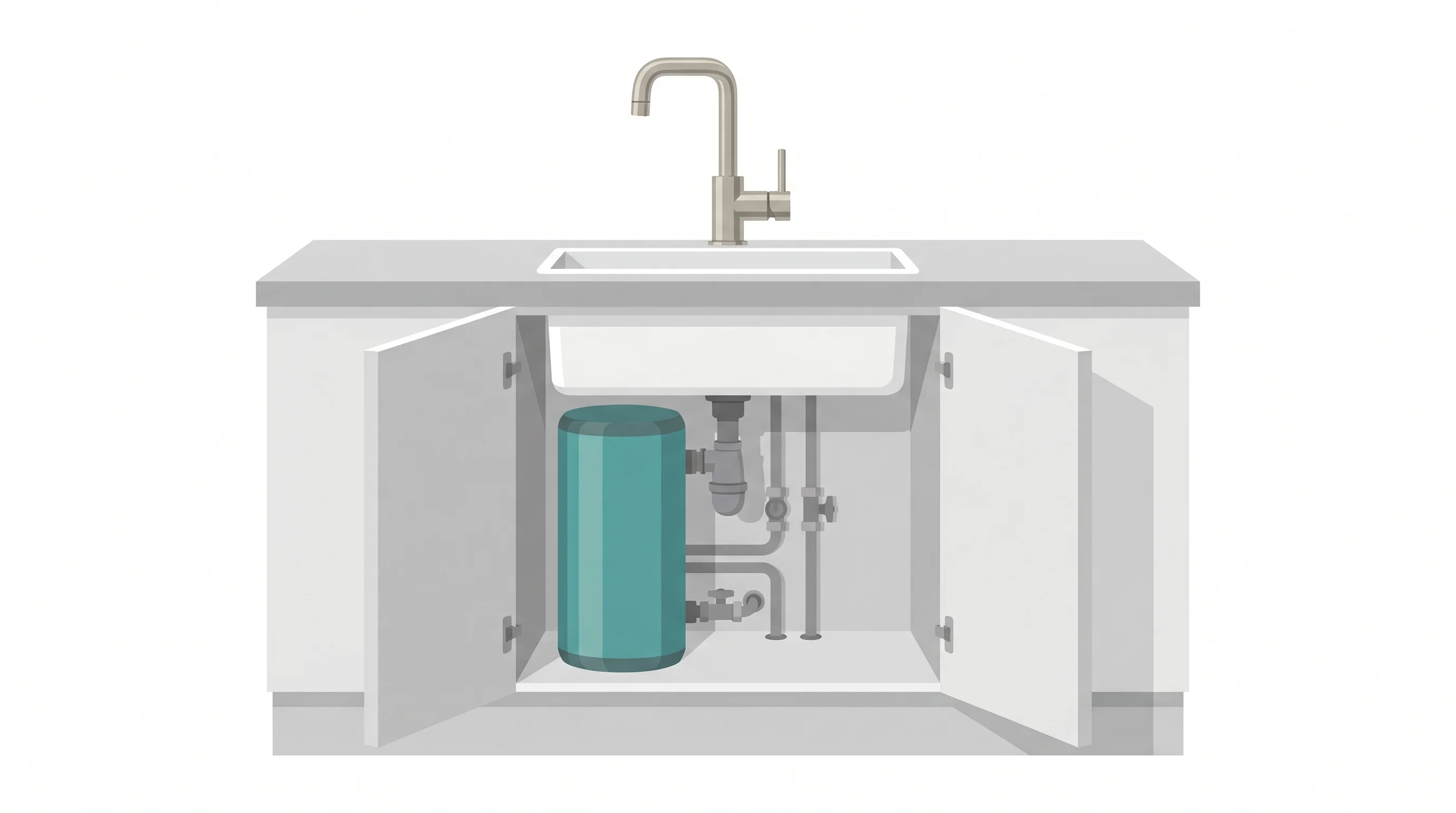

A boiling water tap is two parts working together: an under-counter insulated tank and a dedicated tap on the worktop. The tank holds filtered water (capacities run from about 0.7 litres up to 5 litres depending on model and household size) and heats it to near-boiling, typically held at around 98°C, continuously. Because the water is already hot, dispensing is instant. There is no kettle wait.

The tap body contains the safety mechanism and the flow path for the boiling water. Every reputable model has a child-safety action to stop accidental scalding: usually a spring-loaded push-and-twist lever that returns to off when released, so the tap cannot be left running or knocked on. The boiling outlet is separate from any standard hot and cold flow, and on most modern units the same tap body also dispenses ordinary hot and cold water. That combined function is what makes it a "3-in-1" tap, replacing your standard mixer rather than sitting beside it. The tank does the heating and filtering; the tap controls the safe delivery.

3-in-1 vs 4-in-1

A 3-in-1 tap delivers hot, cold, and boiling from a single body. It replaces the standard kitchen mixer outright, which is why it is the most popular format: one tap, one hole, no clutter. The tank handles the boiling supply, and the normal hot and cold route through the same spout via a separate handle or lever.

A 4-in-1 adds a fourth function: filtered chilled water, and on most models sparkling water too. To make sparkling water the cabinet needs a CO2 cylinder alongside the tank, plus a chilling and carbonating unit. The tap body looks much the same, but it routes to two different cold outputs (still filtered and sparkling). Worth knowing before you commit: the CO2 cylinder is a running cost. A replacement cylinder typically costs a few pounds and yields roughly 60 litres of sparkling water, so heavy sparkling-water households go through them. Quooker's Pro3 range also offers a boiling-cold ("steaming cold") option for those who want chilled still water without the sparkling complication. Decide on still-only, sparkling, or boiling-only at specification, because the cabinet space and the cylinder logistics differ for each.

The three-trade coordination problem

This is the section most homeowners skip, and it is the one that causes the expensive afternoon. A boiling water tap is not a plumbing job. It is a plumbing, electrical, and joinery job, and all three need briefing before first fix is closed up.

The plumber needs to provide a cold water feed to the tank, normally a 15mm pushfit branch taken off the under-sink cold supply, plus a waste path. The tank's overflow and pressure relief outlet needs somewhere to discharge, usually a 22mm copper waste run into the under-sink trap. If neither stub exists at first fix, the plumber is making new connections behind a finished cabinet at second fix.

The electrician needs a dedicated 13A switched fused spur or fused connection unit (FCU) inside the under-sink cabinet, fed by a 2.5mm circuit from the consumer unit. This must be its own provision, not shared with the dishwasher socket or the general sink sockets, because the tank draws current to reheat and you do not want it competing on a shared spur. The spur has to land inside the correct cabinet. Put it in the wrong base unit and the flexible tank lead will not reach.

The kitchen fitter needs the tank dimensions to design the sink base unit. A Quooker COMBI 2.2L tank is roughly 175mm in diameter and 440mm tall, and it has to live somewhere in that cabinet alongside the waste trap and the supply pipes. If the sink base has a full-depth drawer, that drawer often has to become a half-depth drawer or be dropped entirely to clear the tank. The fitter can only plan that if you hand them the model and tank dimensions at design stage.

Part G and water regs

A boiling water tap must be fitted by a WaterSafe-registered plumber, both to satisfy the Water Supply (Water Fittings) Regulations and to keep the manufacturer's guarantee valid. The cold supply to the tank needs an isolating stopcock that is accessible inside the cabinet, so the tank can be isolated for servicing or in an emergency without turning off the whole house. The tank's pressure relief valve must drain to a safe, visible point. It cannot be concealed and it cannot vent to atmosphere inside a sealed cabinet, because a blocked or hidden relief path defeats the purpose of the valve. Some tank installations also require a check valve (a non-return valve) on the inlet to prevent heated water flowing back into the cold supply, which protects against backflow contamination under Part G. Confirm your plumber is fitting these as part of the commissioning, not leaving them as assumptions.

What to buy

The boiling water tap market in the UK is dominated by one brand, with a handful of credible alternatives at either end of the price scale. Installation typically adds a few hundred pounds on top of the unit, depending on whether the first-fix provisions are already in place or being created.

For most homeowners the sensible default is Quooker. The service network is the largest in the UK, every fitter has installed one before, parts are easy to source, and the 10-year guarantee is real. If you want premium feel without the Quooker premium, the Grohe Red Duo is the value pick and tradespeople rate it. Zip HydroTap is superb but priced for offices and serious enthusiasts. The budget InSinkErator does the core job, just with a shorter warranty and fewer local engineers if something goes wrong in year four. Whatever you pick, confirm the model before the kitchen is designed so the tank fits the cabinet.

Running costs

Sellers like to frame a boiling water tap as "free hot water on tap", which ignores standby power. The honest figure is small but real. A Quooker COMBI draws around 10W on standby in its tank-economy mode, comparable to leaving a laptop charger plugged in. At 2026 UK electricity rates, that standby draw works out to a modest annual cost. Switch on the eco or night mode (which powers the tank down overnight when nobody needs boiling water) and the figure drops further.

That is the realistic number. It is not the dramatic saving some marketing implies, but against the price of the unit and the convenience of never waiting for a kettle, the standby cost is comfortably in the noise. Budget for it, do not be surprised by it, and use the eco mode if you want the lower figure.

Common mistakes

Forgetting the worktop hole size. Many boiling tap bodies need a 32mm hole rather than the standard 35mm tap hole, and on granite or quartz that means the worktop fabricator must cut the correct diameter with the right hole saw before the slab is installed. Specify the exact hole size to the worktop supplier.

Not telling the fitter the tank dimensions. The single most common error. The under-sink base unit ends up too small or fully drawered, and the tank has nowhere to live. The tank dimensions belong in the kitchen design, not in the installer's head on fit day.

Using the existing cold supply with no dedicated isolating valve. The tank needs its own accessible stopcock inside the cabinet. Teeing off the supply without one means you cannot isolate the tap without shutting the whole house down.

Choosing 4-in-1 without budgeting for CO2. The sparkling function looks great on the showroom card, then the cylinders run out and the replacement cost surprises people. Decide whether you will actually drink enough sparkling water to justify the ongoing cylinders.

Specifying the tap as an afterthought during second fix. This is the root cause of nearly every problem above. The electrical spur ends up in the wrong cabinet, the waste does not exist, the tank does not fit, and you are paying three trades to come back. Scope it at specification.

Where you'll need this

• Sourcing units and worktops, confirm the tank fits the sink base unit and the worktop hole size is cut correctly
• Kitchen plumbing provisions, cold supply stub and waste provision under the sink before the cabinet goes in
• Kitchen electrical provisions, dedicated 13A spur inside the correct under-sink cabinet
• Kitchen installation, tank mounting and tap connection at second fix

Decide the model, format, and tank position at specification stage. The first-fix provisions are cheap to install before the walls and cabinets close up and expensive to retro-fit afterwards.
