Proprietary Vapour Control Membrane: Intelligent VCL, Polythene, and the Specification Trap That Costs Homeowners Walls

Your builder rolls out 500-gauge polythene on the warm side of the mineral wool, staples it through the timber, and trims it with a Stanley knife. Eighteen months later there's a damp patch in the corner of the loft conversion ceiling, and when you lift the plasterboard you find black mould spreading across the underside of the rafters. The polythene was on the right side, so what went wrong? It blocked vapour from the room into the structure in winter - exactly as designed. But it also blocked the structure drying back into the room in summer, when humidity reverses direction. The trapped moisture had nowhere to go. This is the failure mode that intelligent vapour control membranes were built to prevent, and it's why specifying the cheapest VCL on the market is sometimes the most expensive choice you can make.

What it is and what it's for

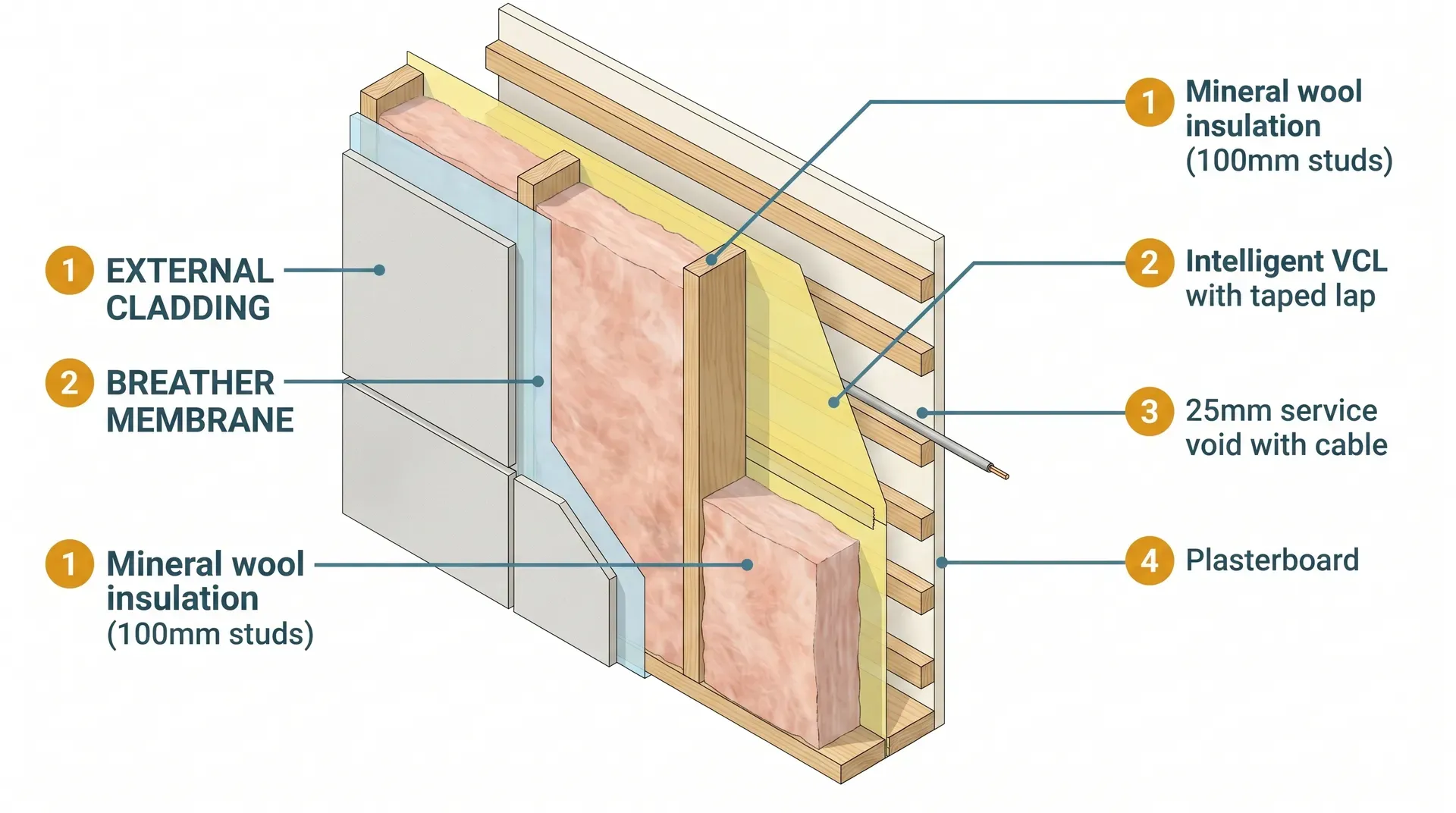

A vapour control layer (VCL) is a sheet membrane installed on the warm side of insulation in walls, roofs, and floors. Its job is to slow water vapour moving from warm interior air into the cold structure where it would condense, soak into insulation and timber, and start rotting things.

A "proprietary" VCL - the kind covered by NHBC Standards as a UKAS-certified product - is a multi-layer engineered membrane built specifically for this job. The mainstream brands are DuPont (Tyvek AirGuard range), Pro Clima (INTELLO, DB+), SIGA (Majpell, Majrex), and Klober (Wallint range). They differ from the generic 500-gauge polythene your builder might unroll in two ways: they carry third-party certification (BBA, ETA, or DIBt) that NHBC and warranty providers accept, and most of them behave intelligently - their vapour resistance changes with humidity.

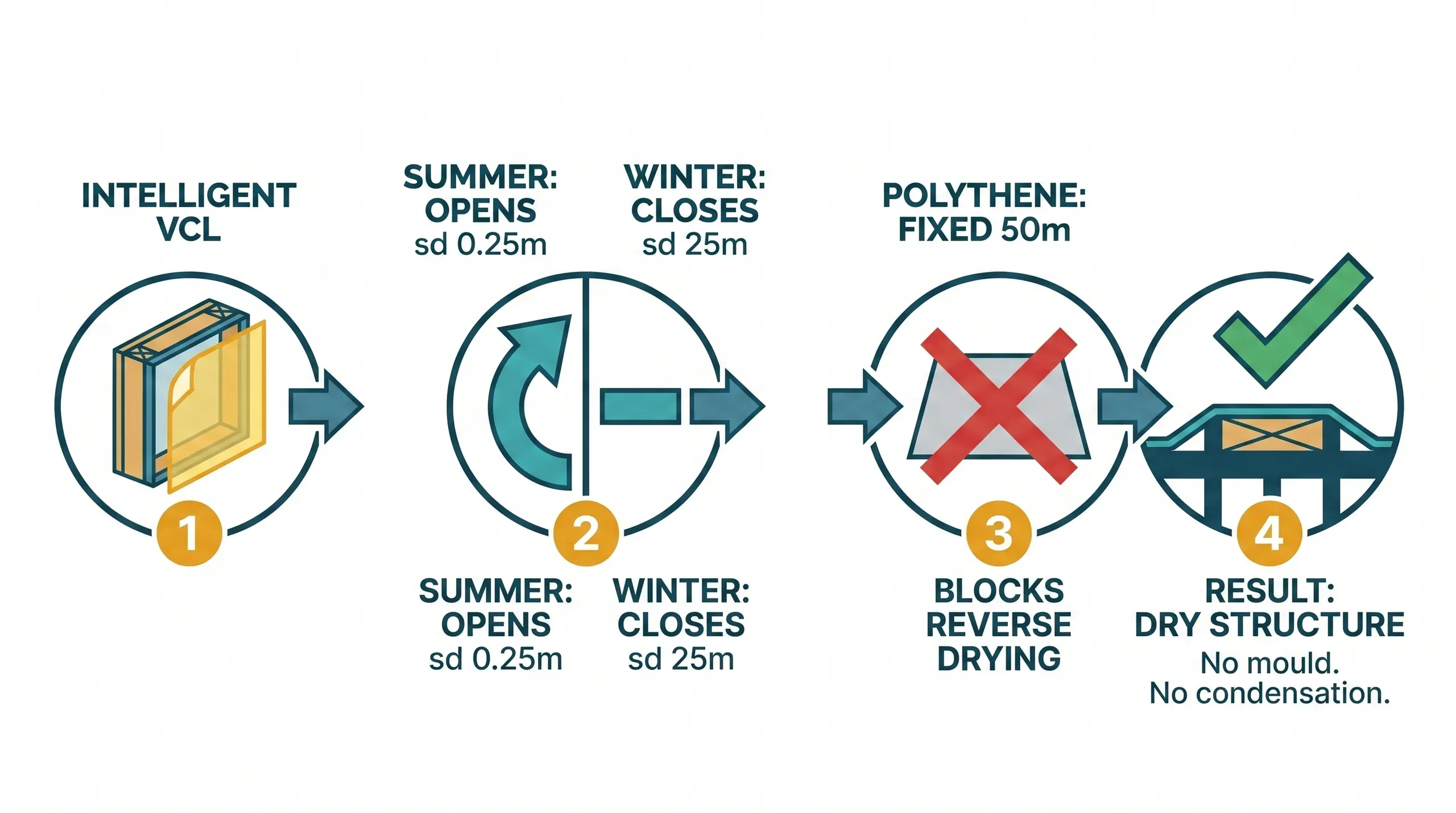

That intelligent behaviour is the whole point. A polythene sheet has a fixed sd value (the equivalent thickness of still air it resists vapour through) of around 50–100 metres. It blocks vapour the same way in January and July. An intelligent membrane like Pro Clima INTELLO Plus runs from sd 0.25m in humid conditions up to sd 25m in dry conditions. In winter, when the room is humid and the structure is dry, it acts like a barrier. In summer, when the structure has picked up moisture and the room is dry, it opens up and lets the structure dry back into the room. The membrane senses which way to behave from the relative humidity on each face.

This is not a marketing distinction. Experienced UK installers report stripping out hundreds of square metres of polythene-backed wall and roof construction over their careers because of summer condensation failures, particularly in bathrooms and other humid rooms. The polythene was doing exactly what it was designed to do. The design was wrong.

Click to enlarge

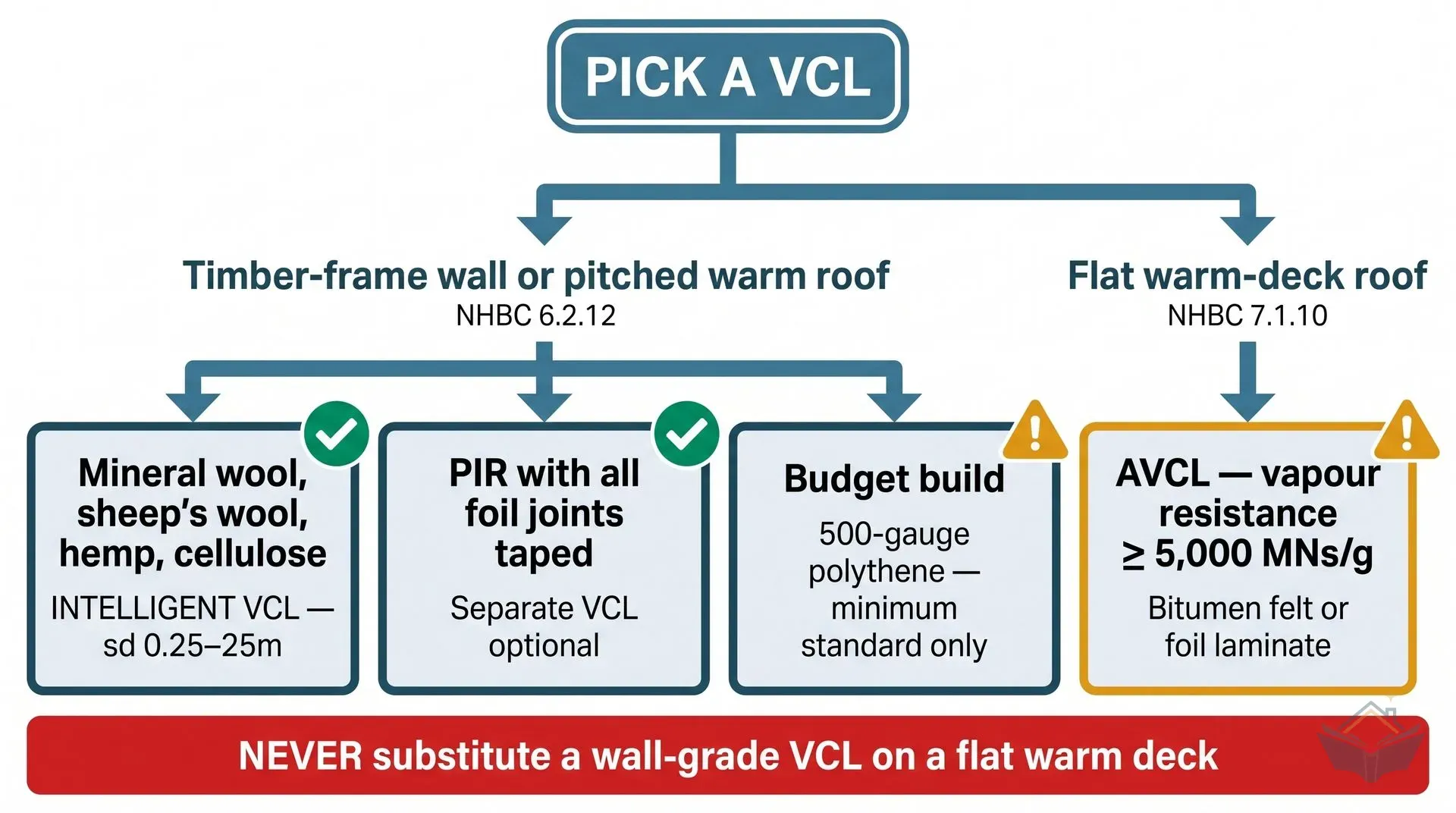

The specification trap: pitched roofs vs flat warm decks

This is the single most important thing to understand about VCLs in the UK, and almost no homeowner-facing guide explains it.

The phrase "vapour control layer" covers two completely different products doing two completely different jobs in two completely different parts of the building. Mix them up and you can fail an NHBC inspection or end up with a roof that condenses internally for a decade.

Timber-frame walls and pitched warm roofs (between rafters) - NHBC Standards 6.2.12 covers these. The standard accepts three options: 500-gauge polythene, vapour-control plasterboard, or a proprietary VCL with UKAS-accredited third-party certification. Best practice for new-build is an intelligent or fixed-resistance proprietary membrane with sd in the 2–25m range. This is where INTELLO Plus, AirGuard Smart, Majpell, and Wallint live.

Flat warm-deck roofs (above the structural deck, below the insulation) - NHBC Standards 7.1.10 covers these. The membrane required here is an air and vapour control layer (AVCL) with vapour resistance of at least 5,000 MNs/g. That's a different order of magnitude. An intelligent VCL at sd 0.25–25m is nowhere near 5,000 MNs/g. Putting an intelligent VCL on a flat warm deck is a specification error that will fail inspection.

For flat warm decks, the AVCL is typically a reinforced bitumen felt (BS 747 Type 5U), a foil-laminated bitumen sheet, or a high-resistance polythene at 1,000-gauge or above with virgin material. Or a composite preformed deck with the AVCL bonded to it.

The rest of this page focuses on the timber-frame wall and pitched warm-roof case, where most homeowner-facing decisions sit. For flat warm-deck specifications, talk to your roofing contractor about the AVCL on their datasheet rather than substituting a wall-grade product.

Types: intelligent, fixed-resistance, and budget polythene

There are three categories of VCL on the UK market. Understanding which one your build needs prevents the specification mistakes that show up in forum threads month after month.

The brands you'll see in quotes and merchant lists

Pro Clima INTELLO Plus - the reference intelligent membrane. sd range 0.25–25m. BBA Certificate 14/5155, Passivhaus phA-certified, DIBt approved, 50-year life expectancy from University of Kassel testing. 1.5m × 50m rolls (75m²). Priced at £3 – £5 depending on supplier. Specialist eco-merchants like Ecomerchant come in at the bottom of the range; general insulation retailers charge nearly 50% more for the same product.

Tyvek AirGuard Smart - DuPont's intelligent membrane. sd 0.2m (humid) to 35m (dry), so a slightly wider variable range than INTELLO. £2, the cheapest mainstream intelligent VCL on the UK market. 1.5m × 50m rolls. This is the value pick for an intelligent membrane on a budget-conscious build.

SIGA Majpell 5 - Swiss-made fixed-resistance VCL at sd 5m. Not humidity-variable, but strongly built and reliably airtight. £3. Used in Passivhaus and high-airtightness builds where the strategy is to prevent vapour ingress entirely rather than allow seasonal back-drying.

Klober Wallint 50 - fixed-resistance proprietary VCL with vapour resistance of 250 MNs/g. £2 – £3. The middle-of-the-road option that meets the NHBC proprietary-membrane requirement without paying intelligent-membrane prices.

Novia 500-gauge polythene - the cheap one. £1 – £1. Meets the literal NHBC 6.2.12 minimum standard (500 gauge / 125 micron). Lacks UKAS-accredited proprietary certification, lacks reverse-drying behaviour, and is brittle in cold weather. Use it on garden sheds, not on insulated walls you intend to keep dry for thirty years.

DuPont AirGuard Control - a fixed-resistance (sd ≥2m) cousin of AirGuard Smart, BBA-certified 2024. Recommended for use with mineral wool, wood fibre, and cellulose. Trade-only pricing on most UK distributors.

The price spread between budget polythene and an intelligent membrane is roughly one to four pounds per m². For a typical loft conversion ceiling of 30m², that adds up to a difference of perhaps a hundred pounds across the entire room. Set against a forty-thousand-pound-plus build cost it is negligible. Set against the cost of stripping out a failed roof build-up after five years of condensation damage, it is nothing.

When you don't need a separate VCL

Worth knowing because this saves money and time on the right kind of build.

Foil-faced PIR insulation acts as its own VCL. The aluminium facing on Celotex GA4000, Kingspan Therma, EcoTherm Eco-Versal and similar boards is itself an effective vapour barrier - but only if the foil is undamaged and every single board joint is taped with proper aluminium foil tape. NHBC accepts taped foil-faced PIR as a substitute for a separate VCL sheet on this basis.

The catch: in practice, foil gets torn during installation, joints don't always get taped properly, and once the plasterboard goes on you can't inspect any of it. This is exactly the situation that produces the most contradictory advice on UK building forums - Kingspan saying foil is sufficient, architects insisting on a separate sheet, and two BCOs disagreeing on the same job. The honest position: taped foil-faced PIR works as a VCL when installed perfectly. Most installations are not perfect. For a single-storey extension where you can closely supervise the insulation install, you can rely on the foil. For a loft conversion where insulation is being squeezed into rafters by someone you'll never meet again, fit a separate proprietary VCL as insurance.

Mineral wool, sheep's wool, hemp, cellulose, and wood fibre always need a separate VCL. None of these have any inherent vapour resistance. They are vapour-permeable by design. Without a VCL on the warm side, room moisture moves straight through them, hits the cold sheathing or breather membrane, and condenses. Always specify a proprietary VCL with these - and for breathable insulation in older buildings or retrofit, specify an intelligent membrane so the structure can dry in both directions.

How to install one properly

This is the section where most VCL failures originate. The membrane itself is the easy bit. The detailing around it is where it goes wrong.

The basic sequence

1. Insulation goes in first - between the studs or rafters, friction-fitted with no gaps and no compression.
2. The VCL is rolled out across the warm face of the insulation, always on the room-facing side. Horizontal runs across studs, with a minimum 100mm overlap at horizontal seams and 75mm at the perimeter.
3. Every lap is sealed with the manufacturer's matched system tape - TESCON Vana for INTELLO, Sicrall for SIGA, AirGuard tape for Tyvek. Not foil tape. Not duct tape. Not masking tape.
4. Every penetration (cable, pipe, light fitting) is sealed with a proprietary grommet, collar, or a specifically detailed tape patch.
5. The membrane is returned to the perimeter - wall-to-floor, wall-to-ceiling, wall-to-window - and sealed continuously to the abutting structure.
6. Service void counter-battens are fixed over the VCL (more on this below). Cables run inside the void.
7. Plasterboard fixes to the counter-battens, never directly to the VCL.

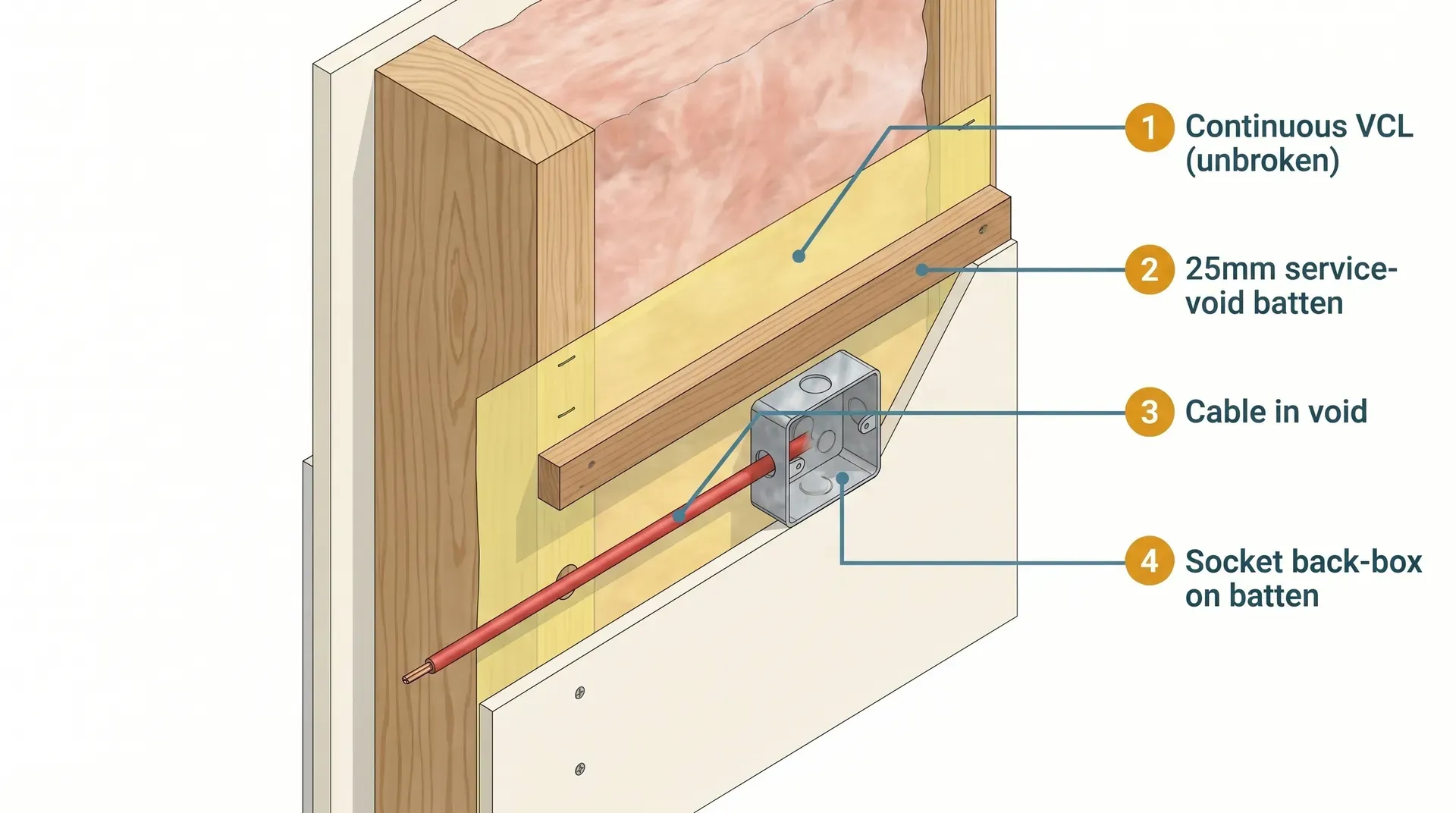

The service void: the single most important detail

A 25–50mm batten cavity below the VCL is what separates a build that lasts from one that fails on the day the electrician arrives. Without it, every cable, socket, downlight and light pendant is a hole punched through your vapour control layer. Each hole is supposed to be sealed with a proprietary collar. In practice, they get screwed straight through with no seal.

With a service void, all of that wiring runs in the cavity in front of the VCL. The membrane stays continuous and inspectable until the moment plasterboard goes on. The void itself is created by 25–50mm timber battens fixed horizontally over the VCL, sandwiching the membrane against the structural studs. Cables thread through holes drilled in the battens. Backboxes for sockets and switches mount on the battens, not through the VCL.

The service void isn't a luxury detail from Passivhaus builds. It's standard practice in any timber-frame build that takes airtightness seriously, and it's what separates the proprietary-VCL approach from the "staple polythene and hope" approach.

Click to enlarge

Tape compatibility - not negotiable

The matched system tape is part of the BBA certification of the membrane. Use the wrong tape and you've voided the certification. Use a generic foil tape or building-merchant own-brand tape on a Pro Clima INTELLO membrane and it is no longer a UKAS-certified VCL - it's an ordinary plastic sheet with sticky strips on it.

The matched tapes are expensive: £28 – £40 per 30m roll for TESCON Vana, the standard Pro Clima system tape. For a 75m² INTELLO Plus roll you'll need around three tape rolls - adds the better part of a hundred pounds to the total. Budget for this. It is not the place to economise.

Common installation mistakes

Stapling the membrane on the cold side. Catastrophic. The VCL must be on the warm side of the insulation, otherwise condensation forms on the room-facing surface of the membrane immediately. Always check before plasterboard goes on.

Using cheap masking tape or duct tape on laps. The adhesive degrades within a year. Joints open. Vapour gets through. Use the matched system tape only.

Tearing the membrane during electrical first fix. Without a service void, every cable run is a chance to puncture the VCL. Repair every tear with a tape patch before plasterboard goes on. If you can't see it, you can't repair it - which is why the service void exists.

Gaps at the perimeter. The VCL must return to the wall plate, ceiling joist, or floor abutment and seal continuously. Open perimeter joints make the rest of the membrane irrelevant - vapour just goes around it.

Mixing tape brands. TESCON Vana on a Tyvek membrane, or AirGuard tape on a SIGA membrane, may not maintain warranty. Stay within one manufacturer's system.

How much do you need

Calculate VCL area from the wall and roof faces being insulated, then add allowance for laps and waste.

For a typical loft conversion ceiling at 30m², or a single-storey extension stud wall at 25m²:

• Net area = floor or wall area in m².
• Lap allowance = add 10–15% for the 100mm horizontal overlaps at each joist or stud spacing.
• Cut-and-fit waste = add another 5%.
• Total order quantity = net area × 1.20 (round up to nearest roll size).

A standard 75m² roll (1.5m × 50m) covers around 60m² of net area after laps. A 30m² ceiling needs around 36m² of membrane - a single 75m² roll is comfortable with offcuts left over. A 25m² stud wall plus a 30m² ceiling for a small extension still fits within one 75m² roll plus tape.

For tape, allow approximately one 30m roll per 25m² of membrane area - three rolls per 75m² roll of membrane.

Cost and where to buy

The current UK price spread on proprietary VCL membranes:

For tape allow £28 – £40 per 30m roll of system tape, with three rolls typically needed per 75m² membrane roll.

The cheapest place to buy intelligent VCL membrane in the UK is one of the specialist sustainable-building merchants - Ecomerchant, Ecological Building Systems, Back to Earth, Green Building Store. These distribute Pro Clima, SIGA, and Tyvek directly and price competitively. General insulation retailers (Insulation Superstore, Roof Giant) carry the same products but mark them up substantially - the same Pro Clima INTELLO Plus 75m² roll can swing by more than a hundred pounds depending on supplier (see £3 – £5 for the per-m² spread). Always quote-shop across at least two specialist merchants before ordering.

Local builders' merchants (Travis Perkins, Jewson) tend to stock cheaper polythene and Klober but rarely keep intelligent membranes in stock. For a build using INTELLO or AirGuard Smart, expect to order online with a few days' lead time.

Building regulations and standards

The regulatory context matters here because builders, building control officers, and warranty providers reference these documents directly.

Approved Document C (England) requires that walls and roofs do not create surface or interstitial condensation under normal use. AD C points to BS 5250 as the route to compliance.

Approved Document L sets the air permeability target for new dwellings: maximum 8 m³/(h·m²) at 50 Pa, with the notional dwelling target at 5 m³/(h·m²). The Future Homes Standard is expected to tighten this further. The VCL, sealed properly, is the primary route to hitting these airtightness numbers in timber-frame construction.

BS 5250:2021 - the UK code of practice for moisture management in buildings. Updated 2021. Requires VCL on the warm side of insulation, fully sealed at all laps, penetrations, and abutments. Now advises against cold flat-roof construction (and Scotland has banned it outright in new build).

BS EN ISO 12572:2016 - the test method for sd value. Any certified proprietary VCL will reference this standard on its datasheet.

NHBC Standards 6.2.12 (timber-framed walls) - three acceptable VCL options: 500-gauge polythene, vapour-control plasterboard, or a proprietary VCL with UKAS-accredited third-party certification. Fixings at 250mm centres, all laps and penetrations sealed.

NHBC Standards 7.1.10 (flat warm-deck roofs) - AVCL must have vapour resistance of at least 5,000 MNs/g, fully sealed. Critical specification - see the trap section above.

For Scotland, Building Standards apply rather than Approved Documents, with stricter thermal performance throughout and an explicit ban on cold flat-roof construction. England guidance otherwise applies.

Where you'll need this

Vapour control membranes appear at multiple points in any timber-frame extension or loft conversion:

• Insulation - installed on the warm side of mineral wool, sheep's wool, or cellulose insulation between studs and rafters
• First fix electrics - service void below the VCL is fitted before cables run, and any membrane penetrations are sealed before plasterboard
• Roof structure - under-rafter VCL completing the warm-roof build-up where the insulation sits between the rafters

These details apply across any extension, loft conversion, or renovation involving timber-frame construction with vapour-permeable insulation. The PIR-only build-up on a single-storey rear extension may not need a separate VCL if foil joints are taped continuously, but anything with mineral wool, sheep's wool, or cellulose insulation does.

Common mistakes

Using polythene where an intelligent membrane was specified by the architect or condensation analysis. This is the most common substitution: builder buys the cheap option, end of story. Push back if the specification calls for an intelligent VCL - the price difference is small and the consequence of using polythene is summer condensation that the design specifically aimed to avoid.

Specifying an intelligent VCL on a flat warm deck. The reverse mistake. Intelligent membranes at sd 0.25–25m fail the NHBC 7.1.10 requirement of at least 5,000 MNs/g for flat warm-deck construction. For a flat warm-deck extension roof, the AVCL must come from the roofing manufacturer's system, not the wall-grade product list.

Skipping the service void. Cables, sockets, and downlights punched directly through the VCL turn the membrane into colander. The cost of a 25mm batten cavity is trivial. Skipping it is a false economy that voids most of the work.

Using non-system tape. The matched tape is part of the certification. Generic foil tape on an INTELLO membrane voids both the BBA certification and the manufacturer warranty.

No condensation risk analysis on unusual build-ups. For anything other than a textbook timber-frame wall or pitched warm roof - vaulted ceilings with limited rafter depth, hybrid foam-and-mineral-wool builds, retrofit insulation on old solid walls - get a condensation risk analysis run with WUFI or DewPoint software before specifying the VCL. Industry forums show repeated cases where builders, architects, manufacturers, and BCOs gave four different answers on the same job; software analysis is the only way to resolve it.

Buying based on brand recognition rather than sd value and certification. "Pro Clima" is a brand, not a specification. The right question is: what sd range does this membrane cover, what's its certification, and what's the matched tape system? Get those three numbers in writing before placing the order.
