Pipe Lagging: How to Pick the Right Foam, Where It's Legally Required, and Why a £20 Roll Stops a £33,000 Claim

A burst pipe in a UK loft writes off an average insurance claim of £33,000. Most of those bursts happen at fittings and bends where the foam lagging stopped, gaped, or was never fitted in the first place. That kind of money is what you're insuring against with a coil of grey foam that costs less than a pint per metre. Get the lagging right at first fix and you've solved the problem for the life of the building. Get it wrong (skimp on thickness, leave gaps at fittings, lag underneath the cold water cistern) and you've built a frost trap that may also void your home insurance.

What it is and what it's for

Pipe lagging is foam tube insulation that slips over copper, plastic push-fit, or MDPE service pipes. The job is to slow heat transfer through the pipe wall: keeping hot water hot for longer on its way to the tap, keeping cold water cold below the legal limit, and (in unheated spaces) buying the cold water enough thermal inertia to survive a freeze.

There are three regulatory drivers behind UK pipe lagging:

• Water Supply (Water Fittings) Regulations 1999, Schedule 2 Paragraph 9 sets the cold water rule. Cold water at any tap must not be warmed above 25°C, "so far as is reasonably practicable." Cold pipework run alongside hot pipes, hot water cylinders, or heated rooms must be insulated to prevent heat gain.
• Approved Document L 2021 (and the Domestic Building Services Compliance Guide it references) requires all space heating pipes and all domestic hot water distribution pipes to be insulated. The 2021 edition added pipes in intermediate floor voids to the mandatory list. Minimum 9mm wall in heated spaces, 13mm in unheated, with the product needing a thermal conductivity (lambda) of 0.025 W/mK or better.
• HSE Legionella guidance (L8 ACoP) recommends keeping cold water below 20°C to prevent Legionella bacteria multiplying. Below 20°C is a best-practice operational target; below 25°C is the statutory limit. Pipe lagging is the simplest mechanism for hitting both.

Plus the unwritten driver: insurers expect "reasonable precautions" and pipe lagging is one of them. Forget to lag a loft run, and a frozen-pipe claim can be reduced or refused.

The foam itself does three jobs at once: thermal insulation (slowing freeze and heat loss), condensation control (stopping cold pipes dripping onto ceilings below), and acoustic damping (PE foam reduces water-noise transmission by up to 23 dB(A), which matters for pipes running above kitchen or bedroom ceilings).

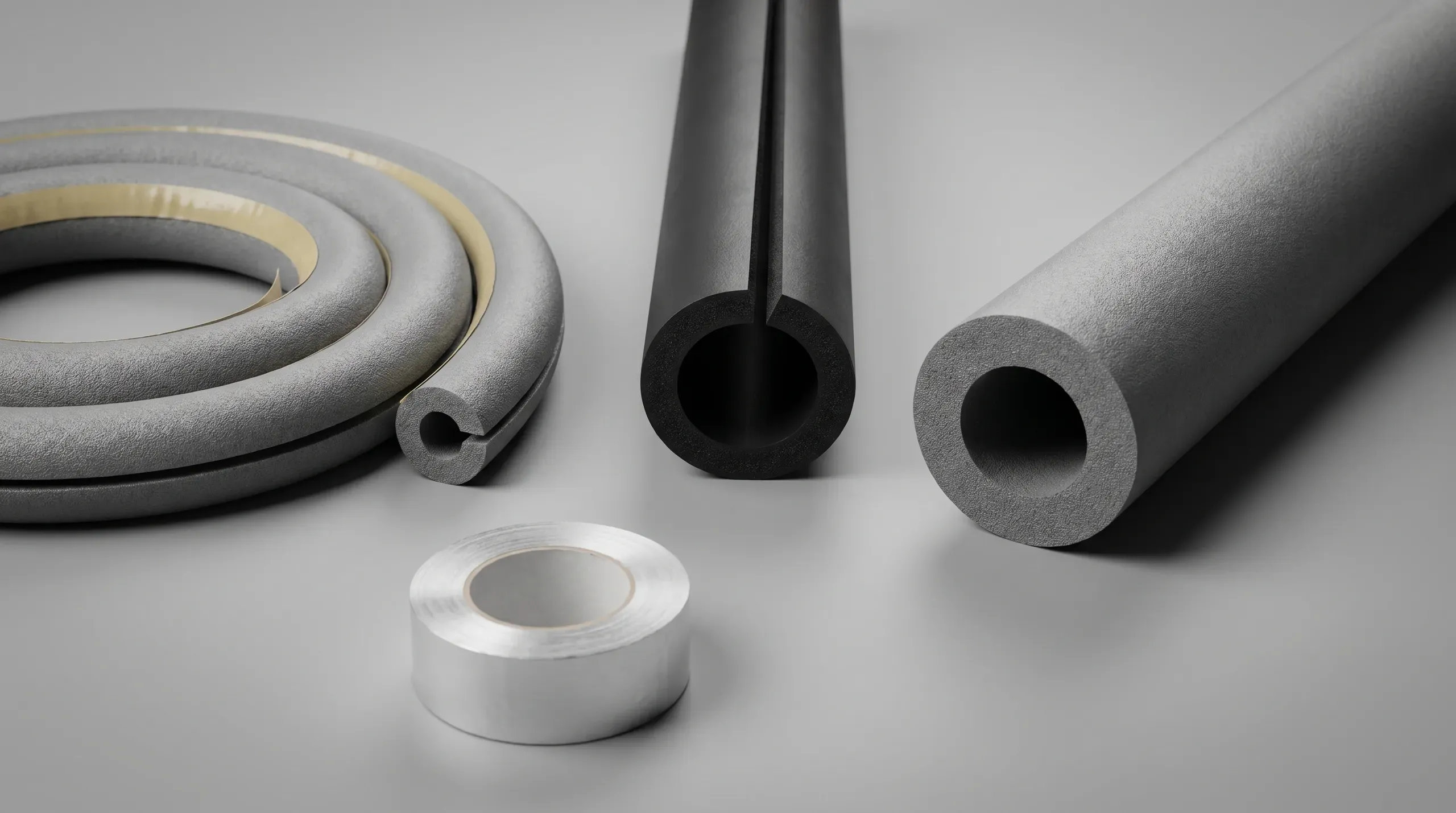

The five materials you'll see on UK shelves

PE foam is what 95% of UK domestic plumbing gets. It's grey, lightweight, comes pre-slit with a self-adhesive strip down the seam, and is sold in 1m, 2m, and 15m or 25m coils. Lambda (the rate at which a material conducts heat, lower is better) sits around 0.038 W/mK. It does the job for the price.

Nitrile rubber, sold under the Armaflex (Armacell), K-Flex (L'Isolante), and Rubaflex brand names, is black, smooth-textured, and roughly four times the price. It's a closed-cell elastomer, meaning the cell structure is sealed and acts as a vapour barrier. That's why it's the right choice for cold pipes prone to condensation, plant rooms, and any run in a damp loft or external location. The Class O fire rating (BS 476-7) is required in commercial plant rooms; standard PE foam is Class C.

EPDM rubber (Kaiflex) is similar to nitrile but uses a different polymer. The advantages are superior UV and ozone resistance, halogen-free composition, and a wider temperature range. For solar thermal pipes that see sustained high temperatures and direct sun, EPDM is the technically correct material.

Mineral wool with foil cladding (Rockwool RS800 and similar) is what you use on heating pipes that exceed 95°C: solar primary loops, biomass boiler flow pipes, commercial heating mains. Standard PE foam softens above 95°C and Armaflex tops out around 110°C; mineral wool keeps performing.

Bubble wrap and lagging tape get one mention only because forum threads keep recommending them. They're emergency improvisations. They do not satisfy WFR 1999 for permanent installation, and using them in place of proper foam lagging is exactly the kind of "unreasonable precaution" that lets an insurer reduce a frozen-pipe claim.

A note on brand names you may see cited elsewhere: there is no "Polypipe Pro" pipe lagging product. Polypipe makes drainage and pipework but not retail consumer foam lagging. Salamander makes shower pumps. The real UK brand list is Climaflex (Armacell, PE foam), Tubolit (Armacell, PE foam), Armaflex / Armaflex EVO (Armacell, nitrile rubber), K-Flex (L'Isolante), Kaiflex (Kaimann, EPDM), and Rubaflex (Toolstation own-label).

Sizing: bore and wall thickness

Pipe lagging is specified by two numbers: bore (the internal diameter of the foam tube, which must match the outside diameter of your pipe) and wall thickness (how much foam surrounds the pipe).

Bore is non-negotiable. The internal bore of the lagging must precisely match the external diameter of the pipe. Buy 22mm lagging for 22mm copper. Buy 15mm for 15mm. If the lagging is too large, an air gap forms between foam and pipe, convection currents circulate inside that gap, and the insulation effectively becomes a chimney that loses heat faster than no lagging at all. UK domestic copper comes in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm; lagging is sold to match all six. For plastic push-fit pipe (Hep2O, Speedfit, JG) the OD is the same as copper, so the same lagging fits.

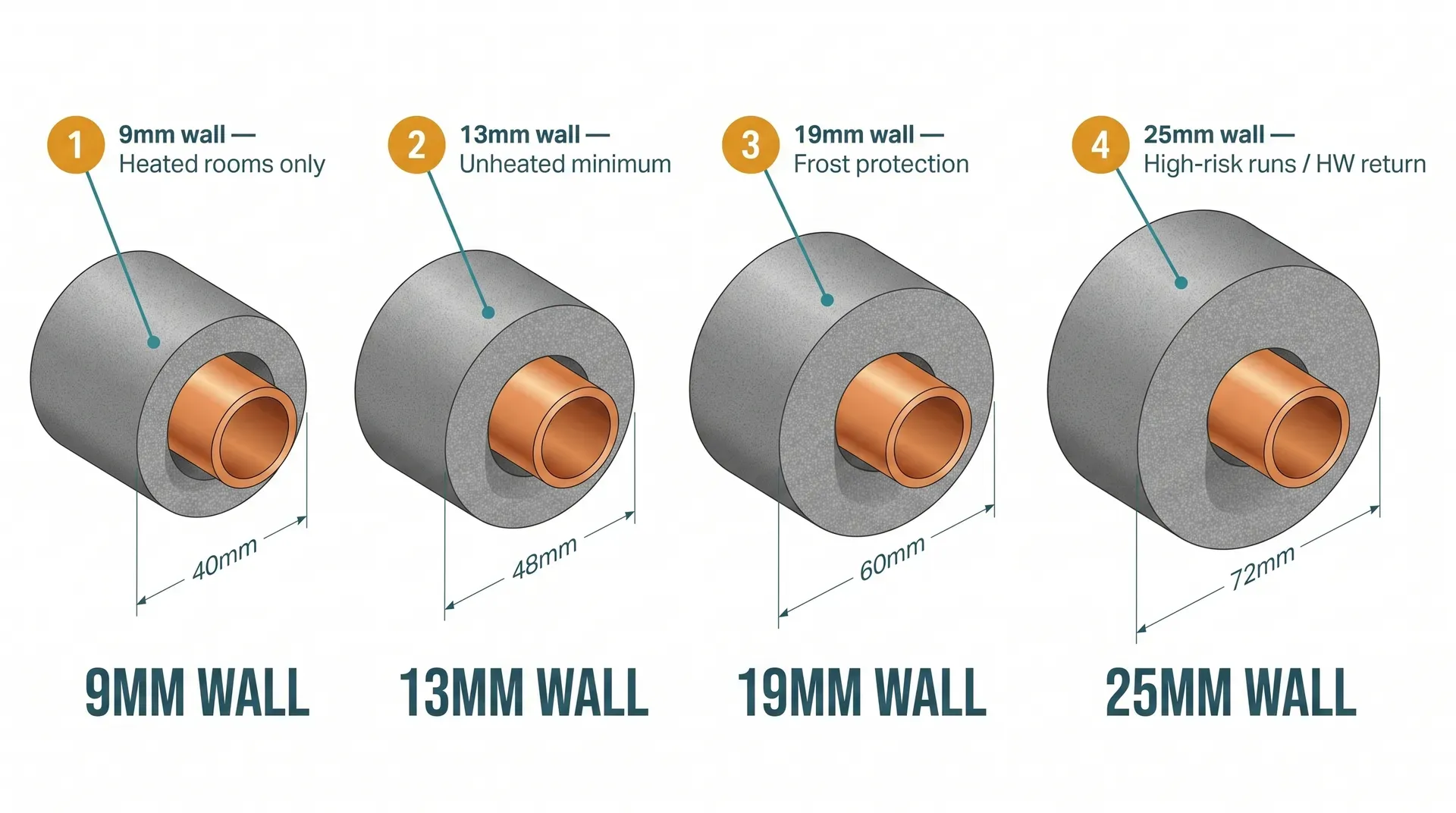

Wall thickness is where most homeowners get it wrong. There are four standard wall thicknesses on UK shelves:

The 19mm wall thickness is what older industry literature and product marketing still call "Water Bylaw 49 compliant." Bylaw 49 was the pre-1999 frost-protection rule, replaced by WFR 1999, but the 19mm wall product is what the trade still uses as shorthand for "lagging that will actually keep an unheated pipe from freezing."

The cheap 9mm and 13mm products you see at high-street DIY stores are not enough on their own in a cold loft. A 13mm-walled cold pipe in a 270mm-insulated loft will sit at outside-air temperature once the ceiling insulation cuts the loft off from the warm rooms below. In sub-zero weather, 13mm buys you a few hours of thermal inertia, not days. Use 19mm wall in any unheated space. Use 25mm on long runs and on hot water return circuits where heat retention matters financially.

Click to enlarge

Where you must lag and where you mustn't

Lag every hot water pipe everywhere. Part L 2021 requires it. Hot pipes lose heat continuously when carrying water; an unlagged hot run wastes energy on every hot tap use, and on a recirculating system (HW return) the loss is constant.

Lag every cold pipe in an unheated space: lofts, garages, outbuildings, exposed external entries. WFR 1999 Schedule 2 Paragraph 9 makes this a legal requirement to keep cold water below 25°C, and the freeze-protection benefit is the headline reason most people fit it.

Lag cold pipes inside heated spaces if they run within 150mm of hot pipes, hot water cylinders, or radiators. Heat gain from adjacent hot surfaces will push cold pipe temperature above 20°C (the HSE Legionella target) and above 25°C (the WFR statutory limit) without insulation in between.

Where lagging won't help and shouldn't be relied on:

• Pipes below 750mm depth in stop-tap chambers and supply runs. WFR 1999 requires supply pipes to enter buildings at 750mm minimum depth precisely because lagging "may delay but not prevent freezing." For shallow underground runs use pre-insulated MDPE or smooth-bore ducting, not foam.
• Underneath cold water cisterns in lofts. This is the most-asked question on every UK plumbing forum. Cisterns in lofts depend on heat from the room below rising through the ceiling to keep them above freezing. Insulate underneath the cistern and you cut off that heat path; the cistern then freezes faster than an uninsulated one. Lag the cistern lid and sides only. Leave the floor area beneath it free of loft insulation.
• High-temperature pipes above 95°C (solar primary, biomass flow). Standard PE foam softens; even Armaflex tops out around 110°C. Use mineral wool with foil cladding.

How to install it

Pipe lagging is a first-fix operation. The sequence matters:

1. Pressure-test the pipework first. Lagging conceals leaks. If you lag before pressure testing and a joint weeps, you'll be cutting all the lagging back off to find it. Cap the ends, fill the system, hold pressure for the spec'd duration (typically 1.5x working pressure for an hour on a domestic cold supply), check every joint, then start lagging.
2. Cut the lagging to length with a sharp utility knife or a mitre box. Pre-slit lagging splits down the side; un-slit lagging slides over the pipe before fittings are made.

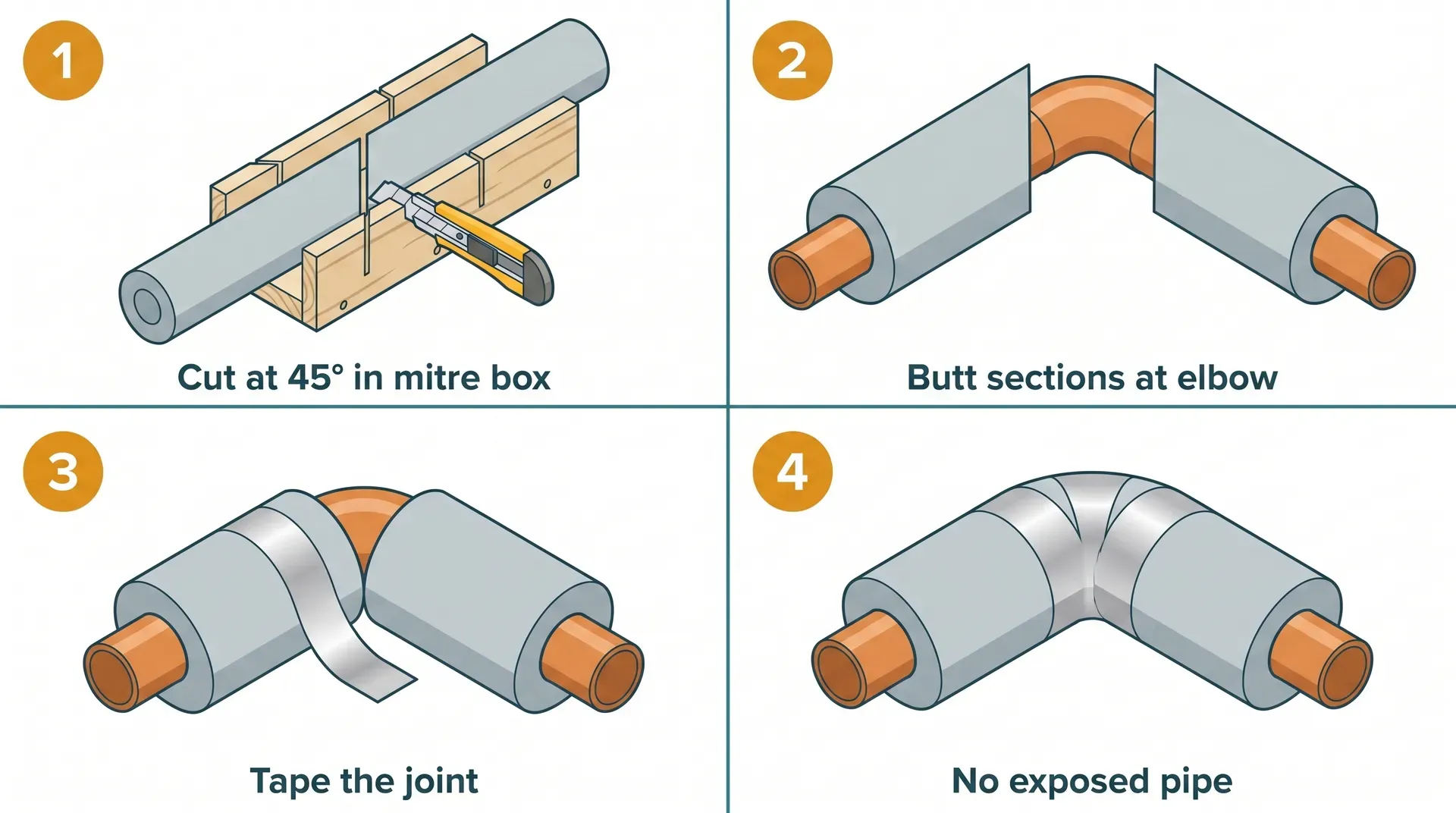

3. Mitre-cut bends at 45° so two cuts butt cleanly to wrap a 90° elbow. Square-cut joints leave a triangular gap of bare pipe at the apex of the bend, and that's where the freeze starts. For 45° bends, cut at 22.5°. For tees, mark the centre, cut a small wedge out of the through pipe, and cut a matching tongue on the branch pipe.
4. Seal every seam and every joint with aluminium foil tape. Pre-slit lagging has a self-adhesive strip down the seam, but the adhesive is not reliable long-term: it can de-bond at corners, in heat, or after physical disturbance. Always run foil tape over the slit on visible runs and over every butt joint between sections. One 50mm × 45m roll of aluminium foil tape does a typical first fix.
5. Lag through wall plates and joists. Where a pipe passes through a structural timber, the timber acts as a thermal bridge and a freeze point. Sleeve the pipe through the timber with a continuous run of lagging, or use a proprietary insulated pipe sleeve.
6. Inspect after other trades have been on site. Plasterers, electricians, and carpenters routinely crush, strip, or push aside pipe lagging while doing their own work. Walk the route after each trade is finished and reinstate any damaged sections before walls or floors close up. Once it's boarded over, fixing a missing length means cutting holes in the plasterboard.

Click to enlarge

How much do you need

Pipe lagging is sold by the metre. Calculate from your pipework schedule:

1. Add up the total length of every pipe in the building, separated by diameter (15mm, 22mm, 28mm). Include vertical risers, horizontal runs, and connections to fittings.
2. Add 15% for waste. Mitre cuts at bends produce off-cuts that can't be re-used, and you'll cut short lengths to fit awkward sections.
3. Round up to the nearest pack size. PE foam comes in 1m, 2m, 15m, and 25m coils. Buying a 25m bulk coil works out a lot cheaper per metre than buying single 1m lengths from a high-street DIY store.
4. Order foil tape separately. Allow one 45m roll of 50mm aluminium foil tape per 30m of lagging.
5. Count fittings. Every elbow needs two mitre cuts. Every tee needs three. Add up the fittings and add another 0.3m of waste per fitting.

Worked example for a typical kitchen extension first fix:

• 8m of 15mm cold pipe in a heated space (kitchen, utility) → 9.2m of 13mm wall PE foam
• 12m of 22mm cold pipe (some in unheated loft) → 14m of 13mm wall PE foam for the heated portion plus 6m of 19mm wall for the loft section
• 6m of 22mm hot pipe → 7m of 13mm wall PE foam
• 3m of 22mm HW return → 3.5m of 25mm wall PE foam (worth the upgrade for energy retention)
• One 45m roll of 50mm foil tape

That works out at roughly £40 – £60 of materials for a one-extension first fix. Compared to the cost of any of it failing, the budget allocation is trivial.

Cost and where to buy

Standard PE foam in 13mm wall thickness costs roughly the price of a chocolate bar per metre. The frost-protection 19mm wall grade is two to three times more, and Armaflex Class O nitrile rubber is roughly four times the standard rate. Even the most expensive option works out to single-figure pounds per metre.

The cheapest PE foam is at Screwfix and Toolstation in bulk packs (45m or 25m coils), then Climaflex direct, then Wickes. Single-metre lengths at B&Q are noticeably more expensive than the same product in a coil from Screwfix. For Armaflex and other elastomeric products, specialist online suppliers (Buy Insulation Online, pipelagging.com, Insulation Superstore) typically beat both Toolstation and Amazon on price.

For trace heating (the cable that keeps a pipe above freezing electrically) a 10m self-regulating kit runs £75 – £100. Use it together with lagging on the highest-risk runs (long exposed external entries, lofts in exceptionally cold areas). Trace heating without lagging wastes most of its output heating ambient air; lagging without trace heating buys you thermal inertia but doesn't add heat. Belt-and-braces on a 2-3m unheated run.

Common mistakes

Buying 9mm or 13mm wall for an unheated loft and assuming it'll be enough. The most common and expensive mistake. Cheap thin lagging in a 270mm-insulated loft hits outside air temperature within a few hours of the heating switching off in cold weather. Use 19mm wall in any unheated space. The price difference is small.

Insulating underneath cold water cisterns. Worth saying again: the cistern needs floor heat. Lag the lid and sides; leave the floor area below it bare.

Skipping the foil tape on the seam. Self-adhesive strips on pre-slit foam are not a long-term seal. Every visible run benefits from foil tape over the slit. Every butt joint between sections must have tape.

Square-cutting bends. Two square-cut sections butted at a 90° elbow leave a triangular gap of bare pipe at the apex. That's where the freeze starts. Always mitre at 45° for elbows.

Bore mismatch. Buying 22mm lagging for 15mm pipe (or vice versa) creates an air gap inside the foam that conducts heat by convection, defeating the insulation. Match bore to pipe OD precisely.

Forgetting the gap at fittings. Tee junctions, valves, stop-cocks, isolation valves, and the connections at the cylinder all expose short lengths of bare pipe. Each is a freeze point. The only practical answer is short fitted sections of foam pre-cut to wrap each fitting, taped on. Tedious but cheap.

Lagging before pressure testing. Always pressure-test first, then lag.

Not reinstating after other trades. Plasterers crush lagging. Electricians cut sections out to run cables. Carpenters push it aside. The homeowner or plumber must walk the route after each trade and reinstate before close-up.

Where you'll need this

• First fix plumbing - lagging hot and cold pipework in walls, floors, and cold voids before the structure is closed up

Pipe lagging appears at first fix on any extension or renovation project that involves new plumbing. It also goes on at retrofit any time a loft is upgraded or a garage is converted, as part of bringing existing pipework up to current standards. The principles (WFR 1999, Part L thicknesses, mitre-cut bends, foil tape, no insulation under cisterns) are the same whether the pipework is for a new kitchen extension, a loft conversion, or a garden room with plumbed-in services.
