Perimeter Edge Strip for Screed Floors: The 8mm of Foam That Stops Your Floor Cracking

The screed truck arrives at 8am, the floor is poured by 11am, and three weeks later when the screed has cured you notice a hairline crack running from one corner of the doorway across the kitchen floor. By the time you fit your tiles, that crack will have grown. Lift a tile in two years and you'll see a UFH pipe that's split where the screed shifted. The fix is to break out the screed, the pipes, and start again. The thing that prevents this whole sequence is an 8mm strip of foam that costs about 50p per metre. It's called a perimeter edge strip and roughly half the homeowners managing their own builds have never heard of it.

What it is and what it's for

Perimeter edge strip is a thin band of closed-cell polyethylene foam, typically 5-10mm thick and 100-150mm tall, fixed vertically around the perimeter of a room before screed is poured over a floor build-up. Most products come in 25m or 50m rolls, often with a thin polythene or PVC skirt-flap (also called an apron) attached along one edge that lays flat against the floor and tapes to the DPM (damp proof membrane) separation layer.

It does three jobs at the same time, and no other product covers all three. This is the bit nobody explains.

Job 1: it absorbs screed expansion. Screed is poured wet and shrinks as it cures. Once it's down it also expands and contracts with temperature, which matters enormously if you have underfloor heating running through it. A liquid anhydrite screed (calcium sulfate-based, self-levelling) warming from 5 degrees in winter to 45 degrees with the heating on full can grow by around 6mm across an 8m room. Without somewhere soft to push into at the edges, that movement transmits straight into the wall or, more commonly, finds the weakest line in the slab and cracks the screed instead. The 8mm of compressible foam at the perimeter gives the screed somewhere to go.

Job 2: it breaks the thermal bridge at the wall-floor junction. Where your warm internal floor screed meets the cold external blockwork, heat will conduct sideways out of the building unless something stops it. Part L 2021 updated the rules to require continuity of insulation at this junction: a minimum 25mm thermal upstand is mandated and a photographic audit is required before the screed is poured to cover the evidence. Edge strip alone is too thin to be the upstand on its own, but combined with a strip of rigid PIR (polyisocyanurate insulation board) or with a deeper edge strip it satisfies the geometry the regulation wants.

Job 3: it acoustically isolates the screed from the structure. This matters most in flats and attached dwellings where Part E (the building regulation governing sound resistance between dwellings) sets impact-sound limits for floors. A floating screed only floats if its edges aren't bonded to the wall. Trim the strip flush with the floor surface and you've created a flanking sound path (a route by which sound travels around the isolation layer rather than being absorbed by it) straight into the wall. The Robust Details guidance, which is the formal alternative to pre-completion sound testing under Statutory Instruments 2004/1465 and 2004/1466, explicitly identifies premature trimming as the most common reason floating screeds fail Part E.

The product is governed by no single Building Regulation clause. There is no line that says "install a perimeter edge strip." Instead it sits inside the screed manufacturer's installation requirements, the screed's compliance with [Unknown guidance value: bs-en-13813-screed-standard] (the European standard for floor screed materials), and the practical engineering needed to make Part L and Part E work. Treat it as mandatory anyway. Every liquid screed contractor in the UK refuses to pour without one in place.

Click to enlarge

Types and what to look for

Most edge strips look the same on a product photo. The differences that matter when you're buying are thickness, height, the skirt-flap design, and whether it's self-adhesive.

The two product families you'll see online are essentially identical foam with different brands stamped on the side. JG Speedfit and JG Underfloor are the same product line, sold through Screwfix and Toolstation as the high-street option. WundaTrade, Screeds Direct, Resonate ResoTherm, Komfort, and Adept are the online specialists, generally cheaper per metre and stocking a wider range of skirt-flap and adhesive variants. There is no meaningful performance difference between them at the same thickness and height. Buy on price-per-metre and skirt-flap design.

A note on what is NOT a perimeter edge strip. Some online sources and brief product listings reference "Kingspan TP10 edge strip." There is no such product. Kingspan TP10 is the ThermaPitch pitched-roof PIR insulation board. If a builder or merchant uses the phrase, they're confused. The actual products to ask for are listed above.

How to work with it

The strip is light, harmless, and obvious to install. The mistakes happen at three specific points: the doorway, the height, and the skirt-flap.

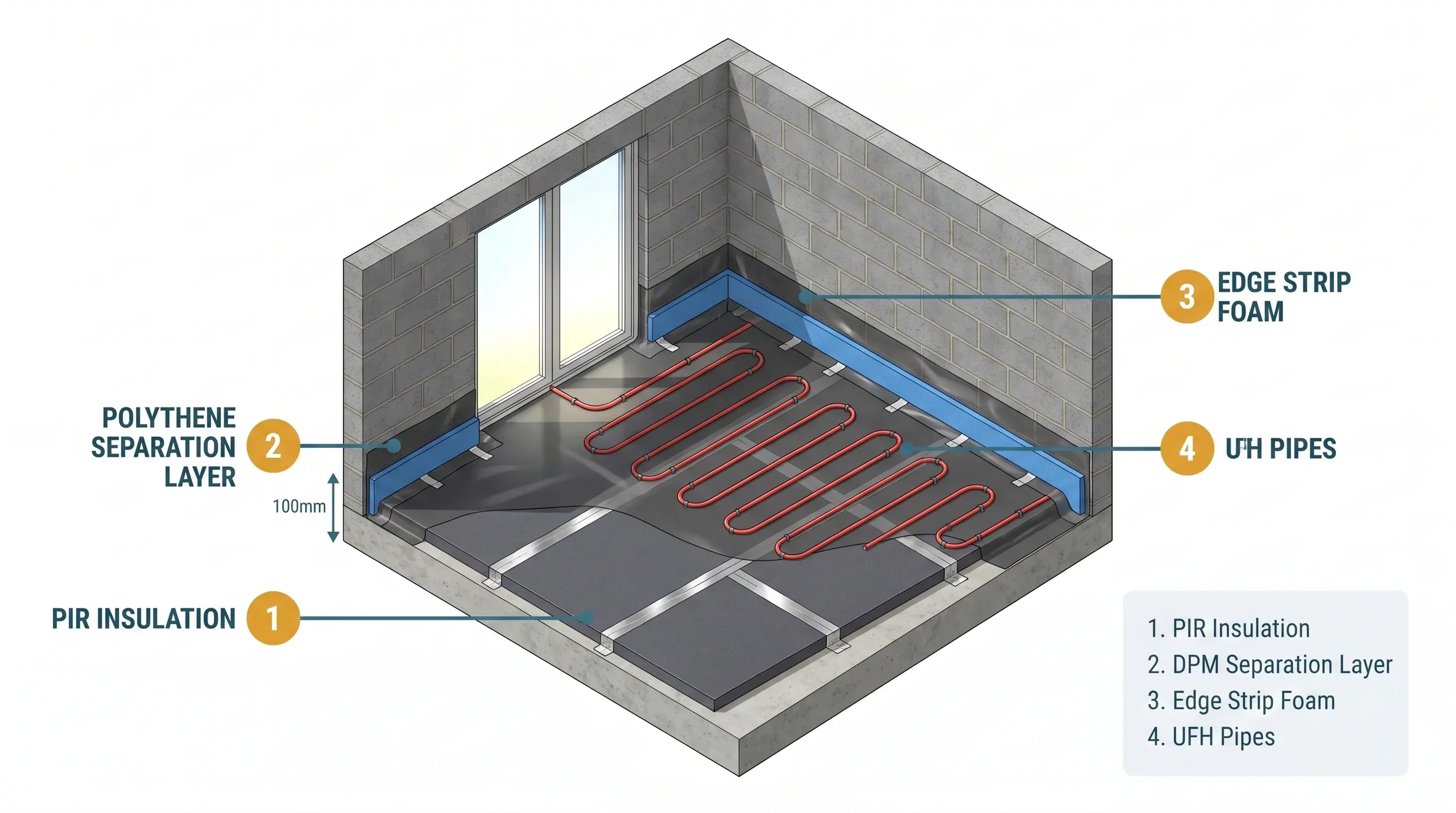

The installation sequence sits between PIR boards and the screed pour:

1. Lay PIR floor boards over the slab and DPM.
2. Lay the screed-side DPM or separation layer (typically [Unknown guidance value: dpm-thickness-minimum] polythene), lapped 150mm at joints and lapped up the walls 100mm.
3. Install the perimeter edge strip vertically around every wall, every column, every step, and every door frame. Adhesive face or tape against the wall. Skirt-flap lays flat onto the DPM and tapes to it with foil tape or jointing tape.
4. Continue around door openings. The strip wraps round the door jambs and across the threshold opening. Many installers also pin a temporary timber batten across the doorway as formwork to retain the screed during pouring.
5. Clip down UFH pipes onto the DPM/insulation, pressure-test, and pour screed.
6. Wait for the screed to cure (anhydrite needs 24-48 hours before light foot traffic, 28 days before flooring on a typical depth).
7. Trim the strip with a sharp Stanley knife to roughly [Unknown guidance value: edge-strip-trim-height] above the finished screed surface. Do NOT trim flush. The remaining strip is concealed by the skirting board and continues to do the acoustic isolation job for the life of the floor.

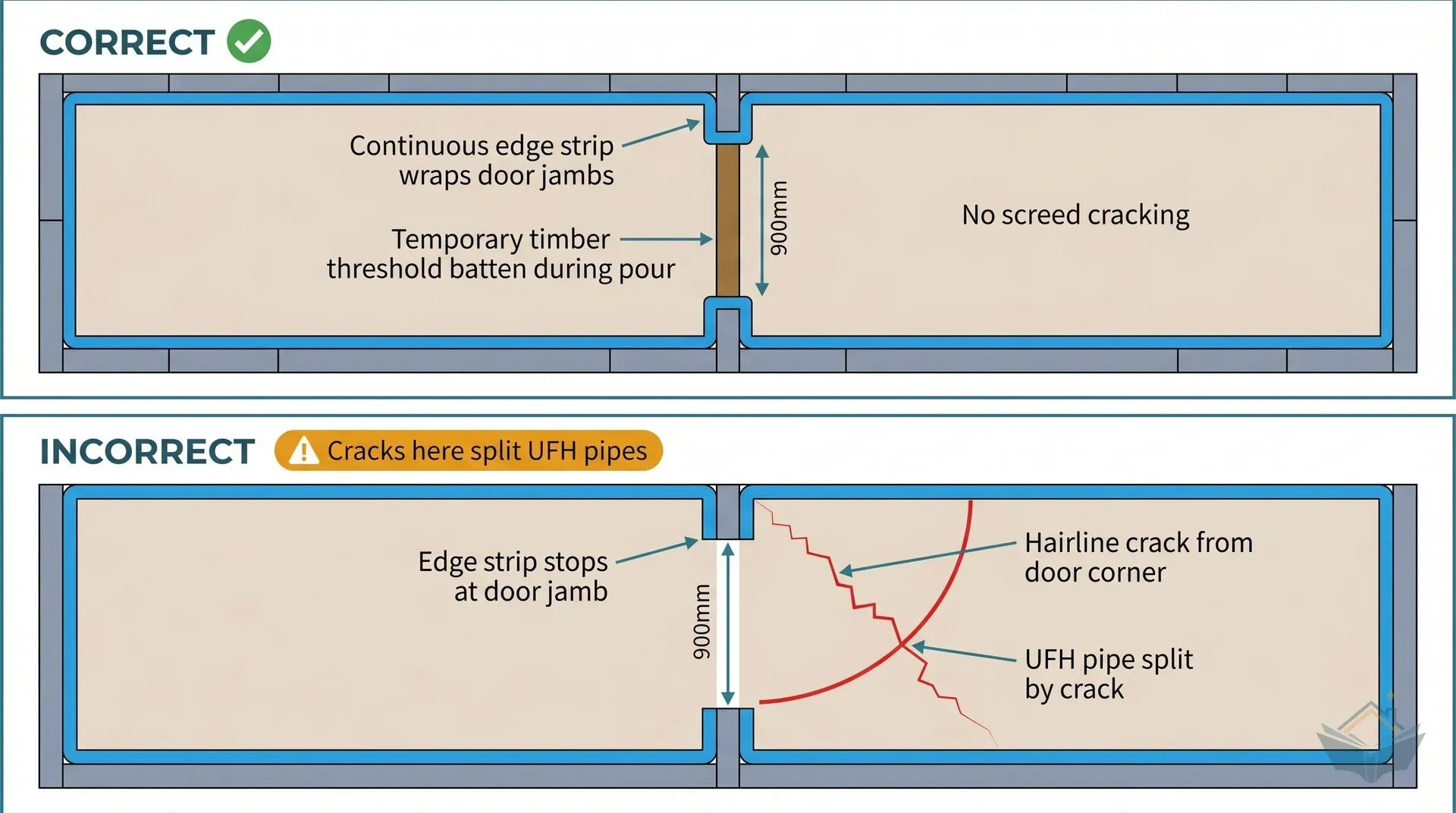

The doorway is where everything goes wrong

If you read forum threads about cracked screed floors, the same pattern appears in five out of every nine threads: the crack runs from a doorway. The reason is geometric. Two rooms' worth of screed meet at the door threshold. As they cure they each shrink very slightly towards their own centre. A stress line forms at the doorway and a hairline crack opens. With UFH running, that crack widens with every heating cycle. Eventually it splits the pipe.

The fix is to install the edge strip at every doorway, all the way round the frame and across the threshold opening. You're effectively creating an expansion joint at the door. Screed companies that pour liquid anhydrite will normally insist on this and may install a temporary timber batten across the threshold to act as formwork. If your builder tries to skip the threshold strip because "it's only a doorway," push back. This single detail prevents the most common screed failure mode in domestic UFH installations.

Height: too short is the expensive mistake

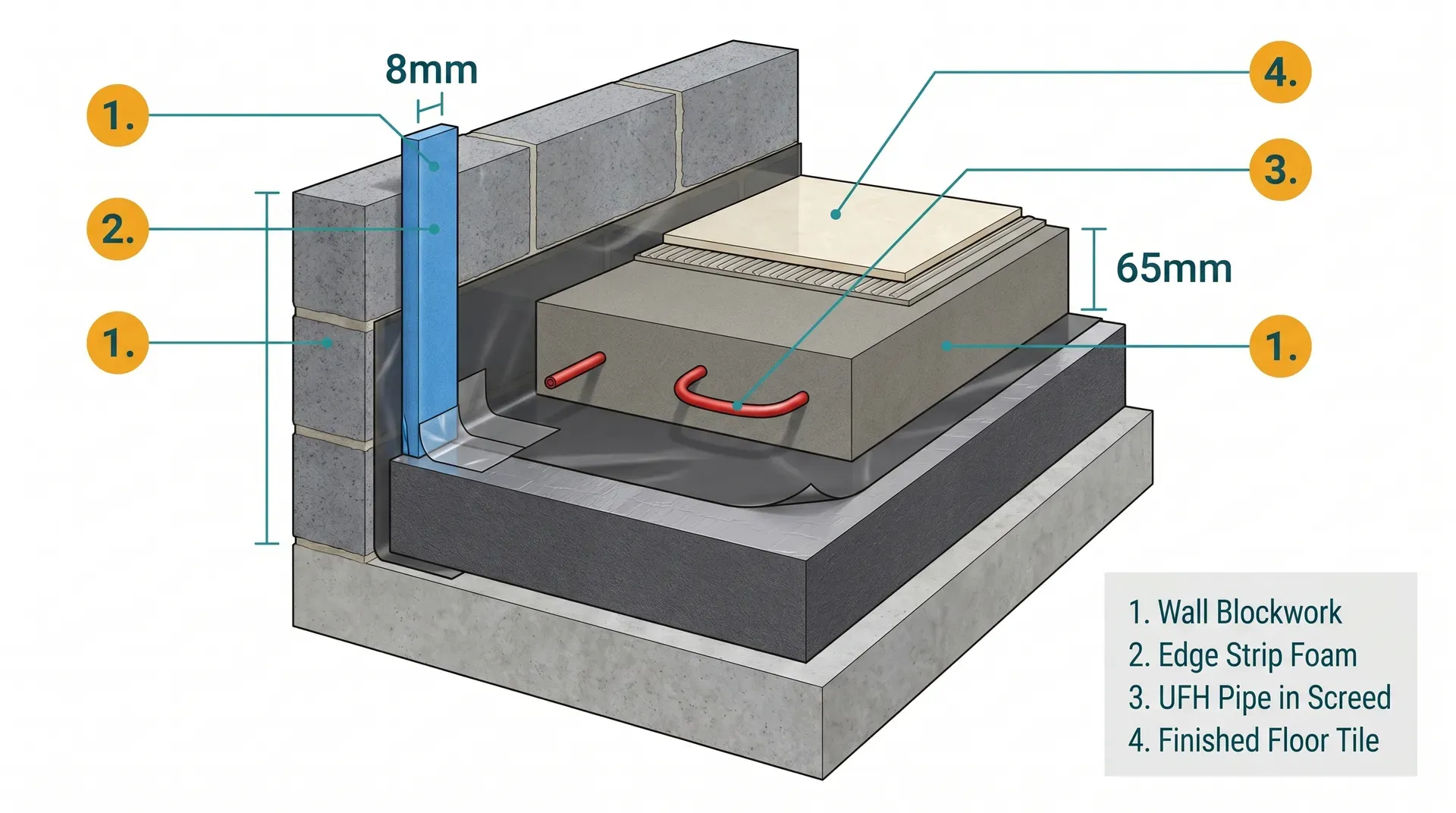

The strip needs to extend from the top of your PIR insulation up past the eventual finished floor level by at least 25mm. For a typical extension floor with 100mm PIR, 65mm screed, and 20mm tile and adhesive, you're looking at a strip that needs to be at least 110mm tall to reach 25mm above the finished surface. A 100mm strip just about works on shallower screeds. 150mm gives reliable margin for any standard build-up.

If the strip is shorter than the screed depth, screed flows over the top during the pour and bonds to the wall behind it. You only discover this when you trim the strip after curing and realise there's nothing to trim. By then the bond is permanent and the acoustic isolation is already lost.

The skirt-flap matters more than the foam

A plain foam strip without a skirt-flap is roughly 30% cheaper than the apron version. It's also a false economy. Liquid anhydrite screed flows like thick water and finds every gap. Without a flap sealing the join between the strip and the DPM, screed runs underneath the strip and bonds the screed slab to the wall behind it. The strip itself stays in place. The isolation it was supposed to provide is gone.

The flap is a thin polythene or PVC sheet attached along the bottom edge of the foam. It folds out at 90 degrees, lays flat onto the DPM, and tapes down with standard foil tape or jointing tape. Tape every 300mm. On a 50m roll that's not many tape squares. Don't skip them.

How much do you need

Calculate roll length from the room perimeter, plus generous overage for door openings and corners.

For a simple rectangular room: perimeter equals two times length plus width. For a 4m by 5m room that's 18m. Add 10% for cuts and overlap at corners, plus 600mm per door opening (300mm each side of jamb plus the threshold). For a room with two doors: 18m, plus 1.8m corner allowance, plus 1.2m doorways, totals approximately 21m.

A 25m roll covers most single rooms. A 50m roll covers a typical 30-40m² extension footprint with multiple openings, with leftover for awkward returns. If you're buying for a whole-floor liquid screed pour across an extension and adjoining hallway, two 50m rolls is safer than running short mid-job.

Worked example for a 5m by 6m extension with a 1m wide patio door and a 900mm internal door:

• Base perimeter: 2 x (5 + 6) = 22m
• Corner overlap allowance: +2.2m (10%)
• Door openings: +1.2m (patio) + 1.2m (internal) = 2.4m
• Total: 26.6m

Buy one 50m roll and use the remainder on the next room or a separate utility. Don't buy two 25m rolls for the saving. You'll lose it in joint waste.

Cost and where to buy

That's the typical price range for a 50m roll of 8mm closed-cell PE foam with a skirt-flap, sold by online insulation specialists. The same product in 25m rolls at Screwfix and Toolstation works out at roughly double the price-per-metre. The convenience of next-day collection is the trade-off.

Where to buy, in order of value:

Online insulation specialists (Screeds Direct, WundaTrade, Insulation Wholesale, Materials Market, ResoTherm via ScreedGiant). Best price per metre, widest choice of skirt-flap variants and self-adhesive options, 50m rolls available. Plan ahead, as delivery is typically next-day to 3 days. This is where to buy if you know your screed pour date a week or more in advance.

Screwfix and Toolstation (JG Speedfit and JG Underfloor branded). High-street collection, 25m rolls, good quality with PVC skirt and 1-2 year guarantees. Roughly 50-100% premium per metre over online specialists. Buy here when you're a few days from the pour and the online order won't arrive in time.

Builders merchants (Travis Perkins, Jewson). Stocked but not always on the shelf, so ring ahead. Generally trade-account pricing similar to online specialists; walk-in pricing can be high.

Alternatives

There are two questions homeowners genuinely face: do I need an edge strip if my floor doesn't have UFH, and can I use offcuts of PIR instead of buying a purpose-made foam strip?

No UFH, sand-and-cement screed. Edge strip is still strongly recommended but the consequences of omission are smaller. A traditional sand-and-cement screed shrinks as it cures and benefits from somewhere soft to shrink into at the edges, but the thermal cycling is much less aggressive than UFH because the screed never warms up much. Most experienced screeders still install an edge strip on sand-and-cement pours because the cost is trivial and it makes the cracking risk lower. Don't skip it to save fifteen quid on a five-figure floor build-up.

PIR offcuts as edge strip. This comes up on every BuildHub thread on the subject. The argument: I've already got a 25mm PIR upstand round the perimeter for the Part L thermal continuity, why do I need a separate foam strip? The technical answer: PIR has a compressive strength of around 120 kPa, foam edge strip is around 5-20 kPa. PIR is too stiff to absorb meaningful screed expansion. The slab still moves; the PIR doesn't compress; the screed cracks anyway. Some screed contractors will refuse to pour over PIR-only edges because they know what happens.

The right approach is layered: 25mm rigid PIR or EPS upstand for the thermal continuity (Part L), AND an 8mm flexible foam edge strip in front of the PIR for the expansion accommodation and acoustic isolation. The two products do different jobs and a properly-detailed floor uses both. The total extra cost for the foam strip on top of an already-budgeted PIR upstand is under thirty pounds for most extensions. There is no meaningful saving in trying to combine the two functions.

Where you'll need this

Perimeter edge strip is needed everywhere a floor screed is poured over insulation, which on most extension and renovation projects means the kitchen and any other room with underfloor heating:

• First-fix plumbing - the strip is installed after PIR boards and DPM but before the UFH manifold and pipes are clipped down. The plumber working on first fix needs the perimeter prep complete before they pressure-test pipes.
• First-fix electrics - any cables crossing the floor zone need to be routed and protected before the screed pour. Coordinate with edge strip installation so cable trays don't cross the strip line.

The strip is required regardless of whether you're using sand-and-cement or liquid anhydrite screed, on any floor that includes underfloor heating, and at every doorway and threshold across the floor pour. The work isn't restricted to kitchen extensions. The same prep applies to bathroom refurbishments with UFH, garage conversions where you're adding a heated floor, and loft conversions with screed-based UFH systems.

Common mistakes

Buying a 100mm strip for a 65mm screed depth. Add the 25mm "must remain after trimming" requirement, the 65mm screed depth, and the typical floor finish thickness, and you need a strip that's around 110-150mm tall. A 100mm strip ends up below finished floor level after the pour and you've lost both the expansion accommodation and the acoustic isolation. Buy 150mm strip for any modern build-up with UFH.

Trimming flush with the finished floor. The strip is supposed to remain visible above the finished floor by 20-25mm, then be concealed by the skirting board. Trimming flush feels neater but loses the acoustic isolation and creates a flanking sound path into the wall. If you're tiling, the tile-to-skirting gap is normal. Don't try to fill it.

Forgetting the doorway. Cracking at door thresholds is the single most common screed failure pattern. Edge strip wraps round door frames and across thresholds. If the strip stops at the door jamb, the screed bridges the gap and cracks predictably along that bridge.

Using gaffer tape only, no skirt-flap. A plain foam strip taped to the wall with no DPM-side seal allows liquid screed to run behind the strip and bond the screed to the wall. The skirt-flap with foil tape onto the DPM is the seal. Plain strip plus tape is not a substitute.

Pouring before the BCO sees it. Part L 2021 requires a photographic audit of the perimeter insulation before it's covered by the screed. Building control will want to see continuous insulation at the wall-floor junction. Take photos before the pour even if the BCO doesn't ask. The screed pour conceals the evidence permanently.
