Low-Expansion Foam: The Right Foam for PIR Insulation Gaps (and Why Standard Foam Will Ruin Your Floor)

You let your builder spray a cheap can of standard expanding foam between the freshly fitted PIR boards on your extension floor. Forty minutes later, half the boards have lifted off the slab and the perimeter joints are now 25mm gaps where the foam has muscled the boards apart. The screed pour is in three days. Either you re-fix the boards, accepting the displaced foam will be trimmed flush leaving voids the screed will pour into, or you rip the foam out, wasting the foam, the boards, and a day of labour. This is what wrong-foam selection costs. The fix is simple: use low-expansion foam. The product exists, it's slightly more expensive, and most builders know to ask for it. But "low-expansion" is also the most misleadingly labelled product category in the entire insulation aisle, and getting it right takes more than reading the front of the can.

What it is and what it's for

Low-expansion foam is a one-component polyurethane (PU) sealant that expands by less than 50% of its initial volume after curing. Standard "expanding foam" expands by 200-300%, which is roughly six times more aggressive. The foam is dispensed as a wet liquid from an aerosol can, reacts with humidity in the air to form a closed-cell rigid foam, and cures over 1-24 hours depending on temperature and humidity.

In modern construction, low-expansion foam has one dominant job: filling the small gaps that always appear between rigid insulation boards (PIR, EPS, XPS, phenolic) without pushing those boards out of position while it cures. Secondary uses include sealing around window and door frames, sealing pipe and cable penetrations through the insulation layer, and bonding plasterboard or insulation to masonry where a foam adhesive is specified.

It's not a structural sealant. It is not a substitute for an air barrier on its own (more on that below). It is an insulating gap-filler that, paired with aluminium foil tape over the cured surface, completes the thermal and vapour control layer.

The chemistry matters because it explains the rules. PU foam needs moisture to cure. Apply it on a dry, dusty surface in winter and it skins over but stays gooey underneath for hours. Apply it after lightly misting the surfaces with water and it cures cleanly in 30-60 minutes. The expansion is also driven by the same moisture reaction, which is why ambient humidity affects how much the foam grows in the gap. There's a reason every product datasheet recommends 18-25°C and a moist substrate.

The naming trap that catches almost everyone

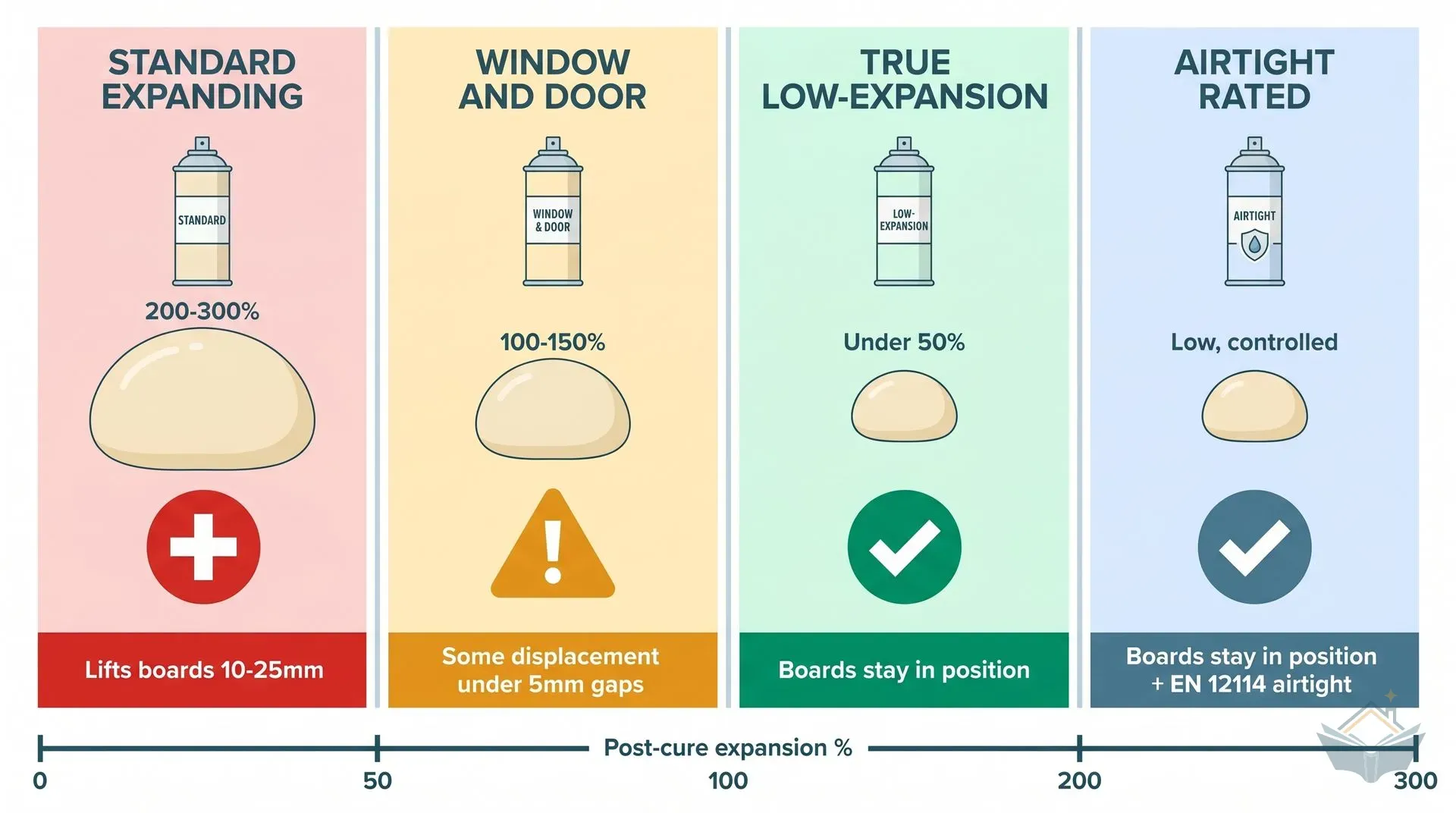

This is the single biggest source of customer complaints and returned cans. The phrase "low expansion" on a foam product label does not mean what most people think it means.

In construction PU foam, "low expansion" means the foam swells less than 50% of its initial volume after curing. This is a meaningful improvement over standard foam (200-300% expansion), but it's not zero expansion. The foam still grows in the gap.

Worse, plenty of foams marketed under "low expansion" branding are not actually low-expansion by the strict definition. Soudal's Genius Gun Window & Door foam, despite the name, has a stated post-expansion of around 117%. That's lower than standard foam but more than double the threshold for genuine low-expansion. The dedicated Soudafoam LE (the explicit "low expansion" product line) is what you want for gap-filling between PIR boards. The naming is genuinely confusing, and merchants sometimes substitute one for the other when stock is short.

The practical test before you open the can: read the technical datasheet, not the marketing on the front. Look for a stated post-expansion figure. If it's 50% or less, it's a true low-expansion foam. If it's not stated, or it's 100%+, it's a standard or window/door foam, which behaves differently in a board-to-board gap.

Types and what to actually buy

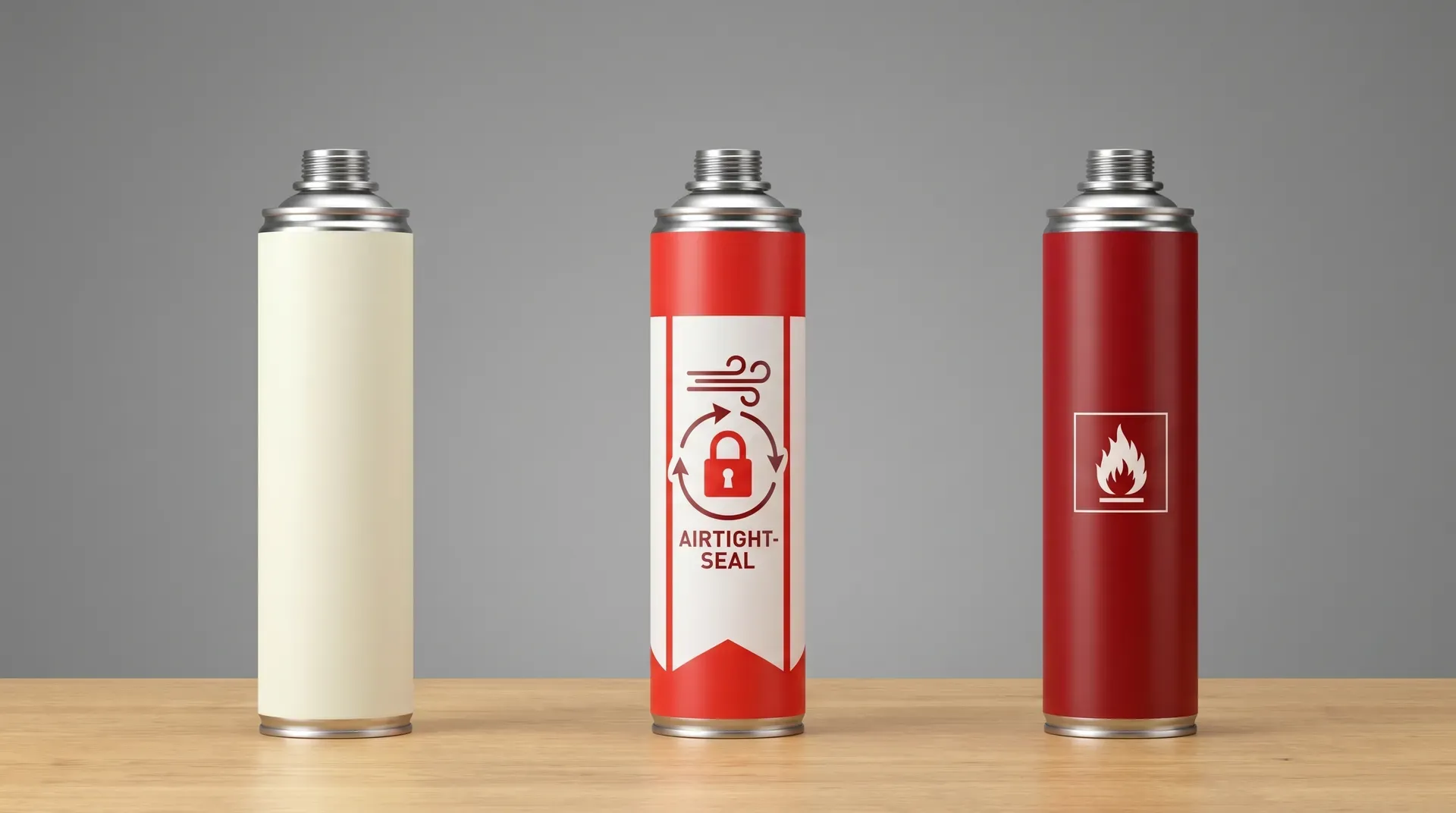

Four product categories matter for an extension build. The job dictates the choice.

Standard low-expansion gap-filler

The workhorse product for sealing perimeter gaps between PIR floor and roof boards. £8 – £14 for a 750ml can. Soudafoam LE, Bond-It Low Expansion, Bostik Cementone equivalents, and own-brand products at Screwfix and Toolstation all sit in this band. One can typically does 8-12 metres of bead in a 10mm gap, so a 20-30m² floor needs around two cans. Soudal increased its prices by 3.8% in December 2025; expect modest annual creep on this category.

Airtight gun foam (Illbruck FM330)

The premium product. £12 – £16 per 750ml can, roughly double the cheapest options. Worth it where airtightness is the goal, not just thermal sealing. FM330 is the only PU foam in widespread UK use with both a BBA Certificate and EN 12114 airtightness test data. It also offers up to 50% elasticity, so it accommodates building movement without splitting open. Use it at window and door perimeters in air-tested builds, at floor-to-wall junctions where the air barrier crosses the slab, and at pipe penetrations through ceiling insulation. For run-of-the-mill board-to-board gaps in a domestic extension, it's overkill.

B1 fire-rated foam

For sealing service penetrations through walls or floors that need to maintain fire compartmentation. £10 – £16 per can. B1 (DIN 4102) is the highest fire class for PU foam, with up to 4 hours fire resistance under EN 1366-4 depending on the joint configuration. Soudal Trade B1 and Rawlplug Fire Rated Gun Grade are common. For a single-storey domestic extension, you probably don't need this. For a loft conversion where pipes pass through a fire-resisting ceiling, or a flat with shared compartment walls, you do. Check with your building control officer if you're unsure whether a penetration is in a fire-resisting element.

Foam adhesive (separate product, do not confuse)

Specialist canisters labelled as adhesive (Soudal Megastick, Insta-Stik, Gyproc DriWall) are designed to bond rigid insulation or plasterboard to walls. They behave differently from gap-filler foam, with much lower expansion and a stronger bond. Don't try to fill gaps with foam adhesive (you'll burn through cans), and don't try to bond boards with gap-filler (poor adhesion). See £8 – £20 per bag/can for typical adhesive pricing.

Click to enlarge

Gun foam vs straw can

This is the cost-and-control trade-off that determines which version of any given product you buy. Most low-expansion foams come in two formats: a self-contained can with an attached plastic straw applicator, or a threaded can designed to fit a reusable foam gun.

Straw cans are cheaper upfront and need no extra kit. The trade-off is that the straw clogs solid with cured foam after the first session. You cannot put it down, come back tomorrow, and resume the job. For a one-off small job (sealing a single window frame, filling a couple of gaps around a soil pipe), straw cans are the right call.

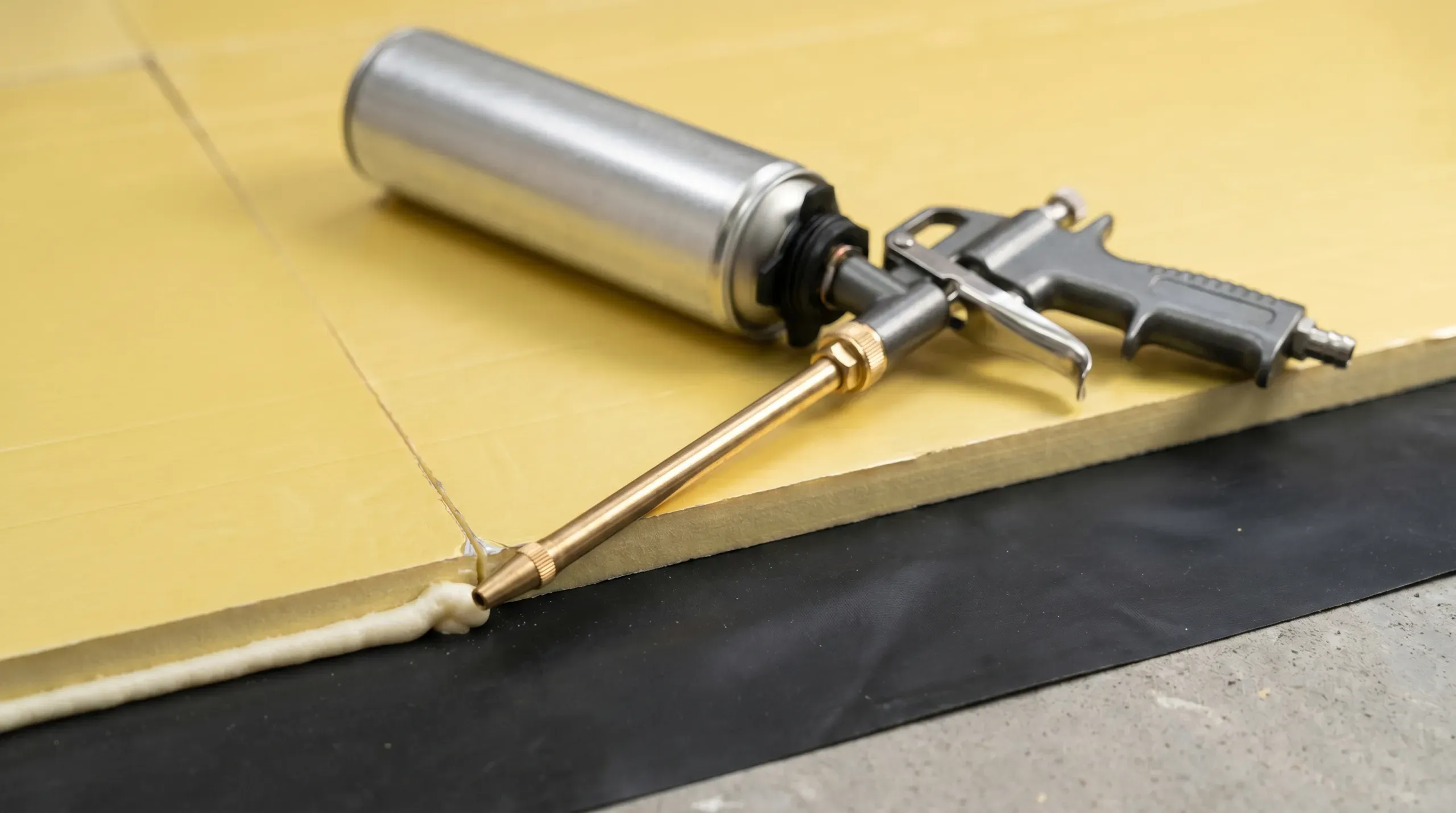

Gun foam needs a one-off purchase of a foam applicator gun: £20 – £40 for a metal-bodied gun that lasts indefinitely if you maintain it. The can stays usable for 4-6 weeks once the gun is attached, the bead size is adjustable via a flow-control screw, and the long brass nozzle reaches into deep gaps the straw cannot. For any job involving multiple boards, multiple sessions, or controlled application into deep gaps (which is exactly what PIR work is), gun foam is the better tool by every metric except first-can cost. The gun pays for itself by the second or third can.

The trick that nobody tells beginners: when you put the gun down, do not unscrew the can. Leave the can attached, flow control closed. The foam in the gun nozzle stays liquid for weeks because the can pressure keeps the system sealed. Take the can off and the gun chamber is exposed to air, which cures the residual foam and ruins the gun. Acetone-based foam gun cleaner (£7 – £8 per 500ml) flushes a fouled gun if you forget. Buy a bottle when you buy the gun. You'll need it eventually.

How to apply it correctly

The technique is more important than the brand. Get the technique wrong with a premium foam and you'll still ruin the boards. Get it right with the cheapest true-low-expansion foam and the result is fine.

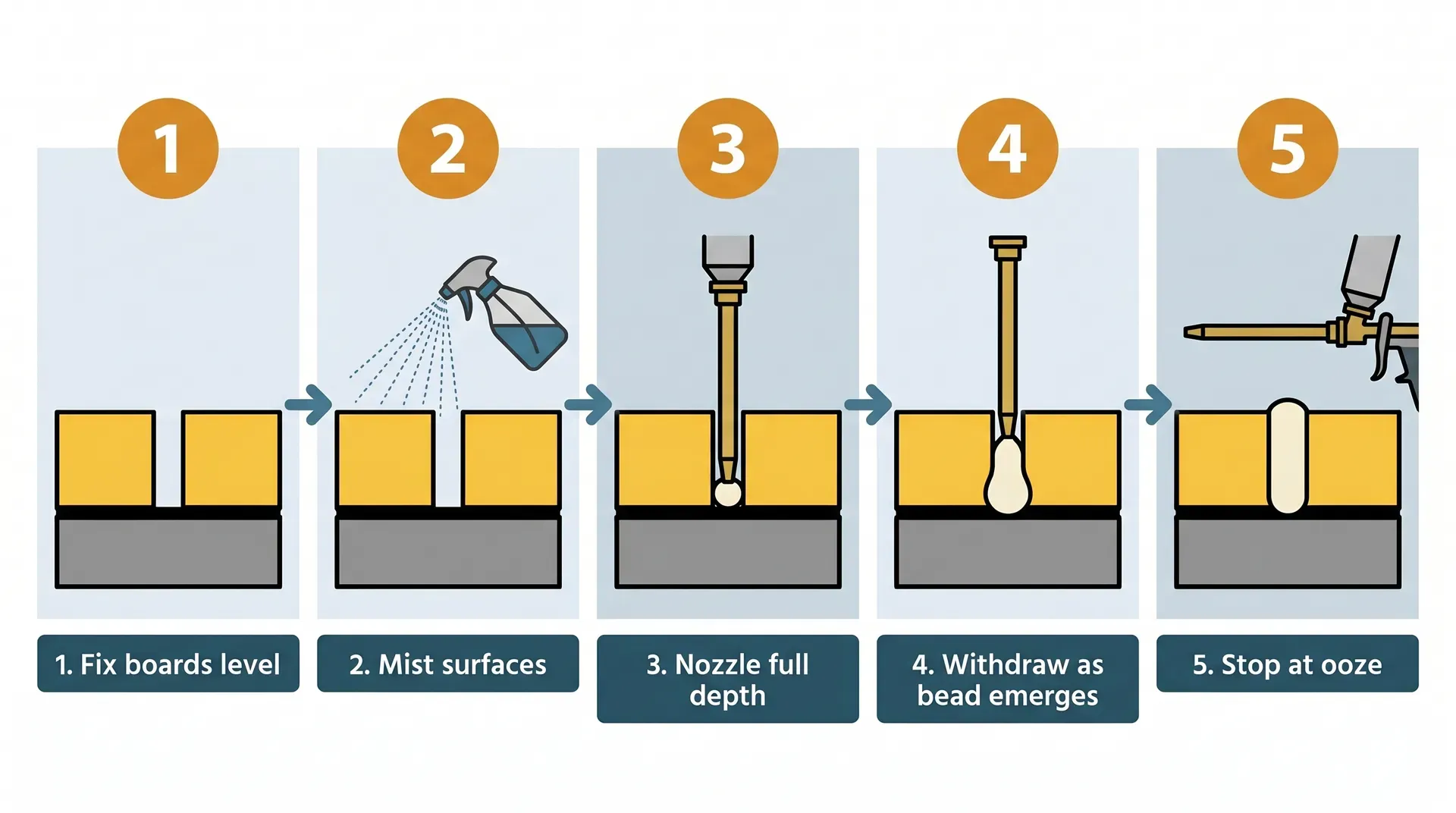

The forum consensus, drawn from BuildHub, GreenBuildingForum, and DIYnot threads, is consistent on five points.

Fix the boards first, foam after. Lay all your boards, butt them tight, confirm they're level and pinned (or held by their own weight on a slab). Don't try to push a board into final position by pumping foam between it and the board next to it. The expanding bubble distorts as you press the board, and the resulting fill is full of voids and weak spots. Foam is a second operation, not part of board placement.

Mist the surfaces. Use a hand spray bottle to lightly wet both faces of the gap a minute before applying foam. This is the moisture the PU reaction needs. Skip this in summer or in centrally heated rooms and the foam takes much longer to cure, sometimes failing to cure properly and staying soft and crumbly. Don't soak the surfaces; a fine mist is enough.

Insert the nozzle full depth, then withdraw as the bead emerges. Plunge the nozzle right to the back of the gap. Begin dispensing foam, and slowly pull the nozzle out as the bead extrudes, so the foam fills the gap from the back forwards. This drives air out as foam fills the cavity. If you spray onto the surface and let it self-fill, you trap air pockets at the back.

Watch for ooze, then stop. The right amount of foam is the amount that just begins to bulge slightly proud of the surface. As soon as you see the bead start to ooze, stop. Move to the next section. Over-application is the second-most-common mistake (after wrong product). Excess foam expands during cure and pushes boards out of position even with a low-expansion product.

Walk away. Do not touch, smooth, or shape uncured foam. Pressing on it collapses the cell structure and turns it into a sticky film that does nothing. Wait at least 60 minutes for trim time, or ideally leave overnight, then cut flush with a serrated blade. Cured foam cannot be sanded smooth, only cut.

For gaps larger than 25mm, foam alone is the wrong solution. Standard practice is to push a closed-cell backer rod (a foam cylinder) into the back of the gap first, then apply low-expansion foam over the front 15-20mm. This prevents the foam pulling away from the back of the gap as it cures (PU foam shrinks slightly mid-cure on deep beads).

Click to enlarge

Curing, trimming, and taping

Standard PU foam cures in three phases. Skin formation in 8-15 minutes (the surface stops being sticky to a gloved finger). Trim cure in 1 hour at 20°C and average humidity, longer in cold or dry conditions. Full cure in 24 hours, after which the foam reaches full strength and dimensional stability.

Don't trim before the trim cure point. Cutting half-cured foam tears chunks out of the bead and leaves an uneven surface that's harder to tape. Use a long sharp serrated blade (an old bread knife, a drywall keyhole saw blade, or a dedicated foam knife) and cut flush with the board face in one slicing motion.

Once the foam is cured and trimmed, the next step is taping. Aluminium foil tape goes across every foam-filled joint as the primary air and vapour barrier. The IMA installation guidance is unambiguous: untaped joints reduce effective R-value by 20-30%. The foam on its own is an air leak path. The foil tape is what closes it. £7 – £12 for a 45m roll.

This is where the airtightness question matters. Most standard PU foams are not actually airtight. Air will pass through cured foam at low pressures because the foam contains a mixture of closed and open cells. The IMA guidance, FM330's EN 12114 testing, and BuildHub forum consensus all converge on the same answer: tape over the cured foam joint. The tape provides the airtight layer; the foam provides the thermal fill.

Health and safety: legally required, not optional

Polyurethane foam is isocyanate-based. Isocyanates are the most common cause of occupational asthma in the UK construction trades. Sensitisation is cumulative and irreversible: once you're sensitised, even tiny future exposures trigger asthma attacks for life. The HSE ran a dedicated isocyanates awareness campaign in 2025 specifically targeting construction.

Under the Control of Substances Hazardous to Health (COSHH) Regulations 2002, the legal duty to assess and control exposure applies to anyone using isocyanate products at work, including self-managing homeowners on their own building project where workers are present. This is not "best practice" or "recommended PPE." It's a legal obligation under UK law.

Practical PPE list for a homeowner doing one or two days of foaming work:

• Nitrile disposable gloves. Single-use, change every couple of hours or when contaminated. Latex is not adequate; isocyanate breakthrough time on latex is shorter than on nitrile.
• Goggles. Splash protection, not just dust glasses. Foam in the eye is a serious injury.
• Old clothes you can throw away. Uncured foam stains permanently. Cured foam on fabric will not come off without destroying the fabric. Cheap disposable overalls (£3 – £5) save your good work clothes.
• Adequate ventilation. Open doors and windows. Don't work in a closed loft space without forced ventilation. If you can smell solvent strongly, you need more airflow.
• Respiratory protection if ventilation is limited. A P3 filter mask handles vapour-phase tasks. For most homeowner-scale foam work outdoors or in a well-ventilated extension shell, P3 isn't required, but if you're sealing pipe penetrations in a confined cupboard, wear one.

Uncured foam on skin is a contamination problem, not a chemical burn problem. Wipe it off with acetone or PU foam remover wipes immediately. Don't try to wash it off with water (water cures it onto your skin). Once cured, foam wears off skin in a few days as the skin sheds. Keep an old towel and a bottle of acetone within reach when you're foaming. You will get some on you.

How much you'll need

Coverage figures from the manufacturers and confirmed by community use:

• A 750ml gun-grade can produces around 35-45 litres of cured foam volume.
• Linear yield in a 10mm × 10mm gap: roughly 17 metres per can.
• For a typical 20m² extension floor with PIR boards, two cans cover the perimeter and any internal joints with margin.
• For a 30m² extension floor, allow three cans.
• For pitched-roof rafter work (PIR between rafters with perimeter foaming), allow one can per 8-10 m² of roof.

Buy a spare. Half a leftover can stays usable on the gun for the rest of the job and you'll find uses for it. Running out partway through a session means cleaning the gun, going to the merchant, and starting again. Cans in cartons of 12 from a builders' merchant typically run roughly half the per-can retail price (£8 – £14).

Storage and disposal

Store cans upright, between 5°C and 25°C, away from direct heat and frost. Frozen cans of PU foam may not work even after thawing. Cans left in a hot van in summer can vent prematurely.

Sealed cans have a 12-18 month shelf life from the manufacture date stamped on the base. After that, the propellant pressure drops and you get a thin dribble instead of a controlled bead.

Once a gun is attached to a can, the can stays usable for 4-6 weeks. Plan your job timing accordingly. Don't open a fresh can three weeks before you'll actually need to use it.

Disposal is where homeowners get this consistently wrong. Empty aerosol cans (no fluid, no sloshing, propellant fully discharged) can go in your household mixed recycling bin. Recycle Now guidance confirms this.

A foam can with any residual product, including a "used up" can that still has uncured foam inside, is not empty and must not go in the household recycling. It's classed as hazardous waste because of the uncured isocyanate residue. Take it to your local Household Waste Recycling Centre (HWRC) and dispose of it through the hazardous waste route. Most HWRCs accept this as a free service for domestic users.

Do not pierce, crush, or burn aerosol cans under any circumstances.

Alternatives and when to use them

For board-to-board gaps in PIR insulation, low-expansion foam is the standard solution and has no real competitor at its price point.

For window and door frame perimeters, compressible expanding tape (CompriBand, IsoBloco) is the higher-performance alternative. It's installed compressed in the frame perimeter as the frame is fitted, then expands to fill the gap as it relaxes. It outperforms foam on airtightness, weathertightness, and acoustic ratings, but it's substantially more expensive (sometimes ten times the foam-equivalent cost) and harder to install correctly. Most domestic extensions use foam plus a silicone bead on the outside; tape is for high-performance or air-tested builds.

For sealing PIR board joints as an alternative to foam, aluminium foil tape alone works only if the boards meet tight enough that the gap is under 2-3mm. Real-world board cutting and timber movement mean gaps of 5-10mm are normal, which is foam territory. Skill Builder promotes Gapotape (a proprietary tape system) as a foam-free solution; community feedback (DIYnot, BuildHub) is that it's hideously expensive at scale, with one user calculating over a thousand pounds just for tape on a loft conversion versus around a hundred and fifty pounds of foam achieving similar performance.

For service penetrations (pipes through walls and floors), low-expansion foam is fine for thermal continuity. If the penetration is through a fire compartment, B1 fire-rated foam is required, not optional. If the penetration is through the air barrier of an air-tested build, FM330 or a proprietary pipe-collar product is the right call.

Where you'll need this

Low-expansion foam appears at multiple stages of any extension or renovation project:

• First fix insulation: sealing perimeter gaps between PIR boards on floors, walls, and roofs before screed pour or plasterboard
• Windows and doors: sealing frame to brickwork (with caveats about expanding tape being better for airtight builds)
• First fix electrics: sealing around penetrations through insulation where cables pass through the thermal layer

The same product turns up across the structure and first fix stages of any project type. A homeowner doing a loft conversion, garage conversion, or garden room build will use low-expansion foam in the same way: between rigid insulation boards, around frames, around penetrations, and never as a standalone air barrier.

Common mistakes

Buying "expanding foam" when you needed "low-expansion foam." The two products look identical on the shelf and the words are practically the same. Standard foam in a PIR board gap will lift the boards. Read the can's stated post-expansion figure or the technical datasheet, not the hero text on the front.

Trusting "Window & Door" labelling for board-to-board work. Soudal Genius Gun Window & Door is excellent for window frames but expands by around 117%, which is too much for board-to-board fills. The dedicated low-expansion product (Soudafoam LE or equivalent) is what you need.

Applying foam to dry surfaces. PU foam needs moisture to cure. Mist the gap before applying. Skip this and you get a soft, partly cured bead that doesn't fill properly.

Over-filling. The most common community-reported failure. The right amount is just enough to ooze at the surface. Anything more pushes the boards apart as it cures, even with a low-expansion product.

Touching, smoothing, or "tidying" the bead. Walk away after applying. Cured foam can be cut flush; uncured foam cannot be shaped with anything except more wasted foam.

Using a single-use straw can for a multi-day job. The straw clogs after first use. For any job involving multiple boards or sessions, a foam gun and threaded cans is the right tool, even allowing for the gun cost (£20 – £40).

Skipping the foil tape over cured foam joints. The foam alone is not an air barrier. The tape is. Untaped joints lose 20-30% of the insulation's R-value to air infiltration through the foam itself. Tape every joint.

Skipping nitrile gloves and ventilation. This isn't a "best practice" item. COSHH 2002 makes it a legal duty. Isocyanate sensitisation is for life, and PU foam is one of the higher-risk isocyanate products in the construction trades.

Putting a part-used foam can in the household recycling bin. Cans with residual product are hazardous waste and go to the HWRC, not the kerbside recycling. Empty cans (no sloshing, fully discharged) are fine in mixed recycling.
