Loft Legs: Boarding Out a Loft Without Wrecking Your Insulation

A homeowner pays a few hundred pounds to top up their loft insulation to the current 270mm Part L standard, then the next weekend lays a stack of chipboard boards directly across the joists for storage. The boards squash the insulation flat between the joists. The loft now performs at less than half the rated value of the new insulation. The insulation spend was wasted, the heating bill barely moved, and nobody pointed out that boarding directly on joists with deep insulation underneath is the single most common loft retrofit mistake in UK housing. Loft legs exist to solve exactly this problem.

What it is and what it's for

A loft leg is a small plastic stilt, typically 175mm or 300mm tall, that screws to the top edge of a ceiling joist. Storage boards are then screwed to the tops of the legs, spanning the gap above the insulation rather than crushing it. The insulation stays at full thickness underneath, performing at its rated U-value, and you still get a usable boarded floor for suitcases, Christmas decorations, and the rest of the household overflow.

The current UK standard for loft insulation under Part L of the Building Regulations is 270mm of mineral wool, which achieves a U-value of 0.16 W/m²K for new installations. Most ceiling joists in a UK home are 100-150mm deep. That means roughly 120-170mm of the insulation sits proud of the joist tops. Lay a board straight on the joists and you compress that proud layer flat, often by more than half its thickness.

Compression is not a partial loss. Research from the National Physical Laboratory referenced widely in the UK insulation industry shows that squashing 270mm of mineral wool down to 100mm reduces its thermal performance by more than 50%. Mineral wool insulates because of the trapped air between fibres. Squeeze the air out and you have heavier wool, not better insulation.

Loft legs prevent that. They also create the air gap that building regulations-aligned best practice (BBA-certified guidance and BRE Digest 270) calls for between insulation and the underside of any boarding above. A 175mm leg sat on a 100mm joist gives 175mm of clear space above the joist top. Lay 270mm of insulation in two layers (100mm between the joists, 170mm crossways above) and the legs still leave you with around 50mm of airflow space below the board face. The leg height is engineered for exactly this layup.

Storage-only loft boarding does not require Building Regulations approval in its own right. But the moment you board out a loft after a recent insulation upgrade, you are responsible for not destroying the insulation that the regulations require to be there. Loft legs are the practical answer.

Heights, sizes, and what fits where

Two heights dominate UK retail. The original 175mm Loft Leg suits the typical retrofit case. The 300mm Loft Leg XL is for new-builds and properties where deeper insulation is in place or planned.

Pick the height by measuring twice. Get into the loft with a tape, push down through the existing insulation to find the joist top, and measure from joist top to the proposed top surface of the insulation. Add a 50mm air gap. That total tells you the leg height you need.

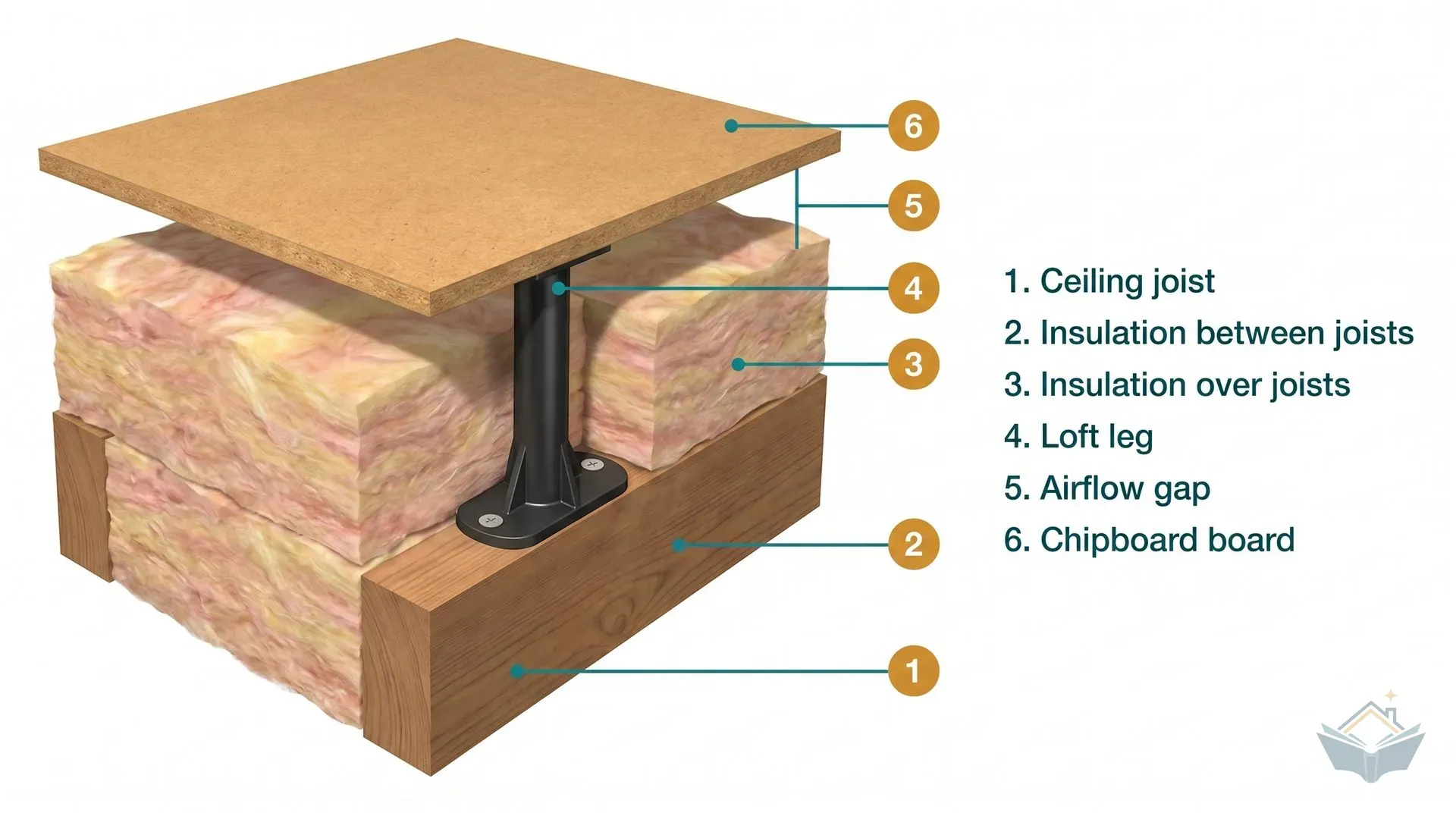

For most UK homes built before 2010 that are now being topped up to 270mm, 175mm legs are correct. A 100mm joist with 270mm of insulation laid as 100mm between joists plus 170mm crossways gives a 170mm pile sitting above the joist top. The 175mm leg clears this with a small ventilation gap to the underside of the board. The numbers work out neatly because Loft Leg Ltd designed them that way.

For irregular joist spacing, twisted joists, or older properties where the joist tops are not in the same plane, no plastic leg system performs reliably. That's the use case for LoftZone StoreFloor (covered below) or a timber batten subframe.

Click to enlarge

How to install them

Installation is straightforward but the order matters. Get the sequence wrong and you'll be wrestling insulation back into place after fixing legs that should have been done first.

The standard sequence:

1. Clear the loft and identify cables, downlights, water tanks, and any pipework. Mark anything you must not cover. Recessed downlights need fire-rated covers (the Loft Lid is the common product) before you board over them.

2. Roll back any existing insulation to expose the joist tops. If there's no insulation yet, leave the joists clear before laying any.

3. Mark leg positions on the joist top edges. Maximum spacing is 600mm centre-to-centre along each joist. If you're using 18mm chipboard, 600mm spacing is the safe maximum. Sagging is reported on PistonHeads and DIYnot threads when 18mm is used at the full 600mm; tighter spacing or 22mm tongue-and-groove board solves it.

4. Pre-drill the legs (some retailers stock pre-drilled versions; if yours aren't, a 4mm bit through the fixing holes saves time on the joists). Drive 4.0mm x 30mm countersunk screws through each leg into the joist top. Two screws per leg minimum, four for heavy-storage areas.

5. Roll insulation back over the joists, pulling it gently around each leg. The aim is full 270mm coverage between and above the joists with no gaps around the leg posts.

6. Lay 18mm or 22mm tongue-and-groove chipboard or OSB across the leg tops, screwed down with the same 4.0mm x 30mm screws. Run boards perpendicular to the joists. Stagger board joints like brickwork. Leave a 10mm expansion gap at the perimeter walls.

The right tools are a battery drill-driver with a PZ2 bit, a 4mm wood drill bit, a tape measure, a pencil, and a pair of knee pads. Boarding a loft is hours on your knees with poor lighting. Take a head torch and a foam kneeler.

For the screws themselves, the Loft Leg manufacturer specifies 4.0mm x 30mm countersunk wood screws. Wickes sell their own 4 x 30mm zinc-plated screws (SKU 225627) which match this spec exactly. Do not use nails. Nails work loose under storage loads and the legs lose their connection to the joist over time.

Where you cannot board

Recessed downlights cannot be covered without a fire-rated cover such as the Loft Lid. A standard halogen or LED downlight without a cover sits in a hole in the ceiling that must vent heat. Block it with insulation or a board and you create both an overheating fire risk and a loss of the downlight's IP rating.

Water tanks need a separate platform with stronger support. The 25 kg/m² loft leg loading is for storage, not for several hundred kilos of cold water tank in one spot. Build a timber platform with proper joist support for a tank, or move the tank.

The eaves area must stay clear of insulation and boards. Cold lofts depend on cross-ventilation from soffit to soffit, and Building Regulations Part F plus NHBC Standard 7.2.15 both require a minimum 50mm clear gap at the eaves. Push insulation into the eaves and you trap moist air against the rafters, which leads to fungal growth on the timber and condensation on the underside of the felt within a couple of winters.

How many do you need

Maximum spacing is 600mm centres. At 600mm centres a single leg supports approximately 0.36 m² of board, which gives roughly 3 legs per square metre at maximum spacing. Real-world coverage is closer to 4-6 legs per m² because joist runs and board layouts mean some legs end up tighter than 600mm.

Quick rule of thumb for budgeting:

• 10 m² loft area: 40-60 legs (4-5 packs of 12)
• 15 m² loft area: 60-90 legs (6-8 packs of 12)
• 25 m² loft area: 100-150 legs (10-12 packs of 12)

Buy 10% extra. There will be a few legs that need repositioning to clear cables, brackets, or odd joist layouts. The 12-packs are cheap enough to keep a spare.

You'll also need:

• 18mm or 22mm tongue-and-groove loft chipboard. Standard sheet sizes are 1220 x 320 x 18mm (small panels designed for fitting through a loft hatch) or 2400 x 600 x 18mm (full sheets, cheaper per m² but harder to get into the loft).
• 4.0mm x 30mm countersunk wood screws. Allow 8 screws per leg (4 to fix the leg to the joist, 4 to fix the board to the leg top) plus extra for board joints and edges. A 200-pack covers about 25 legs.
• Fire-rated covers for any recessed downlights you're boarding over.
• 100mm and 170mm mineral wool top-up rolls if your existing insulation is below 270mm.

Cost and where to buy

The 175mm Loft Leg 12-pack is widely stocked at £17 – £21. The 300mm Loft Leg XL 12-pack is £20 – £21. On a per-leg basis with bulk packs (B&Q stock 60-pack and 96-pack quantities), the price drops to around £2 – £4.

For a small project (one or two packs), buy from whichever retailer is closest. The price gap is a few pounds per pack and not worth a separate trip. For larger areas, B&Q's bulk packs are clearly the cheapest per leg, with the 60-pack and 96-pack quantities pushing per-leg cost down toward the bottom of the £2 – £4 band.

Pricing on loft legs is stable. The product has been sold at similar prices for several years and there's no indication of a refresh cycle that would change the figures soon.

For a complete project including labour, expect installed pricing of £1,000 – £2,000 for a typical semi-detached property covering both insulation top-up and full raised boarding. Terraced properties run lower at £800 – £1,400, detached higher at £1,600 – £2,800. The DIY route at materials cost only is roughly half: £400 – £800 for a 15 m² loft kitted out with legs, boards, screws, and insulation top-up.

Alternatives

Three alternatives to standard loft legs are worth knowing about.

LoftZone StoreFloor is the most direct competitor and the only loft boarding system with BBA certification (the British Board of Agrement, the UK construction industry's main third-party certification body for products). LoftZone uses metal cross-beams on plastic feet, with the beams spanning between joists. Where loft legs are point loads on each joist, LoftZone distributes load along a continuous beam. For a 23 m² loft, LoftZone uses around 378 screws compared to 936 for an equivalent loft leg installation. It's typically a fraction more expensive than loft legs for the same area, but it's the right answer for irregular joist spacing, twisted joists, or older lath-and-plaster ceilings where weight distribution matters more.

CLS timber battens screwed to joist tops are the DIY budget alternative. Studwork CLS at 38 x 144mm cut into short sections gives roughly 144mm clearance above the joist (use 38 x 184mm if you need more). A 2.4m length costs £10 – £12 from builders merchants, cuts to 6-8 short legs, and works out cheaper per leg than plastic. Trade-offs: more cutting time, less neat, and timber feet have a smaller footprint per leg than the engineered plastic version, which can mean point-load issues on weaker ceilings. Forum reports from Overclockers UK and MoneySavingExpert confirm this is a genuine alternative for budget-conscious builds.

Don't board it at all. This is the orthodox energy-efficiency answer and worth taking seriously. If the only thing pushing you to board out a loft is a vague sense that storage would be useful, consider whether you actually need it. The full 270mm of insulation working at its rated U-value is worth significantly more in heating savings each year than the storage capacity that boarding adds. The Energy Saving Trust estimates topping up loft insulation from 100mm to 270mm saves around 135 pounds a year on a gas-heated semi-detached. A boarded loft compromises this even with raised legs (the air gap above the insulation is less insulating than insulation continuous to the rafters). For pure energy performance, less boarding is better.

Where you'll need this

Loft legs apply to retrofit and refurbishment work across most UK extension and renovation projects:

• First fix insulation - when boarding any loft area for storage above the new ceiling line of an extension, or when topping up existing loft insulation as part of an overall energy-efficiency upgrade
• Roof structure - where access for future maintenance to flue terminations, MVHR units, or aerial cabling is needed in a partially-boarded loft

Loft legs appear across any project type that includes a habitable loft above the works, not just kitchen extensions. The principle is universal: if there's mineral wool insulation laid to current Part L depths and someone wants to put boards over the top, the boards must be raised.

Common mistakes

Buying 175mm legs when the loft has 300mm of insulation. This happens with new-build owners who assume "loft legs are loft legs." The 175mm leg cannot clear 300mm of insulation. Always measure first.

Spacing legs at 1.2m centres. One competitor guide states this. It is wrong. Maximum centre-to-centre spacing is 600mm. At 1.2m, even 22mm boards bend underfoot and joints fail.

Compressing insulation by force around the legs. When pulling rolled insulation back over the joists, the natural tendency is to compress it where it meets the legs. Take the time to lift and tease the wool around each leg post so it remains at full lofted depth. Compressed pockets around 200 legs in a typical loft add up.

Burying cables under insulation. Electrical cables that were rated for surface clipping in a vented loft now sit under 270mm of insulation, which derates them. The cabling must be re-routed above the insulation level on cable hooks fixed to the joists or rafters, or replaced with cable rated for thermal insulation use. This is an electrician's job, not a DIY one. Check before you board over.

Skipping fire-rated covers on downlights. Recessed downlights are the single biggest fire risk in a boarded loft. Loft Lid or equivalent covers are inexpensive at £10 – £20 from Screwfix and similar, and non-negotiable.

Storing too much weight. The 25 kg/m² working load is a real limit, not a theoretical maximum. A heavy box of books concentrated on one square metre of boarding can exceed it easily. For heavier storage, use a properly engineered platform with additional joist support, not a loft leg system.

Not leaving an expansion gap. Chipboard expands and contracts with humidity. Boards laid hard against the perimeter walls buckle in winter. Leave a 10mm gap all the way round.
