Insulated Plasterboard: The One-Board Fix for Cold Solid Walls

Fit insulated plasterboard to a solid wall without sealing the vapour control layer at your socket cutouts, and within two winters you'll have condensation trickling down behind the boards. Black mould follows. The plasterboard swells, the insulation gets damp, and the thermal performance you paid for drops to almost nothing. Every forum thread on this product circles back to the same problem: the boards themselves are straightforward, but the details at junctions and penetrations are where installations fail.

What it is and what it's for

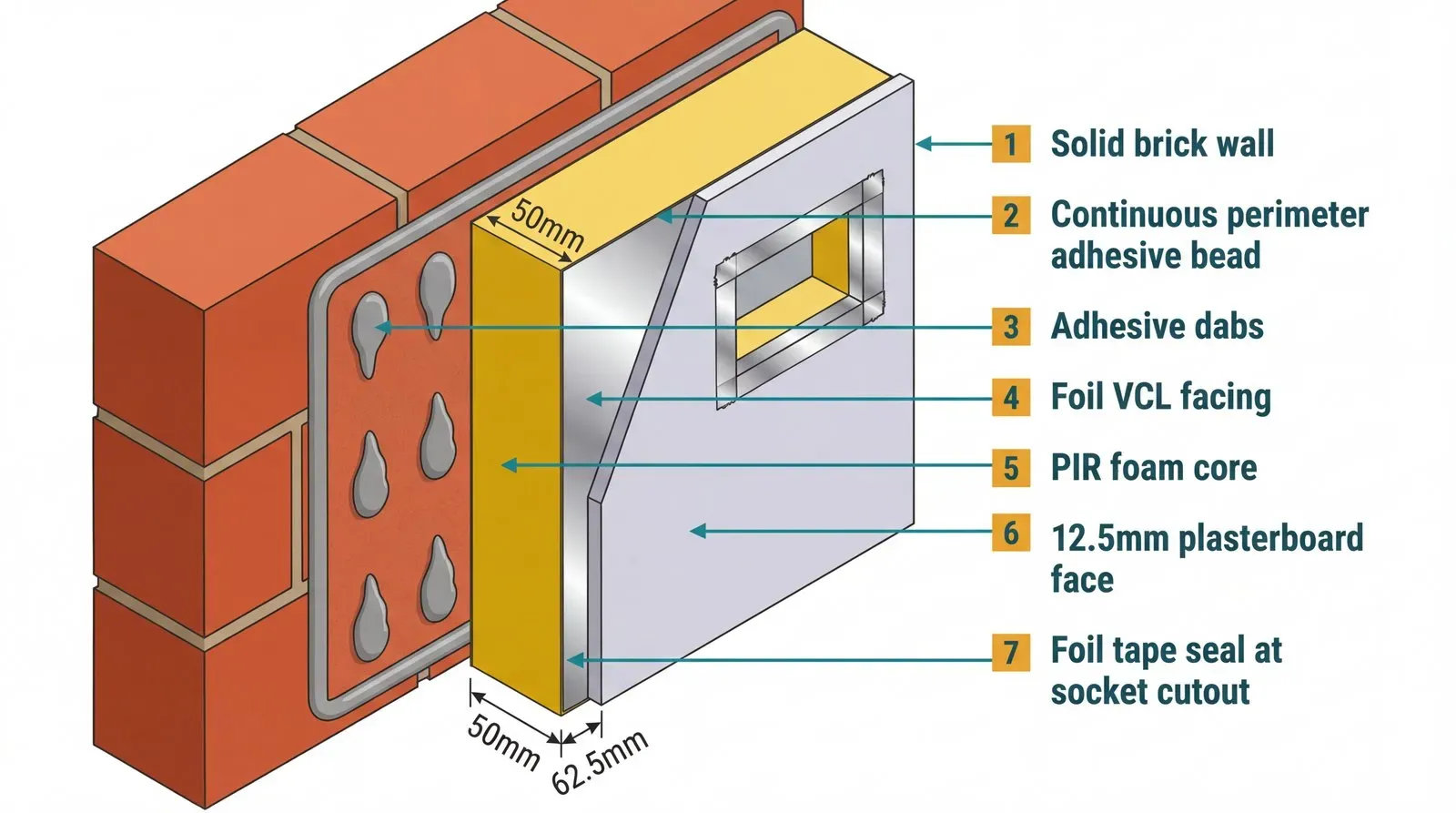

Insulated plasterboard is a factory-bonded sandwich: a layer of rigid foam insulation (usually PIR, sometimes phenolic or EPS) glued to the back of a sheet of standard 12.5mm plasterboard. You get insulation and a plaster-ready wall surface in a single product. One fix, one trade, one operation.

The primary use case is internal wall insulation (IWI) on solid masonry walls. If your house was built before the 1930s, or if it has solid brick or stone walls without a cavity, you can't inject cavity insulation because there's no cavity. Insulated plasterboard goes on the inside face of those walls, cutting heat loss without touching the exterior. It's also used on the underside of roofs and on new-build walls where a combined product saves labour time.

Standard board size is 2400 x 1200mm, covering 2.88m2 per board. Total thickness ranges from 22mm (a thin EPS budget board) up to 102.5mm (thick PIR for roof applications). For the most common use, upgrading a solid brick wall to meet building regulations, you're looking at 62.5mm total (50mm PIR core + 12.5mm plasterboard).

Building regulations context

Approved Document L (2022 edition) requires that when you renovate 25% or more of an external wall's surface area, the upgraded wall must achieve a U-value of 0.30 W/m2K or better. That's the trigger. Replacing plasterboard on an entire room? You've hit the threshold. Building control will want to see a U-value calculation showing compliance.

For new extension walls, the target is stricter: 0.18 W/m2K. Insulated plasterboard alone won't achieve that. It's designed for upgrading existing solid walls, not replacing cavity wall insulation in new builds.

Types, sizes, and specifications

Three core types exist, distinguished by the foam they use. The insulation core determines thermal performance, thickness, and price.

PIR laminate: the standard choice

PIR (polyisocyanurate) insulated plasterboard is the workhorse. Lambda of 0.022 W/mK, which means a 62.5mm board (50mm PIR + 12.5mm plasterboard) achieves roughly 0.30 W/m2K on a solid brick wall. That's right on the building regulations limit.

The Celotex PL4000 range is the most widely stocked. Available thicknesses: 37.5mm, 52.5mm, 62.5mm, 72.5mm, and 77.5mm (PIR core thickness from 25mm to 65mm, all with 12.5mm tapered-edge plasterboard). The foil facing on the PIR side acts as a built-in vapour control layer. Fire classification is Euroclass B-s1,d0 under BS EN 13501-1.

Gyproc ThermaLine PIR from British Gypsum is the BBA-approved alternative. Same lambda, same principle, available from 38mm to 93mm total thickness. It uses two integral VCLs (multi-layer kraft aluminium facings) rather than a single foil layer.

Phenolic laminate: thinner for the same performance

Kingspan Kooltherm K118 uses a phenolic foam core. Lambda drops to 0.019-0.020 W/mK for thicknesses over 45mm, meaning you get the same thermal resistance in a thinner board. Where every millimetre matters (tight window reveals, small rooms where you're already losing floor area), phenolic is worth the 20-30% price premium.

The naming is confusing. Kingspan used to sell K17 (for adhesive bonding) and K18 (for mechanical fixing). Both have been replaced by the K118 range, but older spec sheets, forum posts, and even some merchants still reference K17 and K18. If you see K17 or K18, it's the same product line, now called K118. The K118 comes with a glass-tissue or composite foil reverse facing depending on the application method.

EPS laminate: budget option with limits

EPS (expanded polystyrene) laminated boards are the cheapest option, available from Wickes as Knauf XPS Laminate at 27mm total thickness. Lambda is 0.033-0.038 W/mK, nearly double that of PIR. You'd need an EPS board roughly 80% thicker than PIR to achieve the same U-value.

For solid wall compliance at 0.30 W/m2K, EPS doesn't realistically work. A 25mm EPS-backed board achieves a U-value of roughly 0.88 W/m2K. Inadequate. EPS boards are fine for a minor thermal improvement where building regs don't apply (renovating less than 25% of the wall), but don't specify them if you need to pass building control.

Weight: plan for two people

These boards are heavy. A 62.5mm Celotex PL4050 weighs 10.96 kg/m2, which works out to 31.6 kg per 2400x1200mm board. At 37.5mm, you're still looking at 28-29 kg per board. This isn't a one-person job, especially when lifting boards overhead for ceiling or roof applications.

How to work with it

Wall preparation

The wall must be dry. Not "it looks dry." Actually dry. If there's any rising damp, penetrating damp, or condensation, fix that first. Installing non-breathable insulated plasterboard on a damp wall traps moisture between the insulation and the masonry. The wall can't dry inward (the insulation blocks it) or outward (the brickwork is already saturated). Within a year you'll have a wall that's wetter than when you started, hidden behind boards you can't see through.

Strip off existing plasterboard, wallpaper, and loose render. The adhesive needs a solid substrate. Prime porous masonry before applying adhesive; unprepared brick absorbs the moisture from the adhesive before it can set.

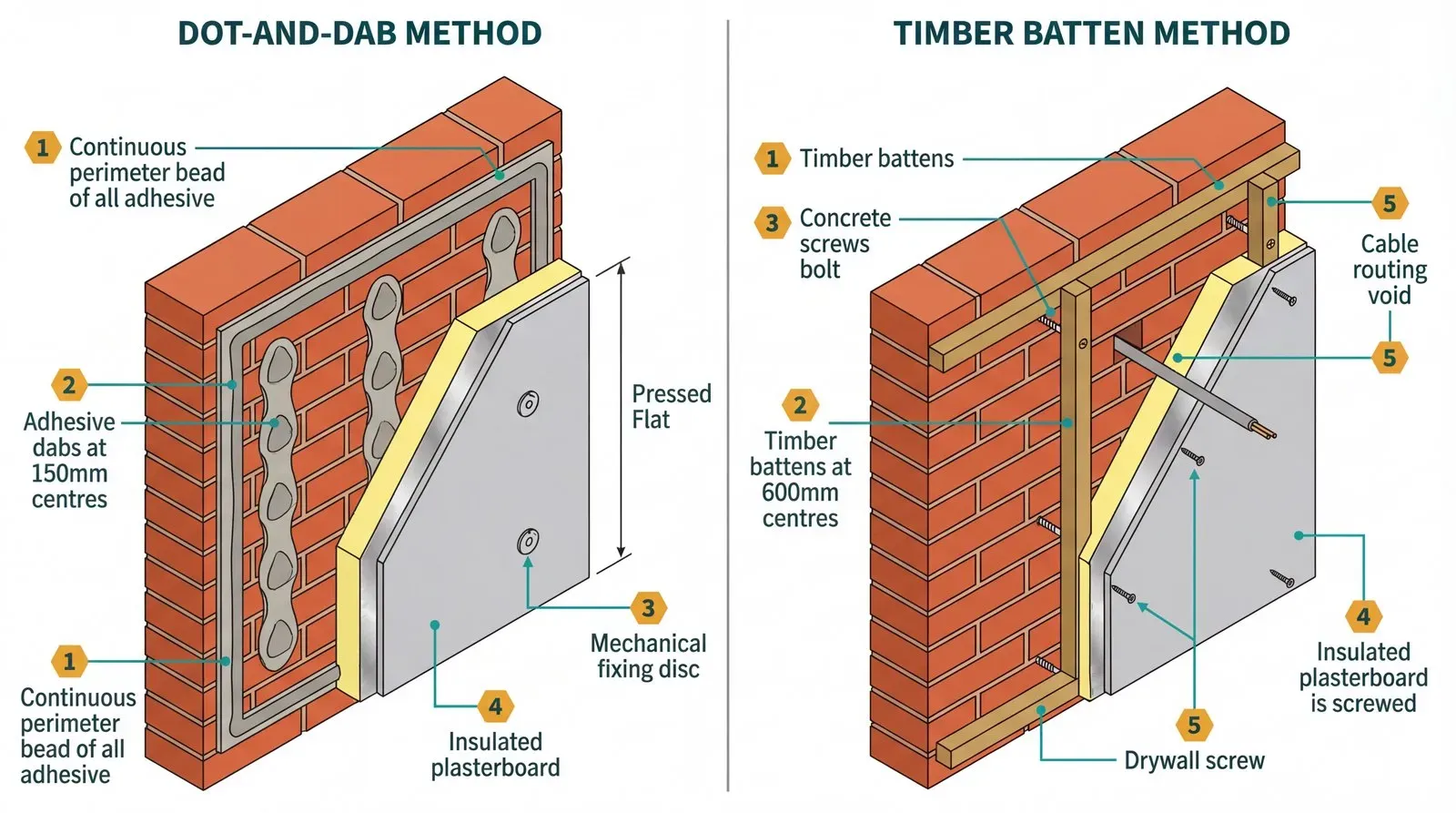

Fixing methods

Two methods. The right one depends on whether the wall is in a new build or an existing property.

Dot-and-dab on dry existing walls. Apply a continuous band of adhesive around the full perimeter of each board (top, bottom, both sides). Then apply three vertical rows of adhesive dabs (50-75mm wide, 250mm long, at 150mm centres) in the centre of the board. The continuous perimeter band is critical. It prevents warm air from circulating behind the insulation and reaching the cold wall. Without it, you get convection currents behind the boards that bypass the insulation entirely.

After the adhesive sets (allow 24 hours minimum), add mechanical fixings. Minimum three per board, more if the manufacturer specifies. Some industry guidance recommends nine fixings per board for fire safety, preventing boards from detaching during a fire. Check the product datasheet for your specific board.

Timber battens for uneven walls. If the existing wall is out of plumb by more than 10mm, dot-and-dab won't give you a flat surface. Fix horizontal battens at ceiling and floor level, with vertical battens at 600mm centres. Use concrete screws (7.5mm diameter, 5mm pilot hole) into the masonry at maximum 600mm intervals. Screw the insulated plasterboard to the battens with 100mm drywall screws at 300mm centres or closer.

The batten method adds depth (typically 25-50mm for the battens on top of the board thickness) but gives you a perfectly plumb wall regardless of how rough the masonry is. It also creates a void behind the battens that's useful for running cables.

Click to enlarge

Cutting

Score the plasterboard face (grey paper side) with a sharp utility knife to about 3mm depth using a straight edge. Snap the board over a straight edge with the plasterboard face uppermost. The plasterboard breaks cleanly along the score line. Then cut through the PIR foam backing with a sharp knife or fine-toothed saw.

Common beginner error: scoring the PIR (insulation) side first. This gives a ragged, uncontrolled break on the plasterboard face. Always cut from the plasterboard side.

For socket and pipe cutouts, use a padsaw or fine-toothed jigsaw. Mark the cutout on the plasterboard face, drill a pilot hole in each corner, then cut between them. Wear a P2 dust mask when cutting PIR. The dust is an irritant.

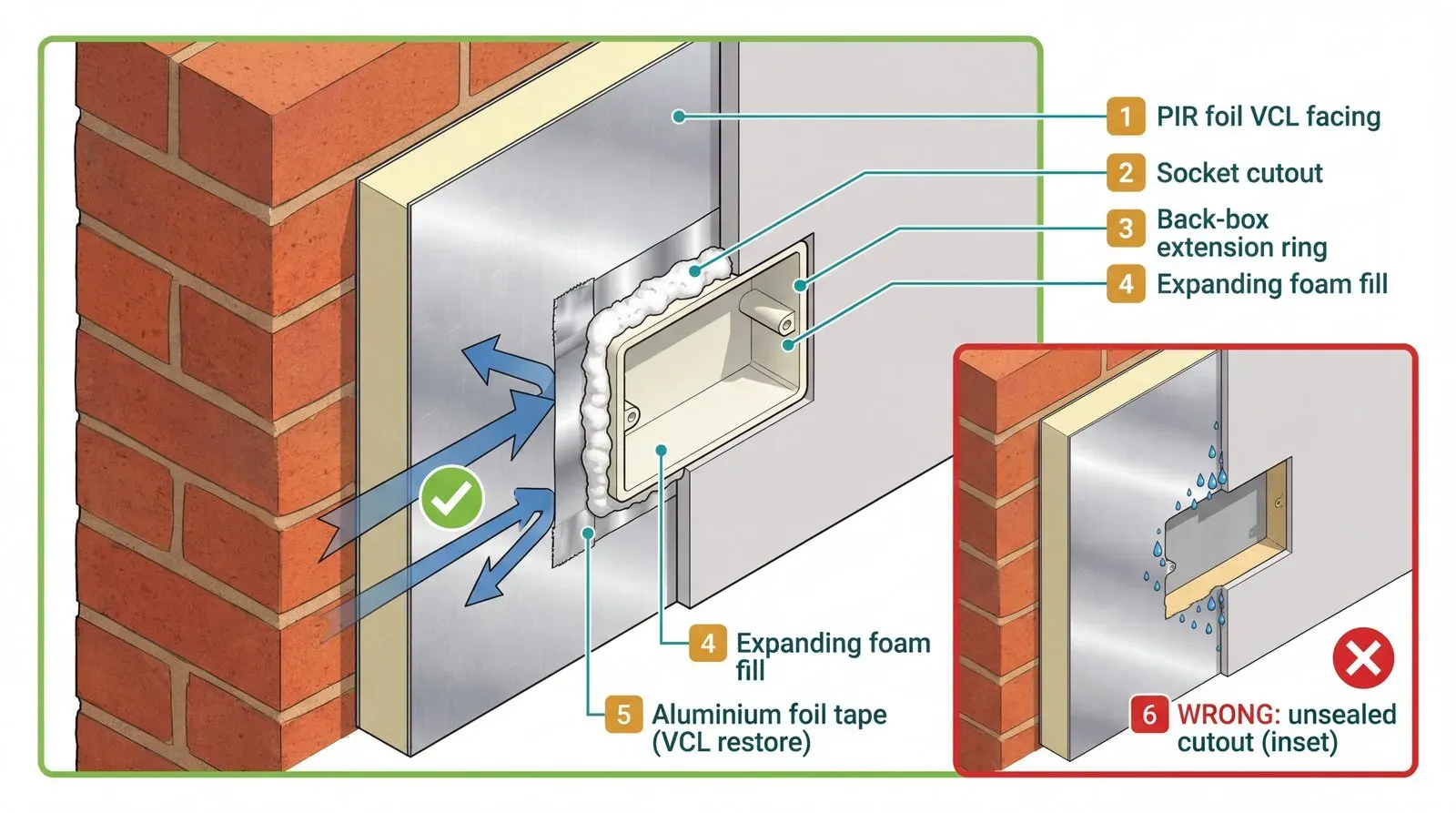

The detail everyone misses: sealing at sockets and switches

This is the single most important practical detail on this page, and the one that no consumer-facing guide covers properly.

Every electrical socket, light switch, and pipe penetration through insulated plasterboard breaks the vapour control layer. The foil facing on the back of the board is your VCL. Cut a hole for a socket and you've punched a gap in it. Warm, moisture-laden room air pushes through that gap, hits the cold masonry behind, and condenses. The result is a damp patch behind every socket on your insulated wall, invisible until the plasterboard starts to stain or swell.

The fix: seal around every cutout with foil tape. Use back-box extensions (available from any electrical supplier) to bring the socket box forward through the insulation thickness. Fill the gap between the back box and the PIR with expanding foam, then tape over the foam with aluminium foil tape to restore the VCL. This takes five minutes per socket and prevents years of moisture damage.

Click to enlarge

Window and door reveals

Fitting insulated plasterboard to wall surfaces but leaving the window and door reveals bare creates a thermal bridge. The reveal becomes the coldest surface in the room, condensation forms there, and mould follows. LABC guidance is explicit: insulate the reveals.

Use thin insulated plasterboard (25-30mm) or slim phenolic strips returned into the reveal. This reduces the reveal depth and may require extending the window board (sill), but it's not optional if you want to avoid cold bridging. Some installers skip this because it's fiddly work. Don't let them.

How much do you need

Each 2400 x 1200mm board covers 2.88m2. Measure the wall area, subtract windows and doors, add 10% for waste and cuts, and divide by 2.88.

Worked example: insulating a Victorian terrace living room (two solid external walls)

Side wall: 4.5m x 2.4m = 10.8m2, minus one window at 1.2m2 = 9.6m2. Front wall: 3.6m x 2.4m = 8.64m2, minus one bay window at 3.0m2 = 5.64m2. Total wall area: 15.24m2. Add 10% waste = 16.8m2.

16.8 / 2.88 = 5.8 boards. Round up to 6 boards.

At 62.5mm thickness (the most common for solid brick compliance), that's 6 boards at roughly £36-48 each. Material cost: £216-288 plus adhesive (around £15-20 per bag, one bag covers 2-3 boards), foil tape (£7-10 per roll), and mechanical fixings (£10-15 per box). Total materials for one room: roughly £280-370.

Cost and where to buy

Prices depend on thickness, core type, and where you buy. The graph price of £15-30 per board is outdated for PIR products. Current (2026) pricing from specialist insulation retailers:

Online insulation specialists (National Insulation Supplies, Trade Insulations, Insulation Superstore) often offer lower prices than builders' merchant walk-in pricing, so compare across multiple suppliers before ordering. Order boards in bulk with free delivery. For six boards it may not hit the free delivery threshold, so check minimum order requirements.

Wickes stocks the Knauf XPS/EPS budget range in store but rarely carries PIR insulated plasterboard. For Celotex PL4000, Kingspan K118, or Gyproc ThermaLine PIR, you're ordering from a specialist retailer or going through a builders' merchant (Travis Perkins, Jewson) at trade pricing.

Is separate insulation + plasterboard cheaper?

Yes, on materials alone. A 50mm PIR board (around £25-30) plus a sheet of 12.5mm plasterboard (around £8-10) costs £33-40 combined, versus £36-48 for the pre-bonded equivalent. On a 10-board job, you'd save £120-190 on materials.

But there's a catch. Standard plasterboard adhesive doesn't bond to foil-backed PIR. You need foam adhesive or mechanical fixings through both layers. Installation takes 2-3 times longer. For a professional, the labour cost of the slower method wipes out the material saving. For a confident DIYer doing it themselves, the saving is real but the VCL detailing is harder (separate boards let you tape the PIR foil face properly before boarding over, which some consider superior).

How thick is enough: the 0.3 vs 0.5 debate

Approved Document L says 0.30 W/m2K for solid wall upgrades. That's the regulation. A 62.5mm PIR insulated plasterboard achieves this on a standard solid brick wall.

But there's a growing body of evidence that targeting 0.30 W/m2K on older solid walls creates more problems than it solves. The October 2024 DEEP report from DESNZ (Department for Energy Security and Net Zero) found that installing internal wall insulation "always led to an increased moisture risk, even when only a thin layer of insulation was applied." The thicker the insulation, the colder the masonry behind it stays, and the higher the condensation risk.

Research by building scientist Joe Little suggests a more conservative target: aim for around 0.5 W/m2K rather than pushing to 0.3. At 0.5, you still capture roughly two-thirds of the energy saving, but the masonry stays warmer and dries faster. For walls with unknown moisture history, this is the safer bet.

In practical terms, that means a 37.5mm board (25mm PIR) rather than a 62.5mm board (50mm PIR). Thinner, lighter, cheaper, and lower moisture risk.

Alternatives

Separate PIR boards + plasterboard. Cheaper on materials (roughly £24-29 versus £36-48 per m2 of wall at 50mm thickness). Gives better VCL detailing flexibility because you can access the foil face to tape joints before the plasterboard goes on. Slower to install. Best for DIYers who want to save money and don't mind the extra work.

Mineral wool + vapour-permeable board. For historic buildings with solid stone walls or walls of unknown moisture history, a vapour-permeable system (mineral wool insulation with a breathable plasterboard like Fermacell) allows the wall to dry in both directions. Lower thermal performance per millimetre, but significantly lower moisture risk. The DEEP report favours permeable systems for retrofit.

Wood fibre boards (Gutex, Steico). Premium breathable insulation boards increasingly recommended for heritage retrofit. High vapour permeability, good thermal mass, but expensive and thicker than PIR for the same U-value. A specialist product for listed buildings or conservation areas.

Standard plasterboard on dabs. If the wall already has cavity insulation or doesn't need upgrading, standard 12.5mm plasterboard at £8-10 per board is the default. No insulation benefit, but less than a third of the cost.

Where you'll need this

• Insulation - internal wall insulation on solid masonry walls, upgrading thermal performance of existing walls to meet Part L

Insulated plasterboard appears in any renovation or extension project where existing solid walls need thermal upgrading. It's not limited to any single project type.

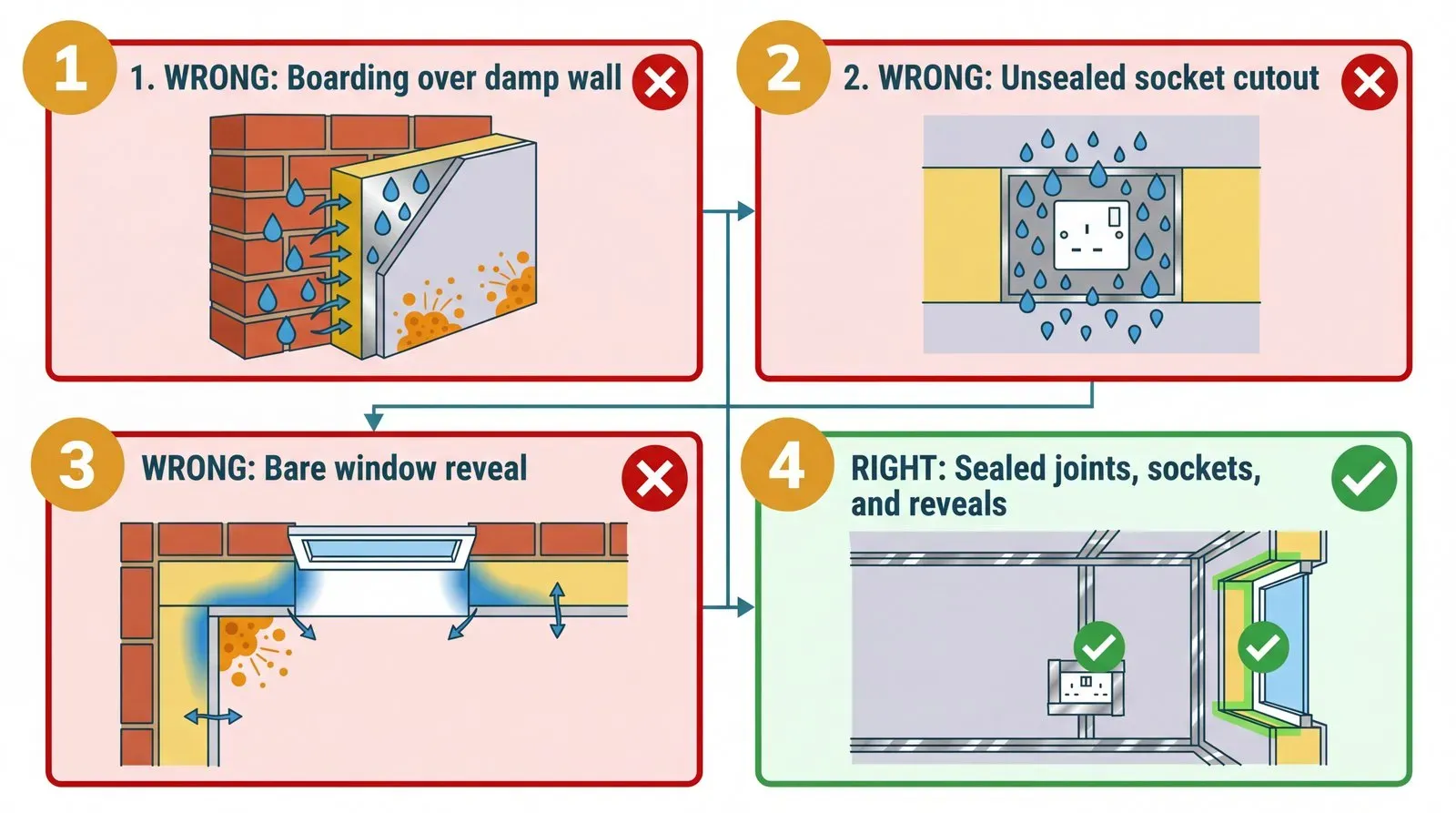

Common mistakes

Installing on a damp wall. The most expensive mistake because you won't see the damage for months. PIR-backed boards are vapour-closed. Damp in the masonry has nowhere to go. The moisture builds, the PIR delaminates from the plasterboard, mould colonises the back of the board, and eventually the whole installation needs stripping and replacing. Fix the damp first. Use a dehumidifier if needed. Don't board over a wet wall.

Skipping VCL sealing at sockets. Covered in detail above. Every forum thread, every building surveyor report, every moisture consultant's case study circles back to this. Foil tape around every socket, switch, and pipe penetration. Back-box extensions plus expanding foam plus foil tape. Five minutes per socket.

Leaving window reveals uninsulated. You've just spent £300 insulating all the wall surfaces. The reveals are now the coldest part of the wall. Condensation forms on the reveals, mould grows in the corners where the insulation stops. Return thin insulated plasterboard or phenolic strips into every reveal.

Ordering EPS boards expecting them to meet building regs. A 27mm Knauf XPS board from Wickes achieves roughly 0.88 W/m2K. The target is 0.30. EPS laminate boards are budget products for minor comfort improvements, not for building regulations compliance. If building control is involved, you need PIR or phenolic.

Click to enlarge

Using the wrong adhesive. Solvent-based contact adhesives dissolve PIR foam. The board looks fine when you stick it up, then the foam degrades behind the plasterboard and the board sags or falls. Use non-solvent Gripfill, Gyproc DriWall adhesive, or Insta-Stik foam adhesive.

Forgetting about fixings for shelves and heavy items. Standard cavity wall fixings fail in insulated plasterboard because they grip into the PIR foam, which has no structural strength. For curtain poles, TV brackets, shelving, or anything heavy, use Corefix fixings that bypass the board entirely and anchor into the masonry behind. Plan where heavy items will hang before boarding, and consider fitting timber noggins (short blocks of timber) behind the plasterboard at those locations.
