Grey Graphite EPS: When the 25% Thickness Saving Is Worth the Premium

Your builder orders 90mm white EPS boards for the external wall insulation on the side return. The boards arrive, get glued and fixed to the wall, then sit there for six weeks waiting for the renderer to start. By the time the basecoat goes on, building control has already signed off the U-value calculation that assumed 90mm of grey graphite EPS at lambda 0.030 W/mK. The white boards installed are 90mm at lambda 0.038. The wall fails the calculation. Stripping and replacing 28 m² of EWI to fix a paperwork mismatch is a several-thousand-pound job before the renderer charges anything.

Grey graphite EPS is the default board for modern external wall insulation systems in the UK. It is not the same as white EPS, even though they look similar in cross-section. The lambda value is different. The thickness needed to hit a building regs U-value target is different. The way it behaves on site in the sun is different. And the price is higher, but not by as much as you would think.

What it is and what it's for

Grey graphite EPS (sometimes called grey EPS, graphite EPS, or by trade names like Neopor, Jablite HP+, Stylite PlusTherm) is expanded polystyrene with graphite particles bonded into the foam beads during manufacture. The graphite particles act as tiny mirrors inside each cell, reflecting infrared radiation back into the foam structure rather than letting heat transmit straight through. The technical name for the manufacturing process is BASF's Neopor, and most premium graphite EPS products in the UK are made from Neopor beads.

The result is a material that conducts heat about 20 to 25% less than standard white EPS. Lambda value (thermal conductivity, the W/mK number where lower is better) for graphite EPS is 0.030 W/mK for premium branded boards, sitting at 0.031 to 0.032 W/mK for some generic boards. Standard white EPS sits at 0.036 to 0.038 W/mK depending on grade. The improvement looks small as a number. In practice it means a 90mm graphite board does the work of a 120mm white board.

Grey graphite EPS is used in three places on a domestic build:

External wall insulation (EWI) on solid wall extensions and retrofit. This is the dominant use. Modern EWI render systems from Weber, Baumit, K-Rend, EWI Pro, and SAS Europe are all built around graphite EPS as the default insulation board. The thickness saving is what sells it, because EWI bulks out the wall outwards into the garden or driveway, and 25% less thickness means 25% less encroachment.

Below-slab floor insulation in a graphite floor grade. Boards like Stylite PlusTherm and TE Platinum are EPS70-grade graphite boards specifically for ground-bearing floors. The compressive strength is the same as standard white EPS70 (70 kPa), but the lambda is better. Used where the floor build-up depth is constrained but PIR is too expensive.

Partial-fill cavity wall insulation, occasionally. More common in continental Europe than the UK, where mineral wool batts (DriTherm) and PIR boards dominate the cavity insulation market.

EPS boards comply with BS EN 13163, the European product standard for factory-made expanded polystyrene. Premium graphite products carry BBA certification as part of a complete EWI system: EWI Pro's certificate is 18/5503, Jablite holds BBA 87/1796 across its EPS range. Buying a complete BBA-certified system from a single manufacturer matters for two reasons. First, building control accepts BBA-certified systems without requiring further evidence. Second, the manufacturer warranty (15 to 25 years on most EWI render systems) only stands if you use the boards, adhesive, mesh, basecoat, and topcoat from a single approved system. Mix and match and the warranty falls away.

Why graphite makes the difference

Standard white EPS is roughly 98% trapped air and 2% polystyrene. Heat moves through it primarily by conduction through the cell walls and by radiation across the cell voids. The radiation component is significant, especially in thicker boards where heat bounces from cell wall to cell wall like light through fog.

The graphite particles in graphite EPS sit embedded in the cell walls and absorb or reflect that radiant heat before it can move on. BASF's marketing literature describes it as heat being "reflected hundreds of times" as it tries to move through the board. The physics works regardless of the marketing language. Independent tests confirm the lambda improvement is real and stable over the life of the board.

This radiation-reflection mechanism is why graphite EPS does not lose performance over time the way some PIR boards do. PIR insulation can suffer "thermal drift" as the blowing gas slowly diffuses out of the cells over decades, gradually worsening the lambda value. Graphite EPS does not have this issue. The graphite particles do not move, evaporate, or degrade. Lambda at year one matches lambda at year fifty.

The visible difference between grey and white EPS is just the graphite. There is no other change to the polymer chemistry. Compressive strength is the same at the same density grade. Fire performance is the same (Euroclass E with the standard fire retardant additive). Moisture absorption is the same (negligible). Vapour permeability is the same. Recyclability is the same.

Types and key specifications

Three things differ between graphite EPS products: density grade, board format, and brand.

For EWI on a domestic extension, the small 1000x500mm panel format is the standard. The boards stagger easily on the wall, fit around windows without a lot of cutting waste, and one person can hold a board against the wall while another applies the adhesive. For floor use, the large 2400x1200mm format is what you want: fewer joints, less foam-filling between boards, faster lay rate.

Density grade matters for floor use, not for EWI. The wall is not bearing weight on the boards. EPS70 (70 kilopascals compressive strength at 10% deformation) is the standard EWI grade and there is no need to upgrade. For floors, EPS70 handles all standard domestic loads (5 kPa is a typical domestic floor load, including the slab and furniture). EPS100 is occasionally specified where heavy point loads like a polished concrete floor with kitchen island are expected, but it is rarely needed in domestic work.

Lambda values vary slightly by source

The reference data is consistent on the headline number but specific products vary.

When you specify EWI, use the lambda from the actual product datasheet, not a generic figure. A 0.001 W/mK difference might sound trivial but pushes the calculated U-value up enough to fail compliance at the margin.

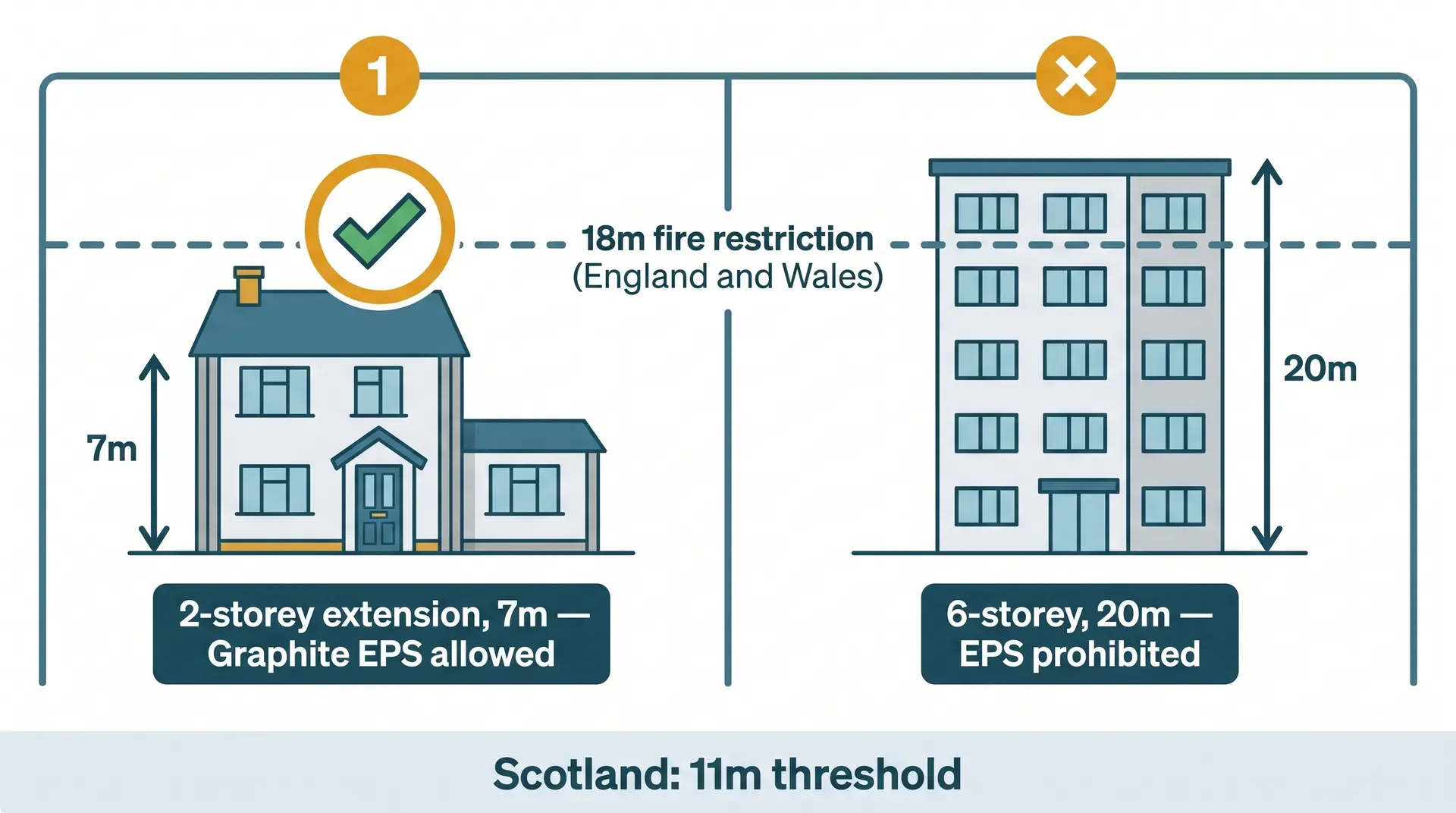

Fire performance and the 18m rule

Graphite EPS, like all polystyrene insulation, is classified as Euroclass E under BS EN 13501-1 with the standard fire retardant additive. This is the same fire class as white EPS.

Approved Document B was amended in December 2022 to maintain the ban on combustible materials (anything not Class A2 or A1) on external walls of buildings 18 metres or higher in England and Wales. Scotland uses an 11-metre threshold. Domestic extensions and standard houses sit well below both thresholds. Graphite EPS is fully permitted for EWI on a typical extension.

What this means in practice: if you live in a normal two-storey house and want EWI on your extension, EPS is allowed. Building control will not refuse it on fire grounds. Some EWI system manufacturers (Weber notably) have been pulling back from polystyrene products in favour of mineral wool alternatives, driven by post-Grenfell risk aversion in the wider construction market. This is a market trend, not a regulatory one. EPS remains compliant for domestic work, but check current product availability with your installer before specifying.

Click to enlarge

How to work with it

Graphite EPS handles like white EPS for cutting and lifting, but installation onto a wall has specific quirks that catch out anyone using these boards for the first time.

Cutting

Cuts with anything sharp. A handsaw works for full-board straight cuts. A bread knife or insulation knife cuts edges and trim cleanly. For neat reveals around windows and doors, score with a Stanley knife and snap. The foam is forgiving. Static cling is the main annoyance: graphite particles release fine dust when cut, which sticks to gloves, sleeves, and tools. Cut outside or in a well-ventilated area and brush off as you go.

Unlike PIR (which has a foil facing that determines clean edges), graphite EPS can be rasped down with a surform or sanding block to fit snug. Cut 5mm oversize, offer up the board, and rasp the edge until it sits tight against its neighbour.

The UV exposure problem

This is the single most important thing to know about graphite EPS that is genuinely different from white EPS.

White EPS does not have this problem because it reflects sunlight rather than absorbing it. The colour is the issue. Grey absorbs, white reflects. A board left exposed for a week in July can be unusable. Forum reports of installers who left boards exposed for six months and "got away with it" are outliers, not best practice. The risk is asymmetric: cheap to mitigate (a tarp), expensive to recover from (rip and replace once rendered over).

If your installer is fixing graphite EPS to the wall and the renderer cannot start within a fortnight, the boards must be wrapped or shaded. This is not pedantry. Manufacturers will void warranty on EWI systems where boards have been left exposed beyond their stated UV limit.

Adhesive application

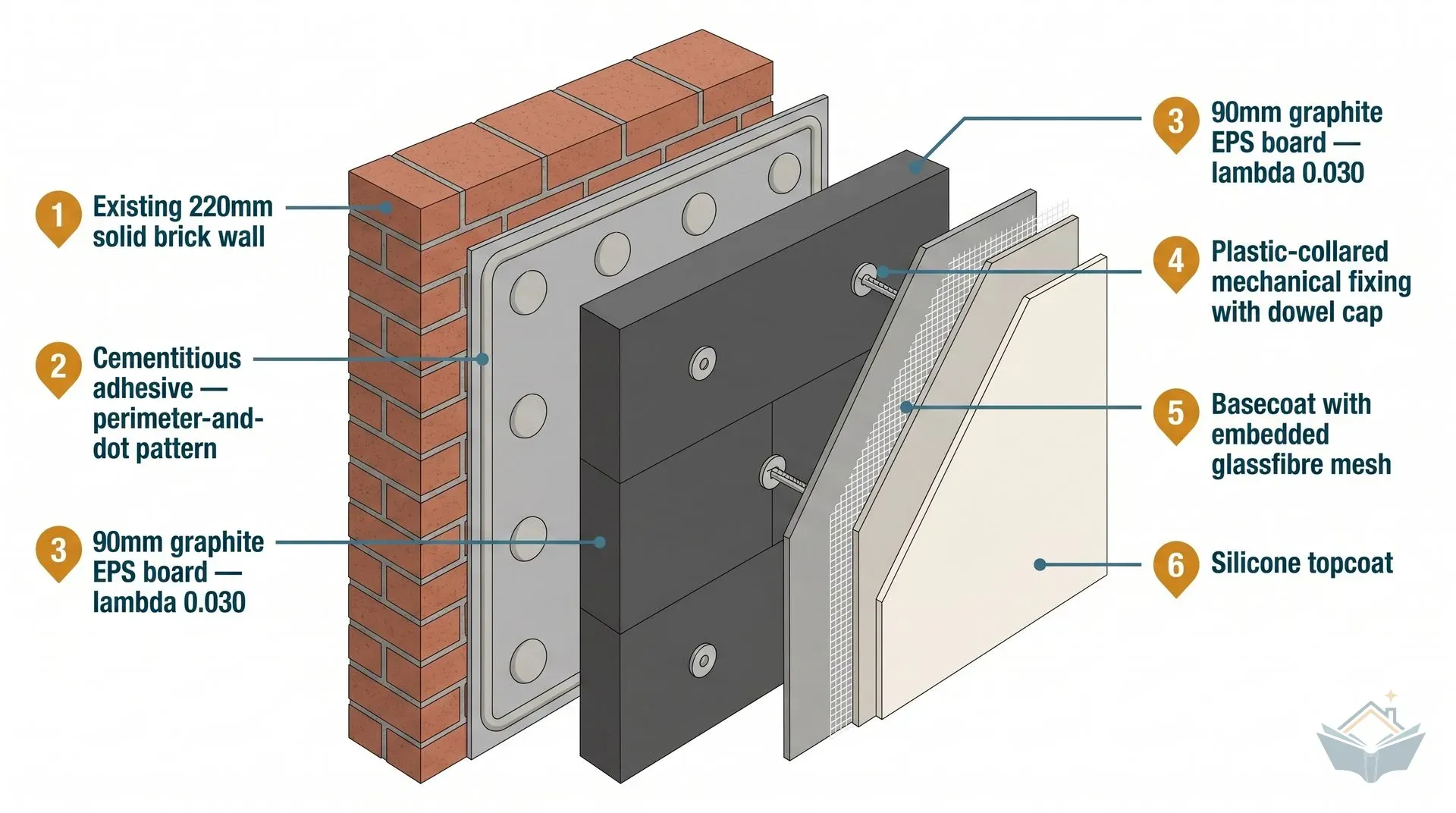

EPS boards are bonded to the wall with cementitious adhesive in a perimeter-and-dot pattern. The standard EWI Pro specification (matched by Weber, Baumit, K-Rend) is:

1. Apply a continuous bead of adhesive 30 to 40mm wide around the entire perimeter of the back of the board
2. Apply 8 to 10 dots of adhesive across the field of the board, roughly the size of a tennis ball
3. Coverage of the back face by adhesive must be at least 40% minimum

The perimeter bead is what stops air movement behind the board (which would create a thermal bypass and ruin the U-value). The dots provide bond strength. Skim adhesive across the whole back is wrong: it does not allow the substrate to breathe and creates curing problems.

Boards must be staggered like brickwork, with vertical joints offset between courses by at least 250mm. Joints must not align with window or door corners; offset by at least 200mm to prevent stress cracks propagating through the render at openings. Gaps between boards larger than 2mm are filled with thin strips of insulation, not with adhesive (adhesive in joints creates thermal bridges).

Mechanical fixings

Adhesive alone is not enough on most substrates. Mechanical fixings (plastic plug anchors driven through the board into the masonry) hold the system on the wall under wind load.

Fixings per square metre depend on wind exposure zone:

• Field zone (centre of large wall areas, typical residential): 5 to 6 fixings per m², or 5 per board (the "five dice" pattern)
• Edge zone (top and corner edges, exposed elevations): 8 fixings per m²
• Corner zone (true corners, parapets, coastal locations): 10 to 11 fixings per m²

Fixings must penetrate the substrate by at least 25mm for adequate hold. Plastic-collared fixings (not bare metal) are essential on graphite EPS. Bare metal heads conduct heat through the board and create thermal bridges visible through thermal imaging surveys; they also leave dark cold spots on the render in winter. The grey plastic dowel cap covering each fixing is part of the system, not optional.

Install fixings only after the adhesive has cured (typically 2 to 3 days). Driving fixings into uncured adhesive can dislodge the board.

Rasping before render

Every board must be rasped (sanded with a coarse abrasive board) before the basecoat is applied. The rasp removes surface oils that have migrated to the foam surface during manufacture and storage, levels any minor steps between boards, and creates a clean key for the basecoat to bond to.

This is not optional and not a "if there's time" job. Render basecoat applied to unrasped graphite EPS will fail to bond properly and may delaminate within months. The rasping pass takes about 15 minutes per square metre and is the cheapest part of the whole installation, but it is the step most often skipped by inexperienced installers.

How thick do you need

The thickness depends on what U-value you are targeting and what the existing wall construction is. The two scenarios that drive most domestic specifications:

Extension walls under Approved Document L 2022 (England): The maximum allowable U-value for new external walls in extensions is [Unknown guidance value: part-l-extension-wall-u-value] 0.18 W/m²K. Wales sits at 0.21, Scotland at 0.22. To achieve 0.18 on a 220mm solid brick wall using graphite EPS at 0.030 W/mK, you need approximately 90 to 100mm of insulation board.

Retrofit EWI on an existing solid-wall house: The 0.18 figure does not apply because you are not building a new element. The de facto industry target is 0.30 W/m²K, which is also what most BBA EWI system certificates assume. Achieving 0.30 on a 220mm solid brick wall needs approximately 60 to 70mm of graphite EPS. Thicker is better thermally but the marginal benefit drops fast and the wall thickness encroachment increases.

These are indicative. A site-specific U-value calculation using your actual wall build-up is required for building control compliance. Most EWI suppliers will run the calculation free if you give them the existing wall construction details.

For a 30 m² side return extension targeting 0.18 W/m²K with 100mm graphite EPS, board cost alone is in the range of £11 – £20 per square metre. Material for the boards across that area runs to several hundred pounds. The full installed system cost is far higher; see below.

Cost and where to buy

Graphite EPS is sold by board thickness, in panel formats from 1000x500mm (small EWI panels) up to 2400x1200mm (large floor boards).

For floor use, large-format graphite EPS boards in 2400x1200mm carry a higher per-square-metre price than the small EWI panels:

The price gap between graphite and white EPS varies with thickness. At 50mm the premium is around 1 to 2 pounds per square metre. At 90mm and 100mm the premium widens to roughly 3 to 5 pounds per square metre over equivalent white EPS. As an absolute cost difference for a 30 m² extension wall at 100mm, you are looking at perhaps 100 to 150 pounds extra over white EPS for the whole job. Trivial compared to the labour cost and the value of the thinner wall.

The board is a small fraction of the total installed system cost.

A full EWI system installed comprises: adhesive (around 4 to 6 pounds/m²), insulation board (11 to 20 pounds/m² for graphite EPS), mechanical fixings and dowels (3 to 5 pounds/m²), basecoat with embedded mesh (8 to 12 pounds/m²), topcoat render in silicone, mineral, or acrylic (10 to 20 pounds/m²), labour for a PAS 2030 accredited installer (40 to 70 pounds/m²), plus scaffolding (typically 500 to 1,500 pounds per side). Boards are about 10 to 15% of the total. The labour is the dominant cost.

Where to buy

For boards alone (if you have an installer who will quote labour-only): online insulation specialists are 30 to 50% cheaper than walk-in builders' merchants for the same product. Renders World, Discount Builders Merchants, Unity Building Supplies, Pinks Insulation, EWI Pro Direct, EWI Store, and Insulation UK all stock graphite EPS in EWI thicknesses. Delivery is usually free over a modest order threshold (typically 100 to 200 pounds ex VAT).

Travis Perkins and Jewson stock EWI graphite EPS but typically only on trade quote rather than walk-in pricing. Wickes and B&Q do not stock EWI-grade graphite EPS in store; they sell smaller floor and loft boards.

For a complete EWI system, buy the board, adhesive, mesh, basecoat, and topcoat from one BBA-certified manufacturer. Going direct to EWI Pro, Weber, Baumit, K-Rend, or SAS Europe ensures the system warranty stands. Buying boards from one source and render from another usually voids the warranty.

Alternatives

Graphite EPS is one of three main board options for EWI. Each has a clear use case.

White EPS is the budget alternative. Lambda 0.036 to 0.038 W/mK, costing roughly 3 to 5 pounds less per square metre than graphite at the same thickness. Choose white when wall thickness encroachment is not constrained (deep front gardens, no boundary issues) and you are willing to accept a thicker board to save material cost. Also more tolerant of UV exposure on site if the rendering is delayed. Covered in detail at EPS Insulation.

PIR boards (Kingspan K5, Celotex CW4000) offer the best lambda of the three at 0.022 W/mK. The thinnest board at any given U-value. Costs roughly twice as much per square metre as graphite EPS. Choose PIR when wall thickness encroachment is severely limited (tight side returns, narrow alleyways, boundary lines just past the existing wall face) and the roughly 15 to 20 pounds per square metre cost premium is worth the extra 30 to 40mm of clearance. PIR is also less tolerant of installation imperfections; gaps and joints matter more. Covered at PIR Insulation 100mm.

Mineral wool slabs (Rockwool Redart, Knauf Rocksilk) are the non-combustible alternative. Lambda 0.034 to 0.036 W/mK, similar cost to graphite EPS. Choose mineral wool if your installer or system supplier has moved away from polystyrene (Weber's strategic shift), if you want a more breathable system on a heritage property, or if you are working on a building where the 18m fire threshold is a consideration. Mineral wool is heavier (about 7 to 10 kg/m² for a 100mm board vs 1.5 kg/m² for graphite EPS) and more demanding to fix. Covered at Mineral Wool 100mm.

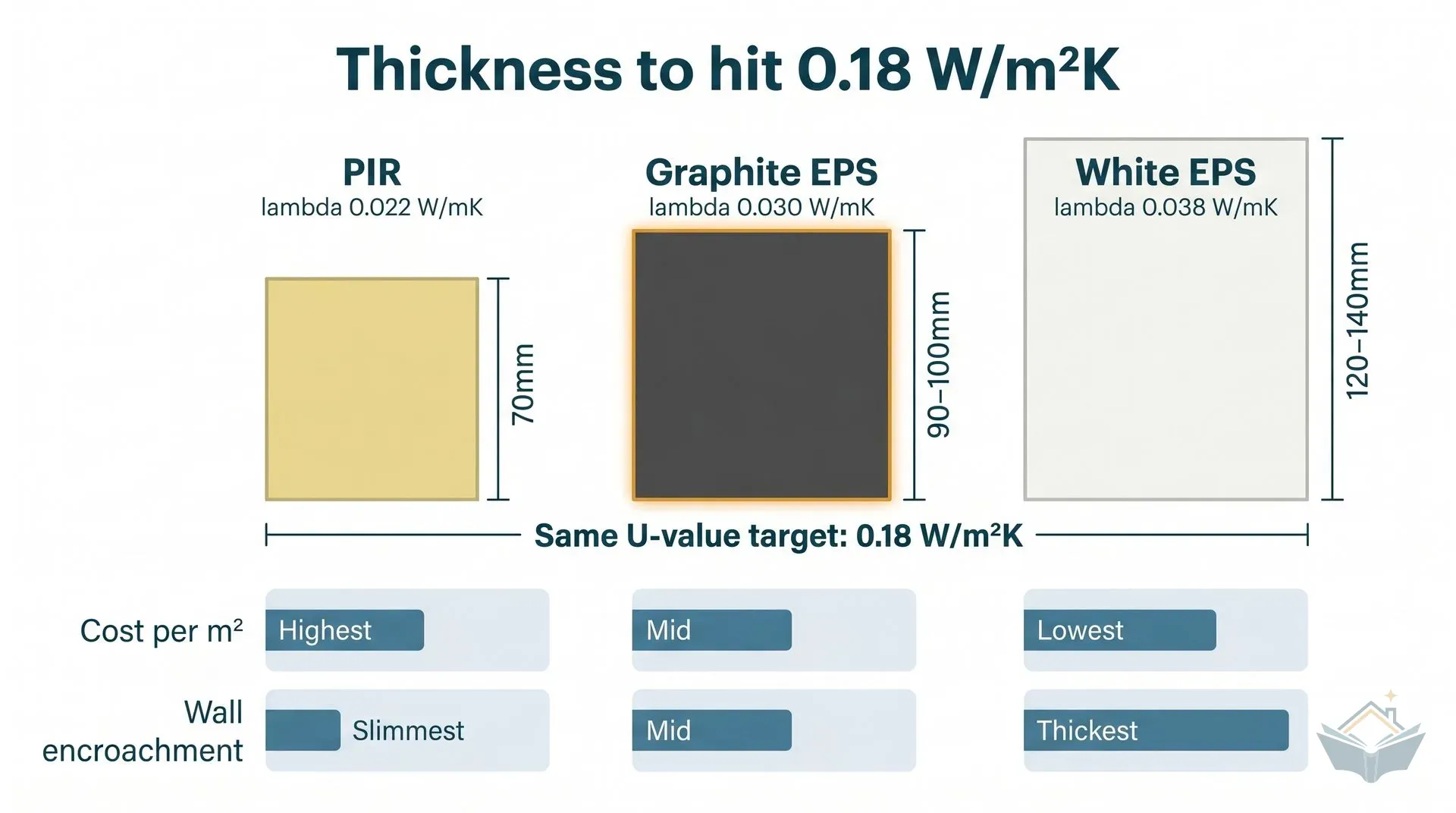

For an extension wall targeting 0.18 W/m²K with a typical 100mm thickness budget, graphite EPS is the default choice. It is the price-performance sweet spot. PIR makes sense only when thickness is genuinely constrained. Mineral wool makes sense for system continuity, breathability, or fire requirements above domestic scale.

Where you'll need this

Graphite EPS is used in three places on a typical extension or renovation:

• Insulation - the central first-fix decision: which insulation type goes where in the build-up. Graphite EPS is the default for EWI on solid-wall extensions and a premium option for under-slab floor insulation.
• Foundations and footings - graphite EPS in EPS70 floor grade is used under ground-bearing slabs where the floor build-up depth is constrained.

Graphite EPS appears wherever EWI is specified, which spans new extensions, retrofit insulation upgrades, and conservation-area sympathetic re-cladding work across all project types.

Common mistakes

Leaving boards exposed in summer sun. The single most common error and the one with the most expensive consequences. A pallet of graphite EPS left uncovered on site for a fortnight in July will deform, skin, and become unrenderable. Cover boards the day they are installed if rendering is more than a week away.

Ordering white EPS instead of grey when the U-value calculation assumes grey. Boards arrive looking similar enough that nobody notices. The error only surfaces at building control sign-off when the U-value calculation does not match the as-built. Strip and replace is the only fix once render has gone on.

Mixing system components from different manufacturers. EWI works as a system. Graphite EPS from one supplier, adhesive from another, mesh from a third, render from a fourth. The boards may be physically compatible but the BBA certification and the manufacturer warranty cover only the system as tested. Mix and match and the warranty falls away. Lenders and insurers care about this.

Using metal-headed fixings without the dowel cap. Bare metal fixing heads create cold spots visible through the render and conduct heat through the board, undermining the thermal performance. Plastic dowel caps are a mandatory part of the system, not an optional finish.

Skipping the rasping step. The render basecoat applied to unrasped graphite EPS will not bond reliably. The boards must be rasped to remove surface oils and key the foam for adhesion. This is a 15-minute-per-square-metre job that prevents a several-thousand-pound delamination repair.

Over-specifying the density grade for floor use. EPS70 graphite handles all standard domestic floor loads. Upgrading to EPS100 or EPS150 adds 30 to 50% to the board cost with no practical benefit on a house floor. Reserve EPS100 for situations where the structural engineer specifies it (heavy point loads, polished concrete, suspended floors).

Treating EWI as a DIY job. EPS boards are easy to handle, the cutting is forgiving, and the adhesive is straightforward. The render system is not. Window reveals, abutments, drip details, expansion joints, and the basecoat application all require trade experience. PAS 2030 accreditation exists because EWI failures are common when installation quality drops. For a domestic extension, hire a PAS 2030 accredited installer and ask for system warranty paperwork in writing before work starts.
