Cavity Wall Insulation Batts: Partial Fill, Full Fill, and the Mistake That Costs Thousands

Your builder specs "75mm cavity batts in a 100mm cavity" and you assume that's fine. It was fine, until June 2022. Under the current Approved Document L, that construction achieves a U-value of roughly 0.27 W/m2K. The target for extension walls is now 0.18. Your walls won't pass building control. You're looking at ripping out the outer leaf, upgrading to a wider cavity, and rebuilding. The insulation itself costs a few hundred pounds. The mistake costs thousands.

What it is and what it's for

Cavity wall insulation batts are semi-rigid slabs of mineral wool (glass fibre or stone wool) sized to fit between standard wall tie spacings in a masonry cavity wall. The standard batt is 1200mm tall and 455mm wide, designed to friction-fit between wall ties set at 600mm horizontal centres and 450mm vertical centres. Each batt covers 0.546 m2 of wall area.

A cavity wall has two leaves of masonry (inner block, outer brick) with a gap between them. That gap is the cavity. Its original purpose was to stop rain getting through to the inside of the building. Insulation batts sit in this cavity to reduce heat loss through the wall.

There are two ways to insulate a cavity:

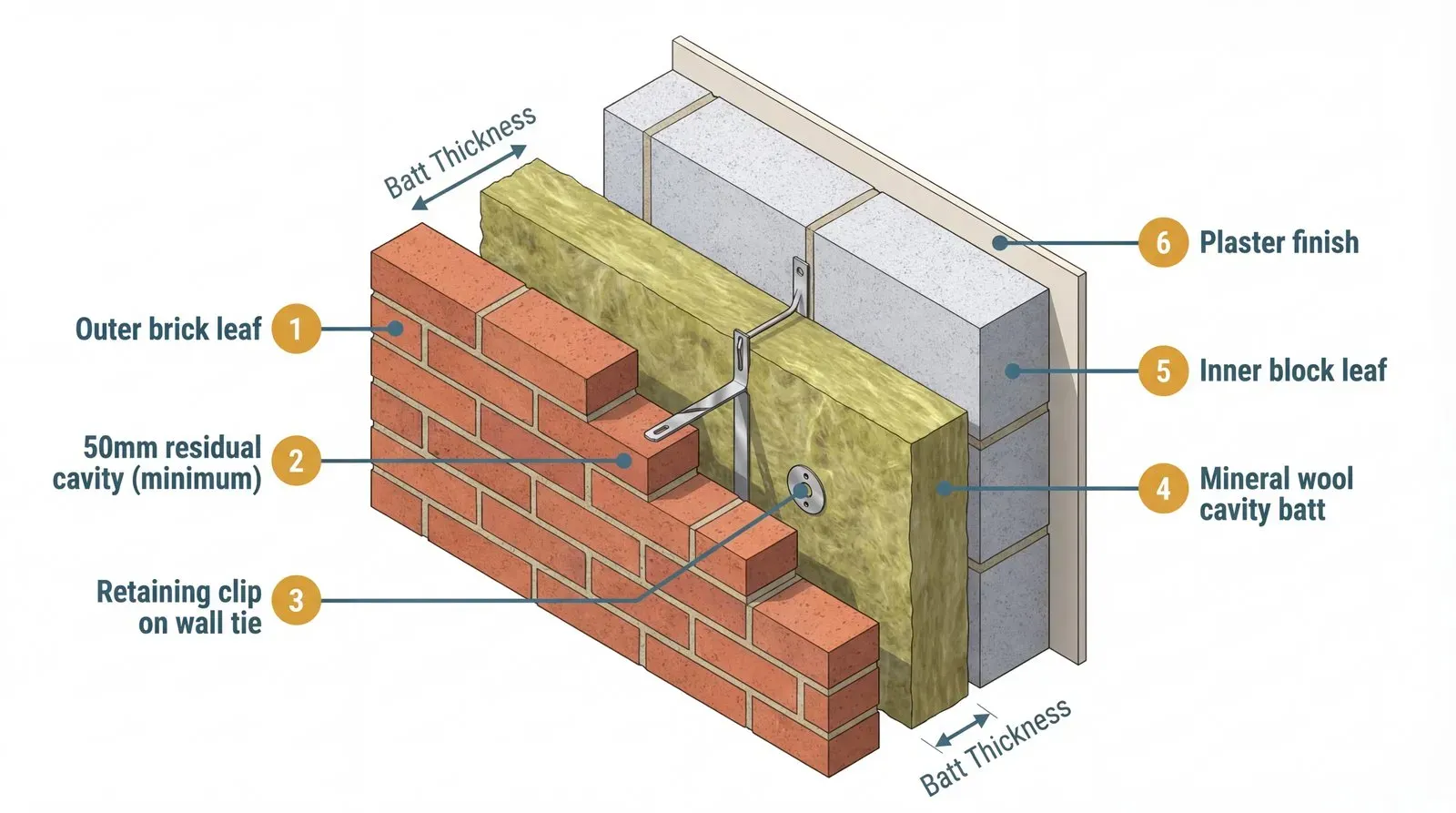

Partial fill leaves a clear air gap (the residual cavity) between the insulation and the outer leaf. The insulation is fixed against the inner leaf with retaining clips. NHBC requires a minimum 50mm residual cavity in most locations, rising to 75mm in Very Severe exposure zones (coastal western areas, high elevations). This is the standard approach for extensions.

Full fill packs the entire cavity with insulation. No air gap. The batts are cut to the full cavity width and friction-fitted. Full fill is simpler to install and slightly cheaper, but it removes the air gap that protects against moisture bridging. NHBC does not permit full fill with fair-faced masonry in Very Severe exposure zones.

For a new extension, your structural engineer or architect will have specified the approach. If the spec doesn't explicitly state partial or full fill, ask. The answer determines your cavity width, wall tie length, batt thickness, and whether you need retaining clips.

Types and specifications

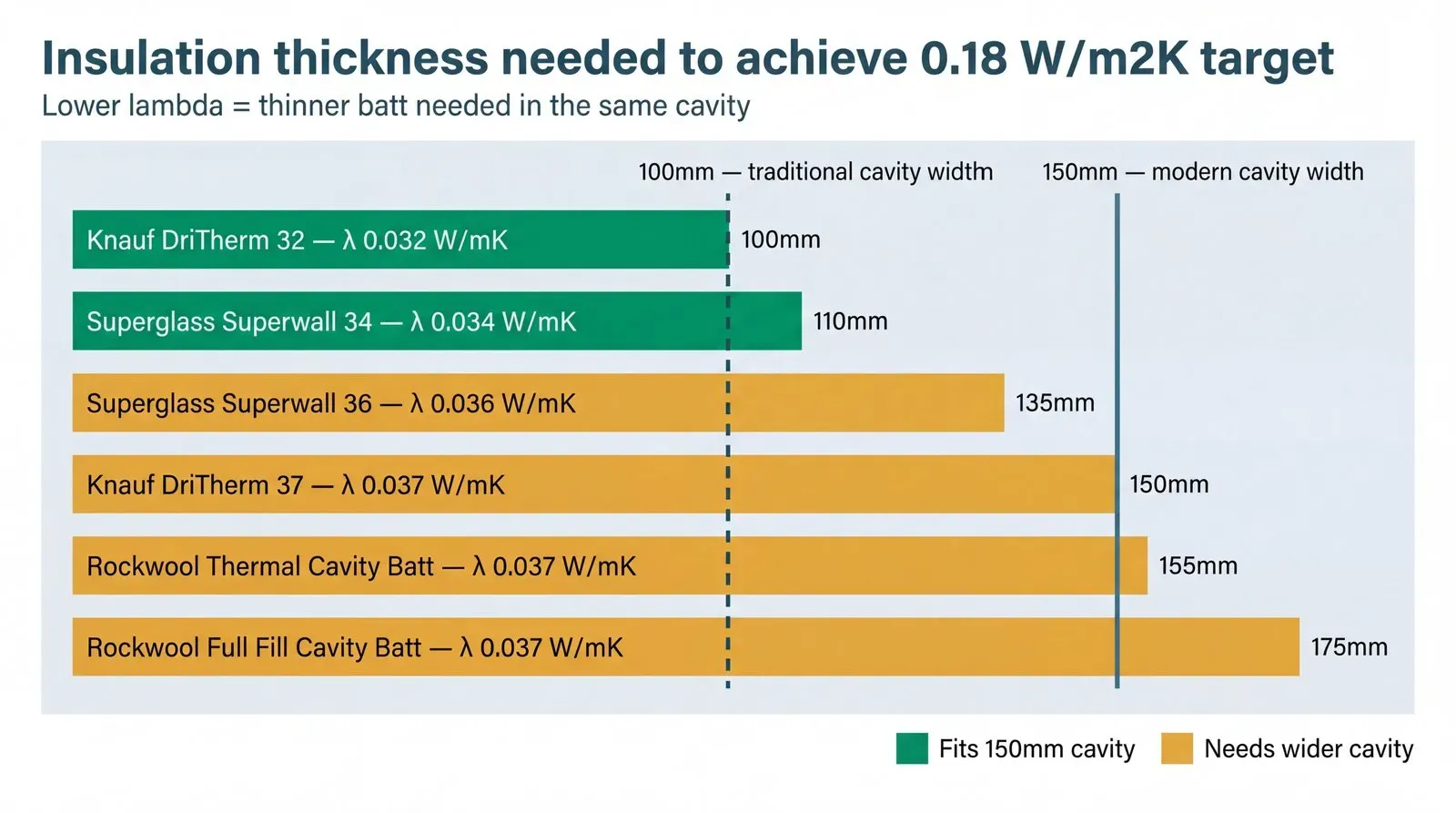

All cavity batts sold in the UK are non-combustible (Euroclass A1), water-repellent treated, and BBA certified. The differences that matter are the lambda value (thermal conductivity, measured in W/mK) and the price. Lower lambda means better insulation per millimetre of thickness.

That price spread is real. DriTherm 37 at 100mm costs roughly a third of Rockwool Full Fill. For a 30 m2 wall area, the difference is approximately £180 vs £500. Not trivial, but not the biggest cost in your build either.

Click to enlarge

Why lambda matters in practice

A DriTherm 37 batt at 100mm achieves a U-value of roughly 0.27 W/m2K in a standard block/brick wall. That fails the current 0.18 target. To hit 0.18 with DriTherm 37, you need approximately 150mm of insulation in a 200mm cavity. That changes your cavity width, your wall ties, your lintels, your sill details, and your foundation width. It cascades.

DriTherm 32, with its lower lambda, gets you to 0.18 with less thickness. Roughly 100mm of DriTherm 32 in a 150mm cavity (50mm residual) gets close but may not quite reach 0.18 without supplementary measures like insulated plasterboard on the inner face. Use a U-value calculator (Kingspan and Celotex both offer free online tools) to check your specific build-up. With 125mm of DriTherm 32 in a 175mm cavity, you may approach 0.18 depending on the full wall build-up. Run a U-value calculation for your specific construction.

The point: your cavity width and batt choice are interdependent. Your structural engineer specifies the wall construction, including cavity width and insulation specification. Don't change one without recalculating the other.

How to work with it

The critical rule: batts go in as the wall is built

This is not negotiable. Cavity wall insulation batts cannot be retrofitted after the wall is complete. They must be installed course by course as the bricklayer builds the wall up. The sequence is:

1. Build the inner block leaf up several courses
2. Clean mortar squeeze from the cavity face of the inner leaf
3. Position wall ties at 600mm horizontal centres (standard spacing)
4. Fit retaining clips onto the wall ties (partial fill only)
5. Push the batt against the inner leaf, secured by the clips. Each batt needs minimum three retention points.
6. Check the batt is tight against the inner leaf and butted against adjacent batts with no gaps
7. Build the outer brick leaf up to the same height
8. Repeat

If the outer leaf gets built too far ahead of the insulation (more than one or two courses), the bricklayer loses access to position the batts properly. And once both leaves are up with no insulation between them, your only option is injection fill (blown fibre or bead), which is a different specification entirely and may not achieve the required U-value.

Retaining clips

For partial fill installations, each batt must be held tight against the inner leaf. Retaining clips (also called insulation retaining discs) push onto the wall tie shaft and press against the face of the batt, preventing it from slumping or tilting into the cavity.

You need approximately 5 clips per m2 of wall, spaced at 600mm horizontal centres in both horizontal and vertical rows. Each batt must be held at a minimum of three points. Clips from Staifix, Timloc, or Ancon all do the same job. They cost pennies each. Skipping them is false economy: a batt that slumps 20mm into the cavity reduces your residual cavity below the 50mm minimum and creates an uneven insulation layer that building control will reject.

Cutting batts

Mineral wool batts cut easily with a long serrated bread knife or a purpose-made insulation knife. Mark the cut line, compress the batt slightly with a straightedge, and saw through. Cut 5mm oversize for a friction fit. Unlike PIR boards, mineral wool is forgiving: slightly oversize batts compress to fit, and there's no rigid edge that can crack or chip.

Wear gloves and a long-sleeved shirt. Mineral wool fibres cause skin irritation. A P2 dust mask is sensible for prolonged cutting, though the dust hazard is far lower than cutting concrete blocks.

The mortar dropping problem

This is the single biggest quality issue with cavity wall insulation, and it's entirely about workmanship, not product choice. When a bricklayer lays the outer leaf, mortar squeezes out on the cavity side. Those mortar droppings (sometimes called mortar snots) land on the top edge of the insulation batts, on wall ties, and on the cavity floor. If a dropping bridges from the outer leaf to the insulation, it creates a damp bridge. Rain hitting the outer leaf tracks along the mortar to the insulation, soaks it, and the damp reaches the inner leaf.

The cavity exists to stop this. But mortar droppings bypass the cavity.

Click to enlarge

The fix is a timber cavity batten: a length of timber (50mm x 25mm is typical) suspended in the air gap from the wall ties. As the bricklayer lays each course of the outer leaf, mortar droppings fall onto the batten instead of the insulation. After each course or two, the batten is lifted clear by pulling the wire or cord attached to it, the droppings fall to the cavity floor below, and the batten is repositioned.

The economic reality is uncomfortable. Bricklayers are typically paid per block or per thousand bricks, not per hour. Using a cavity batten and cleaning mortar from wall ties slows them down. In the words of one BuildHub forum member: "We still pay per block so effectively want the insulating job done for free. Brickies who make a good job of it lose money because they haven't been paid for their time."

If you're self-managing your extension, address this in the contract. Explicitly include cavity cleanliness as a quality standard, with the bricklayer's rate reflecting the time needed to do it properly. Don't rely on goodwill.

How much do you need

Each 1200 x 455mm batt covers 0.546 m2. A pack of 12 (for DriTherm 37 at 100mm) covers 6.55 m2. A pack of 6 (for DriTherm 32 at 100mm) covers 3.28 m2.

Worked example: a 4m x 6m single-storey rear extension

Three external walls need insulating (the fourth wall is the existing house). Two side walls at 4m long x 2.4m high = 19.2 m2. One rear wall at 6m long x 2.4m high = 14.4 m2. Total gross wall area = 33.6 m2.

Subtract window and door openings. Assume a pair of bifold doors (4.8 m2), one side window (1.2 m2), and one rear window (1.5 m2) = 7.5 m2 of openings. Net wall area = 26.1 m2.

Add 5% for cuts and waste = 27.4 m2.

Using DriTherm 37 at 100mm (6.55 m2 per pack): 27.4 / 6.55 = 4.2 packs. Order 5 packs.

At roughly £32 per pack (ex VAT), that's approximately £160 in materials. Add 140 retaining clips (5 per m2 x 27.4 m2 = 137, round up) at roughly 10-15p each = £15-20. Total insulation materials for the walls of a typical single-storey extension: under £200.

The insulation is never the expensive part of the wall. The brickwork labour, the blocks, the bricks, the mortar, the wall ties, and the scaffolding dwarf the insulation cost. But the insulation determines whether the wall passes building control.

Cost and where to buy

Cavity batts are available from all major UK builders' merchants (Jewson, Travis Perkins, Buildbase) and online insulation specialists (Trade Insulations, National Insulation Supplies, Insulation Superstore). Online specialists are typically cheaper per m2 than merchant walk-in prices, but delivery costs and minimum order values can offset the saving on small orders.

Prices vary by thickness. At 75mm, DriTherm 32 drops to roughly £8.60/m2. At 150mm, it rises to around £14.60/m2. DriTherm 37 at 50mm is the cheapest cavity batt available at roughly £3.50/m2, but 50mm achieves nothing useful in a modern extension wall.

For most extension projects, the bricklayer will order the cavity batts as part of the blockwork materials package. If you're ordering separately, confirm the exact thickness and lambda value with whoever did the U-value calculation. "DriTherm" is not a specification. "DriTherm 37, 100mm thick, partial fill with 50mm residual cavity" is a specification.

Alternatives

PIR boards (Celotex, Kingspan) achieve lower U-values in thinner cavities because PIR has a lambda of 0.022 W/mK versus 0.032-0.037 for mineral wool. A 50mm PIR board in a 100mm cavity with 50mm residual can achieve a competitive U-value. Check with the board manufacturer's calculator for your exact build-up. PIR costs more per m2 but the thinner cavity means shorter wall ties, narrower foundations, and standard lintel sizes, which can offset the insulation premium. The trade-off: PIR joints must be perfectly sealed with foil tape, and boards must be cut precisely. Mineral wool is more forgiving of imperfect installation.

Insulated plasterboard (Celotex PL4000, Kingspan Kooltherm K118) adds a layer of insulation to the inner face of the wall, supplementing whatever is in the cavity. This is one way to hit 0.18 W/m2K without widening the cavity. The downside: you lose 40-60mm of internal room width per insulated wall.

EPS (expanded polystyrene) beads are an injection-fill alternative that can be installed after the wall is built. They're blown into the cavity under pressure. EPS beads have a lambda of 0.032-0.038 W/mK, similar to mineral wool, but the quality of fill is harder to verify visually. Building control may be less comfortable signing off injection fill than visible batt installation.

Full fill mineral wool (Rockwool Full Fill, Knauf DriTherm Full Fill) fills the entire cavity with no air gap. Simpler installation (no retaining clips needed), and the batts are more tolerant of slightly uneven cavities. But full fill removes the moisture management function of the air gap. NHBC does not permit full fill with fair-faced masonry in Very Severe exposure zones. If your extension is in western coastal England, western Wales, or Scottish highland areas, partial fill with a 75mm residual cavity is the safe choice.

Where you'll need this

• Walls and Blockwork - installed by the bricklayer as the cavity wall is built up, course by course
• Insulation - cavity wall batts form part of the overall insulation specification alongside floor and roof insulation

These materials appear during the structure phase of any extension or renovation project involving new external walls. Building control will inspect the cavity insulation at a hold point before the wall reaches full height.

Common mistakes

Specifying pre-2022 constructions. The most widespread problem. Builders, architects, and even some structural engineers are still specifying 75mm mineral wool batts in 100mm cavities. That achieves roughly 0.27 W/m2K. The target since June 2022 is 0.18. If your specification doesn't include a U-value calculation showing compliance, send it back.

Ignoring the mortar dropping issue. Product choice is secondary to workmanship. A perfectly specified DriTherm 32 installation that's bridged by mortar droppings will let damp through and perform worse than a budget DriTherm 37 installation in a clean cavity. Insist on cavity batten use and include it as a contractual requirement.

Mixing partial fill and full fill on the same wall. Partial fill batts are thinner than the cavity (leaving the air gap). Full fill batts match the full cavity width. They're different products with different specifications. Using a full fill batt in a partial fill design eliminates the residual cavity. Using a partial fill batt in a full fill design leaves gaps where there shouldn't be any.

Not using retaining clips. Every partial fill batt must be held against the inner leaf at a minimum of three points. Without clips, batts slump into the cavity over time, reducing the residual air gap below 50mm and creating an uneven insulation layer. Five clips per m2, 600mm horizontal spacing. They cost pennies. Use them.

Leaving gaps between batts. Cavity batts must be butted tight with no visible daylight through the joints. A 10mm gap between two batts creates a cold bridge (a path where heat bypasses the insulation). Cut batts 5mm oversize and push them together. The slight compression ensures a tight joint. The bricklayer doing this properly adds minutes to the job. The bricklayer skipping it creates a thermal bypass that lasts the life of the building.

Assuming the builder knows the current spec. Community forums are full of examples where builders have specified constructions that met the old 0.28 W/m2K target but not the current 0.18. If you're self-managing, verify the U-value calculation independently. The free U-value calculators from Celotex and Kingspan take five minutes and could save you from a failed building control inspection.
