Radiators: Types, Sizing for Part L 2021, Installation, and UK Prices

The builder fits your extension radiators based on the old "100 watts per square metre" rule and sends you the final invoice. The system is commissioned, the screed goes down over the pipework, and the plaster is finished. The first cold snap arrives and the kitchen never gets above 17°C. The boiler runs flat out all day. The problem: every radiator in the extension was sized for a 70°C flow temperature system, but Part L 2021 limits new systems to 55°C flow. At that flow temperature, your rated output roughly halves. Fixing it means ripping up screed, replacing every rad with a bigger one, and redecorating. Budget a four-figure bill for the remediation of a "cheap" heating install.

What a radiator is and what it's for

A radiator is the primary heat emitter in a UK wet central heating system. It takes hot water from the boiler flow pipe, transfers that heat into the room air (partly through radiation from the panel surface, mostly through convection as air rises through internal fins), and returns the cooled water to the boiler through the return pipe. Every room in an extension or a new-build heated extension gets at least one, sized to meet the calculated heat loss of that room at the system's design flow temperature.

Three things govern whether a radiator works properly: the correct type for the space (panel depth, output, aesthetic), the correct output rating for the heat loss of the room at the system flow temperature, and the correct connection to valves, pipework, and the wall itself. Get any of the three wrong and you either end up with a cold room, a boiler that short-cycles, or a radiator that falls off the wall.

The standard every UK radiator is rated against is BS EN 442, the European standard for heat emitters. Since 2013, BS EN 442 requires output figures to be quoted at Delta T 50 (ΔT50), where Delta T means the temperature difference between the average radiator water temperature and the room air temperature. A ΔT50 output figure assumes 75°C flow / 65°C return / 20°C room, which was typical for older gas systems. Part L 2021 changed that baseline. More on that below.

Two regulations govern what you can install in a new system or extension:

• Part L 2021 (England) requires new wet central heating systems in new builds and extensions to be designed for a maximum flow temperature of 55°C. That makes the system ΔT roughly 30 (55°C flow, 45°C return, 20°C room). A radiator rated 2,000W at ΔT50 delivers only about 1,020W at ΔT30. You need substantially larger radiators to hit the same heat output.
• Boiler Plus 2018 requires thermostatic radiator valves (TRVs) on every radiator except the one in the room containing the main room thermostat. Fitting a TRV in the thermostat room creates a conflict between the two controls.

Understanding the ΔT correction is the single most important thing on this page. Nothing else about radiator selection matters if the output rating is wrong for your system flow temperature.

Types, sizes, and specifications

UK panel radiators follow the EN 442 type classification, though the trade mostly uses the British "K" codes:

A single panel (K1) and a double panel (K2) of the same height and width look almost identical from the front when fitted. Run your hand down the side of the rad and you'll feel whether it's 65mm or 100mm deep. That depth difference is a near doubling of heat output from the same wall area.

Panel radiator BTU outputs at ΔT50

These Screwfix Flomasta K2 figures are a useful reference for sizing sanity-checks. All outputs quoted at the EN 442 standard ΔT50 (75/65/20):

Size (H x W)	BTU at ΔT50	Watts at ΔT50
600 x 600mm	3,499	1,026
600 x 800mm	4,666	1,367
600 x 1000mm	5,832	1,709
600 x 1200mm	6,998	2,051
600 x 1800mm	10,498	3,077

Columns and designer rads publish their own output figures. Don't mix and match: verify each model's rating at ΔT50 before comparing.

The Delta T correction (why this section matters more than any other)

The EN 442 ΔT50 rating is a test-bench figure. Your real-world output depends on your actual flow temperature. For a modern Part L 2021 system running at 55°C flow / 45°C return into a 20°C room, the system is running at ΔT30, not ΔT50. Apply these correction factors to the ΔT50 rated output:

Your system ΔT	Correction factor	What it means
ΔT60	1.27	Legacy high-temp system (80°C flow). Older-spec figure, inflated by roughly 27% vs the current EN 442 standard
ΔT50	1.00	EN 442 standard. Gas combi running at 75°C flow
ΔT40	0.75	Moderate efficiency tune
ΔT30	0.51	Part L 2021 compliant gas system at 55°C flow
ΔT25	0.41	Air source heat pump (high-temperature models)
ΔT20	0.30	Air source heat pump (low-temperature models)

The practical rule for a Part L-compliant extension: take the BTU rating on the box and multiply by 0.51. A 5,832 BTU K2 at ΔT50 delivers about 2,975 BTU at ΔT30. If your room needs 5,000 BTU of heat at ΔT30, the ΔT50 specification on the spec sheet needs to be closer to 10,000 BTU.

Materials: steel, aluminium, cast iron

Standard panel rads are mild steel with welded convection fins. Cheap, responsive enough, and available everywhere. This is what most UK heating systems run on.

Aluminium designer rads are roughly five times more thermally conductive than steel. They heat up fast and cool fast. For a TRV-controlled intermittent heating schedule in a well-insulated extension, aluminium gets the room to temperature quicker when the heating kicks in, then stops radiating quickly when it cuts out. Expect to pay 2-3 times the price of equivalent-output steel.

Cast iron column rads hold heat for a long time after the system cuts out. In a legacy high-temp system with continuous heating, this was an advantage. In a modern TRV-controlled low-temperature system, it's a drawback: the room continues to heat after the thermostat has satisfied. Cast iron also holds a large water volume and needs a high flow rate. Not suited to modern combi boiler systems without careful design. Suited to period properties running conventional boilers with gravity-fed hot water.

How to work with them

This is the section most guides skip. A radiator is not just a box you hang on a wall. It's part of a hydraulic system where pipe sizing, flow distribution, valve orientation, and commissioning all have to work together. If your plumber fits 12 rads correctly but skips the balancing step, five of them will be lukewarm and two will be scalding.

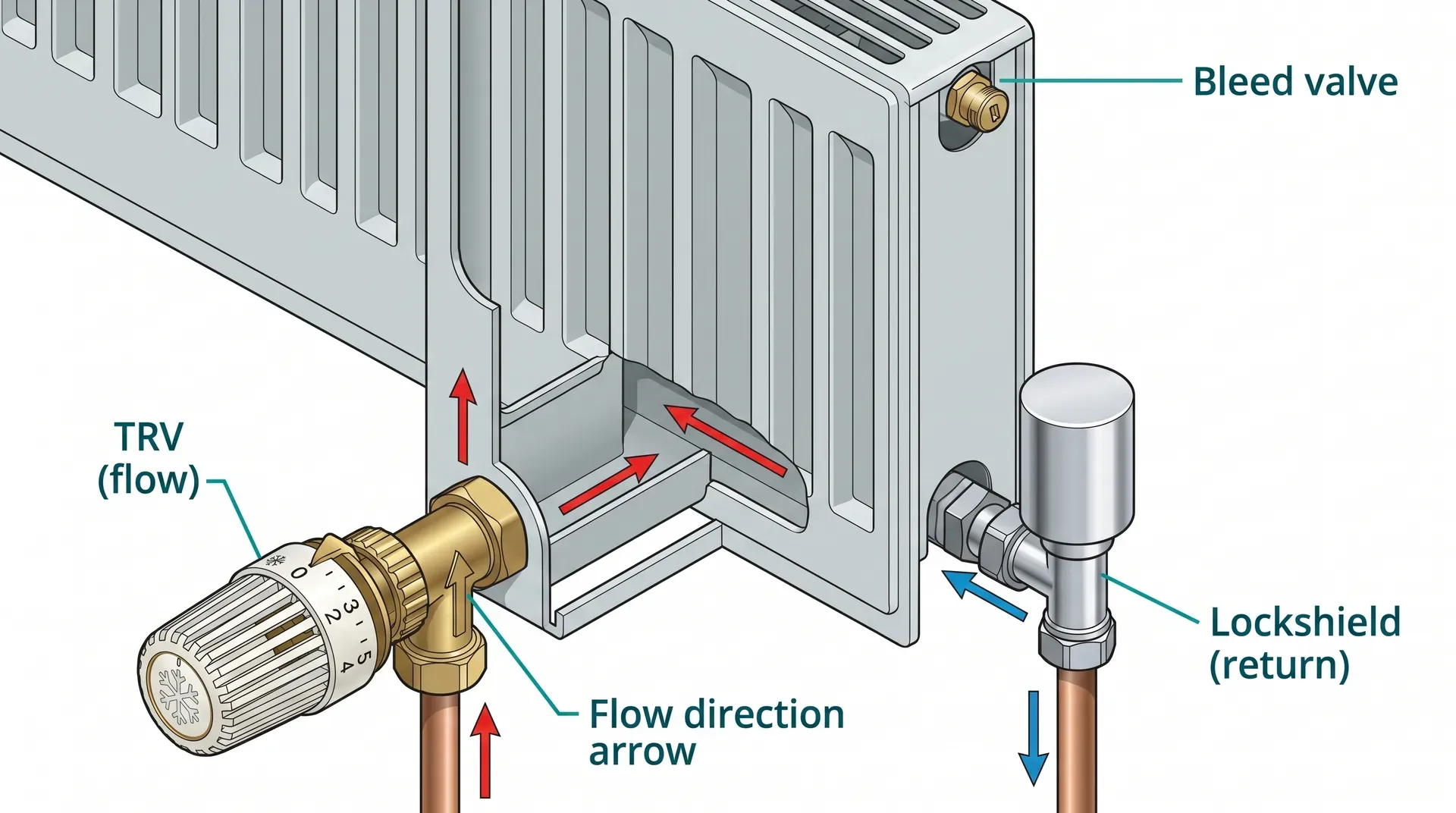

Connections and valves

Every radiator has four tapped connections at the four corners. Two get valve tails fitted (the valves go on the bottom corners in most domestic installations), one gets a bleed valve, and the fourth gets a blanking plug.

• The flow pipe from the boiler connects to the TRV (thermostatic radiator valve). The TRV sits on one bottom corner and controls the hot water entering the rad. You set it with a dial (usually 0-5 or snowflake to 5).
• The return pipe to the boiler connects to the lockshield valve on the other bottom corner. It's called a lockshield because it has a plain shroud over the adjustment (you need to pull the shroud off to turn it, usually with a spanner on a square spindle). Its job is static flow restriction: it's set once during balancing and then left alone.
• The bleed valve sits at the top corner, opposite whichever bottom corner has the flow entry. You open it with a square bleed key to release trapped air.
• Valve tails are usually 1/2" BSP threaded, with 15mm compression fittings connecting to the copper pipework. Use 5-10 turns of PTFE tape on every male thread before fitting.

The TRV body has a flow direction arrow moulded into it. The arrow must point into the radiator. Fit the TRV backwards and it will restrict return flow rather than inlet flow, the rad will run hotter than set, and the valve will overheat and seize within a couple of seasons. This is one of the most common beginner installation mistakes on DIY forums.

Standard UK pipe centres for a panel radiator are the radiator width minus 50mm. A 1000mm-wide rad sits on pipe centres at 950mm. Most standard panel rads use bottom horizontal connections with 50mm between the flow and return tails.

Click to enlarge

Pipe sizing (the column radiator problem)

A standard K2 panel rad holds around 5-6 litres of water. A column radiator or a tall designer rad can hold 15-20 litres or more, and the internal flow path has far more resistance. Two consequences:

1. Column rads need 22mm primary pipework minimum. Feeding a column rad off a 15mm branch, let alone microbore 8mm, won't deliver enough flow. The rad runs cold or lukewarm no matter how hot the flow temperature. When adding column rads to a new extension, tap into 22mm or 28mm primary pipework, not a 15mm branch that's already feeding two other rads.
2. System water volume can exceed combi boiler capacity. Check your boiler's installation manual: built-in expansion vessel capacity varies by model (typically 80-155 litres of total system water). Replacing five standard K2s (25-30 litres combined) with five column rads (75-100 litres combined) can push the total system volume above the expansion vessel limit, causing pressure fluctuations and premature pressure relief valve discharge. Check the total water volume against the boiler manufacturer's rating before specifying columns.

Connection penalty for bottom entry both sides

Most modern rads are fitted with both valves on the bottom, one each side. This looks tidy but carries a hidden output penalty: roughly 10% off the rated BTU figure. The flow has to travel down one side of the rad, across the bottom, and out the other side without benefiting from natural convection drawing water up through the whole panel. For top-and-bottom opposite-end (TBOE) connection, rated output is achieved. For bottom-bottom same-side (BBOE) connection, deduct 10%. Factor this into sizing before ordering.

Hanging a standard panel radiator

Panel rads up to about 40kg filled weight hang off two or three brackets supplied with the rad. The brackets are wall-fixed with M8 or M10 plugs and screws, then the rad lifts onto hooks on the brackets.

For solid masonry walls: 8mm hammer-in plugs with 60mm number 10 or 12 steel screws are standard. Drill with a hammer drill on masonry setting, or an SDS drill on rotary-hammer mode for dense block or engineering brick.

For stud walls: you need at least one bracket per fixing to hit a stud. Use the electronic stud detector before marking holes. If you can only hit one stud, use heavy-duty cavity fixings (Gripit or toggle bolts) for the other. Bare plasterboard without structural support behind will not hold a filled K2 without cavity fixings rated for the load.

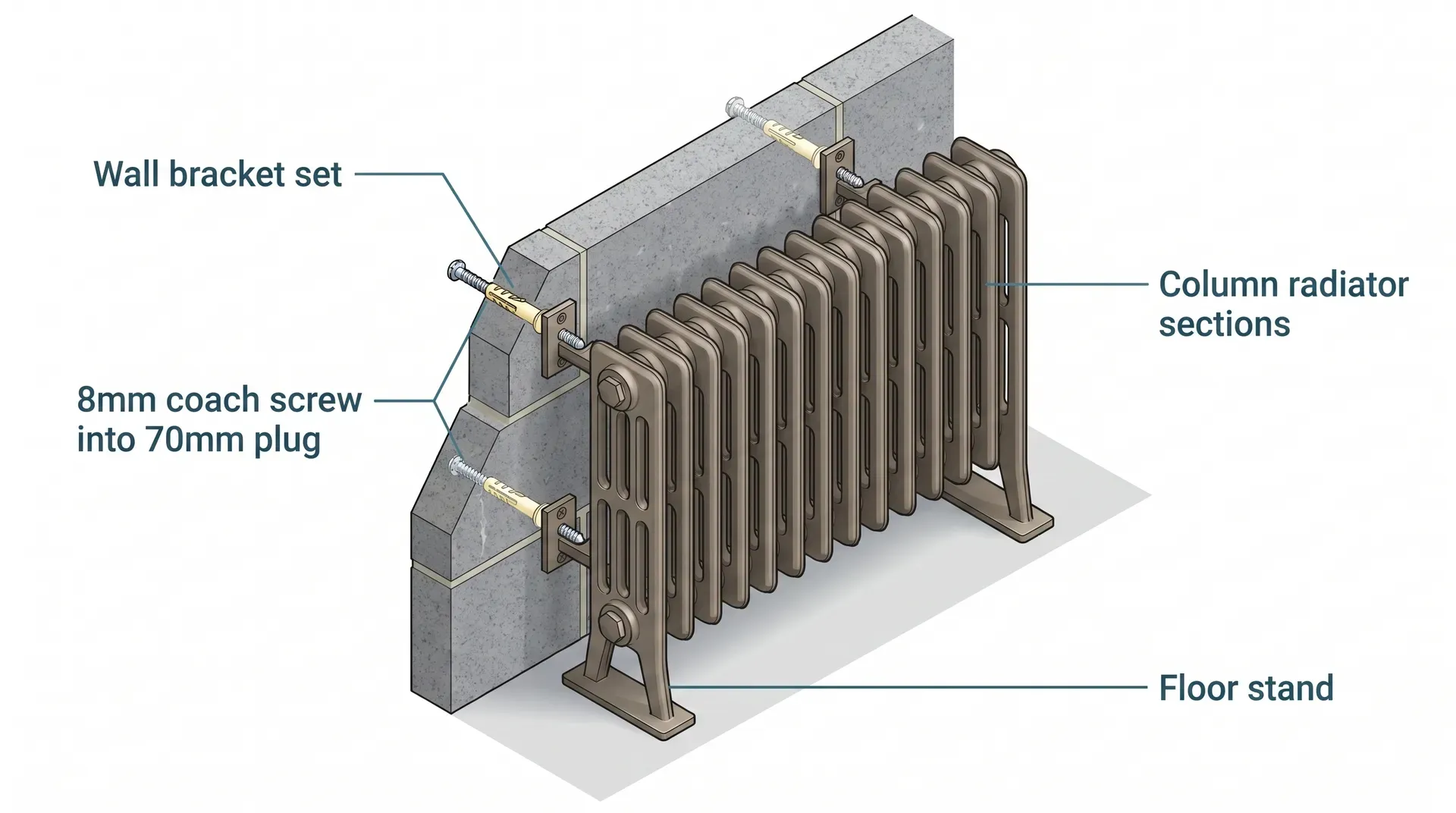

Hanging a heavy column radiator

Column rads regularly exceed 60kg filled. Wall-only hanging becomes marginal and sometimes unsafe. Treat anything over 60kg filled as a specification problem:

• 23-40 column sections: minimum 3 wall bracket sets.
• 41+ column sections: minimum 4 wall bracket sets, plus floor stands as load support.
• Stud walls: column rads over ~40kg should not be hung from stud walls without structural noggins added behind the plasterboard between the studs. Better still, hang them on solid masonry or use floor-mounted feet.
• Preferred fixings into solid masonry: 8mm coach screws with 70mm plugs. You'll need an SDS drill with an 8mm masonry bit to drill the deep, clean holes these plugs require. A standard combi drill will struggle in dense blockwork or engineering brick.
• Always use a level and templates supplied with the rad. A column rad hung 1° off level looks dramatically wrong because the columns are tall and repeating.

Click to enlarge

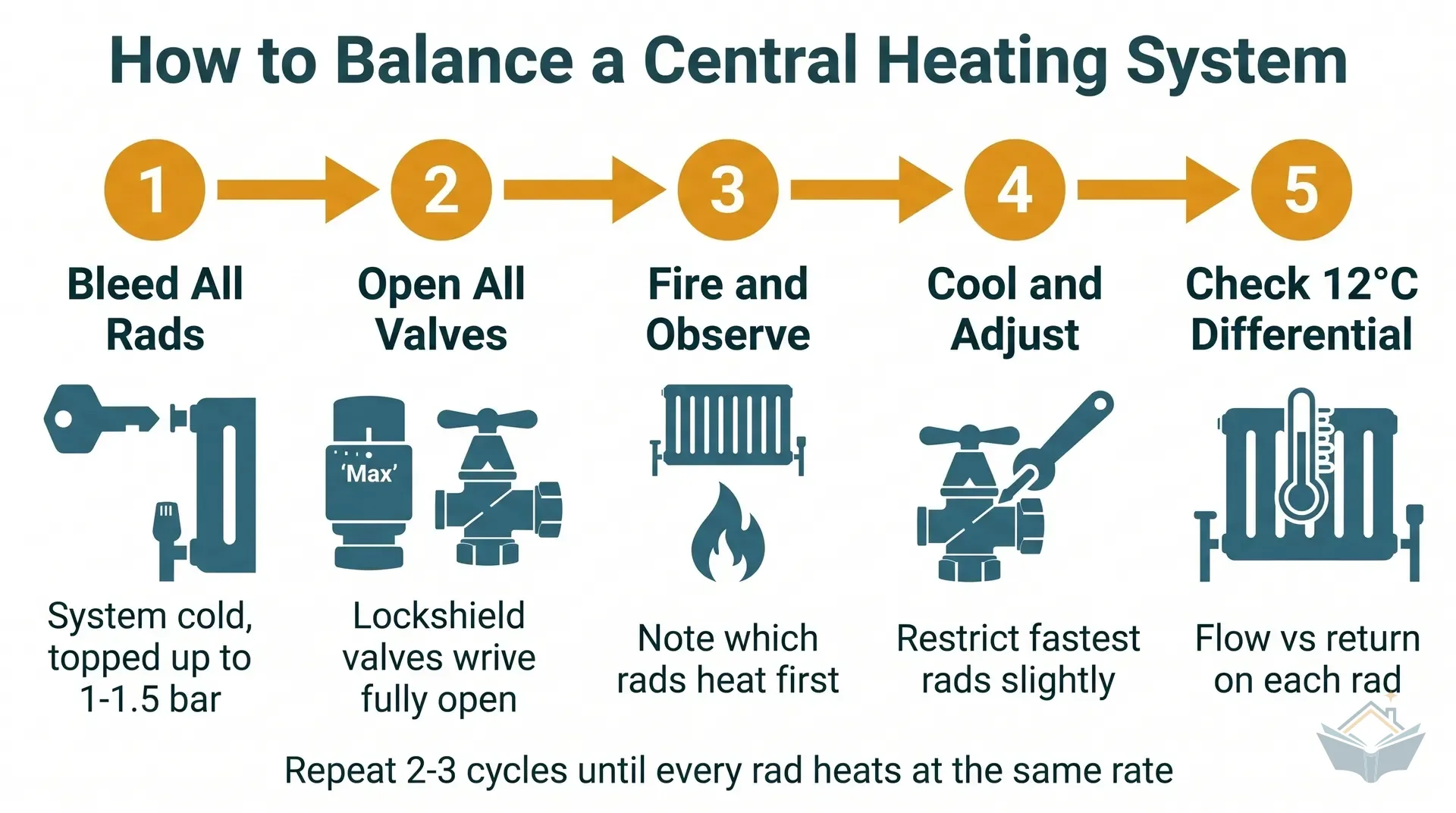

Balancing the system

Balancing is the commissioning step that distributes flow correctly across all radiators. It's skipped on most DIY heating installs and on a surprising number of trade installs. Without balancing, the radiators nearest the boiler hog the flow, heating up fast and running hot. The radiators furthest from the boiler (usually upstairs, or at the end of the extension run) get starved of flow and stay lukewarm.

You need two tools: a standard bleed key and a clip-on digital contact thermometer (Fluke 51, Lascar EL-USB-TC-LCD, or a cheap eBay equivalent). Don't use an infrared thermometer, because surface emissivity varies too much on painted pipe and gives unreliable readings. Don't feel the pipes with your hand either: human touch can't reliably distinguish the 12°C differential you're aiming for.

The procedure:

1. Bleed every radiator with the system off and cold. Any air in the system mimics imbalance. Top up the system pressure afterwards if you have a combi (typical cold pressure 1.0-1.5 bar).
2. Fully open every lockshield valve (turn anticlockwise until it stops). Fully open every TRV (max setting, usually 5 or "open").
3. Fire the system from cold and note the order in which radiators start to heat up. The closest-to-boiler rads heat first.
4. Turn the system off and let it cool completely back to ambient.
5. Starting with the fastest-heating radiator, close its lockshield by a quarter turn. Move to the next-fastest and close its lockshield slightly less. Leave the slowest (furthest) radiator's lockshield fully open.
6. Fire the system from cold again. With the thermometer clipped onto the flow pipe at the TRV side and then the return pipe at the lockshield side, read the temperature difference when the rad is fully warmed up. You're aiming for approximately 12°C flow-return differential at every radiator.
7. Fine-tune each lockshield, closing it more to increase the differential (meaning less flow through that rad) or opening it more to decrease the differential (meaning more flow).

Expect this to take two to three cycles to get right. A properly balanced system has every radiator reaching its set temperature at a similar rate, with the boiler running at a steady modulation rather than cycling on and off.

How much do you need

Radiator sizing is a room-by-room heat loss calculation, not a guess. The correct method is:

1. Calculate the heat loss of each room in watts, accounting for ceiling height, external wall area, glazing area, insulation U-values, and whether adjacent rooms are heated or unheated.
2. Convert watts to BTU (watts x 3.412).
3. Apply the ΔT correction factor for your system flow temperature.
4. Specify radiators that total the corrected BTU for each room.

The rough rules of thumb (for quick sanity checks, not as a substitute for a proper calc):

• Well-insulated new extension (PIR walls, modern double glazing, low air leakage): approximately 100W per m² floor area.
• Poorly insulated older property (solid brick walls, single glazing, uncontrolled ventilation): up to 150W per m² floor area.
• Add 20% uplift for intermittent heating schedules. A room that's off overnight needs more rapid warm-up capacity than a continuously heated room.

A 20m² kitchen extension with 100W/m² heat loss needs 2,000W of corrected output. At ΔT30, that means 2,000 / 0.51 = approximately 3,922W of ΔT50-rated output. Three 600 x 800mm K2 rads (1,367W each at ΔT50) give 4,101W. Two are undersized, three just fit. Round up on sizing, never down.

Heat pump insurance margin: if there's any chance you'll retrofit an air source heat pump within the next 15 years, size the radiators for ΔT25 instead of ΔT30. This adds about 20-30% to the rated output requirement but makes future fuel-switching drop-in rather than requiring another radiator replacement programme.

Cost and where to buy

Radiator pricing splits cleanly into three tiers. Standard panel rads from merchants and trade suppliers are commodity products with thin margins: a Flomasta from Screwfix, a Wickes own-brand K2, and a Mapei K2 from Travis Perkins all perform equivalently at ΔT50. Designer and column rads are a style choice with a very different price curve.

Valves add to the cost and are not usually included with the radiator:

• TRV + lockshield pair (standard angled): budget through mid-market at trade pricing. TRVs from Drayton, Pegler Terrier, Honeywell, and Danfoss are all reliable at the mid-market price point.
• Chrome TRV + lockshield pair: a material uplift over standard finishes for visible designer installations.
• Bleed valve + blanking plug: usually supplied with the radiator.

Where to buy

Screwfix and Toolstation are the fastest route for standard K1 and K2 panel rads. Click-and-collect same day, strong stock on common sizes. Expect Flomasta own-brand pricing as listed above.

Wickes and B&Q cover the DIY-retail market with own-brand ranges at similar pricing to Screwfix. Home delivery is usually available for larger rads that won't fit in a car.

Travis Perkins and Jewson stock Stelrad, Myson, and Mapei K2 rads for plumbers and builders. Trade pricing with a plumber's account typically beats DIY retail by 10-20%, especially on multi-rad orders.

Victorian Plumbing and Trade Radiators are the two biggest online specialists for designer, column, and vertical rads. Trade Radiators' K2 range spans mid through premium tiers and is the supplier most heating engineers specify when the customer wants a non-standard look. Victorian Plumbing has a broader lifestyle range with column rads and towel rails at competitive retail tiers.

Delivery: standard K2 rads are bulky but not especially heavy (15-25kg empty). Column and cast iron rads can hit 60-100kg empty per rad and arrive pallet-delivered. Factor in pallet delivery fees and access requirements if you're ordering large column rads to a site without a forklift.

Alternatives

Underfloor heating is the obvious alternative to radiators in an extension, particularly where a concrete screed is already being poured over a slab. UFH runs at 35-45°C flow temperature, which pairs naturally with Part L 2021 and with future heat pumps. The trade-off: slower response time (hours to warm up, hours to cool down), higher upfront install cost, and you can't easily reconfigure it later. UFH makes sense for kitchens and open-plan spaces with solid floors. Radiators remain the default for bedrooms and first-floor rooms where UFH would require a pumped screed or specialist low-profile system.

Fan-assisted "trench" convectors (recessed into the floor by windows) and hydronic towel rails with supplementary electric elements are niche alternatives for specific applications (floor-to-ceiling glazing where no wall space exists for a radiator, or bathrooms where you want towel drying when the central heating is off). Neither is mainstream and both cost noticeably more than an equivalent-output panel rad.

Electric radiators are the alternative for rooms with no wet heating connection. They're more expensive to run (electricity is roughly 4x the per-kWh cost of gas as of 2026) but cheaper to install if the room has no existing pipework and running new pipe would require ripping up a finished floor. Only an option in isolated rooms, not as a primary heating strategy for a new extension.

Where you'll need this

• Second-fix plumbing - hanging radiators, fitting TRVs and lockshields, bleeding and balancing the system
• Plumbing layout planning - confirming radiator positions and heat outputs before first-fix pipework goes into the walls and floor

These sizing and selection decisions apply to any extension or renovation project with wet central heating, not just kitchen work. The same rules govern radiator specification for loft conversions, garage conversions, and garden rooms with plumbed-in heating.

Common beginner mistakes

Sizing on floor area alone. Floor area misses ceiling height, glazing area, insulation specification, and external wall exposure. A south-facing sun room and a north-facing utility of the same floor area need radically different radiator outputs. Use a proper BTU calculator that factors all variables, or ask your plumber or heating engineer to do a heat loss calc per room before ordering.

Buying based on ΔT60 outputs from older product sheets. Some online retailers still quote the pre-2013 ΔT60 standard, which inflates figures by about 27% versus the current EN 442 ΔT50 standard. Worse, applying the ΔT30 correction to an already-inflated ΔT60 figure can leave you more than 40% undersized. Always verify the testing standard on the spec sheet.

Not re-balancing after adding a rad. Adding a new radiator to an existing system redistributes flow across every rad in the house. Without re-balancing, one or more of the existing rads will start running cold. See the balancing section above: the whole system needs rebalancing, not just the new zone.

Fitting designer column rads without checking pipework and expansion vessel capacity. A column rad holds three to four times the water of a K2 panel. Several column rads can push total system water volume above the combi boiler's expansion vessel limit, causing pressure fluctuations, premature PRV discharge, and eventually a boiler warranty claim refused on the grounds of system capacity mismatch. Always sum total system volume before specifying columns.

Fitting the TRV on the return pipe instead of the flow pipe. The TRV body has a flow direction arrow. The arrow points into the radiator. Fitting it backwards causes the valve to restrict return flow (radiator runs hot above the set point) and eventually seize. Check the arrow before tightening compression fittings.

Skipping bleeding before balancing. Air in the system mimics imbalance. Always bleed every radiator from the furthest back to the closest before attempting to balance. Top up system pressure after bleeding.

Hanging a heavy column rad on bare plasterboard. A filled cast-iron column rad over 40kg will rip out of plasterboard cavity fixings within a year. Either add structural noggins between the studs behind the rad, use floor-mounted feet, or site the rad on solid masonry. SDS drill plus 8mm coach screws into 70mm plugs is the standard masonry spec.

No magnetic system filter. Not legally required, but strongly recommended and demanded by most boiler manufacturer warranties. A magnetic filter (Adey MagnaClean, Fernox TF1) fits on the return pipework close to the boiler and catches the iron oxide sludge that every wet system generates. Fit one on any new or significantly altered system. Add inhibitor (Fernox F1, Sentinel X100) to the system water at the same time. Expect to pay a mid-range amount for a quality magnetic filter from Adey or Fernox, available at Screwfix and plumbing merchants.
