Condensing Boilers: Combi vs System, Sizing, and What to Buy in 2026

Get the boiler wrong and you'll spend the life of the extension fighting the heating. Oversize it and it short-cycles, never reaches condensing mode, and wears out a decade early. Install a combi in a house that needs two hot taps running at once, and the shower goes cold every time someone fills a kitchen sink. Forget to plan the condensate route at first fix, and your installer either drills through a brand new tiled wall or drapes a plastic pipe across an external wall that freezes solid in the first cold snap.

What it is and what it's for

A condensing boiler is a gas appliance that heats water for central heating and domestic hot water. The "condensing" bit means it recovers extra energy by cooling the flue gases below their dew point, which causes water vapour to condense out and release its latent heat into the system. That's what gets modern boilers above 92% efficiency, compared to the 60-70% typical of the cast-iron units they replaced.

All new gas boilers installed in the UK must be condensing. Non-condensing boilers have been effectively banned for new installations since 2005, with exemptions so narrow that almost no modern install qualifies. So when you're pricing a new or replacement boiler, you're pricing a condensing one by default. The question is which type, which size, and how it integrates with the rest of the plumbing scope.

The boiler is installed at second-fix plumbing, but the decisions that control its success happen at first fix. Position, flue route, gas pipe diameter, condensate drain path, and flue clearances all get set before the boiler arrives on site. If any of those are wrong, the boiler either can't be commissioned, can't be certified, or performs badly for the next fifteen years.

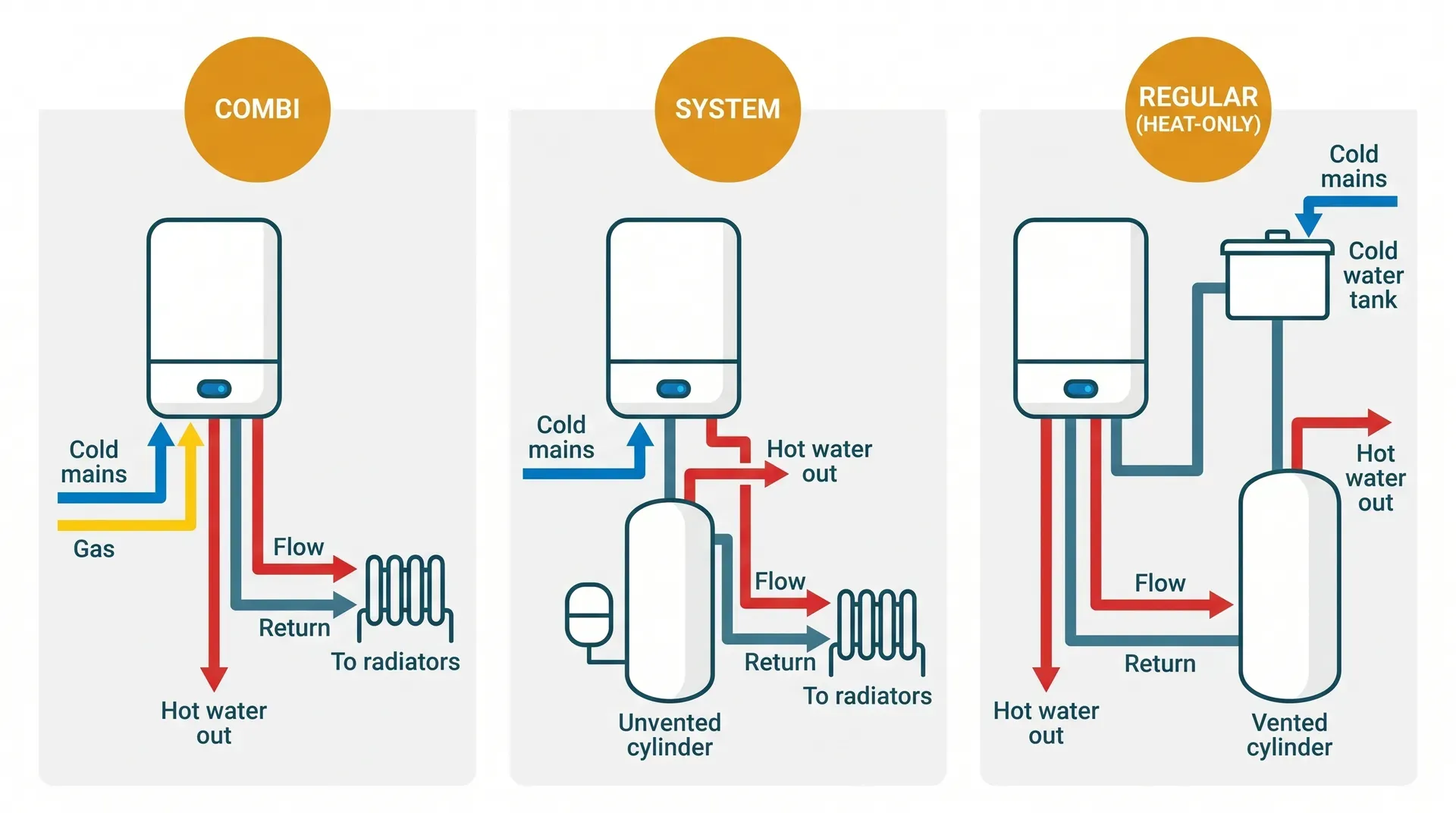

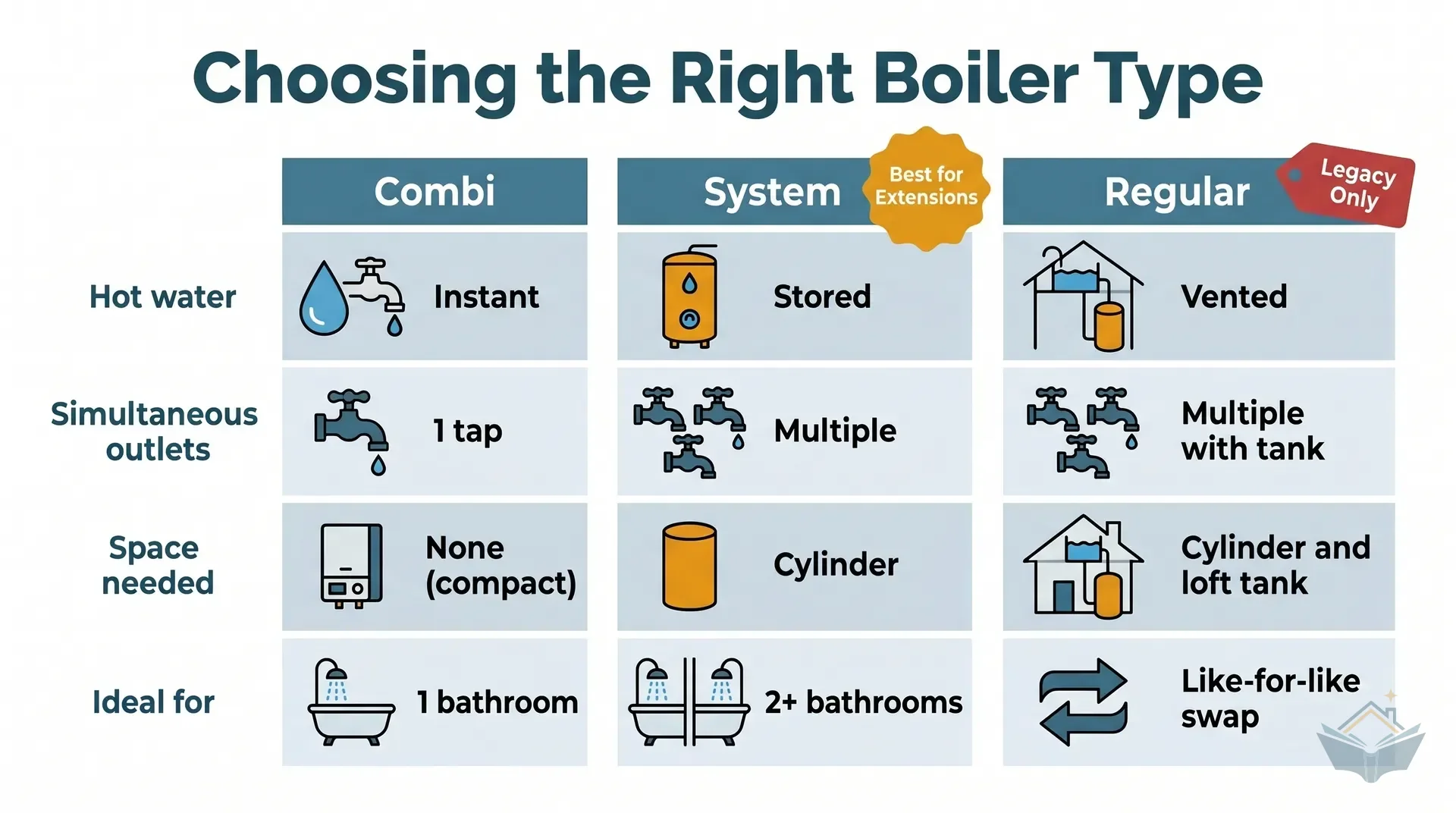

Types: combi, system, or regular

There are three types of condensing gas boiler. Picking the right one matters more than picking the right brand.

Combi (combination) boiler

Heats hot water on demand directly from the cold mains. No cylinder, no cold-water tank. You turn on a tap, the boiler fires, and hot water flows within a few seconds. Best for smaller homes with one bathroom where simultaneous hot water demand is rare.

The limitation is flow rate. A 30kW combi typically delivers around 12 litres per minute of hot water. Run two outlets at once and that flow rate halves. If your shower is running at 10 LPM and someone turns on the kitchen tap, the shower drops to 5 LPM and noticeably cools. This is the single most common regret with combi boilers. They work beautifully in a one-bathroom flat. They frustrate families in a two-bathroom house.

Combi boilers are the most common type in UK homes, because most UK housing stock is small enough to suit them and the kit is simpler and cheaper.

System boiler

Heats water stored in a separate unvented cylinder, usually in an airing cupboard. The cylinder holds 120-300 litres at mains pressure. Hot water is available at full flow from every outlet simultaneously, because you're drawing from a stored reservoir, not waiting for the boiler to heat cold mains water on demand.

System boilers suit homes with two or more bathrooms, large families, or anyone who routinely runs multiple hot outlets at once. The downsides: you need airing cupboard space for the cylinder, the installation is more expensive because of the cylinder and associated controls, and once you drain the cylinder you have to wait for it to reheat before hot water is available at full flow again.

System is the default for new-build homes with two or more bathrooms.

Regular (heat-only, conventional) boiler

Needs both a hot water cylinder AND a cold water feed tank in the loft. The feed tank gravity-feeds the cylinder, so the whole system operates at low pressure.

Regular boilers exist now almost entirely for like-for-like replacements in older gravity-fed systems. They're rarely the right choice for a new installation or an extension. If you're replacing a regular boiler in a period property and don't want to re-plumb the whole system, a new regular boiler keeps the cost down. For everything else, pick combi or system.

Click to enlarge

Key regulations you need to know

Four pieces of regulation shape what a boiler installation looks like in 2026. Your Gas Safe engineer will know them. You should too, so you can tell whether the quote and the install match the rules.

Part L 2021: the 55°C flow temperature rule

Since 15 June 2023, Approved Document L1B has required new or replacement wet heating systems to be designed for a maximum flow temperature of 55°C. Condensing boilers only condense (and reach their rated efficiency) when the return temperature drops below 54°C. Running them at the old 80°C flow temperature wastes most of the efficiency you paid for.

The 55°C rule applies to whole-system replacements (new boiler plus new radiators) and to new installations in extensions. A straight boiler-only swap on an existing system is not legally required to comply, but it's still advisable to set the flow temperature low because the boiler only hits its quoted efficiency in condensing mode.

Running at 55°C means radiators need to be larger than they used to be to deliver the same heat output. Your installer should do a room-by-room heat loss calculation and size radiators accordingly. If they don't, the rooms won't heat properly on the coldest days.

Boiler Plus 2018

Introduced in England in April 2018. Sets minimum controls requirements for every gas boiler installation:

• Minimum 92% ErP efficiency (A-rated). All compliant condensing boilers meet this.
• Time and temperature controls on every install. At minimum a programmer and room thermostat.
• Combi boilers only must additionally include ONE of: weather compensation (outdoor temperature sensor), load compensation (adjusts flow temp based on room demand), flue gas heat recovery (FGHR), or smart controls with automation. This combi-specific requirement catches a lot of installers out.
• System and regular boilers need a programmable room thermostat instead.

Weather compensation is the most elegant solution because it automatically drops flow temperature on milder days, which keeps the boiler in condensing mode more of the time. Smart controls (Hive, Nest, Tado) satisfy the requirement but add cost. FGHR devices are rarely specified now because smart controls are cheaper and more useful.

Gas Safe notification (30 days)

Gas work is statutory. Only a Gas Safe registered engineer can legally install a gas boiler. Within 30 days of the install, that engineer must self-certify the work by notifying Gas Safe Register, which in turn notifies the local authority. The engineer pays a small admin fee online (slightly higher by phone) to submit the notification.

You should receive a Building Regulations Compliance Certificate in the post 10-15 working days after the engineer notifies. Keep it. At house sale, your conveyancer will ask for every gas certificate. If the engineer never notified, you don't have a certificate, and the buyer's solicitor will flag it as an unregistered installation. Fixing this retrospectively is possible but expensive and slow.

Benchmark Commissioning Checklist

Every new boiler comes with a Benchmark Commissioning Checklist, issued by the Heating and Hotwater Industry Council. The installing engineer fills it in as part of commissioning, both of you sign it, and it lives in the back of the boiler manual for the life of the appliance.

Benchmark isn't optional paperwork. Every major manufacturer (Worcester, Vaillant, Ideal, Baxi, Viessmann) voids the warranty if the Benchmark isn't completed. It's also how Part L commissioning requirements are met. At house sale, buyers and surveyors ask for it. If you can't find yours, the warranty may already be dead.

Verify before the engineer leaves: the Benchmark is filled in, both parties have signed, and you have the original. A photo of the completed checklist as a backup is sensible.

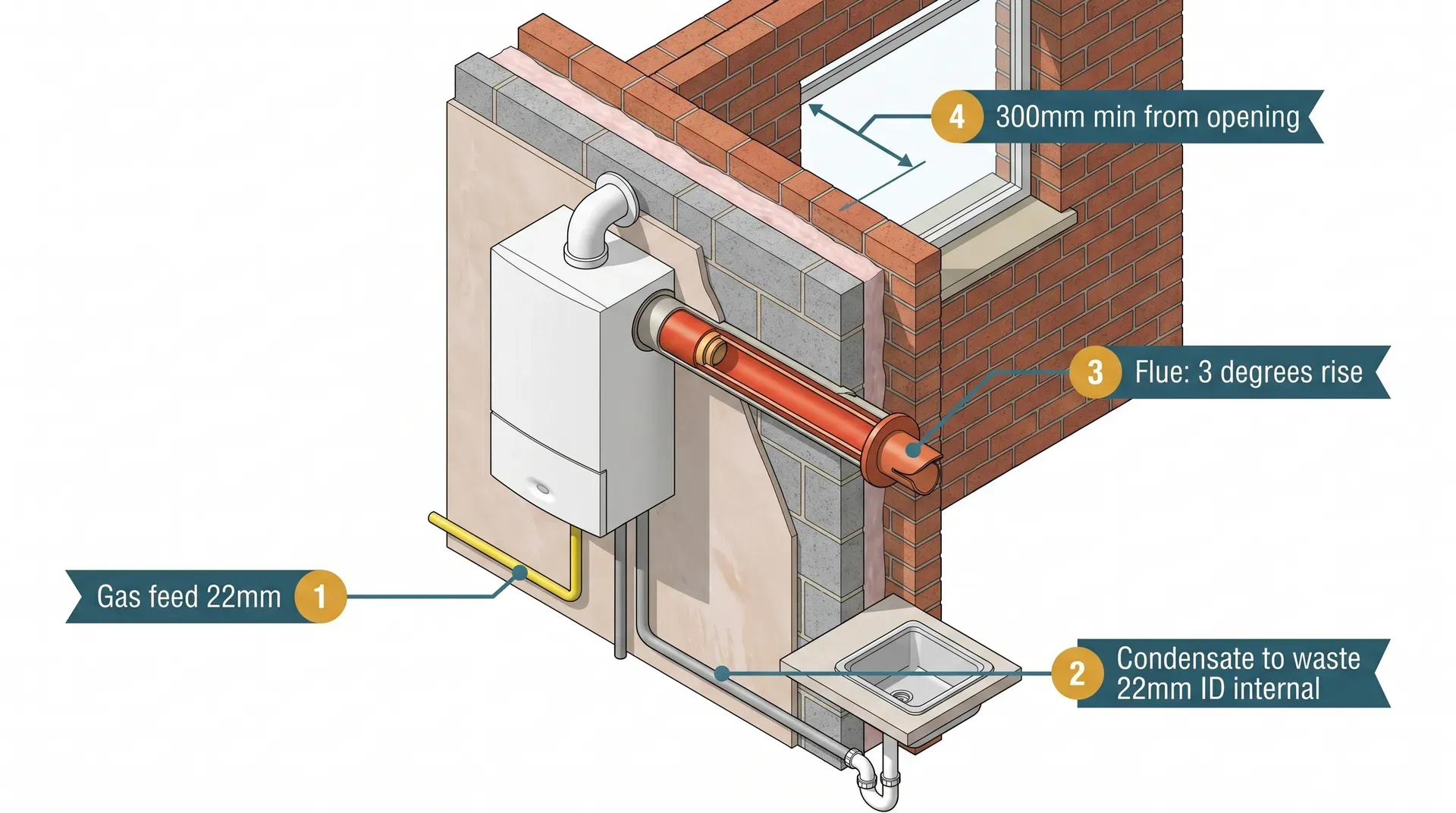

Flue, gas, and condensate: the three pipes that matter

The decisions here are taken at first fix, not second fix. Get them right in planning and the boiler fits neatly. Get them wrong and the entire installation moves, the price rises, or the aesthetics suffer.

Flue position and clearances

Every condensing boiler has a horizontal or vertical flue that terminates outside the building. The terminal position is regulated by Approved Document J and by the boiler manufacturer's installation instructions. Get the position wrong and the installation fails.

Core clearances for a horizontal flue terminal:

• Opening windows and air vents: 300mm minimum
• Doors: 1,200mm minimum
• Neighbour's boundary: 600mm minimum (closer requires a plume management kit to redirect the exhaust)
• Public pathway: 2,100mm minimum above any walkway the plume could drift onto
• Flue slope: minimum 3 degrees rise from the boiler toward the terminal so condensate drains back into the boiler, not out of the flue
• Maximum flue length: model-specific, typically 6-10m
• Every 90-degree bend reduces the allowable straight length by 1.5m of equivalent length

The plume from a condensing boiler is visible in cold weather because you're seeing the condensed water vapour. It looks like smoke but it's not. Still, placing the terminal where the plume blows across a patio, a neighbour's window, or a walking route is a problem. Walk around the proposed terminal position on a cold day and imagine steam pouring out of it. If that's a problem anywhere, move it or fit a plume deflector.

Gas pipe sizing

Boilers over 18kW output need minimum 22mm gas pipe from the meter. Most combis run at 30kW+, so 22mm is the norm. Longer runs or multiple appliances may need 28mm. The engineer will calculate the pipe size based on the full gas route, including every bend and fitting (each fitting has an equivalent length that counts against the total allowable pressure drop).

If your existing 15mm gas run can't be upgraded to 22mm for the new boiler, the boiler will starve on high demand, and the installer will refuse to commission it. This is a common surprise on older properties where the original boiler was smaller. Budget for gas pipe upgrades if the existing run is 15mm.

Condensate pipe: the most-ignored detail

A condensing boiler produces a steady trickle of mildly acidic condensate (pH 3-4) whenever it's running. This has to drain to foul waste somewhere. Specs that matter:

• Internal pipe: 19mm internal diameter minimum (22mm OD is typical)
• External pipe: 30mm internal diameter minimum (32mm OD), AND fully insulated to resist freezing
• Route: internal to a kitchen sink, basin, or washing machine waste is strongly preferred
• Slope: continuous fall back toward the waste connection, never a dip or trap

Every winter, condensate pipes freeze across the UK and boilers lock out on safety. The boiler can't drain its condensate, so it shuts down, and the house goes cold during exactly the weather when you need the heating most. The single best preventative measure is routing the condensate internally to a waste pipe, never externally. External is allowed (with insulation and larger diameter) but it's a last resort.

At first-fix planning, confirm where the condensate will drain. Mark it on the drawings. If the boiler is in a garage or utility with no internal waste nearby, now is the time to add one, not after the plasterer has finished.

Click to enlarge

How to size the boiler

This is where most quotes go wrong. The default British installer approach has been to size by number of bedrooms or radiators and pick a kW output with a generous margin. Result: the average UK 3-bed house has a 24-30kW boiler, while the actual peak heat demand is 6-8kW. That's oversizing by a factor of 2-3x.

Why oversizing is bad

An oversized boiler short-cycles. It fires to full output, reaches flow temperature in minutes, shuts off, cools, fires again. The minimum modulation on a 30kW combi is typically 6-7kW. If the house only needs 4kW to maintain temperature, the boiler can't modulate low enough and has to cycle on and off instead. Each cycle is inefficient, each firing stresses components, and the boiler never settles into smooth condensing operation. Carbon Trust research documented this pattern across most UK homes. The efficiency loss from short-cycling is real and compounds over the boiler's life.

The correct approach: heat loss calculation

A proper installer performs a room-by-room heat loss calculation following CIBSE or MCS method. Inputs: floor area, wall construction, window areas, insulation levels, room function. Output: required heat output per room, and total at the design outdoor temperature for your area (typically -3°C for most of England).

For hot water, add the demand:

• Combi: add ~24-27kW of hot water capacity on top of the heating demand. The boiler switches between heating and hot water, so you size for whichever is larger. Typically hot water dominates.
• System/regular: add a small margin (3-6kW) for cylinder reheat. The cylinder stores the hot water, so peak hot water demand doesn't drive boiler size.

Rough reference sizes

Useful for sanity-checking a quote, never as the sole basis for sizing:

If your installer quotes a boiler kW outside these ranges without showing a heat loss calculation, ask for the working. The answer "I always fit 30kW Worcesters in 3-beds" is not an answer. The answer "your heat loss at -3°C is 7.4kW, the domestic hot water demand is 27kW, so we need a 28kW combi that modulates down to 4kW" is.

Cost and what to buy

Boiler pricing splits into the unit cost (supply-only) and the installed cost. Supply-only figures let you sanity check an installer's markup. A reasonable installer buys the boiler at trade discount and quotes at or slightly below retail, so the markup on the unit itself should be modest. Most of the installed cost is labour, sundries, and commissioning.

Supply-only prices (Screwfix, April 2026)

A premium combi runs well above the mid-range tier in the table above: typically 2-3x the entry-level supply-only price. Worcester Bosch 8000 series and Vaillant ecoTEC Plus sit at this premium end. Baxi's 400 and 600 series sit at the budget end. Ideal Logic Max and Vaillant ecoFIT Pure are the practical mid-range, and probably the best value-for-warranty combination on the market.

Installed prices

Combi supply + install: £2,000 – £3,500. Straight like-for-like swap at the lower end; a combi with a relocation to a new wall or a gas pipe upgrade toward the higher end. London and the south east routinely add 10-25% to these figures.

System and conversion work

System + unvented cylinder installed: £3,000 – £5,500. An unvented cylinder adds a meaningful line-item cost (budget for a thousand pounds minimum plus installation), driven mainly by capacity and brand. A regular-to-combi conversion is a larger job that typically costs as much as a premium combi supply plus the labour for pipework rework and cylinder removal, because it involves removing the loft tank, capping off old feed pipes, and running mains feed to the new boiler.

Relocating an existing boiler without replacing it runs £500 – £2,800. Short move to an adjacent wall is at the bottom end. Relocating from one side of the house to the other is at the top.

Warranty comparison

Warranty length is a meaningful differentiator, but only if you meet the conditions.

All four brands revert to the 12-month statutory minimum if you don't register within 30 days. All require annual service by a Gas Safe engineer. Annual servicing is a modest recurring cost (a few hours of an engineer's time plus callout). All require genuine parts for any repairs. Non-genuine parts void the warranty.

Worcester Bosch's 12-year warranty is only available through Worcester Accredited Installers, which is a separate programme from Gas Safe registration. A regular Gas Safe installer fitting a Worcester will get you the 8-year warranty, not 12. Verify this when you're comparing quotes.

Where to buy

For supply-only purchases, Screwfix and Toolstation carry the widest range at competitive prices. Plumbcenter, Wolseley, and local plumbers' merchants (Plumbase, Pimlico Plumbers Direct) stock trade-preferred ranges and offer next-day delivery. Online specialists (Heatable, Boxt, WarmZilla) offer supply plus install packages at fixed prices, often competitive with independents once the install fee is included.

For supply + install, get three independent quotes from local Gas Safe engineers. Energy-company offers routinely sit above independent Gas Safe quotes; forum evidence (MSE) shows the same jobs priced in the mid four-figure range through branded channels. Ignore the big brands for the install, pay the independent.

Future Homes Standard: is gas about to be banned?

This question comes up on every boiler quote, so here's the current position in plain language.

The Future Homes Standard applies to new-build homes only. Once FHS comes into force in March 2027, developers can't connect new homes to the gas grid; they'll use heat pumps and other low-carbon heating. This is a new-build rule. It does not apply to your existing home or to an extension on your existing home.

There is no ban on retrofit gas boilers. Earlier proposals for a 2035 phase-out have been dropped. You can continue to install new gas boilers in existing homes indefinitely under current policy. When your combi eventually fails, replacing it with another combi is legal, compliant, and usually the most cost-effective option.

Heat pumps are a choice, not a requirement. They pair well with underfloor heating, large radiators, and well-insulated homes. They pair badly with small microbore radiators and leaky old walls. If you're renovating to a high insulation standard and installing UFH throughout, a heat pump becomes sensible. For most extension scenarios where you're keeping the existing radiators and house fabric, a new condensing gas boiler remains the rational choice.

BS 7593 and the magnetic filter

British Standard BS 7593:2019 is the code of practice for preparing, commissioning, and maintaining domestic heating systems. It requires:

• The existing system to be power-flushed or chemically cleansed before the new boiler is connected (removing scale, sludge, and debris that would damage the new heat exchanger)
• A magnetic system filter fitted on the return pipe (catches iron oxide sludge before it reaches the boiler)
• Chemical inhibitor dosed into the system at final fill (prevents corrosion)
• Annual filter service and system water test every five years

The magnetic filter is the item most homeowners don't know about. All four major manufacturers reference BS 7593 in their warranty conditions, and most require either their own branded filter or a compliant equivalent. Ideal ships the filter in the box with Logic Max boilers. Worcester requires a Greenstar System Filter. Vaillant requires their Boiler Protection Kit.

If your installer quotes a boiler without explicitly listing the magnetic filter as a line item, ask where it is. Either they're not fitting one (which voids the warranty) or they're rolling it into "sundries" without flagging it. Supply-only is typically less than half the installed price; supply and install is £120-250.

Where you'll need this

• Plumbing layout planning - boiler position, flue route, gas pipe sizing, and condensate drain path all set at first fix
• First fix plumbing - gas and water runs positioned to serve the boiler location
• Second fix plumbing - boiler installation, commissioning, Benchmark checklist, Gas Safe notification

These decisions appear on every extension or renovation project that affects the heating system. The boiler is the most expensive plumbing component and the one that drives the layout of everything else.

Common mistakes

Oversizing "to be safe". Default installer behaviour is to fit a bigger boiler than needed. Carbon Trust data shows most UK boilers are 2-3x oversized. The symptoms don't appear immediately; they show up as higher gas bills, short-cycling, and early component failure. Demand a heat loss calculation for any new boiler installation. A 3-bed semi with average insulation rarely needs more than a 28kW combi.

Fitting a combi where a system is needed. Two bathrooms used simultaneously will always frustrate a combi, regardless of kW output. If anyone in the household showers while someone else uses the kitchen tap, you need a system boiler with a cylinder.

Ignoring the condensate route at first fix. Every condensing boiler produces condensate. It has to drain somewhere. If the route isn't planned before walls close up, the engineer will either drill through finished work (expensive, ugly) or run the pipe externally (freeze risk). Internal route to a kitchen or utility sink waste. Plan it at first fix.

Assuming the existing boiler is fine. Old boilers that still fire routinely get condemned when a new Gas Safe engineer looks at them. This isn't always a scam, but it's worth a second opinion. Before replacing, get a second engineer's view and specifically ask: "what fault makes this unrepairable?" If the answer is "it's old and inefficient" rather than a specific defect, it's not broken.

Poor flue position discovered after ordering. Flue clearances are non-negotiable and they vary by element (windows, doors, boundary, walkway). See the flue clearances section above for the specific minimums. Confirm the exact terminal position, walk the site, imagine the plume on a cold day. If there's any doubt, move the boiler before it's delivered.

Forgetting the Benchmark checklist. Not having a completed Benchmark voids the warranty the day it's installed. Before the engineer leaves, verify the checklist is filled in, signed by both of you, and you have the original document. Photograph it as a backup.

Not chasing the Gas Safe notification. The engineer has 30 days. After that, ask for confirmation. No certificate 45 days after the install means something went wrong. Chase it before it costs you at house sale.
