Decoupling Membrane: Why You Need One Under Tiles on a Heated Floor

A homeowner runs the underfloor heating for the first time after their kitchen extension is finished. Three weeks later a hairline crack appears across the porcelain in front of the island. By month six there are four more, and a couple of tiles have started to sound hollow when tapped. The fix is not a tube of grout. It's lifting the floor, redoing the screed prep, and tiling the lot again. Total cost on a 30m² floor sits comfortably in the four-figure range once tiles, adhesive, labour, and skip hire are added up. The mid-three-figure layer of plastic mat that would have prevented the whole thing is what this page is about.

What it is and what it's for

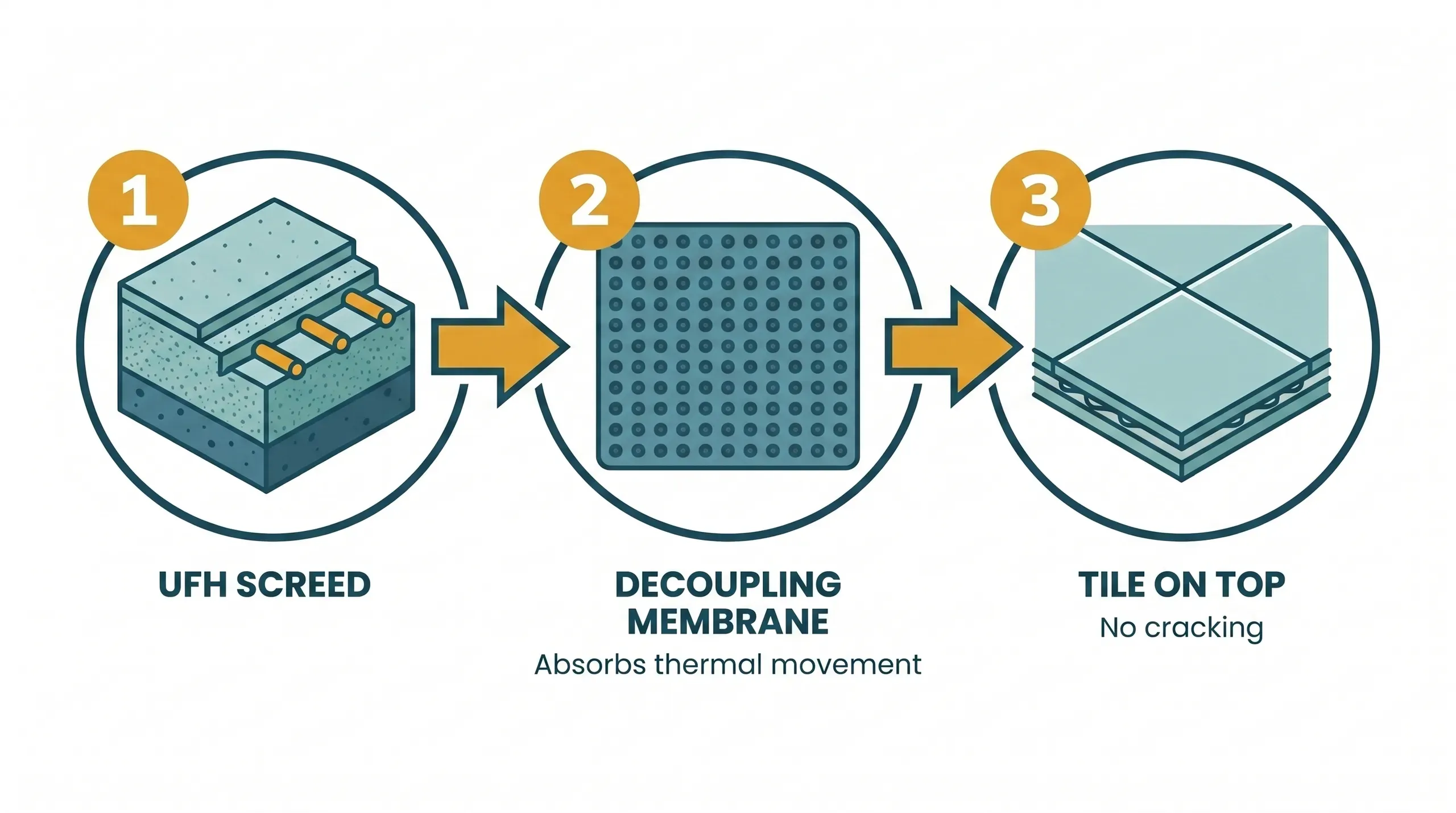

A decoupling membrane (also called an uncoupling membrane, anti-fracture mat, or by the original brand name Schluter DITRA) is a polymer mat that sits between the substrate and the tile. The top side has a grid of square or round dovetailed cavities. The underside is a fleece backing that bonds to flexible tile adhesive on the substrate.

The job it does is in the name. It mechanically separates two layers that move at different rates. Underneath, a screed expands and contracts as it heats and cools, shrinks for months as it continues to cure, and may crack as it settles. On top, a brittle ceramic or porcelain tile cannot tolerate that movement without cracking too. The membrane absorbs the lateral movement in its polymer matrix and breaks the bond chain between substrate and tile, so a crack in the screed below does not telegraph through to the tile above.

It is not the same product as a damp-proof membrane, a tanking membrane, or a roof breather membrane. Different jobs entirely. The word "membrane" gets reused across construction; what defines a decoupling membrane is that hollow polymer matrix on top, designed to receive tile adhesive in its cavities.

Click to enlarge

When you actually need one

This is where most homeowners and a fair number of builders get it wrong. The default position should be: if there's underfloor heating under the tiles, you fit a decoupling membrane. Costs at £10–12/m² on retail supply, on a 30m² floor that's a mid-three-figure outlay of insurance against a four-figure remedial bill.

The 2024 update to BS 5385, the British Standard for tiling, has hardened this position. BS 5385-3:2024 (in force since May 2024) Section C.7 covers tiling onto underfloor heated substrates. It requires either a decoupling membrane, reinforced tanking, or a tile backer board on plywood and timber substrates, and treats decoupling as expected practice over heated screeds.

There are four scenarios where a decoupling membrane is the right call:

1. Tiling over any underfloor heating. Pipe-in-screed wet systems, electric mat, dry-build heating panels - all of them cycle daily through 10-15°C of thermal swing. The screed underneath expands and contracts every cycle. Without a membrane, that movement transfers into the tile. Limestone, marble, and large-format porcelain are the first to crack. Standard ceramic survives a bit longer, then cracks too.
2. Tiling on a young or newly-poured screed. Cement-sand screed continues to shrink for six months or more after it appears dry. Liquid anhydrite screed shrinks less but still moves. If your project schedule means tiles need to go down within 6-8 weeks of the screed pour rather than waiting half a year, the membrane buys you the safety margin.
3. Tiling over a plywood or timber subfloor. BS 5385-3:2024 explicitly removed timber boards from the list of acceptable direct tiling substrates. You now need an intermediate layer: decoupling membrane, tile backer board, or reinforced tanking. Decoupling is usually the cheapest and quickest of the three.
4. Tiling over an existing tiled or cracked floor. Renovation work where the existing floor cannot be lifted economically. The membrane bridges existing cracks and stops them propagating into the new tile field.

For a mature, dry, non-heated screed in a dry room, a decoupling membrane is optional. A flexible C2 S1 tile adhesive alone is sufficient if the surface preparation is right. This is the "tile straight onto screed" scenario that works.

Types and what to buy

The decoupling membrane market is dominated by a handful of products. Most are technically similar - 3-4mm thick polymer mats with a fleece backing - and the price spread reflects brand position and stocking arrangements more than fundamental performance differences. The exceptions are the very thin anti-fracture mats (around 1mm) and the integrated heat-mat-plus-membrane systems.

The quick recommendation: for a residential UFH floor in the UK, Schluter DITRA 25 or Mapei Mapeguard UM35 is the right call. Both are stocked across the country, both meet BS 5385-3:2024 requirements, and both have the technical literature to back up your installation if a building control officer or warranty inspector asks. DITRA is the brand professional tilers know best. Mapeguard often comes out a touch cheaper.

For 30m² rolls, current pricing sits at £285 – £320 for Schluter DITRA. Mapei Mapeguard UM35 ranges £10 – £11 per m² inc VAT. Durabase CI++ comes in higher at £15 – £15 per m². If budget is tight and you're doing a small, non-critical floor (a utility room, a cloakroom, no UFH, no large tiles), £8 – £8 per m² for a budget mat from Pro Tiler Tools is acceptable. Don't put it under a four-figure porcelain kitchen floor.

For BAL Rapid-Mat, the 1mm anti-fracture matting variant, you'll pay £12 – £23 per m² depending on retailer. Topps Tiles charges almost double the trade-direct rate, so worth shopping around if you're doing more than 10m².

The DITRA 25 vs DITRA naming confusion

Schluter rebranded DITRA 25 as simply "DITRA" with a redesigned product (EasyCut gridlines, EasyFill recesses). Functionally it is the same membrane. UK trade still talks about "DITRA 25" and stockists list both names interchangeably. If a quote or product listing says "DITRA 25" or "DITRA-Mat" or just "DITRA," it's the same product family.

What you must not confuse it with is DITRA-Drain. That's a Schluter exterior product for tiled balconies, terraces, and patios. It has a drainage cavity and filter fabric and is a completely different product category. Do not let a merchant sell you DITRA-Drain for an interior kitchen floor.

DITRA-Heat is a different product again, a thicker membrane with channels designed to take an electric heating cable. The membrane itself becomes the substrate for the heating element. The Duo variant adds sound reduction and a thermal break and sits at premium pricing per m². Useful for retrofitting heating into a room without lifting the floor for a wet pipe system, but not what you need if you already have a wet UFH system pumped into the screed.

How to install one

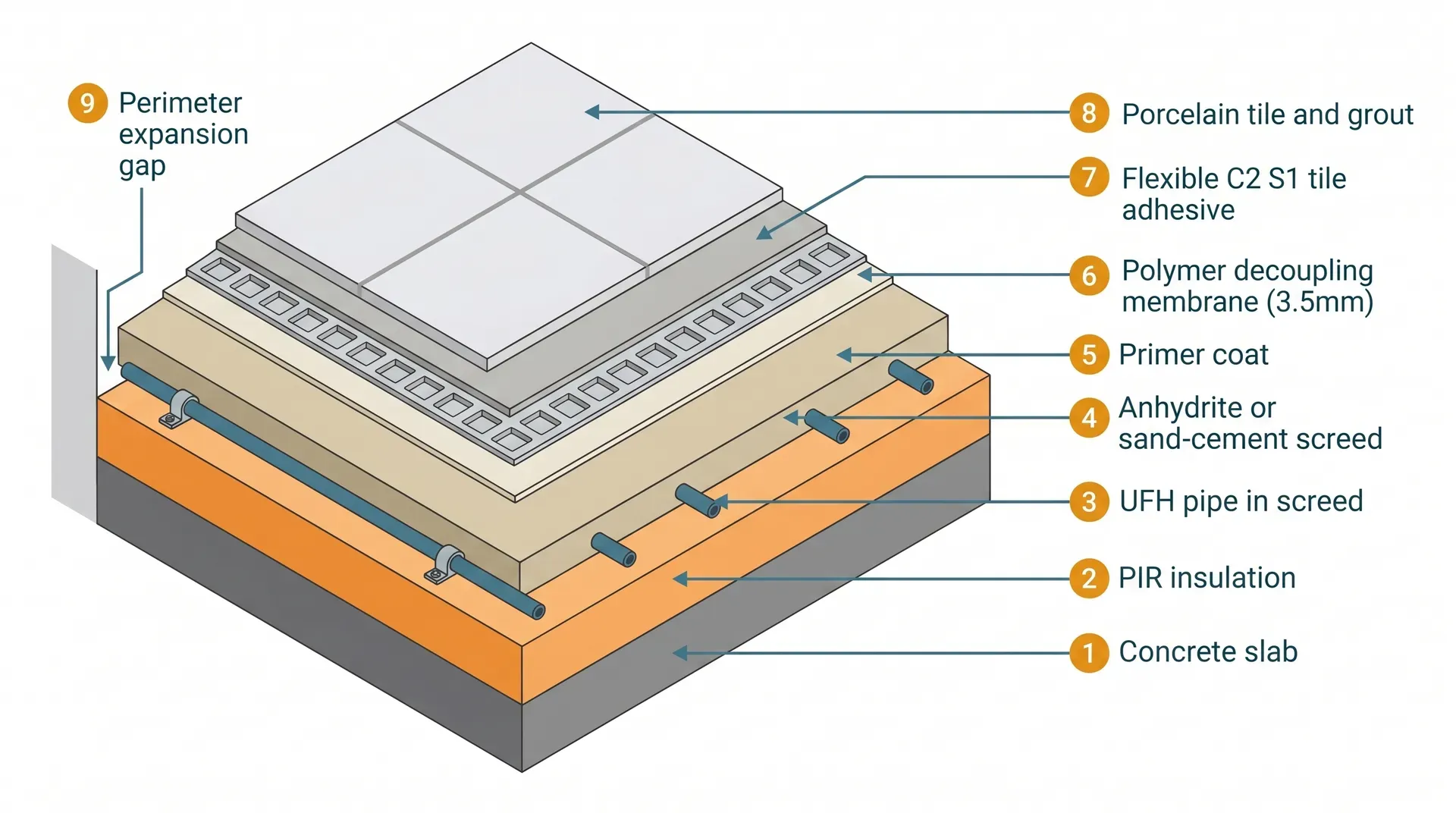

The process below assumes a wet UFH system with pipes encased in liquid anhydrite or sand-cement screed - the most common setup for a UK extension floor. The exact same method works on a non-heated screed; the only difference is that you skip the commissioning cycle.

The order of operations matters more than any single step. Get the sequence wrong and the membrane cannot do its job.

Step 1: Wait for the screed to cure properly

This is non-negotiable. Cement-sand screed needs a minimum of 21 days before any heat is applied. Liquid anhydrite screed needs a minimum of 7 days. These are minimums, not targets. Many tilers will wait longer if the schedule allows.

Step 2: Commission the underfloor heating

BS EN 1264-4 sets the protocol every UK installer should follow. Your heating engineer or builder runs a controlled heat cycle to expose the screed to thermal stress before any tile goes down, so any cracks that appear come from the bare screed, not your finished floor.

The protocol:

1. Set water temperature to ~25°C and hold for 3 days.
2. Raise the flow temperature by 5°C per day until you reach maximum operating temperature (typically 50°C at the manifold, capped at 27°C floor surface where tiles are the finish per BS EN 1264-2).
3. Hold at maximum for at least 4 days.
4. Allow the system to cool over a minimum of 48 hours.

Total commissioning takes around three weeks including the pre-cure wait. After commissioning, do a moisture test on the screed surface. Cement-sand should be ≤75% RH. Anhydrite should be ≤0.5% w/w or ≤75% RH. If the moisture is over the threshold, you wait longer. Tiling onto a wet screed is another route to cracking.

Step 3: Prepare the substrate

The screed has to be flat (within ±3mm under a 2m straightedge, per BS 5385), clean, dust-free, and structurally sound.

For a sand-cement screed: brush off all loose material, vacuum, and apply an acrylic primer or SBR diluted per manufacturer's instructions. Wait for the primer to dry to a tacky film.

For an anhydrite (calcium sulphate) screed: this needs more work. The surface laitance (a weak skin of calcium sulphate fines) must be removed by light abrasion - typically a rotary scarifier or a 60-grit sanding pad - 4 to 6 days after the screed is poured, before it's fully hard. Then prime with two coats of neat tilers' primer, the second coat applied once the first stops being absorbed. This priming step is genuinely important: without it, the gypsum in the screed reacts with the cement in the tile adhesive to form ettringite, an expansive crystal that physically pushes the tile off the floor. The chemical name is unimportant; what matters is that you prime, you prime twice, and you prime properly.

The single exception to the priming rule is the BAL Flexbone 2Easy floating system, which does not bond to the screed and is therefore not exposed to the gypsum-cement reaction. Every other bonded decoupling membrane on anhydrite needs the full prime sequence.

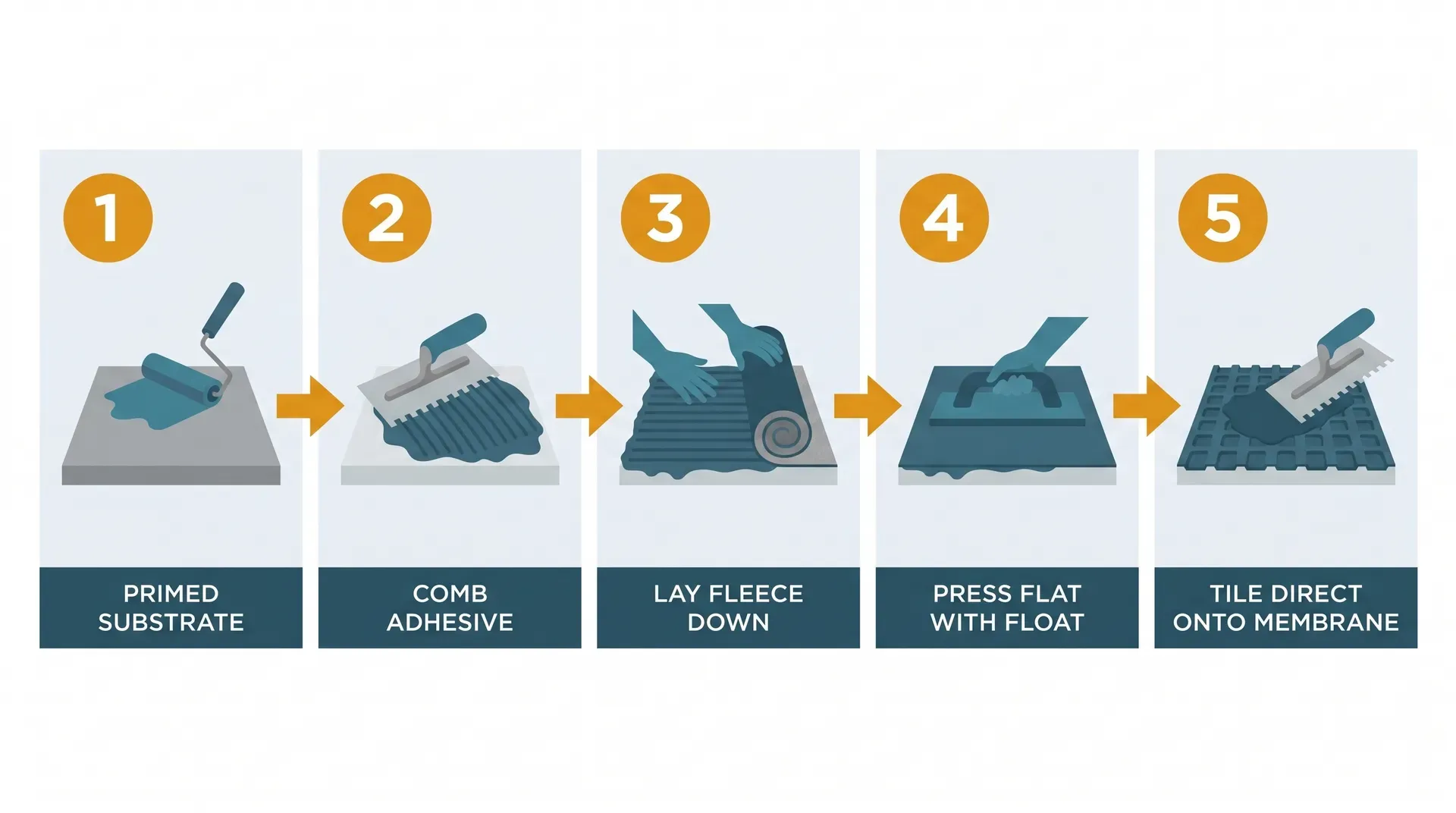

Step 4: Lay the membrane

Cut the membrane to fit using a sharp utility knife and a straight edge. Roll out and dry-fit the sheets across the room before any adhesive goes down. Sheets should butt-jointed tight against each other, not overlapped, and not gapped. A 5mm gap between sheets creates a movement zone directly under the tile field which will telegraph as a grout crack. This is the most common installation mistake on UK tilers' forums.

Mix a flexible polymer-modified C2 tile adhesive to a peanut-butter consistency (slightly looser than for tiling). Trowel the adhesive onto the substrate using a 3x3mm or 4x4mm square-notched trowel, depending on the membrane manufacturer's spec. Schluter recommends 3x3mm or 4x4mm for DITRA. Mapeguard is similar. Work in sections no larger than you can cover with membrane within the adhesive's open time (typically 20-30 minutes).

Lay the membrane fleece-side down into the wet adhesive. Press it flat with a stiff plastic float or a short-nap roller, working from the centre outwards to push out air and ensure full bond between the fleece and the adhesive ridges. Hollow spots, where the fleece hasn't fully bonded, are easy to spot at this stage - the membrane sounds different when tapped and lifts at the edge if you flex it. Press them down or scrape up and re-lay that section.

Click to enlarge

At perimeters, leave an expansion gap of 5-8mm between the membrane and any wall, column, or change of plane. The gap is later covered by skirting or a perimeter trim - it must not be filled with adhesive or grout. BS 5385 also requires intermediate movement joints at every 8m of edge length and to break up any tile field larger than 40m². Schluter sells a range of edge trims (DILEX-EKE, DILEX-AKWS) for these joints; expect a small two-figure outlay per 2.5m length at UK suppliers.

Step 5: Tile directly onto the membrane

You can start tiling as soon as the embed adhesive has set enough that the membrane no longer moves underfoot. With rapid-set adhesive, that's usually 1-2 hours. With standard set, leave it until the next day.

The adhesive on top is what fills the membrane cavities and bonds the tile. Use a flexible C2 S1 polymer-modified adhesive at a minimum - the same product you used to embed the membrane is fine, just mix a fresh batch. BS 5385-3:2024 Section C.7 sets C1 S1 as the minimum for UFH applications, but C2 S1 is what professionals actually use because the higher bond strength matters more than the cost saving. For light or translucent natural stone (marble, limestone), use a white rapid-set C2FT-S1 to avoid grey shadowing.

First pass: apply adhesive into the membrane cavities with the flat side of the trowel, filling them flush. Second pass: comb adhesive over the top with the appropriate notched trowel for your tile size. Third step: back-butter the back of any tile 600mm or larger with a thin skim of adhesive to ensure full coverage.

Floor temperature stays at ≤15°C throughout the tiling job and for the first 24 hours after.

After grouting and a full cure of the adhesive (check the manufacturer spec, typically 7 days), you can ramp the heating back up. Ramp slowly: 5°C per day for 10-14 days until you reach normal operating temperature. This gradual ramp prevents thermal shock to tile-and-grout that has only just bonded.

How much do you need

Membrane comes in 30m² rolls (1m x 30m) and smaller cuts. For a residential job, you order by the room area plus an allowance for cuts and offcuts:

• Calculate the floor area in m².
• Add 10% for cutting waste, particularly if the room is L-shaped or has many obstacles to cut around.
• Round up to the next whole roll if you're within a metre or two of a roll size. Half-using two rolls and binning the offcuts is wasteful.

Worked example, 30m² rectangular kitchen floor:

• 30m² + 10% wastage = 33m² required.
• Order one 30m² roll plus a 5m² piece, or two 30m² rolls if the second is needed for adjacent rooms.
• At £10-15/m2 for DITRA, the membrane line item lands in the mid-three-figure bracket.

For the embed adhesive: a 20kg bag of C2 flexible adhesive covers approximately 7-8m² of membrane embedding at a 4x4mm notch (the adhesive layer is thinner than for tiling). Plan on one bag of embed adhesive per ~7m² of membrane, plus your normal tile adhesive on top.

A complete bill of materials for that 30m² heated kitchen floor sits in the high-three-figure region all-in: the membrane is the largest line item, four bags of embed adhesive and a tub of primer add a small two-figure-per-bag and small two-figure-per-tub overlay each, and the tile adhesive for the tile-on-membrane layer is included in the tile install budget.

That works out at the mid-teens per m² in materials for the decoupling system specifically. Builders' merchants will be 10-15% cheaper than retail tile shops on the embed adhesive and primer. Schluter membrane itself doesn't move much in price between trade and retail.

Common mistakes

Skipping the membrane on a heated floor to save money. This is the recurring theme on UK tiler forums. Every couple of months a homeowner posts photos of cracked tiles 6-12 months after a build with no membrane, and asks what went wrong. The advice is always the same: lift, redo with a membrane, accept the cost. A few hundred pounds saved at the build stage costs ten times that to put right.

Gaps between membrane sheets. Sheets must butt-joint tight. Even a 5mm gap creates a movement zone where the substrate can flex independently of the surrounding tile field, which leads to grout cracking along the gap line. Run a straightedge along your butt joints before adhesive goes on top.

Using a non-flexible tile adhesive. Standard C1 adhesive without an S1 deformability rating cracks when the substrate moves. The whole point of the membrane is to absorb movement, but the tile adhesive on top still sees micro-movement at the cavity scale. C2 S1 minimum, no exceptions for floor tiling over UFH.

Forgetting the perimeter expansion gap. A membrane butted hard against a skirting or wall has nowhere to expand to. The lateral movement that would normally absorb into the cavity matrix gets transmitted to the tile field instead. Leave 5-8mm at every wall, hide it under the skirting.

Tiling on a warm floor. Adhesive cures too fast on a heated substrate. The chemical reaction completes before the tile is fully bedded, and any thermal contraction afterwards is locked into stress in the bond line. Run the heating to commission, cool it fully, tile cold.

Skipping the anhydrite primer step. The ettringite reaction between gypsum (in anhydrite screed) and cement (in adhesive) creates expansive crystals that physically push tiles off the floor. Two coats of neat tilers' primer, the second coat applied until no more is absorbed. Non-negotiable on calcium sulphate screeds.

Confusing DITRA with DITRA-Drain. DITRA-Drain is an exterior drainage product for patios and balconies. Putting it under an interior kitchen floor will not give you decoupling - it has a completely different cavity structure designed to channel water away. Read the box carefully or have your tile supplier confirm what you're ordering.

Alternatives

A decoupling membrane is one option in a small family of solutions for the same problem. The main alternatives:

Crack-isolation paint-on systems. Products like Mapelastic AquaDefense or BAL Tank-it brush onto the screed and form a flexible elastomeric layer beneath the tile adhesive. They're excellent for waterproofing wet rooms and can offer some crack isolation, but their movement-bridging capacity is lower than a sheet membrane (typically 0.5-1mm vs 2-3mm for DITRA/Mapeguard). Use them for waterproofing in wet zones, not as the primary decoupling layer over UFH.

Flexible C2 S2 tile adhesive alone, no membrane. For a mature, dry, non-heated screed in a dry room with small-format tiles, an S2 highly-deformable adhesive can do the job without a membrane. It is not adequate for UFH, the standard does not allow it, and the field experience supports the standard. Cheaper at the low two-figures per 20kg bag of S2 adhesive, but only valid for the no-UFH scenario.

Wait six months before tiling. If you have the project schedule for it, leaving a fresh screed for 6+ months allows most shrinkage to complete before the tiles go down. This works for non-heated screed. It does not solve the thermal cycling problem on a UFH floor, where the movement is ongoing for the life of the heating system.

Tile backer board. Cement-particle or fibre-reinforced backer board (Marmox Multiboard, Hardiebacker, No More Ply) provides a stable substrate over timber or problematic floors. Useful for plywood subfloors where you want a rigid substrate rather than a flexible membrane. More expensive and more disruptive to fit than a decoupling membrane on a screed.

For UFH over a screed - the kitchen extension scenario most readers are dealing with - a decoupling membrane is the right answer. The alternatives are weaker compromises, not equivalent options.

Where you'll need this

• Tiling - decoupling membrane goes down before tiles on heated floors and over young or problematic screeds
• Flooring - the membrane sits in the build-up between the screed and the tile finish
• Screeding - the screed below must be commissioned per BS EN 1264-4 before the membrane goes down
• Underfloor heating - the heating system needs a full commissioning cycle before tiling, regardless of which decoupling product you choose

These references appear on extension and renovation projects across all stages of build where tiles are the chosen finish over a heated or fresh screed. The same product appears in bathroom renovations, garage conversions where tile is laid over a damp-bridged substrate, and loft conversions where tiles go over a timber subfloor.
