Backer Rod: Sizing and Supporting Flexible Sealant Joints
UK guide to backer rod for window perimeters and movement joints: warranty details, sizing, where to buy, and how it supports a flexible sealant bead.
By Ian
Project managed a £182k Oxfordshire kitchen extension
The silicone around your new bifold doors looks perfect on handover day. Six months later, hairline cracks run the full length of the bead, water is wicking behind the frame, and the installer is back on site arguing that "thermal movement isn't a defect." It is a defect. The bead failed because nobody pushed a 13mm strip of foam into the gap before they sealed it. That foam costs less than a sandwich, takes ten minutes to install, and is the reason your installer's better-paid competitors don't get callbacks.
What it is and what it's for

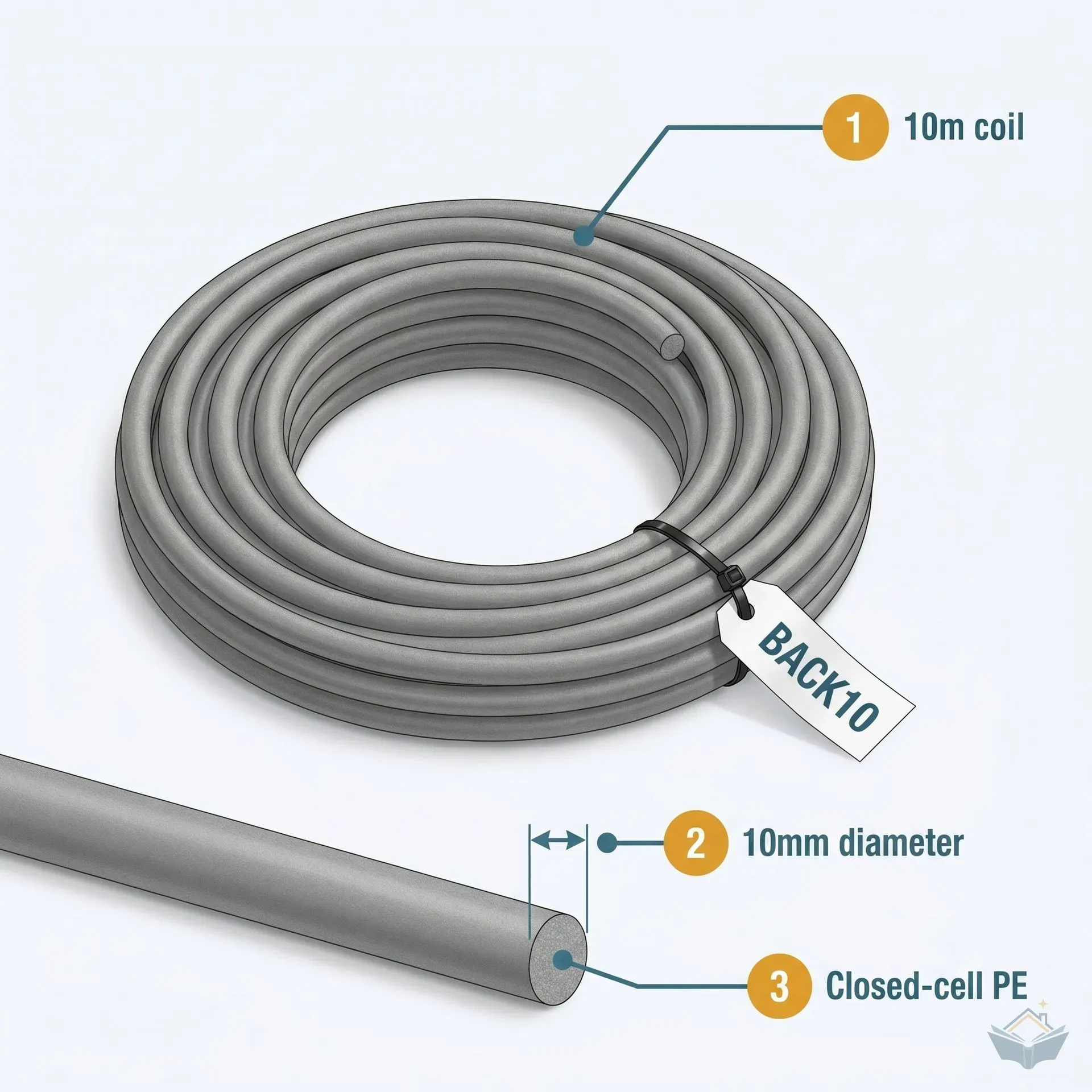

Backer rod is a length of closed-cell polyethylene foam, shaped like a thin grey rope, that you push into a joint or gap before applying sealant. It's sold in coils of standard diameters (6mm to 50mm) at every common UK trade sealant supplier, and it does three jobs at once.
It controls the depth of the sealant bead, so the bead is the right thickness to flex without tearing. It prevents what the trade calls three-sided adhesion, where sealant bonds to all three faces of a joint (the two opposing surfaces and the bottom) and tears itself apart the first time the joint moves. And it fills the dead space at the back of a wide gap so you don't waste tubes of expensive sealant trying to fill it with silicone alone.
Backer rod is commonly stocked by specialist sealant suppliers and online builders' merchants. Check the diameter, foam type and compatibility with the sealant before ordering; availability at general DIY chains varies.

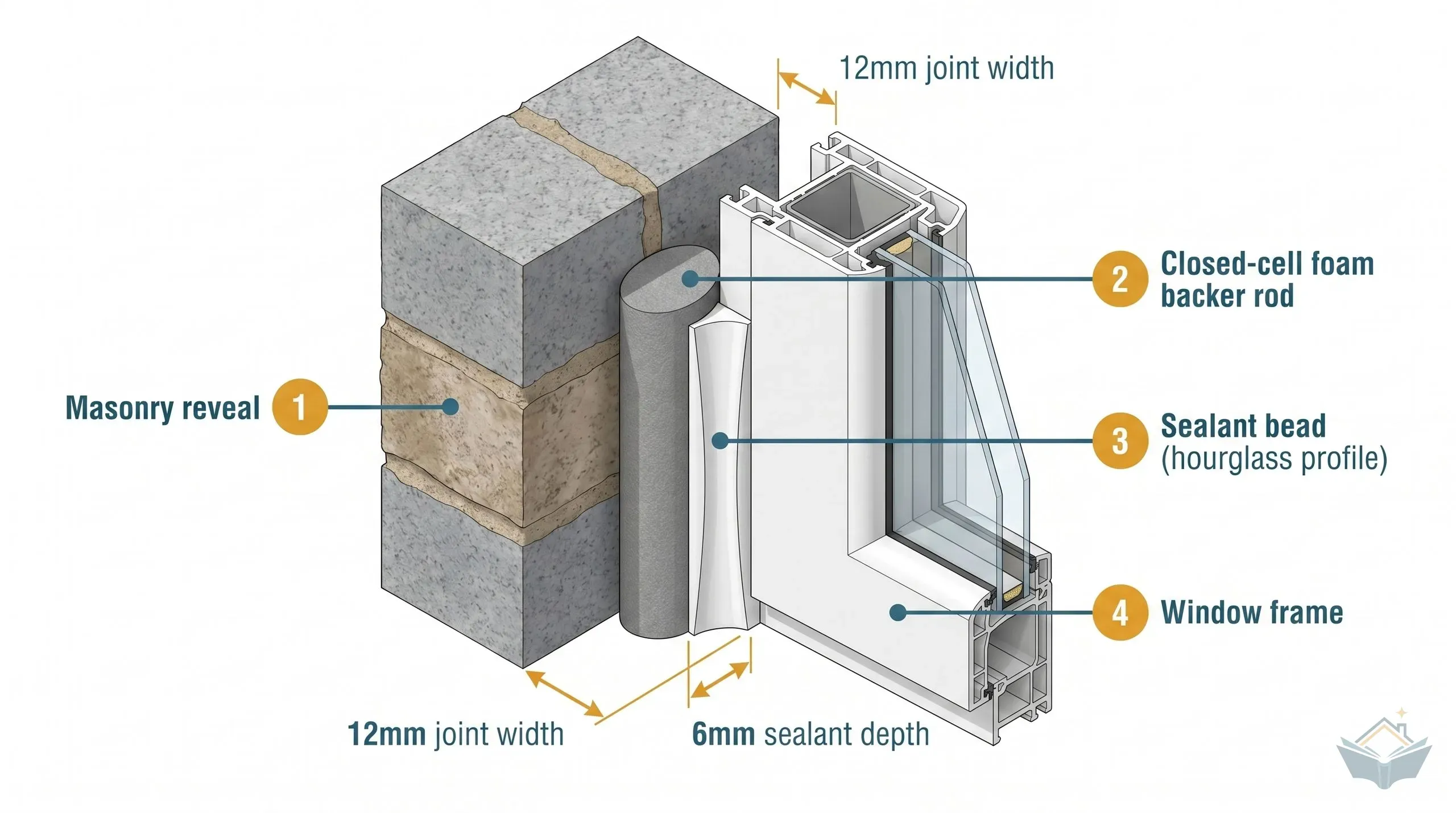

For window and door perimeters, LABC Warranty's published detail calls for a backing strip where the gap exceeds 5mm, with at least 6mm sealant depth. Follow the warranty and window manufacturer's detail applicable to your build. BS 6213 addresses construction-sealant selection, while BS EN ISO 11600 classifies sealant performance; neither makes every rod suitable for every joint.

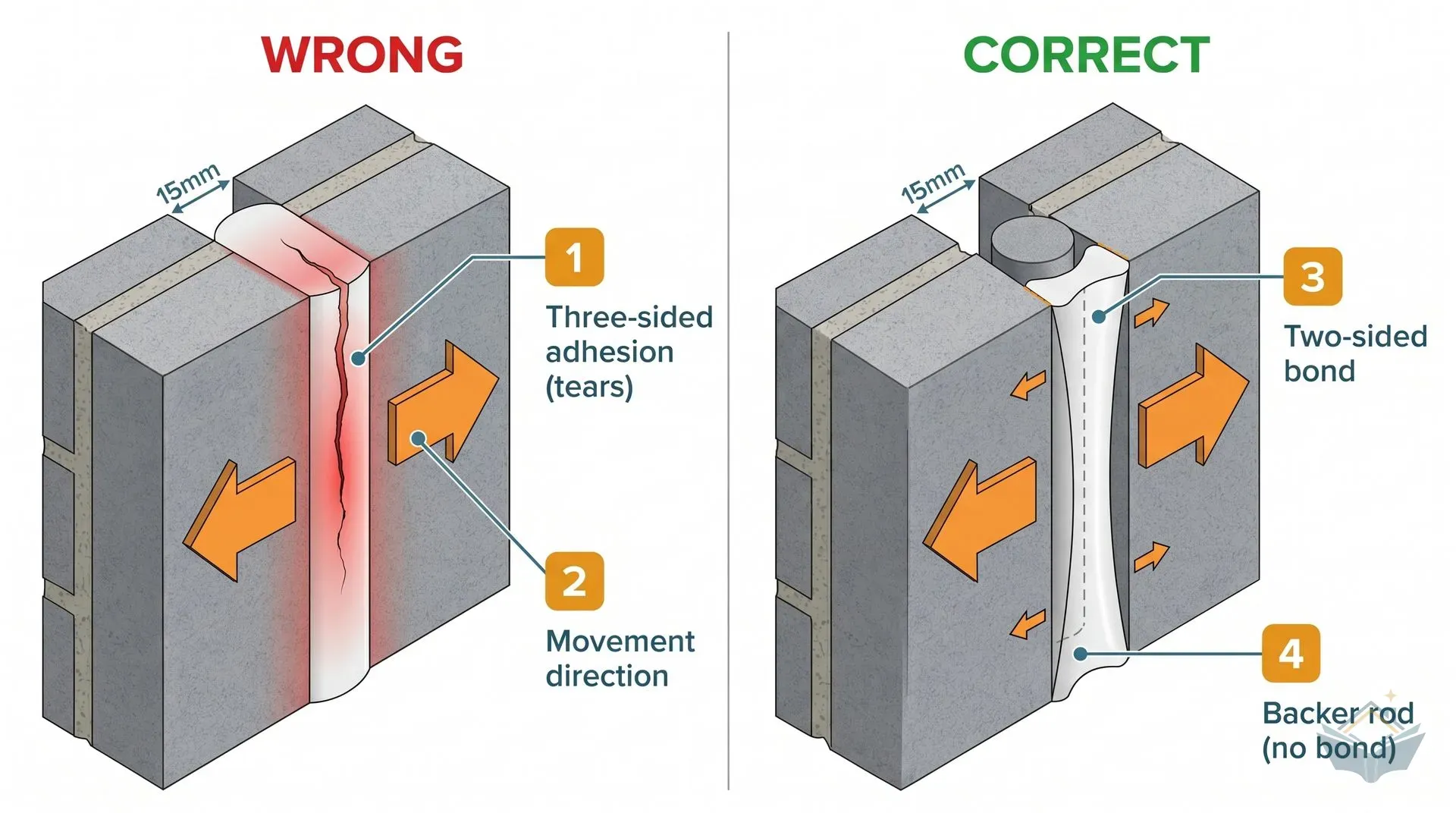

The three-sided adhesion problem
The reason you need backer rod at all is geometry. A sealant bead is designed to stretch and compress as the joint widens and narrows with temperature. A typical low-modulus neutral-cure (LMN) silicone, which is what your window installer should be using on perimeter seals, has a declared movement capability for a specified joint geometry; that rating is not the strain at which its bond necessarily fails.
For that flex to work, the sealant has to bond on two faces only, the opposing sides of the joint. If it also bonds to the back face (a third side), the bead is locked at the rear and can't stretch. The first hot day expands the masonry, the joint widens, and the bead tears down the middle.
Bonded on two faces only, a sealant bead can use its full rated movement capability (around 25% for a typical LMN silicone).
The point of backer rod is to make the back of the joint slippery to the sealant so it cannot bond there.
Closed-cell polyethylene is chemically inert with the common sealant chemistries (silicone, polyurethane, polysulfide, MS polymer, hybrid). The sealant touches the rod but does not adhere to it. When the joint moves, the bead flexes between its two side bonds and the back face slides freely against the foam. That is the whole engineering trick.

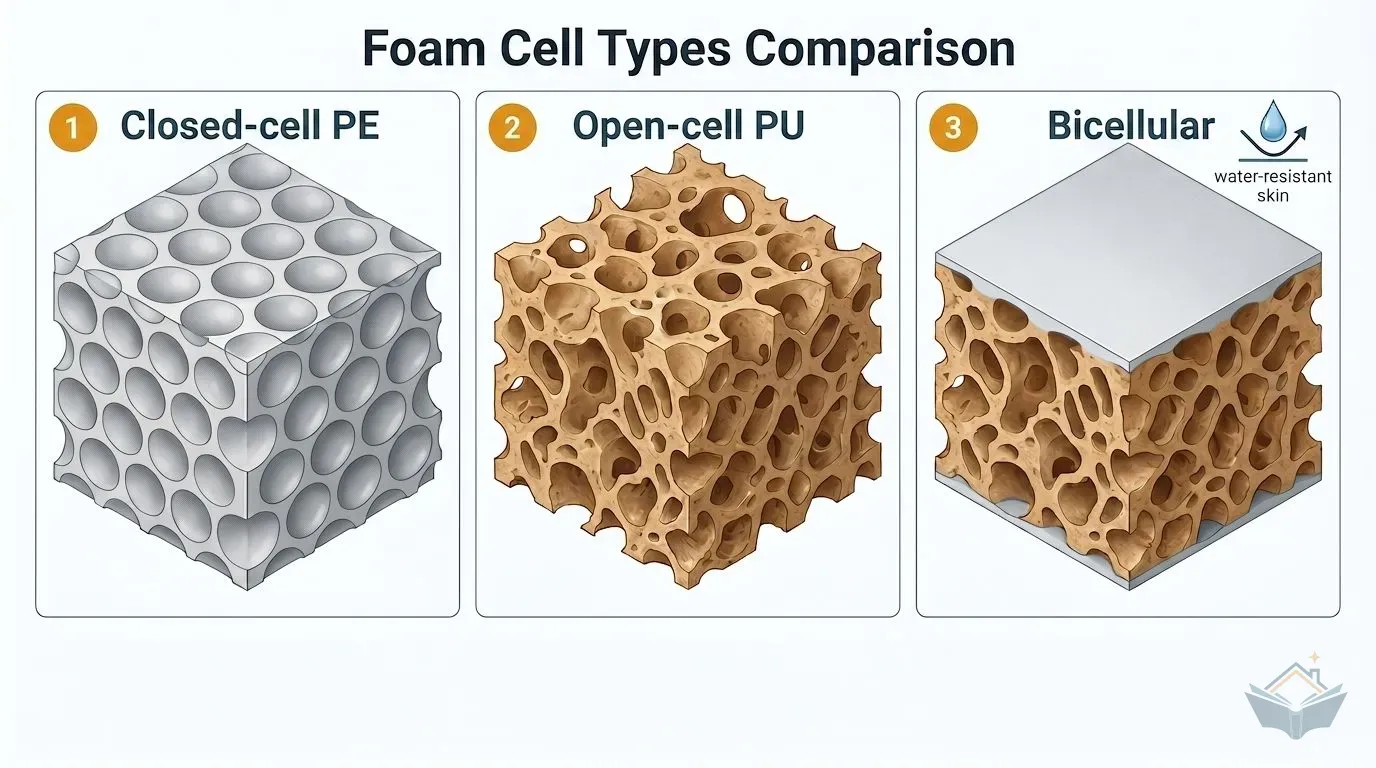

Types: closed-cell, open-cell, and bicellular
There are three foam structures sold as backer rod. Most homeowners only need to know about the first.
| Type | Cell structure | Moisture | Oversize rule | Where it's used |
|---|---|---|---|---|
| Closed-cell polyethylene (PE) | Sealed cells, impermeable | Does not absorb water | 25% larger than gap | External window perimeters, wet locations, the UK default |
| Open-cell polyurethane (PU) | Porous cells, breathable | Absorbs water | 50% larger than gap (more compressible) | Internal movement joints only, where moisture-cure sealants need air access from behind |
| Bicellular (closed skin, open core) | Open core inside a closed skin | Skin is moisture-resistant | 25-30% larger than gap | Specialist use where outgassing under sun-warmed silicone is a known risk |
For UK domestic work the rule is simple: buy closed-cell polyethylene. The Sika Everbuild range (check the current diameter and pack code) and the Sealoflex equivalent from Sealant Supplies Ltd are both closed-cell PE. The Cromar X1BACK range from independent merchants is the same product. CRL backer rod (sold through specialist glazing merchants) is a higher-grade closed-cell PE used on structural glazing where the sealant manufacturer's datasheet specifies it.
Open-cell PU (Soudal sells one) absorbs water like a sponge. On an external window perimeter that's a guarantee of frost damage and sealant failure within two winters. It exists for log-home chinking and certain specialist internal applications, neither of which apply to a UK extension build.
Bicellular rod was developed to solve a specific defect mechanism: closed-cell PE, when overcompressed or punctured, releases trapped air that bubbles up through the sealant on the next hot day. Bicellular has a closed outer skin (so it sheds water) but an open inner core (so trapped air vents safely). It costs more, and most homeowners will never need it. If a manufacturer datasheet specifies bicellular for the sealant you're buying, follow the datasheet.

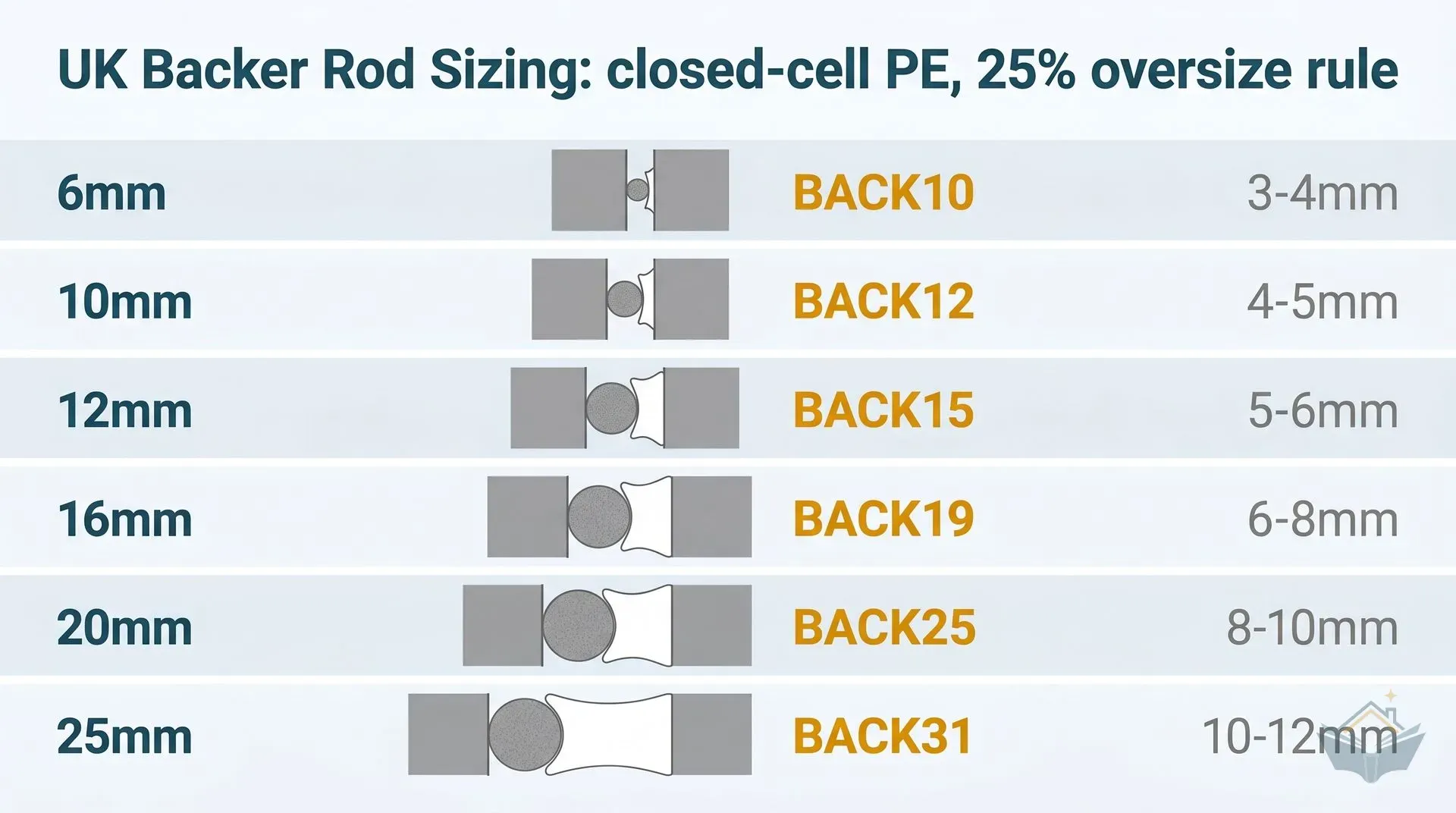

How to size it: the 25% rule
Backer rod must be wider than the gap it goes into. The friction fit is what holds it in place while you load the sealant gun.
Sika's closed-cell polyethylene backing-rod datasheet specifies a diameter approximately 25% larger than the joint width. Check the rod maker's permitted compression and choose an available size for the actual joint.
The standard UK retail sizes are 6mm, 10mm, 13mm, 15mm, 20mm, 25mm, 30mm, 40mm, and 50mm. Map your gap to a rod like this:
| Joint width | Rod to buy | Sealant depth (2:1 ratio, never under 6mm) |
|---|---|---|
| 3-5mm | 6mm rod | Follow the sealant maker's narrow-joint detail |
| 6-8mm | 10mm rod | 6mm sealant depth (the minimum) |
| 8-10mm | 13mm rod | 6mm sealant depth (the minimum) |
| 10-12mm | 15mm rod | 6mm sealant depth |
| 12-16mm | 20mm rod | 6-8mm sealant depth |
| 16-20mm | 25mm rod | 8-10mm sealant depth |
| 20-24mm | 30mm rod, if permitted by its datasheet | Follow sealant joint-design limits |
| Over 40mm | Joint cover or expansion profile, not backer rod | n/a |
For window perimeter joints, the cited LABC Warranty detail requires a backing strip for gaps greater than 5mm, with at least 6mm sealant depth. Other warranties and joint types may specify different details. Even a narrow joint must avoid unwanted adhesion to its back face.
For a sealant bead to behave correctly, the bead should be set to a 2:1 width-to-depth ratio. 2:1 LABC Warranty accepts anything between 1:1 and 2:1. A 12mm-wide joint needs a 6mm-deep sealant bead. The rod sits fully inside the joint, set back far enough to leave the right depth for tooling. LABC Warranty's minimum sealant depth is 6mm, so on joints narrower than 12mm the bead stays 6mm deep rather than half the width. 6mm Below that the bead doesn't have the cross-section to flex and cracks within a season.

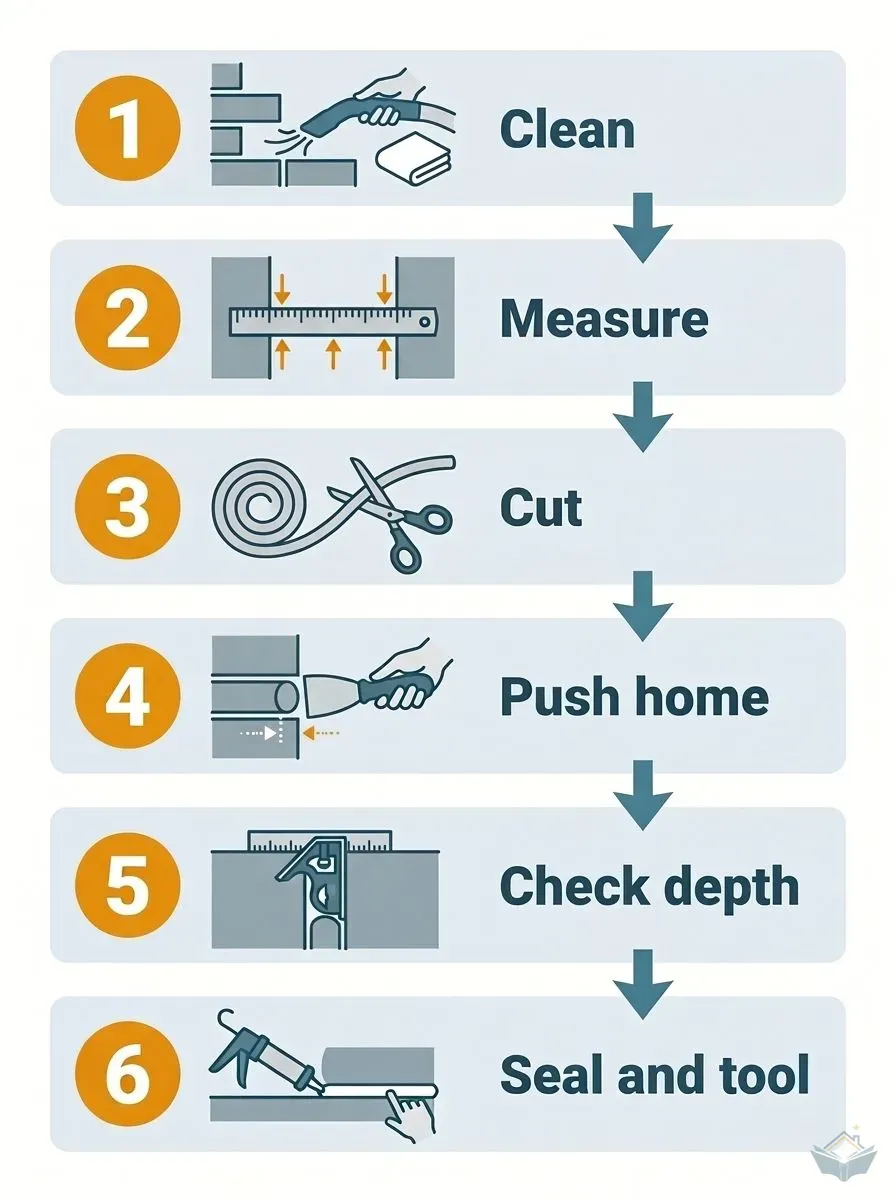

How to install it properly
The procedure is short. Doing it badly produces the same outcome as not using backer rod at all.
Clean the joint
The gap must be free of dust, debris, and old sealant before you start. A vacuum nozzle clears most of it. Methylated spirits on a clean cloth removes any remaining residue. Skip this and the sealant bonds to dust, not to the substrate, and peels off in a year.
Measure the gap
Run a measure or a steel rule across the joint at three or four points. Wide gaps are not uniform. Buy rod sized to the largest point you measure. The narrower sections will compress the rod a little tighter, which is fine; the wider sections need the rod to still friction-fit, which is the constraint.
Cut the rod to length
Use sharp scissors or a sharp utility knife. Don't stretch the rod when you measure it against the joint length. A stretched rod shrinks back along its length once installed, leaving stretches of joint with no backing behind your sealant bead.
Push it home with a blunt tool
A blunt putty knife, a wallpaper seam roller, or a dedicated jointing tool. Never a screwdriver, a Stanley knife edge, or scissor points. blunt only (putty knife or seam roller) The closed cells must stay sealed. Push the rod in to the sealant depth from the table above: half the joint width, and never less than 6mm.
Confirm consistent depth
Run a small ruler or the depth gauge on a combination square along the joint to check the rod is at a uniform depth throughout. If it dips deeper in one spot, push that spot back out from behind (a thin needle works, as long as you don't puncture). If it sits proud, push it deeper.
Apply and tool the sealant
Load the cartridge into the sealant gun, cut the nozzle to a width slightly less than the joint, and lay a continuous bead. Tool to a hourglass profile with a wet finger or a Fugi tool. The wet tooling pushes the sealant against the side faces and produces the concave surface that lets the bead flex.
Tip
A wallpaper seam roller costs from £4 at any DIY store and is by far the easiest tool for backer rod insertion on long window perimeters. It rolls the rod into the joint at a consistent depth without risking a puncture, and it's quicker than a putty knife on runs over two metres.
Warning
A punctured backer rod is worse than no rod at all. Air trapped in the punctured cells escapes through the sealant on the first sun-warmed day and leaves crater bubbles in the cured bead. 25% If you've stabbed the rod with a screwdriver while pushing it in, cut that section out and replace it before you reach for the sealant gun.

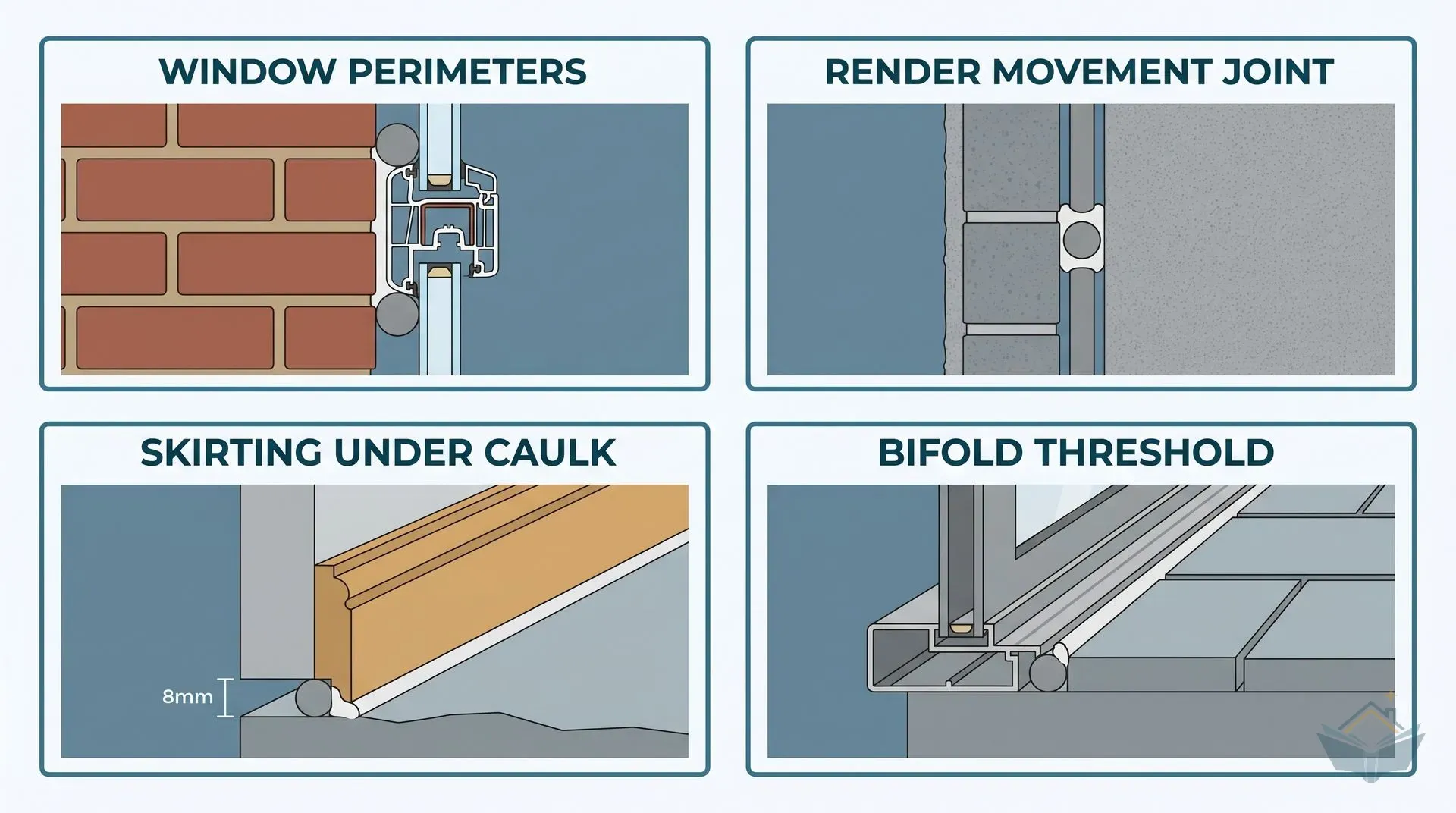

Where you'd actually use it
The most frequent UK domestic uses are window and door perimeter sealing on extensions, expansion joints in render or masonry, and large gaps behind decorators' caulk at skirting and architrave junctions where the gap exceeds 5mm.
Window and door perimeters. Use the frame manufacturer's fitting tolerances and the applicable warranty detail. LABC Warranty specifies backing strips for perimeter gaps greater than 5mm. An oversized opening may need correction rather than simply more foam and sealant; ask the installer to resolve the frame support and sealing detail before finishing.
Expansion joints in masonry and render. Long runs of brickwork or rendered blockwork get vertical movement joints (about every 6m in concrete blockwork, up to about 12m in clay brickwork) to absorb thermal movement. The joint is sealed with movement-rated polysulfide or polyurethane sealant over a backer rod. Skip the rod on a movement joint and the sealant lasts a year before it tears.
Wide skirting and architrave gaps. Standard decorator's caulk sags and cracks on gaps wider than about 5mm. If you're caulking under a skirting board on an old, uneven floor where the gap runs to 8-10mm in places, push backer rod in first, then caulk over it. The rod stops the caulk slumping into the void and gives it the right depth to cure.
Patio and threshold details. External movement joints between paving slabs, between paving and a building, or at a door threshold all need backer rod under their sealant if the gap exceeds 6mm. UK paving sources confirm closed-cell PE as standard for these joints.
Bath rim re-seals (occasionally). If your bath has settled and pulled away from the wall by more than 5mm, you can push a small-diameter backer rod into the gap before applying a fresh silicone bead. The rod controls the bead depth, prevents three-sided adhesion to the wall and the bath rim, and stops the silicone slumping into the gap.
What it works with: sealant compatibility
Closed-cell PE backer rod is compatible with every common construction sealant chemistry: silicone, polyurethane, polysulfide, MS polymer, and hybrid. The sealant manufacturer's datasheet is the final authority. If the sheet specifies a particular rod type (CRL closed-cell, bicellular, or a primer), follow it.
For external window perimeters the sealant should be a low-modulus neutral-cure (LMN) silicone, such as DOWSIL 796 where its datasheet and substrate approvals match the joint. Standard general-purpose silicone fails on perimeter joints because it can't stretch enough.
Warning
Expanding foam is not a substitute for backer rod and sealant on an external joint. Expanding foam is insulation. It absorbs water and breaks down under UV. The correct seal is foam insulation in the cavity, then a closed-cell PE backer rod nearer the outer face, then a tooled LMN silicone bead in front. Three layers, each doing one job.
Cost and where to buy
Backer rod is not stocked at Screwfix, Toolstation, or B&Q at the time of writing. You buy it from specialist sealant suppliers, online builders' merchants, or in bulk professional reels for whole-house jobs.

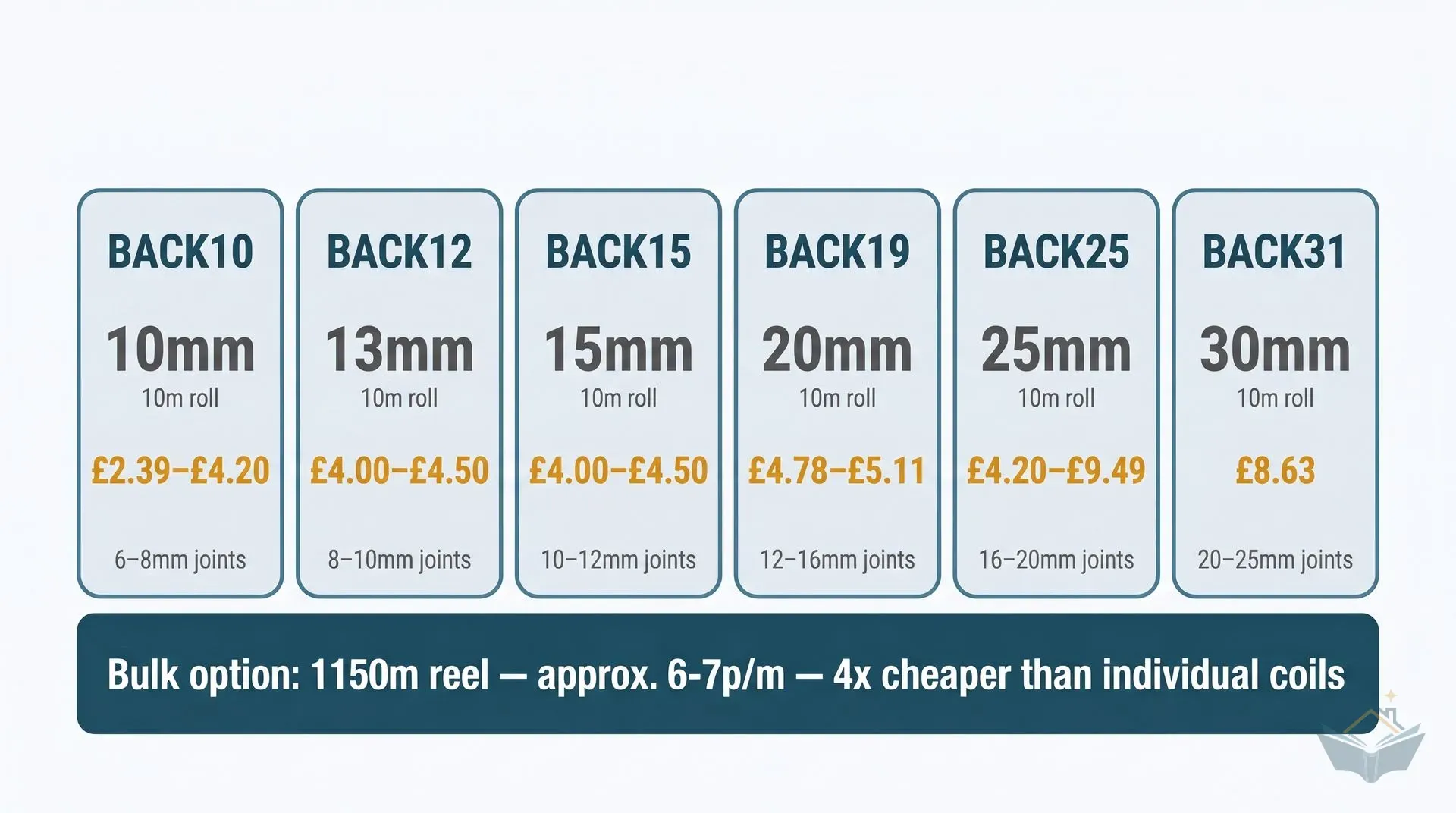

The headline cost spread for a 10m coil of any standard size in the Sika Everbuild range runs £2.39 – £9.49. That's a small enough number that buying two or three sizes to cover variable joint widths on a single window install is sensible.
The most common DIY size is 10mm × 10m (Sika Everbuild BACK10), priced at £2.39 – £4.20 across the specialist suppliers. If you're sealing the perimeter of one new window with a 6-8mm gap, this is the coil you buy.
For the slightly larger gaps that bifold doors, French doors, and bespoke window openings tend to throw up, the 13mm × 10m at £4.00 – £4.50 and 15mm × 10m at £4.00 – £4.50 are the next two sizes up. Buying both gives you flexibility on a job where you don't know the gap variance until you're on site.
For movement joints in masonry or render, or for the threshold detail under a sliding patio door, you'll want 20mm × 10m at £4.78 – £5.11 or the 25mm size at £4.20 – £9.49. The wider price spread on the 25mm size reflects significant variation between Sika Everbuild and the lower-cost Sealoflex brand.
For very wide structural movement joints the 30mm × 10m at £8.63 is the largest size most domestic builds will need.
If you're sealing the perimeters on a whole-house window install (8-12 windows plus doors) the maths flips. A bulk professional reel of 10mm × 1150m (Sikaseal 414) costs £65.99 – £83.09, which works out at around 6-7p per metre versus 26p per metre on individual coils. Four-fold cost saving for the volume buyer.
Glazing-grade rod (CRL closed-cell) sits at a different price tier altogether. A 10mm × 30.5m roll costs £16.74, roughly five times the construction-grade equivalent. You only need this if a structural glazing manufacturer's datasheet specifies it.
The open-cell polyurethane variant from Soudal is priced as a 200-pack of 1m lengths at £66.88, which works out cheap per linear metre but only makes sense in volume and only for internal applications where moisture absorption isn't a problem.
External resource
Sealants and Tools Direct: Backer Rods
Full Sika Everbuild range stocked in 10m coils and bulk reels. Currently the most reliable UK retailer for individual sizes.
sealantsandtoolsdirect.co.uk
External resource
Sealant Supplies Ltd: Sealoflex Backer Rod
Lower-cost Sealoflex brand at uniform pricing across diameters. Alternative supplier when Sealants and Tools Direct is out of stock on a size.
sealantsupplies.co.uk
External resource
LABC Warranty: Gaps Around Windows, Sealants and Finishing Trims
Window-perimeter backing strips for gaps greater than 5mm, with at least 6mm sealant depth.
labcwarranty.co.uk
Where to buy Backer rod
Check current prices from UK suppliers.
These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.
Common mistakes
Skipping backing where the joint detail requires it. For the cited LABC window-perimeter detail, the threshold is greater than 5mm. A correctly sized backing strip controls bead depth and keeps the sealant from bonding to the rear of the joint.
Stretching the rod when fitting it. A stretched rod shrinks back to its natural length over the following hours, opening gaps at its ends and joins with no backing behind your sealant bead. Cut the rod slightly longer than the joint, compress it gently into place, and let it relax.
Puncturing the closed cells. A screwdriver, a Stanley knife edge, or scissor points will all puncture a closed-cell rod. The trapped air outgases through the sealant on the next hot day. Use a blunt putty knife or a seam roller, every time.
Setting the rod too shallow. If the rod is sitting just below the surface, the sealant bead is too thin. It can't stretch and it cracks within months. The rod must sit deep enough that the sealant bead in front of it is at least 6mm deep at the centre.
Buying the wrong type for the job. Open-cell polyurethane on an external window perimeter is the textbook failure: rain hits the joint, the rod soaks up water, the water freezes, and the joint splits. For external use, every time, closed-cell PE.
Forcing an oversized rod into a narrow joint. Follow the sealant and backing manufacturer's detail. If a rod cannot fit without excessive compression, use the specified alternative bond breaker rather than assuming the sealant can bond to all three sides.
Where you'll need this
Backer rod isn't currently linked to any tasks in the buildwiz tree, but the tasks where it belongs are clear:
- Windows and Doors - perimeter sealing of frame-to-masonry joints, the primary domestic use
- Bifold and Sliding Doors - large frame-perimeter joints and threshold details where movement-rated joints need backer rod with LMN silicone
Backer rod appears on any extension or renovation project where windows or doors meet masonry, where a render or blockwork run includes movement joints, or where a homeowner is dealing with old, uneven skirtings and gaps wider than caulk alone can handle. The product is small, the cost is trivial, and skipping it is the single most common cause of perimeter sealant failure in UK domestic work. Buy a 10mm and a 13mm coil before your installer arrives, hand them over if needed, and watch the bead survive its first summer.
