Angle Beads: The UK Homeowner's Complete Guide to Plaster Corner Reinforcement

A plasterer skims your new extension and the corner where the bifold doors meet the side wall looks crisp and dead straight. Eighteen months later there's a brown stain bleeding through the paint at chest height. You repaint over it. Two months later the stain is back, slightly bigger. The galvanised angle bead buried under the skim has started rusting from the inside out, and the only fix is to chop the corner off, replace the bead, and re-skim. Same job a week earlier in stainless or PVC would have cost only a few pounds more in materials and avoided the entire saga.

Angle beads are one of the cheapest products on a building site and one of the most regularly chosen wrongly. The bead gets buried in plaster, paid for as part of the job, and forgotten about. The problems show up later.

What angle beads are and why corners need them

An angle bead is a thin metal or plastic strip with a hard 90 degree nose and a pair of wings on either side. The nose forms the visible edge of an external plaster corner. The wings get bedded into the plaster and disappear behind the skim coat. Once installed, all you see from the room is a perfectly straight, dead sharp corner that takes everyday knocks from furniture, vacuum cleaners, and shoulders without breaking down.

Plaster on its own cannot survive an external corner. Gypsum is brittle in tension. The exact line where two walls meet is a stress concentration point: any sideways knock to either face transmits a peak load to the corner itself, and a corner with no reinforcement crumbles after the first few impacts. The bead does two things at once. The metal or plastic nose absorbs the strike directly and stays straight. The wings spread the load back into the plaster across a 25mm band on each face, so the plaster is no longer the weak link.

This is why every external corner in a UK extension gets a bead. Wall-to-wall corners. The sides of every window reveal. The sides of every door reveal. The corner where a chimney breast steps out from the back wall. Anywhere the finished plaster turns 90 degrees outward, there's a bead behind it. Skip the bead and the corner crumbles within months.

Internal corners are the opposite problem and use a different product entirely. The 90 degree internal angle is in compression rather than tension when something hits it, so it doesn't crumble. The crack risk on an internal corner is from the boards behind moving slightly, and the fix for that is paper jointing tape (covered in the scrim tape guide). Putting a metal bead at an internal corner doesn't fit, doesn't sit flat, and breaks the geometry. Beads are external only.

The two relevant standards are BS EN 13658-1:2005 for internal plastering beads and BS EN 13658-2:2005 for external rendering beads. Both specify minimum gauge, dimensional tolerance, and corrosion protection. Major UK manufacturers (Catnic, Expamet, Simpson Strong-Tie) build above the standard: Catnic publishes that their galvanised beads are 11% above the BS gauge minimum and their stainless are 25% above. The standard exists; the gap between cheap imports and trade-quality product is real but not enormous.

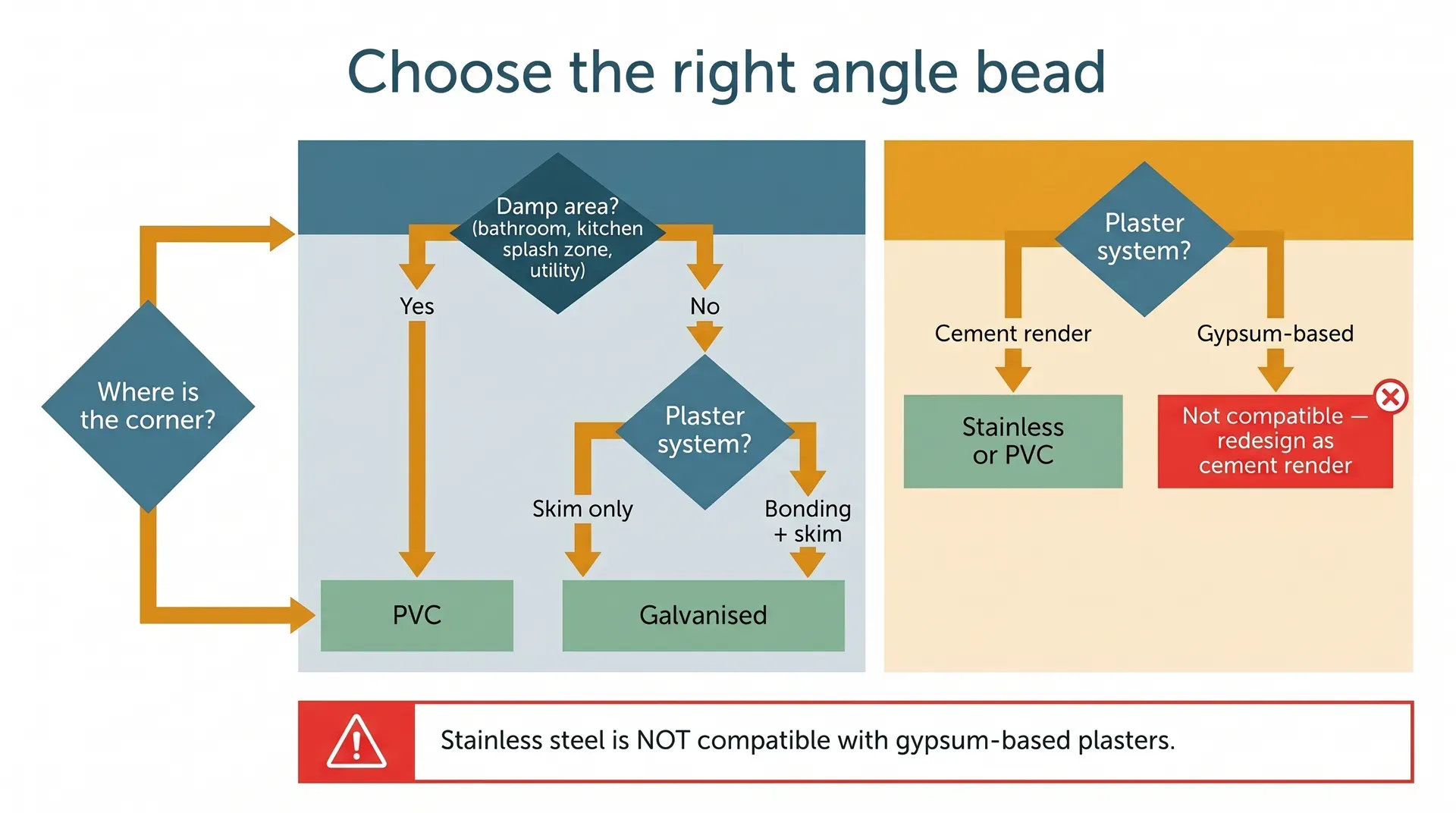

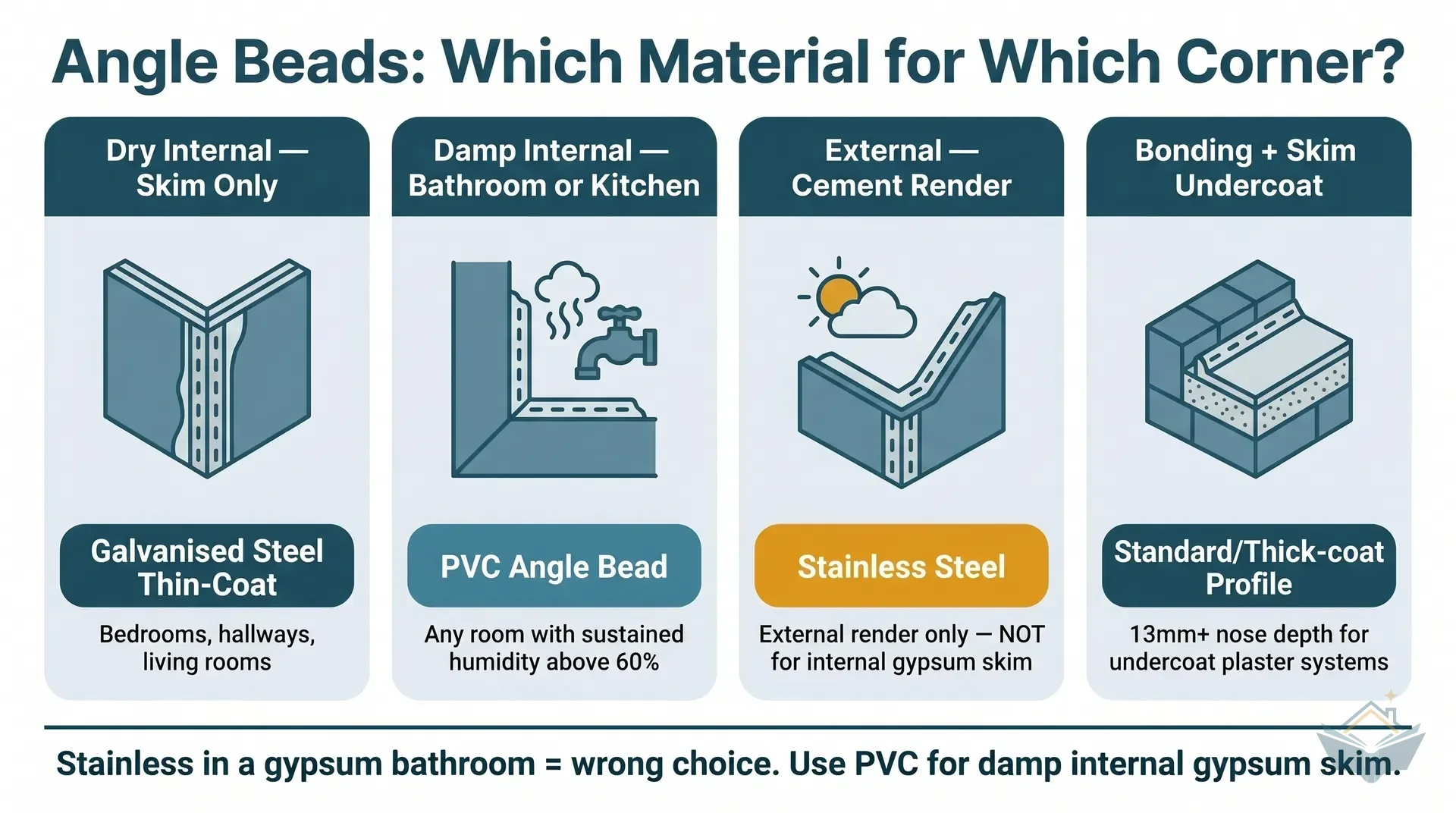

The four bead materials and when each is correct

Most plastering guides get this wrong. There are four bead materials sold in the UK, and the correct choice depends on three variables: where the wall is (internal vs external), how much moisture the corner sees, and what plaster system the bead sits inside. Get one variable wrong and the bead either rusts, fails to bond, or visibly protrudes through the finish.

The single most counterintuitive rule on a domestic build: stainless steel beads are not for bathrooms with skim plaster finishes. Every cheap online guide says "use stainless in damp areas." Catnic and Jewson product specifications say the opposite. The Jewson product page for the Simpson Strong-Tie stainless angle bead states explicitly that it "should not be used with gypsum-based plasters." Stainless is for external cement render. For a damp internal area finished with multi-finish skim, the correct choice is PVC.

The reason most homeowners trip over this is that "stainless" sounds like the upgrade choice and "PVC" sounds like the budget alternative. They're not. They're for different jobs. Stainless costs three to four times what galvanised does and is wasted money on every internal extension corner. PVC costs roughly the same as galvanised, doesn't rust, and is the right answer for any internal area with elevated humidity.

Click to enlarge

Thin-coat vs thick-coat: the profile that catches every beginner

The second variable is the bead's nose depth. Two profiles exist, they cost roughly the same, and they are not interchangeable. Using the wrong profile is the second most common bead error after material selection.

A thin-coat angle bead has a 2-3mm nose. It's designed for a skim-only finish: the bead nose sits proud of the bare plasterboard by exactly the depth of the finishing skim, so when the plasterer applies a 2-3mm coat of multi-finish the wall surface ends up flush with the bead nose. The workhorse profile for boarded extensions where the boards are already flat and only need a finish coat.

A standard (also called thick-coat or render) angle bead has a 13mm+ nose. It's for jobs where there's a thicker undercoat plaster underneath: bonding plaster at 11mm plus a 2mm finish skim, or a full cement render at 13-15mm depth. The wider wings (typically 45mm vs the thin-coat 22mm) give a longer mechanical key into the deeper plaster bed. On a bare blockwork extension wall that needs a bonding undercoat before skim, the standard profile is correct.

Use a thick-coat bead under a skim-only finish and the nose protrudes 10mm proud of the finished wall surface. The first time you push furniture against it the bead catches and bends. The fix is to chop the corner off, take out the wrong bead, fit the correct profile, and re-skim. Use a thin-coat bead where bonding is needed and the nose disappears under the plaster, leaving you with no protected edge at all.

A direct test: walk the site after the plasterer has fixed the beads and before they pick up a trowel. Hold a metal ruler flat against the bare board adjacent to a bead. The nose should sit proud of the board by the thickness of the planned plaster (2-3mm for skim only, 11-13mm for bonding plus skim). If the gap looks wrong, raise it before any plaster goes on.

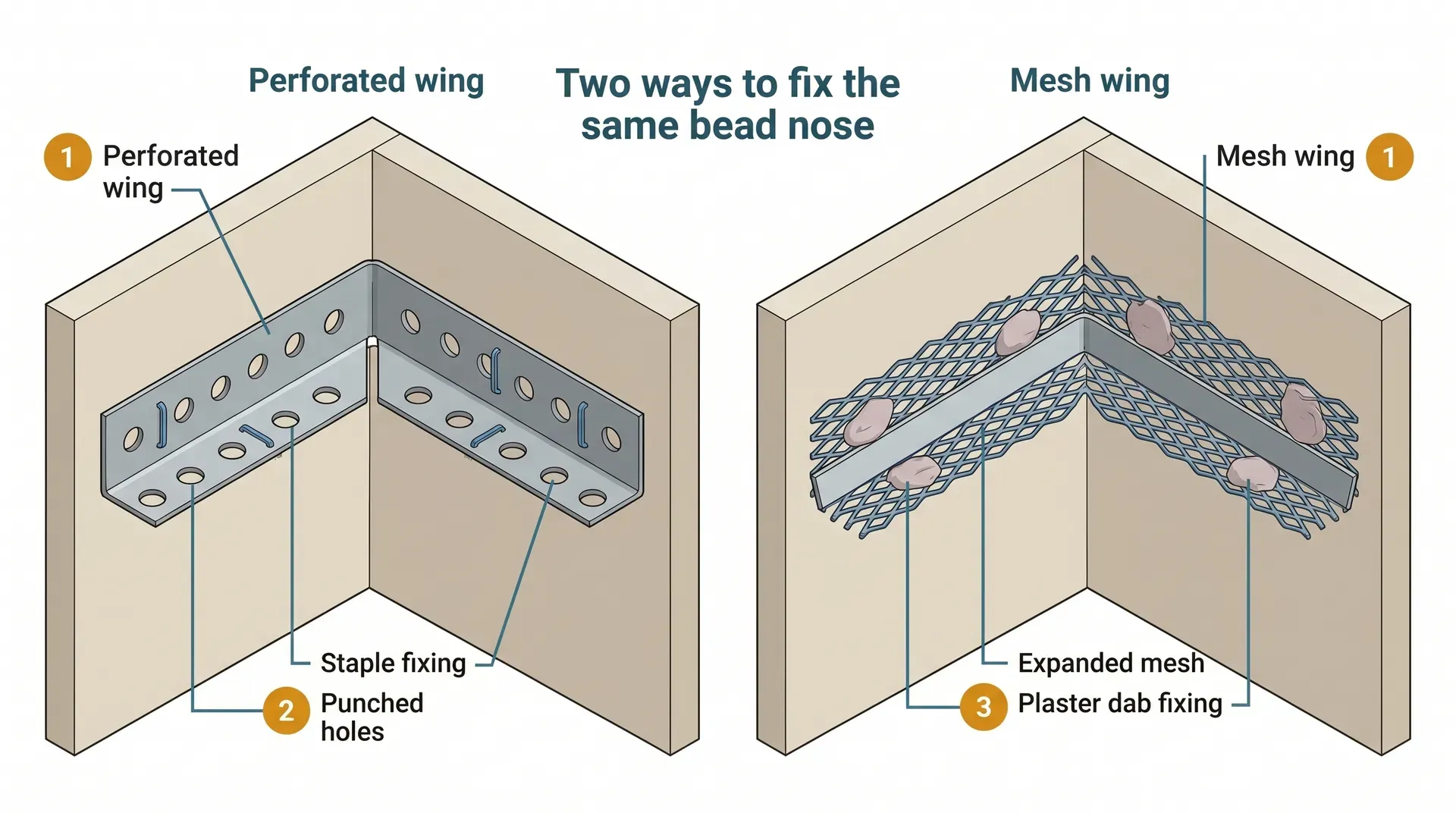

Mesh wings vs perforated wings

Once you've picked the material and the profile, there's a wing-style choice. Two designs exist and they're fixed differently.

A perforated-wing bead has a flat metal wing punched with regular holes. The wing is fixed to the wall with masonry nails (on solid blockwork), drywall screws (on plasterboard), or staples (on plasterboard, the professional preference). The plaster keys through the perforations once it's applied. This is the traditional design and still the most common in trade supply.

A mesh-wing bead has the metal wing replaced by an expanded mesh that's designed to be fully buried in plaster. The fixing method is different: instead of nailing or stapling, the plasterer puts dabs of plaster on the wall, presses the mesh into the dabs, and lets the plaster set with the bead held in position. Once set, the entire wing including the mesh is locked into the wall by the plaster itself. The mesh-wing approach gives a slightly cleaner finish at the corner because there are no nail or staple heads under the skim that can telegraph through, but it requires the plasterer to do the bedding work themselves rather than having a labourer fix the beads ahead of time.

Most professional plasterers in the UK now default to mesh-wing for skim work because the result is cleaner. Most builders fixing beads ahead of the plasterer's arrival default to perforated-wing because they can be fitted with a staple gun in seconds. Either is acceptable. The mesh-wing trades 30 seconds of plasterer time per corner for a slightly better finish.

Click to enlarge

How they get fixed

Bead fixing varies by substrate and is one of the things most homeowners assume their plasterer will sort out. They usually will. But beads fixed badly in the wrong place are visible forever, and a five-minute walkthrough before the plaster goes on is the cheapest quality control on the entire build.

On plasterboard the professional default is a staple gun. Galvanised staples driven through perforated wings into the board's gypsum core hold the bead absolutely flat against the corner without bending or pulling. Spacing is roughly 200-300mm: closer at the top and bottom of each length, looser in the middle. Drywall screws into noggins or studs are an alternative when an adjacent stud falls behind the corner. Clout nails work but transmit any subsequent trowel pressure into the bead and frequently shift the bead out of plumb during plastering. The Catnic guidance puts maximum staple/nail spacing at 600mm, but trade practice and forum consensus settles closer to 300-400mm for a beginner-friendly result.

On solid masonry (block or brick walls being directly plastered) the staple gun isn't an option. The professional method is plaster dabs. The plasterer mixes a small amount of plaster, places dabs along where the bead will sit at roughly 400mm intervals, presses the bead into the dabs, levels it with a spirit level, and holds it for a couple of minutes while the dabs grab. The dabs cure in 30-60 minutes; once set, the bead is locked in position and the substrate plastering can begin. Masonry nails into bed joints work as an alternative on softer mortar but tend to crack the brick or block face on harder substrates.

On insulated plasterboard or thermal laminates the foam adhesive used to bond the boards to the wall is too soft to hold a stapled bead reliably. The plaster dab method is the right approach here regardless of the board behind.

The single rule that catches every beginner: check plumb before the plaster sets. Hold a 600mm or 1200mm spirit level against each bead immediately after fixing, both vertical and along the run, and adjust before the dabs cure or the next staple is fired. A bead that's 5mm out of plumb at the top of a 2.4m corner produces a visibly leaning corner once the wall is plastered, and there is no way to correct it after the plaster has gone on without chopping the corner off and starting over.

Cutting beads to length

Tin snips through the wings, fine-tooth hacksaw or junior saw through the nose. Trying to cut the nose with snips deforms the angle and ruins the corner. Trying to cut the wings with a saw is slow and shreds the metal.

The technique: hold the bead nose-down on a flat surface. Use the snips to clip through one wing, then the other, leaving the nose intact. Switch to the saw and cut through the nose with a couple of strokes. Twist the waste section away. The whole operation takes about 10 seconds per cut once you've done a few.

For PVC beads, a sharp utility knife cuts both wings and nose in one pass. Score and snap rather than full-depth cut. Aluminium snips work too if you've got them.

A pair of basic tin snips (£5-£12 for a serviceable pair) is enough for a whole extension's worth of bead fitting. Aviation-style snips with compound action handle thicker bead profiles more easily but aren't necessary.

Cost and where to buy

Angle beads are a low-margin staple stocked by every UK builders' merchant and DIY retailer. The price spread between cheapest and most expensive within a single material category is small enough that buying anywhere reputable gets you a sound product.

For a typical kitchen extension you're buying a mixed bag. Most of the corners are dry internal walls finished with skim, so the bulk order is galvanised thin-coat at £3 – £4. If there's a bonding undercoat anywhere (typically on the existing house walls being plastered into the new extension) add a few standard 3m beads at £3 – £4. If the new extension includes a downstairs WC, utility, or kitchen splash zone, swap to PVC at £2 – £6 for those rooms. External corners on rendered walls, if you have any, take stainless at £8 – £9.

Buy in 10-packs from the trade-counter retailers (Screwfix, Toolstation, Selco). The per-length price drops about 30% versus single-unit retail at Wickes or B&Q. PVC beads in particular show a striking bulk discount: Wickes MetBead in 50-packs comes out at the bottom end of the £2 – £6 range per 3m length, while a single PVC bead at Selco is at the top end. If you're doing a whole extension, the 50-pack is the right call.

A typical 4m x 6m single-storey kitchen extension uses roughly 10-15 lengths of bead total: four wall-to-wall internal corners (which don't need beads, just paper tape), four external corners on bifold reveals, four corners on a single window reveal, two corners on a rear-elevation wall return. Adding stop beads for window-sill terminations and door reveals brings the total bead order to around £40 – £60 supply.

Stop beads are a different product

Stop beads come up in conversation about angle beads because they share a category in builders' merchants, but they do a different job. A stop bead is a strip with a single flat edge or J-profile rather than a 90 degree angle. It's used to terminate a plaster surface cleanly at a free edge: where the plaster meets a window frame, where it stops at floor level before the skirting goes on, or where two different finishes meet. Stop beads are £5 – £6 per length.

A common error documented on the Plasterers Forum: the plasterer fits a standard angle bead at the edge of a wall that's about to be tiled, when a stop bead would have given a clean termination. The angle bead nose ends up running into the tile line and the corner has to be chopped off and replaced. If your wall plaster needs to terminate at a tiled splash zone, a window edge, or a flooring transition, you want a stop bead, not an angle bead. Confirm with the plasterer at the same time you confirm bead materials.

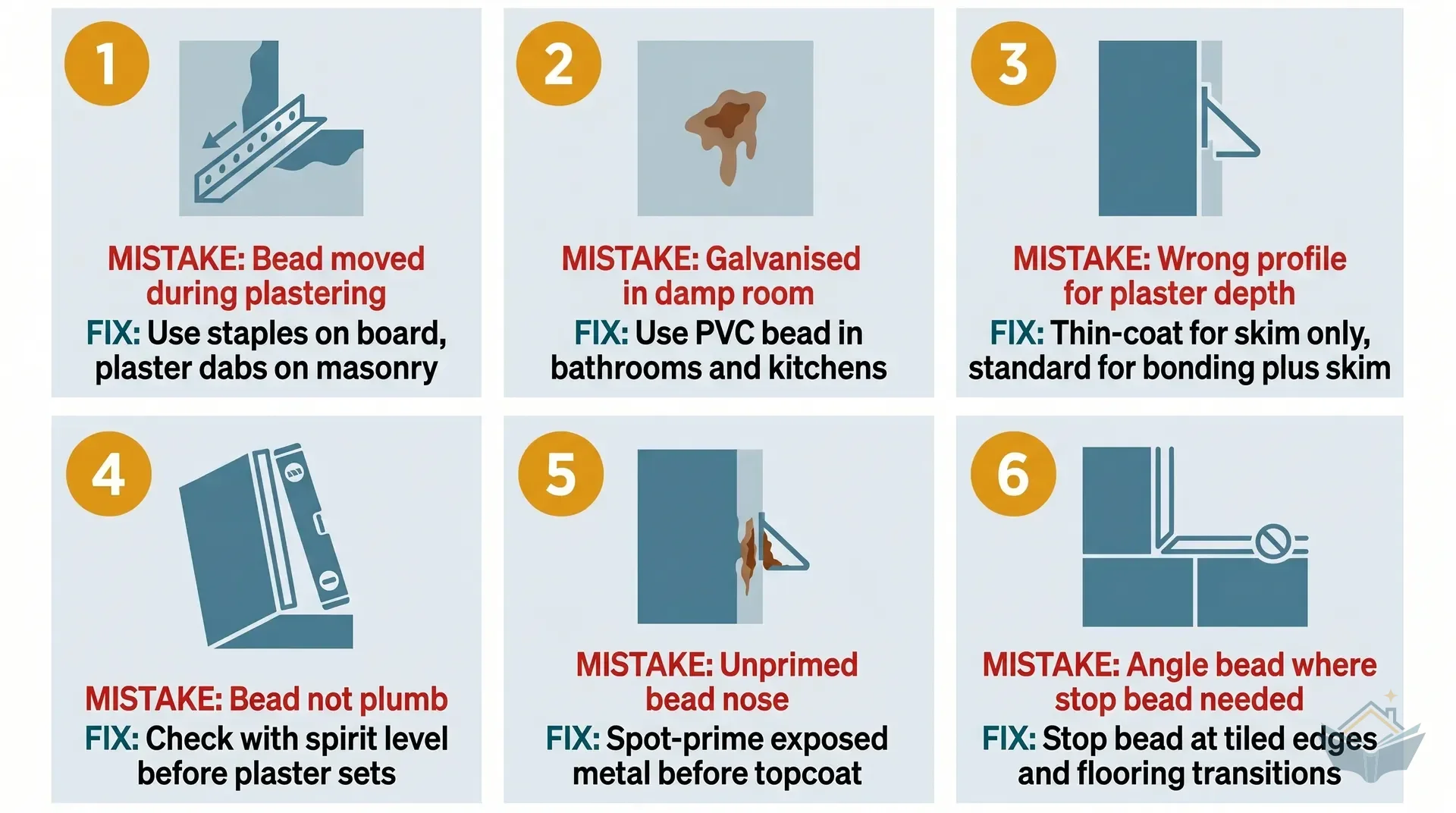

Common mistakes

The five errors that come up repeatedly in trade forum threads, in order of frequency.

Beads moving during plastering. A bead fixed with nails alone often shifts under the pressure of the first plaster coat. The trowel catches the perforated wing, the nail pulls, and the bead lifts a millimetre off the corner. Once the plaster sets, the bead is locked in place at the wrong angle. Solution: staples on plasterboard, plaster dabs on solid walls. Nails alone are amateur fixing and the result shows.

Galvanised bead in a damp room. The brown rust stains that bleed through paint nine months after the plastering job is paid for and forgotten about. Bathrooms, kitchens above the splashback, utility rooms, and the inside of external reveals are all condensation-prone enough to start rusting galvanised steel. The DIYnot thread "Rusty Angle Bead in Condensation-Prone Bathroom" describes the standard recovery: chop out the rusted bead, replace with PVC, re-skim, repaint. Cost is a half-day of trade time. Avoidance is choosing PVC at the order stage for a small premium per length.

Wrong profile for the plaster system. Thick-coat bead under a skim coat protrudes visibly. Thin-coat bead under bonding plus skim disappears entirely. Both are fixable only by chopping the corner off and starting over. Confirm with the plasterer at the order stage which beads are needed for which corners.

Beads not plumb. A 5-degree lean at the top of a 2.4m corner is invisible during fixing and screamingly obvious once the wall is plastered. The fix is the same brutal one: chop the corner off, fix a new bead, re-skim. Spirit level on every bead before the plaster touches it.

Painting straight onto an unprimed bead. This catches homeowners doing the decoration themselves. Galvanised steel exposed at the bead nose oxidises slowly under standard emulsion paint, and within a year the rust shows through. The fix is to spot-prime any exposed metal with a metal primer (zinc-rich or oxide-based) before the topcoat goes on. Better still, apply a full primer-undercoat across the whole corner before the emulsion. PVC beads sidestep this issue entirely.

Where you'll need this

• Plastering - fixed at every external plaster corner before skimming begins, including the sides of every window and door reveal
• Walls and Blockwork - relevant where new blockwork walls present sharp external corners that will be plastered as part of second fix
• Windows and Doors - the four corners of every window reveal and the two outer corners of every door reveal each take a bead
• Bifold and Sliding Doors - the long return corners of bifold reveals are particularly exposed to knocks and benefit from PVC beads even in dry rooms

External corners exist on every extension, every loft conversion, every garage conversion, and every internal alteration that opens or closes doorways. A handful of beads sits in every plasterer's van and gets fitted as a routine part of the skim job. The work that pays for buildwiz.uk is making sure the right material and the right profile go up at every corner the first time, not the second.
