USB Sockets: Wattage, Back Box Depth, and the Decision You Make Before First Fix

You spec the kitchen layout, the worktops, the tiles, and the lighting. Two days before second fix, your electrician asks "where do you want USB sockets?" You point at the bedside positions and the kitchen worktop run. He nods, then points out that the back boxes he chased in eight weeks ago at those exact positions are 25mm deep, and the screwless brushed steel USB sockets you ordered need 35mm. You're now choosing between bulky surface spacer plates that stick proud of the wall, or paying him to chase out finished walls and replasterer to make good. A 30-second decision at the electrical layout planning stage would have prevented all of it.

What it is and what it's for

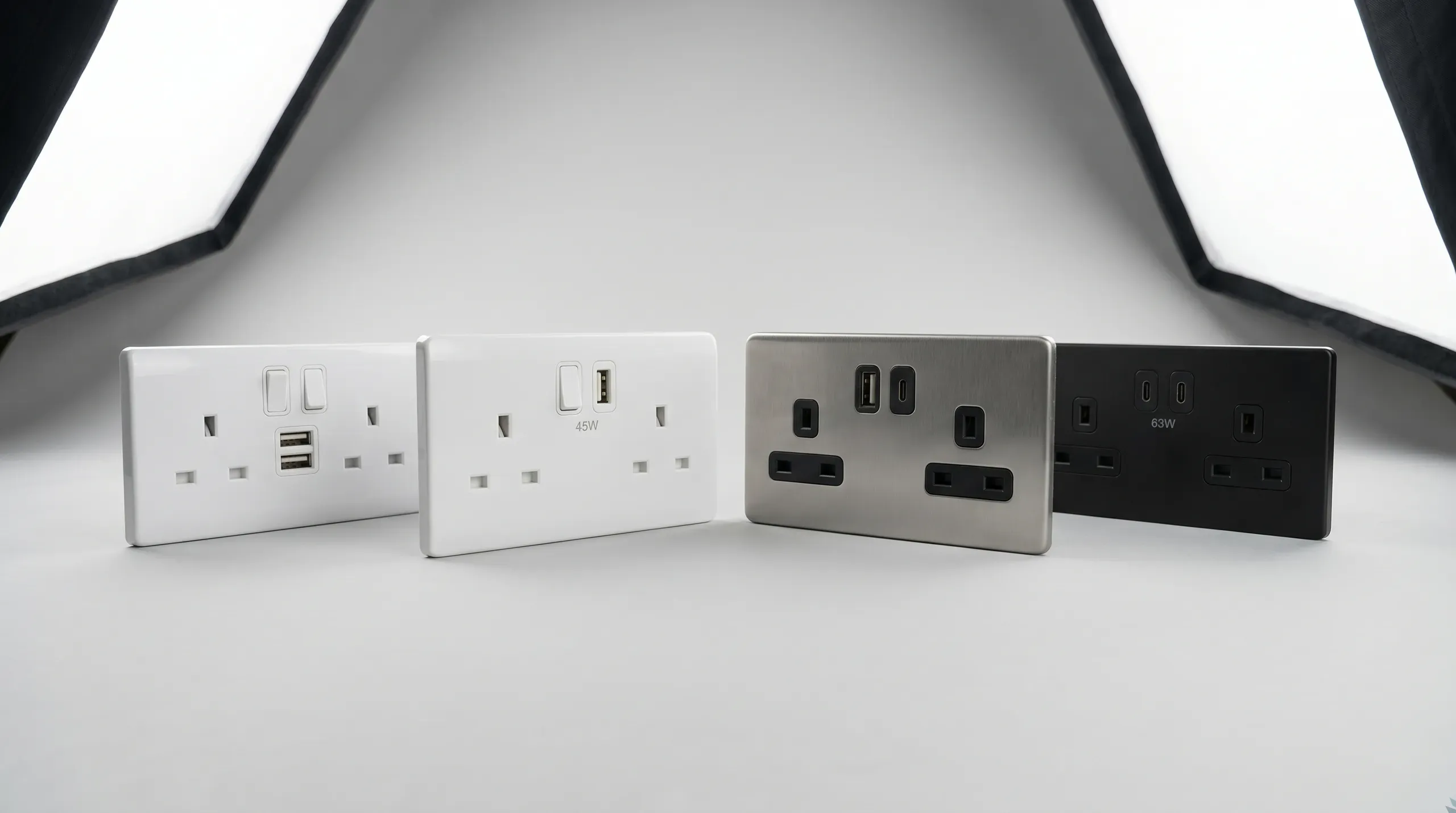

A USB socket is a 13A mains socket outlet with one or more integrated USB charging ports built into the same faceplate. The mains side meets BS 1363 (the standard for UK 13A plugs and sockets) like any other socket. The USB side runs through a small switch-mode power supply (SMPS, the same converter circuit that sits inside the brick of any phone charger) hidden behind the faceplate. That SMPS converts 230V AC mains down to 5V DC (or 9V/12V/20V via Power Delivery negotiation) and delivers it through USB-A or USB-C ports.

Where they pay off is the rooms where you charge devices daily and don't want a plug brick blocking a socket. Bedside, kitchen worktop, hallway by the front door, garden room desk, home office. Where they don't pay off is everywhere else. A USB socket costs two to ten times what a plain double costs and the USB module fails years before the mains side does. Selective placement at four or five positions across an extension is the practical approach. Fitting them throughout is expensive and wasteful.

USB sockets used to be a contemporary upgrade. They're now standard specification for any new kitchen, bedroom, or home office. The shift was driven by three things: phones moving to USB-C, the EU Common Charger Directive mandating USB-C on devices sold in the EU as of December 2024 (and Northern Ireland under the post-Brexit protocol), and the realisation that everyone in the household has a phone, a tablet, and at least one set of wireless earbuds that all need overnight charging.

USB-A vs USB-C: the EU mandate has already won

The decision is no longer "USB-A or USB-C". It's "USB-A plus USB-C, or USB-C only?" USB-A only sockets are obsolescent. Don't fit them in a new extension.

USB-A is the older flat rectangular connector you've seen on phone chargers since 2007. It maxes out at 5V and around 2.4A per port (12W). It can't fast-charge anything. Every device released since 2023 charges via USB-C. iPhones moved to USB-C in 2023. Apple AirPods, iPads, Android phones, and most laptops are USB-C. The EU Common Charger Directive made USB-C mandatory on most consumer devices sold in the EU on 28 December 2024. The UK government consulted on adopting equivalent rules during 2024. In practice the market has already moved: manufacturers shipping a single USB-C product line into both EU and UK markets is cheaper than maintaining two ranges.

USB-C is the smaller, oval, reversible connector. It supports much higher voltages and currents through a feature called USB Power Delivery (PD). PD is a negotiation protocol: the device plugs in, asks the charger what voltages it can supply, and picks the highest one it can handle. A 45W PD socket can deliver 5V, 9V, 12V, 15V, or 20V depending on what's plugged in. That's how the same socket can trickle-charge an Apple Watch and fast-charge a MacBook Air.

The practical specification for an extension built in 2026 is dual-port USB-A plus USB-C. The USB-C port handles all your modern devices at sensible speeds. The USB-A port covers the older cables and accessories you haven't replaced yet (older e-readers, Bluetooth speakers, controllers). Pure dual USB-C sockets exist and are future-proof, but they're rare in the mainstream UK market and cost two to four times the A+C combo equivalent.

Wattage tiers: what charges what

USB socket charging speed is rated in watts, calculated as voltage multiplied by current. The four tiers you'll see on UK product pages map onto specific use cases.

A few practical points the wattage rating doesn't make obvious.

Most USB sockets share their total wattage between ports. A 12W socket with two ports doesn't deliver 12W per port. It delivers 12W shared, which becomes 6W each when both are in use. Read the product specification carefully. The phrase "intelligent charging" usually means port-shared output. "Independent ports" or "X watts per port" means simultaneous full-power charging.

Power Delivery only works if both the socket and the device support it. A modern phone plugged into a non-PD USB-C port will charge at 5V x 3A (15W) at most, not at fast-charge speed. The socket has to advertise PD capability through the cable, and the cable itself has to be USB-C-to-USB-C with sufficient current rating. Plugging an older USB-A-to-Lightning cable into the USB-A port of a 45W socket gets you USB-A speed, not 45W.

Laptops above 65W (gaming laptops, 16-inch MacBook Pros, mobile workstations) need their dedicated charger. The 63W Knightsbridge socket will charge a MacBook Pro 16, but slowly, and it won't keep up with the laptop's draw under heavy load. For the home office desk where laptop charging matters daily, fit a 45W socket and use the laptop's own charger for sustained work.

USB-C cables matter. Cheap unbranded cables limit current to 3A even on PD-capable sockets. For 45W and above, use USB-C cables rated for the wattage you want. Apple, Anker, and UGREEN cables are reliable. Random Amazon cables sometimes aren't.

Back box depth: the spec that has to happen at first fix

This is the issue that catches more homeowners than any other. The back box (the metal or plastic enclosure recessed into the wall behind the faceplate) is installed during first fix, weeks before you choose your USB socket. If your back boxes are too shallow, your USB sockets won't fit, and the fix is expensive.

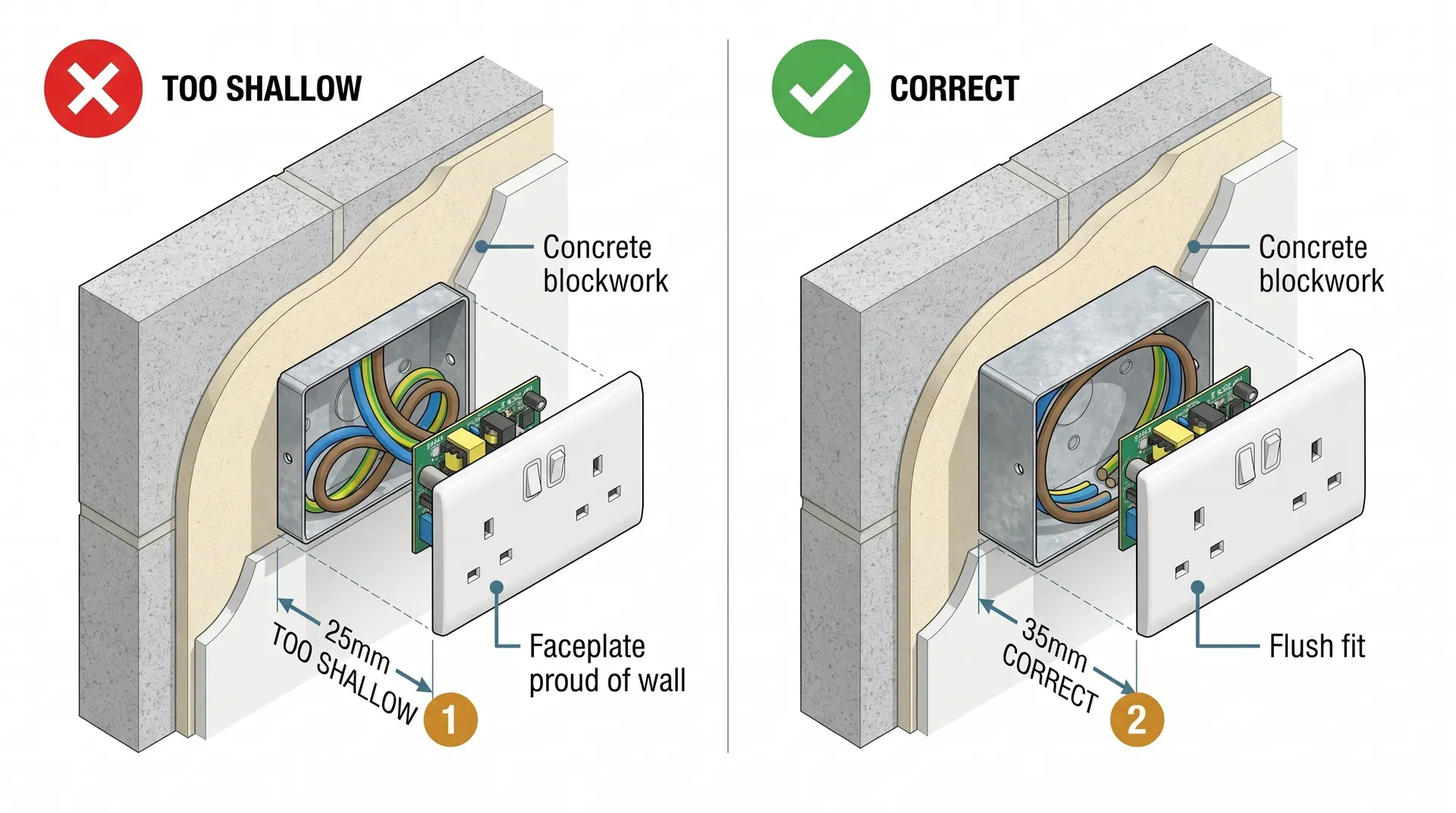

Standard sockets and switches use 25mm deep back boxes. That's the default your electrician will fit if you don't specify otherwise. USB sockets need more space because the SMPS circuit board sits behind the faceplate. Some product datasheets claim 25mm "minimum", but that's an idealised figure with a clean empty box and one neat cable loop. In a real installation with two or three cables (which is normal for a ring circuit position), the cables get compressed against the back of the box, the faceplate won't sit flat, and the screws won't tighten without crushing wires. The community consensus across UK electrician forums is unanimous: specify 35 mm for any USB socket position. Always.

For flat-plate and screwless USB sockets (the brushed steel, polished chrome, and matt black premium finishes), 35mm isn't a recommendation, it's a hard requirement. The flat-plate construction has even less internal depth than a standard screwed faceplate, and the SMPS is bigger to deliver higher wattages. Anything less than 35mm and the faceplate trim won't clip down properly.

Click to enlarge

If first fix is already done and the back boxes are 25mm, you're not without options, but none are good. Spacer rings (a 10mm plastic frame that mounts between the back box and the faceplate) extend the available depth, but they push the faceplate proud of the wall by 10mm. You can see the spacer from the side, and on a clean modern wall it looks like an afterthought. Your electrician can fit deeper boxes by chasing out and refitting, but that means damaging the plaster, replacing the box, replastering, and redecorating around every position. Easier to specify it correctly first time.

The two electrical safety issues to know about

Two technical issues with USB sockets affect how electricians sign off the work. You don't need to fix either of them yourself, but flagging them to your electrician at the right moment prevents problems later.

The 500V insulation resistance test destroys USB modules

When a new electrical installation is commissioned, the electrician runs an insulation resistance test (IR test, sometimes called the "megger" test after the brand of test instrument). Standard procedure is to apply 500V DC between live conductors and earth, and verify that the insulation hasn't broken down. It's a fundamental safety check required by BS 7671.

USB sockets cannot survive a standard 500V IR test. The SMPS module behind the USB ports is permanently connected to the mains (the socket switch only controls the 13A outlet, not the USB charger), and 500V applied to a live SMPS destroys its components instantly. The first sign that this has happened is the USB ports stop working while the mains side continues to function normally.

There are two correct procedures. Either disconnect the USB sockets from the circuit before testing and reconnect them afterwards (slow but foolproof), or reduce the test voltage to 250V DC and link live and neutral together to earth (faster, requires the electrician to know the technique). Some manufacturers, notably Scolmore Click, design their USB sockets to survive 500V testing in-circuit. Most don't.

This matters at two points in your project. The first is at second fix commissioning, when the electrician tests the whole installation. The second is years later, if anyone runs an Electrical Installation Condition Report (a periodic inspection, often required when selling or letting a property). An electrician who isn't aware of the issue can kill every USB port in the house with a single test. Mention USB sockets explicitly when you're booking either piece of work. A competent electrician will already know to handle them carefully.

Multiple USB sockets can trip an RCD

Every modern UK domestic socket circuit must be protected by a 30mA residual current device (RCD) under BS 7671 Regulation 411.3.3. The RCD detects earth leakage current and disconnects the supply if the leakage exceeds 30mA. It's the device that protects you against a serious electric shock if a fault develops.

USB sockets contain noise-filter components on their internal SMPS that produce a small amount of standing earth leakage, typically up to 3mA per socket. That's well below the 30mA RCD threshold for a single socket. But on a circuit with eight USB sockets, the cumulative standing leakage approaches the 30% RCD threshold (9mA on a 30mA RCD), and a single appliance with its own normal leakage can push the total past 30mA. The RCD trips. You reset it. It trips again. You blame the appliance. Actually the problem is the cumulative socket leakage.

This is most common with budget USB sockets where the SMPS quality is variable. The Axiom brand has been specifically named in UK electrician forum threads as causing repeated nuisance trips on kitchen circuits, with the trips disappearing once the socket is replaced with a standard non-USB equivalent. If your electrician installs USB sockets and you start getting nuisance RCD trips, this is the first thing to investigate.

The fix when you spec the build is straightforward. Don't fit USB sockets at every socket position. Limit them to the four or five positions where they're useful. On extensions where the homeowner has insisted on USB sockets throughout, the fix sometimes ends up being splitting the sockets across multiple RCD-protected circuits to spread the leakage. Easier to get the spec right at planning.

How to work with USB sockets

Three practical handling points beyond the back box and electrical safety items.

USB sockets generate small amounts of heat in normal operation, more than a plain socket. The SMPS dissipates roughly 0.05-0.5W on standby (depending on quality) and several watts when actively charging. For most positions this is irrelevant, but some manufacturers caution against fitting USB sockets behind enclosed cabinets, deep within a worktop run with no air circulation, or in any position where ambient temperature is consistently above 30C. In a kitchen worktop position with a wall behind, you're fine. Inside the back of a sealed media unit, you're not.

USB sockets can buzz audibly in quiet rooms. The internal SMPS operates at high frequency, and under light load (an iPhone fully charged but still plugged in, for example) the switching frequency drops into burst mode and can produce a faint hum or whine. The buzz is harmless, but in a bedroom 1.5 metres from the bed, it's annoying. UK electrician forums consistently report that LAP, BG, and Good Homes USB sockets buzz noticeably (these three brands share factories and internal components). MK is consistently reported as the quietest. If you're fitting USB sockets at bedsides where you'll notice the noise, spend the extra few pounds on MK Logic Plus rather than the Screwfix LAP own-brand.

Standby power draw is negligible. A modern certified USB socket draws roughly 0.05W when nothing is plugged in. Across eight USB sockets that's 0.4W, less than a single LED bulb. Don't bother switching them off at the rocker to save energy. The wear on the switch will cost more than the saving.

Cost and where to buy

Current UK retail prices for double sockets with integrated USB charging, April 2026.

A like-for-like replacement of an existing socket with a USB socket is non-notifiable work under Approved Document P, provided it isn't in a special location (kitchen, bathroom, outdoors). Supply and fit costs £60 – £150 per socket from a qualified electrician, including the socket itself. New circuits or special-location work requires Part P certification and costs more.

For an extension build you'll buy USB sockets through one of three routes. Screwfix and Toolstation hold all the volume brands (LAP, BG, MK Logic, Knightsbridge) at retail prices, with same-day click and collect. Specialist suppliers like UK Electrical Supplies, Electrical2Go, and CEF carry the full range including premium brands (Hamilton, Schneider, Corston) that the sheds don't stock. Premium brands sometimes sell direct: Corston ships their solid brass plates with USB-C through their own website at around £74 per double.

If your electrician is buying materials, they'll source through a trade wholesaler (CEF, Edmundson, Rexel) at 10-20% below retail. If you're buying yourself, factor in the time you'll spend ordering and the small markup you're paying compared to trade pricing. On 25 sockets across a full extension, the difference might be £50 – £100 total. Decide whether that's worth your time.

Brands

UK electrician forums are surprisingly consistent about which USB socket brands they rate.

BG Electrical (British General) is the trade default. Wide range covering white plastic at around £9 up to BG Nexus Metal brushed steel at around £22. The 900 Series and Evolve ranges cover most extension needs. Good warranty (typically 25-30 years on the mains side, though the USB module is usually shorter). The downside is the buzz issue mentioned above. Acceptable everywhere except bedside positions.

MK Logic Plus is the premium volume brand. Higher quality terminals than BG, quieter SMPS, better long-term reliability. Prices run £25 – £30 for white A+C 30W versions versus BG's £24 for an equivalent. The newer GaN-based 30W model from MK is competitive with BG 45W on charging speed. Worth the premium at bedside positions where buzz matters.

Hamilton (Litestat) dominates the premium screwless and decorative market. Hartland G2 range in satin steel, bright chrome, matt white, and various other finishes runs £30 – £35 per double socket. The aesthetic is markedly better than BG Nexus Metal. Specify if your extension is the kind of project where socket finish matters as much as worktop choice.

Knightsbridge is the high-output specialist. Their 63W dual USB-C model (around £70) is the highest mainstream wattage available in the UK domestic market. Their FASTCHARGE range covers most premium finishes with full PD. If you want laptop charging at full speed, this is the brand.

LAP is Screwfix's own-brand budget line. Cheap (£8 – £20 across the range), commonly fitted in cost-sensitive extensions, but the same internals as BG and Good Homes (the three brands share factories) means the same buzz issue. The PistonHeads and DIYnot consensus is that LAP is fine for hallways and utility rooms but not for bedrooms.

Schneider Lisse is well-regarded by electricians for the screw orientation and terminal quality. Prices in the £20 – £35 range. Less commonly stocked than BG or MK but worth specifying if your electrician already buys Schneider for the rest of the work.

Corston is the high-end niche option. Solid brass plates, antique brass and bronze black finishes, BS 1363-2 and BS EN 62368 tested. £74 – £100 per double. Specify only if you're fitting period or designer-grade interiors.

Axiom is the brand to avoid based on UK forum reports. Specifically named in DIYnot threads as causing repeated RCD nuisance tripping on kitchen circuits. The £12 saving per socket isn't worth the troubleshooting.

Reliability and lifespan

The mains side of a USB socket lasts as long as any other 13A socket: 20-30 years typically, with some BG models carrying 30-year guarantees on the mains components.

The USB module is the weak point. Typical lifespan is 5-10 years for branded products with regular use, less for budget unbranded models where some failures are reported within 3-5 years. Failure mode is consistent: the USB ports stop charging while the mains outlets continue working normally on a separate internal circuit. There's no replaceable module, so the entire socket has to be swapped.

If the USB ports stop working but the rocker switches still control the mains outlets, the SMPS has failed. Swap the whole socket for a new one. Like-for-like replacement is non-notifiable work outside special locations and costs £60 – £150 per position. If only the USB stops working, your mains side is unaffected and there's no rush, but plan to swap it the next time you have an electrician on site for other work.

Where you'll need this

• Electrical layout planning - the stage where you decide which positions get USB sockets, which type, and which back box depth to spec
• First fix electrics - when 35mm back boxes get installed at the USB positions
• Second fix electrics - when the USB faceplates actually get fitted

The USB socket decision happens earlier than most people expect. By the time your electrician asks "where do you want USB?" at second fix, the back boxes are already in. Make the call at electrical layout planning, mark the positions on your layout drawing, and tell the electrician explicitly that those positions need 35mm boxes. The same logic applies to any extension or renovation project where electrical first fix is a sequenced stage.

Common mistakes

Fitting USB-A only sockets in 2026. Every device released since 2023 charges via USB-C. USB-A ports become decorative within a few years. Always specify A+C combo at minimum.

Specifying USB sockets after first fix. The single most expensive mistake. If the back boxes are already 25mm and chased into plaster, your fix options are spacer plates that look bad or rework that costs hundreds per position. Decide at layout planning, not at second fix.

Expecting laptop charging at full speed from a non-PD socket. A 12W USB-A+C socket will not fast-charge a laptop. PD requires both the socket and the cable to support it, and the wattage must match the laptop's draw. Fit a 45W or higher socket at any position where you'll regularly charge a laptop.

Fitting LAP or BG USB sockets at bedside positions. The SMPS buzz under light load is audible in a quiet bedroom. Spend the extra five pounds on MK Logic Plus or move the USB socket away from the bed.

Fitting USB sockets at every position in the extension. Most don't get used. A typical homeowner uses USB sockets at five or six positions across a whole house. Fitting them at 25 positions wastes over £400 versus selective placement, contributes to RCD nuisance trip risk, and creates more failure points to replace in a decade.

Not telling the electrician about USB sockets before EICR or commissioning testing. The 500V IR test destroys SMPS modules. A competent electrician handles this correctly when they know the sockets are present. They might not check every faceplate before testing. Mention USB sockets explicitly when work is being booked.

Buying unbranded USB sockets from online marketplaces. Electrical Safety First testing found roughly three-quarters of UK USB socket products tested failed at least one safety criterion. Established UK brands (BG, MK, Knightsbridge, Hamilton, Schneider) performed best. The £5 saving on an unbranded model is not worth the failure risk.
