10mm Twin and Earth Cable (6242Y): When You Need It and Why

10mm T&E cable for big induction hobs and electric showers: when 10mm is required vs 6mm, indicative UK prices of £170 – £200 per 50m drum, and the back box trap that catches DIYers.

By IanLast updated

Project managed a £182k Oxfordshire kitchen extension

You order a 10.5kW induction hob for the new kitchen. The kitchen designer's quote sheet says nothing about cable size, just the model number. Your electrician runs 6mm to the cooker switch position because that's what every other cooker circuit on the job has needed. The walls get plastered. Six weeks later the hob arrives with a one-page installation manual that specifies, in plain English: minimum 10mm² supply cable, 40A or 45A protective device on a dedicated circuit. The 6mm cable already in the wall isn't compliant. Now you're cutting a chase from the consumer unit to the hob position through a finished plastered wall to swap it. This page tells you when 10mm cable is mandatory, when 6mm gets away with it, and the practical traps (back box depth, terminal connectors, conduit sizing) that catch homeowners doing first fix.

What it is and what it's for

10mm twin and earth is the heaviest-duty domestic flat cable in common use. The "10mm" refers to the cross-sectional area of each current-carrying conductor (live and neutral), measured in square millimetres. That's almost double the conductor area of 6mm cable and four times that of standard 2.5mm socket cable.

The designation is 6242Y for grey PVC versions (the standard) and 6242B for white LSOH (low smoke zero halogen) versions. Construction: two stranded copper conductors of 10mm² each (brown live, blue neutral), plus a 4mm² bare stranded copper earth wire (the CPC, or circuit protective conductor), all inside a flat grey PVC sheath manufactured to BS 6004. The overall dimensions are roughly 8.4mm thick by 16.8mm wide. That's noticeably bigger than the 6.9mm by 13.8mm of 6mm cable, and the difference matters when you try to fit it into a back box.

A 10mm cable is rated 64A clipped directly to a surface (BS 7671 Table 4D5, Reference Method C, 30°C ambient). In conduit or trunking on a wall surface it drops to 52A, and in conduit inside an insulated wall to 44A. Surrounded by thermal insulation for more than 500mm of its run, capacity falls further to roughly 32A. Compare with 6mm: 47A clipped, 38A in surface conduit (32A in an insulated wall), around 23A in insulation. The headline difference is bigger than it sounds. Above a plasterboard ceiling under no more than 100mm of insulation, 10mm keeps 45A, enough for a 9.5kW shower, where 6mm keeps only 34A. Under deeper insulation even 10mm drops to 36A, so the cable is kept out of it.

When your extension actually needs 10mm

Two appliance categories drive 10mm into a kitchen extension. Get either of these wrong and you're cutting walls open later.

Large induction hobs above 7.4kW. A standard 7.4kW induction hob draws 32A at full load; with the IET On-Site Guide diversity allowance applied, the design current drops to about 17A and 6mm cable is comfortable on a 32A breaker. Move up to a 9, 10, or 11kW model (Bosch, Siemens, AEG, Neff all sell hobs in this range) and the picture changes. A 10.8kW hob pulls 47A at full load. Diversity calculations theoretically reduce that, but here's the catch: BS 7671 Regulation 134.1.1 requires the installation to comply with manufacturer specifications. If the hob's installation manual specifies "minimum 10mm² supply cable", that overrides any diversity calculation you might run. The datasheet wins.

Electric showers from 9.5kW upwards. Showers are simpler than hobs because diversity does not apply: you size the circuit for the full rated current. A 9.5kW shower draws 41.3A. A 10.5kW shower draws 45.7A. Both push past 6mm cable's clipped-direct rating of 47A as soon as you add any derating for cable run length, ambient temperature, or insulation. Standard practice is 10mm cable on a RCBO rated at 40A (for 9.5kW) or 45A (for 10.5kW).

Warning

The 40A vs 45A device debate matters for 10.5kW showers. A 10.5kW shower draws 45.7A, which exceeds a 40A breaker's continuous rating. Many installations use 40A devices and "work" because shower thermostats prevent sustained max draw, but this is technically non-compliant: BS 7671 requires the device rating to be at least the circuit's design current (Regulation 433.1.1). Specify a 45A RCBO for any 10.5kW shower. For 9.5kW or below, follow the manufacturer, which normally specifies 40A (shower ratings are commonly quoted at 240V, where 9.5kW is 39.6A).

There's a third reason 10mm gets specified: long cable runs where voltage drop becomes a constraint. BS 7671 recommends 5% voltage drop for other uses supplied from the public low-voltage network. On 6mm (7.3mV/A/m in BS 7671 Table 4D5) a 32A load reaches that limit at roughly 49m of cable, and a 9.5kW shower at roughly 38m. Upsizing to 10mm (4.4mV/A/m) cuts the voltage drop by about 40% and resolves the compliance issue without re-routing the cable. It only becomes the deciding factor on unusually long routes, so measure the real route from the consumer unit rather than assuming.

The "specify before first fix" rule

This is the single most expensive mistake in extension electrics. Every working electrician will tell you the same thing: choose your hob before first fix. The rated power on the hob's installation manual determines the circuit cable size. The cable goes into the wall during first fix. The wall gets plastered. The hob arrives months later, sometimes a year later, and that's when you discover the spec.

If the hob datasheet calls for 10mm and you've installed 6mm, you have three options: cut a chase through finished plaster from the consumer unit to the hob position to pull new cable; downgrade your hob to a smaller model; or accept a non-compliant installation that will fail an EICR. None of these are cheap or pleasant.

The professional answer when the hob choice isn't finalised is to run 10mm anyway. The cost premium over 6mm is roughly £20 – £30 for a typical 15m kitchen run. Against a six-figure build budget, that's noise. Against the cost of reopening walls, it's nothing.

Tip

If you're doing first fix before the hob is on order, run 10mm cable to the cooker switch position regardless. You can connect a 6kW oven or 7.4kW hob to a 10mm circuit (it's "oversized" but completely safe) and you've future-proofed against any hob upgrade for the lifetime of the kitchen. This is the universal trade advice on every UK electrical forum.

Working with 10mm cable

You won't be doing the wiring yourself. New high-load circuits in an extension are notifiable work under Part P and must be installed by a registered competent person or notified to building control. But you'll be buying the cable, you may be pulling it through the structure, and if you're project managing first fix you need to understand what your electrician is dealing with.

Stiffness and routing

10mm 6242Y is genuinely stiff. The combination of larger copper conductors, thicker insulation, and the 4mm² CPC inside the sheath makes the cable significantly harder to bend than 6mm. Pulling a 50m drum off the reel solo is impractical: you need one person feeding cable while another routes it. Tight bends (less than six times the cable diameter) damage the insulation. Plan radius generously around corners.

Through stud walls, drill 32mm holes for clean pulls; 25mm is too tight when you account for cable lubricant and the natural twist. Through joists, drill at the centre (neutral axis), holes no larger than one quarter of joist depth. A 200mm joist takes a 50mm hole comfortably.

The conduit problem

If your build includes a screeded floor over insulation (typical for an underfloor-heated kitchen extension), and the cable run goes under that floor, your electrician will want conduit. Standard 20mm conduit is borderline for 10mm T&E (the cable jams when pulling around bends). Specify 25mm or 32mm conduit if there are any direction changes underfloor.

A practical insurance trick from professionals: have 25mm or 32mm PVC electrical conduit (to BS EN 61386, the standard for conduit systems), or whatever route your electrician specifies, laid during groundwork, even if you're certain you only need 6mm cable. Plastic waste pipe is not electrical conduit and is not a substitute. If you upgrade your hob in five years and need to swap to 10mm, you pull the new cable through the conduit without touching the screed. A homeowner who skips this and later wants to run a different cable to the hob position has to break up an underfloor heated screeded floor. Don't be that homeowner.

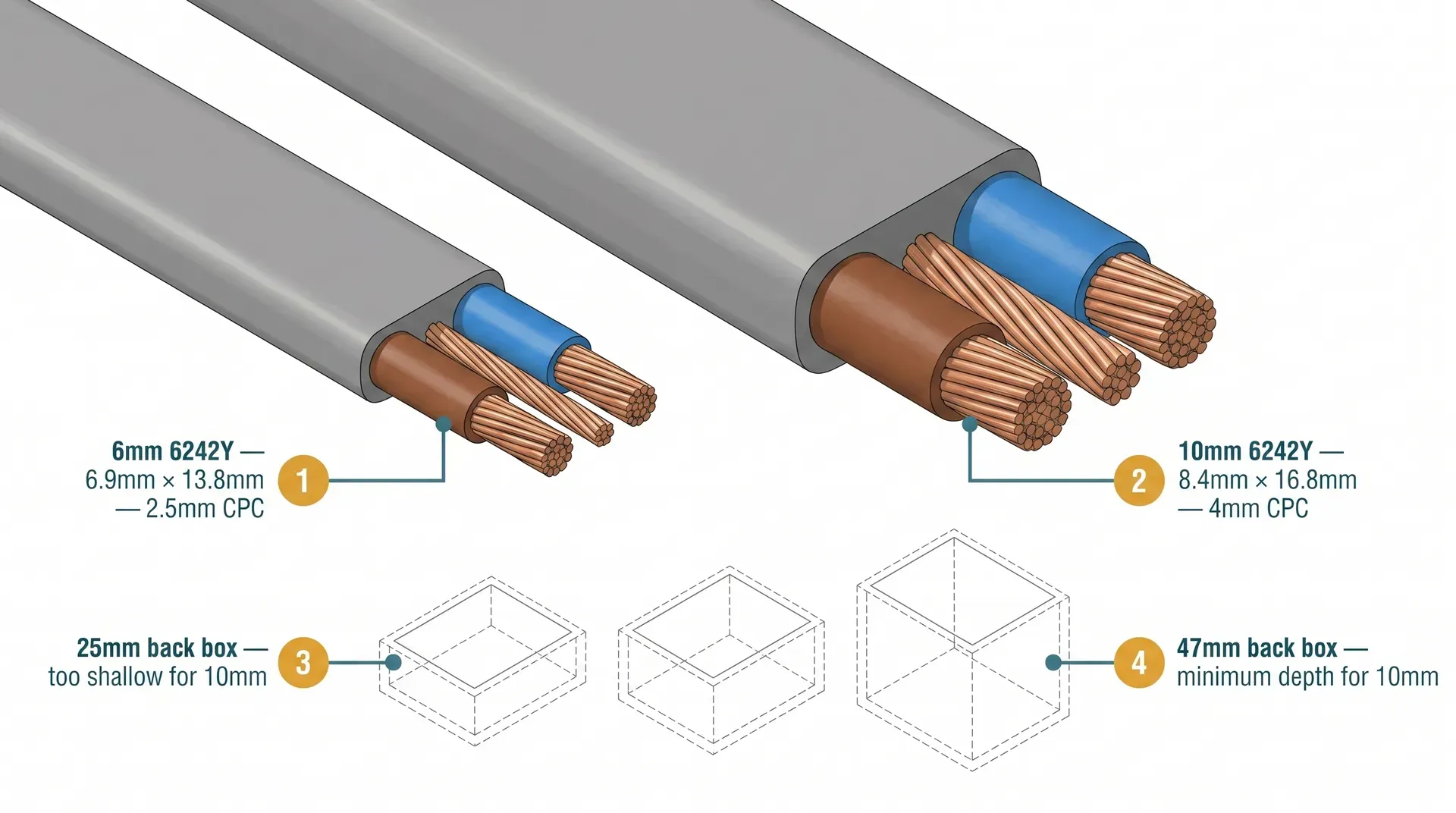

10mm vs 6mm cable cross-section, with back box depth requirements

The back box trap

This is the single most common practical complaint about 10mm cable: standard back boxes are too shallow.

A typical 13A socket back box is 25mm deep. A standard cooker switch box is often 35mm. Neither is adequate for 10mm cable. The cable's stiffness, combined with the bulk of the 4mm² CPC needing to be sleeved in green and yellow at termination, means there is simply no room to dress the conductors into the terminals on a 25mm or 35mm box. Electricians who have tried describe the brass terminals as "virtually impossible to tighten down" because the conductor and the cable jacket fight you for space.

Specify 47mm minimum depth for any single-gang cooker switch terminating 10mm cable. 56mm is more comfortable. Better still, use a double-gang format box and switch (the extra width gives the cable room to bend properly). If you're surface-mounting (sometimes the practical choice in a utility room or behind kitchen units), a surface-mounted enclosure removes the depth constraint entirely.

The DIY shed shelves do not stock 47mm deep boxes by default. You will need to order them in advance from an electrical wholesaler, Screwfix Trade, or TLC Direct. Don't leave this to the day of second fix.

Warning

You cannot connect 10mm T&E directly to a hob's terminal block. Most domestic induction and ceramic hobs have terminal blocks rated for a maximum of 6mm² flexible cable. The standard UK setup is: 10mm T&E from the consumer unit to a dedicated cooker connection unit (CCU) or cooker outlet plate at the worktop, then a short length of 4mm or 6mm heat-resistant butyl flex from the CCU to the hob terminal. The CCU is the termination point that accepts 10mm conductors.

Sleeving the bare CPC

The 4mm² bare copper earth conductor inside 10mm T&E must be covered with green and yellow PVC sleeving at every termination point. Same as on smaller cables, but the bigger CPC needs 6mm sleeving rather than the 3mm sleeving that fits inside 2.5mm cable. Buy a roll of 6mm green/yellow sleeving alongside the cable drum or your electrician will have nothing to use at termination.

How much do you need

10mm cable runs are typically dedicated single-circuit feeds, not networked like socket rings. For a typical kitchen extension you need a single run from the consumer unit to the cooker connection unit position, plus separately for any electric shower circuit if applicable. Worked example for a 4m × 6m kitchen extension with the consumer unit in a garage 12m from the kitchen:

  • Consumer unit to ceiling void: 1m
  • Through ceiling void to kitchen: 12m
  • Down the wall to cooker switch height: 1.5m
  • Tail allowance for terminations at both ends: 1m
  • Subtotal: 15.5m
  • Plus 15% contingency (10mm has tighter routing than smaller cable, so wastage is higher): 18m
  • Order: 1 × 25m drum or buy cut-to-length from a wholesaler

For longer runs (kitchen extensions on the opposite side of the house from the consumer unit) you'll comfortably use 25-30m. At that length a 50m drum is the sensible purchase and leaves a useful offcut for any future second circuit.

100m drums of 10mm exist but are heavy (around 45kg) and rarely needed for a single domestic job. A 25m or 50m drum covers almost any extension scenario.

Tip

Ask your electrician for a cable schedule before ordering. A competent electrician will produce a shopping list reading something like: "1 × 50m drum 10mm T&E, 1 × 25m drum 6mm T&E, 2 × 100m drum 2.5mm T&E, 1 × 100m drum 1.5mm T&E, 1 × roll 6mm green/yellow sleeving, 6 × 47mm deep back boxes." If they can't produce this list, that tells you something about how they plan first fix.

Cost and where to buy

A standard 50m drum of 10mm 6242Y from a UK retailer runs £170 – £200 as of April 2026. The examples below show the variation between outlets:

SourceBrand50m drum priceNotes
ScrewfixPrysmian£199.99UK manufactured. The default professional choice. 4.5 stars.
B&Q Trade PointPrysmian£198.98Same Prysmian product, marginally cheaper than Screwfix. Trade card required for best pricing.
ToolstationPitacs / Doncaster Cables£240Toolstation list price; Pitacs is Turkey-manufactured budget; Doncaster is UK-manufactured.
TLC DirectBASEC standard£189.60Trade-specialist supplier. Generic BASEC-approved. Reliable mid-range.
Electrical4LessJaylow / Pitacs£192.36Mid-range trade supplier. Free delivery over £100.
Shop4 ElectricalPrysmian (KCF0132)£221.81Premium pricing for Prysmian-specific stock. Look elsewhere first.

Per-metre cost from the lower-priced 50m drums works out at roughly £3.80 – £4.00 per metre. Cut-to-length retail (under 10m) carries a steep premium: £4.84 – £6.50 per metre per metre. Compare the total cost of the length you need with the full drum price; a lower per-metre rate does not make an unused drum cheaper overall.

The cost premium over 6mm cable is the figure most relevant to the "should I run 10mm anyway?" decision. A Screwfix 50m drum of 6mm Prysmian is £119.99; the 10mm equivalent is £199.99. That's a premium of £80 per drum, or roughly two-thirds more per metre. The brief number "2-3x" sometimes quoted for the cost difference reflects cut-to-length pricing or older market data; for drum purchases the real premium is closer to 1.7x. On a typical 15m run for a hob circuit, the cable upgrade cost is approximately £20 – £30.

Which brand?

BASEC approval is the non-negotiable buying criterion. The BASEC diamond mark on the drum label and printed along the cable sheath confirms compliance with BS 6004. Without it, your electrician's Part P certificate is at risk.

Beyond BASEC, brand matters in practice. Prysmian is the default professional recommendation: UK-manufactured, consistent sheath quality, holds shape well in clips, and strips cleanly. Doncaster Cables is the other major UK manufacturer; some electricians prefer their slightly softer insulation for tight terminations. Both carry a pre-sleeved earth conductor variant (Doncaster's Earthsure range) which eliminates field sleeving at every termination. Pitacs and Time (Screwfix's budget line) are imports from Turkey and Eastern Europe. They carry BASEC approval and are functionally compliant, but persistent trade complaints describe Pitacs sheath as "dark grey, not very flexible, tears easily" when stripping. The price gap between Prysmian and budget imports is rarely more than £10 per drum. Buy Prysmian or Doncaster.

For trade buyers with accounts, CEF and Edmundson Electrical price 10-20% below retail. If your electrician sources materials, they'll go through a wholesaler. If you're buying yourself, Screwfix or B&Q Trade Point is the practical option.

A 50m drum of 10mm 6242Y twin and earth weighs approximately 22kg. This is not a parcel-courier-friendly item. Order for click-and-collect from Screwfix, Toolstation, or B&Q Trade Point rather than home delivery, or factor in a delivery surcharge.

Where to buy Twin-and-Earth Cable 10mm²

Check current prices from UK suppliers.

These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.

Alternatives

6mm twin and earth (covered in detail here) is the right choice for cooker and shower circuits up to 7.4kW hobs and 7.5kW showers, where derating doesn't reduce headroom too aggressively. Save the 10mm premium when 6mm is genuinely sufficient and you know your appliance specs in advance.

16mm twin and earth is the next size up. You'll never need it in a domestic kitchen extension. It exists for very long runs and heavier loads. Don't confuse it with 16mm or 25mm meter tails, which are single-core double-insulated cables, not twin and earth. If anyone suggests 16mm for a hob or shower, get a second opinion.

SWA (steel wire armoured) cable is sometimes confused with high-current T&E by homeowners reading forum threads. SWA is a different cable entirely: it has steel wire armour around the conductors and is rated for direct burial or external runs. You'd use SWA from your consumer unit to a garden room or detached garage, not for an indoor kitchen circuit. Don't buy 4-core SWA when single-phase 10mm T&E is what your electrician needs. This mistake comes up regularly on forums when homeowners try to source materials independently.

Single core cables in conduit are an alternative to flat T&E for some commercial installations, but no domestic UK electrician will use them in your extension. Stick with flat T&E in 6242Y.

Where you'll need this

  • First fix electrics - high-load cooker and shower circuits run during first fix, before walls close up
  • Electrical layout planning - the cable size decision is triggered by the hob and shower kW ratings, which must be locked down before first fix begins

The buying decision is upstream of first fix. Cable schedules should be on your shopping list during pre-construction. Order at least a week before the electrician's start date; deep back boxes and 6mm green/yellow sleeving are not always in stock at the local shed.

Common mistakes

Not checking the hob datasheet. The single biggest cause of remediation work in kitchen extensions. Kitchen designers, builders, and even electricians sometimes assume "cooker cable is 6mm" and run cable before the appliance is finalised. A real case from BuildHub: kitchen designer told the homeowner the hob was "4kW" when the actual rating was 7kW. Electrician ran 4mm cable. Five hours of remediation work before the finishes went in. Always download the manufacturer's installation manual for your specific hob model and read the cable specification page yourself. Don't take anyone's word for it.

Using 6mm "to future-proof" a hob upgrade. This logic is backwards. 6mm cable does not future-proof anything. It locks you into hobs of 7.4kW or smaller for the lifetime of the cable. If you might upgrade in future, run 10mm now. The £20 – £30 cost difference at first fix is meaningless against the cost of cutting a chase through finished plaster later.

Buying 4-core SWA when single-phase 10mm T&E is the spec. A genuine forum mistake. Domestic UK kitchen circuits run on single-phase 230V supply. They need single-phase cable: live, neutral, earth. SWA cable comes in 2, 3, 4, or 5-core variants for various industrial and outdoor applications. None of them are what your kitchen needs. If you're buying 10mm cable for a domestic hob or shower, the only correct product is 10mm 6242Y flat twin and earth (grey PVC sheath, two cores plus bare earth).

Forgetting that 10mm doesn't connect to the hob terminal. The hob's terminal block typically accepts up to 6mm² flexible cable. Running 10mm T&E directly into a hob is mechanically impossible. The cable terminates at a cooker connection unit; a short length of 6mm heat-resistant butyl flex bridges the CCU to the hob.

Specifying a 40A breaker for a 10.5kW shower. 10.5kW at 230V is 45.7A. A 40A device is undersized. Specify 45A RCBO. Some installations get away with 40A because thermostatic shower controls limit sustained max draw, but it breaches Regulation 433.1.1, so expect the breaker to be changed.

Buying standard 25mm back boxes. The DIY shed default. Useless for 10mm cable. Order 47mm minimum depth boxes from an electrical wholesaler before second fix.

Skipping the conduit-under-screed insurance. A run of 25mm or 32mm PVC electrical conduit to BS EN 61386, laid under the screed on the route your electrician specifies, takes ten minutes during groundwork. It's a one-time investment that pays back the moment you change your mind about a hob or shower five years from now. Skip it and any future cable change requires breaking up the floor.

Forgetting that induction hobs need a Type A or Type F RCBO. An induction hob's electronics can put DC components into an earth fault current, which can stop a Type AC RCD from tripping, and BS 7671 Regulation 531.3.3 limits Type AC to fixed equipment known to produce no DC component. The dedicated cooker circuit needs a Type A RCBO at the consumer unit, or the type the hob manufacturer specifies (some ask for Type F). Mention this to your electrician at the planning stage; if they specify Type AC, that's a red flag.
