LED Downlights for Kitchen Extensions: Fire Rating, Spacing, CCT and What to Buy

Your electrician asks "warm white or cool white?" five minutes before they're due to terminate twenty downlights. You guess 3000K because the kitchen showroom looked nice. Two months later the worktops look yellow under the lights, the white quartz looks cream, and you're staring at a £600 quote to swap every fitting. Or worse: you didn't ask whether the units were dimmable, paired them with the existing leading-edge dimmer the previous owner left behind, and now half the run flickers below 70 percent. This page tells you how many downlights you actually need, where to put them, when fire-rated is legally required (and when it isn't), and which CCT and IP rating to specify before any cable is run.

What an LED downlight actually is

An LED downlight is a recessed ceiling fitting that sits flush in plasterboard with most of the body hidden in the void above. The visible part is a circular or square bezel (the trim ring) and a frosted or clear lens covering the LED. Modern fittings are 60-90mm in diameter, 50-80mm deep, and connect via a screw-terminal block on a short pigtail.

Two formats dominate the UK market. Integrated LED units have the LED chip and driver permanently bonded into the fitting body. The whole unit is replaced when the LED reaches end of life. GU10 fittings hold a removable GU10 lamp (a twist-and-lock LED bulb) that can be swapped without disturbing the fitting. The integrated format dominates new builds because the optics are tighter, the unit is sealed against steam and dust, and the LED is matched to the driver from the factory. The GU10 format dominates retrofits because the lamps are universally available.

Lighting circuits in your extension run on 1.5mm twin and earth cable, protected by a 6A MCB at the consumer unit. A 6A circuit can drive roughly 1,400W of total load. At 5W per downlight, that's 280 fittings per circuit on paper. In practice, most extensions need one or two lighting circuits because of zoning, switching, and dimmer load limits, not because of MCB capacity.

When fire-rated is legally required (and when it isn't)

This is the single most-asked question on UK home-build forums, and the answer is more specific than most websites suggest.

The legal position comes from Approved Document B (Fire Safety) Section 9, which requires that any opening in a fire-resisting element must not impair the fire resistance of that element. A ceiling becomes a fire-resisting element only when it forms part of a compartment that needs to resist fire spread. In a typical UK home, this means a ceiling beneath a habitable room above (a bedroom, study, bathroom).

In a single-storey extension where there's no room above the ceiling, just an attic void or a flat-roof structure, the ceiling is not a fire-resisting compartment. Cutting downlight holes into it doesn't breach any fire compartment, because there isn't one. Fire-rated downlights are not legally required in this situation.

In a two-storey extension, or a single-storey rear extension with a bedroom directly above the ceiling on the original house side, the ceiling separates the kitchen (or living space) from a habitable room above. That ceiling needs to maintain at least 30 minutes of fire resistance under Building Regulations. Every downlight hole punched into it must be sealed by a fire-rated fitting that has been independently tested to demonstrate the ceiling's fire rating is preserved. Fire-rated downlights are mandatory here.

The 2029 standards transition

UK fire-rated downlights have historically been tested to BS 476-21. The deadline for the new standard is 2 September 2029: from that date, all fire-rated downlights must be tested to BS EN 1365-2 (the European standard that replaces BS 476-21 for this purpose). Products tested only to the older standard will no longer satisfy Building Regulations from that date. If you're buying in 2026 and your downlights need to last 10-15 years, check that the data sheet lists BS EN 1365-2 testing alongside or in place of BS 476-21. Aurora's mPro and EFD ranges are already certified to BS EN 1365-2. So is the Collingwood H2 Lite range. Lower-tier brands may still rely solely on BS 476-21, they're legal until 2029 but may need replacing earlier than expected if you sell the property and a buyer's surveyor flags it.

Fire rating ratings: 30, 60, 90 minutes

A fire-rated downlight is tested for 30, 60, or 90 minutes of resistance, but the rating only applies in the specific ceiling construction it was tested in. Aurora's 30-minute rating, for example, applies to a single 12.5mm plasterboard ceiling on joists at 600mm centres. The 60-minute rating requires double 15mm plasterboard. The 90-minute rating requires double 15mm plasterboard on 450mm centres.

For a standard domestic extension, 30-minute fire rating is what Building Control will expect on the kitchen ceiling beneath a bedroom. Don't pay extra for 60-minute rated fittings unless your structural engineer or BCO has specifically asked for it.

IP rating: why kitchens default to IP65

IP rating describes how well an electrical fitting is sealed against dust and water. The two digits matter: first digit is solids (dust), second is liquids. IP20 means basic protection against fingers, no water resistance at all. IP65 means full dust protection and protection against low-pressure water jets from any direction.

Bathrooms have legally defined zones under BS 7671 Section 701. Zone 1 (over the bath or shower up to 2.25m) requires IP44 minimum, but in practice IP65 is the standard specification. Zone 2 (extending 600mm beyond Zone 1) requires IP44.

Kitchens have no equivalent legal zone. But every kitchen generates steam from cooking, kettles, and dishwashers. Steam rises into the ceiling void and condenses on the cool surfaces of any non-sealed fitting. Over years, this corrodes terminals and degrades drivers. IP65 is now the default kitchen specification for this reason, even though IP20 fittings are technically permitted. The price difference is negligible (often the same fitting, marked IP65 for the steam-resistant version), so there's no reason to buy below IP65 for a kitchen ceiling.

For a utility room with a tumble dryer, definitely IP65. For a bathroom or en-suite ceiling, IP65 over the wet zones, IP44 minimum elsewhere. For a bedroom or hallway, IP20 is fine.

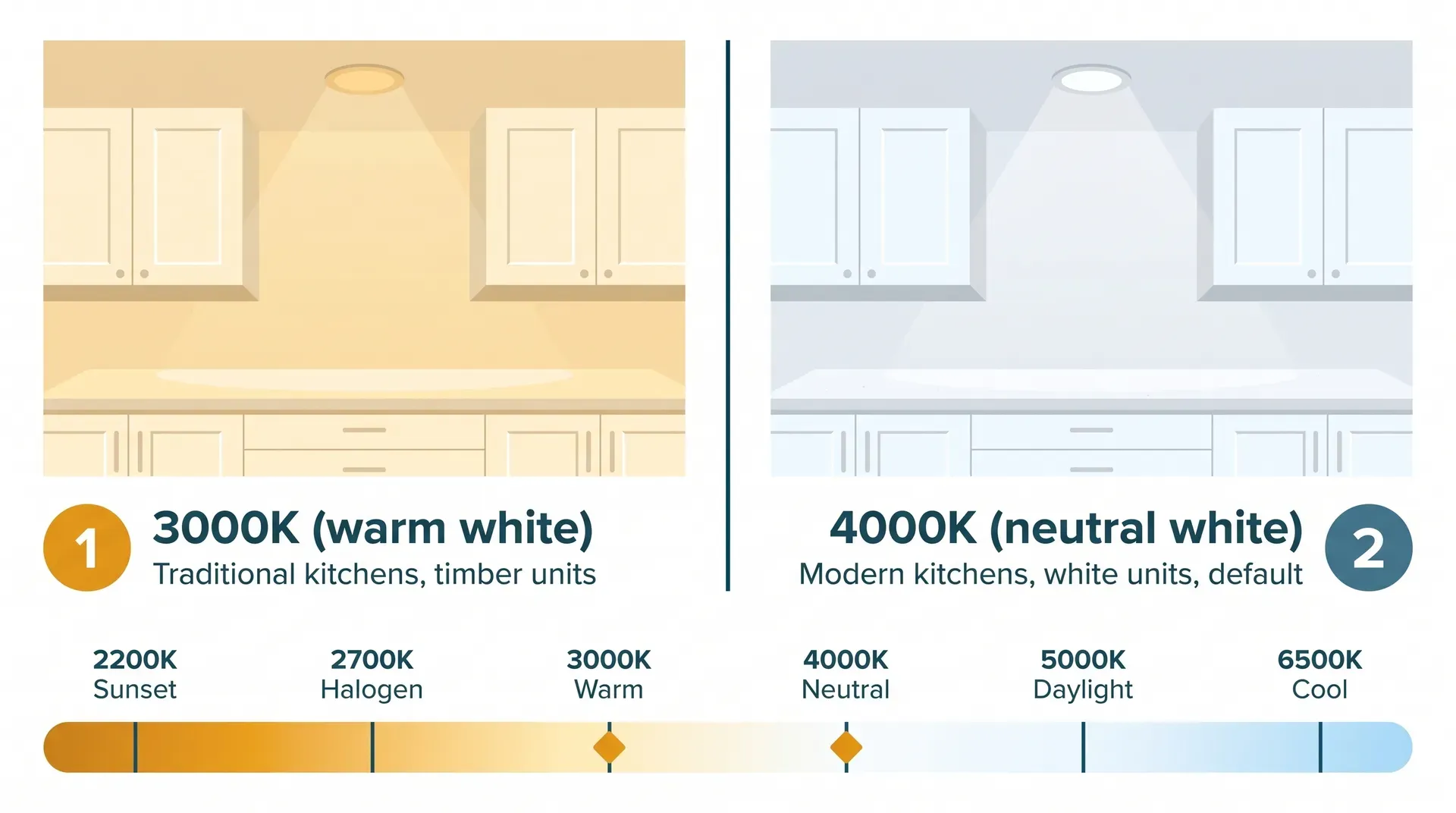

Colour temperature: 3000K vs 4000K vs CCT-switchable

CCT stands for correlated colour temperature, measured in kelvin (K). Lower numbers are warmer (more orange/yellow), higher numbers are cooler (more blue/white).

• 2700-3000K is "warm white", the colour of an old halogen bulb or candlelight. Suits traditional shaker kitchens with oak, walnut, or warm-stained timber. Suits living rooms and bedrooms.
• 4000K is "neutral white" or "cool white", the kitchen industry default. Renders white cabinetry and quartz worktops accurately. Reads as fresh, clean, and slightly clinical without being harsh.
• 5000-6500K is "daylight", too cold for any kitchen except clinical/utility settings. Avoid in domestic use.

For a modern kitchen with white or pale-grey units and quartz worktops, specify 4000K. For a traditional kitchen with timber units and stone worktops, 3000K reads warmer. Open-plan kitchen-diners benefit from 4000K over the worktops and 3000K over the dining area, on separate dimmer circuits.

The "regret-proof" option: CCT-switchable downlights. These have a small switch on the fitting body that selects 3000K, 4000K, or 6500K (some models offer four steps including 2200K sunset and 2700K warm). You install them, you live with the kitchen for a fortnight, and then you flip the switches to whichever temperature works best in your space. The Collingwood H2 Lite CSP at around £8 per fitting offers four CCT settings and 70,000-hour rated life. Aurora's mPro CCT-switchable range is similar. JCC's X50 offers tri-CCT (3000K/4000K/5700K) at around £10. Pay the few extra pounds. CCT regret is the most common downlight mistake homeowners make, and CCT-switchable fittings eliminate it.

Click to enlarge

Wattage, lumens, and beam angle

LED downlight wattage is a poor proxy for brightness because efficiency varies between fittings. Use lumens.

A 4-7W LED downlight produces 400-700 lumens, the equivalent output of a 35-50W halogen. The old "one downlight per square metre" rule was calibrated to halogen output. With LEDs at 60-100 lumens per watt, modern downlights cover more area each, and you need fewer of them per square metre.

The target for general kitchen lighting is roughly 250 lumens per square metre across all light sources combined (downlights, pendants, under-cabinet strips). For a 30m² kitchen extension, that's 7,500 lumens of total output. Eighteen downlights at 500 lumens each gives you 9,000 lumens, enough to hit the target with under-cabinet strips and a pendant making up the rest.

Beam angle matters too. 60-110° wide beam is the norm for general-purpose ceiling lighting. 38° narrow beam is for accent lighting (highlighting a feature wall or a piece of art). Specifying a 38° beam angle for general kitchen lighting produces a "spotted" effect with dark patches between fittings. For kitchen ceilings, 100-110° wide-beam fittings are the right choice. Most modern integrated LED downlights default to wide beam.

How many downlights and where to put them

The two questions that determine your downlight count are how high is your ceiling and how is the worktop laid out.

The spacing rule: ceiling height ÷ 2

Spacing between downlight centres equals ceiling height divided by 2. For a standard 2.4m ceiling (a typical extension or first-floor room), that's 1.2m centre-to-centre spacing. For a 3m ceiling (a vaulted extension or a tall room), that's 1.5m. Higher ceilings need slightly closer spacing because the light has to travel further.

The first row of downlights sits 600mm from the perimeter wall. A wider gap creates a dark band along the wall edge.

For a 6m × 4m kitchen extension with a 2.4m ceiling, the math gives you:

• 6m / 1.2m = 5 downlights along the long axis
• 4m / 1.2m = 3-4 downlights along the short axis
• Grid total: 15-20 downlights for general lighting

This matches the typical real-project specification of 20-29 downlights for a 30m² extension, allowing for a few extra fittings to deal with island lighting, cooker hood positioning, and worktop offsets.

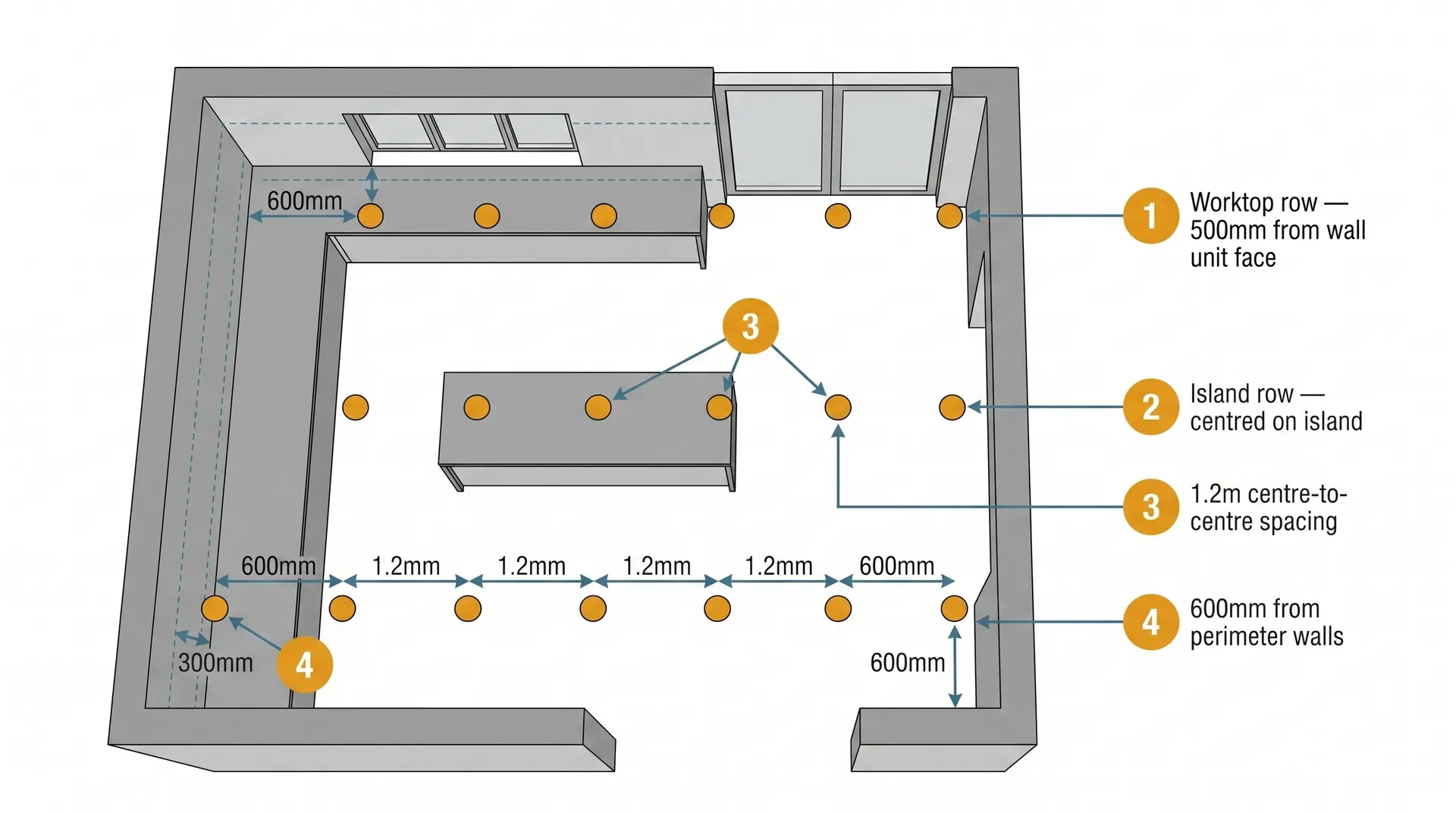

Worktop shadow positioning

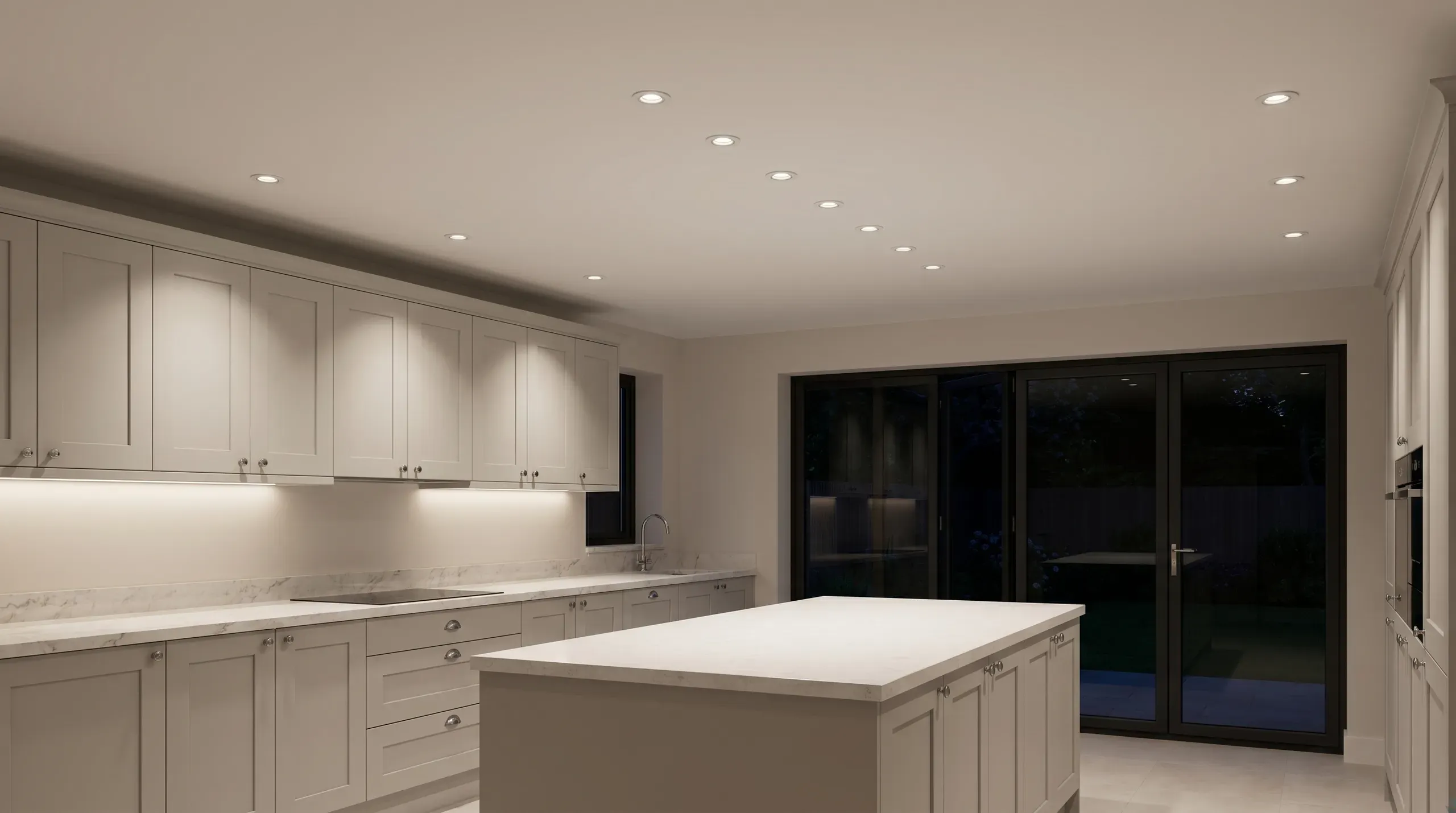

The biggest mistake on kitchen downlight layouts is putting a single row of downlights down the middle of the room. The cook stands at the worktop with their back to the row, casting their own shadow onto the worktop they're trying to use. Light falls on the floor and the cabinet doors but not the worktop.

The fix is two parallel rows aligned with the worktop runs, positioned 400-600mm from the wall behind the worktop (not directly above the wall units, where the light would hit the cabinet face instead of the worktop surface). Measure from the back wall to the front edge of the wall units (typically 300mm for a standard wall cabinet). Add another 100-300mm. That's where the downlight goes, in front of the wall unit, not above it, so the light beam reaches over the unit and onto the worktop in front.

For an island, run a third row of downlights centred on the island, plus optional pendant lighting over it.

Click to enlarge

Dimmability: the trap

Three things have to match for an LED downlight to dim cleanly: the fitting itself must be dimmable, the LED must be on a trailing-edge dimmer (not a leading-edge), and the dimmer must be rated for the LED load.

Older dimmers (pre-2015 in most UK homes) are leading-edge types, designed for resistive halogen and incandescent loads. Connect them to LED downlights and you get flicker, buzz, dropout below 30 percent, and sometimes outright failure. Trailing-edge dimmers are designed for capacitive LED loads and produce smooth dimming from 100% down to roughly 10%.

Two dimmer brands dominate the UK domestic LED dimmer market:

• Varilight V-Pro (around £25 – £35 per gang, £30 – £45 for two-way). Programmable trailing-edge with leading-edge fallback if needed. No minimum LED load. The default professional choice.
• Hamilton Hartland LEDStat (around £35 – £50). Flat-front design, trailing-edge, similar capabilities.

Don't connect non-dimmable LED downlights to a dimmer of any kind. They'll work at full brightness but flicker, buzz, or fail when dimmed. Buy dimmable fittings if there's any chance the room will need dimming, and pair them with a V-Pro or LEDStat dimmer.

Insulation contact and fire hoods

A halogen downlight at 50W ran hot enough to melt insulation if covered. The old rule was a 30mm air gap minimum around every downlight, or a fire hood (a metal cap fitted above the fitting in the void) to protect surrounding insulation. Modern integrated LED downlights run cool (the fitting body warms slightly to the touch but never hot), and most fire-rated models are now IC-rated (insulation contact rated), meaning they can sit in direct contact with mineral wool or PIR insulation without overheating.

Check the data sheet for "IC-rated" or "suitable for insulation contact". The Collingwood H2 Lite, Aurora mPro, JCC X50, and Luceco FType ranges are all IC-rated. Older or budget fittings may still require a 30mm clearance.

If you're using foil-backed PIR insulation (Celotex, Kingspan), the foil layer reflects heat back into the fitting. Even with an IC-rated downlight, leave a small gap or use a fire hood designed for foil-backed boards. Approved Document L (Conservation of Fuel and Power) requires insulation continuity at the ceiling plane, so cutting holes around downlights creates thermal bridges. IC-rated fittings let the insulation pack tight to the fitting body, maintaining the U-value.

GU10 vs integrated LED: the replaceability debate

Forums are full of this argument. Both sides have a point.

Integrated LED units are sealed at the factory. The LED chip and driver are bonded into the body. When the LED reaches end of life (typically 25,000-50,000 hours, so 15-30 years at 4 hours per day), the entire fitting is replaced. The downside is that 15 years from now, the exact model probably won't be available. You'll fit a replacement that's a slightly different size, a slightly different bezel finish, or a slightly different CCT. On a row of six, the new one will look subtly wrong.

GU10 fittings hold a removable lamp. When the LED in the lamp dies, you twist out the old lamp, twist in a new one, and the fitting itself stays put. GU10 lamps are universal across brands. You can buy them at any supermarket. The downside is the optics are looser (the lamp sits in a generic socket rather than being matched to the fitting body), the seal against steam is harder to achieve, and the colour quality is generally lower.

Recommendation: For a new kitchen extension, buy CCT-switchable integrated fire-rated IP65 fittings (Collingwood H2 Lite CSP, Aurora mPro, or JCC X50). They look better, run better, and you'll either be in the house for 15 years and replace the lot in one go, or you'll move and let the next owner deal with it. For a quick retrofit where you're matching existing fittings or expect to redecorate within a few years, GU10 fittings are simpler.

Smart and colour-changing options

Philips Hue White Ambiance and LIFX smart downlights add app control, scene presets, and (on the colour-changing models) full RGB tuning. They sit in the £35 – £60 per fitting bracket and are typically GU10 retrofit format rather than integrated fire-rated. Hue requires a bridge (around £50). LIFX uses Wi-Fi directly with no bridge.

For a kitchen, the practical question is whether you actually want app-controlled colour-changing lights. Most homeowners use them for a fortnight, find the warm white preset they like, and never touch the app again. CCT-switchable downlights at £8 – £18 deliver 90 percent of the same outcome at a fifth the cost. Buy smart downlights only if you genuinely want scene control (party mode, film mode, sunrise wake-up). Otherwise, CCT-switchable plus a good trailing-edge dimmer is the smarter spend.

How much will it cost

Pricing for a typical 30m² kitchen extension with 20 fire-rated IP65 LED downlights:

The mid-market tier looks like the obvious choice on price, but the £2 – £8 upgrade to CCT-switchable buys you the ability to dial in the right white temperature after the kitchen is fitted. That's the spend that protects you from the most common downlight mistake.

Add labour: £30 – £50 per fitting in batches of 8+. For 20 downlights that's £600 – £1,000 of electrician time during second fix. A single-light call-out runs £80+ as call-out plus first hour, so always batch the work into one second-fix visit.

A real 30m² kitchen extension supplied 29 downlights at trade prices for £585 total, about £20 per fitting all-in including the dimmer switches and bezels. That's the order-of-magnitude check: if your electrician's quote is £35+ per supplied fitting, push back.

Where to buy

Toolstation has the cheapest entry-level fire-rated IP65 units (Luceco FType Essence at £6.24, Wessex 3CCT at £6.98). Same-day click-and-collect. Screwfix stocks Aurora and Luceco at slight premium and has the widest brand range. Wickes carries Saxby and own-brand at around £9 – £10. Downlights Direct (online specialist) carries Collingwood, JCC, and Ansell at competitive prices and is the place to buy CCT-switchable models. CEF and Edmundson Electrical are trade wholesalers, your electrician will source through one of them at 10-20% below retail.

Alternatives

Pendant lights over an island or dining table replace some of the ceiling downlight count. A pendant produces task light directly over a focal point and dramatically reduces the number of downlights needed in the central zone of a kitchen. Don't replace all the downlights with pendants, pendants don't light the corners, but factor 2-3 pendants into the layout and remove 4-5 downlights.

LED panels (square or rectangular flat panels recessed into the ceiling) are a commercial-style alternative to multiple downlights. A 600mm × 600mm 36W panel produces 3,600 lumens, the equivalent of 6-7 downlights, with even diffuse light and no spotted effect. Used occasionally in modern kitchens and home offices. Visually divisive, they read as office lighting rather than domestic.

Track lighting on adjustable spotlights is a flexible alternative for unusual ceiling shapes (vaulted, sloped, exposed beams). Most extensions don't need it, but if you have a glazed gable or a vaulted section where flat-ceiling downlights aren't possible, track-mounted spots solve the geometry.

Surface-mounted downlights screw onto the ceiling face rather than recessing into it. Used when the ceiling void is too shallow for a recessed fitting (less than 50mm available depth). Visually heavier than recessed but solves a real installation constraint.

Where you'll need this

• Electrical layout planning, agree downlight count, position, and switching zones before any cable is run
• First fix electrics, 1.5mm T&E cable runs to each downlight position before the ceiling is closed
• Insulation, fire-rated IC-rated downlights allow insulation packed to the fitting body without thermal bridging
• Second fix electrics, fittings cut into plasterboard and connected during second-fix stage

These positions are fixed before plaster and very expensive to change afterwards. Decide downlight layout at electrical layout planning stage on any extension or renovation project, sign it off on a plan, and don't move from that plan once first fix begins.

Common mistakes

Specifying non-dimmable fittings then trying to dim them. Non-dimmable LEDs work at full brightness but flicker or buzz at any reduced level. The label on the back of the fitting says "non-dimmable" in small print, check it. If you want any room flexibility, buy dimmable fittings even if you don't fit a dimmer immediately.

Choosing 3000K when the kitchen has white units. Reads yellow against white quartz. The fix after installation costs £30 – £50 per fitting in supply plus another £30 – £50 in labour. Buy CCT-switchable, or if you're certain, buy 4000K for any modern white-unit kitchen.

Under-spacing leading to a "spotted" floor pattern. Wide gaps between fittings, narrow beam angles, and dark wall edges combine to make the room look like a swiss cheese. Apply the ceiling-height ÷ 2 spacing rule. Use 60-110° beam angles. Keep first row 600mm from walls.

Forgetting fire-rated where there's a room above. A two-storey rear extension with a bedroom over the kitchen needs 30-minute fire-rated downlights in the kitchen ceiling. Fitting non-fire-rated units here is a Building Regulations breach that will be flagged at completion sign-off. Cost to replace 20 fittings after plastering: £600 – £1,000 supply + £600 – £1,000 labour. Get this right at specification, not at remediation.

Mixing brands or batches. Subtle CCT differences between manufacturers (or between production runs of the same model) become visible across a row of fittings. Buy the entire kitchen's worth from one brand, one model, one order. Keep two spares for future failures, in the same model.

Cutting holes for old halogens then realising the LED cutout is different. Halogens used 75mm cutouts. Modern LEDs use 65-75mm cutouts depending on the model. If you're retrofitting, measure the exact cutout requirement on your new fittings before cutting the ceiling. Don't assume.

Mismatching the dimmer. Leading-edge dimmer with LED downlights = flicker, buzz, dropout. Trailing-edge dimmer (Varilight V-Pro, Hamilton LEDStat) with dimmable LEDs = smooth dimming. Replace pre-2015 dimmers as part of any LED retrofit.

Skipping under-cabinet lighting. No ceiling downlight layout, however well planned, gets light onto the worktop directly beneath the wall units. Under-cabinet LED strips are part of the lighting design, not an afterthought. Wire them at first fix.
