Earth Sleeving: The £6 Roll That Stops Your Extension Failing Inspection

Your extension is finished. The plasterer's gone, the kitchen is in, the building inspector is on his way for the final visit. He pulls a faceplate off one socket, glances at the cable, and writes "missing earth sleeving, multiple terminations" on his notes. You now need to call your electrician back, pay him to revisit every accessory in the extension, sleeve every CPC, and reissue the Electrical Installation Certificate before the BCO will sign off. All of which would have been avoided by a single £5.88 roll bought at the start of first fix.

This page tells you what earth sleeving is, why BS 7671 demands it in two separate places, how much you need, and how to spot it being skipped on your job.

What it is and why bare copper needs covering

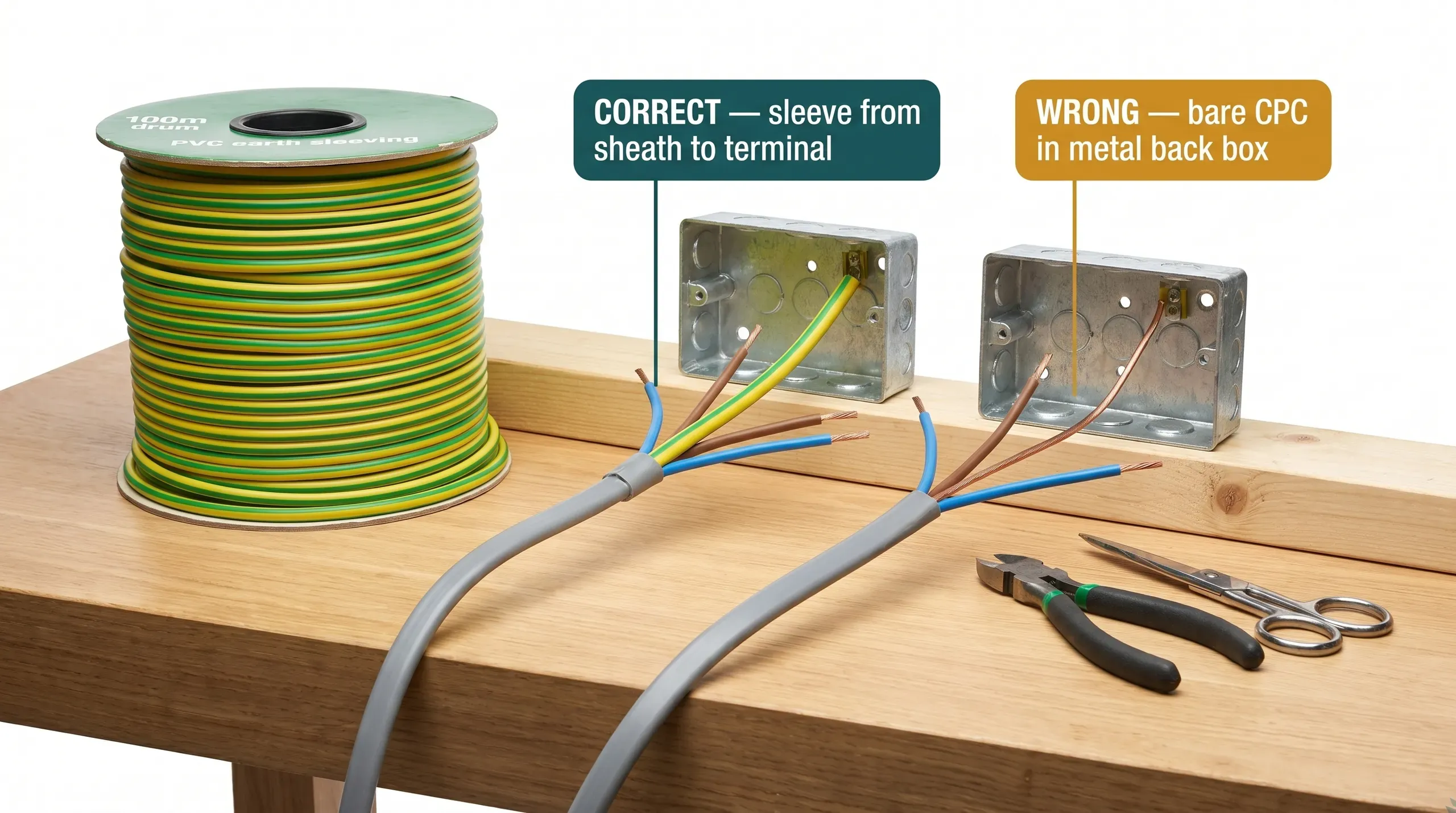

Earth sleeving is a flexible green-and-yellow PVC tube that slips over the bare copper circuit protective conductor inside twin-and-earth cable. Sold by the metre, normally in 100m drums. There are no exotic variants, no premium brands worth paying for, and no real innovation in the product since the 1970s. It's a consumable. A jobbing electrician treats it the same way a plasterer treats sand-and-cement: keep some on the van, fit it everywhere it's needed, never run out.

So why does the bare conductor need covering at all? Because of what happens to a T&E cable at every termination point. Inside the cable, the CPC sits between the brown live and blue neutral cores, physically protected by their insulation. Strip the grey outer sheath back at a socket, switch, ceiling rose, or junction box, and the three conductors fan out. The bare copper earth is now floating loose in a confined space crowded with terminal screws, other cables, and (often) a metal back box wall.

If that bare CPC drifts and touches a live terminal, you have a fault. A correctly designed installation should detect it (the MCB or RCD trips) but you don't want to rely on protective devices for what should never have been allowed to happen in the first place. Cover the conductor properly and the failure can't occur.

The two regulations everyone forgets about

Almost every online article on earth sleeving cites one regulation. The truth is two regulations apply, and they cover different things. Both must be satisfied.

Regulation 514.4.2, identification

BS 7671 Reg 514.4.2 reserves the green-and-yellow stripe combination exclusively for protective conductors. Nothing else may be coloured green-and-yellow in a UK installation. Single green has been non-compliant since 1 January 1978. Yellow alone, green alone, and any other colour combination are all prohibited for protective earth.

This is the identification regulation: when a future electrician opens up a back box on this circuit in 2045, the green-and-yellow stripe tells them at a glance which conductor is the earth. Without sleeving on bare copper, identification depends on the conductor's physical position inside the cable, which is meaningless once the sheath has been stripped and the cores spread out at the terminal.

Regulation 543.3.201, mechanical protection

The second regulation is the one most online guides miss. BS 7671 Reg 543.3.201 requires that where the sheath of a cable incorporating an uninsulated protective conductor up to 6mm² is removed adjacent to joints and terminations, the protective conductor must be covered by insulating sleeving complying with the BS EN 60684 series. This is a mechanical protection requirement, not a colour-coding one. It exists so that the bare CPC, which has no insulation of its own, gets a layer of insulation precisely where it's most exposed: at terminations.

This is the regulation that rules out insulation tape. The BS EN 60684 standard specifies a minimum insulating performance, dimensional stability, and resistance to thermal cycling. PVC sleeving sold for the purpose meets it. Wraps of black insulation tape do not.

Why insulation tape isn't an alternative

This myth comes back in every internet forum thread on the subject. The reasoning is plausible. Reg 514.4.6 mentions "tape, sleeve, disc, or paint" as identification methods for bare protective conductors. So tape must be acceptable, surely?

It isn't. Reg 514.4.6 covers identification of bare busbars and similar copper bar used as protective conductors in switchgear assemblies. It is not a licence to wrap the CPC of a stripped T&E cable in insulation tape at a domestic socket. The mechanical protection requirement of Reg 543.3.201 specifies BS EN 60684 sleeving for stripped cable terminations, full stop.

Practical reasons reinforce the regulatory ones. Insulation tape unwinds. The adhesive softens in heat, hardens in cold, and fails after a few years inside an enclosed back box at terminal-junction temperature. PVC sleeving doesn't peel, doesn't unstick, and lasts the life of the installation.

If you find your electrician reaching for a roll of black tape to "earth sleeve" a CPC, stop the job. They've either got the wrong product on the van or they're cutting corners.

Sizing by cable

The single most-searched question on this topic is which sleeve fits which cable. Forum answers are inconsistent. Trade sites publish sizing tables that conflict with each other. The clean rule, anchored to actual T&E construction:

Why one sleeve size covers three cable sizes: the CPC inside flat T&E doesn't scale linearly with the live and neutral conductors. 1.5mm and 2.5mm and 4mm cables all have a CPC of either 1.0mm or 1.5mm, both of which thread comfortably through 3mm internal-diameter sleeve. 6mm cable has a 2.5mm CPC, which needs the 4mm sleeve. 10mm cable has a 4mm CPC, which needs the 6mm sleeve. Outside the domestic range, sleeving is sold up to 16mm internal diameter, but you'll never need it on an extension.

In practice, if you only buy one size for a domestic first fix, buy 3mm. It covers every socket and lighting circuit you'll run with 1.5mm and 2.5mm T&E. Add a roll of 4mm if your cooker, shower, or any other 6mm circuit is on the schedule. 6mm sleeving is rare in domestic work but appears for the meter tails and consumer-unit henley-block area where 10mm and 16mm cables run.

How much sleeving per drum of T&E

Useful rule of thumb when ordering: budget around 5 to 8 metres of sleeving per 100m drum of twin-and-earth. The exact figure depends on termination count.

A 100m drum of 2.5mm T&E feeding a typical socket ring serves perhaps 8 to 12 sockets and one consumer-unit termination. Each socket needs roughly 200-300mm of sleeving (sleeve from sheath end to terminal, with no bare copper showing). On a ring, both ends of every CPC are sleeved, so a 12-socket ring with two consumer-unit terminations works out to:

• 12 sockets × 2 CPC ends × 250mm = 6m
• 2 consumer-unit ends × 250mm = 0.5m
• Total: about 6.5m

A 100m drum of 3mm sleeving covers 15 to 20 such circuits. For a single-storey extension with one socket ring, one lighting circuit, one cooker circuit, and a couple of fused spurs, a single 100m drum is more than enough and will leave you a substantial offcut for any future job. Don't bother trying to source 25m or 50m drums. The price-per-metre is dramatically worse and the saving on a £6 roll is nothing.

Cost: where to buy and what to pay

Sleeving is one of the few electrical consumables where the buying decision is genuinely simple. Every retailer sells the same product (extruded PVC tube to BS EN 60684), the brands are functionally interchangeable, and the price spread is modest in absolute terms.

Total spend on sleeving for a typical kitchen extension first fix: under £5.88 – £7.40 for the 3mm roll plus another £6.36 – £10.08 for the 4mm roll if your schedule includes a 6mm circuit. Less than the cost of a single back box. There is no scenario where saving money on this is worth the effort.

A note on quality: cheap sleeving from unknown sellers on online marketplaces has been reported to split lengthways when threaded onto stiff conductors, particularly in cold conditions. Stick with TLC Direct, Toolstation, or Screwfix. The price difference between branded and unbranded is pennies; the time cost of redoing terminations because the sleeve split is meaningful.

Earth sleeving is not heat-shrink tubing

This catches beginners searching for the wrong product. Earth sleeving is fixed-diameter PVC tube. It does not shrink, does not require heating, and does not grip the conductor. You thread it on, position it from the sheath end to the terminal, and it stays where you put it under its own friction.

Heat-shrink tubing is a different product entirely. It's polyolefin tube that shrinks to a tighter diameter when heated with a heat gun, used to insulate solder joints and to seal cable terminations against moisture. Heat-shrink is not green-and-yellow as standard, doesn't carry BS EN 60684 certification for the protective-conductor application, and isn't what BS 7671 Reg 543.3.201 specifies. Don't substitute one for the other.

If you've bought heat-shrink in green/yellow because the listing called it "earth sleeving", return it and order PVC sleeving instead.

Earthsure cable: the sleeving-free alternative

Doncaster Cables introduced Earthsure in 2024: a 6242Y twin-and-earth cable manufactured with the CPC pre-sleeved in green-and-yellow PVC at the factory. The product eliminates the field sleeving step entirely. You strip the cable, the CPC is already sleeved, you go straight to the terminal.

Adoption is low. Most electricians still buy standard T&E and sleeve in the field, partly because Earthsure isn't yet specified in BS 7671 as a requirement, partly because supply is limited to a handful of retailers (TLC Direct stocks it), and partly because trade habit is hard to shift. Earthsure costs roughly £15 – £20 more per 100m drum than standard 2.5mm T&E, which is meaningful at high volumes but trivial on a single extension job.

For a one-off extension first fix, Earthsure is worth considering on the time saving alone. On a 12-socket ring with two consumer-unit terminations, you save roughly 30 minutes of repetitive sleeving work. At electrician day rates, that pays for the premium more than once over.

If your electrician hasn't heard of Earthsure, that doesn't mean they're behind the curve. It means they're buying their cable from the same wholesaler they've used for fifteen years. You can ask them to source Earthsure for the job; expect mild resistance, no real objection.

What happens at inspection if it's missing

Missing earth sleeving doesn't cause an electrical failure on day one. The installation works, the lights come on, the sockets supply current. The problem only surfaces when an inspector looks inside an accessory.

For new work, your electrician issues an Electrical Installation Certificate after inspecting and testing the installation themselves. A registered Part P electrician should pick up missing sleeving during their own commissioning checks before the certificate is issued. If they don't, building control may catch it at the final visit, and the BCO can refuse to issue the completion certificate until the work is corrected.

For existing installations, missing sleeving comes up on an EICR. Coding is inconsistent across inspectors. The two main outcomes:

• C2 (potentially dangerous), typical when the missing sleeve is in a metal back box or near a metal accessory, where the bare CPC could touch metalwork or live terminals as the cable shifts. C2 means the installation is unsatisfactory and needs remedial work to be brought up to standard.
• C3 (improvement recommended), typical for plastic accessories where the live terminals are recessed and the bare CPC has no realistic path to touch anything live. C3 doesn't fail the inspection but should be noted and fixed at the next opportunity.

Some inspectors follow Electrical Safety First's BPG4-1 guidance, which says missing sleeving is "worthy of a note" but doesn't always warrant a formal classification code. Others code every instance. The variation is real and frustrating, but the practical homeowner takeaway is the same: don't rely on the inspector being lenient. Sleeve everything, every time.

Common mistakes

Forgetting to sleeve at all. The most common first-fix omission. Caught at inspection, it costs an extra electrician visit. Run a mental check at second fix: every faceplate the electrician removes should reveal a green-and-yellow sleeve on the CPC. If you see bare copper, ask why.

Sleeve too short. "It only needs to cover the bare bit near the terminal" is wrong. The whole length of bare CPC, from where the cable sheath ends to the terminal screw, must be covered. Leaving 10mm or 20mm of bare copper visible inside a back box because the sleeve was cut too short is non-compliant. The sleeve should butt against the cable's outer sheath at one end and reach into the terminal at the other.

Wrong colour. Single green has been non-compliant since 1978. If you find old green-only sleeve in a 1970s installation, the work predates the regulation and is grandfathered (probably), but any new or replacement sleeve must be green-and-yellow stripe. Don't fit single green even if you have an old roll on the van.

Insulation tape instead of sleeve. Doesn't comply with Reg 543.3.201. Comes off over time. Don't accept it.

Sleeving multiple CPCs together inside one large sleeve. Looks tidy. Isn't compliant. TLC Direct's product warning is explicit: "cables MUST be sleeved individually and not in groups." Each bare CPC needs its own dedicated sleeve.

Buying a 25m DIY-shed roll for an extension job. £1.85 for 25m at Wickes feels cheap until you realise the per-metre rate is worse than a 100m trade roll, and you'll need three rolls to do the job. Buy a single 100m drum from TLC Direct or Toolstation. The total cost is lower and you have stock left over.

Where you'll need this

• First fix electrics, every cable termination point during first fix, before walls are closed
• Second fix electrics, terminations at sockets, switches, ceiling roses, and consumer unit during second fix

These are first and second fix essentials on any extension or rewire. Buy a roll at the same time you order the cable. There's no scenario where you won't need it, and there's no scenario where running out mid-job is anything other than wasted time.
