Data Cable for UK Homes: Cat5e, Cat6, Cat6a, Cat7, Cat8 - What to Actually Buy

Your builder is closing up the walls next week. The plasterer starts on Monday. You ask whether anyone has run network cable to the TV wall, the kitchen island, the home office, or the loft hatch. Nobody has. Adding it now means chasing fresh plasterboard, lifting flooring, drilling joists from underneath, and patching the damage. Network installers quote roughly three to four times what the same job costs at first fix. A box of Cat6 cable is around £120. Retrofitting six data drops after walls are closed routinely runs £900 – £1,500 in labour and making good. The decision is which cable to buy, how much, and why most of what gets sold on Amazon as "Cat7" or "Cat8" is either misleading or pointless for a home.

What it is and what it's for

Data cable, ethernet cable, network cable, structured cabling, Cat6: all names for the same thing. Twisted-pair copper cabling that carries data between your router, switch, and the devices that need a wired connection. In a UK home, that increasingly means more than just a desktop computer. Smart TVs, streaming boxes, gaming consoles, ceiling-mounted Wi-Fi access points, CCTV cameras, video doorbells, smart hubs, and home office equipment all benefit from a wired drop. Wi-Fi handles the lightweight stuff; everything that needs reliable bandwidth wants a cable.

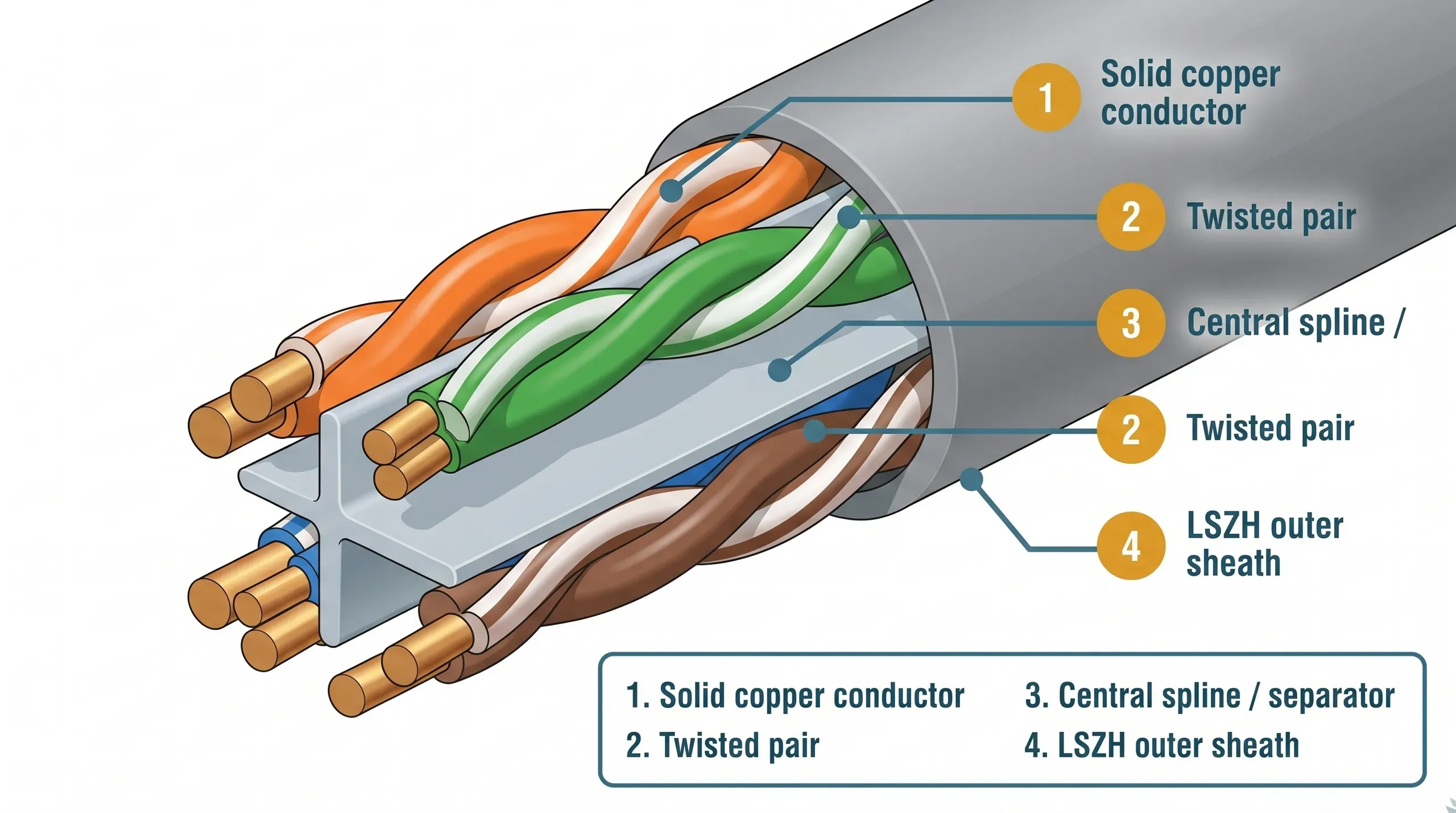

The cable contains four twisted pairs of solid copper conductors inside a coloured outer sheath. Each pair is twisted at a specific rate to cancel out electromagnetic interference, both external to the cable and between pairs inside the cable (called crosstalk). The faster the data rate the cable supports, the tighter the twist and the more careful the construction. That's the practical difference between a Cat5e cable and a Cat6a cable: same outline, very different internal precision.

The whole structured cabling industry runs on two technical standards: ANSI/TIA-568 in the US and ISO/IEC 11801 internationally. Both publish category ratings (Cat5e, Cat6, Cat6a, Cat8) that define the frequency and channel performance the cable must hit. ISO/IEC 11801-4:2017 is the part of the standard specifically aimed at single-tenant homes. It maps Class E (250 MHz) to Cat6 and Class EA (500 MHz) to Cat6a, with a maximum channel length of 100 metres (90m fixed permanent link plus 10m of patch cords).

UK installations are governed by BS 7671 (the Wiring Regulations) and BS EN 50173, which adopts ISO/IEC 11801. These standards do two things that matter to you. They classify data cables as Band I circuits (low voltage, telecom and signal) and require minimum 100mm separation from Band II circuits (mains 230V). And they require all in-wall installations to be solid copper meeting the BS EN performance class.

The five categories, in plain English

Most homeowners walk into a network cable decision with one question: "do I want Cat6 or Cat7?" The honest answer is that the question is wrong, because Cat7 isn't really a thing in the way the marketing implies. Here's what each category actually delivers.

Cat5e, still on shelves, still acceptable

Cat5e is the legacy standard that survived the original Cat5 obsolescence. It runs at 100 MHz and supports gigabit ethernet (1000BASE-T, or 1Gbps) at the full 100m channel length. For most UK homes, that's already more bandwidth than the broadband line will ever deliver. Plenty of UK pub chains and retail spaces are still being installed with Cat5e on commercial fit-outs because it does the job at a lower cost.

The catch is futureproofing. Cat5e does not support 10GBASE-T at any meaningful distance. If you're wiring an extension that you'll live in for fifteen years, the £30 saving across the whole job versus Cat6 isn't worth the regret when 10G internet becomes mainstream. Use Cat5e if you're retrofitting a single drop to fix a Wi-Fi blackspot and budget is tight. Don't specify it for a first-fix run on a new extension.

Cat6, the current UK domestic standard

Cat6 runs at 250 MHz and supports 1Gbps at the full 100m channel. It also supports 10GBASE-T, but only at reduced distances: 55 metres in a favourable installation environment, or 37 metres in a "hostile" environment with bundled cables and significant alien crosstalk (interference picked up between adjacent cables in a bundle). That's the reason Cat6a exists. The 250 MHz rating isn't quite enough headroom for 10G at full channel length without the extra shielding and tighter twist Cat6a provides.

For a typical UK extension, Cat6 is the sensible default. The runs between the loft hatch or under-stairs cabinet and most rooms in a domestic property are well under 30 metres, so 10G operation is achievable on Cat6 if you ever need it. The cable is widely stocked at Screwfix, Toolstation, and every UK specialist. A 305 metre box of solid copper U/UTP runs around £110 – £135 from mainstream brands like Labgear, Time, Connectix, Excel, or Pitacs.

Cat6a, the futureproof choice

Cat6a doubles the operating frequency to 500 MHz and tightens the construction with a shielded design (F/UTP overall foil, or S/FTP foil-per-pair plus overall braid). This delivers 10GBASE-T at the full 100 metre channel with proper margin for alien crosstalk. The cable is noticeably thicker than Cat6 (roughly 7-8mm outer diameter versus 5-6mm), which matters for cable management, conduit fill, and termination. Cat6a keystone modules are physically larger than Cat6 modules and need deeper back boxes.

A 305m box of Cat6a S/FTP costs roughly £180 – £265 depending on whether you go with mainstream brands (Labgear S/FTP at the £180 end, Connectix F/FTP around £181, Excel B2ca-rated cable at £264). The premium over Cat6 is around £60 – £130 per box, which works out at about £20 – £40 across a typical eight-drop home install. That's modest insurance for fifteen-plus years of cable in your walls.

If your home will have multiple ceiling-mounted access points feeding multi-gigabit Wi-Fi, future 10Gbps internet, or you genuinely care about high-bandwidth file transfers between machines, Cat6a is the right call. For everyone else, Cat6 with conduit (so you can pull Cat6a through later if needed) is a reasonable hedge.

Cat7, skip it

This is where the retail market gets dishonest. Genuine Cat7 is an ISO/IEC standard (not a TIA standard) that runs at 600 MHz and supports 10GBASE-T to 100m. But Cat7's official specification requires GG45 or TERA connectors, not the RJ45 sockets every piece of consumer equipment in the world uses. Plug a Cat7 cable into an RJ45 port and the connection is bandwidth-limited by the RJ45's electrical characteristics. The cable performs exactly as well as Cat6a, which is what you should have bought instead.

Most "Cat7" cable sold on Amazon, eBay, and other generic marketplaces is exactly this: shielded cable that meets Cat6a performance, marketed as Cat7 with RJ45 connectors. The few sources that sell genuine 305m Cat7 S/FTP cable (FS.com UK and similar specialists) charge around £374 per box. That's nearly double the price of Cat6a for zero practical benefit on RJ45 equipment.

There is no scenario in a UK domestic extension where Cat7 makes sense. The standard is effectively obsolete. CommScope and Fluke Networks (the major industry test equipment makers) confirm this position. Buy Cat6a if you want shielded, full-channel 10G performance.

Cat8, physically impossible to use in a home

Cat8 runs at 2000 MHz and supports 25Gbps and 40Gbps ethernet. It exists exclusively for top-of-rack switch interconnects in datacentres. The reason Cat8 isn't a domestic product comes down to one number: 30 metres. The ANSI/TIA-568.2-D standard defines a maximum channel length of 30 metres for Cat8, including patch cords. To wire a typical UK semi between a central network cabinet and bedrooms, study, kitchen, and loft, you need cable runs of 15-40 metres. Cat8 is physically incapable of doing this job.

You'll see "Cat8" patch leads sold on Amazon for £8 – £15. These are cosmetic. They might genuinely meet Cat8 performance over their 1-2 metre length, but plug them into a Cat6 or Cat6a fixed cable in your wall and the channel performance is still capped at the weakest link. A 305m drum of genuine Cat8 cable from specialist suppliers costs £650 – £810. Nobody is wiring a home with Cat8 cable, and you shouldn't either.

Click to enlarge

The CCA trap, solid copper or nothing

Walk into the cheap end of any online marketplace and you'll find 305m boxes of "Cat6" cable for £30 – £50. The price is a red flag. These cables are almost universally CCA: copper-clad aluminium. A thin copper outer layer over an aluminium core. They look identical to solid copper from the outside.

CCA fails in three specific ways that matter for a domestic install. First, aluminium has higher DC resistance than copper, which means voltage drop is worse over distance. PoE devices (Power over Ethernet, used for cameras, access points, smart home hubs) can be undervolted at the far end, leading to flaky operation or outright failure. Second, when you bundle CCA cables together and run PoE through them, the higher resistance generates heat. Industry testing has shown bundled CCA cables can overheat to the point of melting their own insulation. The April 2026 Hackaday writeup is the most recent confirmation that this is a live fire hazard, not a theoretical one. Third, aluminium oxidises over time. The connection at every termination degrades, signal quality drops, and ten years later you've got intermittent faults that are impossible to track down.

UK structured cabling installers (Lynx Networks, Comfinity, NM Cabling) all confirm the same legal position: CCA cable does not comply with British or European standards and is not permitted in UK network installations. The ANSI/TIA standards explicitly require solid copper. CCA fails the DC Resistance Unbalance test that any certification tester would run on a finished install.

The shops you can trust for solid copper bulk cable are Screwfix, Toolstation, TLC Direct, Kenable, Comms Express, Broadband Buyer, and the brand-name suppliers' direct sites. Stay away from generic Amazon listings unless the seller is one of those named brands shipping directly. Brand families that consistently sell solid copper to UK retail include Excel, Connectix, Hellermann, Vericom, Belden, and Kenable. Screwfix's own labels (Time, Labgear) and Toolstation's Pitacs brand are also solid copper and BASEC-equivalent compliant.

Solid versus stranded: in-wall versus patch

Two construction types of ethernet cable exist, and they are not interchangeable. Solid core (class 1) cable has a single solid copper conductor in each of the eight wires. It has lower resistance, better high-frequency performance, and terminates onto IDC keystone jacks, patch panels, and punchdown blocks using the spring-loaded contacts that bite into the insulation. Solid core is the cable that goes in your walls. It does not flex repeatedly, so it cannot be used as a patch lead.

Stranded core (class 5) cable has multiple thin copper strands twisted together inside each conductor. It's flexible, handles repeated bending, and terminates onto male RJ45 plugs. Stranded core is what your factory-made patch leads are. The stranded conductors don't seat reliably in IDC contacts, so stranded cable should never be used in a wall outlet. Mixing them up causes intermittent faults that pass continuity tests but fail under load.

When you buy a 305m box of bulk cable for a structured install, you want solid core. When you buy short patch leads to plug devices into wall outlets and switches into patch panels, you want stranded. The standards (ISO/IEC 11801, ANSI/TIA-568) are explicit on this division.

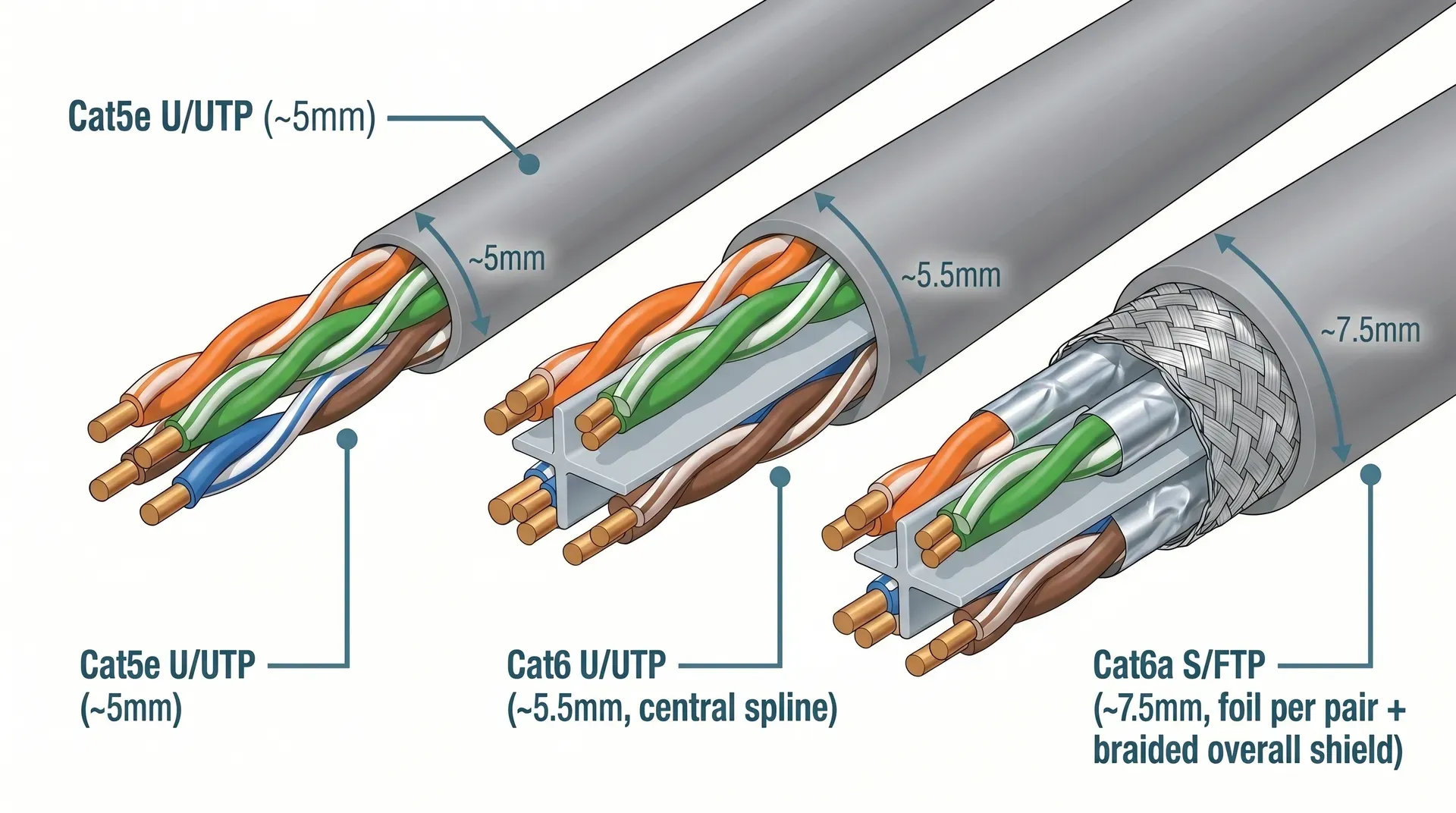

U/UTP vs F/UTP vs S/FTP: when shielding matters

The cryptic labels on cable boxes describe the shielding construction. The format is [overall shield]/[per-pair shield]TP, where U is unshielded, F is foil, and S is braid (screen).

• U/UTP, no shielding at all. Most common domestic cable. Easiest to install, smallest outer diameter, lowest cost. Fine for residential use where you're not running long parallel to mains for tens of metres.
• F/UTP, overall foil shield around all four pairs, no per-pair shield. Some protection against external EMI. The foil must be earthed via the keystone module's drain wire for the shielding to do anything.
• S/FTP, braided overall shield plus a foil shield around each individual twisted pair. Maximum shielding. Required by strict Cat6a specification. Harder to install (less flexible, larger bend radius), more expensive, and overkill for nearly every domestic situation.

For a UK home, U/UTP Cat6 is usually fine. The 100mm separation from mains cables that BS 7671 requires is enough to keep external interference within tolerance. F/UTP makes sense if you have unusual EMI sources nearby (a workshop with welding equipment, a busy electrical riser, an industrial neighbour). S/FTP is overspecified for domestic unless you're going Cat6a, in which case the standard practically requires it anyway.

LSZH jacket, pay the small premium

The cable's outer sheath comes in two main flavours: PVC and LSZH (low smoke zero halogen, also called LSOH). PVC burns producing thick black smoke and hydrogen chloride gas. LSZH produces less smoke and no halogen acids. In a fire, LSZH cabling makes evacuation routes survivable for longer.

UK building regulations do not currently mandate LSZH for residential properties. The recommendation in BS 7671 codes of practice is for LSZH in high-occupancy buildings and emergency evacuation routes, but standard houses and flats have flexibility. That said, the price premium is small (£5 – £15 per 305m box) and the safety upside is genuine. Specify LSZH for any in-wall structured cable in a new domestic install. The Screwfix and Kenable stock listings make LSZH the default option on most Cat6 and Cat6a SKUs.

Why first fix, not retrofit

The single biggest decision you'll make about home networking is when to install the cables, not which category to buy. Running cable when walls and ceilings are open during electrical first fix is straightforward: the cable runs alongside the power cables (with separation), drops down stud walls, and terminates at back boxes that the electrician installs while everyone has access. The labour cost is marginal because the access is already paid for.

Retrofitting after walls are plastered, painted, and decorated is a different job entirely. The cable has to be fished through closed cavities (cable rods, fish tape, sometimes cutting access holes through plasterboard and patching afterwards). Drops behind solid masonry walls require chasing channels, fitting cable, replastering, and redecorating. Drops in upper-floor rooms often require lifting carpet, lifting floorboards, drilling joists, and reinstating everything. Professional installers quote retrofit work at three to four times the labour of first-fix work, and that's before the making-good costs.

For a typical eight-drop install:

• At first fix: one 305m box of Cat6 (£120) plus 8 keystone modules (£15) plus a 24-port patch panel (£30) plus 8 dual faceplates (£25) = around £190 in materials. Add 4-6 hours of electrician's time during first fix and you're looking at £300 – £450 total.
• As retrofit: the same materials plus 2-3 days of specialist labour at £400 – £600 a day, plus making-good costs (replastering, redecorating, carpet refitting). Realistic total £1,200 – £2,000.

The differential pays for an entire Cat6a upgrade many times over. If you remember nothing else, remember this: run the cable while the walls are open, even if you're not sure you need it. You will need it within five years.

The "two drops per zone" rule

Cable is cheap. Drops are cheap. Termination labour is cheap. What's expensive is opening the walls again to add what you forgot. The standing rule among experienced installers is to put at least two ethernet drops at every location where you might ever want a wired device, and then add some.

Here's what that means in practice for a typical kitchen extension build:

• Behind the main TV: two drops minimum. One for the smart TV itself, one for a streaming box, soundbar, or games console. If the TV wall is also where a wireless access point would go, add a third drop in the ceiling.
• Kitchen island or worktop area: one drop. Smart speakers, hubs, or a future wall-mounted control panel will use it.
• Home office or study desk: two drops. Computer plus printer, or computer plus dock, or computer plus a future wired phone.
• Each bedroom: one drop minimum, two if it doubles as an office.
• Loft hatch or central cabinet: two drops minimum for the network cabinet, plus drops to feed any ceiling access points.
• Ceiling access point locations: one drop per access point, ideally in the centre of the room or hallway.
• External camera locations: one drop per camera, terminated indoors at the wall behind the camera mount.
• Front door: one drop for a future video doorbell or smart lock.
• Garage or outbuilding: one drop. Future-you will thank you when an EV charger needs network connectivity.

A typical four-bedroom extension or rewire ends up with 12 to 20 drops. One BuildHub thread documents 21 drops in a three-bed semi (8 in living room, 4 in office, 2 in kitchen, 2 master bedroom, 2 attic, 1 garage, with PoE on six). That's the level of generosity that pays off long-term. Materials cost for 21 drops is one 305m box plus 21 keystones plus a patch panel: roughly £170. The extra labour at first fix versus a basic 6-drop install is two to three hours.

Separation from mains, 100mm minimum

BS 7671 (the UK Wiring Regulations) and BS EN 50174-2 (cable installation for EMC) classify ethernet cable as Band I and mains cable as Band II. The two bands must not share the same wiring system. Where they run alongside each other in a shared void or duct, the minimum separation is 100mm. In simple terms: keep the data cable at least a fist's width away from any 230V mains cable.

The exception is where the two cables cross at right angles. A 90-degree crossing has minimal mutual induction because the parallel-running length is essentially zero. Crossings are fine; long parallel runs at less than 100mm are not.

If 100mm separation isn't physically possible (a tight loft or a narrow ceiling void), the rules permit closer running with mechanical protection, typically the data cable run inside its own conduit. Shielded cable (F/UTP or S/FTP) helps with EMC where parallel runs are unavoidable, but the shield must be properly earthed at the patch panel end for it to work.

The same rule applies to underground runs between house and outbuilding. SSEN (Scottish & Southern Electricity Networks) and Openreach both specify 100mm minimum in shared trenches, with each cable in its own duct.

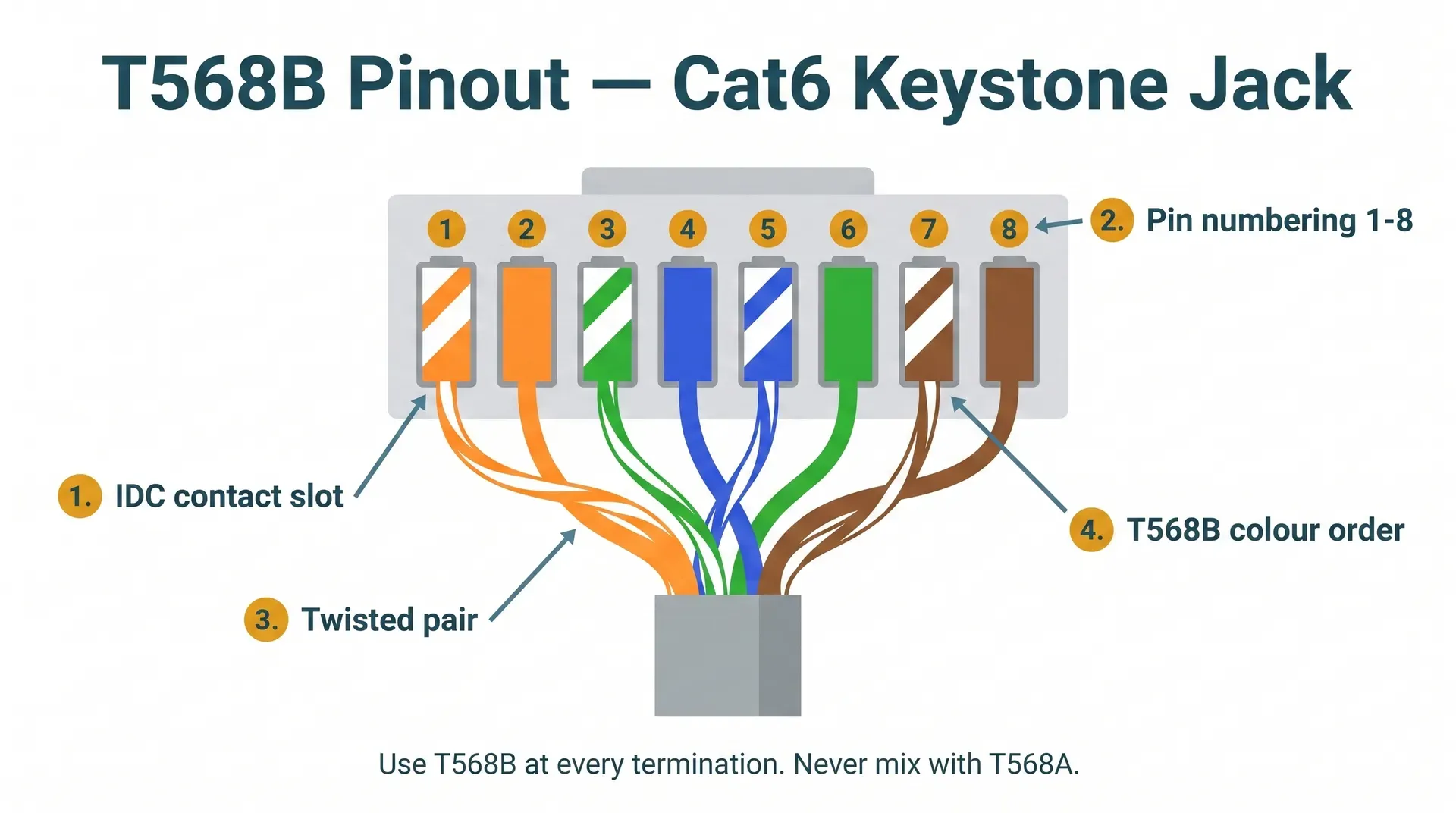

Termination, T568B every time

When the cable terminates at a wall outlet (keystone jack), patch panel, or RJ45 plug, the eight conductors must be arranged into a specific pinout. Two pinout standards exist: T568A and T568B. They swap two pairs of conductors. The cable performance is identical between the two; there's no electrical difference.

The non-negotiable rule is to use the same standard everywhere on a single installation. T568B is the dominant standard in UK and global commercial installations, and that's what to specify. T568A appears in some older residential installs and US government work. Mixing A at one end of a cable and B at the other turns a straight-through cable into a crossover, which doesn't work with modern auto-MDIX equipment for some types of link. It causes intermittent faults that look like cable damage. Check that every keystone, every patch panel port, and every RJ45 plug on your install uses T568B.

For permanent in-wall structured cabling, a punchdown tool (Krone-pattern blade is standard in UK) gives the most reliable terminations. Tool-less keystone modules are slightly easier for DIY users but produce marginally less consistent results. Either is acceptable. Always test every run after termination with a wiremap tester (basic units cost around £15 – £25, networking-grade testers from Fluke or Klein cost £200+). Testing catches the inevitable swapped pairs before the walls close up.

Click to enlarge

How much do you need

A 305m box of Cat6 covers the typical UK extension twice over. The arithmetic for a 30 square metre rear extension with eight planned drops looks like this:

• Central cabinet to extension consumer area (loft route or under-stair to ceiling void): 8m
• Drops within extension to TV wall, kitchen island, two-zone access point, two utility positions: 8 drops × 6-10m = 60-80m
• Subtotal: 68-88m
• Plus 15-20% wastage (mistakes, second-guessed routes, leftover for future spurs): 80-105m
• Order: one 305m box covers it with plenty to spare

For a whole-house rewire with 16-20 drops across two storeys, budget for one or two 305m boxes depending on routes and whether the patch panel is centrally located. The cost differential between buying one box and two boxes is small versus the cost of running out mid-job.

Cost and where to buy

Current UK retail prices for solid copper, BASEC-equivalent compliant 305m boxes:

Trade wholesalers like CEF, Edmundson Electrical, and CableMonkey sell at roughly 10-15% below mainstream retail to account holders. If your electrician is procuring materials, they'll source through wholesale. If you're buying yourself, Screwfix and Toolstation cover most needs with same-day click-and-collect. Kenable and TLC Direct are the better choices for Excel, Connectix, and other professional brand families. Comms Express and Broadband Buyer carry deeper specialist ranges.

For installation labour, professional cabling contractors quote roughly £42 – £65 per data point on commercial volume installs (NM Cabling: £47 – £62; EIS UK: £42 – £57). Domestic one-off jobs typically cost more per point. Figure £60 – £100 per drop fitted as a standalone retrofit, falling sharply if added to a first-fix electrical package where access is already open.

Power over Ethernet, why it changes the brief

Power over Ethernet (PoE) sends DC power along the same ethernet cable that carries data. A PoE-capable network switch supplies power; PoE-capable devices accept it. This eliminates the need for a separate mains feed at the device end, which changes the install brief considerably for awkward locations.

The domestic devices that benefit are exactly the ones a smart-home homeowner increasingly wants: ceiling-mounted Wi-Fi access points (Ubiquiti UniFi, TP-Link Omada, Aruba Instant On), CCTV cameras (Reolink, Hikvision, Ubiquiti Protect), video doorbells (some Ring and Amcrest models), smart hubs, even some smart speakers. None of these need a power socket if the ethernet drop is PoE-capable.

The implication for your cable specification is straightforward: solid copper is non-negotiable (CCA fails under PoE load), and a Cat6 minimum gives the best margin for PoE+ (30W per port) and PoE++ (60-90W per port) standards. Cat6a's lower DC resistance handles PoE++ more comfortably than Cat6. If you're planning ceiling access points or CCTV, that nudges the case for Cat6a marginally further into "worth it" territory.

Common mistakes

Buying CCA cable. The single most common mistake. Cheap "Cat6" or "Cat7" cable from generic Amazon listings is almost always copper-clad aluminium. Fails BS/EN standards, fails PoE, oxidises over time, dangerous when bundled. Always check for "solid copper" on the packaging.

Under-counting drops. Running one cable to a room and assuming Wi-Fi will fill the gaps. Wi-Fi is the wrong tool for any device that benefits from low latency or constant uptime (gaming, video calls, smart hubs, security cameras). Two drops per zone is the floor, not the ceiling.

Running parallel to mains for long stretches. BS 7671 requires 100mm separation. Cable run alongside a 230V cable for 10+ metres at zero separation creates measurable interference. Either separate them properly or use shielded cable in the offending section.

Mixing T568A and T568B pinouts. A keystone wired to T568A on one end and T568B on the other is a crossover cable, not a straight-through. Modern equipment auto-corrects most of the time, but intermittent faults will appear under load. Check every termination on the same standard.

Skipping the wiremap test before walls close. Every run should be tested with a basic wiremap tester (£15 – £25) the moment termination is finished. Catches swapped pairs, opens, and shorts while the cable is still accessible. Fixing a wiring fault before plaster is a 10-minute job. Fixing it after is a hardware-store-and-make-good afternoon.

Buying pre-made patch leads to use as in-wall structured cable. Patch leads are stranded core. They don't terminate reliably in keystone modules, they have higher attenuation per metre, and they're not designed for the bend stresses inside a wall cavity. Always buy bulk solid-core cable for in-wall runs.

Trusting Amazon listings on category claims. Multiple BuildHub and Overclockers UK threads document the same problem: Amazon listings labelled Cat7 or Cat8 turn out to be Cat6a or worse on testing. Buy from Screwfix, Toolstation, Kenable, TLC Direct, Comms Express, or a brand-name supplier's direct site. The price differential to a generic Amazon seller is usually £20 – £50, which is rounding error on a £200 install and removes all the risk.

Where you'll need this

• First fix electrics, data cables run alongside power cables during first fix, with 100mm separation, before walls close up
• Electrical layout planning, drop locations decided here: TV wall, kitchen island, study desk, ceiling access points
• Second fix electrics, RJ45 keystone modules terminated and faceplates fitted at second fix

These cables go in during any extension or whole-house rewire where walls and ceilings are open. The decision to add them is made early, at electrical layout planning, because the drop locations affect socket positions and ceiling fixings. The cable itself is pulled during first fix alongside the power cables. Termination happens at second fix once plastering is complete and faceplates can be fitted. Skipping or skimping at any of these stages produces the retrofit nightmare: walls reopened, plasterboard chased, floors lifted, and a four-figure bill for work that would have cost £190 in materials at first fix.
