110mm Underground Drainage Pipe and Fittings: The Orange Pipe That Carries Everything Downhill

You buy 110mm orange pipe at Screwfix because it's cheaper than the FloPlast at the merchants. Your builder lays it under your new patio. Six months later the bathroom waste backs up. You pull up a slab to inspect and find that the pipe has belly-flopped between joints because it sat on lumpy spoil instead of pea gravel. Or that two solvent-weld joints have cracked because soil movement stressed them. Or, worst of all, that you bought grey above-ground soil pipe and it has ovalled under the weight of the patio above. None of these mistakes are obvious at the time. All of them are expensive to fix.

What it is and what it's for

The orange (sometimes called terracotta or brown) 110mm uPVC pipe is the standard below-ground foul drain in UK domestic construction. It carries waste from the base of your soil stack to the public sewer, a private septic tank, or a cesspool. It's the pipe that lives in the trench. Get it wrong and everything connected to it backs up.

The fittings are the bends, junctions, couplers, and adaptors that join lengths of pipe and let the run change direction. Every change of direction needs a fitting. Every junction between two runs needs a fitting. Every connection to an existing drain or to an inspection chamber needs a fitting. Fittings accumulate quickly. A 6m drainage run for a typical kitchen extension might need eight or nine separate fittings.

The system is governed by Approved Document H (Drainage and Waste Disposal), Section H1 (Foul Water Drainage) of the Building Regulations in England and Wales. The headline rules: 110mm minimum pipe size for any system carrying a WC; gradient between 1:40 and 1:80; push-fit ring-seal joints only below ground; inspection access at every junction and direction change; the pipe must be tested before backfill. This is not optional. Building control will inspect the drainage layout before it disappears under earth, and they have the power to make you dig it back up if it isn't right.

The pipe and fittings are also covered by BS EN 1401-1 (the European standard for solid-wall PVC-U underground drainage pipe), or BS EN 13476 for structured-wall pipe rated SN8 (the stiffness class for modern domestic installations). Anything stocked at a UK merchant for underground drainage will carry one of these kitemarks. If it doesn't, don't buy it.

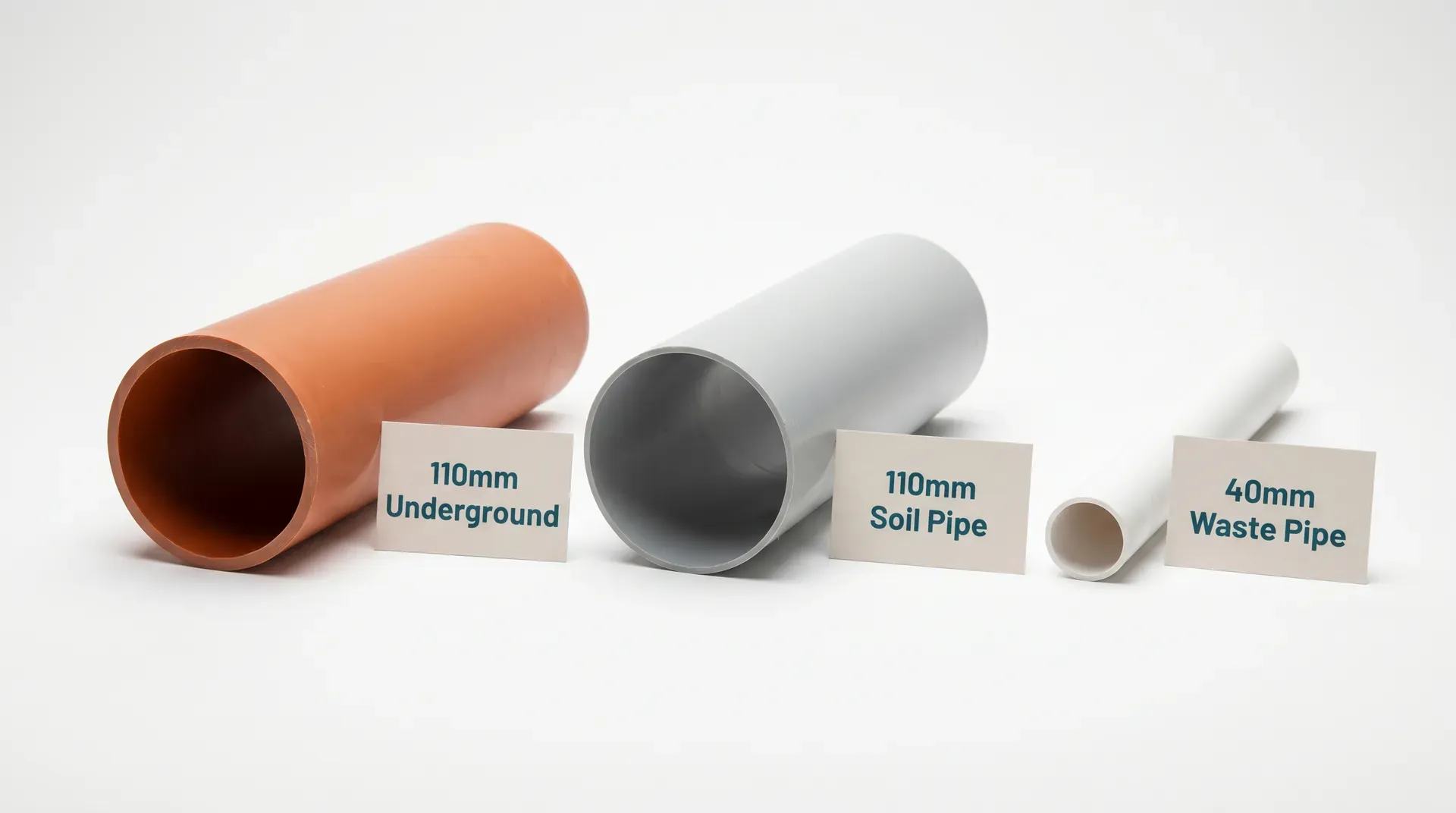

Orange vs grey vs white: the most common mistake

This single mistake appears in 6 out of 11 forum threads on the topic. It's worth a clear answer before anything else.

Click to enlarge

The walls of grey above-ground soil pipe are roughly 3.2mm thick. The walls of orange underground pipe are 3.4-3.6mm and the material is differently stabilised for soil contact. Visually they look almost identical when both ends are out of sight. The colour is the easy way to tell them apart at the merchant's counter.

Push-fit only: why solvent weld is wrong below ground

Above ground, you can use solvent-weld 110mm pipe for a permanent rigid joint. Below ground, push-fit ring-seal is the only correct method.

The reason is soil movement. Ground is never completely still. Clay shrinks and swells with moisture content. Frost heave lifts shallow installations. Trees nearby pull water from the soil and it slumps as they grow. A solvent-weld joint is a rigid chemical bond. It has no give. When the soil moves and the pipe wants to flex, the joint cracks at the weakest point - usually right at the socket.

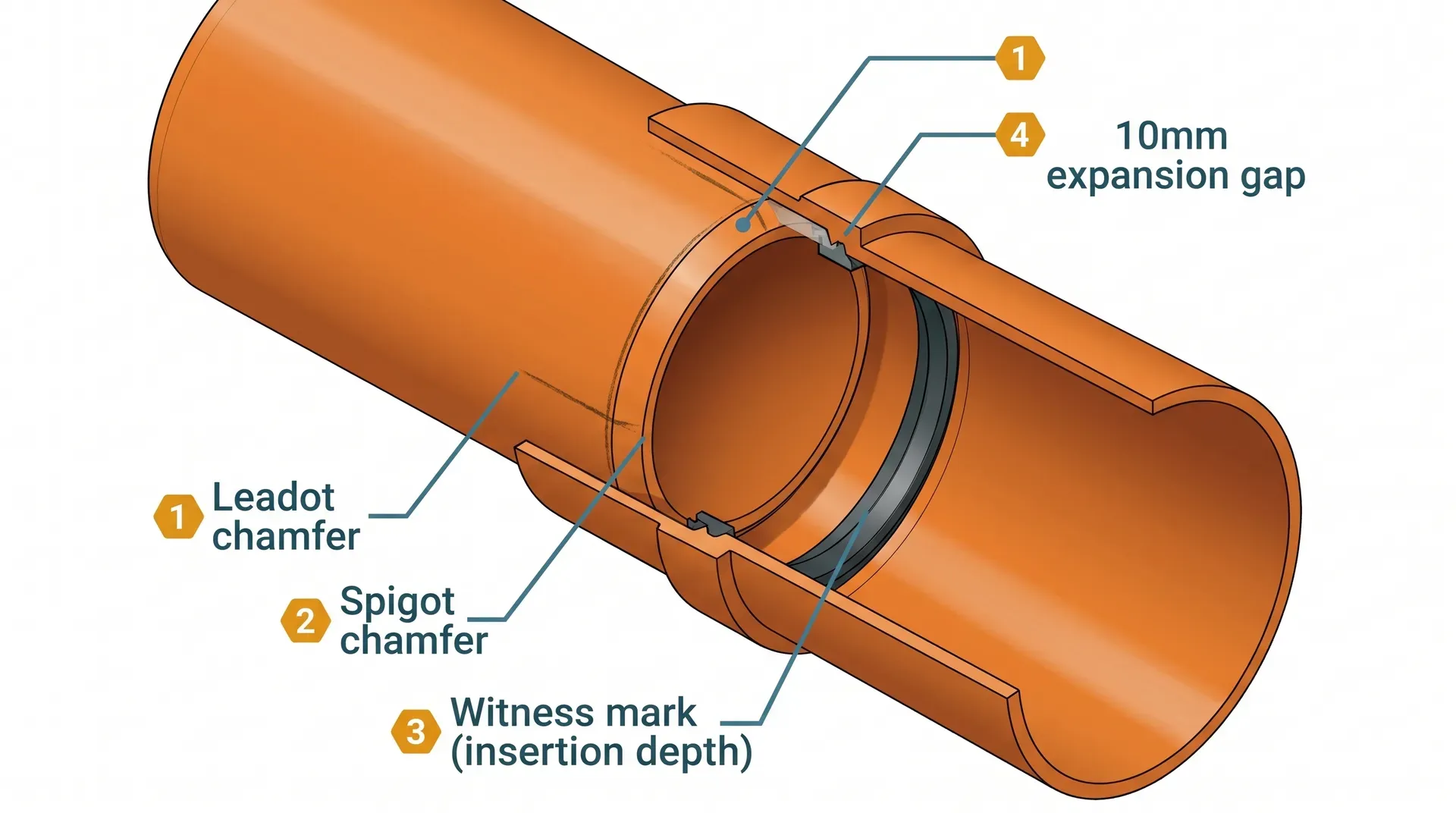

Push-fit joints have a rubber ring seal that compresses around the pipe spigot. The joint is watertight but it can flex by a few millimetres in any direction without losing its seal. Soil moves; the joint accommodates the movement; the drain stays watertight.

Click to enlarge

If somebody on a forum tells you to use Polypipe GFC100 gap-filling cement underground because they've "always done it that way", they're wrong. Not "an alternative method". Wrong. Push-fit is the standard for below-ground foul drainage in the UK and has been for decades.

Fittings inventory: what you actually need

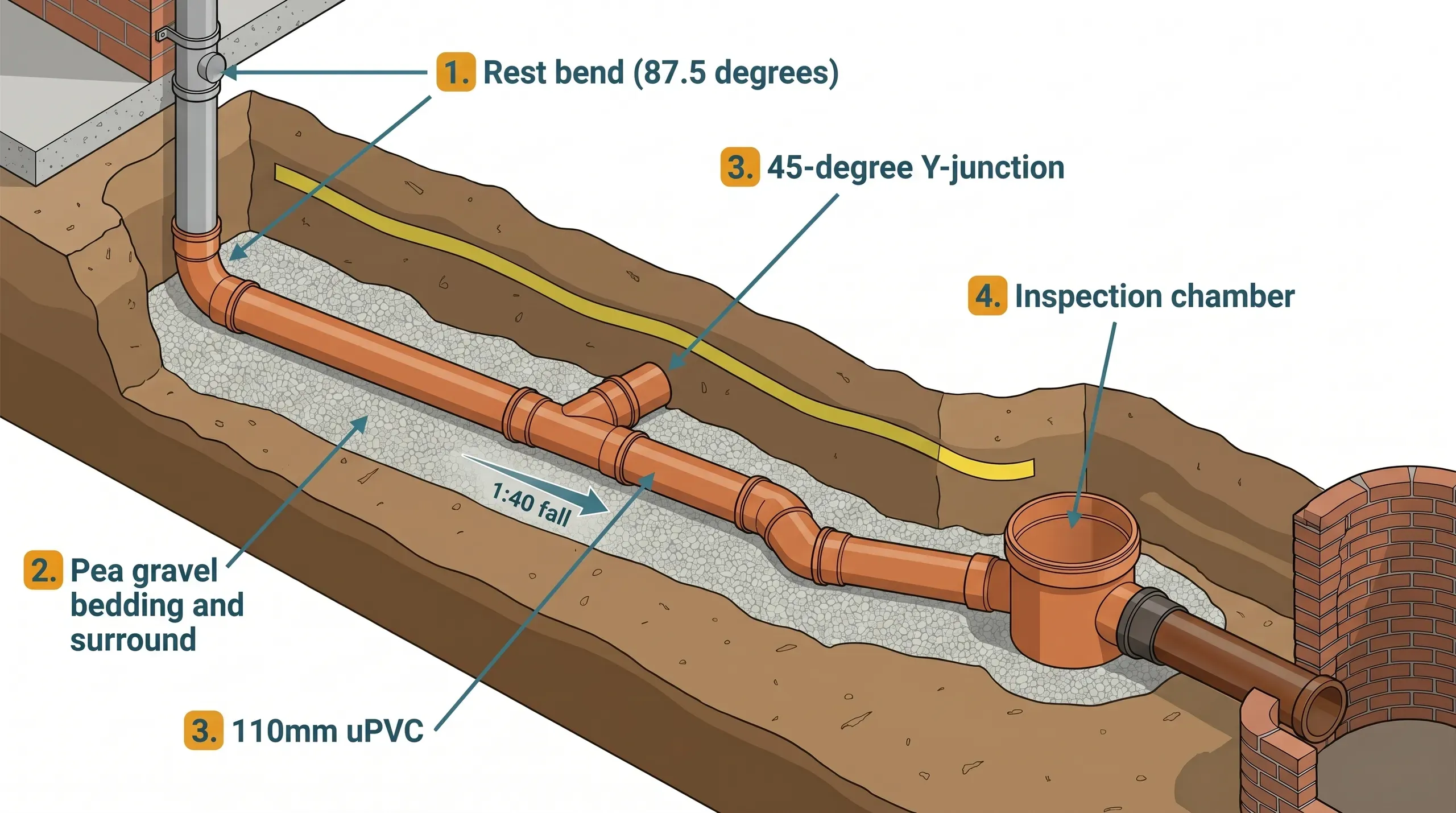

A typical single-storey rear kitchen extension connecting to an existing drainage system needs surprisingly few fittings. The list looks like a lot until you realise that most of these come in a small bag from one trip to the merchant.

Total fittings cost for a typical extension drainage job, excluding the inspection chamber and the pea gravel surround, sits at £180 – £250. The inspection chamber is a separate purchase: a 320mm complete shallow chamber kit runs £45 – £60 and a 450mm standard kit runs £65 – £85. Pea gravel for the bedding and surround is a separate calculation; one bulk bag at £60 – £90 usually covers a typical 5-6m run.

What each fitting does in plain English

Rest bend is the heavy 87.5° fitting that sits at the base of your soil stack. The grey above-ground pipe coming down from your bathroom or kitchen WC drops into the rest bend, which converts the vertical run into the horizontal underground run. It carries the weight of everything above it. Don't substitute a single-socket 87.5° bend; the rest bend has the structural rating to support the stack.

45° bends are the workhorses of any direction change. Where the underground run needs to turn around an obstacle (a foundation, an existing tree, the boundary), you use two 45° bends in series rather than one 87.5° bend. The reason is hydraulic: at 90°, water swirls and solids tend to stick to the inside of the bend. At 45°, water carries solids through more reliably. Two 45° fittings cost roughly the same as one 87.5°. Always prefer the pair unless space genuinely won't allow it.

Y-junctions are how a new branch connects to an existing run. The Y is at 45° (not 90°) for the same hydraulic reason: smooth flow combination. If your extension drainage joins the existing house drain run between the soil stack and the public sewer, you'll cut into the existing pipe and insert a Y-junction with a coupler at each cut.

Couplers are the cheapest fitting in the range. They join two plain-ended lengths. Use them sparingly: every joint is a potential leak point, so it's better to use a single 3m length than two 1.5m offcuts joined with a coupler.

Rodding access points sit flush with the ground and have a screw-down cap. When the drain blocks, you remove the cap and push drain rods through to clear it. These are essential at any junction with the existing drain run if a full inspection chamber isn't installed there.

Clay-to-plastic adaptors are the fitting people forget exists. If your house was built before the 1970s, the existing drain is almost certainly salt-glazed clay (the dark brown ceramic pipe with collared joints). New PVC won't connect to it directly because the diameters don't match (clay is 100mm internal diameter, PVC is 110mm outside diameter). The adaptor handles the size and material change. Two types are sold: a rigid Brett Martin lip-and-seal type, and a flexible rubber boot (Fernco-style) that clamps with stainless steel jubilee bands. Both work; the rubber boot is more forgiving of slight misalignment.

Click to enlarge

Brands and where to buy

For 110mm domestic underground drainage, brand barely matters. FloPlast, Polypipe, Brett Martin, and Aquaflow (Toolstation's own-brand) are all manufactured to BS EN 1401-1 and are dimensionally interchangeable. You can mix brands within a single run without compatibility issues, although manufacturers prefer you don't.

Where you buy matters for price and convenience:

Screwfix and Toolstation carry FloPlast and Aquaflow ranges respectively. Click-and-collect is fast; pricing is competitive on individual fittings. Use these for smaller jobs or where you only need a few items.

Travis Perkins, Jewson, MKM, Buildbase are the trade builders' merchants. They stock the full range including 6m pipe lengths and bulk packs of fittings. Pricing is typically slightly lower per unit but the trade counter culture is intimidating if you've never used one. Open a cash account in advance and tell them you're a homeowner; they'll usually deal with you fine.

Drainage Superstore, Cotterill Civils, JDP Pipes are online drainage specialists. Best range, especially for less-common items like clay-to-plastic adaptors, level invert chambers, and inspection chamber covers. Delivery is the trade-off; allow a week.

How to install it: the technique that passes building control

Installation is the part most guides skim over. Get it right and the air test passes first time. Get it wrong and you're digging up your patio again.

1. Set the gradient before you lay anything

The gradient (the slope of the pipe) is the single most-failed item in NHBC and LABC inspections. Approved Document H specifies 1:40 minimum for domestic foul drainage (25mm of fall per 1m of pipe), with 1:80 the absolute minimum where a WC is connected. Steeper than 1:10 is also wrong because water outruns the solids and they get stranded.

Calculate the available fall before you order anything. Measure from the centre of the rest bend at the base of your soil stack to the invert (the bottom of the inside of the pipe) of the existing drain or manhole you're connecting to. Then multiply your run length by 25mm/m for 1:40 or 12.5mm/m for 1:80. If the available fall is less than the calculated requirement, you're in level-invert-chamber territory and need to talk to your builder or a drainage specialist before you cut a single pipe.

Worked example: a 6m run from soil stack to the existing manhole. At 1:40, you need 6 × 25mm = 150mm of fall. If the existing manhole's invert is only 80mm below the proposed soil stack base, you have 80mm available against 150mm needed. You're 70mm short. You'll need either a deeper rest bend installation, a level-invert chamber to recover fall, or a different connection point.

2. Bed the pipe correctly

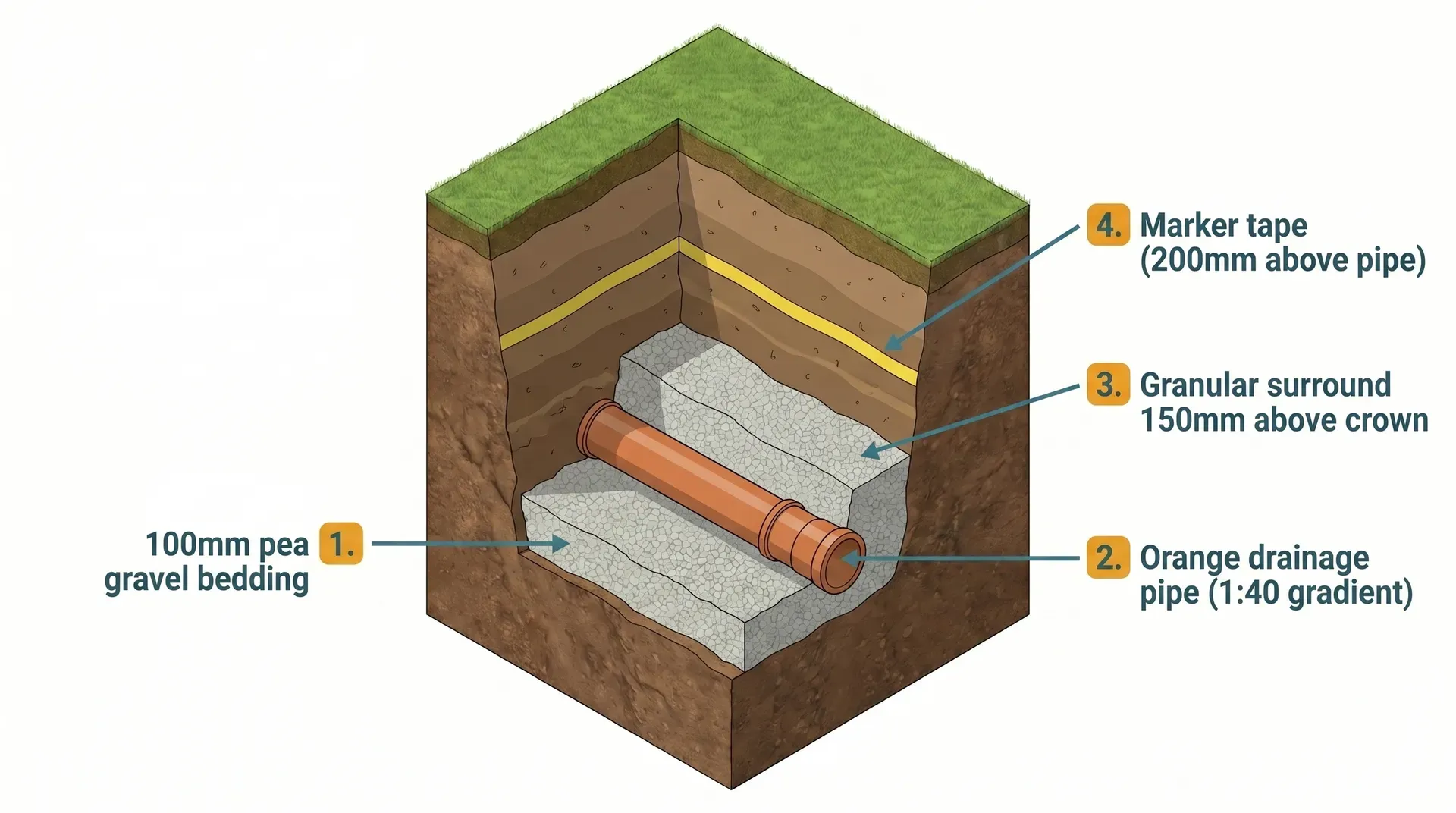

The pipe must sit on a 100mm minimum granular bed of pea gravel or 10mm clean aggregate, not directly on the trench bottom. Lay the gravel, level it to the gradient you calculated, then lay the pipe on top. The pipe should sit firmly without rocking.

After the pipe is laid and joints made, fill granular material around the pipe to ≥ 150 mm of 10 mm or 20 mm single-size pea gravel above the pipe crown above the crown. Only then can you backfill with excavated soil in 150-200mm compacted layers. No mechanical compaction directly over the pipe until you have at least 300mm of fill above the crown - a wacker plate run too soon will crack a buried fitting.

Click to enlarge

Pipes laid directly on lumpy spoil with no granular bed are the second-most-common defect after wrong gradient. The pipe sags between joints (a "belly"), water and solids pool in the sag, and the run blocks repeatedly afterwards. The rectification cost is the cost of the original installation done properly, plus excavation, plus making good the surface above. Don't skip the bedding.

3. Cut and chamfer the pipe ends

You'll need to cut at least one length of pipe to fit the run. Cut dead square. An angled cut won't seat properly in the next fitting and you'll get a leak under air test. A fine-tooth hacksaw with the pipe rotated in a vice gives the cleanest cut. Mark all the way around with a permanent marker first to keep the cut square.

After cutting, chamfer the outside edge with a file or coarse sandpaper. The chamfer should be roughly 15° and remove about 2mm from the outside edge. The reason: the chamfer lets the pipe slide past the rubber ring seal in the next fitting without cutting or displacing the seal. A non-chamfered cut end will damage the seal as it goes in, and the joint will leak.

This is a 30-second job per cut. Skipping it is the third-most-common installation defect.

4. Make push-fit joints properly

Every push-fit joint follows the same five steps:

1. Clean the spigot end of the pipe and the inside of the socket. Brush out any soil or grit. A scrap of dust from the cut can wedge under the seal and leak.
2. Lubricate the spigot end with silicone-based pipe lubricant. A pea-sized blob smeared around the chamfered end is enough. Never use grease, oil, or washing-up liquid; oils degrade the rubber seal over years.
3. Mark the insertion depth on the spigot before pushing. Hold the pipe alongside the socket so you can see how far in it should go (typically 60-65mm for 110mm fittings), then mark the spigot with a pencil at that depth.
4. Push the pipe firmly into the socket until the mark sits flush with the socket lip. The seal will compress as the pipe enters; expect resistance. A second pair of hands or a soft mallet against a wood block helps with stiff joints.
5. Withdraw 10mm so the pipe sits 10mm short of fully home. This is the expansion gap. Plastic pipe expands and contracts with temperature; without a gap, summer expansion stresses the joint until it splits the socket. The 10mm withdrawal is the single step that homeowners and even some professionals skip. Don't skip it.

5. Test before backfill

The system must pass either an air test (BS EN 1610, method L) or a water test (method W) before any backfill goes in.

For the air test: seal all open ends with inflatable bungs, attach a manometer, and pressurise to 100mm water gauge. The pressure must not fall below 75mm water gauge in 5 minutes for a pass. A basic kit costs £40 and is reusable. Your builder or groundworker should own one.

For the water test: fill the pipe with water to a 1.5m head, allow 2 hours stabilisation, then observe for 30 minutes. The drop must not exceed 6.4mm per metre per 30 minutes.

Air is faster and easier in dry weather. Water is more thorough and is sometimes specified by stricter inspectors. Either is acceptable to building control.

Photograph every joint before backfill begins. If a dispute arises later (with building control, a future buyer's surveyor, or an insurance claim), you'll want the evidence.

Inspection chambers and access points

Approved Document H requires inspection access at every junction, every change of direction, every change of gradient, and every 45m on a straight run. For a domestic extension, that usually means one or two inspection chambers and one or two rodding access points.

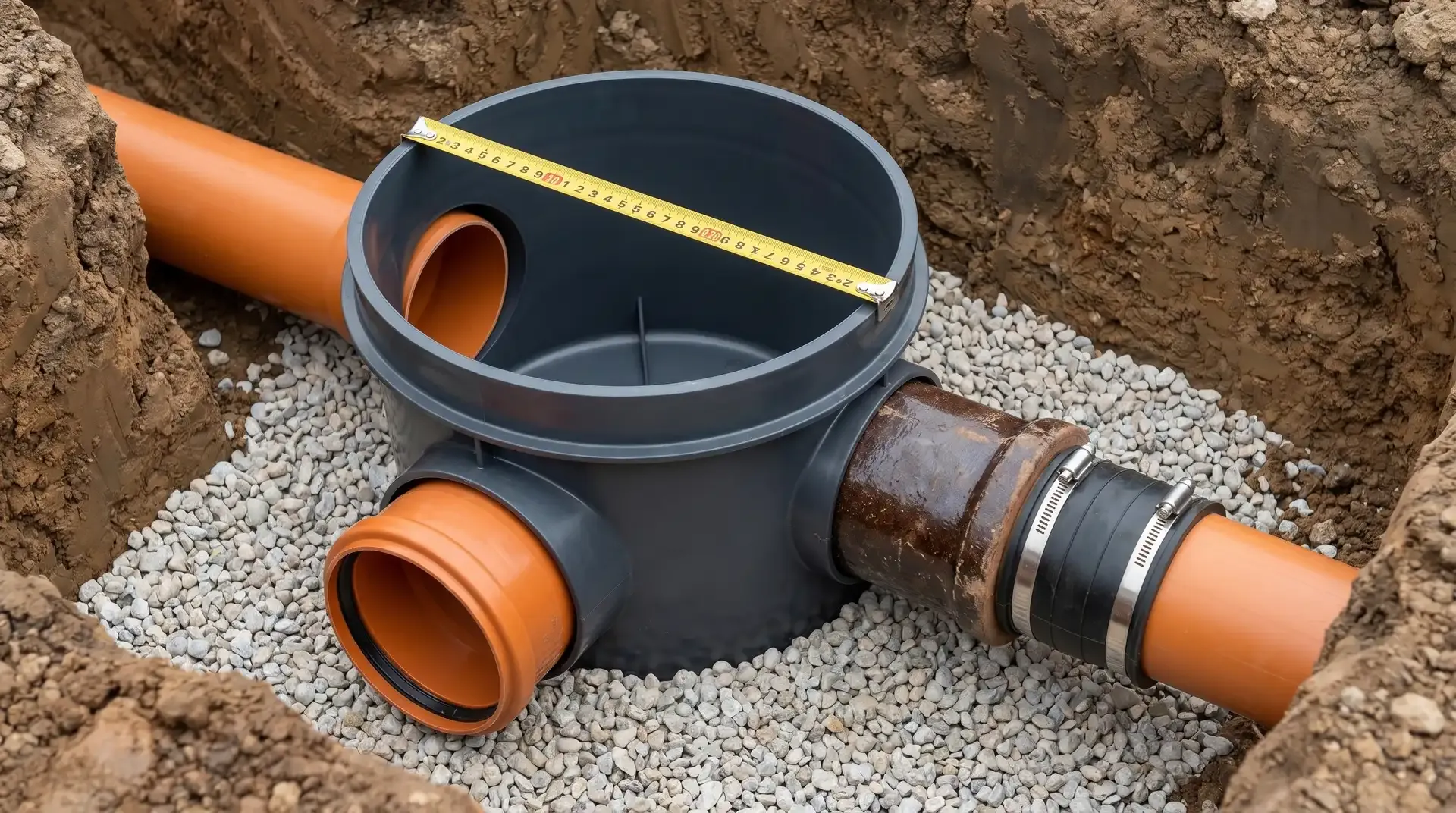

A small shallow inspection chamber (320mm internal diameter, suitable to 600mm depth) is fine for most extension drainage. £45 – £60 for a complete kit (base + risers + cover). The base has preformed inlets at common angles; the risers stack to match the depth of your trench; the cover sits at finished ground level.

A standard 450mm chamber is required for deeper installations and is required by some building control officers regardless of depth. £65 – £85 for the complete kit. Use the larger chamber if you have any doubt; the marginal cost is small and the access is noticeably better.

Where a rodding eye suffices instead of a chamber, the call is usually made by the building control officer. The ProDave answer from the BuildHub forum is the right one: "if you have the hole in the ground, just put an IC in there." A chamber costs £45 – £60 and gives you full visual access to the pipe in perpetuity. A rodding eye costs £25 – £30 and gives you a hole to push rods down. For the marginal cost difference, the chamber is the right answer in almost every case.

Cover depths and protection

Approved Document H Table 10 specifies minimum cover (the depth of soil/material above the pipe crown):

• 600mm under gardens and non-trafficked areas
• 300mm under footpaths or driveways with concrete protection above
• 900mm under driveways without protection

Some industry guides say 300mm minimum in gardens. Part H is 600mm. Building control officers do have discretion to accept shallower installations with a paving slab placed on top of the granular surround as a load-spreader, but don't assume this; ask your inspector before you commit to a shallow depth.

If you're laying pipe under a future patio or driveway extension, plan for the deeper cover requirements. Ripping up new paving to deepen a drain you should have laid lower is a particularly painful mistake.

A marker tape buried 200mm above the pipe is recommended (not strictly required by Part H but standard NHBC guidance). The tape is yellow with "CAUTION FOUL DRAIN BELOW" printed on it. When somebody digs into your garden in 15 years to plant a tree, the tape gives them 200mm to stop and look before they hit the pipe with a spade.

Connecting to the public sewer

If your extension drainage discharges to the public sewer (not a private septic tank or cesspool), you may need a Section 106 Sewer Connection Agreement with your water company. This applies if you're making a new connection to a public sewer or materially altering an existing one. The fee is £350–£600 per connection.

For most extensions, you're not making a new sewer connection - you're connecting to your existing house drainage upstream of the boundary, and your existing house already has its sewer connection in place. In that case, no Section 106 application is needed.

Where the public sewer runs under your extension footprint or within 3m of your foundation, you need a Build-Over Agreement with your water company instead. Thames Water charges £130 for pipes up to 175mm and £440 for pipes up to 375mm. Other water companies charge similar amounts. Allow 21 days for processing.

Where you'll need this

110mm underground drainage pipe and fittings appear in any project that adds, moves, or alters foul drainage:

• Drainage - the main drainage installation phase, where the underground run is excavated, bedded, laid, jointed, tested, and signed off by building control before backfill
• Building control inspection: foundations and drainage - drainage testing happens at this stage; the system must be exposed and inspectable
• Garden and external works - drainage diversions and the connection of any new external gullies or rainwater downpipes to the underground system

Underground drainage work bridges the groundwork and completion phases of any extension or renovation project. The materials are cheap; the labour is moderate; the cost of getting it wrong is what matters. Drainage that fails air test before backfill costs an hour to fix. Drainage that fails after backfill costs the same plus excavation plus reinstatement. Test before you bury.

Common mistakes

Wrong pipe colour. Grey above-ground soil pipe used below ground is the most common failure mode. The walls are too thin for sustained soil load. Within 5-10 years the pipe ovals, joints fail, and the run leaks. If you're buying pipe yourself, check the colour and the kitemark (BS EN 1401-1) before you pay.

No expansion gap on push-fit joints. Pushing the pipe fully home with no 10mm withdrawal removes the expansion allowance. Hot summer weather expands the pipe and the joint splits at the socket. Every joint, every time: push fully home, then withdraw 10mm.

Pipe laid on lumpy spoil. Without a 100mm pea gravel bed, the pipe rests on high points and bridges the gaps between them. Over time, joints sag into "bellies" where waste pools and solids settle out. The drain blocks repeatedly. The fix is to dig the pipe up and re-bed it correctly. This is the second-most-common defect after wrong gradient.

Solvent weld used below ground. Push-fit only below ground. If somebody offers to "weld" your underground joints for a tighter seal, refuse. The rigidity of solvent weld is a fault, not a feature, when soil moves around the pipe.

Skipping the chamfer on cut ends. A square cut without a chamfer cuts the rubber ring seal as the pipe enters the socket. The joint passes pressure for a few weeks, then fails as the seal degrades. Thirty seconds with a file fixes this.

Backfilling before testing. Once the pipe is buried, finding a leaking joint means finding the leak (which can take days), then digging up the pipe to that point. Test before backfill. Photograph before backfill. If your builder wants to backfill before the test, refuse.

Forgetting the clay-to-plastic adaptor on older properties. If your house was built before the 1970s, your existing drain run is almost certainly clay. Trying to push 110mm PVC into a 100mm clay socket without an adaptor either won't seat at all or will leak under test. Order the adaptor with the rest of the fittings; £15 – £22 is cheap insurance.

Inadequate fall on a long run. Calculate the fall before you order. A 1:40 gradient over 6m needs 150mm of headroom between the rest bend and the existing manhole invert. If you don't have it, you need a different connection point or a level-invert chamber. Discovering this when the trench is open is too late.

Backfilling with soil containing rocks or sharp debris. The granular surround takes the load up to ≥ 150 mm of 10 mm or 20 mm single-size pea gravel above the pipe crown above the crown. After that, excavated soil is fine as long as you remove rocks larger than 40mm. A flint or a half-brick dropped onto the pipe under load can crack a fitting decades later. Sieve the spoil if you have to.
