Plastic Inspection Chambers: The Access Points That Stop Your Drains Becoming a Nightmare
UK guide to plastic inspection chambers: 320mm vs 450mm sizes, BS EN 124 cover ratings, Part H spacing rules, installation, and prices from £45 per chamber.
A typical kitchen extension needs one new inspection chamber. Maybe two. Get the size wrong, the cover rating wrong, or the position wrong, and the build-control inspector can refuse to sign off your drainage. Backfill before that inspection happens and you'll be digging it up again at your own cost. The chamber itself is around £65 – £85 at any builders' merchant. The cost of putting a pedestrian cover where a driveway cover should have gone, then excavating two years later when the plastic frame cracks under a Tesco delivery van, is several thousand. This is one of the cheapest materials on a drainage job and one of the easiest to get expensively wrong.
What it is and what it's for

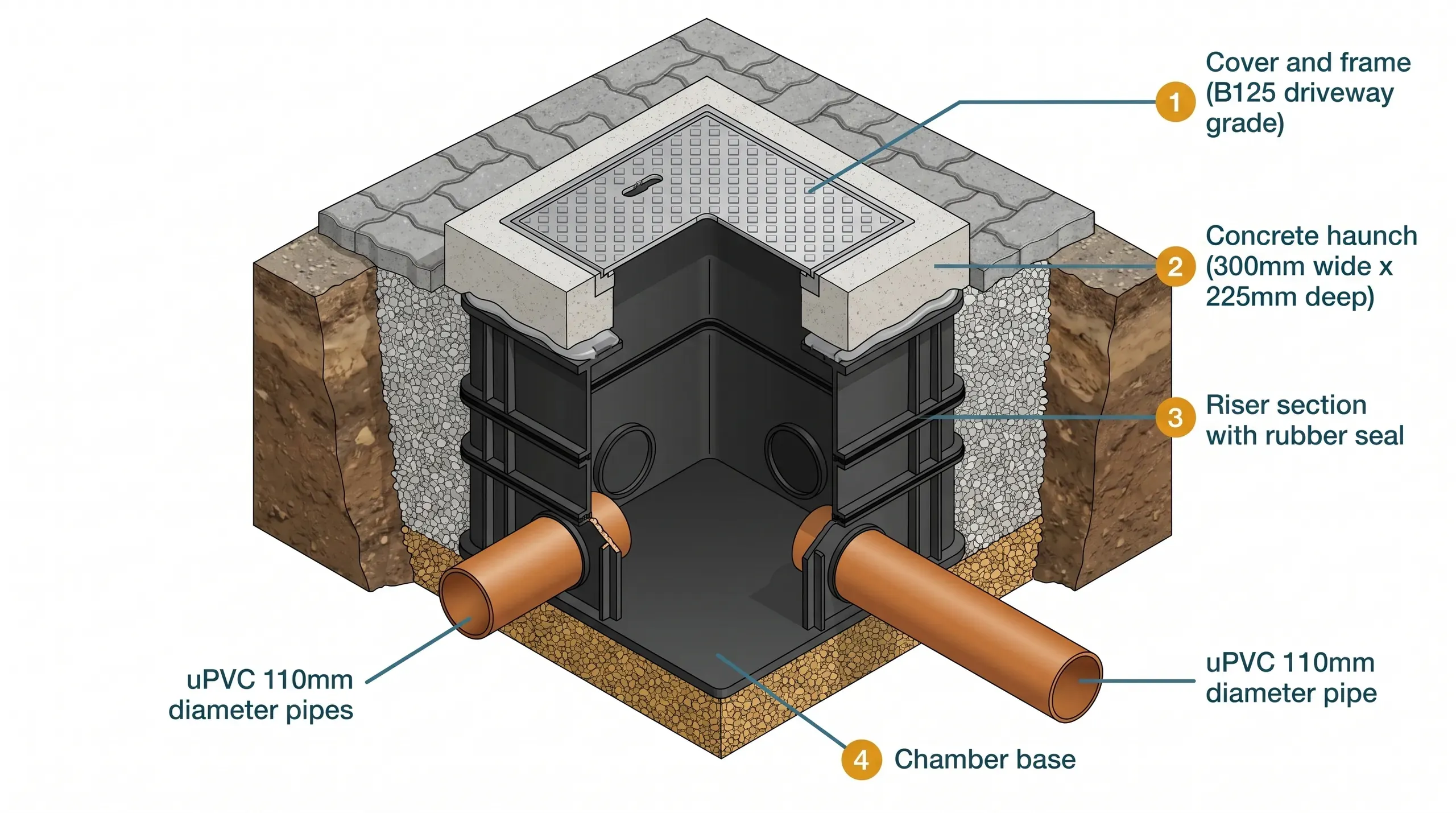

A plastic inspection chamber is a pre-formed polypropylene access point installed in an underground drainage run. It's the small round access cover you see in a back garden or driveway. Lift the lid and you can see the pipework flowing through, push drain rods through if there's a blockage, or run a CCTV camera up and down the run. It's the maintenance hatch for your drains.
The chamber sits at every junction, every change of direction, and at intervals along straight runs. Without it, a blockage downstream of your kitchen extension means digging the pipe up to clear it. With it, a drainage contractor lifts the lid, rods the pipe, and is gone in twenty minutes.
Plastic chambers replaced traditional brick-built manholes for domestic drainage about twenty years ago. Brick manholes still exist on public sewers and on commercial sites, but for a kitchen extension or any new domestic run, a plastic kit is what you'll install. They're cheaper, faster to fit, factory-made to consistent dimensions, and don't need a bricklayer.
The product comes as a kit: a moulded base with pipe inlets, one or more riser sections to extend the height to ground level, and a cover and frame that sits flush with the finished surface. You stack the parts to suit the depth.
The legal framework is Approved Document H of the Building Regulations in England and Wales (Section 3 of the Scottish Technical Handbook north of the border). The chambers themselves must comply with BS EN 13598 (the European standard for plastic chamber construction), and the covers must comply with BS EN 124 (the European standard for cover load classes). Both standards are referenced on every reputable product datasheet. If a product doesn't cite them, don't buy it.
22m
Types, sizes, and specifications
Three diameters are common in the domestic market: 320mm, 450mm, and 600mm. The 600mm is rare on extensions and crosses into territory where you'd specify a brick manhole instead. For a kitchen extension drainage job, you're choosing between 320mm and 450mm.
The number that matters more than diameter is the depth limit. A 320mm chamber can only go to 600mm deep before drain rods stop working in it. The shaft is too narrow to bend a rod once it's inside. A 450mm chamber goes to 1.2m as standard, or to 3m using a reducing ring that narrows the access opening at the top. Anything deeper than 1.5m is genuinely awkward to rod from the surface, regardless of diameter.
| Size | Max depth | Use case | Number of inlets | Complete kit price |
|---|---|---|---|---|
| 320mm diameter | 600mm | Shallow runs near the building. Simple straight-through or single junction. Common at the head of a drain run. | 3 x 110mm inlets | £45 – £60 |
| 450mm diameter (standard) | 1.2m | The default for any junction or change of direction at typical extension depths. The chamber that goes everywhere unless there's a specific reason to choose 320mm. | 5 x 110mm inlets | £65 – £85 |
| 450mm with reducing ring | 3m | Deeper runs where the drainage gets pulled down to meet an existing connection or because of the site levels. | 5 x 110mm inlets | £65 – £85 |
| 600mm diameter | 1.2m+ | Larger junction with multiple branches or commercial-grade installations. Rare on domestic extensions. | Multiple | Specify with merchant |
The 320mm chamber is cheaper but its narrow access window makes it unsuitable for anything but a shallow installation. If your trench is deeper than 600mm anywhere in the run, use 450mm at every chamber position for consistency. Switching sizes through a single drainage layout creates merchandising and stocking complications nobody needs.
Inlets: fixed vs adjustable
A 450mm base comes in two flavours. A fixed-inlet base has the pipe sockets moulded at preset angles (typically one straight-through, two at 45 degrees, two at 90 degrees). An adjustable-inlet base lets each inlet pivot through about ten degrees in any direction. The adjustable version costs around £65 – £75 against £43 – £50 for fixed.
Buy fixed if your drainage layout is on a regular grid and the pipe approaches the chamber at standard angles. Buy adjustable if your existing drainage geometry doesn't match (a frequent issue when connecting to an old house's ad-hoc pipe runs). The premium is small insurance against a base that won't accept your pipe at the angle it's actually arriving.

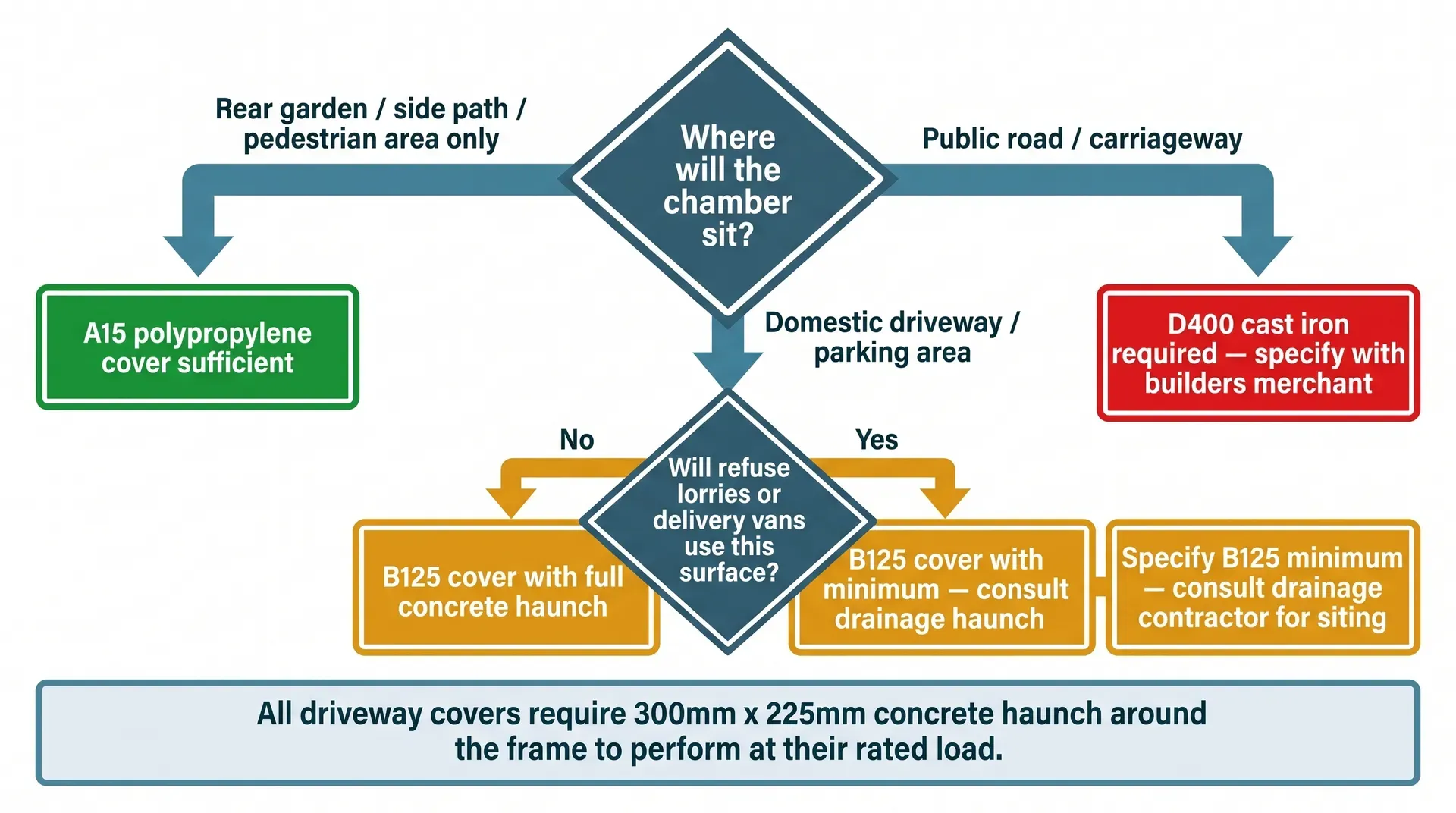

Cover load classes (the BS EN 124 system)
This is where the most expensive mistakes happen. The cover and frame is rated for the weight it can take without deforming. The classes are defined in BS EN 124, and they're not optional.
| Class | Load rating | Use case | Material | Cost |
|---|---|---|---|---|
| A15 | 1.5 tonnes | Pedestrian only. Gardens, paths, bin stores. Anywhere foot traffic only. | Polypropylene with screw-down lid | £25 – £80 |
| B125 | 12.5 tonnes | Domestic driveways, light vehicle traffic. The minimum where any vehicle ever crosses the chamber. | Galvanised steel frame and lid | £60 – £110 |
| B125 recessed | 12.5 tonnes | Block paving or flagstone driveways. The lid has an 80mm tray that takes the surface material so the cover disappears visually. | Galvanised steel frame, paver-filled tray | £80 – £130 |
| C250 | 25 tonnes | Lightly trafficked roads, lay-bys, edges of carriageways. Rare on domestic projects. | Cast iron | Specify with merchant |
| D400 | 40 tonnes | Carriageways, public roads. Required where the chamber sits in the path of a refuse lorry or HGV. | Cast iron | Specify with merchant |
For a kitchen extension, you're choosing between A15 (rear garden, side path, anywhere not driven on) and B125 (driveway, parking area, anywhere a car crosses). A B125 cover bedded properly will take a private car or a small van indefinitely. An A15 cover under a Tesco van fails the first time the wheel runs over it.
A B125 cover only performs at its rated load if the frame is bedded in concrete 300mm wide and 225mm deep beneath and around it. Drop the cover into the chamber riser without that haunch and you have a B125 product performing at maybe A15 strength. The cover doesn't carry the load. The concrete around it does. This is the single most common mistake on plastic chamber installations in driveways, and it's why "the plastic chamber failed" stories on building forums almost always trace back to a missing concrete haunch, not a defective product.
Brands and what's in stock
FloPlast and Polypipe are the two dominant UK brands, available everywhere. Brett Martin, Marley, and Clark Drain are alternatives stocked at builders' merchants. For a domestic extension, the differences are negligible as long as the product is to BS EN 13598 with covers to BS EN 124. Mix-and-match is fine within a single chamber: a FloPlast base with a Clark Drain recessed cover is a routine combination.
One naming quirk: Polypipe markets a "460mm" chamber which is the same product family as everyone else's "450mm". Nominal sizes vary slightly by manufacturer. Risers and covers are not interchangeable across brands, so source the base, risers, and cover as a matched set from one supplier.
When you actually need one
Approved Document H Table 13 sets the rules. An access point must be provided at:
- The head of every drain run
- Every junction of two or more pipes
- Every change of direction greater than 30 degrees
- Every change of pipe size
- Every change of gradient
- Intervals not exceeding 22m on straight 100mm pipe runs (rodding eye to next access point)
- Intervals not exceeding 45m between adjacent chambers on a straight run
The 22m figure is the practical headline rule. If you're running a 100mm foul drain more than 22m without a rodding access point, you're outside the regulations.
Access can also take the form of a rodding eye (a capped pipe extension that lets you push a rod through but offers no working space) or an access fitting (a small chamber without an open channel). For a kitchen extension, an inspection chamber at any junction or change of direction is the standard choice. It costs a little more than a rodding eye and gives you genuine working access if anything goes wrong later.
The community consensus on this is unambiguous. The advice across BuildHub, DIYnot, and the trade forums is: install a chamber wherever there's any junction or bend, even where the regs might technically allow a rodding eye. You have the trench open. The cost difference is small. Adding access later means digging the same hole again.
How to install one
The chamber sits in a trench excavated to the correct invert level (the level of the bottom of the pipe channel through the base). The base must be perfectly level laterally, with the channel inside the base aligned exactly to the incoming and outgoing pipe runs.
The installation sequence is consistent across every manufacturer's instructions and every NHBC reference. There's no creative flexibility here.
-
Excavate the chamber pit. Dig the trench with at least 150mm working space all round the chamber, then deeper at the chamber position to allow for the pea gravel bed.
-
Lay 100mm of compacted pea gravel as a bed under the chamber base. Pea gravel is specified for this rather than concrete because it provides drainage and load distribution without point-loading the plastic walls. NHBC Standards 5.3.15 specifies the same 100mm bed and surround approach for the pipework as well.
-
Place the base at the correct invert level. This is the critical level set. Once pipes are connected, you cannot adjust the chamber height without disturbing the pipe joints. Use a laser level or a long spirit level on a straight edge to confirm the base is level.
-
Connect incoming and outgoing pipes to the inlet sockets. The pipe should project 30 to 50mm into the chamber so that the flow enters the channel cleanly. Pipes that don't project at all sit flush with the inlet face and can catch debris. Pipes that project too far reduce the working space inside the chamber.
-
Blank off all unused inlets with the supplied socket plugs. An unblanked inlet allows soil and groundwater into the chamber, fails the water test before backfill, and lets debris into your drainage system.
-
Stack the riser sections to bring the top of the chamber up to ground level. Each riser has a rubber seal at the joint. Add a continuous bead of mastic sealant on top of the rubber seal as belt-and-braces protection against groundwater infiltration. Risers are cuttable in 60mm increments using a fine-tooth saw, so the topmost riser can be trimmed to bring the cover frame exactly to the right height.
-
Surround the chamber with pea gravel to the level of the topmost riser. Don't use concrete around the chamber walls; the plastic doesn't need it and concrete restricts thermal movement.
-
Bed the cover and frame on a mortar mix on top of the riser, with the frame face flush with the finished surface. In a trafficked area, this is where the concrete haunch goes (300mm wide, 225mm deep, all round the frame).
-
Air or water test the system before backfilling. Building control will not sign off without seeing this stage.
-
Backfill the trench in compacted layers, with pea gravel for the first 300mm above the pipe crown, then native soil thereafter.

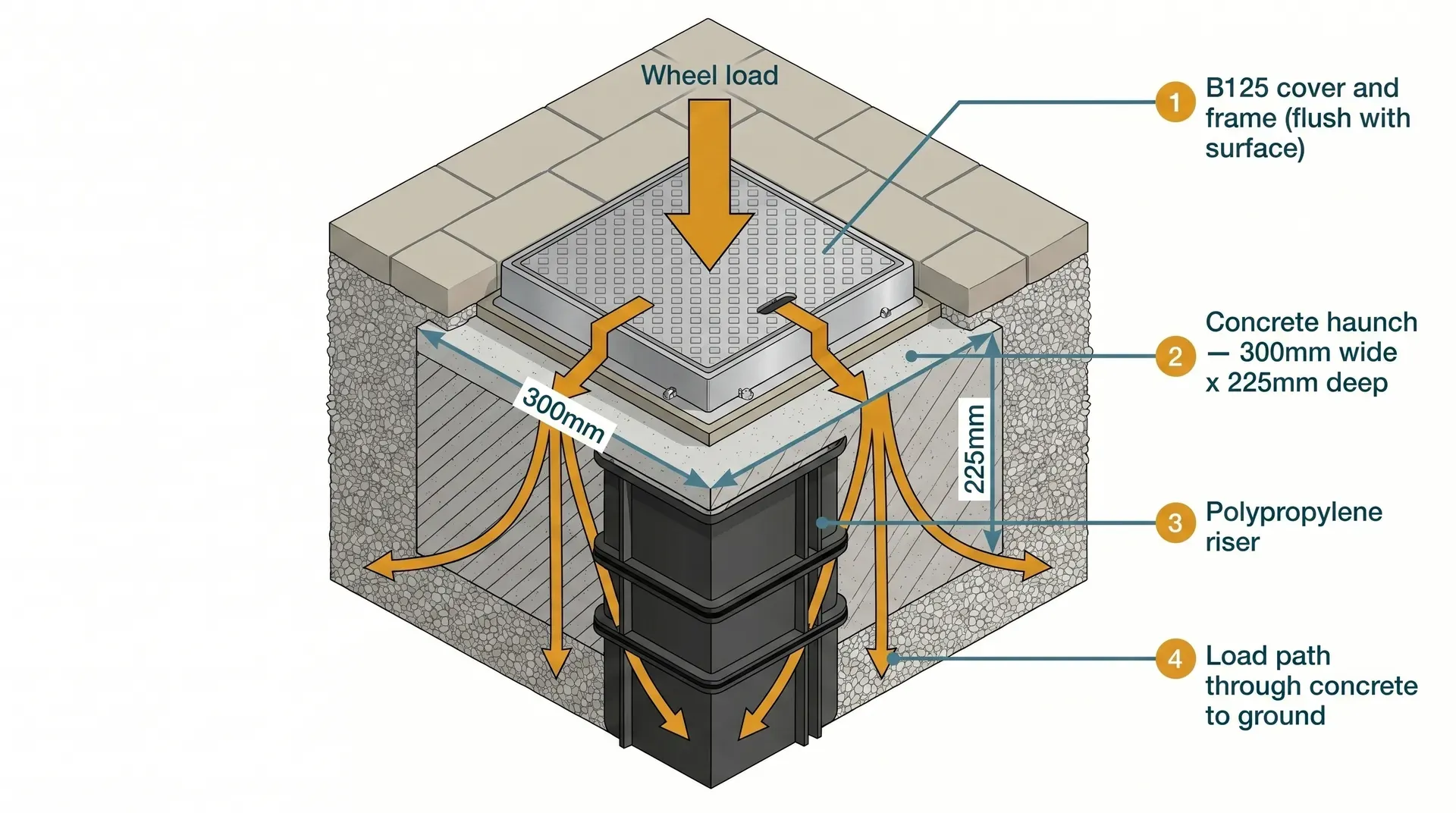

Trafficked areas: the concrete haunch detail
Where the chamber sits under a driveway or any surface a vehicle crosses, the cover frame must be bedded in a concrete haunch 300mm wide by 225mm deep beneath and around the frame. This concrete is what carries the wheel load. The plastic chamber and the cover bridge across it.
Skip the haunch and the cover sits unsupported on the polypropylene riser. The first heavy vehicle that crosses the cover transfers its full weight onto the plastic, which deforms or cracks. The cover then settles into the deformed riser and you have a permanent low spot in your driveway with a chamber that no longer seals.
The plastic chamber on its own is not weak. The concrete around the cover frame is what makes the assembly load-rated. This distinction is not made clearly by most product datasheets and is the single most useful piece of information for any homeowner installing a chamber in a driveway.
How to work with it on site
The kit is light. A 450mm base is comfortably one-person liftable; two risers and a steel B125 cover and frame add to the load but the entire assembly can be carried to the trench in two or three trips.
Cutting risers is the only on-site adjustment that's commonly needed. A fine-tooth handsaw or a multi-tool with a wood blade cuts polypropylene cleanly. Cut the riser to the next 60mm increment that brings your cover frame to the right height (or use a wood block under the frame to make up the difference). After cutting, deburr the cut edge with a file so the rubber seal on the next riser sits cleanly against it.
The cut edge of a riser is no longer factory-true round. If you're cutting the topmost riser to receive a cover frame, the imperfection doesn't matter. If you're cutting an intermediate riser, the joint above it might leak if the cut isn't square; for joints below ground level, always use full-height risers and adjust at the top.
Bring a torpedo level (a small spirit level, around 250mm long) to the chamber installation. The base must be level both ways across the channel, and a long spirit level is awkward to use inside a 450mm-deep hole. The torpedo level sits across the rim of the base and gives you the reading you need without contortion.
How much do you need
For a typical single-storey kitchen extension with a kitchen sink, a dishwasher, and a washing machine connecting to the existing foul drainage, you'll need one or two new inspection chambers depending on the layout.
The standard arrangement is a single new chamber positioned outside the new extension footprint, on the run between the new internal pipework and the existing drain or manhole. All new internal connections (kitchen sink, dishwasher, washing machine) come together inside the slab and run as a single 110mm leg out to that new chamber. A single pipe then carries the combined flow from the new chamber to the existing drainage system.
This is the right arrangement for two reasons. First, it puts the access point outside the extension footprint where it can always be reached. Second, it gives you a single inspection point for the new pipework, which makes pressure testing and any future maintenance much simpler.
If the run from the new chamber to the existing drainage exceeds 22m, or includes a change of direction, you'll need a second chamber. For most kitchen extensions, one chamber is enough.
| Component | Quantity | Unit cost |
|---|---|---|
| 450mm chamber base, fixed inlets | 1 | £43 – £50 |
| 235mm riser sections | 2 | £38 – £42 |
| Polypropylene A15 cover (garden/path) OR B125 driveway cover | 1 | £25 – £80 or £60 – £110 |
| Mastic sealant tube (any silicone exterior grade) | 1 | A few pounds |
A simpler alternative is to buy a complete kit and add the cover separately. A 450mm complete set with two risers and a basic round cover runs £65 – £85 and lets you upgrade the cover to B125 or recessed if needed. Add a small bag of pea gravel for the bed and surround (see £60 – £90 for a full bulk bag - you only need a fraction of one) and a bag of post-mix concrete if you're haunching for a driveway.
Cost and where to buy
Online and high-street DIY retailers are competitive on chambers. Screwfix, Toolstation, and Wickes all stock FloPlast 450mm components at near-identical prices. Builders' merchants (Travis Perkins, Jewson, Buildbase, MKM) carry the same products plus Polypipe and Brett Martin alternatives, often at slightly better prices on full kits but with delivery on bulk orders.
For a single chamber, Screwfix click-and-collect is the simplest option. Pre-order all components together and pick them up the morning of the install. For a project needing two or more chambers plus pipe, fittings, and aggregates, place a single delivery order through a builders' merchant; the saving on aggregate delivery alone usually justifies the merchant route.
A note on the wider drainage budget. A typical kitchen extension drainage job costs £1,000–£2,500 all in. Materials are a small fraction of that; the bulk is groundworker labour, the small soakaway for surface water, and the connection to the existing system.
Building control: what they inspect and when
Drainage is one of the formal building control inspection stages. The inspector visits before backfill, looks at the pipe layout in the trench, checks the chamber positions against the approved drainage drawing, and witnesses an air or water test of the new system.
Backfilling before that visit means your drainage cannot be signed off without the inspector's verification. In practice, the inspector may accept photos and a witness statement from the groundworker, but the cleaner path is to time the inspection before any backfill goes in.
The inspector specifically checks:
- That chamber positions match the drainage drawing
- That the inlet and outlet pipes connect cleanly to the channel inside the base
- That unused inlets are blanked off
- That the cover and frame is at the correct level (not raised above the surface, not sitting low enough to pool water)
- That the cover load class matches the surface (driveway covers in driveway positions)
- That an air or water test passes
- That the new connection to the existing system is correctly made
A failed drainage inspection is recoverable. The fixes are usually straightforward (reseat a riser, blank an inlet, re-bed a cover). But the inspector won't return without re-notification, which adds days. Get it right first time.
Alternatives
For a domestic extension, plastic inspection chambers have effectively replaced every alternative. Brick-built manholes still exist on adopted public sewer connections (which a water company would specify if relevant) and on heritage refurbishment work where the existing manholes are brick.
A rodding eye (a capped pipe extension brought to the surface) is a code-compliant alternative at the head of a drain run or at a single bend, but it gives no working access and offers no future flexibility. The cost saving over a chamber is modest and almost never worth it.
A traditional brick manhole with concrete benching is significantly more expensive than a plastic kit and adds half a day of skilled bricklaying labour to the build. The case for one is essentially aesthetic (matching existing brick manholes on a period property's drainage) or where chamber depths exceed the practical limit of plastic kits.
Where you'll need this
- Drainage - chambers go in at every junction, every change of direction, and at maximum 22m intervals on straight runs of the new foul drainage. The chamber positions are agreed with building control at the design stage and inspected before backfill.
Inspection chambers appear in any project that adds, moves, or modifies underground drainage. That includes any extension with a kitchen, bathroom, or utility room addition, any significant garden levelling that crosses an existing drain run, and any conversion that adds new sanitary fittings.
Common mistakes
Pedestrian cover under a driveway. The most expensive single mistake. An A15 polypropylene cover installed in what's later turned into a parking area cracks within months. Fixing it means lifting the cover, frame, and topmost riser, then re-haunching with concrete and a B125 frame. Decide cover class at the design stage, before the chamber is installed.
Missing concrete haunch on driveway covers. The B125 rating only applies if the frame is bedded in concrete 300mm by 225mm under and around the frame. Drop a B125 cover straight onto a riser without the haunch and it performs at a fraction of its rated load. Stories of "the chamber failed under a van" almost always trace back to this.
Unblanked unused inlets. A 450mm chamber comes with five inlets and you'll typically use two or three. The unused inlets must be blanked with the supplied plugs before backfill. Skip this and groundwater enters the chamber, the air test fails, and on a long enough timeline, soil washes into your drainage system.
Cover sitting too low or too proud. The cover frame should be flush with the finished surface. A frame raised 20mm above ground level is a trip hazard and a lawnmower hazard. A frame settled 20mm below grade pools water around the lid and lets debris collect on top of the cover. Cut the topmost riser to bring the frame to exactly the right height, then bed the frame on mortar to dial in the final 5mm.
Backfilling before the inspection. Building control inspects drainage before backfill. Once the chamber and pipes are buried, the inspector cannot see what's there. Notification timing is critical: notify when the trench is open and the chamber is set, with pipes connected but unburied.
Burying a junction without an IC. A T-junction in the pipework without a chamber on top of it means that junction cannot be individually rodded if it ever blocks. You can rod the run from upstream or downstream, but reaching the junction itself requires excavating to it. Any junction inside a kitchen extension footprint is particularly problematic to recover from. Either route the drainage to bring junctions out to a single external chamber, or accept a permanent buried failure point.
Using brand-mixed risers and covers. Risers and cover frames are not interchangeable across brands. A FloPlast riser may not seal correctly under a Polypipe cover. Buy the base, risers, and cover for any single chamber from one product family. Mixing brands across separate chambers in a single project is fine; mixing within one chamber is not.
