UK Building Measurements: Why a 4×2 Isn't 4 Inches by 2 (And Other Imperial vs Metric Traps)

Click to enlarge

Your bricklayer asks you to drop ten lengths of 4×2 at three metres and a bulk bag of ballast on the way home. The merchant hands you timber that measures 47×100mm and an 850kg bag of stones. Nobody on the call thought any of this was strange.

Welcome to the UK building trade, where a country that finished metricating in 1972 still talks like it never quite did.

This is not actually broken. UK construction is metric in every regulation, every drawing, every structural calculation, and every invoice. What survives is the language. The names of things, the rough sizes people quote at the merchant counter, and a handful of holdouts where imperial refuses to die. The problem comes when a homeowner takes the names literally, orders something from abroad, or matches new work to a pre-1970 house.

How Did We End Up Here

UK construction switched to metric on a programme started in 1965 and finished by the 1972 Building Regulations. Timber moved on 1 April 1970. Copper pipe followed in 1971 and 1972. The metric brick (215×102.5×65mm) replaced the imperial one in January 1970. By the early seventies, every drawing leaving an architect's office was in millimetres.

The Weights and Measures Act 1985 cemented it. UK building materials must be sold in metric units. Imperial is legally required only for road signs, draught beer, and precious metals. In 2022 the government floated reviving imperial in shops, ran a public consultation, and got 99% rejection. The rules stayed metric.

So why does anyone still say 4×2? Because the trade learned a vocabulary in feet and inches and never bothered to relearn it. Tradespeople in their fifties and sixties trained in imperial. They taught their apprentices in imperial nominal sizes paired with metric exactness. The trade kept the names and let the units underneath quietly become metric. That mongrel vocabulary is now passed down on every site.

Why millimetres rather than centimetres? Two reasons. First, drawings stay legible without decimal points: 2440mm reads cleanly where 244cm needs a decimal somewhere. Second, the natural construction tolerance sits in single millimetres, so the unit matches the precision of the work.

Timber: The Source of Most Confusion

A "4×2" is not 4 inches by 2 inches. It is a nominal name for a cross-section that started as roughly 100×50mm sawn off a tree. By the time it reaches you it has been planed, dried, regularised, or trimmed to within an inch of its life. What you actually receive depends entirely on what type you ordered.

These are not interchangeable. A frame specified by your structural engineer as "145×45 C16" might be offered at the merchant as either 6×2 CLS (which finishes at 140×38mm and is too thin) or 6×2 regularised (which finishes at 145×45mm and is correct). The names are identical. The performance is not.

C16 and C24 are the two strength grades you'll meet on a UK extension. Both follow BS EN 338. C24 is roughly 50% stronger in bending than C16 and gets used wherever the engineer's span tables demand it: longer joists, bigger rafters, anything supporting a heavy load. C16 is fine for studs and short spans. Specifying the wrong grade is one of the more expensive corrections to make once timber is in.

There is a real-world pattern here worth naming. UK trade orders timber as "a 3-metre length of 4×2." Imperial cross-section, metric length. Both correct, both used together for fifty years. When you stand at a merchant counter, that's the language. Translate the cross-section in your head, give the length in metres, and the order goes through.

Sheet Materials: 8×4 With a Metric Thickness

Plywood, OSB, MDF, and chipboard sheets in the UK are 2440×1220mm. Everyone calls that an 8×4 sheet because that's the imperial size it replaced (2440mm is 96 inches, 1220mm is 48 inches). The plan dimensions are imperial nominal. The thickness is metric.

Common thicknesses you'll meet:

• 18mm (sometimes still called "three-quarter")
• 12mm ("half")
• 9mm ("three-eighths")
• 6mm ("quarter")

The fractional names appear on Toolstation and Smiths Timber product pages alongside the metric. The fractions are not exact. 18mm is closer to 11/16" than 3/4". The names persisted because the closest fractional inch was easier to say than the metric.

When you call up an order, "ten sheets of 18mm WBP, 8×4" works fine. So does "ten sheets of three-quarter ply." The merchant will know which product you mean.

Bricks: The Trap When Matching Old Houses

Standard UK brick: 215×102.5×65mm. With a 10mm mortar joint that gives a working size of 225×112.5×75mm and 60 bricks per square metre on a half-brick wall. This has been the standard since BS 3921 in 1970.

If your house was built before 1970, the bricks are imperial. The most common imperial sizes are 228×108×68mm and 228×108×73mm. They are physically larger than modern metric bricks. If you butt a metric extension wall against an imperial elevation and try to match coursing, the brickwork will not line up. The mortar joints will be visibly different. Brand-new metric bricks set into an old house look like a patch.

The fix is to specify imperial-sized bricks for any extension to a pre-1970 property. Specialist suppliers (Imperial Bricks, Vintage Brick Company) sell brick types specifically sized to match Victorian, Georgian, and post-war stock. Some "hybrid" products keep imperial heights (50, 57, 68, 73, or 75mm) on metric lengths and widths (215×102.5mm), splitting the difference for renovations where coursing must match but the corner returns can be modern.

This is the single highest-stakes measurement decision on any extension to an older property. Get it wrong on purchase and the remedial cost is to rebuild the affected courses.

Pipework: Where Imperial Meets Metric in Anger

UK copper pipe switched to metric around 1971 and 1972. Modern copper is sized by outside diameter (OD) in millimetres. The standard domestic sizes are 15mm and 22mm, which roughly correspond to the old half-inch and three-quarter-inch imperial.

The trap is that imperial pipe was sized by bore (the inside diameter), not by OD. A half-inch imperial pipe has an outside diameter close to 15mm, but a three-quarter-inch imperial pipe has an outside diameter of roughly 22mm rather than the 19mm you'd get from a literal 3/4" measurement. Imperial nominal sizes refer to the hole, not the metal.

Push-fit fittings are unforgiving here. A 15mm push-fit on a half-inch imperial pipe will feel "almost right" and leak slowly under pressure for years. Adapters exist (15mm-to-half-inch and 22mm-to-three-quarter-inch) and they are the only correct way to bridge old imperial copper into new metric pipework.

Waste pipe is even messier. There are two competing "40mm" waste pipe systems on sale at the same merchant:

• Metric push-fit. True 40mm OD. Used with rubber-seal push-fit fittings.
• Imperial solvent-weld. 43mm OD (the old imperial dimension, still made). Used with solvent cement.

The fittings are not compatible across the two systems even though both are sold under the same nominal "40mm" label. Decide which system you are using on a given run and stick to it.

Threaded fittings on radiator valves, boiler connections, and tap tails are BSP (British Standard Pipe). The thread sizes are still expressed as fractional inches: 1/2", 3/4", 1". The fractions refer to a historical pipe bore that has nothing to do with the present-day fitting size. A 1/2" BSP thread is roughly 21mm OD across the threads. The number is a name, not a dimension.

Bagged Materials and Aggregates

Cement comes in 25kg bags. It used to come in 50kg bags until Blue Circle pulled their 50kg product in January 1998 after sustained pressure from contractors and HSE concerns about manual handling injuries. The 25kg figure is not a legal limit. It is HSE guidance for risk-filtering manual handling tasks, and the industry standardised on it after Blue Circle moved.

Bulk bags ("dumpy bags") of ballast, sand, gravel, or MOT type 1 hold roughly 850kg of dry aggregate, give or take depending on the material density. That works out at about half a cubic metre. They are the standard delivery format for any quantity above three or four wheelbarrow-loads.

Concrete is specified by strength grade in the format "C20/25" or "C25/30". The first number is the cylinder strength in N/mm², the second is the cube strength. C20/25 is fine for domestic foundations and floors. C25/30 is the typical mix for reinforced concrete and trench-fill foundations. C30/37 and above are reserved for commercial and heavy-duty work. Ready-mix is sold by the cubic metre, delivered on a wagon. Site-mix on a small extension is rare now: the ready-mix turn-up is cheaper once you cost in cement, ballast, time, and a mixer.

Steel Beams and Cables

Structural steel is entirely metric. A drawing that says UB 305×165×40 means a Universal Beam, 305mm deep, 165mm wide, weighing 40 kilograms per metre. The first two numbers are dimensions. The third is mass. UC (Universal Column) follows the same convention. PFC (Parallel Flange Channel) and SHS (Square Hollow Section) too. There is no imperial fallback in steel: the trade went metric and stayed there.

Electrical cable is sized by cross-sectional area in mm². The common UK domestic sizes are:

• 1.0mm² for lighting circuits
• 1.5mm² for lighting on longer runs or higher-rated lamps
• 2.5mm² for sockets and ring mains
• 4mm² for cooker spurs and small EV charging
• 6mm² for showers
• 10mm² for large cookers and 7kW EV chargers

This is set by IEC 60228 and BS 7671 (the IET Wiring Regulations). It has nothing to do with American Wire Gauge (AWG), which is the US standard and runs on a backwards logarithmic scale where larger numbers mean thinner wires. Never substitute an AWG cable for a UK one without checking ampacity tables. AWG 14 is approximately 2.5mm². AWG 12 is approximately 4mm². The tolerance is tight enough that "approximately" is dangerous on any circuit you actually want to load.

What's Still Stubbornly Imperial

A few survivors of imperial measurement in modern UK building:

• Skips are sized in cubic yards. A 4-yard mini skip and an 8-yard builder's skip are the standard waste-removal units. Nobody sells a "3.7m³ skip." When the website asks what size you need, picture the 8-yard as roughly 6 cubic metres.
• BSP thread sizes are written as fractional inches, even on brand-new fittings.
• The 8×4 sheet name survives even though every modern sheet is 2440×1220mm.
• "Three-quarter ply" and "half-inch ply" persist as casual names for 18mm and 12mm sheet.
• Loft insulation rolls are sometimes sold by length in metres, occasionally still by area in square feet at older yards.
• Carpet pricing is per square metre at any modern retailer. Some old-school carpet shops still quote per square yard.

These holdouts are mostly harmless. They become problems only when you assume the imperial name implies an imperial actual size, which it does not.

Click to enlarge

Ordering From Abroad: Where the Real Money Gets Lost

Every year a homeowner orders a US-spec appliance, a German plumbing fitting, or a continental electrical product and discovers they cannot install it. These are the most common traps.

From the US: high-stakes incompatibility

The American building trade looks similar to ours. It is not similar. The differences kill installations.

• Voltage and frequency. US mains is 110-120V at 60Hz. UK mains is 230V at 50Hz. A US appliance plugged directly into a UK socket will burn out instantly. Even with a step-down transformer, motor-driven appliances designed for 60Hz (washing machines, fridges, anything with a timer or speed-controlled motor) may run wrong on 50Hz. Some are dual-frequency rated and will work. Most are not.
• Plug standards. US NEMA plugs are not legal on UK circuits and will not fit a UK socket. Anything you import needs a BS 1363 plug fitted by a competent person, with an appropriate fuse rating.

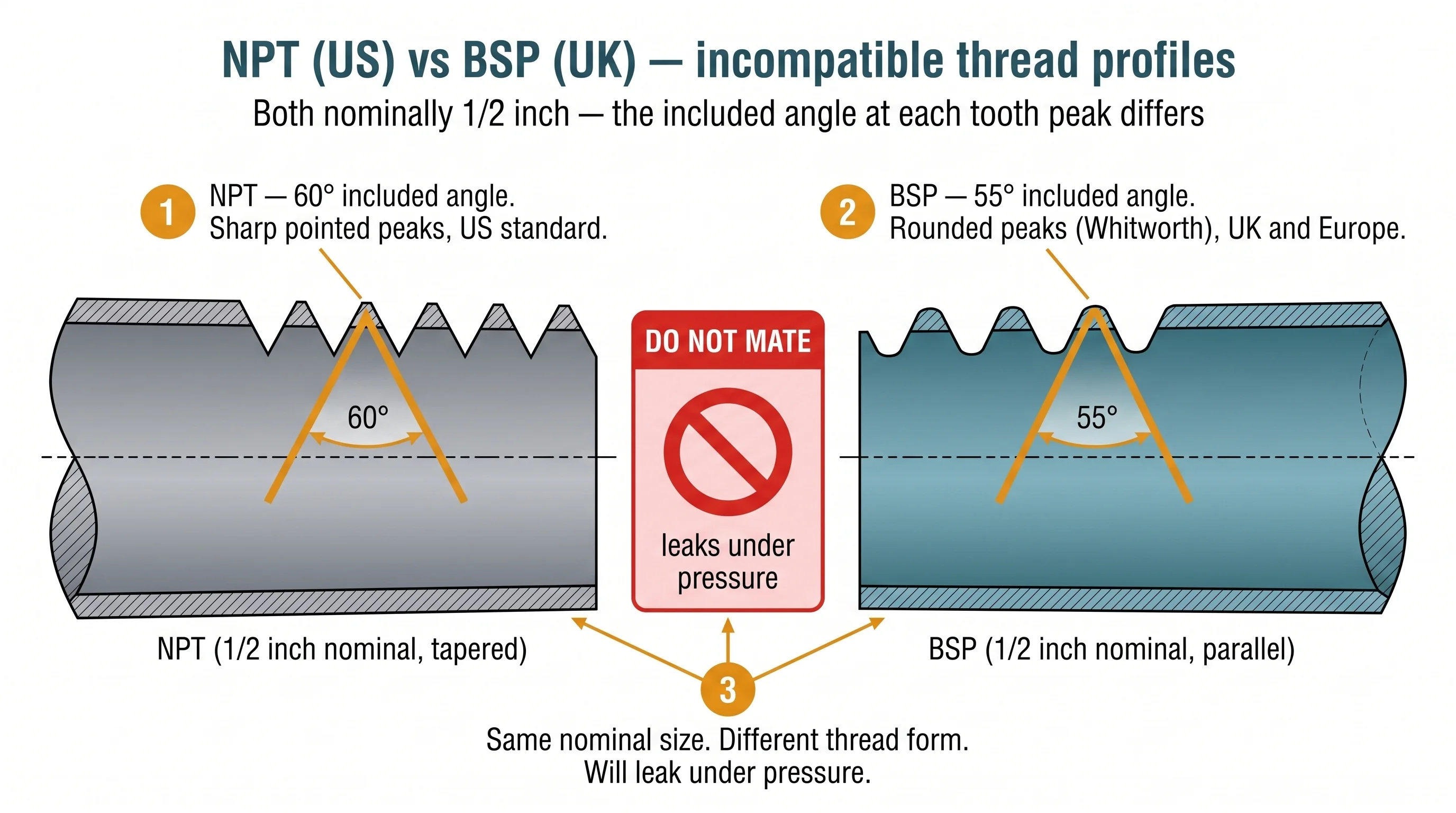

• Plumbing threads. US plumbing uses NPT (National Pipe Thread) at a 60° thread angle. UK plumbing uses BSP at 55°. The two are visually similar and a US 1/2" fitting will start to engage in a UK 1/2" socket, which is the dangerous part. Under pressure the joint will leak no matter how much PTFE tape you wrap. Thread sealants will not save you. There is no honest way to mate NPT to BSP except via a purpose-made adapter, and even then the rest of the system has to be the correct standard.
• Lumber sizes. A US "2×4" finishes at 38×89mm. A UK 4×2 in regularised carcassing finishes at roughly 47×95mm. Close enough that they look the same in a photograph. Different enough that you cannot substitute one for the other in any cut joinery, and structural span tables are completely separate.
• Wire gauge. AWG cabling is not directly substitutable for UK mm² cable. A US 14-AWG cable is close to UK 2.5mm² but not identical, and the rated current depends on insulation type and installation method. UK cable colours and core counts also differ from US.

The shipping cost on a US appliance is rarely the largest cost. The hidden cost is the work to make it compatible. For most products, the answer is to source the UK version from the start.

From the EU: mostly safe, with edges

EU products are largely compatible with UK installations because both regions use metric, ISO threads, and similar voltage (230V at 50Hz across most of Europe). What still catches people:

• Schuko (Type F) plugs on appliances need replacing with BS 1363 plugs. The plug type is mechanically incompatible with UK sockets even though the underlying electrics work fine.
• Italian and German plumbing uses metric ISO threads on some fittings rather than BSP. The threads look similar at a glance and start engaging, but the pitch is slightly different. Cheaper Italian-imported radiator valves are the most common source of trouble.
• Window and door dimensions in EU stock often follow continental modular sizes (600/800/1000/1200/1400mm wide) which are close to but not identical to UK common sizes. Order custom rather than substitute.

For most building materials (timber, insulation, plasterboard, paint, fixings) EU sourcing works without surprises. The product specs are written in the same units, the tolerances match, and the building regs accept the relevant CE/UKCA standards.

What to Say at the Merchant Counter

If you've made it this far and want a simple test for whether you've understood the system, picture yourself at a Travis Perkins counter at half past seven in the morning. You need stuff for a stud wall and an internal door frame. The order in correct trade vocabulary:

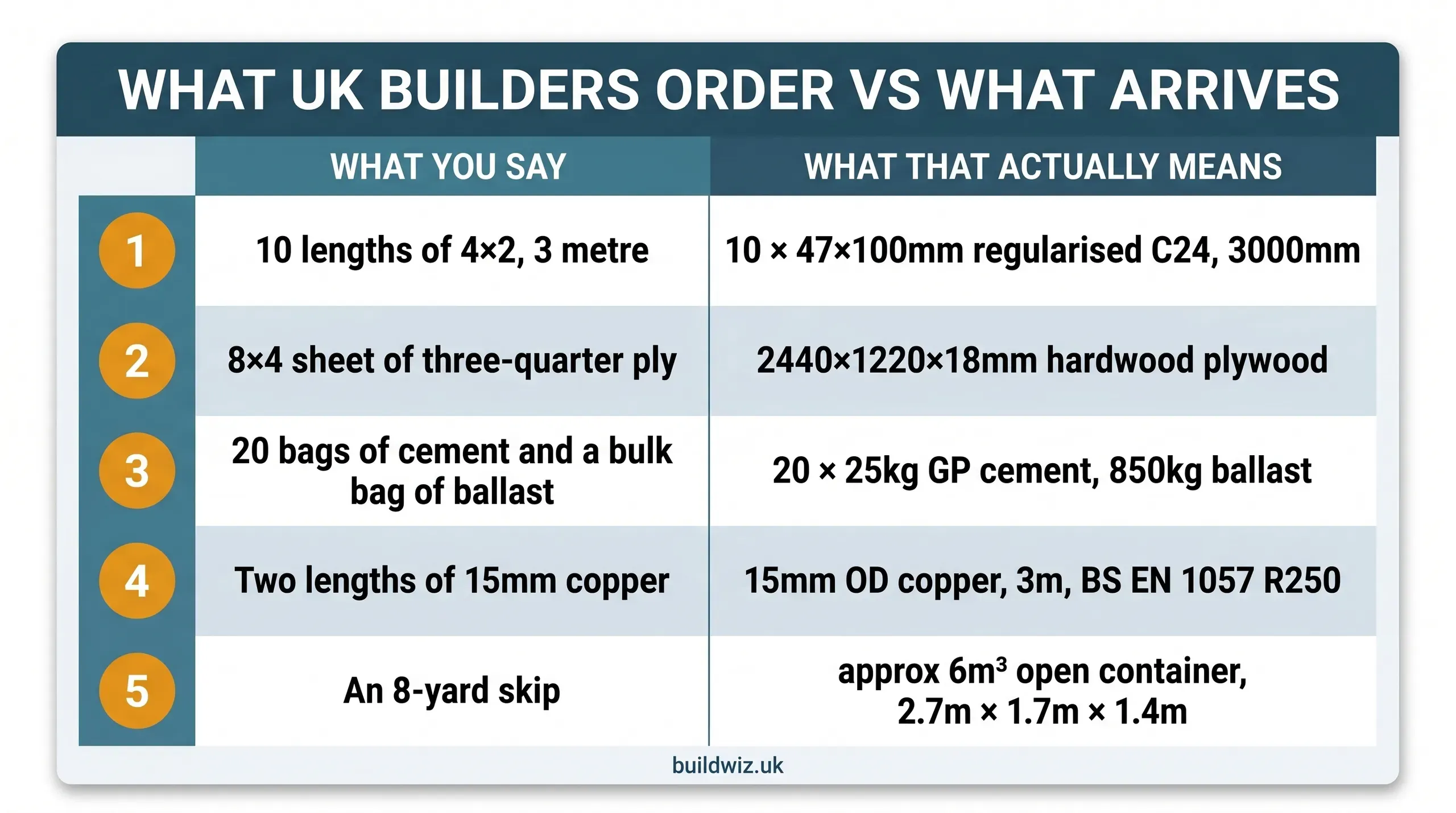

"Twenty 4×2 CLS at 2.4 metres, ten lengths of PAR 2×1 at 2.4 metres for door lining, two sheets of 18mm WBP, a tub of grab adhesive, and box of 50mm number 8s."

Translated to the actual products that will appear: twenty CLS studs of 38×89mm cross-section in 2400mm lengths, ten 19×44mm planed softwood lengths at 2400mm, two 2440×1220×18mm exterior-grade plywood sheets, a tube of construction adhesive, and a box of 4mm-gauge 50mm wood screws.

Nobody on either side of the counter thinks any of this is odd. That's the system. Once you stop trying to make it consistent and accept the convention as a vocabulary, it is fast and unambiguous on site. The trouble starts only when you take the names literally, when you order from somewhere that uses a different convention, or when you try to match work to a building older than 1970.

Get those three things right and you will save yourself the kind of mistake that empties skips, refills timber yards, and ends in a builder driving back to the merchant for the second time before nine in the morning.
