Pipe Benders: How to Bend Copper Pipe Without Kinking It

Your plumber runs a 15mm copper pipe along the ceiling, drops it down the wall, and bends it neatly around a joist. No fittings, no joints, no leak points. Just one continuous length of pipe following the route it needs to follow. Each elbow fitting he didn't use saved a few pounds in parts and a couple of minutes of work. Over a full first-fix with forty or fifty direction changes, that adds up to over £100 in fittings alone, plus dozens of potential leak points eliminated. The tool that makes this possible costs less than two compression elbows.

What it is and when you need one

A pipe bender is a hand tool that bends copper pipe to a precise angle without crushing or kinking it. The pipe slots into a curved metal block called a former (the part shaped like a half-moon with degree markings on it). A guide or roller sits opposite the former to support the outside of the bend. You pull two lever arms together, and the pipe wraps around the former into the angle you need: 30, 45, 60, or 90 degrees.

The former is the critical part. It supports the inside radius of the bend so the pipe wall doesn't collapse inward. Without that support, copper pipe kinks the moment you try to bend it by hand. A kink reduces the pipe's internal diameter, restricts water flow, and creates a weak point that can split under pressure. Once a pipe is kinked, it's scrap.

You need a pipe bender whenever you're working with copper pipe and the route changes direction. That means every first-fix plumbing job on an extension. Pipe runs along walls, up through floors, around joists, and into fittings. Every change of direction is either a bend or a fitting. Bends are faster, cheaper, and more reliable.

Types of pipe bender

Three types exist for domestic copper pipe. They do different jobs at very different price points.

Bending springs: cheap but limited

A bending spring is a coiled steel spring that slides inside (for 15mm and 22mm) or over (for smaller 6-10mm) the pipe. It prevents the pipe wall from collapsing during bending by distributing the force evenly. You bend the pipe over your knee or around a fixed point, then wiggle and twist the spring to extract it.

For occasional 15mm bends, a spring works. It's the right tool if you need to bend one or two pipes in a tight spot where a lever bender's arms won't fit. But springs have real limitations. There are no degree markings, so you're eyeballing the angle. Extracting the spring from a 22mm pipe after bending requires genuine effort (one trade guide describes it as "a herculean task"). And without the mechanical advantage of lever arms, bending 22mm pipe with a spring takes serious grip strength.

If you're doing a full first-fix with copper, buy a lever bender. Springs are a backup for tight access, not a primary tool.

Handheld lever bender: the one to buy

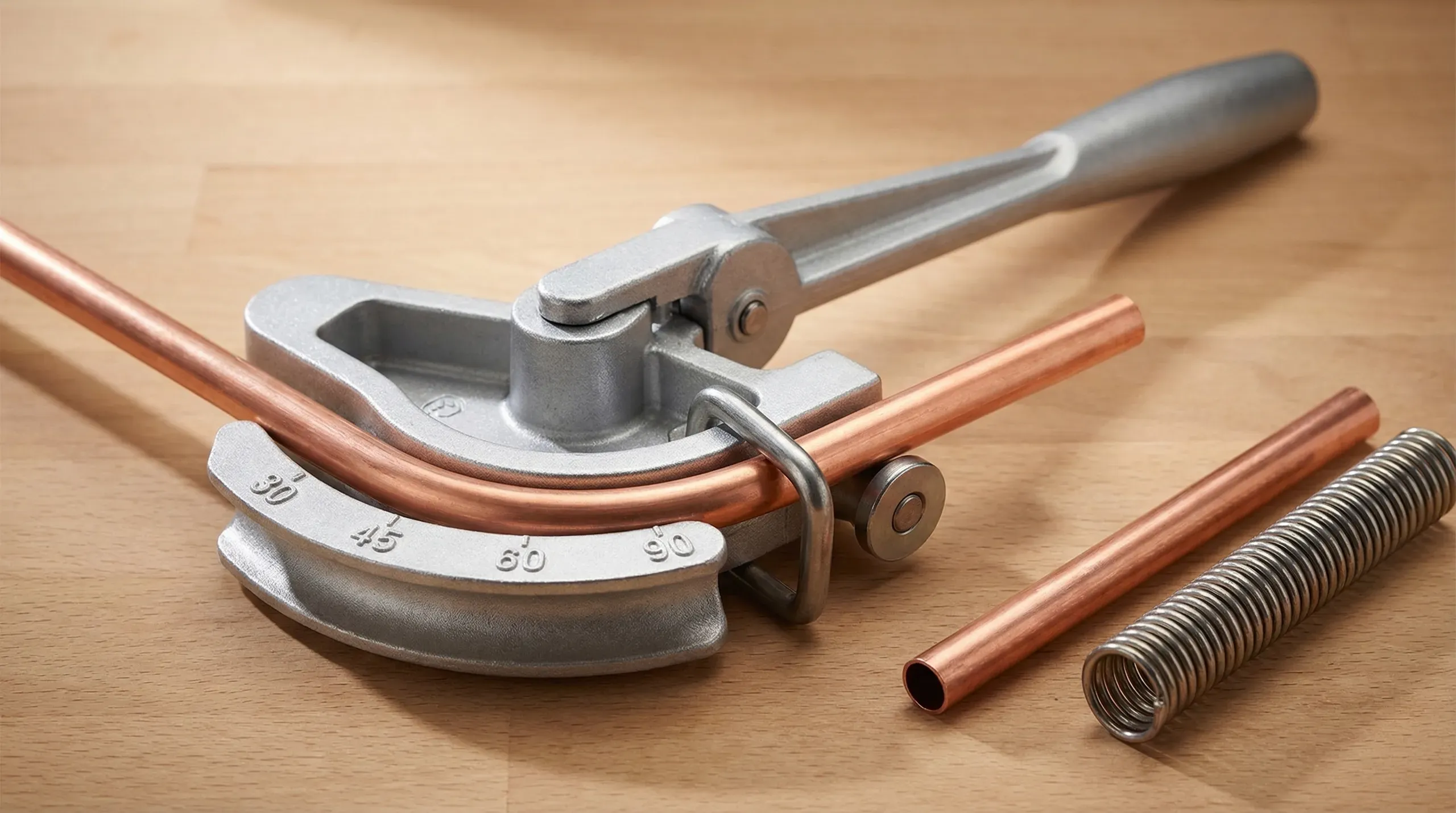

This is what plumbers use for 15mm and 22mm domestic copper pipework. Two lever arms pivot around a former. The pipe slots between the former and a guide roller, you align your mark with the former edge, and pull the arms together. Degree markings on the former tell you when to stop: 30, 45, 60, 90.

Click to enlarge

Most combo benders come with two interchangeable formers (15mm and 22mm) and matching guides. You swap between sizes by changing the former and guide, which takes about a minute. Some models sell 15mm and 22mm as separate tools with dedicated arms.

The build quality of the former matters more than any other feature. A precisely machined former with a smooth surface produces clean bends. A rough or worn former causes rippling on the outside wall of the pipe, which looks poor and can prevent fittings from seating properly.

Stand benders: overkill for homeowners

Stand-mounted or tripod benders provide more force and handle larger pipe diameters (28mm and above). They're heavier, more expensive, and designed for plumbers who bend pipe all day. For a domestic extension with 15mm and 22mm copper, a handheld lever bender covers everything you need. Stand benders start at £150 and go well past £400.

Check your copper before you bend it

This is the piece of knowledge that no homeowner guide mentions, and getting it wrong ruins pipe.

The pipe you'll find at Screwfix, Toolstation, and plumbing merchants for domestic hot and cold water is almost always R250 half-hard in 3m lengths. That's the correct grade for bending. R220 coil pipe (used for long underground runs and microbore heating) is even softer and bends easily. R290 is less common in domestic plumbing retail but it does appear, particularly in commercial supply chains. If you can't find a grade stamp on the pipe, don't bend it until you've confirmed what it is.

How to bend copper pipe properly

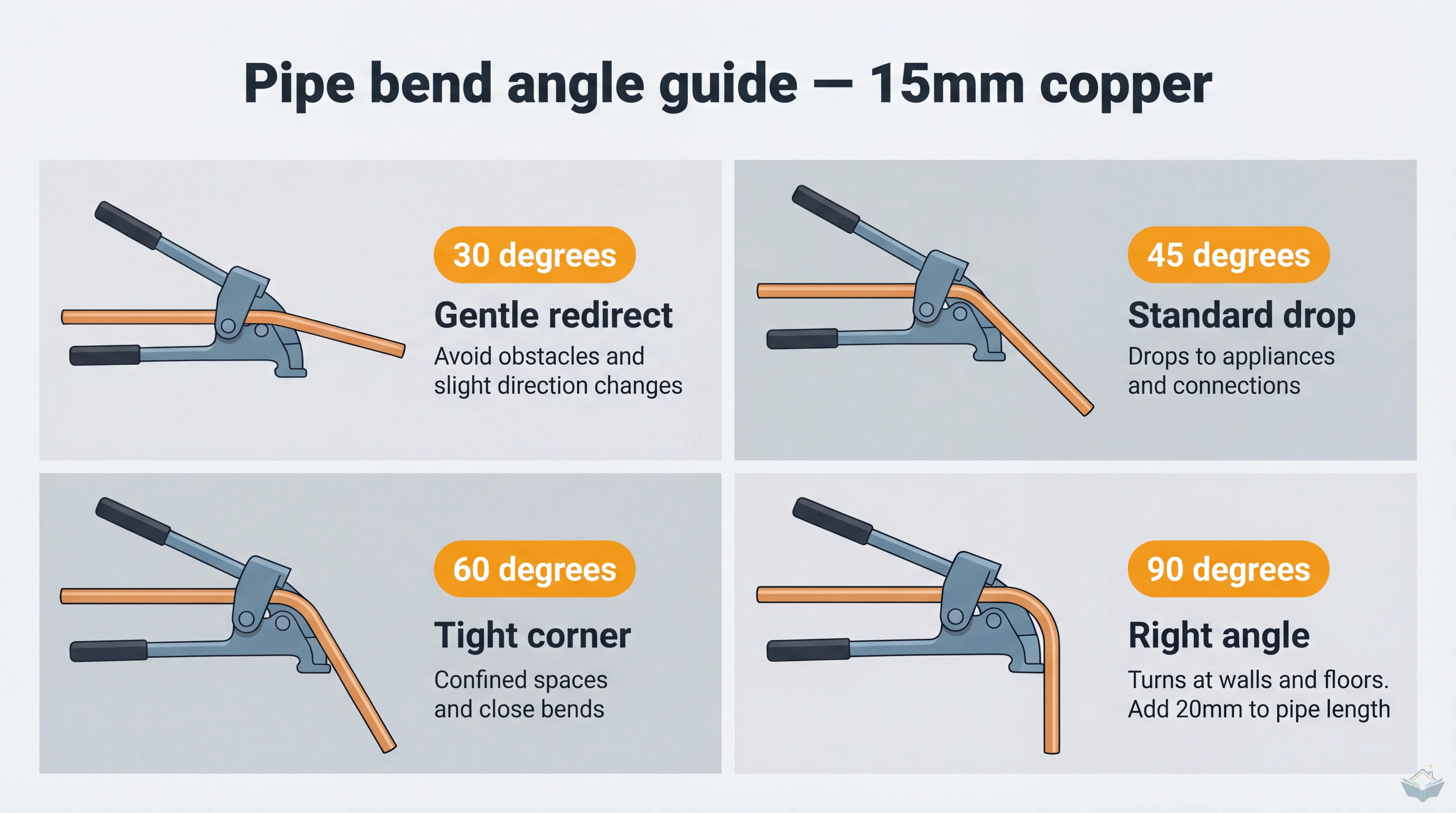

The 90-degree bend

Cut your pipe to length with a pipe cutter, allowing extra for the bend. Here's the key measurement: when you bend 15mm pipe through 90 degrees, the pipe gets longer by about 20mm. For 22mm pipe, it gains roughly 35mm. Account for this when you measure, or you'll end up short.

Mark the centre point of where you want the bend to fall. Use a pencil or felt-tip pen. This mark aligns with the back edge of the former when you load the pipe.

Load the pipe into the bender. The pipe sits in the groove of the former with the retaining hook holding it in place. Align your pencil mark with the back of the former. Use a set square against the pipe and former to check the mark is exactly at the right position before you start bending. This alignment step is what separates a clean, accurate bend from a "close enough" one.

Pull the lever arms together with steady, constant pressure.

Stop when the lever arm aligns with the degree marking for 90 degrees on the former. Open the bender, remove the pipe, and check the angle with a set square or combination square. It should be within a couple of degrees.

The 45-degree bend

Same technique, less pull. Mark, align, squeeze to the 45-degree mark. A 45-degree bend is the standard angle for dropping pipe from horizontal to vertical along a wall.

Offsets (two bends in the same pipe)

An offset moves the pipe sideways, for example stepping out from a wall to clear a joist and then stepping back again. This requires two bends of equal angle in opposite directions, spaced apart by the distance you need to offset.

Make the first bend. Then, before pulling the second bend, rotate the pipe in the bender to ensure both bends stay in the same plane. If the second bend twists out of plane, the pipe won't sit flat against the wall. Check alignment by laying the pipe on a flat surface after the first bend and verifying the straight section lies flat.

The practical approach most plumbers use: make the first bend (usually the one closest to a wall or obstruction), offer the pipe up to the route, mark where the second bend needs to fall, and bend it. Cut any excess off the end. Keeping offcuts for measurement practice saves copper.

What about 180-degree bends?

Don't attempt a U-bend with a lever bender unless you're prepared for imperfect results. A 180-degree bend requires repositioning the pipe in the former after reaching 90 degrees, and that repositioning almost always causes creasing where the bend restarts. Two 90-degree compression elbows or a pre-formed copper U-bend from a plumbing merchant is the better approach.

How to check your bender is working

Clean the former and guide

Dirty or worn guides are the most common cause of rippled bends, not bad technique. Before each use, wipe the former groove and guide roller with wire wool until both surfaces shine. Copper residue, flux splash, and general grime build up over time and create friction that marks the pipe surface.

Check for wear

Look at the groove in the former. It should be smooth and evenly curved. If you see scoring, pitting, or flat spots, the former needs replacing. Replacement formers and guides are available from the manufacturer for most lever benders. Monument and Irwin Hilmor both sell spare parts.

What to buy

The decision: buy, hire, or use fittings instead?

Before spending money on a bender, work out how many bends you actually need.

If you're doing a full first-fix in copper (hot water, cold water, central heating flow and return), you'll typically make dozens of bends across the project. Buy a lever bender. The fittings cost alone would exceed the cost of the tool within the first dozen direction changes.

If you're making fewer than ten bends on a one-off project, hiring makes sense. Pipe bender hire runs TBC per day from tool hire shops and peer-to-peer platforms like Fat Llama. A day is enough for a single room's worth of pipework.

If you're using plastic push-fit pipe (Speedfit, Hep2O) throughout, you don't need a bender at all. Push-fit elbows snap together in seconds and the system is designed around fittings rather than bends.

Budget lever bender

The Magnusson 15mm + 22mm combo (Screwfix) sits at the bottom of this range. It bends pipe and has degree markings. Reviews are mixed (3.2 out of 5 stars) with some users reporting the formers aren't as smooth as named brands. For a single extension project where you'll make a few dozen bends and then put the tool away, it's adequate.

The Irwin GLM Tube Bender Kit (Toolstation) sits at the top of the budget range and gets consistently better reviews. Cast aluminium formers, cleaner degree markings, and smoother bending action.

Mid-range lever bender

This is where the professional-grade tools sit. The Irwin Hilmor 15mm + 22mm (Screwfix) is the consensus choice among UK plumbers. It has been the industry standard for decades. 4.7 out of 5 stars from 80 reviews. Cast aluminium guides with clear degree marks, 0.46kg total weight, and a reputation for lasting 30+ years in professional daily use. If a plumber recommends "a Hilmor," this is what they mean.

Monument Tools (UK manufacturer) makes benders with die-cast aluminium formers and CNC-turned arms. The Monument 2600K combo handles both 15mm and 22mm. Pricing varies significantly by retailer, so shop around.

Bending springs as backup

Even if you own a lever bender, keep a 15mm bending spring in the toolbox. There will be at least one spot on a plumbing job where the lever arms can't fit (tight against a wall, between closely spaced joists). A spring lets you bend the pipe by hand in that confined space.

Rothenberger and Monument both make internal bending springs for 15mm and 22mm. Lubricate the spring with petroleum jelly before inserting it. This makes extraction much easier after the bend.

Alternatives

Compression elbow fittings eliminate bending entirely. Each fitting adds about £2 – £4 to material costs and creates one more potential leak point. For a handful of direction changes, elbows are fine. For a full first-fix with dozens of bends, the cost and leak risk add up fast.

Push-fit elbow fittings (Speedfit, Hep2O) are even faster. No tools required for the joint itself. If you're running plastic push-fit pipe rather than copper throughout, a pipe bender is irrelevant.

Pre-formed copper bends are available from plumbing merchants for standard angles. They cost more per bend than doing it yourself but guarantee a perfect result. Useful for exposed pipework where appearance matters.

Where you'll need this

• First fix plumbing - bending copper pipes around joists, dropping down walls, and changing direction without elbow fittings

Pipe benders appear during the first-fix plumbing stage of any extension or renovation project. Every copper pipe run that changes direction uses either a bend or a fitting, and bends are the professional standard for concealed pipework.

Common mistakes

Bending R290 hard copper. If the pipe cracks or kinks violently on the first attempt, check the grade stamp. R290 hard-tempered pipe cannot be bent. Return it and buy R250 half-hard.

Releasing pressure mid-bend. The single most common cause of crinkled bends. Maintain constant, smooth pressure from start to finish. If you need to check the angle, rest the bender on a bench without opening the arms.

Skipping the mark alignment. Eyeballing where the bend falls means your pipe ends up too long, too short, or with the bend in the wrong place. Mark the bend point. Align the mark with the back of the former. Check with a set square. This takes thirty seconds and prevents wasting pipe.

Dirty formers and guides. Rippled bends are usually a tool problem, not a technique problem. Clean the former groove and guide with wire wool before each session. Copper residue builds up invisibly and causes friction marks on the pipe surface.

Trying to adjust a finished bend. Once you've removed the pipe from the bender, do not try to tweak the angle by hand. Bending copper that's already been bent work-hardens the metal at the bend point and will crack or crease it. If the angle is wrong, cut out the bend and start with fresh pipe.

Not accounting for bend allowance. A 90-degree bend in 15mm pipe adds about 20mm of length. In 22mm pipe, it adds about 35mm. Forget this and every pipe comes out short. Measure, add the allowance, cut, then bend.
