Trench Rammer (Jumping Jack): The Complete Guide for UK Drainage Backfill

Your groundworker backfills a 1.2m-deep drainage trench in two passes, runs a wacker plate over the top, and tells you it's done. Six months later the lawn drops 80mm: the soil settled into voids left by uncompacted backfill. Worse, if the rammer was run too close to the pipe before pea gravel reached 150mm above the crown, the joints can deform and you're excavating to fix it. The trench rammer is the right tool, but only with the right model used where the rules permit.

What it is and when you need one

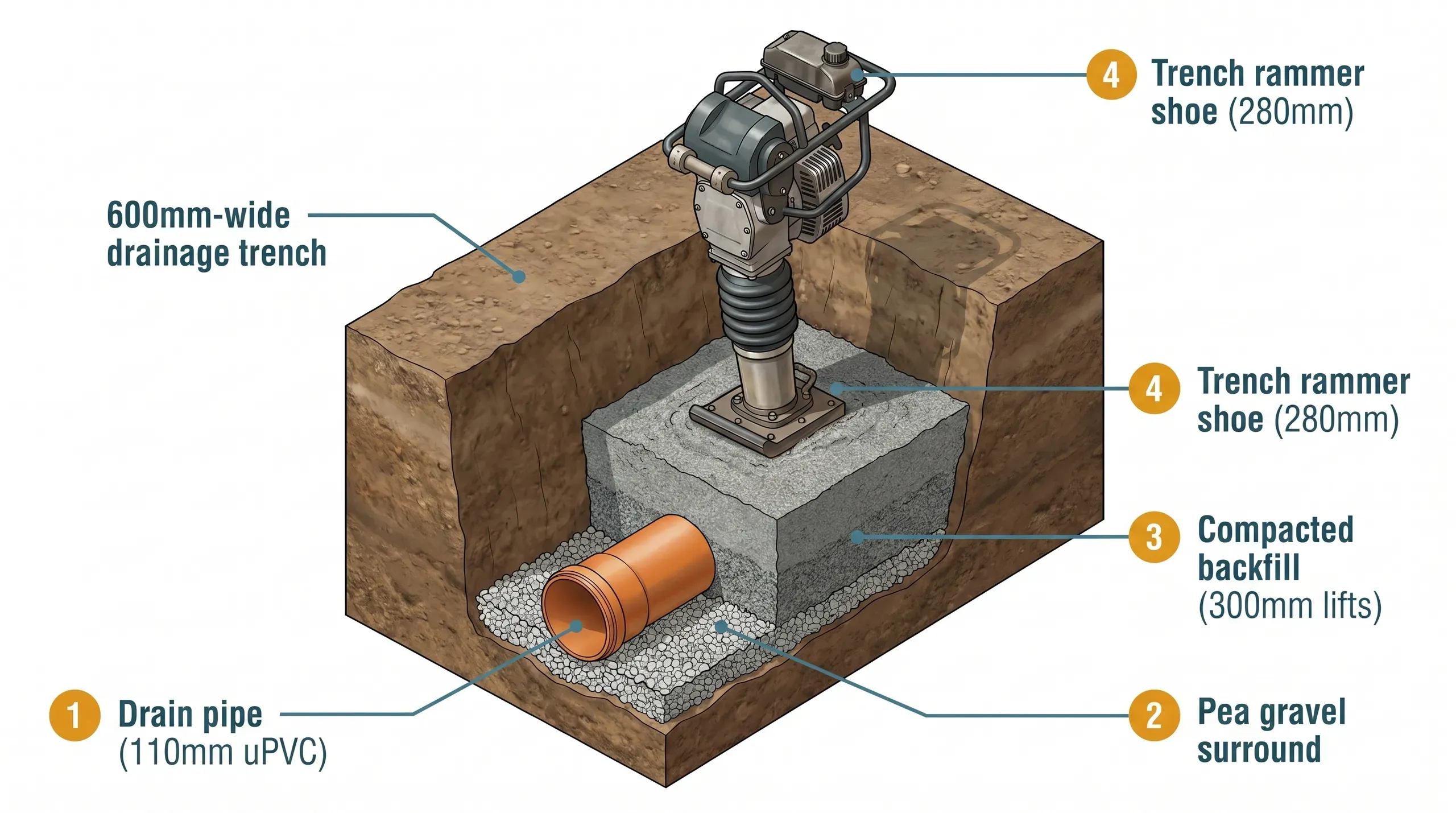

A trench rammer is a petrol-engined compaction tool that delivers vertical impact through a narrow rectangular shoe on the end of a sprung column. The engine drives a crank that compresses an internal spring; the spring releases and slams the shoe into the ground at 600 to 700 blows per minute. Each impact concentrates several kilonewtons of force on a footprint typically between 165mm and 280mm wide. The result is impact compaction that drives downward through the fill, packing the material into a dense, load-bearing mass.

This is fundamentally different from a plate compactor, which uses high-frequency vibration through a flat horizontal plate. Vibration works on granular material in open areas where the energy can spread out laterally. Impact works in narrow, cohesive material where the energy needs to drive downward into a confined space. Both are compaction tools. They are not interchangeable.

The trench rammer's reason for existing is the narrow trench. A standard plate compactor measures 320mm to 500mm across the plate. It cannot fit a 600mm-wide drainage trench cleanly: the edges drag on the trench walls, the vibration energy escapes sideways into the soil rather than driving down into the backfill, and you end up compacting only the centre strip. A 165mm or 280mm rammer shoe slips into a typical drainage trench with clearance, drives compaction force vertically into the fill, and reaches the depth the plate cannot.

On an extension you'll hire a trench rammer for one job in particular: backfilling around new drainage runs after the pipe has been laid, bedded, and inspected. The same machine also gets used for compacting backfill around foundations once the formwork is removed, and for narrow path bedding where a plate is too wide. None of those uses are negotiable substitutes for a plate; this is the tool that does what the plate cannot.

The street name for this machine is "jumping jack." Hire counter staff use it interchangeably with "trench rammer" and "Wacker rammer." Either term gets you the same machine.

Impact vs vibration: the critical distinction

The single most important thing to understand about choosing between a plate compactor and a trench rammer is what each tool actually does to the soil and where that mechanism works.

Most UK trench backfill is mixed clay, silt, and granular site fill. The cohesive component is what makes the rammer the correct tool: vibration won't bind clay particles together but impact force compresses them into a dense layer. That same impact force is also what makes the rammer dangerous to a buried pipe before the granular surround is deep enough to absorb the shock.

The NHBC rule that matters: 450mm above the pipe crown

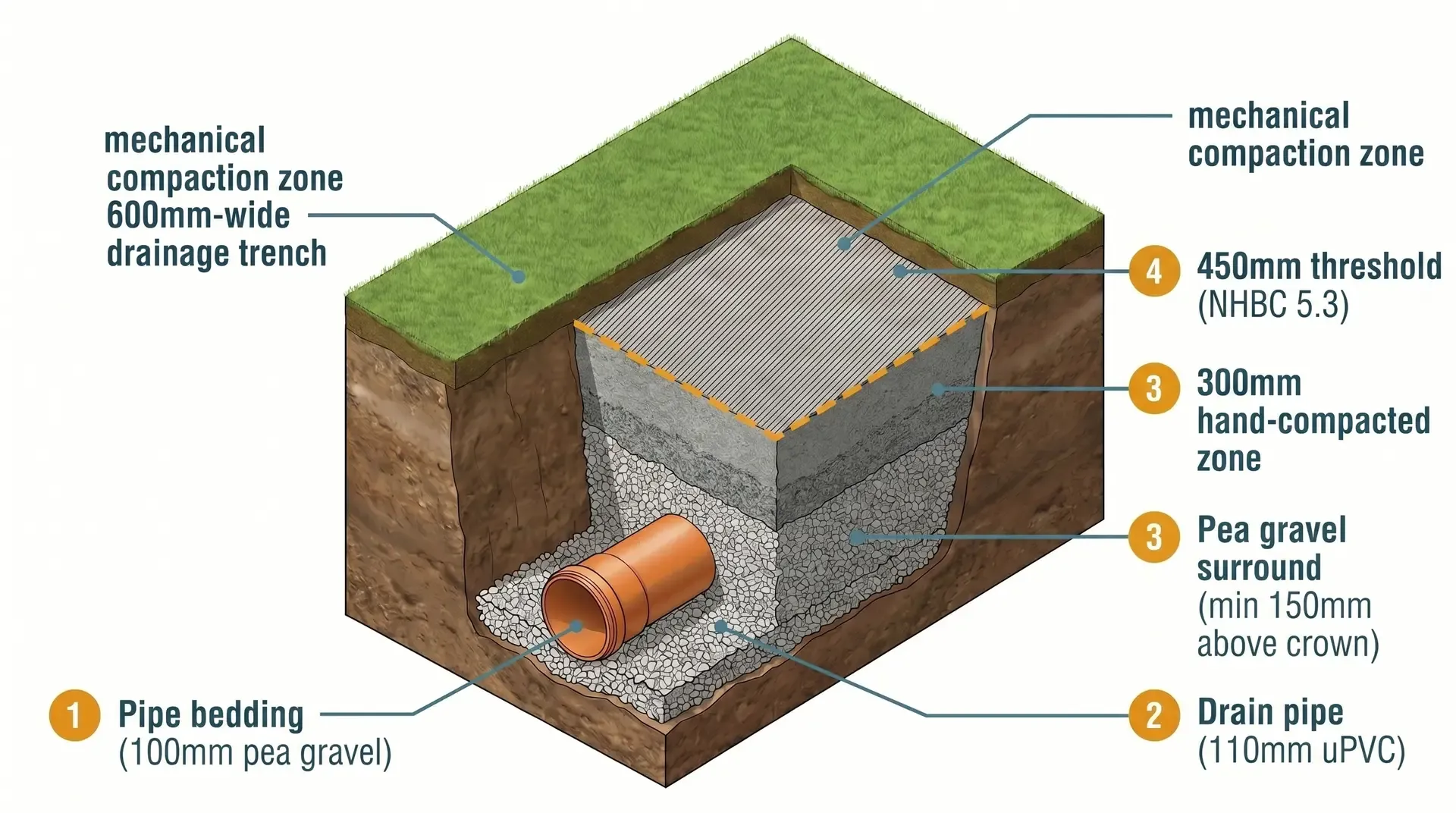

This is the rule that catches builders who treat trench backfill as a single operation. NHBC Standards Chapter 5.3 sets the boundary clearly: mechanical compaction of any kind is permitted only once compacted backfill exceeds 450mm above the crown of the pipe. Anything below that line must be compacted by hand.

The reason is straightforward. A trench rammer at 700 blows per minute and 18 kN per impact will deform a uPVC drain joint or fracture a clay pipe if the force reaches it directly. The 150mm pea-gravel surround placed around and above the pipe absorbs and dissipates the load. A further 300mm of well-compacted granular fill above the pea gravel completes the buffer. Together that gives you the 450mm minimum before the rammer can come in.

What this means on site:

• Pipe goes into the trench on its 100mm pea gravel bed. Joints are made up. The system is tested.
• Pea gravel surround is hand-placed around and over the pipe to a minimum of 150mm above the crown. This is hand-tamped only. No machine.
• Granular backfill (typically MOT Type 1 or selected as-dug material) is added in 300mm lifts and hand-tamped or foot-compacted up to 450mm above the pipe crown.
• From 450mm above the pipe crown upward, the trench rammer can be used. Layers stay at 300mm maximum depth. Each layer gets compacted before the next goes in.

The hand-compaction zone for the bottom 450mm is the unglamorous part. It's what separates a drainage run that lasts the life of the building from one that fails inside ten years.

Click to enlarge

4-stroke vs 2-stroke: always ask for 4-stroke

When you book the hire, the single piece of advice that saves you a frustrating day on site is: ask for the 4-stroke model. Modern UK hire stock is dominated by 4-stroke rammers (Honda GXR120 engines on Belle RTX, Wacker BS62-4AB, MBW R422, Husqvarna LT5005) but older 2-stroke machines are still in circulation, particularly at smaller depots. The difference matters.

A 4-stroke runs on plain unleaded petrol from any forecourt. A 2-stroke needs a pre-mixed petrol-oil ratio (typically 50:1) and the wrong mix damages the engine. 4-stroke engines start more reliably from cold, idle smoothly, and are quieter at the operator's ear. The 2-stroke hits marginally harder, but the reliability and ease-of-use advantage of the 4-stroke is worth the swap on a one-off domestic hire.

The PlantTalk forum consensus is direct: "the 2-stroke hits a lot harder but the 4-stroke is way more reliable and a far far nicer machine to use." Hire a 4-stroke unless your depot only stocks 2-stroke and you've been advised on the fuel mix.

Standard UK hire models

The UK rental market is concentrated on a small number of models. Knowing the names helps when you call ahead.

For a typical 600mm-wide drainage trench, the BS60-2, BS62-4AB, RTX60 (with 280mm shoe), or R422 are the right pick. For narrow utility trenches under 400mm wide (water main, electrical service ducts), the BS50-2, RTX60 with the narrow shoe option, or LT5005 are correct. Booking a 280mm shoe and finding your trench is 350mm wide is a wasted day; foot width must match trench width.

How to use it properly

The hire depot will demonstrate starting the machine. Here's what they don't always cover.

Before you start

Check the engine oil. 4-stroke rammers run dry quickly if shipped tilted; the dipstick should show oil at the upper mark. Check the air filter. Check the bellows (the rubber concertina between the engine housing and the percussion column) for cracks or splits; this is the part that fails most often and a damaged bellows means contamination ingress and a dead machine within hours.

Check the shoe. It should be flat, intact, and tightly bolted. A loose shoe loses compaction efficiency and the bolt loosens further with each blow.

Set up PPE before starting. Engine noise from a trench rammer measures 104 to 108 dB(A) at the operator's ear. That is well above the 85 dB(A) upper threshold under the Control of Noise at Work Regulations 2005. Ear defenders are mandatory, not optional. Safety glasses against flying grit, heavy-duty work gloves with vibration-dampening padding, and steel-toecap boots with the rammer at 60+ kg and a flat shoe that will crush a foot.

Starting and operating

The starting procedure is the same on most 4-stroke models: fuel tap on, choke on (cold start), throttle to idle, pull the cord. Once the engine is running, ease the choke off, let it warm at idle for 30 seconds, then open the throttle. The rammer begins jumping immediately at full throttle.

Hold the handle at a comfortable height with the column vertical. The rammer self-propels forward in the direction the operator points the handle. Walk at the machine's natural pace; trying to slow it down by pulling back fatigues your arms and reduces compaction. The shoe should land flat on the surface every blow. If it's tilting forward or sideways, adjust your stance until it lands square.

Work in straight overlapping passes along the trench. Three to four passes per layer is the typical minimum on cohesive backfill. The surface should feel firm underfoot when you're done; if it gives or shifts, more passes are needed.

Maximum lift depth

The 300mm rule appears repeatedly in NHBC guidance, manufacturer specs, and BS EN 1610. Each lift of backfill before compaction must not exceed 300mm. In practice, 200mm lifts give better and more consistent compaction in cohesive UK soils. If you're tempted to dump 600mm of fill in one go to save time, the result is voids, settlement, and a lawn that drops over the trench within the year.

Hand-Arm Vibration: the time limit nobody mentions

This is the part of trench rammer use that hire counter staff almost never explain. The Control of Vibration at Work Regulations 2005 sets two thresholds for daily vibration exposure: the Exposure Action Value (EAV) at 2.5 m/s² A(8) and the Exposure Limit Value (ELV) at 5.0 m/s² A(8). At the EAV, employers must introduce control measures. The ELV must never be exceeded.

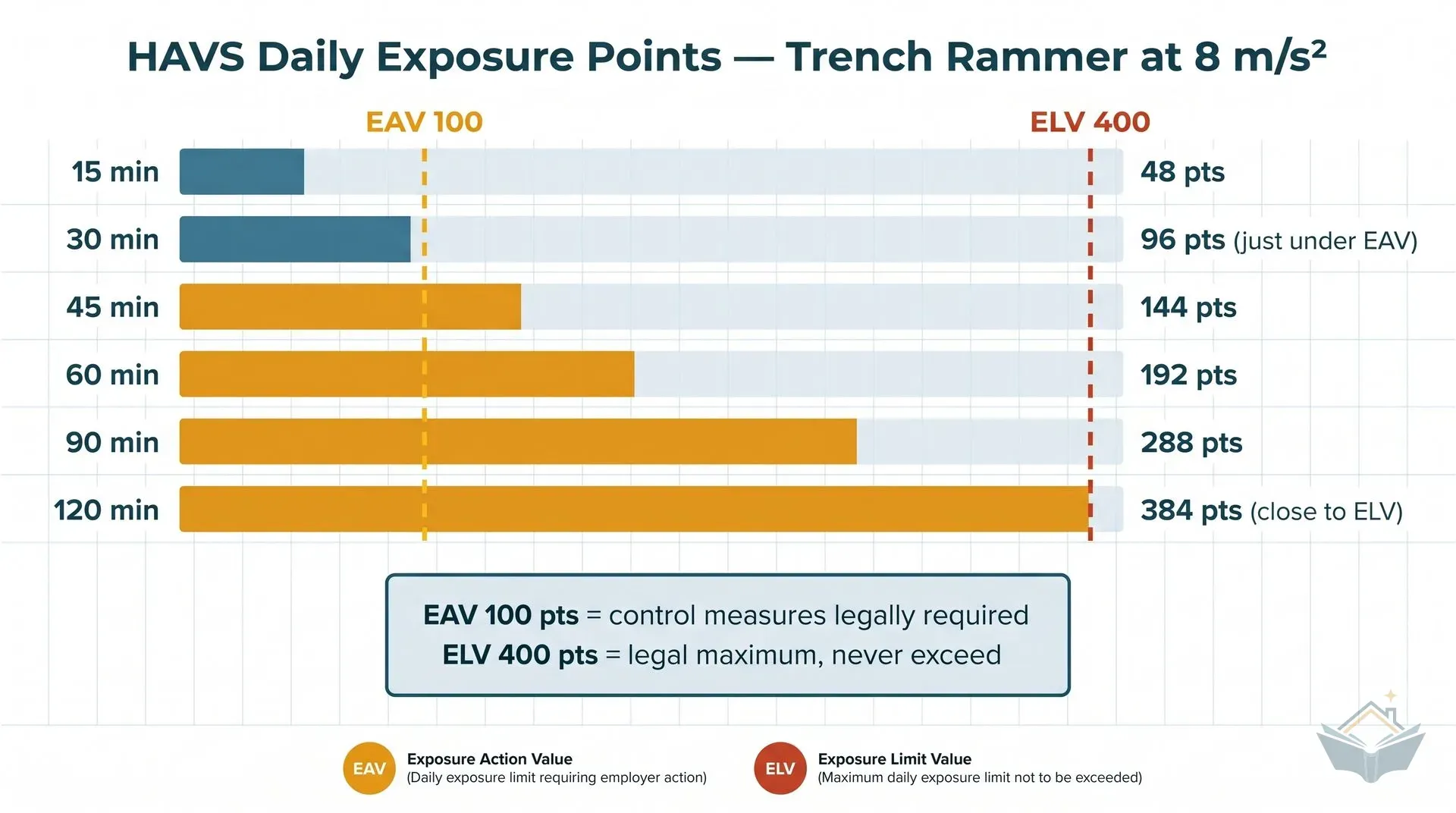

Modern hire trench rammers measure between 7 and 9 m/s² of hand-arm vibration. The Wacker BS60-2 is rated at 7.6 m/s², the BS50-2 at 8.9 m/s², the Belle RTX60 at 7.25 m/s², and the battery AS50e at 7.8 m/s². At 8 m/s² (a fair central figure), the HSE points-based ready reckoner gives you about 35 to 40 minutes of continuous trigger time before you reach the EAV. You hit the ELV in just over two hours.

The regulations apply legally to employers, but the physical damage from vibration exposure does not check your employment status. HAVS is permanent, irreversible, and progressive. Numbness, tingling, blanching of the fingers in cold weather: these are early signs. They do not improve once they appear.

What this looks like in practice on a domestic drainage backfill:

• Plan your day so continuous trigger time stays under 30 minutes per hour. Take a 10-15 minute break between sessions.
• Keep your hands warm. Cold accelerates vibration damage. Wear gloves even in summer if there's any chill in the air.
• If you feel tingling or numbness, stop for the rest of the day. Don't push through it.
• If the drainage backfill takes more than two hours of total rammer use, split it across two days.

The HSE hammer-action tool guidance flags rammers and compactors as "high risk" tools where "problems may occur with regular use exceeding 15 minutes daily." That figure applies to daily exposure over months and years. Domestic one-off use carries less cumulative risk than pro use, but treating it casually is how DIY users acquire HAVS in their fifties.

Hire: cost, process, and what to ask for

Trench rammers are hire items only. Buying one for a single extension is pointless: a Belle RTX60 costs comfortably into four figures new, against a few days' hire. The maths only works if you use one regularly.

Day rates from the major national chains for a petrol Wacker BS50-2 or BS60-2:

Local and regional hire companies are noticeably cheaper, often with free fuel and lower delivery charges:

If your drainage and backfill spans more than two days, the week rate becomes the better option. The break-even point at Speedy is just two days: two day-hires already exceed the full week rate.

The premium battery-electric model is available but rarely the right choice for domestic drainage:

Battery rammers exist for emission-sensitive sites (basements, indoors, urban work). For backfilling a garden drainage run, the petrol model at less than half the price is the correct hire.

When you call to book, ask for these specifics:

• 4-stroke (not 2-stroke) unless the depot only stocks 2-stroke
• Shoe width matched to your trench: 165mm or smaller for utility trenches under 400mm wide; 280mm for standard 600mm drainage trenches
• Fuel included in the hire (most national chains do this; some local depots charge top-up)
• Delivery vs collection: a 60-70 kg machine fits in an estate car with the seats folded, but loading and unloading is a two-person job

The hire process at most depots needs two forms of ID and a card deposit. The depot will demonstrate starting the machine before you take it.

Lifting in and out of the trench

A trench rammer weighs 60 to 70 kg. That is a serious manual handling load. Lifting one out of a 1.2m deep trench by hand is not a one-person job; it's a two-person controlled lift, or a rope sling lifted by the bucket of the digger that excavated the trench.

Most groundworkers on a building site use the digger bucket. Set the rammer on flat ground next to the trench when starting, lower it in by sling for use, lift it out the same way. Trying to manhandle one alone over the trench edge is how groundworkers wreck their backs.

When the trench rammer is the wrong tool

A trench rammer is the right tool for narrow trenches, cohesive soil, and impact compaction above the pipe-crown threshold. It is the wrong tool for:

• Open-area sub-base compaction. The footprint is too small; coverage rate is poor compared to a plate compactor. Use a plate.
• Granular sub-base under a concrete oversite. A plate compactor at 75-100mm lifts is faster and gives better results in clean MOT Type 1.
• Final surface compaction over compacted hardcore. The narrow shoe leaves an uneven surface. Finish with a plate compactor for surface evenness.
• Direct compaction over a drainage pipe before 450mm of cover. Hand compaction only.

For a typical extension drainage backfill, you'll use a trench rammer for the part above the pipe crown and a plate compactor for the broader sub-base around the extension footprint. Hire both for the same week if the work overlaps.

Pre-use and return checklist

Before each session:

• Engine oil at the upper dipstick mark
• Air filter clean
• Bellows intact, no cracks
• Shoe flat, bolts tight
• Fuel sufficient for at least 90 minutes (most tanks hold 3 litres, runs roughly 1.5 hours on a full tank)
• PPE on before pulling the cord

Before return:

• Clean caked mud, clay, and aggregate from the shoe and column. Hire companies charge for dirty returns.
• Fuel cap secure
• Engine stopped, allowed to cool

Where you'll need this

Trench rammers come into use during the groundwork phase of any extension or renovation project where new drainage or narrow-trench fill is involved:

• Drainage - compacting backfill above the pipe-crown clearance after pipework is bedded, tested, and inspected
• Foundations and footings - compacting backfill around foundation walls once formwork is removed
• Building control inspection: drainage and oversite - the inspector checks that drainage pipework has been bedded and protected before any compaction starts above it
