Air Compressors: Buy Small for Nail Guns, Hire Big for Breakers
Two-class UK guide to air compressors. When to buy a £140 portable for nail-gun work and when to hire a £99/day diesel unit for breaking concrete.
The hire counter charges £84 – £123 for the wheeled diesel unit you need to break up a concrete path. The bloke ahead of you is buying a small portable for the same money to fire 200 brad nails over the weekend. Both make sense. They're different machines for different problems, and the most common UK homeowner mistake is buying one when you needed the other, then standing in a workshop with a 24L tank that won't budge a paving slab.
What it is and when you need one
An air compressor pumps atmospheric air into a pressure tank, then releases it through a hose to power pneumatic tools (tools driven by compressed air rather than electricity or batteries). For an extension project, you'll meet compressors in two completely separate situations.
The first is nail-gun and small pneumatic work. Pneumatic brad nailers, framing nailers, staplers, tyre inflators, and small spray guns all run on a few seconds of compressed air per shot. A small 6-24 litre portable does this comfortably. You buy it once, store it in the garage, and it earns its keep over years.
The second is demolition and breaking work. Pneumatic jackhammers and concrete breakers consume air continuously and need 60-100 cubic feet per minute of free-flowing air. That's not a portable. That's a wheeled diesel-engined compressor towed in by a hire firm. You hire it for the day, break what needs breaking, and send it back.
Confusing the two is the costliest mistake in this category. A portable cannot run a breaker. A diesel hire unit is overkill (and a parking nightmare) for shooting brads into skirting.
The two classes, side by side
| Feature | Small portable (buy) | Industrial diesel (hire only) |
|---|---|---|
| Powers | Brad nailer, framing nailer, tyre inflator, small spray gun | Jackhammer, concrete breaker, paving breaker, rock drill |
| Tank size | 6-24 litres typical, 50L for workshop use | Receiver-less; engine drives air continuously |
| Output (FAD) | 2-7 CFM free air delivery | 80-150 CFM free air delivery |
| Power source | 230V mains (some 110V site versions) | Diesel engine, towable on a chassis |
| Weight | 20-30 kg (carryable) | 600-700 kg (needs a tow vehicle) |
| Noise | 60-97 dB(A) depending on quality | 70-75 dB(A) typical (engine and air mixed) |
| Typical UK price | £80–£200 | £84 – £123 |
| Where you get one | Toolstation, Screwfix, Wickes, Amazon | HSS Hire, Brandon, Speedy, Martin Plant Hire |
If your project involves concrete paths, an old garage slab, or any pavement that needs lifting before footings, you're hiring. If your project is a first-fix carpentry job and a few weekends of pneumatic nailing, you're buying. There's no middle ground that does both well.
CFM, FAD, and the spec that catches every first-time buyer out
Compressor capacity is rated in cubic feet per minute (CFM), which is the volume of air the unit can deliver. There are two CFM numbers and they aren't the same.
Air displacement is the theoretical volume the piston could move per minute if there were no losses. This is the bigger, more flattering number that ends up in marketing.
Free Air Delivery (FAD) is the actual usable air at the outlet, after pump losses, friction, and pressure drop. FAD is typically 50-66% of the displacement figure. A compressor advertised as "9.6 CFM" might deliver only 4-5 CFM FAD.
Match the FAD to your tool. A pneumatic brad nailer needs roughly 0.3-0.5 CFM per shot, with a recommended minimum compressor rating of 1.2 CFM (Screwfix's official guidance). A framing nailer wants 2.4 CFM minimum. A spray gun wants 7-22 CFM continuous, which most small portables can't sustain. A jackhammer needs 60-90 CFM continuous, which is why it's a hire-only proposition.
The arithmetic that solves 90% of buying mistakes: take the tool's stated SCFM consumption, multiply by 1.2, and that's the minimum FAD your compressor must deliver. If a unit only quotes "air displacement," halve it before comparing. Anyone selling a compressor without a stated FAD figure is hoping you won't ask.

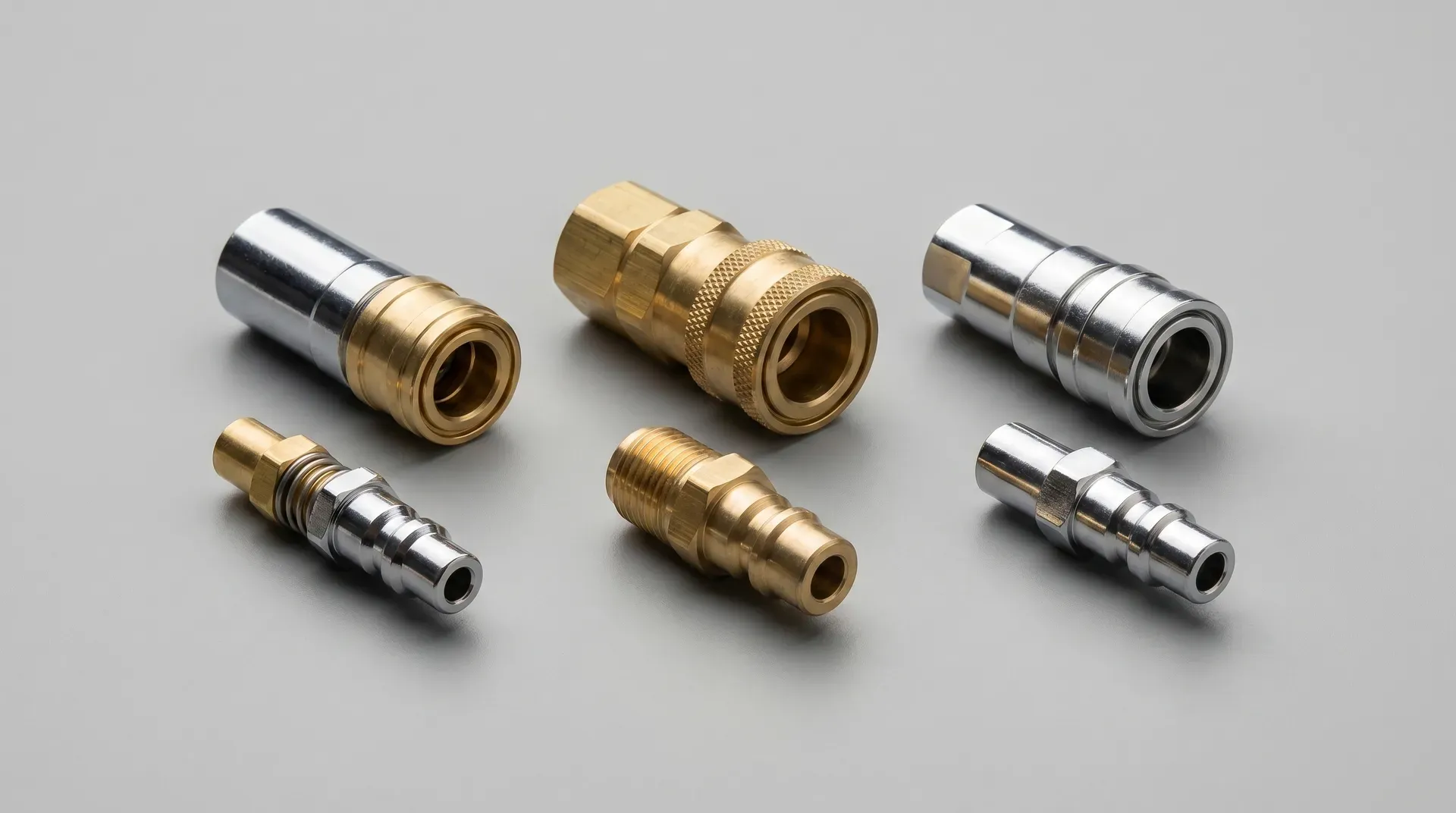

Coupler compatibility: the most-cited UK first-time mistake
The single most-mentioned frustration in UK forums (BuildHub, UK Workshop, DIYnot, Screwfix Community) is coupler incompatibility. Three quick-connect profiles dominate, and they don't fit each other.
Euro (sometimes called "European" or "type 26") is the slim profile common on continental and many UK budget compressors. PCL Standard is a UK-developed wider profile, traditional on British workshop kit. PCL XF-Euro (also called "PCL high-flow") looks similar to Euro but has a larger bore for higher flow.
A Euro fitting will not connect to a PCL Standard coupler. A PCL XF-Euro will mate with a Euro plug but the bore mismatch causes flow restriction. Many budget compressors ship with Euro fittings but a brand-new pneumatic nailer might come with a PCL plug fitted. Some compressors arrive with no coupler at all, or with US-spec NPT threads that won't screw into the BSP (British Standard Pipe) ports on UK kit.
The fix is mundane: pick one standard and convert everything to it. A handful of brass adaptors at a few pounds each from Toolstation lets you standardise. Most homeowner setups end up on Euro because that's what the compressor came with.
A mismatched coupler under pressure will hiss, leak, or pop apart unexpectedly. Never try to force a Euro plug into a PCL Standard socket. The seal is poor, the pressure is real, and the brass spring clip can release the plug at speed. Switch off, depressurise the hose, fit the right adaptor.
How to use a small portable properly
Plug into a 13A domestic socket on a short, fully-unwound 2.5mm extension lead (standard 1.5mm leads cause voltage drop and hard starts; coiled leads create inductance that strains the motor). Open the drain valve underneath the tank to release any condensate water from last use, then close it. Switch on. The motor will run until the tank reaches cut-out pressure (typically 8 bar / 115 PSI), then idle.
Set the regulator on the outlet to your tool's required pressure. For a brad nailer that's around 70-90 PSI; for a framing nailer 90-120 PSI; check the tool. Connect your hose, then connect your tool to the hose. Test-fire once into scrap before committing to the actual workpiece.
When you're done, depressurise the hose, then open the drain valve to release the condensate water that's been collecting in the tank. Skip this step and the tank rusts from the inside. Budget compressors have died younger than they should because their owners never drained them.
For sustained work (more than a few minutes of continuous firing), a small 6L tank will recycle constantly and the motor will get hot. A 24L tank is the sensible domestic standard: enough capacity to run a brad nailer through a whole skirting installation without the motor cycling on every other nail.
Buy a moisture filter (around ten to fifteen pounds from Toolstation or Screwfix) and fit it in-line between the regulator and your tool. Compressed air carries water in suspension. Without a filter, that water reaches your spray gun, your nailer's o-rings, and your impact tools. With a filter, it doesn't.
Oil-lubricated vs oilless
Oilless units have Teflon-lined cylinders and need no oil maintenance. They're lighter, cheaper, and start in the cold without complaint. They're also typically louder (76-97 dB on budget units) and shorter-lived than oil-lubricated equivalents.
Oil-lubricated units have an oil bath in the crankcase that you check and top up. They run quieter, last longer (cited at 10,000+ hours vs 2,000-3,000 for oilless), and handle continuous duty better. The trade-off is weight, price, and the oil checks themselves.
For occasional homeowner use, oilless is fine. For a workshop you'll use weekly, oil-lubricated pays back. The "low-noise" or "silent" oilless models (Hyundai HY7524, Sealey SAC2400S, Einhell Silent) use 4-pole motors at lower RPM and acoustic enclosures to hit 60-74 dB(A), comparable to oil-lubricated units. They cost more.
What to buy: budget tiers
Budget tier: Titan TTB797CPR 24L oilless kit at Screwfix (around £80–£200, lower end of range). Stanley B6CC304 24L oil-lubricated at Screwfix. Einhell TC-AC 190/24/8 at Toolstation. These work for nail guns and tyres. They are loud (75-97 dB) and not built for daily use.
Mid-range tier: Hyundai HY7524 24L silenced oilless at around the mid-range price point at Wickes and online retailers (the consensus pick in UK forums; 60 dB and quiet enough to use without ear defenders). Einhell 24L Silent at Wickes. SGS Engineering SC24H 24L direct-drive (consistently praised on BuildHub for build quality). Sealey SAC2400S 24L low-noise (74 dB, trade-grade).
Step-up tier: Bambi, Abac, and Clarke "shhh" silent ranges. These are workshop-grade. If you've decided spray painting is part of your future plans, jump to a 50L oil-lubricated unit with 12+ CFM FAD; nothing smaller will run a spray gun continuously.
If your only pneumatic tool is a brad nailer, the cheapest 24L portable does the job. If you want to spray-paint walls, you cannot get there with any of these. That's a different conversation involving an HVLP gun and a 50L oil-lubricated unit at minimum, and most homeowners are better off using a roller.

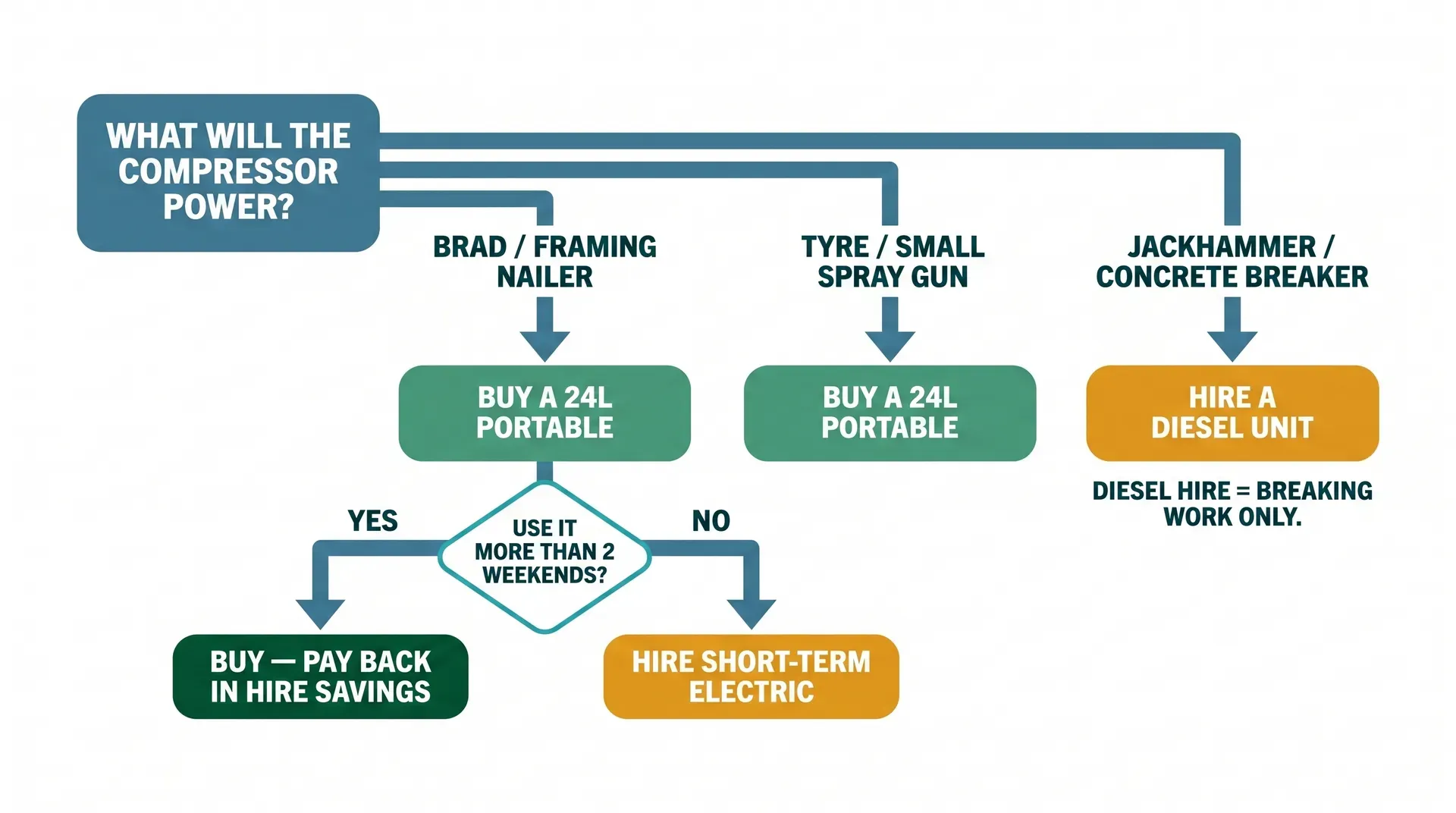

Hire vs buy: the breakeven
Tool-hire counters list a small electric compressor at a mid-range daily rate. A budget 24L portable at Screwfix or Toolstation costs around £80–£200. Two weekends of hire and you've matched the buy cost. Three weekends and the buy price is paying for itself in the saved hire fees alone, before you account for the extra time hiring eats (collecting, returning, queuing).
Buy if you'll use a compressor on more than two weekends across the project. The exception is the diesel-engined hire unit, which is hire-only at £84 – £123 ex VAT, or £114 – £126 ex VAT for a fully-kitted package with breaker, hose, and steels included. Nobody buys these for a single domestic extension.
Noise and the regulations that touch your build
A construction-site air compressor running at 85 dB(A) or above triggers the Control of Noise at Work Regulations 2005. The Upper Exposure Action Value is 85 dB; above this, anyone working with the compressor needs hearing protection and the area becomes a hearing-protection zone. The Exposure Limit Value of 87 dB must not be exceeded.
For a homeowner running a 60 dB silenced portable in their own garage, the regulations don't apply (they cover work, not domestic use). For your tradespeople running a 90 dB diesel unit on your driveway, they do. HSE has been actively inspecting noise on construction sites through 2024-25. A reputable hire firm will provide ear defenders with the unit; if they don't, your contractor needs to.
A budget direct-drive oilless compressor at 95-97 dB is genuinely louder than a modern diesel hire unit at 70-75 dB. The Stanley DN200/8 6L sits at 97 dB(A). Wear ear defenders if you're standing within a few metres while it runs. Sustained exposure causes hearing damage that doesn't recover.
Where you'll need this
- First fix electrics - pneumatic brad and framing nailers come into play alongside first-fix carpentry for studwork, noggins, and ply
- Kitchen installation - brad nailers drive skirting, architrave, and trim during second-fix
- Foundations and footings - hire-only diesel unit for jackhammering existing slabs and paths during site clearance
These tools turn up across any extension or renovation project, not just kitchen work. Loft conversions, garage conversions, and garden rooms all use the same two-class split: small portable for the carpentry, diesel hire for the demolition.
