Cutting Gauges: Why a Blade Beats a Pin When Marking Across the Grain

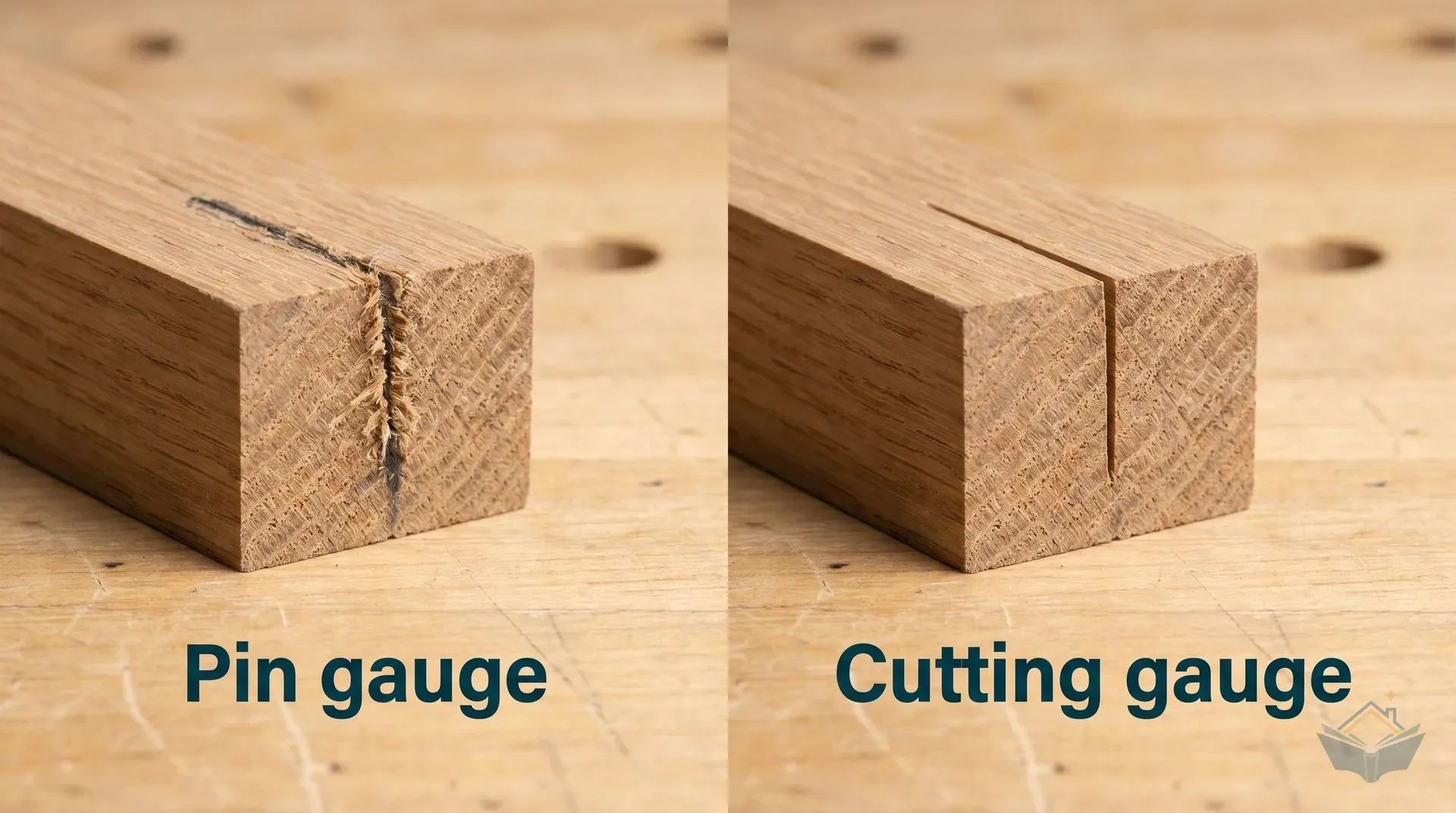

You're cutting dovetails into the end of an oak drawer side. You scribe the shoulder line with a standard pin marking gauge. The pin tears the cross-grain fibres instead of cutting them. The chisel wanders into the torn line and your dovetail ends up half a millimetre off, with a visible gap. A cutting gauge has a tiny blade where the pin was. It severs the fibres cleanly, the chisel registers in a knife-sharp line, and the dovetail closes invisibly. That's the difference between a pin and a blade on cross-grain.

What it is and when you need one

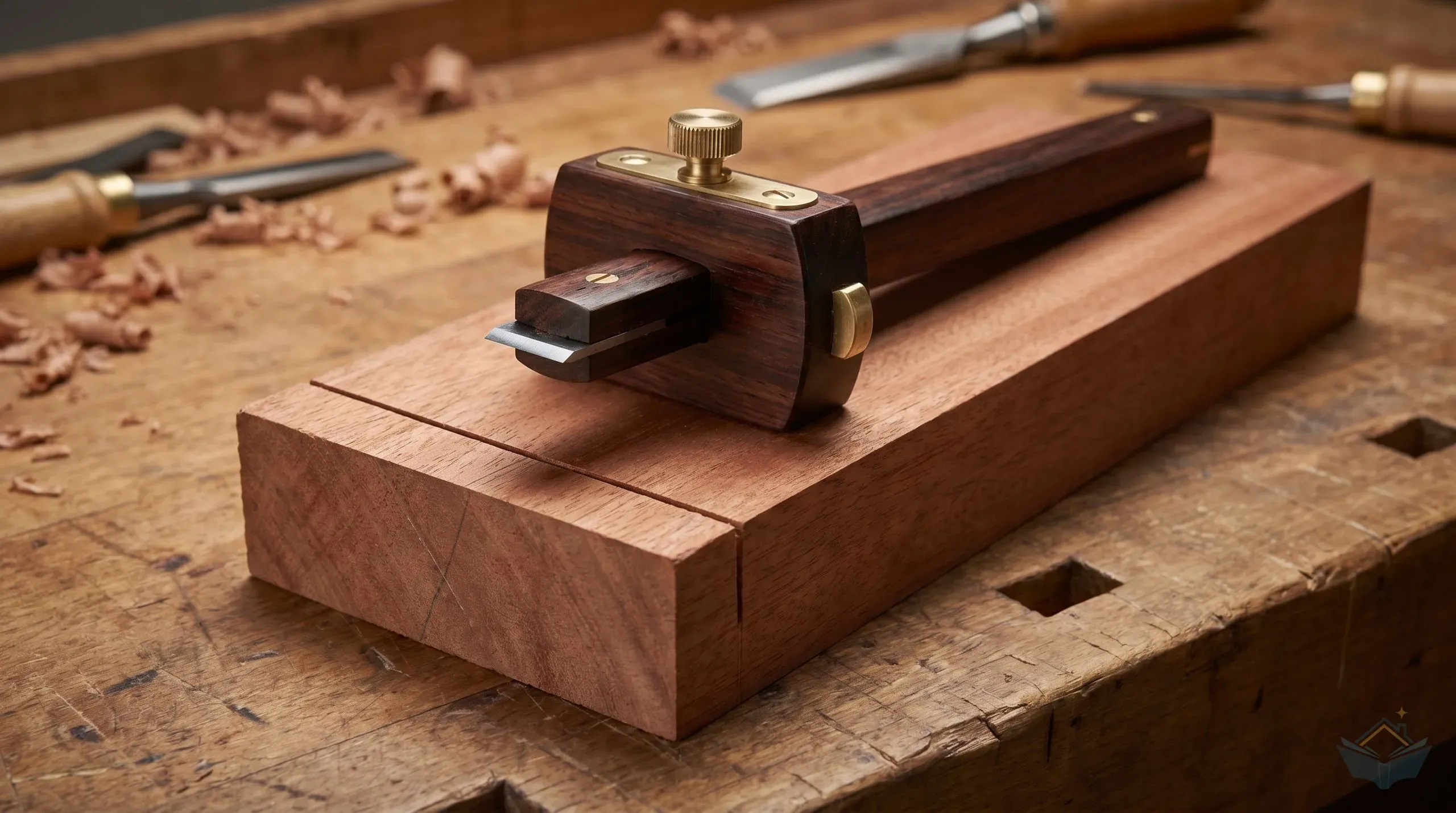

A cutting gauge is a marking gauge that uses a small replaceable blade (effectively a tiny knife) instead of a sharpened pin. The fence and beam work identically to any other gauge: you set the offset from the timber edge, lock the fence, and slide the gauge along the workpiece. The difference is what happens at the cutting end. A pin tears wood fibres. A blade slices them.

The blade orientation matters. On most cutting gauges the blade is rectangular, mounted in a slot in the beam, with a screw or wedge holding it in place. The bevel faces toward the fence so the cut acts like a knife wall (the unbevelled face is flat against the timber the gauge will reference from). This produces a clean vertical cut on the workpiece side and a shallow taper on the offcut side, which is what you want for a shoulder line.

You need one whenever you're marking across the grain of timber for a cut. That includes:

• Shoulder lines for joinery - the cross-grain ends of mortises, dovetails, halving joints, lap joints, finger joints. Any joint where you cut a shoulder square across the timber width.
• Cross-grain inlay or banding - marking the boundary of an inlay strip running across the grain of a panel.
• Stopping veneer cuts - defining a clean edge for veneer trimming where a knife would tear out.
• Cutting thin plywood or veneer to width - the blade scores deep enough to act as a guide for splitting thin sheet material.

For with-the-grain marking (the long sides of a mortise, parallel-to-edge layout lines, marking a rebate position), a single-pin gauge or wheel gauge is faster and just as good. The cutting gauge is specifically a cross-grain tool, though it works fine in either direction.

0.5mm cut depth

A correctly sharpened cutting gauge severs the top layer of wood fibres to a depth of roughly 0.5mm. This is enough to create a clean shoulder reference line that a chisel can register against, but shallow enough that the line disappears when you plane down to the final surface.

Cutting gauge versus pin gauge versus wheel gauge

Three tools, three different cutting actions.

The wheel gauge often gets recommended as the universal modern solution. It cuts cleanly in any direction and doesn't need to be tilted at a trailing angle. But the geometry is different: a wheel cuts a small V-groove (because the wheel itself is symmetrical about its axis), whereas a cutting gauge with a one-bevel blade produces a true knife wall - a vertical cut on the reference side and a taper on the waste side. For accurate joinery shoulders that a chisel will register against, the knife wall of a cutting gauge is the gold standard.

A practical setup for serious joinery work is to keep all three in the workshop:

• A pin gauge for fast with-grain marking and general layout
• A cutting gauge for precise cross-grain shoulder lines
• A wheel gauge for everything in between when you can't be bothered to switch tools

For a homeowner who only cuts the occasional joint during a renovation, a single cutting gauge plus a basic pin gauge covers most situations.

Click to enlarge

How to use it properly

Setting up the blade

A new cutting gauge usually arrives with the blade slightly long. The blade should protrude from the beam by no more than 2-3mm. A blade that sticks out further digs in too aggressively and pulls the gauge off line; a blade flush with the beam doesn't cut at all.

The blade's bevel orientation is the one rule that matters. The bevel (the angled grinding) faces toward the fence. The flat (unbevelled) face points away from the fence, toward the offcut. This produces a clean vertical wall on the side of the line you'll keep, and a shallow taper on the side you'll cut away. If you fit the blade backwards, the cut wanders into the keep side and ruins the joint.

Setting the fence offset

The fence offset is set the same way as any marking gauge: loosen the fence thumbscrew, slide the fence to the required distance from the blade, and tighten. Use a steel rule for the measurement, or transfer the dimension directly from the timber being mated.

For shoulder lines on a tenon, the offset is the shoulder distance - the length of the tenon plus a hair for any final paring. For dovetail shoulders, it's the timber thickness of the mating piece. Always set from the same face of the timber across the entire project.

Scribing a shoulder line

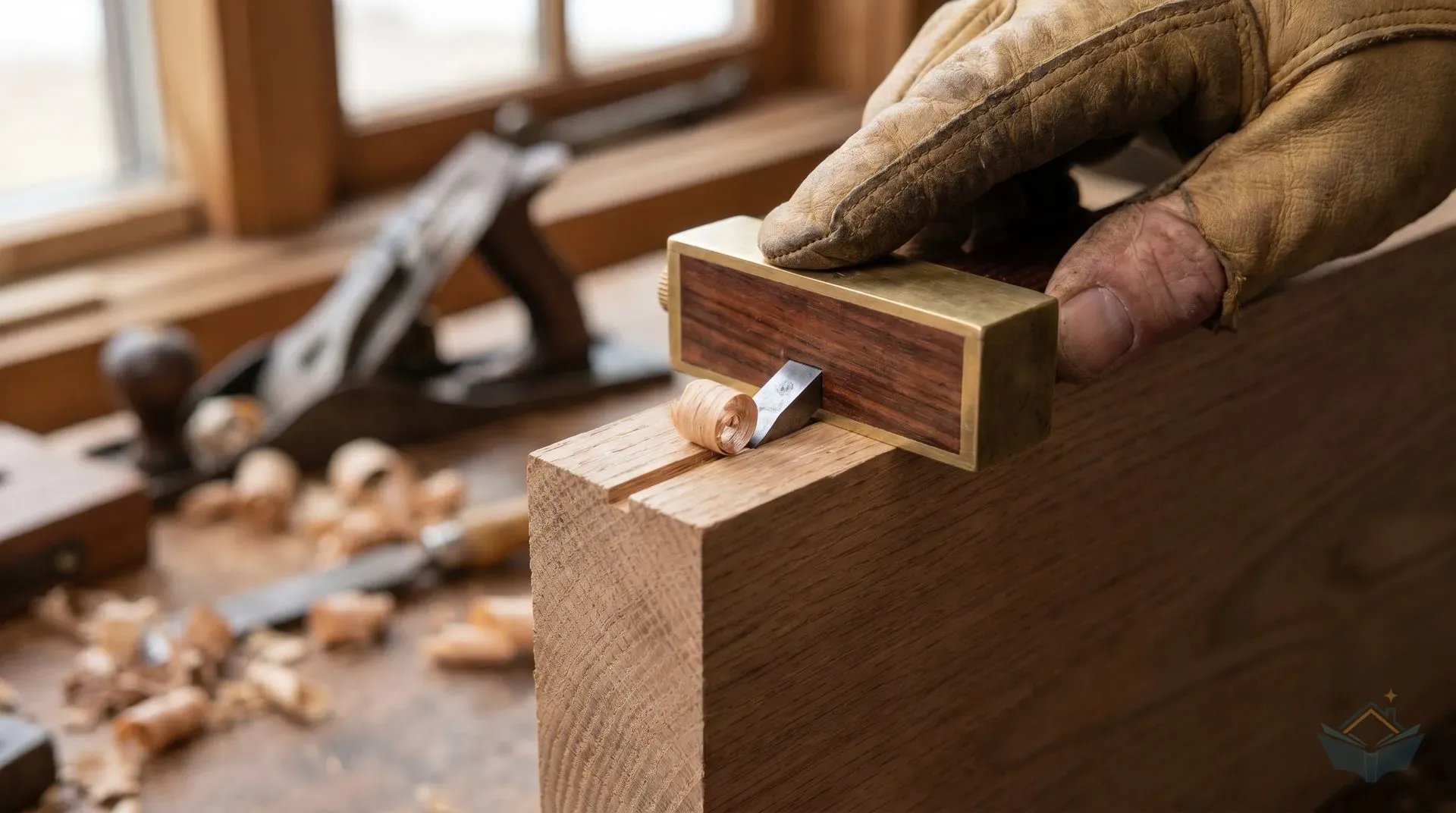

Hold the gauge with the fence pressed firmly against the timber end (or face, depending on the joint geometry). Tilt the beam so the blade trails behind the direction of motion - leading edge of the blade is the back, trailing edge is the front. The bevel faces away from the direction of cut.

For the first pass, apply light pressure. The blade scores a shallow line. Make a second pass with slightly more pressure to deepen the cut. For very hard timber (oak, ash, maple), a third pass produces a clean knife wall. Don't try to cut the full depth in one pass - the blade catches on hard fibres and the gauge skips off line.

Using a cutting gauge for veneer or thin sheet

A cutting gauge cuts veneer and thin plywood (up to about 1.5mm) cleanly to width. Set the fence to the desired strip width, run the gauge along the sheet, and after a few passes the strip separates with a clean edge. This is much faster than scoring with a knife and a straight edge, and the result is parallel to the reference edge to the same accuracy as the gauge fence (well under 1mm).

Click to enlarge

What to buy

The cutting gauge market is smaller than the pin gauge market because fewer people use them. Three tiers cover the realistic options.

Budget: basic beechwood

Faithfull, Crown Hand Tools, and Stanley produce beechwood cutting gauges in this price band. Available at Screwfix, Toolstation, Workshop Heaven, and Amazon UK. The blade is a basic carbon steel rectangular flat, held by a small brass thumbscrew in the beam. Out of the box, the blade often needs honing - the factory edge is rough and won't slice cleanly.

For a homeowner cutting a handful of shoulder lines on a single project, a budget gauge does the job. The wood may shrink slightly with humidity changes and the fence-to-beam fit can develop play over years, but for occasional use this is fine.

Mid-range: rosewood with brass

Faithfull rosewood, Crown rosewood, and traditional brand replicas (Marples reproductions) sit in this band. Denser hardwood beam, thicker brass face plate, harder blade steel that holds an edge longer. The slip mechanisms are tighter, the fence sits more squarely against the timber, and the overall feel is noticeably nicer in the hand. For a workshop that will see regular joinery work, this is the right price point.

Some mid-range models include a screw-thread depth adjustment for the blade, replacing the simple slot-and-thumbscrew. This makes setting the protrusion to exactly 2-3mm easier and more repeatable.

Premium: Veritas wheel cutting gauge

Veritas (sold via Axminster, Workshop Heaven, and Lee Valley) makes a wheel cutting gauge that combines the wheel design with a one-side bevel. It's not a true cutting gauge in the traditional sense - the wheel still produces a slight V-groove rather than a pure knife wall - but the build quality and adjustment mechanisms are at a level that's hard to match in any other tool. The micro-adjustment knob lets you set the blade to fractions of a millimetre, and the brass wheel face plate slides effortlessly along timber.

If you do enough joinery to care, a Veritas is the upgrade target. If you're cutting half a dozen joints on a kitchen extension, you don't need it.

Sharpening the blade

The blade is a small flat rectangle of carbon or high-carbon steel, easy to sharpen on the same waterstones or diamond plates you use for chisels. Five rules:

1. Maintain the original bevel angle. Most cutting gauge blades come ground at 25-30 degrees. Holding a small blade at a consistent angle on a stone takes practice - many woodworkers use a small bevel jig or grip the blade in a holder.
2. Sharpen only the bevel side. The flat face stays flat. Honing both sides creates a knife edge that wanders, defeating the point of the directional bevel design.
3. Polish the back. A few flat strokes on a fine stone removes the wire edge after honing the bevel. Don't grind into the back.
4. Test on softwood first. A correctly sharpened blade slices a clean line in pine without effort. If the line is ragged or the blade catches, the edge needs more work.
5. Replace, don't endlessly resharpen. Replacement blades cost 3-5 pounds from most manufacturers. After three or four resharpens, the blade is shorter and may not protrude correctly. Buy a new one rather than fighting the old.

Where you'll need this

• Kitchen installation - any traditional cabinet door construction with frame-and-panel doors held by mortice-and-tenon shoulders
• Windows and doors - sash window repairs requiring renewal of stile-rail joints, plus marking shoulder lines on traditional door frames being repaired or renewed
• Decoration - for mitred mouldings where a knife-clean shoulder makes the joint close invisibly during architrave and skirting installation

A cutting gauge is rarely the first tool a homeowner buys, but for anyone planning traditional joinery (sash window repairs, oak frame work, traditional cabinet doors), it's the tool that turns acceptable joints into invisible ones.

Safety

The blade is sharp enough to cut skin. When changing or sharpening the blade, support it on a small block rather than holding it free in your fingers. A slip while tightening the blade screw is the single most common way to lose a fingertip's worth of skin in a workshop.

Store the gauge with the blade retracted into the beam (most designs allow this) or in a tool roll where the blade can't catch on anything. A cutting gauge dropped blade-first onto a hard floor will chip the edge, ruining the temper at the cutting point. Treat it like a chisel - with respect for the edge.
