Trickle Vents and Part F: What to Specify Before You Order Windows

The windows arrive on site, go in, and look great. Then the building control officer turns up and fails them. Not because the glazing is wrong, but because there are no trickle vents. Under the version of Part F applied since June 2022, new windows must have them. The frames cannot be vented after the fact without cutting into the head rail, so the fix is a retrofit vent drilled into each frame or, in the worst case, new windows. A trickle vent skipped at order stage turns into a several-hundred-pound problem per window, and it is entirely avoidable.

What a trickle vent is and why Part F demands one

A trickle vent is a small, controllable ventilation slot built into the head (the top rail) of a window or door frame. Approved Document F, the part of Building Regulations covering ventilation, calls it a "background ventilator". Its job is to provide a constant, low-level trickle of fresh air into a room even when every window is shut, so moisture from breathing, cooking, washing and drying clothes has somewhere to go instead of condensing on cold surfaces and feeding mould.

Modern homes are far more airtight than older ones. Better-sealed windows, draught-proofing and insulation all reduce the uncontrolled gaps that used to ventilate houses by accident. Part F exists to put that lost ventilation back deliberately in a controlled way. The current version is the 2021 edition, which came into force on 15 June 2022. That date matters, because it changed the rules on what the regulations call background ventilation: slow, continuous air exchange that runs day and night.

This is separate from purge ventilation, the rapid air change you get by opening a window wide, and separate again from the extract fans required in kitchens and bathrooms. A trickle vent does not replace an extractor fan, and an extractor fan does not replace a trickle vent. You need both, doing different jobs.

The 2022 change that catches people out

Before June 2022, the rule on replacement windows was simple and lenient. If your old windows had no trickle vents, new ones did not need them either. The principle was "no worse than before". You could swap draughty single glazing for sealed double glazing and ignore ventilation entirely.

That loophole is gone. Under the 2022 edition, replacement windows must include background ventilation whether or not the windows they replace had any. If old windows had vents, new ones must have vents of the same size or larger. If old windows had none, new ones still need them. This applies in England and it is enforced.

For new work, an extension that adds a habitable room (a bedroom, living room, dining room or study, as opposed to a kitchen, bathroom or hallway) sets the requirement higher and changes the ventilation maths for the whole house, not just the new room. More on that below.

A transitional provision exists: projects where a building notice was submitted before 15 June 2022, or where work was already on site before 15 June 2023, could still use the older 2010 rules. For anything planned now, both windows are closed. Assume 2022 rules apply.

Equivalent Area: the number that actually matters

This concept trips up homeowners trying to check whether a vent is big enough. Part F does not measure trickle vents by the physical size of the hole. It measures them by Equivalent Area, written EA and quoted in square millimetres (mm²).

Equivalent Area measures how much air a vent actually flows, not how big the opening looks. Air does not pass through a slot as freely as it passes through an open hole of the same size, because the edges, canopy and internal flap all create resistance. So the EA of a vent is always smaller than its geometric opening. A vent with a geometric slot area of, say, 6,000mm² might deliver an EA of only 4,000mm². The regulations care about the airflow figure, which is why every compliant trickle vent has its EA performance stamped on the internal body, tested to a recognised European ventilation-component standard.

When a supplier quotes a vent as "4000EA" or "5000EA" per unit, that number is the Equivalent Area in square millimetres. It is the figure you check against the requirement for your room. Ignore physical dimensions for compliance purposes; match the EA.

How much ventilation each room needs

The required EA depends on room type, dwelling type, and whether you are replacing windows in an existing house or building new. The figures below are the natural-ventilation requirements under Part F 2022. These are the most commonly confused numbers in the whole topic, because different sources quote different figures without saying which scenario they apply to.

Two figures do most of the practical work for homeowners. For replacement windows in a typical existing house with no mechanical ventilation, each habitable room needs 8,000mm² EA and each bathroom needs 4,000mm² EA. For a single-storey extension adding a habitable room, the new room needs 10,000mm² EA: the higher figure reflects that new work is held to a tougher standard than replacements.

On top of the per-room figures is a whole-dwelling check. A house must have at least 5 background ventilators in total across habitable rooms and the kitchen. If you are only changing a couple of windows, you are not normally expected to retrofit the whole house, but a building control officer assessing a larger job will look at the total count.

Open-plan kitchen-diners, which are very common in rear extensions, have their own rule: a minimum of three background ventilators with habitable-room EA within the open-plan space, plus a kitchen extract in the room rather than blowing across people at sitting height.

Which rooms get vents, and which do not

Habitable rooms get trickle vents: bedrooms, living rooms, dining rooms and studies. Kitchens and bathrooms get them too under replacement-window rules, alongside extractor fans. Hallways, landings, stairwells and internal cupboards do not need them.

One thing the regulations will not accept as a substitute: the night-vent or night-latch position on a window (the setting that lets a window sit very slightly ajar on a catch) does not count as background ventilation. Neither does an air vent fitted under Part J to feed an open-flued appliance like a gas fire. Those serve different purposes and cannot be counted toward the Part F total.

There are legitimate alternatives to window vents. Wall-mounted background ventilators, fitted through an external wall rather than a window frame, are acceptable if they deliver the same EA. And if a property has continuous mechanical extract or a heat-recovery ventilation system doing the air exchange, the trickle vent requirement drops or disappears, because the machine is handling it. For most extension projects without mechanical ventilation, trickle vents in windows are the simplest route to compliance.

Types of trickle vent, and which gets into which window

The type of trickle vent that gets into a window, and the difference between types, matters most when you are dealing with windows that already exist.

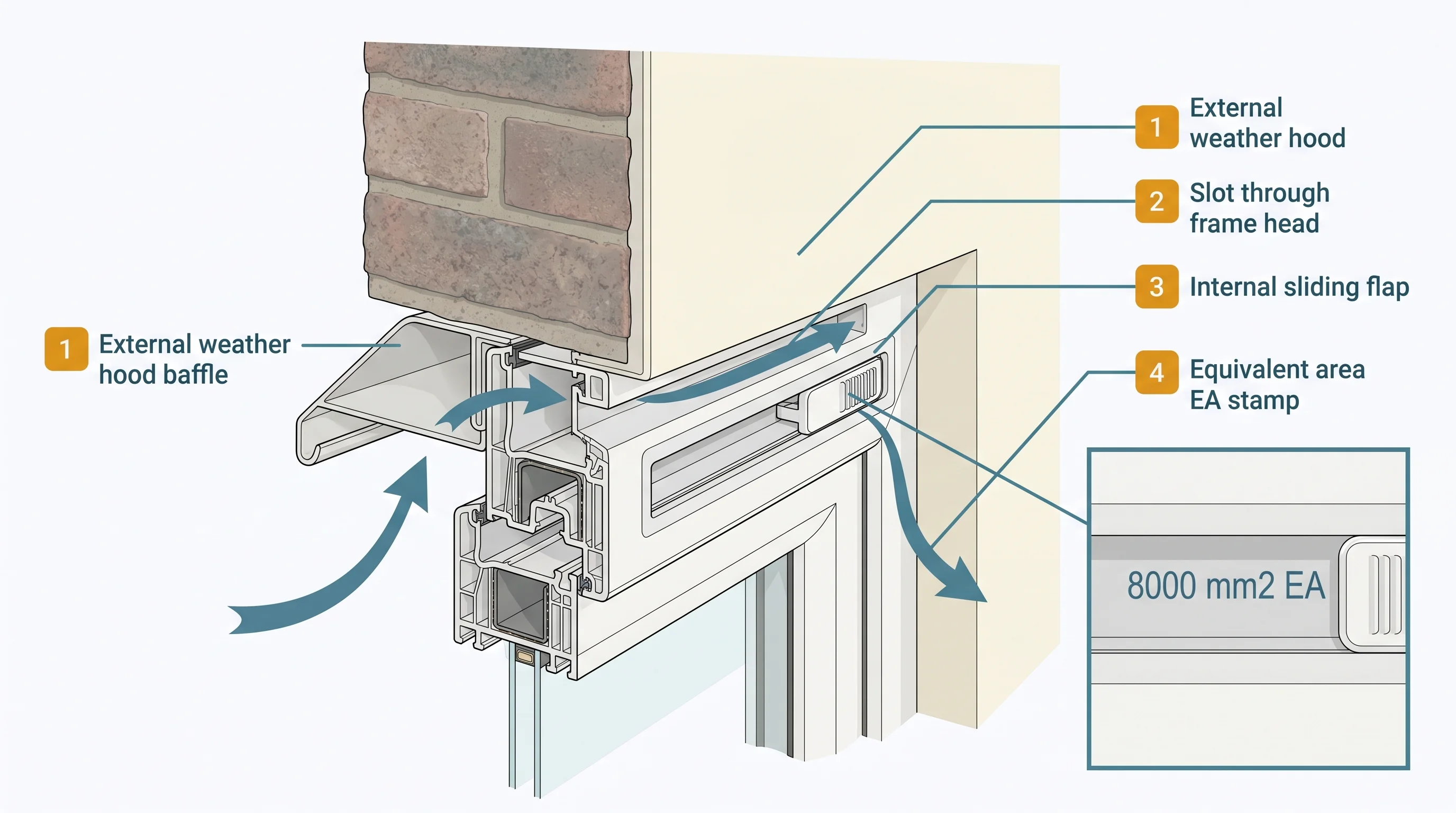

Through-frame (slot) vents are the standard. A slot is machined through the head frame in the factory, an external weather canopy sits on the outside, and a controllable vent body sits on the inside. This is what you get when you specify vents at order stage, and it is by far the cleanest, neatest and most weatherproof option. Titon's Trimvent range and Yale's SlotVent range are common names here.

Over-frame (surface-mount) vents sit on the surface of an existing frame rather than passing through a neat slot in it. This is the usual retrofit answer for a window installed without provision, and it avoids drilling deep into the frame. Brookvent's SM range is a typical surface-mount unit. It is bulkier and less tidy than a factory slot vent, but it gets you compliant without replacing the window.

Glazed-in vents sit in the glazing unit itself rather than the frame. They are useful for a retrofit that needs to avoid cutting the frame entirely, though they are less common because the glazing unit usually has to be made or remade to suit.

Acoustic trickle vents for noisy locations

A standard trickle vent is a hole in your window, and a hole in a window lets sound in as well as air. On a busy road, near a railway, under a flight path, or on an exposed coastal or high-floor position, an ordinary vent can make a room noticeably louder. The common homeowner response is to close the vent permanently, which defeats the whole point of it: the condensation problem then quietly comes back.

Acoustic trickle vents solve this. They use a lined, baffled air path that lets air through while absorbing sound, achieving noise-reduction figures of up to around 44 dB (the figure quoted as Dn,e,w on product data). Part F itself recommends acoustic vents for noise-sensitive facades at paragraph 1.54. Products worth looking at include Titon SF Xtra, Brookvent SM Acoustic (around 40 dB), Yale SlotVent Noise Reduction, and Zehnder Greenwood AWV39 at 39 dB. They cost more than standard vents but are worth specifying upfront if the facade faces a noise source, since retrofitting them later involves the same labour as any other retrofit.

Working them, and how building control checks

A trickle vent in a new window needs nothing from you on site: it arrives factory-fitted in the frame head. The only handling point is entirely upstream: the vent has to be on the window order, with the correct EA, before the frames go into manufacture. Once a uPVC, timber or aluminium frame is made without a slot, you cannot add a neat through-frame vent without cutting into the reinforced head rail, which is why retrofits fall back on bulkier surface-mount units.

Retrofitting an existing window, when it comes to that, is a real job. The through-frame method means marking the vent position near the top of the frame, drilling from each side so the holes meet cleanly in the middle, clearing the slot, and screwing the vent body and external canopy in place. On a uPVC frame you will often hit a metal reinforcement strip mid-drill, which has to be dealt with carefully. Get the alignment wrong and you can damage the frame. Surface-mount over-frame vents are the more forgiving option for a competent DIYer who wants to avoid deep drilling.

The building control officer checks three things on windows. First, at the frame stage, that the frames are vent-capable and that provision is there. Second, that vents are physically present in the installed windows. Third, that they are operable: the internal flap must open and close and must be controllable, either manually or automatically. A vent painted shut, screwed permanently closed, or fitted upside down fails the operability check. For replacement windows, the self-certification route through a FENSA or CERTASS registered installer satisfies building control without a separate council inspection. On most extensions, the work is signed off by building control directly.

What to specify and when

A single decision controls all of this: it happens at the window quotation, long before anything reaches site. Your quotation needs to name, room by room, the Equivalent Area of the vent that will be fitted in each window, expressed in mm², not just the words "trickle vents included". For a typical replacement-window job in an existing house, that means asking for 8,000mm² EA across the windows in each habitable room and 4,000mm² in each bathroom. For a single-storey extension adding a habitable room, that room needs 10,000mm² EA. Spell out the per-room figures and ask the supplier to quote them back against each opening.

Ask for EA confirmation in writing, on the order acknowledgement or a marked-up quotation, not as a verbal "yes, that's fine" over the phone. A line per window stating the product and its EA rating (for example "head vent, Titon Trimvent S13, 4000EA") gives you a paper trail that matches what a building control or FENSA inspector will look for later. If the windows sit on a noisy facade, specify the acoustic variant at this stage too, because the slot has to be sized for it in the factory and you cannot swap a standard vent for an acoustic one afterwards without the same retrofit work.

If a supplier cannot or will not confirm EA figures in writing, treat that as a warning sign rather than a formality you can skip. A reputable window company quotes vents by tested EA as a matter of course, because that is how the regulation is written. A vague answer usually means the vents have not been sized against the rooms at all, and the gap surfaces at inspection as an expensive fix. If you are unsure which figures apply to your specific layout, particularly where an extension changes the requirement for the rooms it connects to, confirm the numbers with your building control officer first and put those numbers on the order. Getting this one line of specification right, weeks ahead of manufacture, is the difference between a non-event and a houseful of retrofits.

Cost

Specified correctly at order stage, trickle vents add little or nothing to the window price: they are a standard line in the manufacturer's spec. Bought as individual units, a standard window-integrated slot vent runs £7 – £17. The entry-level Titon Trimvent S13 sits at the bottom of the range; a Greenwood or Yale 5000EA unit is at the top. Acoustic vents cost more, typically £15 – £35 depending on the noise-reduction rating.

The cost comes from getting it wrong. Retrofitting a vent to a window ordered without provision runs £150 – £300 per window, once you factor in labour and making good. Multiplied across a houseful of replacement windows, the saving of "leaving vents off" evaporates several times over. The economics are simple: specify at order stage and pay almost nothing, or skip it and pay hundreds per opening to put it right.

External resource

Approved Document F (Ventilation): GOV.UK

The primary statutory guidance. Volume 1 covers dwellings and contains the full EA tables by room type and dwelling scenario.

gov.uk

A note on geography: the figures and rules above are for England. Wales applies a similar Welsh edition of Approved Document F with slightly different dates. Scotland works to Building Standards 2022 Technical Handbook, which is more discretionary on trickle vents and gives contractors more leeway. Northern Ireland has its own regulations. If you are building outside England, confirm the local requirement before you order.

Where you need this

• Windows and doors - trickle vent provision is part of the window frame specification and must be confirmed before windows are ordered
• Building control final inspection - the BCO checks vents are present, correctly sized and operable before sign-off

Trickle vents come up on any project that adds new windows or replaces existing ones, across extensions, loft conversions, garage conversions and garden rooms, weeks before the frames are made. Get that one line of specification right and the whole topic becomes a non-event. Miss it and it becomes one of the most expensive small components you never specified.

Common mistakes

The big one is ordering windows without specifying vents at all, then discovering at inspection that the frames cannot easily take them. Specify the EA per room on the quotation, in writing, before manufacture.

The second is fitting vents that are too small. "Vents included" tells you nothing if a habitable room needs 8,000mm² EA and the quoted figure does not meet the room's requirement.

The third is closing them. Homeowners who feel a draught tape or screw vents shut, which fails the operability check and recreates the condensation problem the vents are there to prevent. If draughts are the issue, the answer is a humidity-activated or acoustic vent, not a closed one.
