Structural Plywood: Grades, Sizes, and When to Use It

Your builder quotes for "ply" on the flat roof. You go to Wickes, see a stack of 18mm plywood sheets at half the price of the ones next to them, and load up. Two months later the roof membrane goes down, winter comes, and the cheap plywood starts delaminating at every cut edge. It swells, the membrane lifts, and you're stripping the whole deck to start again. The sheets you bought were shuttering grade, rated CE4 (non-structural). What you needed was structural plywood rated CE2+ or higher. That distinction, invisible on the shelf, is the difference between a roof that lasts 30 years and one that fails in two.

What it is and what it's for

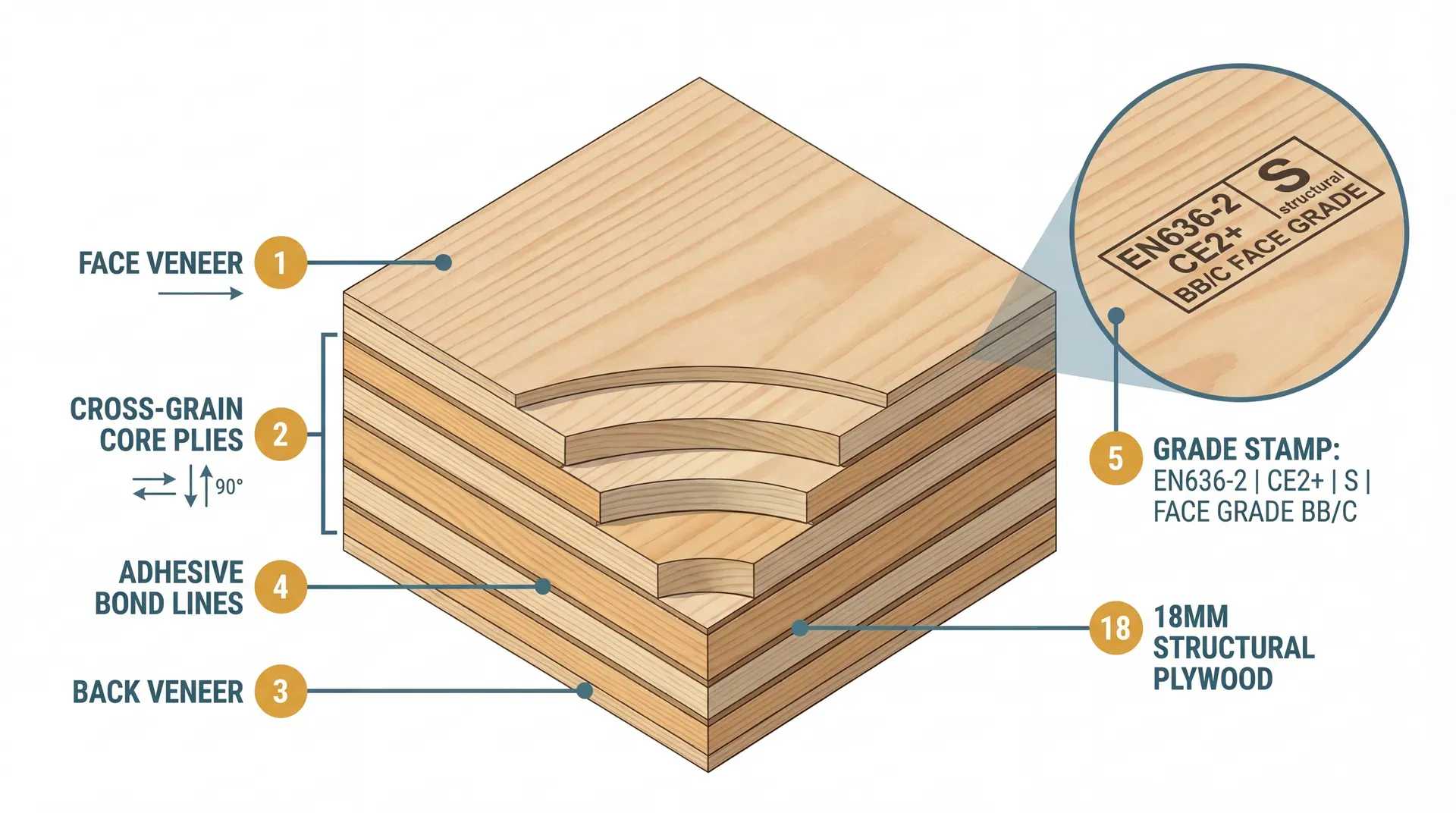

Structural plywood is an engineered sheet material made from thin wood veneers glued together with each layer's grain running at 90 degrees to the one below it. This alternating grain direction (called cross-lamination) is what makes plywood fundamentally different from solid timber, chipboard, or MDF. Solid timber splits along the grain. Plywood resists splitting in every direction because there's always a layer running crosswise to absorb the force.

Standard structural sheets are 2440mm long by 1220mm wide (8 feet by 4 feet). That gives you 2.97 square metres of coverage per sheet. At 18mm thick, which is the minimum for most structural applications, a softwood structural sheet weighs 25-30 kg. Hardwood-faced sheets are heavier still, at 30-38 kg. These are proper two-person lifts, and a stack of 10 sheets on a pallet weighs over a quarter of a tonne.

Plywood is always built from an odd number of veneers (5, 7, 9, or more) so the face and back grains run in the same direction. The number of plies matters: more plies at the same thickness means thinner individual veneers and a more dimensionally stable sheet. An 18mm board with 7 plies is better than one with 5.

In UK extension work, structural plywood has three main jobs: flat roof decking (the substrate that sits on the joists beneath the waterproof membrane), subfloor overlay (levelling an existing floor or providing a solid substrate for tiles or luxury vinyl tile), and structural bracing in timber-frame construction.

Types, grades, and the EN636 confusion

This is where most homeowners get tripped up. The grading system for plywood changed in 1995, but the old terminology refuses to die. Merchants, builders, and even some product labels still use "WBP" (weather and boil proof) as if it means something specific. It doesn't. Not any more.

The current standard is EN636, and it classifies plywood into three classes based on the adhesive bond quality:

For almost every job on a domestic extension, EN636-2 is what you want. Class 2 plywood with a structural "S" designation (marked on the sheet as CE2+) is the correct specification for roof decking, subfloor overlay, and sheathing. You don't need Class 3 unless the plywood will be permanently exposed to weather without any covering.

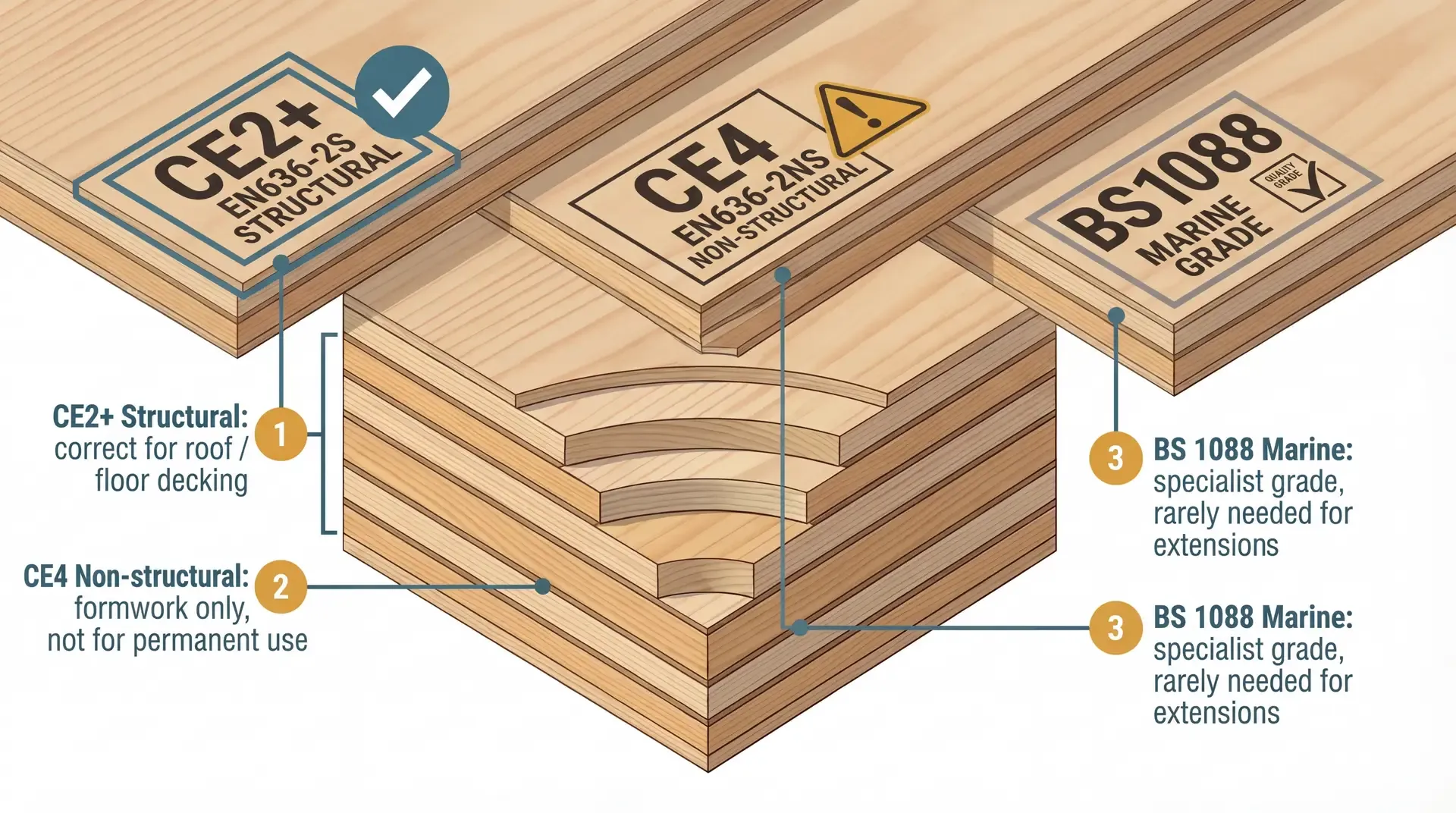

The structural vs shuttering trap

Beyond the EN636 class, plywood carries a structural designation: "S" for structural or "NS" for non-structural. This shows up on the CE marking as CE2+ (structural, humid conditions) or CE4 (non-structural).

Shuttering plywood (CE4) is designed for temporary concrete formwork. It's cheap (£19 – £27 per sheet), it looks identical to structural plywood on the shelf, and merchants sometimes stock them side by side without clear signage. But shuttering ply has not been tested for the sustained loads that a roof deck or subfloor must carry. Using CE4 shuttering ply as permanent structural decking is a building regulations failure.

Face grades

The face quality of plywood is graded separately from the structural classification. Common UK grades:

• B - sanded, minimal knots. The premium face for visible work.
• BB - sound knots and repairs visible. Good for general construction where the surface is covered.
• CP - more knots and open repairs. Adequate for hidden structural use.
• C - rough, unsanded. Structural use only, never left exposed.

For roof decking or subfloor (hidden behind membrane or flooring), BB/C or C/C is fine. You're paying a premium for B-grade faces you'll never see.

Click to enlarge

Thickness: which do you need?

Plywood comes in thicknesses from 3.6mm to 25mm. For extension work, three thicknesses matter:

12mm - wall sheathing and bracing only. Not suitable for floors or roof decks.

18mm - the standard for flat roof decking and subfloor overlay. This is the minimum thickness for roof decking over joists at 600mm centres and the minimum for subfloor under tiles or LVT. If you're only buying one thickness, this is it.

25mm - heavy-duty applications. Shower tray bases, spans over 600mm joist centres where deflection must be minimised, or where the engineer's specification calls for it.

The NHBC and roofing industry guidance is consistent: 18mm minimum for roof decking and subfloor, with joists at no more than 600mm centres.

How to work with it

Cutting

A circular saw with a fine-tooth blade (40 teeth or more on a 165mm blade) gives clean cuts through plywood. The key technique: cut with the good face down. Circular saw blades cut upwards, so tear-out happens on the top surface. If you're cutting plywood for a visible application, put the face you care about on the underside.

Support the sheet on both sides of the cut line. Plywood that sags during cutting will pinch the blade, kick back, and splinter the cut edge. Two trestles with a sacrificial board underneath, or a sheet of rigid insulation on the floor as a cutting surface, prevents this.

For curved cuts, pipe notches, and cutouts around obstacles, use a jigsaw with a clean-cut wood blade. Mark your line, drill a starter hole inside the waste area, and cut to the line from inside.

Edge sealing

This is the step almost nobody mentions. When you cut a plywood sheet, you expose raw end-grain across multiple veneer layers. Moisture wicks into these exposed edges far faster than it penetrates the face. The result: delamination starting from every cut, with veneers separating and the sheet losing structural integrity over months.

For any plywood in a humid location (roof decking, subfloor in a kitchen or bathroom), seal every cut edge before installation. Dedicated panel edge sealants exist (ESP Panel Edge Seal Protection is one), or a coat of exterior wood primer does the job. The Elliotts technical guide states that all plywood faces and edges must be "fully sealed" before any moisture exposure. Building sites are moisture-rich environments. Seal first, fix second.

Fixing

For subfloor applications, use 4x50mm wood screws at 150mm centres along every joist line, with a bead of D4 construction adhesive (waterproof grade) along every joist before laying the sheet. Glue and screw together creates a rigid, squeak-free deck. This combination is what every experienced floor layer insists on, and what chipboard manufacturers like Caberfloor recommend for their tongue-and-groove boards too. For flat roof decking, NHBC standards specify ring-shank nails at 100mm centres.

Leave a 2-3mm expansion gap between sheets and at the perimeter. Plywood expands slightly with humidity changes. Tight-butted sheets will buckle.

Storage on site

Store plywood flat on at least three level bearers, off the ground. Sheets stored on uneven supports develop a permanent set (they stay bent). Cover the top with breathable sheeting but leave the sides open for air circulation. Allow 48 hours for sheets to acclimatise to site conditions before cutting and fixing. Target moisture content is 8-12%.

How much do you need

Each standard sheet covers 2.97 m2 (2.44m x 1.22m). Divide your total area by 2.97 and add a waste allowance.

For a rectangular flat roof or floor area, 5% waste is adequate. For complex shapes with many cuts around hips, valleys, or obstacles, allow 10-15%.

Worked example: A 4m x 5m flat roof extension is 20 m2. Divide by 2.97 = 6.73 sheets. Add 10% waste = 7.4 sheets. Order 8 sheets.

For subfloor overlay on an existing floor, measure the room at the longest and widest points. Multiply and add 10% for cuts and fitting. On a typical 15 m2 kitchen floor, that's 6 sheets.

Cost and where to buy

Structural plywood pricing splits into clear tiers based on grade.

Shuttering grade (CE4, non-structural): £19 – £27 per sheet. Builders Shop Online lists 18mm shuttering at £26.69. MP Moran sometimes drops below £20 on Elliottis pine CE4. This grade is fine for temporary formwork but must not be used for permanent structural applications.

Structural softwood (CE2+): £35 – £40 per sheet. Wickes, Elliotts, and B&Q all stock this grade, with pricing varying by retailer and whether you buy single sheets or in bulk. This is the grade you need for roof decking, subfloor, and sheathing.

Structural hardwood: £36 – £58 per sheet. The major retailers charge a premium for single sheets but offer significant bulk discounts when you buy six or more. That bulk discount is worth organising your purchase around.

Marine (BS 1088): £100 – £120+ per sheet. Void-free core, phenol formaldehyde resin, tested to BS 1088. Unless you're building a boat or an outdoor shower base with no waterproof membrane, you don't need this grade. Marine ply is routinely over-specified by cautious homeowners who'd be perfectly served by CE2+ structural.

Where to buy

Builders' merchants (Travis Perkins, Jewson, Selco) offer the best pricing, especially for 10+ sheets. Selco is nominally trade-only but accessible with a limited company or trade card. If you're project managing your own build, open a cash account at Travis Perkins or Jewson. It costs nothing and unlocks trade pricing that's 15-20% below retail.

National DIY retailers (Wickes, B&Q) are the most accessible option. Pricing is competitive for CE2+ structural, with bulk orders (6+ sheets) bringing per-sheet cost close to trade levels. Click-and-collect is convenient but check the sheets before leaving. Inspect edges for delamination and check the grade stamp.

Online merchants (Builders Shop Online, Sheet Materials Wholesale, Builder Depot) bridge the gap for homeowners without trade accounts. Single-sheet pricing is competitive, though delivery charges on heavy sheet materials can be steep. Order enough sheets to justify the delivery.

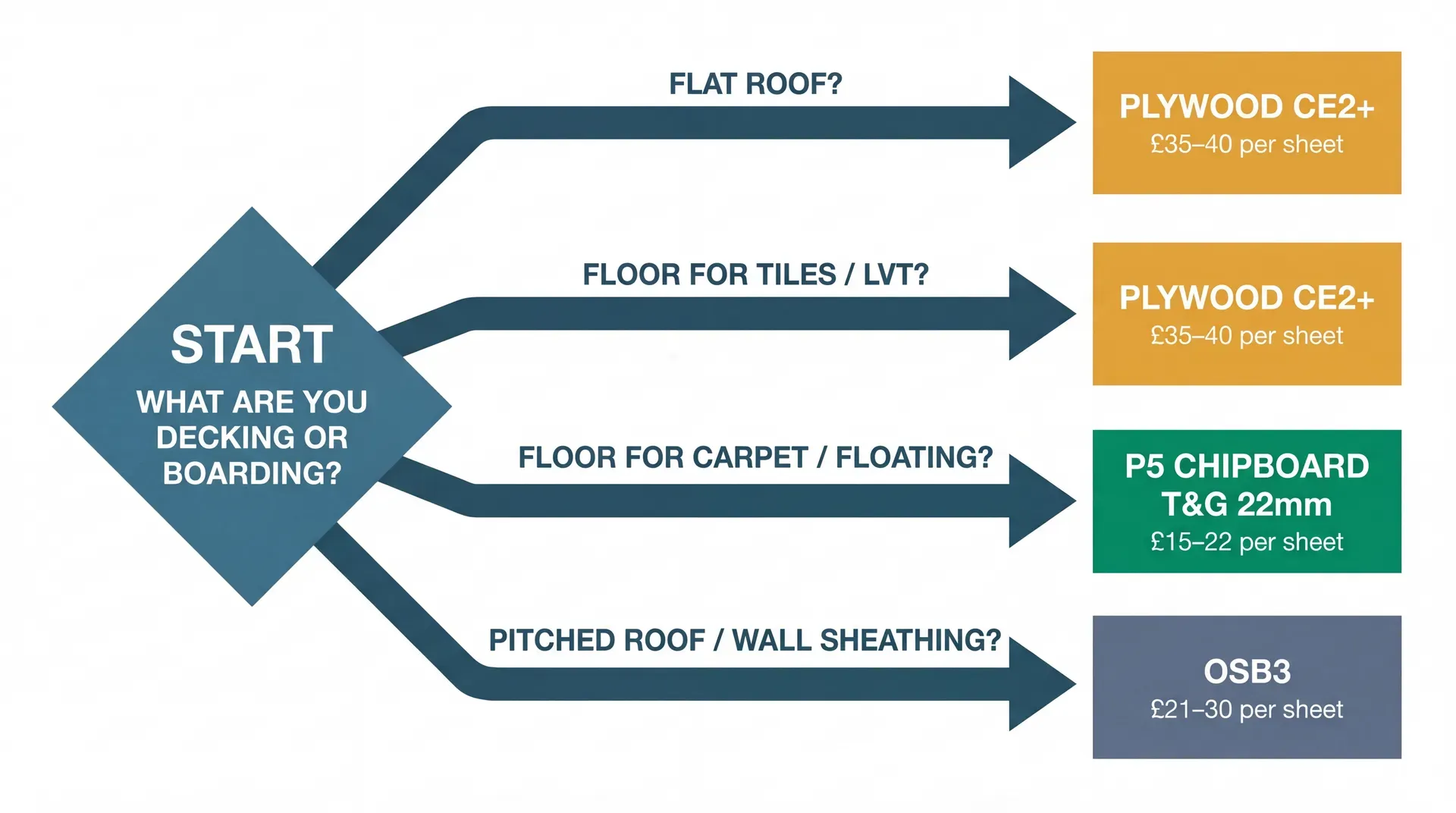

Plywood vs OSB vs chipboard

This is the decision most homeowners agonise over, and no competing guide explains all three options clearly. Each has a clear best use.

For flat roof decking: plywood wins. The roof membrane sits directly on the deck, and any edge swelling from trapped moisture will telegraph through the membrane. Plywood's ability to dry out and recover its original dimensions makes it the safer choice. OSB works but is less forgiving if moisture gets in during construction.

For subfloor under tiles or LVT: plywood is the only option tile adhesive and LVT manufacturers will warranty. Flooring manufacturers explicitly state they won't cover installations on OSB or MDF substrates. If you're laying tiles or glue-down LVT in a kitchen or bathroom, plywood is not optional.

For general timber-joist flooring under carpet or floating floor: 22mm tongue-and-groove P5 chipboard (sold as Caberfloor or similar) is what most professionals actually use. It's cheaper than plywood, has a better surface finish than OSB, and the tongue-and-groove edges create a rigid, squeak-free floor when glued and screwed. Multiple BuildHub professionals recommend it as the optimal domestic flooring substrate.

For pitched roof sarking (the boards under tiles): OSB3 is standard and adequate. The tiles and underlay protect it from direct weather. Plywood works but costs more for no practical benefit in this application.

Click to enlarge

Where you'll need this

• Roof structure - flat roof decking over joists, installed before the waterproof membrane goes down. Minimum 18mm CE2+ structural grade.
• Flooring - subfloor overlay to level existing floors or provide a rigid substrate for tiles and luxury vinyl tile.
• Foundations and footings - formwork for concrete pours. Shuttering grade (CE4) is adequate here since it's a temporary use.

Plywood appears during groundwork, structure, and second-fix phases of any extension or renovation project.

Common mistakes

Buying shuttering ply for structural use. Shuttering plywood (CE4) is 30-40% cheaper than structural (CE2+), and the two look identical on the shelf. CE4 is designed for temporary concrete formwork. It has not been tested or certified for the sustained loads of a roof deck or subfloor. Check the stamp before you buy. If it says CE4, put it back unless you're building formwork.

Assuming "WBP" on the label means weatherproof. WBP was phased out as a standard in 1995. When you see it on a product label today, it's marketing shorthand, not a specification. The adhesive classification you need is EN636-2 (for humid conditions like roof decking and subfloors) or EN636-3 (for genuine exterior exposure). Ask the merchant for the EN636 class, not whether it's "WBP."

Skipping edge sealing. Every cut through a plywood sheet exposes raw end-grain across multiple veneer layers. Moisture wicks into these exposed edges and starts delamination from the inside. This is a documented industry failure mode that almost no homeowner guide mentions. A tin of panel edge sealant is inexpensive and protects every cut you make on the entire project. Five minutes of sealing per sheet prevents failures that take days to fix.

Using MDF as a "cheaper plywood" for subfloor. MDF looks smooth and feels solid. But it absorbs water like a sponge, swells irreversibly, and has zero structural rating. Flooring manufacturers will not warranty tile or LVT installations on MDF substrates. For any floor finish that requires a rigid, stable substrate, plywood is the minimum specification.

Not checking sheets at the merchant. Budget Far Eastern hardwood plywood can have internal voids (air pockets in the core plies), thin face veneers that sand through instantly, and folded veneer strips that create surface bubbles. Pick up each sheet, sight along the edge for straightness, tap the face to listen for hollow spots, and check the edges for visible delamination or separation between plies. Reject any sheet that sounds hollow or shows edge gaps.

Ordering too few sheets. A 2440x1220mm sheet covers 2.97 m2, not 3 m2. That 1% sounds trivial but compounds across a 20-sheet order. Add 10% waste for a rectangular area, 15% for complex shapes. Running one sheet short mid-job means a separate trip, a separate delivery charge, and the risk that the replacement sheet is from a different batch with a slightly different thickness.
