OSB (Oriented Strand Board): The UK Builder's Guide to Grades, Uses, and Common Mistakes

Your builder says they need "sterling board" for the flat roof deck. You search online, find OSB sheets at three different prices, order the cheapest stack, and have them delivered. Two months later the roofer pulls back the EPDM membrane because there's a bulge. The boards have swelled at every joint. The problem: you ordered OSB2 (an interior-only grade that looks identical to OSB3) and nobody sealed the cut edges before the membrane went on. Stripping and re-decking a 20m2 flat roof means hundreds of pounds in wasted materials, plus labour. The right grade, a 2-3mm expansion gap, and sealed edges would have prevented it.

What it is and what it's for

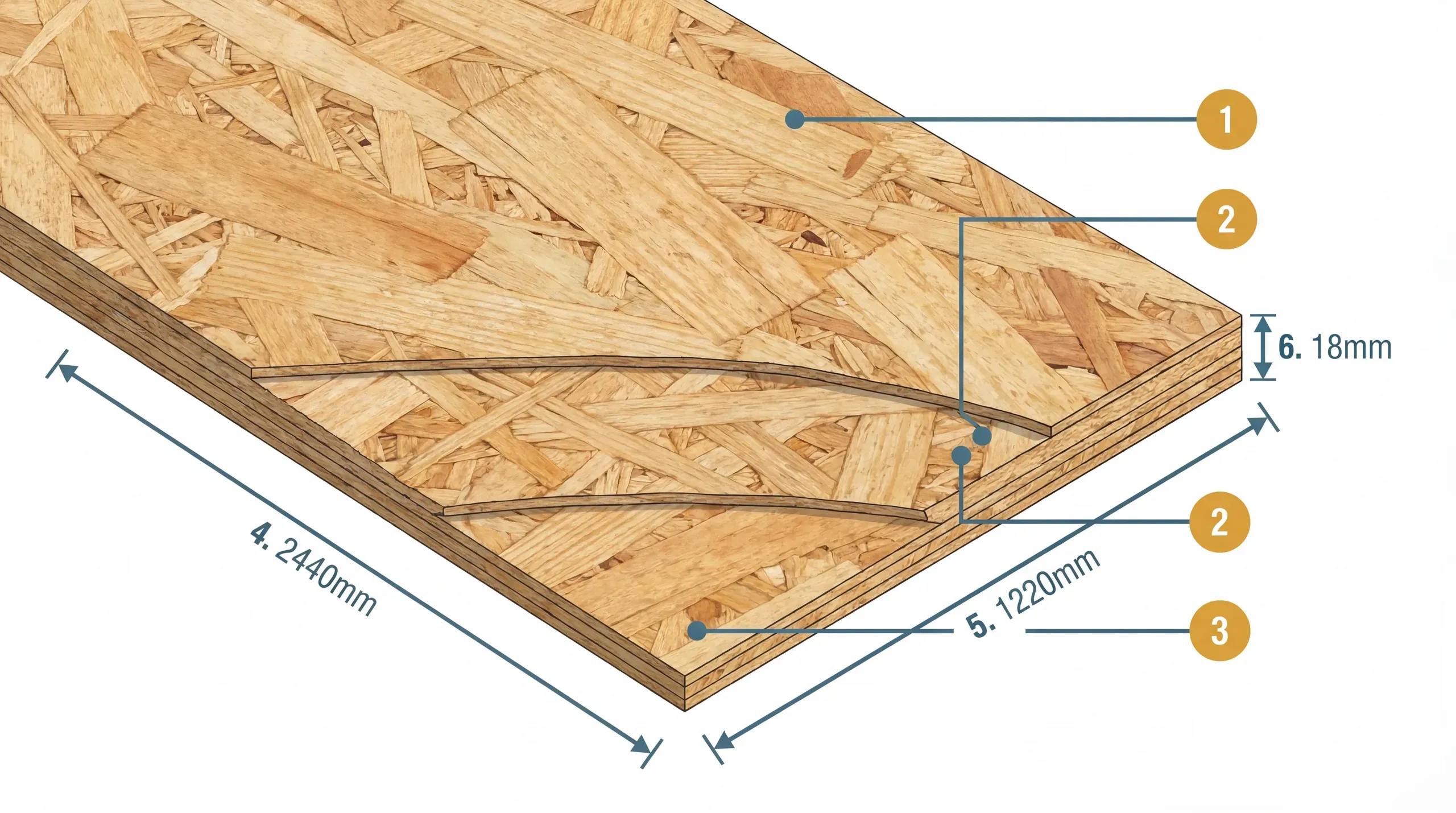

OSB stands for Oriented Strand Board. It's an engineered wood panel made by compressing large wood strands (thin flakes of timber, roughly 75-150mm long) with waterproof resin binders under heat and pressure. The strands are arranged in three layers: the outer layers run lengthways along the panel, and the middle layer runs crossways. This cross-directional layering gives OSB its structural strength, similar in principle to how plywood alternates grain direction, but using strands instead of veneers.

You'll see OSB called "sterling board" on site. That's actually a brand name (SterlingOSB, made by West Fraser at their factory in Inverness), but it's become the generic term in the UK, the way "Hoover" means vacuum cleaner. SmartPly (manufactured in Ireland) is the other major brand you'll encounter.

OSB serves three main roles on a domestic extension:

• Flat roof decking - the structural deck that sits on top of the roof joists, underneath the waterproof membrane (EPDM or GRP)
• Subfloor panels - boarding over floor joists before the finished floor goes down
• Wall sheathing - the board that fixes to the outside of timber frame wall panels to provide racking resistance (the ability to resist sideways forces from wind)

It's not a finishing material. The surface is rough and textured, covered in visible strand patterns. You won't see it in the finished building. It goes behind things, under things, or gets covered up.

Grades: this is where mistakes happen

OSB is classified under BS EN 300:2019 into four grades. Only one of them belongs on a building site.

OSB3 is the only grade acceptable for UK residential construction. NHBC Standards explicitly require OSB3 minimum for structural sheathing, roof decking, and floor panels. Your building inspector won't ask to see a grade certificate for OSB the way they check timber grade stamps, but if something fails and OSB2 is found, you have no comeback.

The problem is that OSB2 and OSB3 look the same. Same colour, same texture, same strand pattern. The difference is in the resin binder: OSB3 uses a moisture-resistant formulation that handles the humidity cycling of an unheated roof void or the damp conditions during construction. OSB2 does not. Check the stamp printed on each sheet. It will say "OSB/2" or "OSB/3" alongside the manufacturer and CE mark. If there's no stamp, don't use it.

Types, sizes, and specifications

Standard sheet sizes

The standard full sheet is 2440 x 1220mm (8ft x 4ft). This is the size you'll buy from any merchant. Some manufacturers also produce 2440 x 590mm tongue-and-groove flooring panels (more on T&G below).

Thicknesses

For domestic extension work, you'll encounter two thicknesses:

11mm - used for wall sheathing on timber frame panels. It provides racking resistance without adding unnecessary weight or thickness to the wall build-up. An 11mm sheet weighs approximately 21kg.

18mm - used for flat roof decking and subfloor panels. This is the minimum thickness NHBC accepts for flat roof decking at joist centres up to 600mm, per the SmartPly OSB3 BBA certificate. An 18mm sheet weighs approximately 30-35kg depending on manufacturer and density. That's a two-person lift when you're on a roof.

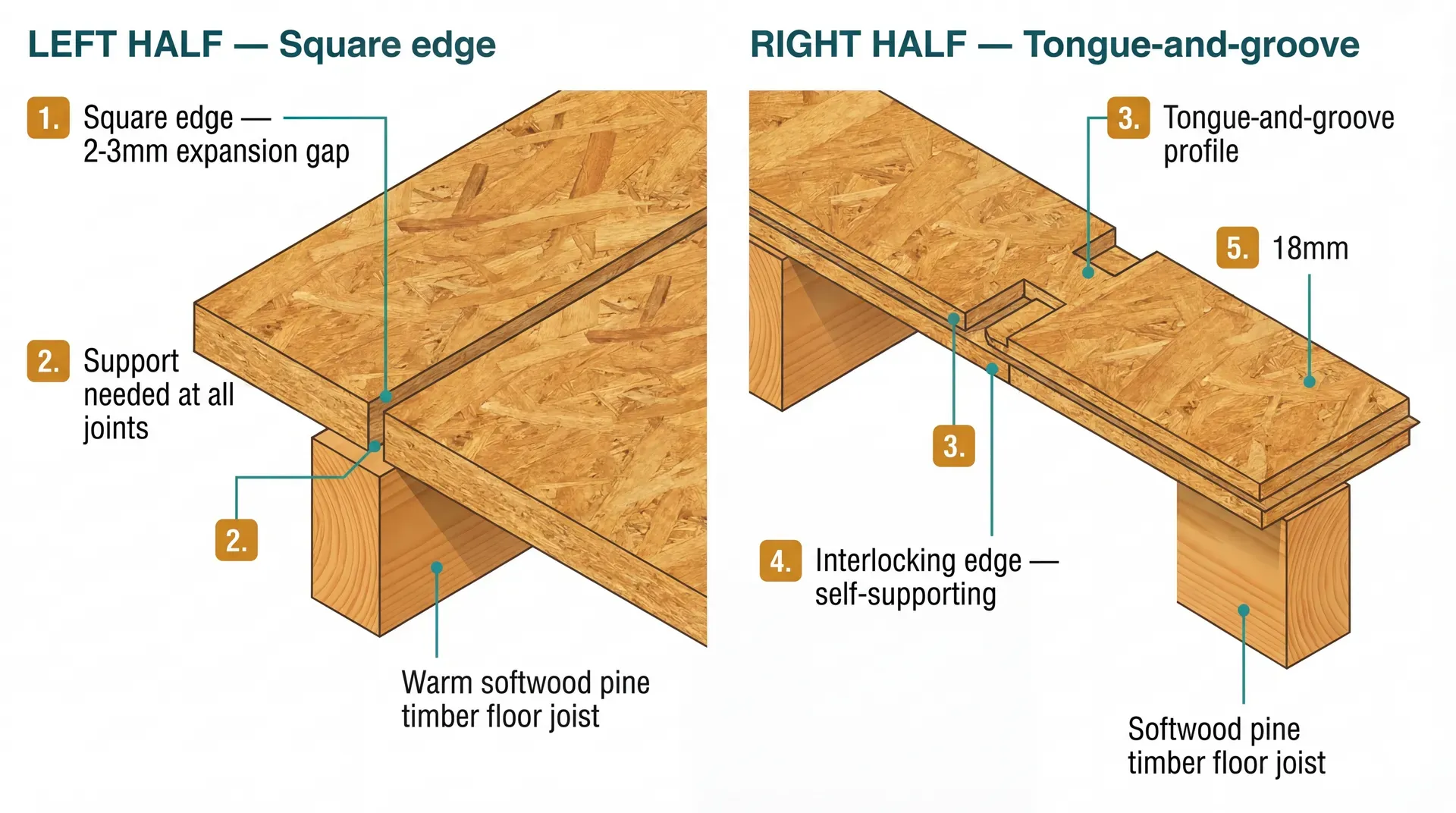

Square edge vs tongue-and-groove

Square edge sheets are flat on all four sides. They're what you'll use for wall sheathing and most roof decking. Joints between sheets need support underneath (a joist, a nogging, or blocking timber).

Tongue-and-groove (T&G) panels have a profiled edge on the long sides that slots together. These are specifically for flooring. The interlocking edge supports the joint between panels without needing blocking at every edge, and it reduces deflection (bounce) at the board joints when you walk across the floor. T&G panels are typically 590-625mm wide (not the standard 1220mm), so you need more of them to cover the same area.

Click to enlarge

For subfloor work, T&G is the better choice. It's faster to lay, it eliminates bounce at unsupported joints, and it creates a stiffer floor overall. Glue the tongue-and-groove joints with PVA adhesive and screw to the joists. Don't nail. Nails work loose over time and cause squeaking floors.

How to work with it

Cutting

A circular saw with a general-purpose blade cuts OSB cleanly. The resin content in OSB is higher than in natural timber, which dulls blades faster. Budget for replacing your blade more frequently if you're cutting a lot of sheets. A jigsaw works for curved cuts and notches around pipes, but the finish is rougher.

Always wear a dust mask when cutting OSB. The resin binders produce fine particles that are more irritating than sawdust from natural timber. Standard SterlingOSB Zero uses no added formaldehyde in its resin (the "Zero" in the name), but older or budget imports may use urea-formaldehyde binders. Either way, the dust is unpleasant.

Fixing

For floor and roof applications, fix with 50mm ring-shank nails or 4.0 x 50mm wood screws at 150mm centres along supported edges and 300mm centres in the field (the middle of the sheet over intermediate joists). Ring-shank nails grip better than smooth nails and resist pulling out, but screws are easier to remove if you ever need to lift a board for access to underfloor services.

For wall sheathing, the fixing specification comes from your timber frame designer. Typical spec is 3.1 x 75mm ring-shank nails at 150mm centres around the perimeter of each sheet and 300mm centres to intermediate studs.

The expansion gap rule

This is the single most important installation detail and the one most commonly missed.

OSB expands when it absorbs moisture from the air. Leave a 2-3mm gap between every sheet edge and end. No exceptions. Boards butted tight together will buckle when humidity rises, and on a flat roof that buckle shows through the membrane. On a floor it creates a ridge under your finished flooring.

Use a 2mm spacer (a nail shank works) between sheets as you lay them. The gap looks wrong when the boards go down. It isn't. It's doing its job.

Handling and storage

Stack sheets flat on a level surface, off the ground on bearers. Never lean them against a wall for extended periods as they'll bow permanently. Store under cover in dry, ventilated conditions. Let boards acclimate on site for 24-48 hours before fixing, particularly in cold or damp weather.

An 18mm sheet at 30-35kg needs two people to handle safely, especially on a roof. Plan for this.

Sealing cut edges

Factory edges have a degree of moisture resistance from the pressing process. When you cut a sheet, you expose raw strand ends that absorb water rapidly. On any external application (roof decking, wall sheathing), seal cut edges with a proprietary edge sealant like Protek ESP before installation. This is cheap insurance against edge swelling.

Why you cannot tile onto OSB

This deserves its own section because it's the mistake that causes the most expensive callbacks.

OSB moves. It expands and contracts with moisture changes at a rate that is incompatible with rigid tile adhesive. The bond between tile adhesive and OSB cannot flex enough to accommodate the movement, so either the adhesive cracks, the tiles debond, or both. Tile adhesive manufacturers do not approve their products for use directly on OSB. No industry standard exists for tiling directly onto OSB because controlled testing has consistently shown it fails.

The edge swelling problem makes it worse. When OSB gets damp (a bathroom floor, a kitchen splashback), the edges absorb moisture and swell permanently. Plywood swells too, but it shrinks back when it dries. OSB stays swollen. That permanent deformation under a tile means a cracked grout line, a loose tile, or a complete failure.

If your tiler says they can tile straight onto OSB with flexible adhesive, find a different tiler. Forum after forum is filled with failed tile installations on OSB. The consensus among professional tilers is unanimous: cement backer board is the only acceptable substrate over OSB.

How much do you need

Flat roof decking

Measure the roof area in square metres. Each standard sheet covers 2.98m2 (2.44m x 1.22m). Divide your roof area by 2.98, then add 10% for cuts and waste.

Worked example: A 20m2 flat roof extension needs 20 / 2.98 = 6.7 sheets. Add 10% waste: 7.4 sheets. Order 8 sheets of 18mm OSB3.

Subfloor (T&G panels)

T&G panels are narrower (typically 590mm effective width). Each panel covers approximately 1.44m2 (2.44m x 0.59m). For a 15m2 room: 15 / 1.44 = 10.4 panels. Add 10% waste: 11.5 panels. Order 12 panels.

Wall sheathing

Calculate the total external wall area in square metres, subtract window and door openings, divide by 2.98m2 per sheet, and add 15% for waste (wall sheathing generates more offcuts due to openings and corners).

Cost and where to buy

OSB3 is one of the cheaper structural sheet materials available, which is the main reason builders use so much of it.

11mm OSB3 (2440 x 1220mm)

At the budget end, Builder Depot sells sheets for around £13. Wickes charges £22for essentially the same product. That £9difference per sheet adds up fast when you're buying 20+ sheets for wall sheathing. Trade merchants (Travis Perkins, Jewson, Selco) sit somewhere between at £14 – £18 per sheet on a trade account.

18mm OSB3 (2440 x 1220mm)

The price jump from 11mm to 18mm is surprisingly small. An 18mm sheet from Builder Depot costs around £19from Wickes around £23. For the 8 sheets needed on a typical 20m2 flat roof deck, the total material cost is £150 – £200.

How OSB compares to plywood

An 18mm structural plywood sheet (CE2+ grade) costs £35 – £40, roughly 40-110% more than the equivalent OSB3 sheet. Over a 20m2 roof deck, that's an extra £80 – £170 in materials. OSB is the right choice unless you specifically need plywood's properties (smooth surface, better edge fastening, ability to accept tiles).

Where to buy

Builders' merchants (Travis Perkins, Jewson, Selco) offer the best prices on volume orders with a trade account. If you're buying 10+ sheets, call ahead and ask for a project price. Delivery is essential for large orders as sheets don't fit in a standard car.

Wickes and B&Q stock OSB3 for walk-in purchase. You'll pay more per sheet but there's no minimum order and you can pick up one or two boards in a van or roof rack.

Builder Depot (online) consistently offers the lowest per-sheet price but you'll pay delivery. For bulk orders the total cost including delivery often beats the high street.

Alternatives

Structural plywood

Plywood is smoother, stiffer across its width, more stable at its edges when wet, and you can tile onto it. It's the right choice when you need a smooth substrate (under vinyl flooring), when tiles are going on top, or when edge fastening needs to be strong (shelving, cabinet backs). It costs 40-110% more per sheet. For roof decking and wall sheathing where none of those factors apply, the extra cost buys you nothing.

P5 chipboard

P5 moisture-resistant chipboard is the industry standard for floor decking in most new-build houses. It's smoother than OSB, cheaper in T&G format, and readily available. It doesn't match OSB3's structural strength for heavy loads, and it's not suitable for roof decking or wall sheathing. For a straightforward domestic subfloor over joists at 400-600mm centres, P5 chipboard T&G is a perfectly good alternative to OSB3 T&G.

When each material wins

OSB3 is the right choice for flat roof decking, wall sheathing, and subfloors where the finish doesn't matter. Pick structural plywood where you need a smooth surface, tiles, or superior moisture performance. P5 chipboard wins on standard domestic floor decking where cost and smoothness matter more than outright strength.

Where you'll need this

• Roof Structure - OSB3 (18mm) as the structural deck for flat roof construction, laid over joists before the waterproof membrane
• Flooring - OSB3 T&G panels as subfloor over timber joists, particularly in timber-frame builds
• Insulation - OSB3 (11mm) as wall sheathing on the outside of timber frame panels, providing racking resistance

These applications appear across any extension or renovation project that involves flat roof construction, timber frame walls, or timber-suspended floors.

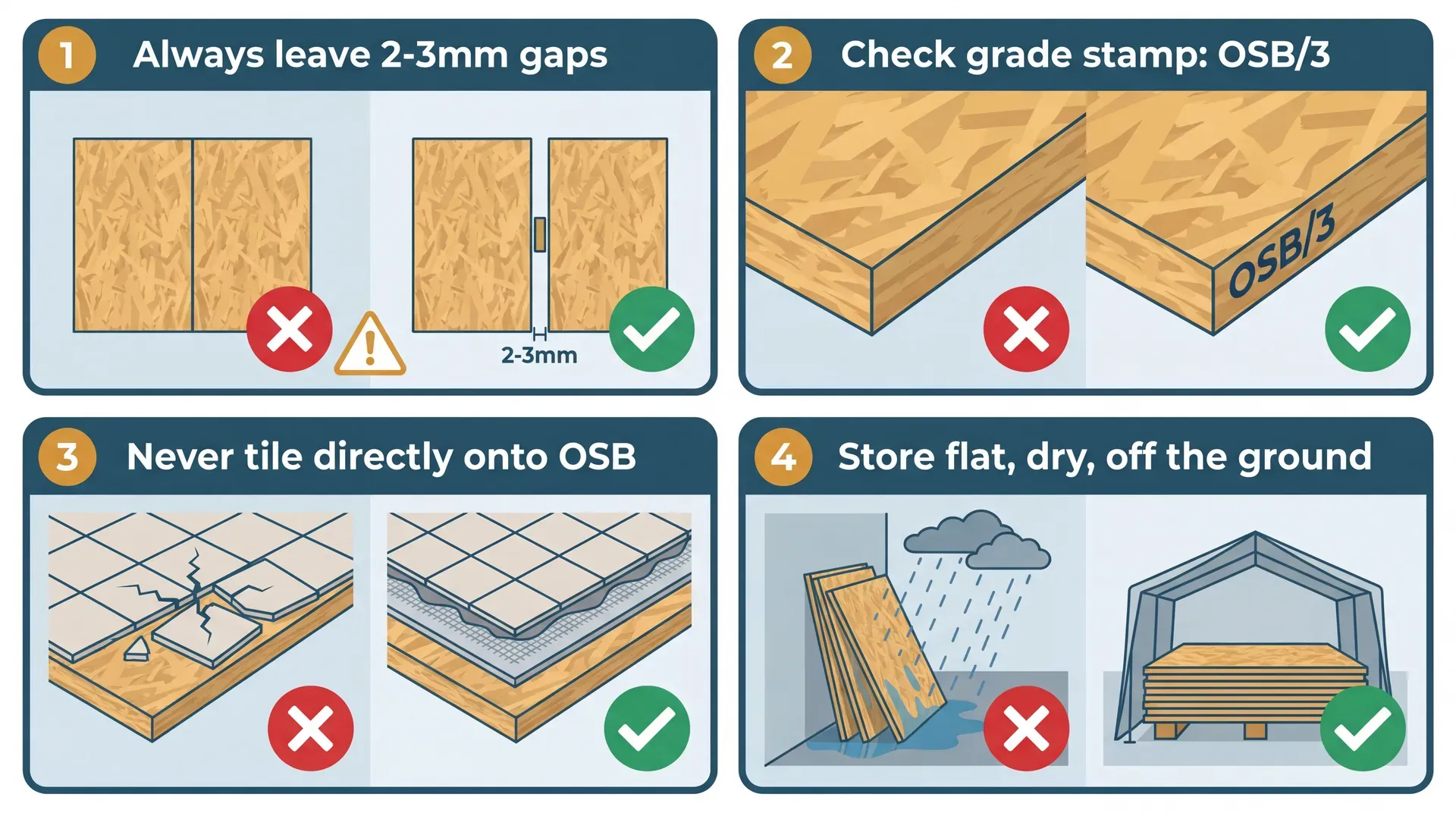

Common mistakes

Buying OSB2 instead of OSB3. They look identical. OSB2 is cheaper. It arrives on site, goes up, and nobody checks. Six months later the edges are swelling in the unheated roof void. Check the grade stamp on every sheet.

No expansion gaps. Tight-butted sheets buckle. Every time. Leave 2-3mm gaps at all edges and ends. Use spacers.

Tiling directly onto OSB. Covered in detail above. The fix (cement backer board) is a fraction of the cost of retiling an entire floor. The failure costs the entire tiled area.

Leaving boards exposed to rain. OSB3 handles humidity cycling, not standing water. If sheets get rained on during construction, let them dry completely before covering with membrane or flooring. Covering wet OSB traps moisture inside the build-up and causes rot.

Not sealing cut edges on roof decking. Factory edges have some protection. Cut edges have none. Seal them. A tin of edge sealant is inexpensive insurance that protects the most vulnerable part of every sheet.

Click to enlarge

Using MDF where OSB3 is needed. MDF is sometimes confused for a structural sheet material. It has no structural rating, absorbs moisture irreversibly, and cannot be used for roof decking, wall sheathing, or any load-bearing floor. OSB3 is the structural panel for those applications.
