End Grain Preservative: Why Every Cut on Treated Timber Has To Be Re-Sealed

Your roofer cuts thirty rafters on a Tuesday morning and the felt goes on by Friday. Nobody touches the rafter ends with a tin of preservative. Three winters later, condensation in the eaves wicks into the unsealed end grain. The bottom 50mm of every rafter starts to soften where it sits on the wall plate. By the time anyone notices, the cure is to strip the roof, lift the trusses, replace rotten feet, and refit. A £17 – £25 tin of preservative and an extra hour on site would have prevented every penny of it.

End grain preservative is the cheapest insurance on any extension build. It's also the step skipped on roughly half the sites in the UK, including by builders who genuinely know better. Building control inspectors check for it. LABC Warranty requires it. BS 8417 mandates it for any structural treated timber. And yet it remains the single most common quality defect in UK timber-frame and roof-structure work.

This page covers what the product is, why factory treatment alone isn't enough, which product to buy for which job, and exactly how to apply it so it actually works.

What it is and what it's for

End grain preservative is a brush-applied liquid wood preservative formulated specifically for re-sealing the cut faces of pressure-treated timber. The active ingredients in modern UK products are a combination of tebuconazole (a triazole fungicide), IPBC (another fungicide), and permethrin (a synthetic pyrethroid insecticide). These are the same biocides used in factory pressure treatment, just in a brush-on carrier rather than the industrial vacuum-pressure process.

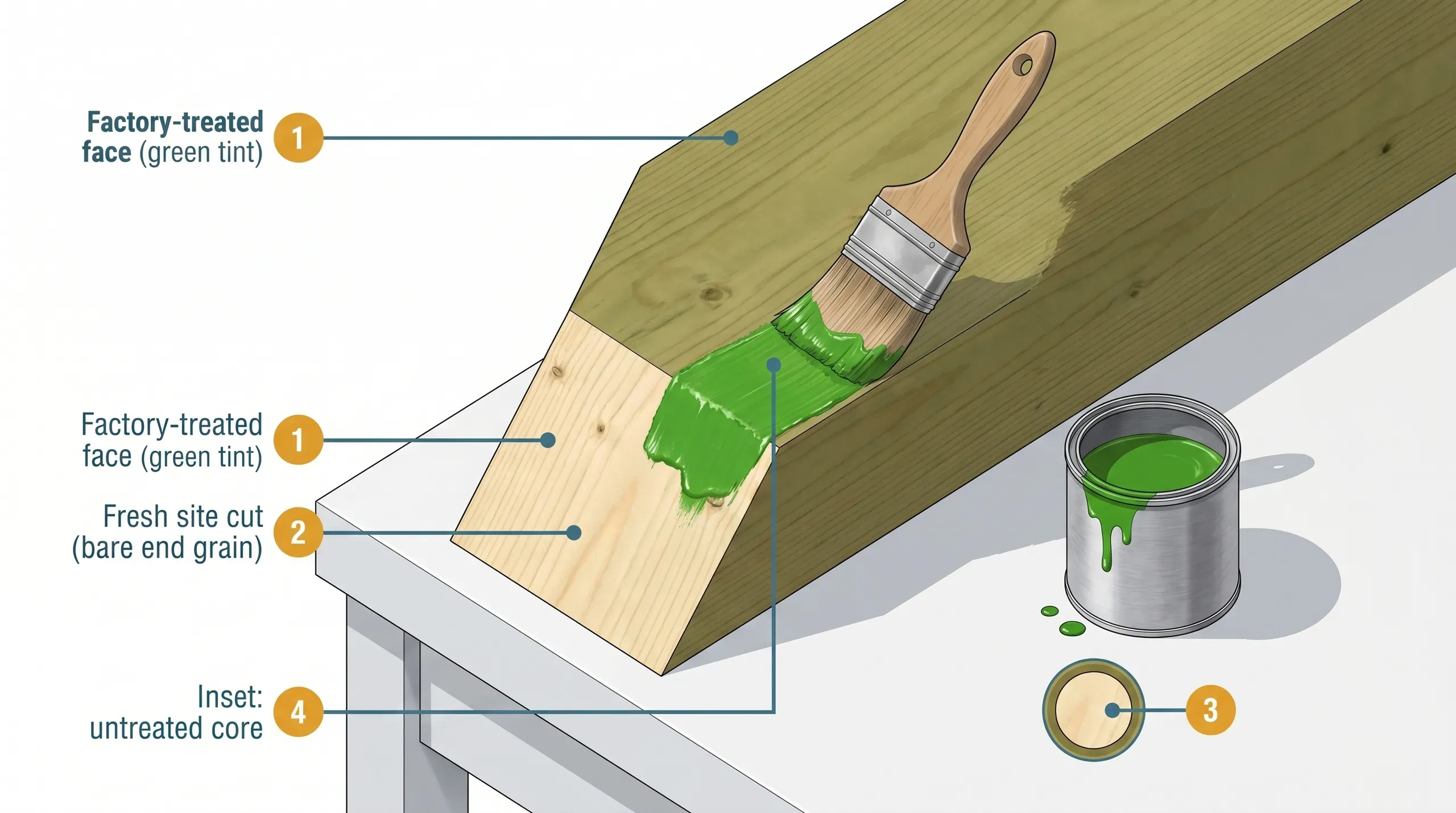

The reason you need a separate site-applied product is straightforward: factory pressure treatment doesn't go all the way through the timber. The vacuum-pressure-impregnation (VPI) process used at treatment plants forces preservative into the outer layers of the wood, but penetration depth varies by species, density, and section size. On a 47x150mm joist, treatment typically reaches 5-10mm from each face. The core of the timber stays untreated.

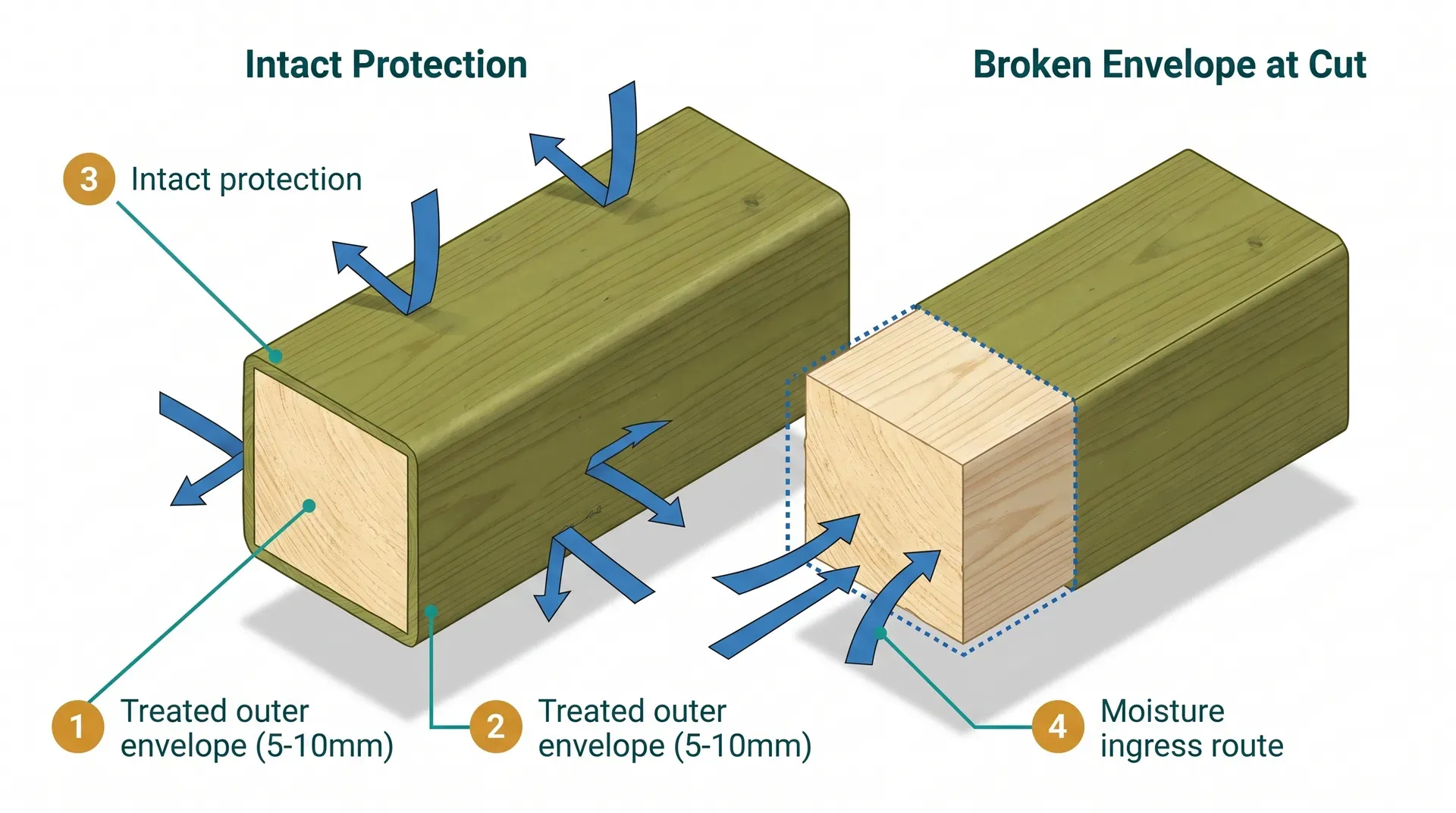

Cut a treated joist in half and you've just exposed two new faces of bare softwood at the worst possible orientation: end grain. End grain is the cross-cut surface where the wood's vessels (the longitudinal tubes that conducted water and sap when the tree was alive) are sliced open. Those vessels act like straws. End grain absorbs moisture roughly 10-15 times faster than face grain. Leave it untreated and you've created a direct route for water into the heart of the timber, exactly where the preservative envelope was meant to keep it out.

End grain preservative re-establishes that envelope across the cut face. Two liberal brush coats are the industry standard. Done correctly, the cut end is protected to the same level as the original factory-treated faces.

Click to enlarge

When you need it

The short rule: every site cut, drilled hole, notch, or rebate on pressure-treated structural timber needs end grain preservative. Every one. No exceptions for "it's only a small cut" or "it's tucked away inside the wall."

The longer answer maps to the BS 8417 use class system. Treatment requirements scale with the exposure the timber will see in service:

Approved Document A imposes an additional requirement in the designated House Longhorn Beetle zones (primarily Surrey and adjacent districts in southern England). All softwood roof timbers in those zones must be treated with insecticide, and any site cuts must be re-treated to maintain that protection. If you're building in Guildford, Woking, Reigate, or anywhere in the designated areas, this isn't optional and your building control officer will look for evidence of compliance.

The only situation where you might use a clear product is on visible interior joinery (exposed beams, decorative roof structures, oak window cills) where a green tint would clash with the finish. For everything that gets covered by plasterboard, felt, cladding, or decking surface boards, use green.

Why factory treatment alone isn't enough

This comes up on every UK building forum. There's always someone claiming pressure treatment "goes all the way through" and end grain re-treatment is paranoia. They're wrong, and the experienced contributors always correct them.

The reality of what happens at a treatment plant:

The timber goes into a sealed steel cylinder. A vacuum pulls air out of the wood cells. Liquid preservative is then flooded into the cylinder and pressure is applied (typically 12-14 bar). The pressure forces preservative through the outer cells of the wood. A second vacuum draws excess liquid back out. The preservative chemicals bond to the cell walls and stay put.

What it doesn't do is fully saturate the timber. The depth of penetration depends on species, density, and section. Pine and spruce (the standard UK softwoods for carcassing) take preservative reasonably well, but only at the outer layers. The denser the wood, the shallower the penetration. On a 75x100mm wall plate, you might see 8-12mm of penetration on an end grain face but only 3-5mm through a side face. The middle stays pale and untreated.

Industry sources, including the Wood Protection Association and Timber Development UK, confirm this directly. The phrase the industry uses is the "treatment envelope": a protected outer shell wrapping an untreated core. Cut through the envelope and you've broken the protection at that point.

There's also an obvious physical reason you can't rely on factory treatment for cut ends: factory treatment happens before the timber reaches the site. Anything done with a saw on site is, by definition, not factory treated.

Solvent-based vs water-based: which to buy

Modern UK end grain preservatives split into two camps based on the carrier liquid that delivers the biocides into the wood. Both work. They're suited to slightly different jobs.

Solvent-based products (Barrettine Cut End Preserver is the dominant brand) use white spirit or similar hydrocarbon solvents. They penetrate deeper into the end grain because the solvent thins the formulation enough to wick into the timber's vessels. Drying time is longer (typically 12 hours touch-dry, 6-12 hours between coats). The smell is strong; you'll need ventilation if working indoors. Brush cleanup needs white spirit. Coverage is around 5-6 m² per litre. These are the products of choice for structural timber in roof voids and external work where deeper penetration matters.

Water-based products (Protek ESP, Bird Brand Cut Guard, Ronseal Decking End Grain Protector) use water as the carrier. They have lower VOC content, less smell, faster drying (touch-dry in 90 minutes for some products), and brush cleanup is just water. Coverage is similar to solvent products at around 5-12 m² per litre depending on brand. They penetrate slightly less deeply than solvent-based products but two liberal coats achieve full surface protection. Better choice for in-situ application in roof spaces (won't damage existing felt or membranes), interior work where solvent fumes are a problem, and anywhere temperature dictates fast drying.

For a typical extension, one 1L tin of green Barrettine handles the wall plate cuts, rafter ends, and any noggin or strut cuts in the structure phase. If you're also doing external timber (fascia, cladding, decking), buy a second tin or step up to the 5L size. Don't run out mid-job - drying out an open tin overnight wastes most of what's left.

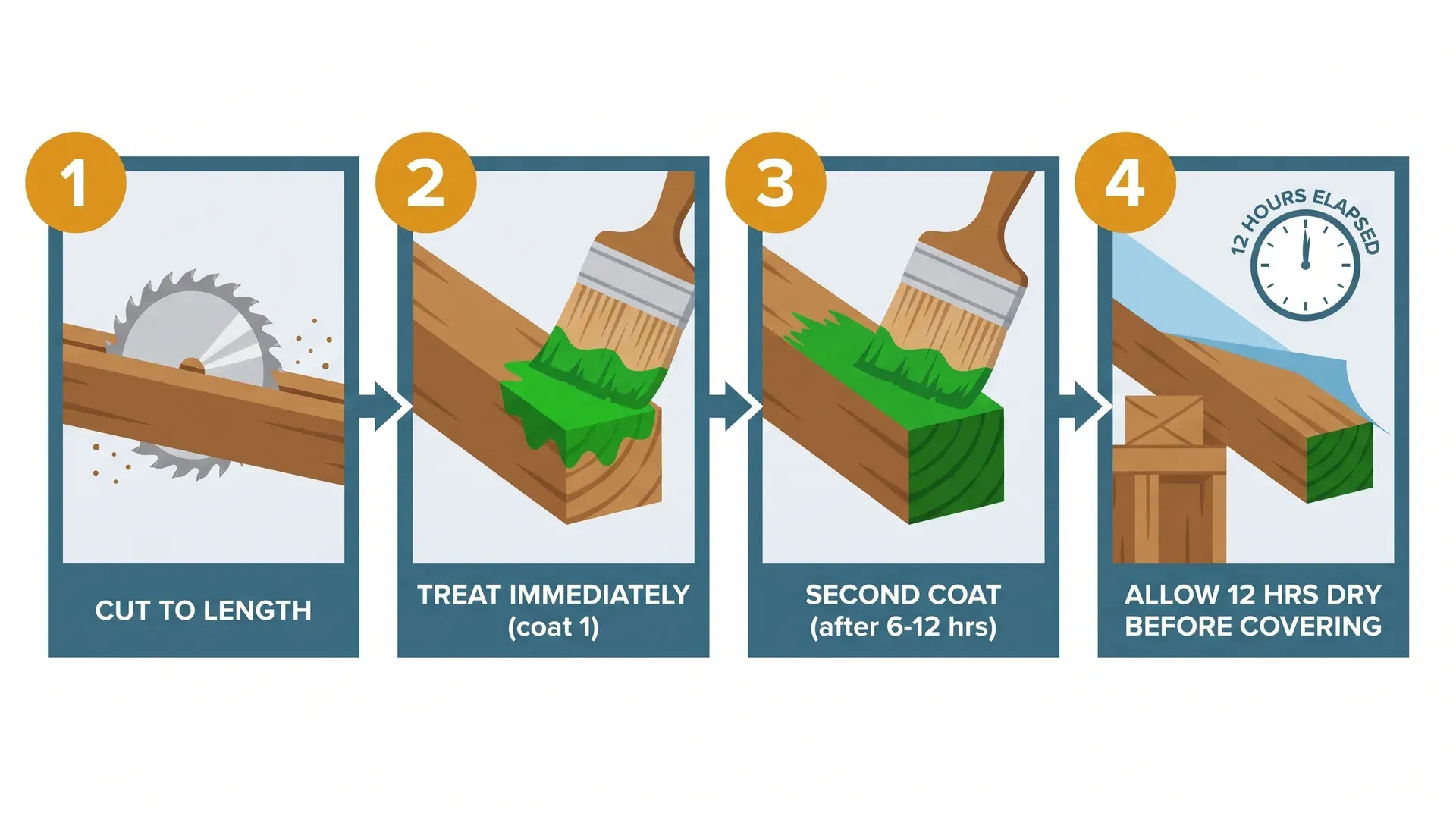

How to apply it

The application technique is simple, but the details matter. Get any of these wrong and the protection isn't there.

Apply immediately after cutting

The single most common mistake is batching cuts and treating them all at the end of the day. Don't. Wet weather, condensation, even ambient humidity can start moisture moving into bare end grain within hours. On a damp site, the timber is already wicking moisture by the time the brush arrives.

The professional approach: keep the tin and a 25mm brush at the cut station. As each piece is cut, the cut faces get treated before the timber moves to the fixing position. If the cut needs to happen in-situ (a rafter foot trimmed to fit a wall plate, a joist notched around a steel), treat in place with a small brush and let it dry before the timber gets covered.

Two coats minimum, three on dense timber

Industry guidance from the Wood Protection Association, TDCA, and every product manufacturer agrees on two liberal coats as the minimum. The first coat soaks into the open vessels and dries. The second coat builds the protective layer on the surface. On dense or particularly porous timber (oak heartwood, very thirsty pine), three coats are sometimes needed.

The test: keep applying until the wood "refuses to drink any more." If the second coat soaks in within seconds and leaves the surface looking dull, apply a third. The end grain is telling you it needs more.

Respect the temperature and humidity limits

Most UK products specify minimum 5°C application temperature and maximum 80% relative humidity. Below 5°C the carrier doesn't penetrate properly and the biocides don't bond. Above 80% humidity the surface stays wet and the product can wash off before it dries.

In practice on a UK site, this rules out treating exposed timber on rainy days, in fog, or during cold snaps in winter. If you're working in those conditions, treat indoors (cut and treat in a garage or outbuilding, then move outside to install) or schedule the cuts for better weather. Water-based products dry faster but are more sensitive to humidity. Solvent-based are slower but more tolerant.

Drying time before the timber gets covered

This is the other commonly skipped step. Solvent-based products need 12 hours minimum before being covered with felt, membranes, plasterboard, or anything that traps moisture. Water-based products typically allow 4 hours between coats and 4-6 hours before overcoating with stain or oil, but check the specific product's data sheet.

The reason is straightforward: a wet preservative film sealed under an impermeable membrane never dries properly. The biocides don't bond to the wood. The protection fails.

If you're cutting rafter ends on Friday afternoon and the felt goes on Saturday morning, that's fine for water-based products but tight for solvent-based. Plan accordingly.

Click to enlarge

Brush, dip, or spray

Brush is the standard method and what every product is formulated for. A 25mm or 50mm wide synthetic-bristle brush is right for cut ends. Don't use natural bristle for solvent-based products if you can avoid it; the solvent breaks down the bristles.

Dipping is a site-practical alternative for components that can be pre-treated before assembly. Stand the cut end of a fence post or rafter in a tray of preservative for 30-60 minutes. The end grain absorbs significantly more product than brush application achieves. Industry sources confirm this gives deeper penetration. Use a shallow tray (an old paint roller tray works) and refill from the tin as it empties.

A pump sprayer is useful for treating awkward in-situ cuts in roof spaces - rafter feet over wall plates, struts in tight tile-gable junctions, holes drilled through timber for cables or pipes. Water-based products spray cleanly through a garden plant sprayer; solvent-based products will damage the seals on most plant sprayers, so only spray solvent-based products if you're using a dedicated chemical sprayer.

PPE and clean-up

This is a biocide. Treat it as such.

Brush cleanup for solvent-based products: white spirit or proprietary brush cleaner. Don't pour spirit-contaminated solvent down a drain - dispose of it through your council's hazardous household waste system or a builders' merchant that takes back chemical waste.

Brush cleanup for water-based products: warm water and washing-up liquid. The brush rinses out completely if you do it within an hour of stopping work.

Empty tins of either type go in a builders' skip or to a household waste centre. Do not bury them, do not burn them, and do not put them in domestic recycling.

Where this fits in your build

End grain preservative shows up at three points on a typical extension build:

Roof structure is where most of it gets used. Every rafter cut to length, every birds-mouth notch over the wall plate, every drilled hole for collar tie bolts or rafter straps, every cut on a noggin or purlin - all need re-treatment before the felt and battens go on. A typical 30m² rear extension has 25-40 rafters and 10-15 noggins, which means 50-80 cuts to treat. One litre is borderline; two litres is comfortable.

Wall plates sit on blockwork at DPC level and are the highest-risk timber in the structure. Any cut to length, any notch for joist hangers, any holding-down bolt hole drilled through them needs sealing. Cuts here are particularly important because moisture can reach the timber from below (from the masonry) and from above (from condensation in the void).

External timber work - cladding battens, decking joists and bearers, fence posts, garden room base members - all need treatment at every cut. The 2024 BS 8417 update reclassified deck substructure timber from UC3 to UC4, which means these timbers face the highest exposure level and the cut-end re-treatment requirement is critical.

The one situation where end grain preservative is not enough on its own: any cut that will be buried in soil. Brush-applied preservative never penetrates as deep as factory treatment. Builders with experience in fencing know this - never bury a brush-treated cut end. If a fence post needs shortening, cut from the top and fit a post cap. If you must bury a cut, dip the cut end in preservative for an hour minimum, but accept that ground-contact failure at the cut is still a real risk.

Common mistakes

Skipping cut-end treatment entirely. The big one. Builders cut treated timber, fix it, and never touch it with preservative. The defect doesn't show for years. By the time it does, you're paying tens of thousands to put it right. If your builder is cutting treated timber on your site and the preservative tin isn't visible at the cut station, ask the question. It's a fair question to ask, and a competent builder will answer it correctly.

One coat instead of two. A single coat looks like it covers, but it doesn't build the protective layer that two coats achieve. The end grain has soaked up most of the first coat into the vessels; the surface barrier comes from the second. One coat is not compliant with manufacturer instructions or industry guidance.

Using a generic wood preserver instead of an end-grain-specific product. General wood preservers (Cuprinol 5 Star, Ronseal Total Wood Preserver) are formulated for surface treatment of intact timber. They don't have the penetration characteristics needed for end grain. Use a product specifically labelled "end grain" or "cut end" preservative. The packaging is clear about this.

Treating then covering before it dries. Sealing wet preservative under felt or plasterboard means it never bonds properly. The wood underneath is saturated but not protected. Wait the full drying time. If site programme is tight, use a water-based product with the faster drying schedule.

Burying brush-treated cut ends. A cut on a fence post or sleeper that's about to go into the ground needs more than two brush coats. Either dip the end (immerse for 30-60 minutes minimum) or re-orientate the work so the cut end stays above ground. Brush-applied protection isn't enough for ground contact.

Using clear preservative on structural cuts. It works chemically, but it's not visible. The LABC Warranty position is unambiguous: coloured product so the inspector can see it's been done. Save the clear product for visible joinery only.

Painting or staining over preservative before it's dry. Solvent-based preservative needs 24 hours minimum before any topcoat goes on. Water-based products need 4-6 hours. Apply paint or stain too soon and the topcoat won't bond, the preservative film lifts, and you'll be stripping it back. Check the specific product's data sheet for the recoat window.

Where you'll need this

End grain preservative comes out of the bag at multiple points on any extension or renovation project where treated timber gets cut on site:

• Roof structure - rafter ends, birds-mouth notches, collar tie holes, ridge and purlin cuts
• Walls and blockwork - wall plate cuts and notches at the masonry interface
• Garden and external works - fence posts, decking joists, cladding battens, and any treated timber cut on site for ground-near positions

Across all these contexts the rule is identical: every cut on pressure-treated timber gets two coats of end grain preservative, applied immediately, before the timber is fixed in position or covered. Build the habit into the cut-and-fix workflow. Keep the tin where the saws are. The whole job adds 30-60 seconds per cut and prevents the failure mode that ruins treated timber.
