Termination Bar: How EPDM Flat Roofs Are Sealed at Walls and Upstands

A flat roof leaks at the wall before it leaks anywhere else. Not in the middle of the membrane, not at the gutter, but where the rubber meets the upstand. Water tracks down the brickwork during driven rain, finds the gap above a poorly sealed termination, and runs straight inside the cavity. The homeowner sees a damp patch on the kitchen ceiling six months after the extension was signed off. The roofer blames the bricklayer. The bricklayer blames the roofer. Nobody mentions the aluminium strip that should have been screwed across the top of the membrane and sealed with the right mastic.

The termination bar is the small component that decides whether your EPDM flat roof keeps water out for 30 years or starts leaking after the first winter. This page covers what it is, why it matters, the two suppliers' length standards that confuse buyers, the one mastic mistake that causes most failures, and how to check your roofer has fitted it correctly before the scaffolding comes down.

What it is and what it's for

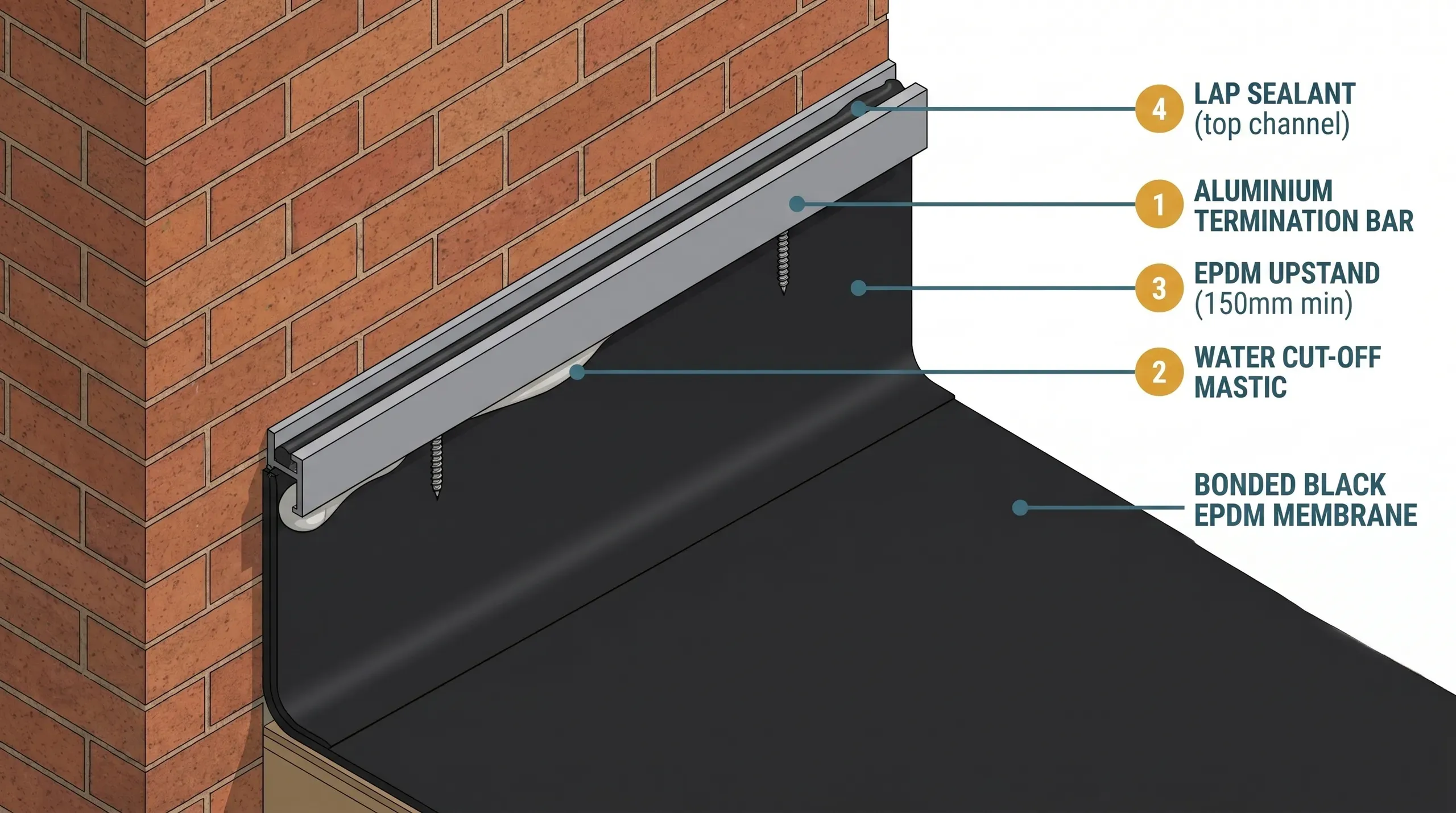

A termination bar is a pre-drilled aluminium strip, typically 25mm wide and 3mm thick, that mechanically clamps the top edge of an EPDM (or other single-ply) flat roof membrane against a vertical surface. It's screwed through the membrane into the wall behind, with a continuous bead of butyl-based mastic compressed underneath. The bar is the mechanical anchor. The mastic is the watertight seal. Both jobs matter, and one without the other is a future leak.

You'll find termination bars wherever an EPDM flat roof meets something vertical: a brick wall, a parapet, a dormer cheek, a chimney, a kerb around a rooflight. Anywhere the membrane has to turn upwards and stop, a termination bar (or an alternative detail) fixes that top edge in place so wind-uplift can't peel it away and rainwater can't track behind it.

This is the small detail that does more than it looks like it should. Without a termination, EPDM bonded to a wall with adhesive alone will eventually pull away, especially on exposed sites. The wind doesn't need to lift the entire membrane, just one corner of one upstand, and the failure starts cascading from there.

Why the wall detail is the weak point

EPDM membrane bonded flat to a horizontal deck is mechanically simple. Gravity holds it down. Wind suction across a flat surface produces relatively even forces that the adhesive bond easily handles.

A vertical upstand is a different problem. Wind moving across the roof creates a low-pressure zone at the top of the upstand. That suction pulls the membrane outwards, away from the wall. Adhesive alone can resist this, but only at full strength when fresh. After 10 years of thermal expansion cycles (EPDM moves with temperature, brickwork doesn't, much), the adhesive bond at the top edge of the upstand is the first thing to weaken. Once the top edge starts lifting, water gets behind, the adhesive degrades faster, and the failure spreads downwards.

The termination bar removes this failure mode by mechanically pinning the top edge in place. Even if every drop of adhesive on the upstand failed tomorrow, the bar holds the membrane against the wall.

Standard sizes and specifications

The UK domestic market has settled on a small number of standard products. The brief mentions "25mm or 30mm wide", but in practice 30mm bars are not stocked by any major UK retail supplier. 25mm wide × 3mm thick aluminium is the de facto UK standard. If you see 30mm referenced in a manufacturer specification document, it's a legacy spec from older systems and you'll struggle to source it domestically.

The variation that matters is length, and there are two competing standards depending on which EPDM system you're using.

The 3m ClassicBond bar at £17 – £21 is what a DIY EPDM kit will typically include. The 2.5m Firestone bar is the commercial-system equivalent. They do the same job. Don't try to mix them on the same roof, stick with whichever system your membrane brand specifies. Permaroof's "Batten Bar" is the same component under a different trade name, and is also available in 30m coil form for trade installers covering large parapet runs.

Why aluminium (and when stainless matters)

Aluminium is the standard because it's light, doesn't corrode in normal UK weather, and accepts powder coating or anodised finishes. The bars are typically supplied in mill finish (silver) or grey/black anodised to blend with the membrane.

Within 1-2km of the sea, salt-laden air will corrode aluminium over a 10 to 15 year horizon. Coastal extension projects should specify stainless steel termination bars and stainless fixings. This isn't a marketing upsell, it's a real failure mode. No major UK domestic EPDM kit supplier carries stainless as standard, so you'll need to source it from a specialist supplier or a marine fabricator.

What's pre-drilled and what isn't

ClassicBond 3m bars come with 21 holes drilled at 150mm centres, with 21 hex bolt fixings included in the pack. You drill the wall through the existing holes, plug, and screw.

Firestone 2.5m bars vary by retailer. Some include fixings, some don't. The TIS (technical information sheet) for the Firestone system specifies maximum 200mm fixing spacing, so a 2.5m bar needs at least 13 fixings to comply.

Always check the listing carefully. A bag of 33 hex bolt fixings (with black plastic caps to cover the screw heads on the visible top of the bar) costs £4 – £5 if you need to buy them separately.

How to work with it

The termination bar itself is one of the easier components on a flat roof to handle. It's light, it cuts with a hacksaw, and it doesn't need any specialist tools to install. The pitfalls are in the sequencing and the materials around it, not the bar itself.

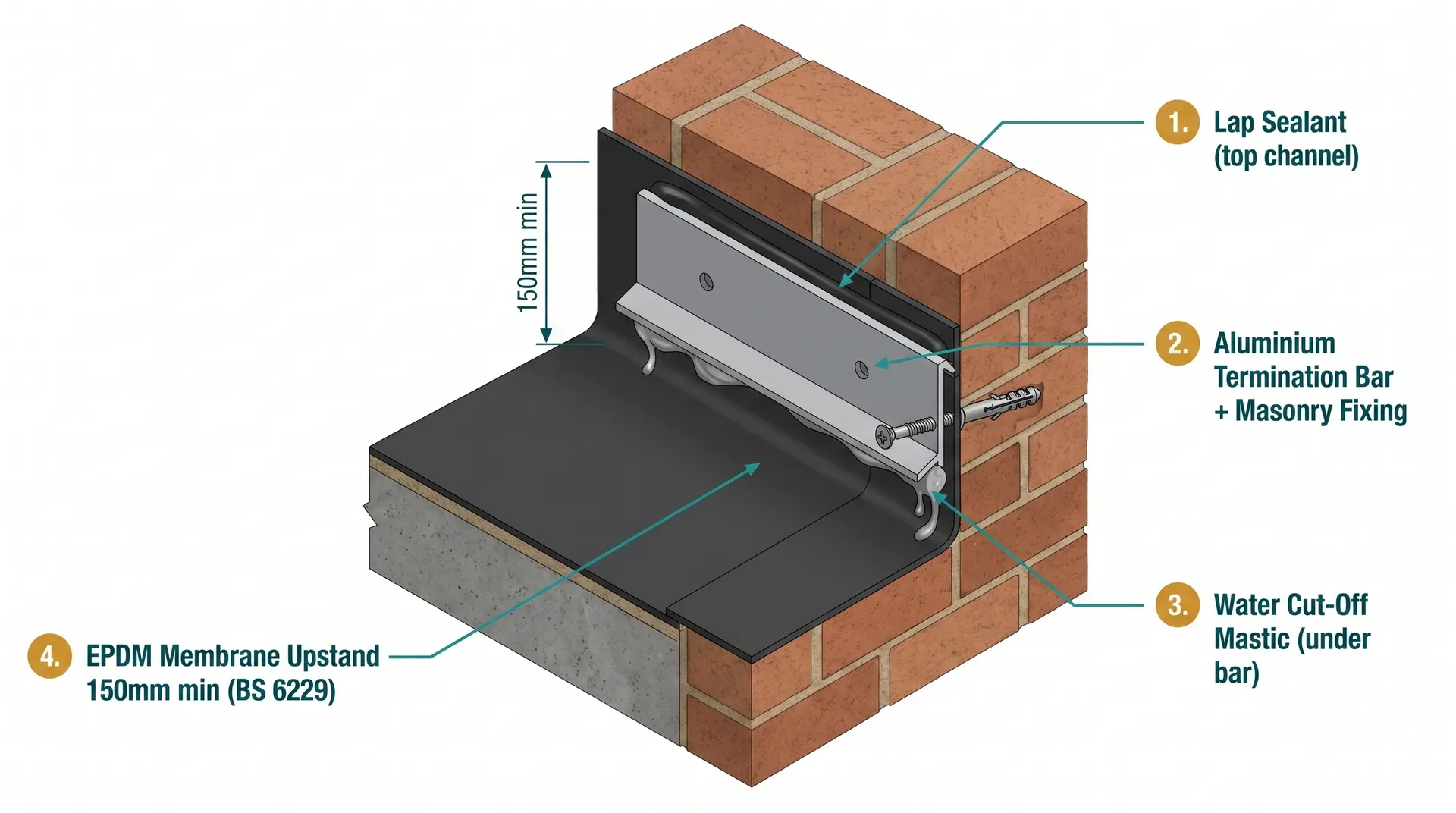

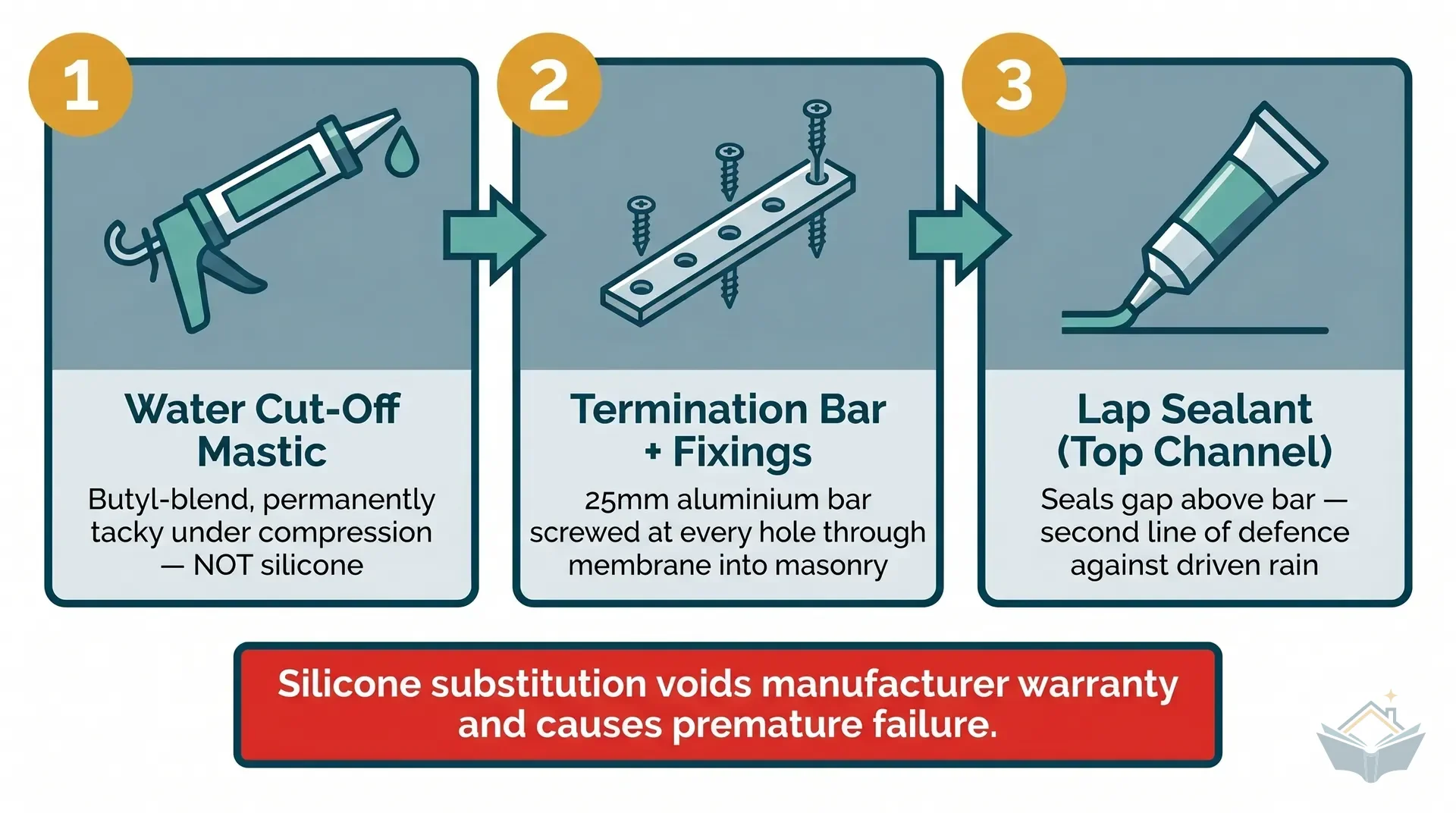

The three-layer principle

Every termination bar installation has three jobs to do in the right order:

1. Mastic below, a continuous bead of water cut-off mastic compressed under the bar, sealing the membrane to the substrate.
2. Mechanical clamp, the bar itself, screwed at every pre-drilled hole through the membrane and into the masonry behind.
3. Lap sealant above, a bead of EPDM lap sealant in the angled top channel of the bar, sealing the gap between the top edge of the bar and the wall surface above.

Skip any one of these and you've created a leak. The most common skip is the third, the lap sealant on top. The bar looks finished, the screws are in, the membrane is held in place, and the roofer moves on. Six months later, water tracks down the wall, finds the gap above the bar, and goes inside.

The mastic question (this is the one that catches people out)

The mastic underneath the bar is water cut-off mastic, a butyl-blend self-wetting polymer designed to stay permanently tacky under compression. It does not skin over. It does not dry hard. It stays gummy for the life of the roof so it can flex with thermal movement and re-seal after small disturbances.

It is not silicone. Do not substitute silicone.

This is the single biggest installation mistake in domestic EPDM work, and it's worth understanding why. Silicone sealant skins over within hours and forms a rigid surface seal. Compress a skinned silicone bead under a metal bar and you've got a gap behind the skin where the silicone never properly bonded to the substrate. Worse, silicone is not chemically compatible with EPDM rubber, it can cause the membrane to degrade at the contact point. Standard sanitary or general-purpose silicone is the wrong product for this application in every way.

A 300ml cartridge of water cut-off mastic costs £11 – £12 and covers about 3 linear metres. One cartridge per 3m bar is the right rule of thumb. It comes from the same suppliers as your membrane (Drainage Superstore, Roof Giant, Rubber4Roofs, Permaroof) and has names like "ClassicBond Water Cut-Off Mastic" or "Elevate Water Block Seal" depending on the brand.

The lap sealant on top

The bar has an angled channel along its top edge. After the bar is screwed in place, you run a bead of EPDM lap sealant along this channel to seal the gap between the top of the bar and the wall above. Lap sealant is a thinner, paint-like product (different from the water cut-off mastic) and comes in a 145ml or 300ml tube. One tube covers 6 to 9 metres of bar.

This is a cosmetic-looking step that does serious work. It's the seal that prevents water tracking down the wall above the bar from getting behind the membrane during driven rain.

Fixing into the right substrate

The bar must be fixed into solid material. Get this wrong and the bar pulls out of the wall the first time the membrane tries to lift.

• Brick or block masonry, drill, plug (6mm or 8mm rawlplug), then screw. This is the standard domestic situation and works reliably.
• Concrete, drill with a masonry bit, plug, screw. Same principle, harder drilling.
• Timber kerb or fascia, direct wood screw, no plug needed. Use stainless or coated screws to prevent corrosion staining the membrane.
• Render or plaster over masonry, drill THROUGH the render into the masonry behind. The plug must be embedded in the brick or block, not the render. Render alone has no holding strength and the bar will pull out.
• Mortar bed (the perp joint or bed joint between bricks), avoid. Mortar plugs hold less than brick plugs, and you risk cracking the mortar. Aim for the centre of brick faces wherever possible.

This last one is the second most common mistake after the mastic substitution. A roofer in a hurry drills wherever the bar's pre-drilled holes happen to land, and half the fixings end up in mortar joints. The bar feels secure when first installed but loosens within a few seasons of thermal movement.

Sequencing on a build

The termination bar goes on after the EPDM membrane is fully bonded and has been dressed up the upstand to its full height. The membrane should extend at least 25mm above the eventual top edge of the bar so there's enough material to clamp.

The bar goes on before any cover flashing (lead, aluminium, or capping stone) is fitted above. If a parapet coping is being bedded in mortar at the top of the wall, the cavity tray and the EPDM upstand must both terminate cleanly before the coping goes on.

If you're inspecting an extension build, the right time to photograph the termination detail is the day after the membrane and bar are in but before the lead flashing or coping covers it up. After that, you're trusting it.

Joining bars at corners and long runs

Termination bars come in straight lengths. They don't bend cleanly around an external corner, the aluminium kinks. Cut two separate bars to butt at the corner, leaving a maximum 10mm gap between them. Fill the gap with mastic and seal it over with lap sealant.

For long parapet runs, butt bars end-to-end with a 5 to 10mm expansion gap (aluminium expands about 1mm per metre per 40°C swing, which matters on a south-facing wall). Don't try to install bars tight to each other, they'll buckle in summer.

How much do you need

Calculation is straightforward. Add up the total linear metres of upstand on your roof, every wall edge, every parapet, every kerb where the membrane terminates against a vertical surface. Divide by your bar length (3m or 2.5m) and round up.

Worked example for a typical kitchen extension flat roof:

• Rear elevation against the existing house: 6m run.
• Two side returns where the new wall meets the existing house: 1.5m + 1.5m = 3m.
• One rooflight kerb: 4 sides × 1.2m = 4.8m.

Total upstand length: 13.8m.

At 3m bars: 13.8 ÷ 3 = 4.6, round up to 5 bars.

At 2.5m bars: 13.8 ÷ 2.5 = 5.52, round up to 6 bars.

Then add the consumables. One 300ml cartridge of water cut-off mastic per 3m of run, so 5 cartridges. One 300ml tube of lap sealant per 6m of run, so 3 tubes. A bag of 33 fixings is enough for 5 bars if your bars don't include fixings.

Total materials cost (worked example)

For the 13.8m run above, using 3m ClassicBond bars with included fixings:

• 5 bars at £17 – £21 each.
• 5 cartridges of water cut-off mastic at £11 – £12 each.
• 3 tubes of lap sealant (see suppliers below).
• Rawlplugs and screws for masonry fixings (~70 fixings needed).

Total materials for 13.8m of upstand termination: see £8 – £12 per linear metre as a guide.

That works out to about £8 – £12 per linear metre installed (DIY materials only, no labour). Worth knowing when you see a roofer's quote that breaks out termination as a line item.

Building regulations and standards

The termination bar isn't named in any regulation by itself, but it sits inside two requirements you absolutely need to know about.

BS 6229:2018 is the British Standard for flat roofs, terraces and balconies. It requires a minimum 150mm upstand height at all wall abutments, measured from the finished roof surface (or from the protective layer in a green or inverted roof). The termination bar must be positioned at or above the top of this 150mm upstand. If the bar is fitted lower than 150mm above the deck, the upstand is non-compliant regardless of how well the bar itself is installed.

NHBC Standards Chapter 7.1 aligns with BS 6229 on the 150mm rule. The only exception is at door thresholds, where 75mm is permitted under specific conditions (overhanging sill of at least 45mm, fall away from the threshold, adequate overflow). NHBC inspectors will check upstand height visually at site inspection.

SPRA Design Guide (Single Ply Roofing Association) is referenced by NHBC as the authority for single-ply membrane installation. SPRA-compliant installation is what every major manufacturer's training course teaches.

If your extension is on a new-build plot or under any form of structural warranty (NHBC, LABC, Premier, etc.), the inspector will want to see the upstand height and the termination detail. A photograph during installation is your evidence if anything is questioned later.

Cost and where to buy

The bar itself is cheap. The cost concentration is in the consumables (mastic and sealant) and, if you're paying a roofer, the labour to fit it correctly.

Materials

3m bars with fixings: £17 – £21 ex VAT from Rubber4Roofs, Roof Giant, JJ Roofing Supplies, and the various rubber roofing direct sellers. The price is remarkably consistent across UK suppliers. Don't shop around hard for this, order it with your membrane kit.

2.5m bars (Firestone/ELEVATE spec): £11 – £18 ex VAT. Wider price range because some suppliers include fixings, some don't, and some bundle with brand-specific accessories.

Water cut-off mastic: £11 – £12 per 300ml cartridge, available from the same suppliers as the bars. Don't buy this from a general builders' merchant, they'll sell you a generic mastic that isn't water cut-off mastic.

Lap sealant: Available from the same specialist EPDM suppliers. See product listings for current per-tube pricing.

Fixings: Bars usually include them. Spare bag of ~33 hex bolts costs £4 – £5.

Where to buy

Specialist EPDM suppliers are the right channel. Rubber4Roofs, Roof Giant, Drainage Superstore (which sells the ClassicBond and Firestone product lines), JJ Roofing Supplies, and Permaroof all stock complete termination accessories, bars, mastic, sealant, fixings, and will help you spec the right combination for your membrane brand.

Roofing merchants like SIG and Roofing Megastore stock the standard products but at slightly higher prices than the specialists.

General builders' merchants (Travis Perkins, Jewson, Wickes, Screwfix, Toolstation) carry limited or no stock of EPDM-specific termination accessories. You'll often find aluminium edge trims that look like termination bars but aren't pre-drilled or designed for compression sealing. Don't substitute.

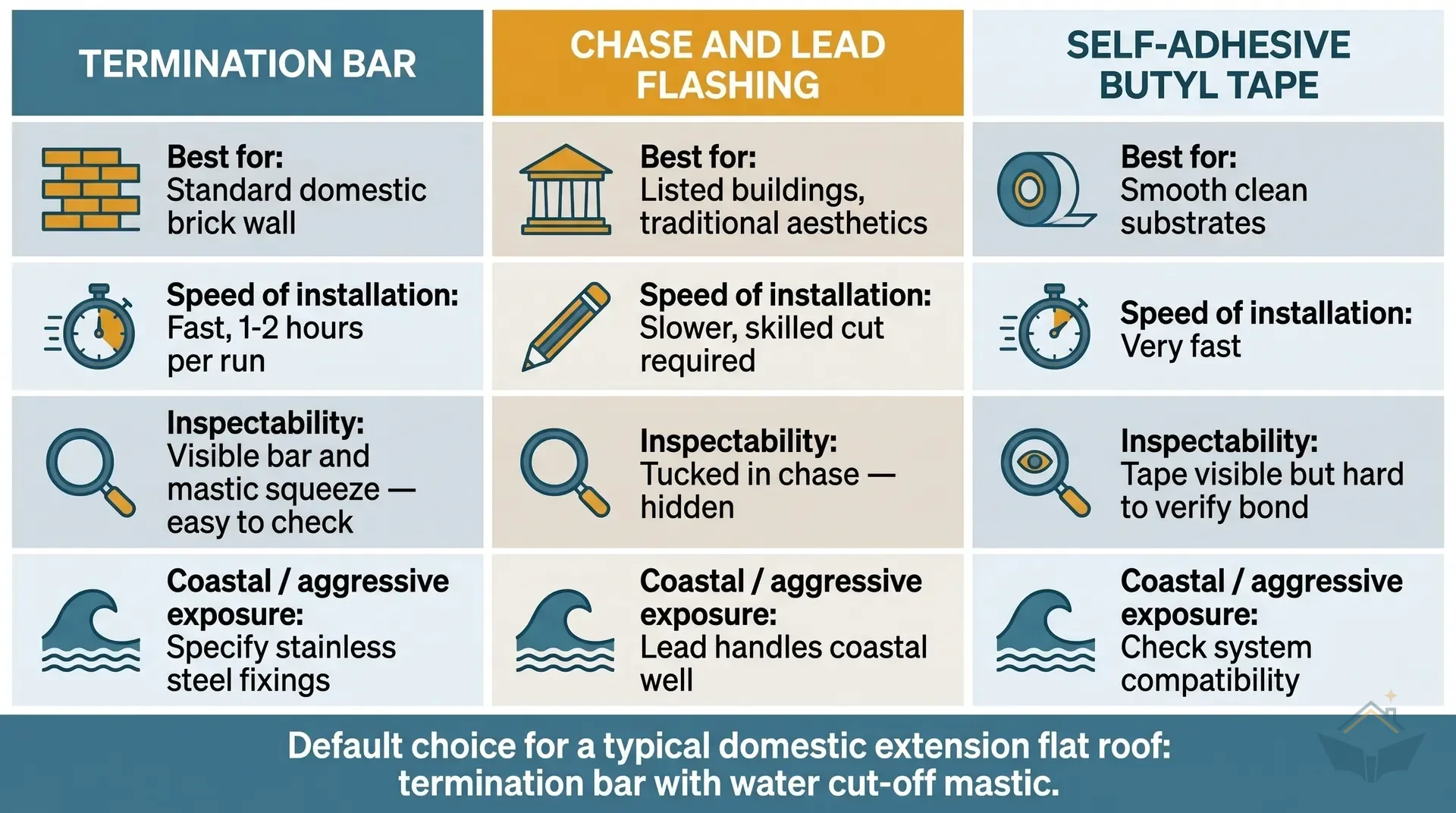

Alternatives

The termination bar is the standard mechanical termination for single-ply membranes, but it isn't the only way to finish an EPDM upstand. Each alternative has a place.

Chase and lead flashing is the traditional method. A horizontal slot ("chase") is cut into the masonry above the upstand using an angle grinder, lead sheet is dressed down over the EPDM, the top edge of the lead is tucked into the chase, and the chase is pointed up with mortar or sealant. This works well on listed buildings or where lead is the appropriate aesthetic, and it's repairable indefinitely. It's slower, more skilled, and relies on the chase being cut cleanly, uneven natural stone makes this difficult, and a poorly cut chase will leak as moisture creeps down the stone face.

Cover flashing over a termination bar combines both methods. The bar terminates the membrane mechanically, then a separate lead, aluminium, or factory-made cover flashing is dressed over the bar to give a more traditional finish. This is the belt-and-braces approach and is common on exposed coastal or upland sites.

FormFlash / self-adhesive butyl flashing tape is the Permaroof / ELEVATE / Firestone approach for some details. A self-adhesive butyl tape is bonded directly to the membrane and the wall, with no separate bar. It's quick and strong on smooth substrates, but it's system-specific (only works with that manufacturer's compatible tape) and less forgiving on rough or dusty masonry.

EPDM sandwiched under coping or capping is used at parapet walls where the membrane is taken up and over the parapet, then trapped under the coping stones or metal capping bedded in mortar. This eliminates the wall-face termination entirely. It's the right detail at parapets but doesn't help at intermediate walls or rooflight kerbs.

For a typical extension flat roof terminating against an existing wall, the termination bar with water cut-off mastic and lap sealant is the right default. It's reliable, fast, and inspectable.

Where you'll need this

• Roof covering - the termination bar is fitted as part of the EPDM flat roof installation, sealing the membrane against any vertical upstand on the new roof

These termination details apply across all extension and renovation projects involving a flat roof: single-storey rear extensions, side returns, dormer cheeks, garage roofs, porch roofs, and rooflight kerbs. The same product and the same installation method apply whether the membrane is EPDM, TPO, or PVC single-ply.

Common mistakes

Using silicone instead of water cut-off mastic. This is the single biggest cause of premature failure. Silicone skins, doesn't bond properly under compression, and is chemically incompatible with EPDM. Always use the manufacturer-supplied butyl water cut-off mastic.

Skipping the lap sealant in the top channel. The bar is mechanical, the lap sealant is the second seal that stops water tracking behind the membrane above the bar. A finished installation looks "done" without it, but it'll leak in driven rain.

Fixings into mortar joints or render. The plug needs to be embedded in solid brick, block, or concrete. Mortar bed plugs and render-only plugs both pull out within a few seasons of thermal cycling.

Bar fitted below the 150mm upstand minimum. BS 6229 and NHBC both require 150mm above finished roof level. A bar fitted lower might pass cosmetic inspection but creates a non-compliant detail that any structural warranty inspector or future surveyor will flag.

Bending the bar around an external corner. Aluminium kinks. Use two separate bars butting at the corner with a small mastic-filled gap between them, then seal across the joint with lap sealant.

Bar runs perpendicular to the roof fall. If the bar runs across the slope of the roof rather than parallel to it, the bar itself becomes a small dam (about 6-10mm tall once mastic is compressed). Water ponds against the upstand. Always run termination bars parallel to the fall, never across it.

Membrane not allowed to relax before fitting the bar. EPDM has memory from being rolled. Bonding it to a wall while it's still trying to curl, then locking it in with the bar, traps stress in the membrane. The membrane will pull at the bar over time and may eventually shrink away from it. Let the membrane relax for at least 30 minutes before bonding to the upstand.
