EPDM Seam Tape: When You Need It, How to Use It, What to Buy

A roofer comes back to fix a leak two summers after your extension is finished. They lift the corner of the EPDM and the seam tape peels off in their hand, dry as paper, never properly bonded. The deck underneath is rotten in a metre-wide strip. Replacement cost: several thousand pounds plus internal damage. The original installer skipped the primer, applied the tape on a damp membrane, or used the wrong brand of tape with someone else's adhesive. Seam tape is the single most failure-prone component of an EPDM flat roof, and almost every failure traces back to one of three preparation mistakes. This page covers when you actually need seam tape (most extension roofs don't), what the products are, how to apply them so they last, and what to buy.

What it is and what it's for

EPDM seam tape is a self-adhesive butyl-rubber strip that joins two pieces of EPDM membrane into a single watertight surface. The tape itself is grey or black, typically 0.7mm thick, with a peel-off paper backing. You buy it in 30-metre rolls or by the linear metre, in two main widths: 75mm (3-inch) splice tape and 150mm (6-inch) cover strip tape.

The bond is not a simple stick. EPDM rubber is naturally inert, which is what makes it durable as a roof covering, but inert surfaces don't bond to anything. The tape's adhesive cannot grip the raw rubber. So every seam tape installation has a mandatory step before the tape goes on: a solvent-based primer is brushed onto both membrane surfaces, allowed to flash off (evaporate to a touch-dry haze), and then the tape is applied into the primed zone. The primer chemically activates the rubber surface so the tape's butyl adhesive can form a molecular bond. Without primer the tape grips the membrane like a sticker on a non-stick pan.

Seam tape is part of a system. ClassicBond tape, ClassicBond primer, ClassicBond membrane. Firestone QuickSeam tape, Firestone QuickPrime Plus, Firestone RubberCover. You don't mix them. Manufacturers test their adhesives, primers, and membranes together for compatibility and warranty. Cross-brand combinations may physically work but they invalidate the manufacturer warranty and put you on your own if anything fails. More on that further down.

The good news for most homeowners: if your extension flat roof is a simple rectangle under about 50m2, you probably don't need seam tape at all. EPDM rolls come in single sheets up to 15.25m wide and 30.5m long, which covers up to 466m2 in one piece. Most extension roofs sit comfortably inside a single sheet, and a single sheet has no seams to fail.

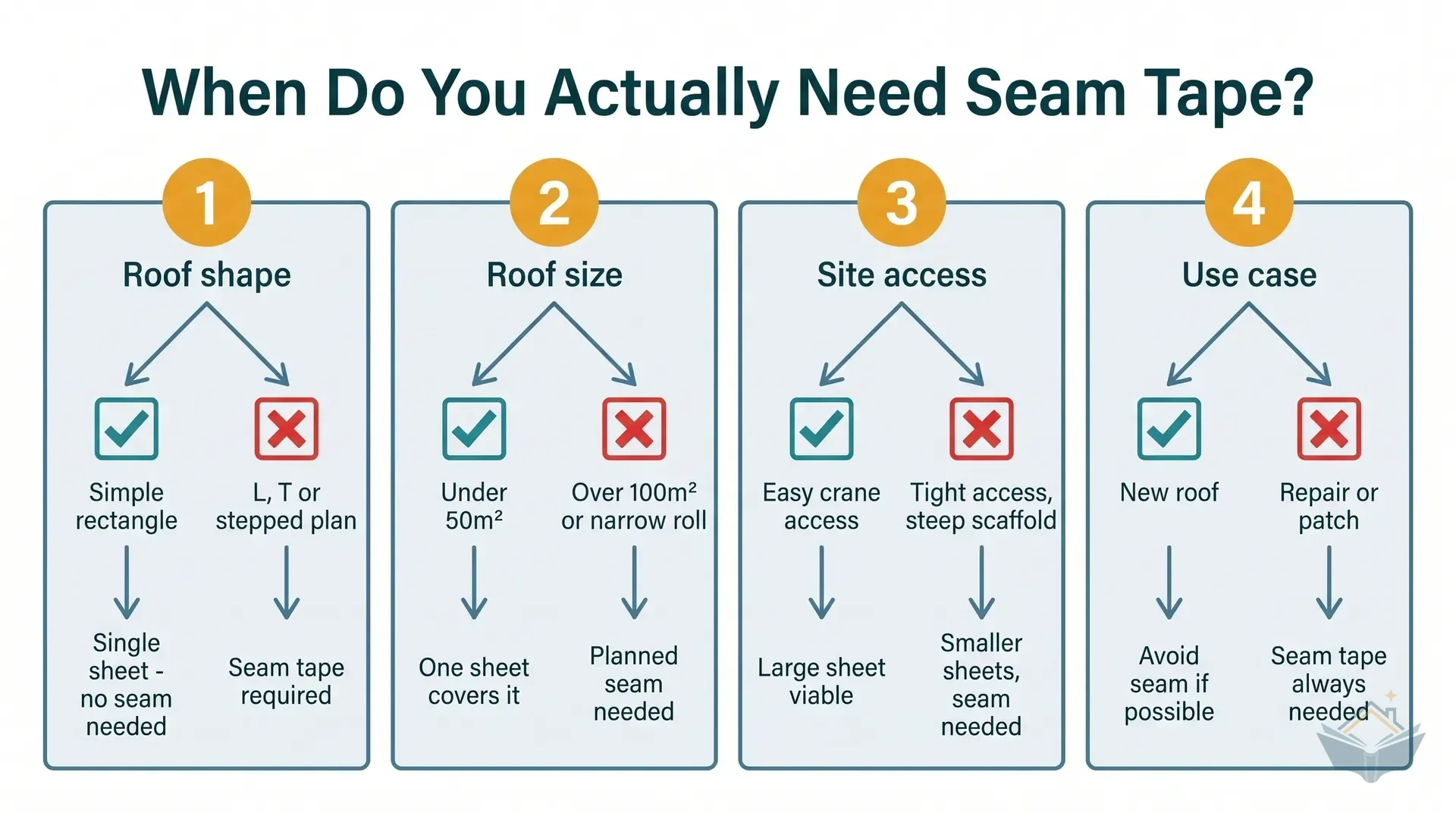

When you actually need seam tape

The brief for this page started with an outdated rule of thumb: "roofs over 30m2 need seam tape." That's wrong. ClassicBond 1.2mm membrane comes in sheets up to 15.25m by 30.5m. Firestone RubberCover and SkyGuard offer similar large-format sheets. A 30m2 roof fits in a single sheet with several metres to spare. The real triggers for needing a seamed installation are roof shape, roof scale, and logistics, not raw area.

You will need seam tape if any of the following apply:

• L-shaped, T-shaped, or stepped roofs. A non-rectangular plan needs the membrane cut to fit, which means joining two or more pieces around the corner. Typical kitchen extensions wrapping around an existing kitchen window or chimney often have this geometry.
• Long, narrow roofs over 15m in any direction. ClassicBond's 1.5mm membrane caps at 15.25m by 15.25m. A garage flat roof along the side of a house can exceed this.
• Very large roofs (over about 100m2). Reinforced systems like Resitrix and ClassicBond Pro come in narrower rolls (1m and 1.52m respectively) designed for side-by-side installation with planned seams. These are contractor-only systems used on commercial projects and large self-builds.
• Practical handling constraints. A single 8m by 6m sheet of EPDM weighs around 90kg and needs four people to position. On a tight site with no crane access, a builder might choose to install two smaller sheets with a planned seam rather than wrestle one large sheet up onto the roof.
• Repairs and patches. Existing EPDM roofs that develop tears, blisters, or punctures are repaired with seam tape patches over the damaged area.
• Pipe boots, T-joints, internal corners. Anywhere the membrane meets a 3D detail (soil pipe, vent, parapet corner), the joint between the field membrane and the moulded detail piece is sealed with seam tape or a flashing patch.

If your extension is a straightforward rectangle, ask your supplier (Rubber4Roofs, RoofGiant, PermaRoof) to cut a single sheet to your dimensions plus 300mm overhang on each edge. No seams, no failure points, no seam tape needed at all.

Types, sizes, and specifications

Three product types share the "seam tape" label, and they are not interchangeable. Buying the wrong one is one of the most common DIY errors on EPDM jobs.

The difference between cured and uncured matters. Cured tape (3" splice and 6" cover strip) is the same chemistry as the membrane: rigid, stable, designed for flat seams that don't need to flex around corners. Uncured tape is the soft, mouldable rubber used for 3D details where the tape has to wrap around a pipe or fold into an internal corner. Buying uncured flashing tape and using it as a flat field seam will cause sagging and eventual failure. Buying cured splice tape and trying to mould it around a pipe boot will leave gaps. Read the product description carefully before ordering.

Roll formats and pricing

Rolls come in two standard lengths, 30m and 30.5m (the 0.5m difference is metric-vs-imperial rounding from US-origin products). Buying by the roll gives the lowest cost per metre, but only if you can use most of the roll. For short seams under about 5 linear metres, buying cut-length per-metre stock from Rubber4Roofs or Roofin is cheaper than a full roll.

The price spread on the 75mm tape is striking. ClassicBond and Firestone branded rolls run around £150 – £154 and £115 – £120 respectively. Generic own-brand tapes from suppliers like RubberFlatRoof (Plytech-branded) sell at £25 – £30 for the same length and width. The cheap stuff bonds physically the same as the branded equivalent in our research, but using it with a branded membrane voids the manufacturer warranty. For a small repair on an existing roof you own, generic tape is fine. For a new installation on an extension where the membrane carries a 50-year warranty, use the matching system tape.

The 6-inch cover strip is the expensive product. £400 – £410 for a 30.5m Firestone roll. Per-metre pricing from ClassicBond at £12 – £15 works out roughly the same. You only need cover strip when you're using a butt-joint installation method (no overlap between sheets) or covering a mechanical batten fix. For the standard overlap seam, 3-inch splice tape is what you want.

Primer is mandatory

Primer is sold separately and you cannot install seam tape without it.

A 1L tin of ClassicBond Rubber Primer at £8 – £9 covers approximately 47.5 linear metres of seam at 100mm wide. Firestone's QuickPrime Plus runs £18 – £25 per tin. Both are solvent-based, which has implications for handling that we'll cover below. Buy a tin of primer alongside every roll of tape. Don't try to skip it, substitute it, or use a different brand.

How to work with it

Seam tape installation is genuinely the trickiest single step on an EPDM job. The membrane bonding is forgiving (large surfaces, lots of working time). The seam is unforgiving (small target, time-sensitive, specific tools required). If you've never done this before and the seam matters (i.e. it's a roof that needs to be watertight for 30 years rather than a shed), this is the part where hiring help is most justified.

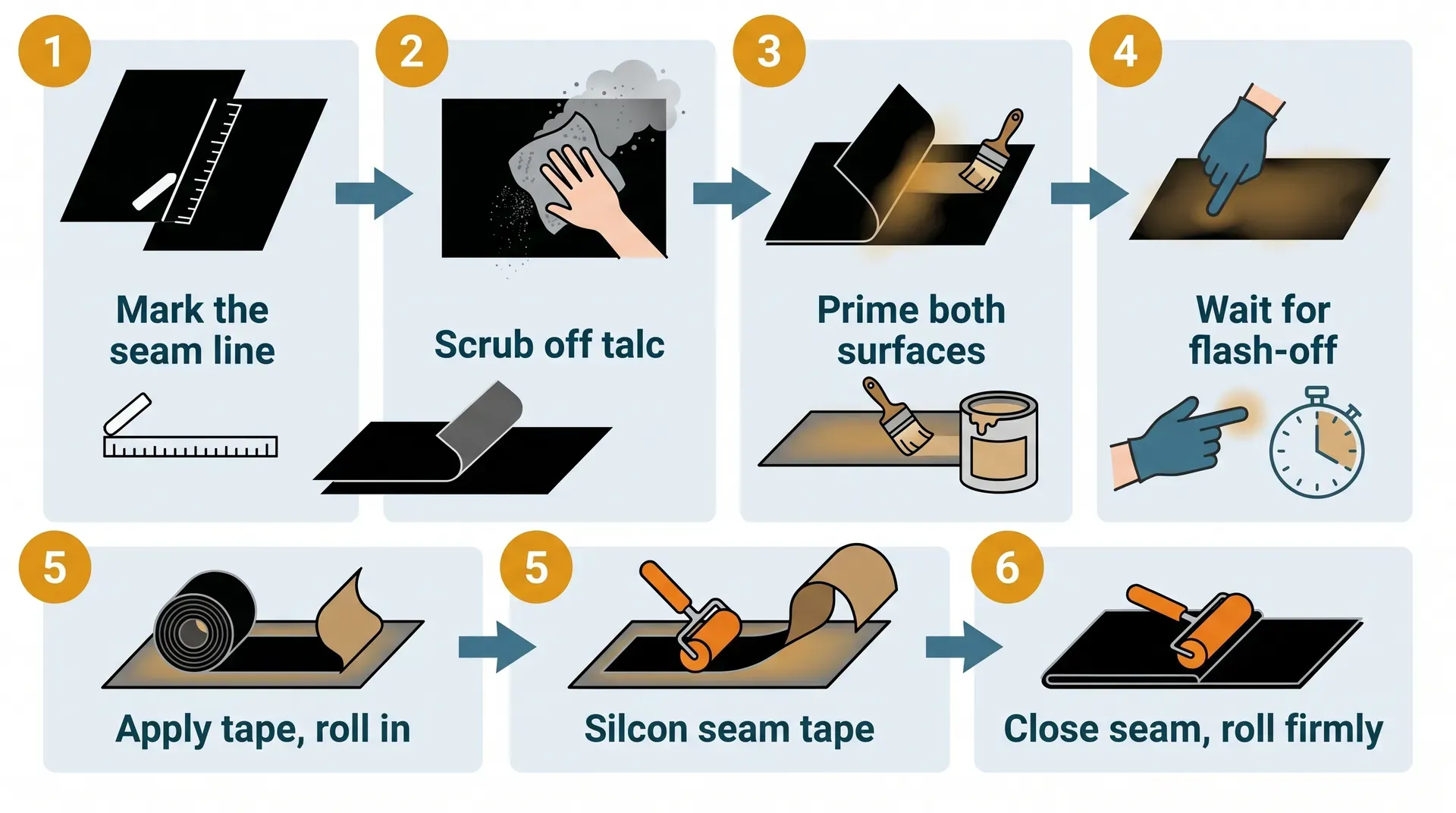

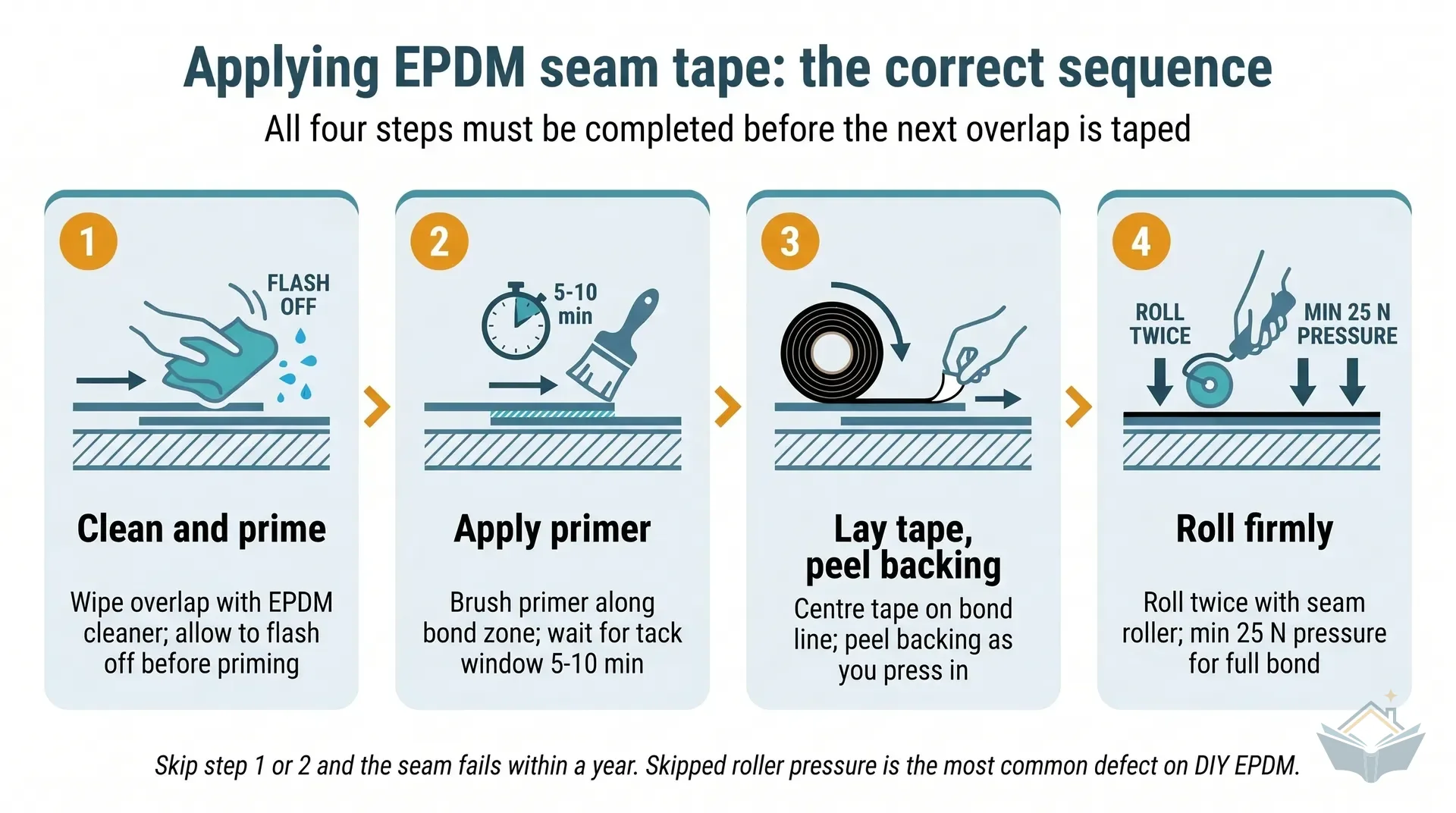

The standard sequence for a 3-inch overlap seam:

Plan the seam. Lay out the two pieces of membrane on the deck and overlap them by 75-100mm. Mark a chalk line along the upper edge of the overlap on the bottom sheet. This line tells you where the top sheet's edge will sit, so you know exactly where to apply primer.

Clean both surfaces. Sweep, then wipe, then scrub. EPDM membrane is treated with talc during manufacture to stop it sticking to itself in the roll. That talc must be physically scrubbed off the bond zone, not just wiped. A wipe smears talc into the rubber pores and creates a hidden release layer that lets the tape lift weeks or months later. Use a clean cotton cloth and the manufacturer's solvent cleaner, scrubbing in circles. The cloth should pick up grey residue. Keep cleaning until the cloth comes up clean.

Mark the primer area. Fold back the top sheet. Mark two crayon lines on the bottom sheet: one at the chalk line (where the top sheet's edge will land) and a second 20mm beyond, giving you a primer band slightly wider than the tape itself. Repeat on the underside of the folded-back top sheet. The primer must extend past the tape edge in both directions; this gives the tape its full bonded width.

Apply primer to both surfaces. Brush primer onto both prepared surfaces within the marked lines. Both surfaces. This catches people out: novices prime only the bottom sheet because that's where the tape goes, but the tape bonds the top sheet too. Apply enough primer to wet the surface fully, no more.

Wait for flash-off. The primer must evaporate to a touch-dry, slightly tacky haze. Test by pressing a clean finger onto the surface and lifting. If primer transfers wet onto your finger, wait longer. If the surface feels dry and nothing strings or transfers when you remove your finger, you're ready. This typically takes 5 to 15 minutes depending on temperature and humidity. In cold or damp conditions it can take longer.

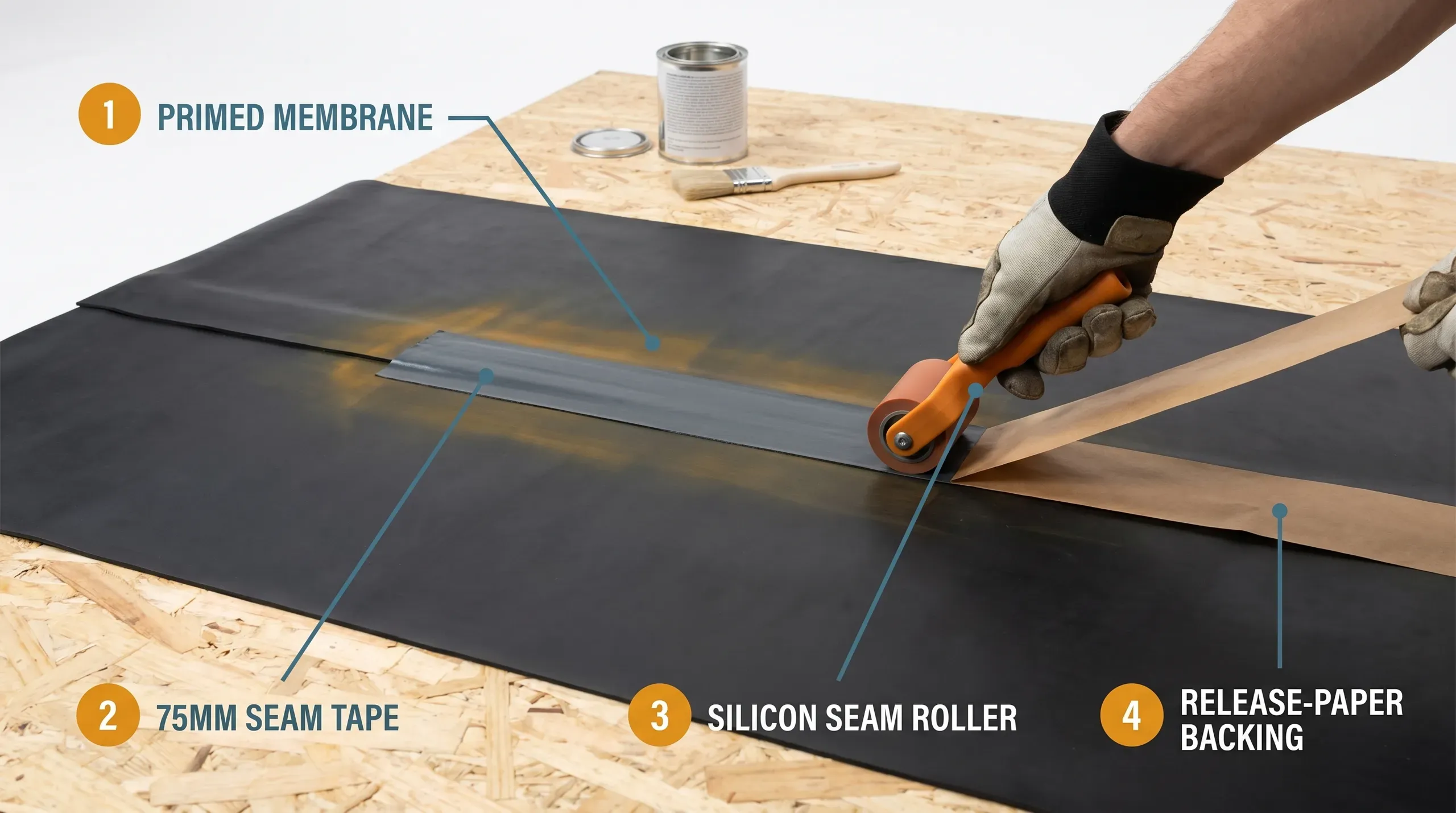

Apply the tape, brown paper down. Position the tape onto the primed bottom surface, brown paper backing facing up, aligned with the chalk line. Press it gently into place along its full length. Don't pull the backing yet.

Roller the tape into the bottom sheet. Use a silicon seam roller (a small hand roller with a 50mm silicon wheel) to press the tape firmly into the primed bottom sheet. Roll along the length of the tape, then perpendicular across it. This consolidates the bond.

Peel the backing and lay the top sheet. Slowly peel the brown paper backing away at a shallow angle (the tape stays on the bottom sheet, the backing comes off cleanly). As the backing peels back, fold the top sheet down onto the exposed adhesive, working along the seam. Don't drop the membrane in one go; lay it down progressively, smoothing as you go to avoid trapping air.

Roller the seam from above. With the seam closed, roller the entire length again from the top side. Roll along the seam, then perpendicular to it. Apply firm pressure. The tape needs full intimate contact with both membrane surfaces; rollering is the only way to guarantee that. PermaRoof and Apollo Roofing both describe this as "the only way to ensure the two adhesive layers are in full contact." Don't skip it.

T-joint patches. Where two seam lines cross (for example, where a longitudinal field seam meets an upstand corner), the intersection is a weak point. Cut the excess membrane corners back at 45 degrees, then apply a 150mm by 225mm FormFlash patch over the T-junction, primed and rollered the same way. This prevents water finding the unprotected tape edge at the cross-over.

Optional lap sealant. A bead of EPDM lap sealant along the visible tape edge gives belt-and-braces protection at the seam. Not always required, but recommended where water might pool at the seam location.

Click to enlarge

Temperature and weather

EPDM seam tape needs a minimum air and surface temperature of 5C for installation. Below that, the butyl adhesive doesn't flow and the bond never fully forms. The primer also won't flash off properly in cold or humid conditions; either it stays wet (poor bond) or it flashes too quickly and leaves dry patches.

If primer or tape has been stored below 10C, warm it to room temperature before opening the tin. A tin of primer brought straight in from a frosty van applied to a cold membrane is a common cause of seam failure that the installer never notices on the day.

No installation in rain. The membrane must be bone dry, both surfaces. If it rained overnight and the upper surface still has surface moisture, wait. The deck under the membrane must also be dry; trapped moisture in the deck migrates upward through the EPDM over months and breaks the bond from underneath.

A 10C rise in temperature roughly halves the working time on the primer. On a hot July afternoon you may have only a few minutes to lay the tape after the primer flashes off. On a cool October morning you may have 20 minutes. Watch the primer surface, not the clock.

How much do you need

Calculate seam length in metres, then add 10% for waste and T-joint patches.

A simple worked example: an L-shaped roof with one 4m field seam and one 2m corner seam. Total seam length 6m. Add 10% for the T-joint patch and any restart overlaps: round up to 7m. Buy a 30m roll regardless because the per-metre cost in cut lengths is double the roll price, and you'll have plenty left for any future repairs.

For a butt-joint installation using 6-inch cover strip, calculate the seam length the same way and order in linear metres. Cover strip is too expensive to buy a full roll for a single short seam unless you're a professional installer running multiple jobs.

Primer coverage: a 1L tin of ClassicBond primer covers about 47.5 linear metres of 100mm-wide priming. So one tin handles around 23 metres of seam (you prime both sides, so each metre of seam consumes 2 metres of primer coverage). For a typical residential extension seam under 10m, a single 1L tin is comfortably enough.

Don't forget the silicon seam roller (£15 – £35), a clean cotton cloth, and a cleaning solvent if your supplier hasn't included one in a kit. T-joint patches (FormFlash 150mm by 225mm pieces) are typically sold separately at a few pounds each.

Cost and where to buy

For a typical extension job needing one seam under 10 metres long, the seam tape cost is a minor line item in the overall system budget: one 30m roll of branded 75mm tape, one 1L tin of matching primer, a roller, and a couple of T-joint patches. A single small repair on an existing roof using cut-length tape and a 250ml primer tin costs considerably less.

Specialist EPDM suppliers offer the best pricing and bundle compatible system components. Rubber4Roofs, RoofGiant, PermaRoof, JJ Roofing Supplies, and Roofin all stock ClassicBond and Firestone tape and primer in matching system kits. Most provide installation video guides linked from the product pages.

Roofing merchants like Roofing Superstore stock common products but ranges are narrower than the specialists.

General builders' merchants (Travis Perkins, Jewson) rarely stock EPDM seam tape and the staff often can't advise on the system. Avoid for this product.

Generic / own-brand options. RubberFlatRoof's Plytech-branded 30m roll at £25 – £30 is the cheapest UK option we found. Use only on repairs to roofs you own where warranty isn't a concern. Don't put it under a 50-year manufacturer warranty.

Hertalan and Resitrix system tapes. Both are European premium membrane systems, typically installed by certified contractors using factory-supplied accessories. Hertalan and Resitrix seam tape is not retail-stocked at most UK suppliers. If your roofer is using these systems, they'll source the tape direct from the manufacturer or their wholesale distributor. Don't buy ClassicBond tape and try to use it on a Hertalan roof; the warranty and chemistry don't transfer.

Alternatives

There aren't really alternatives to seam tape within an EPDM system. If you have two pieces of EPDM that need joining, you join them with seam tape and primer; that's the bonded-system specification. The "alternative" is to avoid the seam in the first place by ordering a single sheet large enough to cover the roof.

Some older approaches to joining EPDM still exist:

• Splice cement (a brushable contact adhesive) was the standard joining method on commercial EPDM roofs before about 2005. It's been almost entirely replaced by butyl tape because tape is faster, more consistent, and doesn't require the same skill to apply. Splice cement is still sold for niche uses but is not recommended for new domestic work.
• Hot-air welded joints are used on PVC and TPO single-ply membranes but not on EPDM. EPDM's chemistry doesn't allow heat welding, which is why every EPDM joint is an adhesive bond (tape or cement).

Mesh tape and rubberised cement (a bodge that appears in DIY forum repair attempts) is not a valid EPDM repair. Multiple professional roofers in industry sources describe this approach as guaranteed to fail within a season.

If your roof shape genuinely requires seams and you want to eliminate the seam-failure risk entirely, the alternative is to switch material: GRP fibreglass is applied as a continuous liquid that cures into a single jointless shell. GRP costs roughly double EPDM in materials and requires specialist installation, but it has no seams to fail. For a roof terrace or balcony where joints would be a real concern, GRP earns its premium. For a standard flat roof under foot traffic, EPDM with a properly installed seam is the better economics.

Where you'll need this

• Roof covering - on extension roofs that are L-shaped, larger than a single sheet, or where logistics force a planned seam in the EPDM membrane

These seam tape products and techniques apply across any extension or renovation project where EPDM is the chosen flat roof covering, including garage conversions, garden room roofs, dormer cheeks, and porch extensions.

Common mistakes

Skipping the primer. This is the single biggest cause of seam failure. The peel-off backing on the tape suggests it should bond like a sticker. It won't. Without primer the tape sits on a non-stick surface and lifts within months. Every professional source consulted for this page confirms the same point: no primer, no bond. The minute you save by skipping primer costs you the entire seam.

Wiping rather than scrubbing the talc off. EPDM ships with talc on its surface to stop it sticking to itself in the roll. A wipe smears the talc into the rubber. A scrub with a clean cotton cloth and solvent cleaner removes it. If your cleaning cloth comes up white instead of grey, you're not getting deep enough into the surface.

Priming only one side. The tape bonds two surfaces. Prime both. Novices often prime the bottom sheet (where the tape goes) and forget the underside of the top sheet that will close down onto the tape. Half-bonded seams fail the same as no-bond seams.

Applying tape before the primer flashes off. Wet primer creates a slippery layer between the tape and the rubber. Touch-test before applying tape. If anything transfers to your finger, wait.

Not rollering, or rollering only one direction. The bond requires intimate contact between the tape adhesive and both rubber surfaces. Rollering is the only way to achieve that contact. Roll along the tape, then across it. Then roll again. Skipping the roller is the second most common cause of partial seam failure after skipping the primer.

Mixing brands. ClassicBond tape with Firestone primer might physically work on the day. It also voids the warranty on both products and you have no idea how the chemistry will hold up over 20 years. Use the same brand for tape, primer, membrane, and adhesive. If a supplier offers you a "bargain" mixed-brand kit, walk away.

Installing in cold weather. Below 5C the butyl adhesive doesn't flow and the primer doesn't flash off correctly. The seam looks fine on the day. It will lift inside 12 months. Don't be talked into a winter installation just to clear the project; either wait for warmer weather or accept the increased failure risk.

Buying generic tape for a warranty installation. A new EPDM roof from a system manufacturer carries a 25 to 50-year warranty. Using a generic tape from a third party invalidates that warranty. The modest saving on tape costs you the manufacturer warranty if the roof fails.
