EPDM Rubber Membrane: The Flat Roof Covering Your Extension Probably Needs
Complete UK guide to EPDM rubber membrane for flat roofs: brands, thickness, DIY installation, costs from £8-12/m2, building regs, and how it compares to GRP and felt.
A flat roof that leaks six months after your extension is finished is not a roofing problem. It's a specification problem. Someone chose the wrong material, skipped the adhesive on a windy corner, or built the deck without enough fall. The membrane gets blamed, the roofer points at the builder, and you're standing in your new kitchen with a bucket on the worktop. EPDM rubber membrane, installed correctly on a properly built deck, should last 30 to 50 years without touching it. The key phrase there is "installed correctly." This page covers what EPDM is, when it's the right choice, what the building regs require, and how to avoid the mistakes that turn a 50-year roof into a 5-year headache.
What it is and what it's for
EPDM stands for ethylene propylene diene monomer. You don't need to remember that. What matters is this: it's a synthetic rubber sheet that gets bonded to a flat roof deck to create a waterproof covering. One continuous piece of rubber, no joints, no seams. That's the whole selling point.
Traditional felt flat roofs use multiple overlapping strips, and those overlaps are where they eventually fail. Built-up felt roofs from the 1970s and 1980s are the reason "flat roof" became shorthand for "leaky disaster" in UK housing. EPDM changed that. A single sheet of rubber, bonded flat to the deck with adhesive, eliminates the joints entirely. No joints, no failure points.
EPDM has been used on commercial flat roofs worldwide since the 1960s. It arrived in the UK domestic market in the 2000s and is now the default flat roof covering for single-storey extensions, garage roofs, dormer cheeks, and any flat or low-pitch roof under about 10 degrees where tiles won't work. The BBA (British Board of Agrement) certifies a minimum service life of 35 years for the major brands, and manufacturers claim 50 years. The rubber itself is resistant to UV degradation, ozone, and temperature extremes from -40C to +120C. It stretches up to 300% before tearing, which means it handles building movement and thermal expansion without cracking.
For a typical kitchen extension with a flat roof section, EPDM is almost certainly what your roofer will propose. And they'd be right.
Types, sizes, and specifications
EPDM membrane comes in different thicknesses, brands, and formats. The differences are smaller than the marketing suggests, but they do matter.
Thickness
The two standard thicknesses for domestic roofing are 1.14mm and 1.5mm. Some manufacturers also offer 1.0mm and 1.2mm variants.
1.14mm is the industry standard for residential flat roofs. Firestone's RubberCover system uses 1.14mm membrane, and it's what most UK EPDM kit suppliers sell by default. It's BBA certified, it meets all building regulations, and it's what's on the vast majority of domestic EPDM roofs in the country.
1.5mm costs roughly 15 to 20% more and gives better puncture resistance. Worth considering if your flat roof is next to a tree (falling branches), if there's any chance of occasional foot traffic for maintenance access, or if you simply want the extra peace of mind. The practical lifespan difference between 1.14mm and 1.5mm on a domestic roof that nobody walks on is negligible.
The community consensus on forums like DIYnot is blunt: "the thicker grade costs only about £50 more for a typical roof. Just get the thicker one." That's reasonable advice.
Fleece-backed vs plain
Standard EPDM is a plain rubber sheet. You apply adhesive to the deck, adhesive to the membrane, wait for both to become tacky, then press the membrane down.
Fleece-backed EPDM (like RubberBond FleeceBack) has a polyester fleece laminated to the underside. The fleece bonds to the adhesive more aggressively, giving 180% greater tear resistance than standard 1.5mm membrane. It's 3mm total thickness (1.2mm EPDM plus 1.8mm fleece). Overkill for most domestic roofs, but useful on larger commercial projects or where the roof surface might see occasional traffic.
For a standard extension flat roof, plain 1.14mm or 1.5mm membrane is the right choice.
Key brands
| Brand | Product | Thickness | Approx. cost per m2 | Notes |
|---|---|---|---|---|
| Firestone | RubberCover | 1.14mm | £8-9 | The original. Globally dominant brand. Most UK kit suppliers stock it. |
| ClassicBond | EPDM Membrane | 1.2mm / 1.5mm | £8-10 | BBA Certificate 11/4853. 50-year warranty. Popular UK brand via Flex-R. |
| Hertalan | Easy Cover | 1.0mm / 1.2mm | £10-12 | European premium brand. Slightly higher price point. |
| RubberBond | FleeceBack | 3.0mm (1.2+1.8 fleece) | £14-18 | Fleece-backed for maximum tear resistance. Commercial-grade. |
All four are BBA certified and meet UK building regulations. The price difference between Firestone RubberCover and ClassicBond is minimal. Pick whichever your supplier stocks. The membrane quality matters far less than the installation quality.
Sheet sizes
EPDM membrane comes in rolls up to 15.24m wide and 30m long. That means a single sheet can cover a roof up to 457m2 with no joints whatsoever. Your 20 to 30m2 extension roof is comfortably within single-sheet territory. Suppliers like Rubber4Roofs and RoofGiant will cut your membrane to size, typically adding 300mm overhang on all edges for trimming.
This is EPDM's single biggest advantage over every alternative. One sheet. No seams. No joints to fail.
How to work with it
EPDM installation is genuinely DIY-friendly for competent homeowners. Multiple forum users report successful self-installation with no roofing experience. That said, "DIY-friendly" doesn't mean "impossible to mess up." The preparation matters more than the membrane itself.
The deck underneath
EPDM needs a smooth, clean, dry substrate. The standard is 18mm OSB3 board (oriented strand board, moisture-resistant grade, to BS EN 300) or 18mm marine plywood (BS EN 636 Service Class 2 or better). OSB3 with tongue-and-groove edges is preferred because it creates a continuous surface.
Boards must be screwed down to the joists, not nailed. Leave 3mm expansion gaps between boards and 10mm gaps where boards meet walls or abutments. These gaps accommodate timber movement. Without them, boards buckle in summer and the membrane develops ridges.
The deck must have a built-in fall (slope) towards the drainage edge. Building regulations require a minimum achieved fall of 1:80 (about 12.5mm per metre). But construction tolerances mean you need to design for 1:40 (25mm per metre) to reliably achieve 1:80 once the building has settled. This comes from BS 6229:2018 and it's non-negotiable. Get the fall wrong and water ponds on the membrane. Ponding doesn't damage EPDM itself, but standing water adds weight, collects debris, and looks terrible. On forums, incorrect fall is the number one cause of EPDM roof complaints, and it's never the membrane's fault.
Check your deck fall before bonding any membrane. Lay a spirit level across the deck in multiple directions. Water must run towards your gutter or drainage outlet. If the deck is flat or falls the wrong way, fix it before the membrane goes on. Correcting a fall problem after EPDM is bonded means stripping the entire roof and starting again.

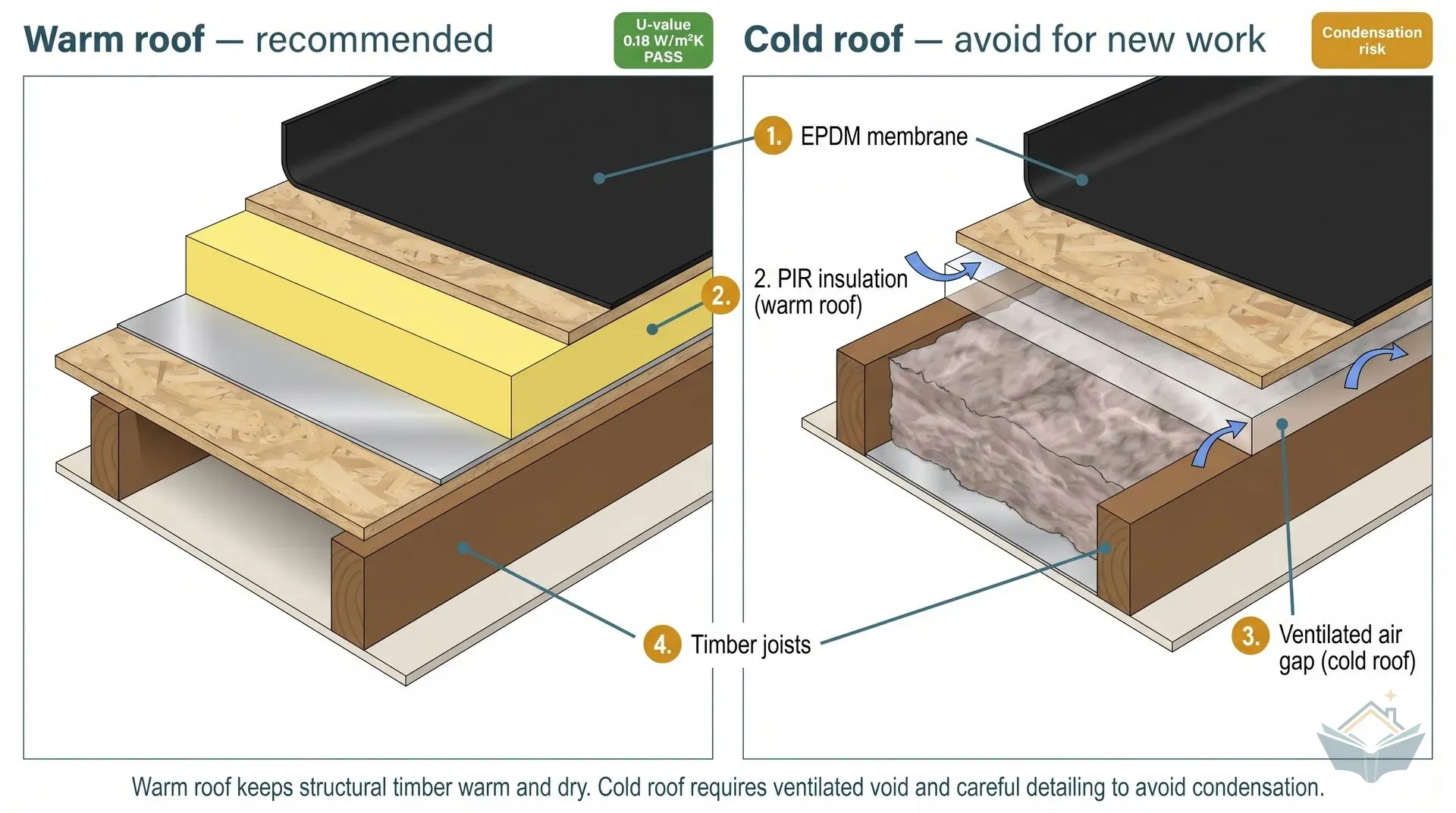

Warm roof vs cold roof
Your extension flat roof needs insulation to meet building regulations. The U-value target for a new flat roof in England and Wales is 0.18 W/m2K. For a renovation (replacing an existing flat roof covering), it's 0.25 W/m2K.

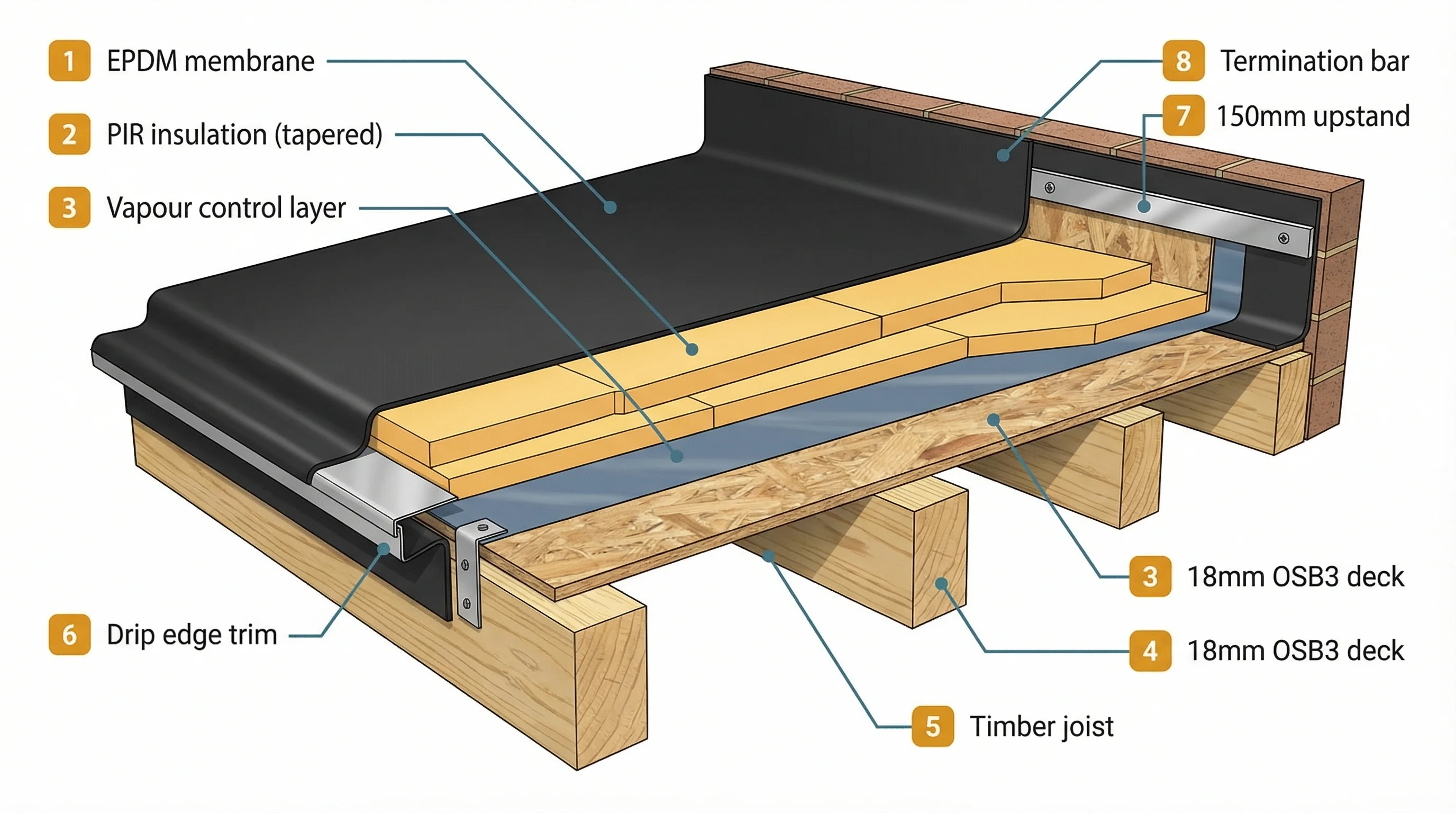

A warm roof puts the insulation above the structural deck, below the EPDM. The build-up from bottom to top is: joists, structural deck, vapour control layer, PIR insulation board (typically 120mm Celotex or Kingspan to hit 0.18 W/m2K), OSB3 cover board, EPDM membrane. This is the correct way to build a flat roof extension. The insulation keeps the structural timber warm, eliminating condensation risk.
A cold roof puts insulation between the joists, below the deck, and requires a ventilated air gap above the insulation. Cold roofs are harder to detail correctly, more prone to condensation problems, and generally not recommended for new extension work. If a roofer proposes a cold roof on a new extension, ask why.
Building control will check the insulation specification at inspection. They want to see the U-value calculation and confirm the insulation is continuous with no gaps at the perimeter.
Installation method

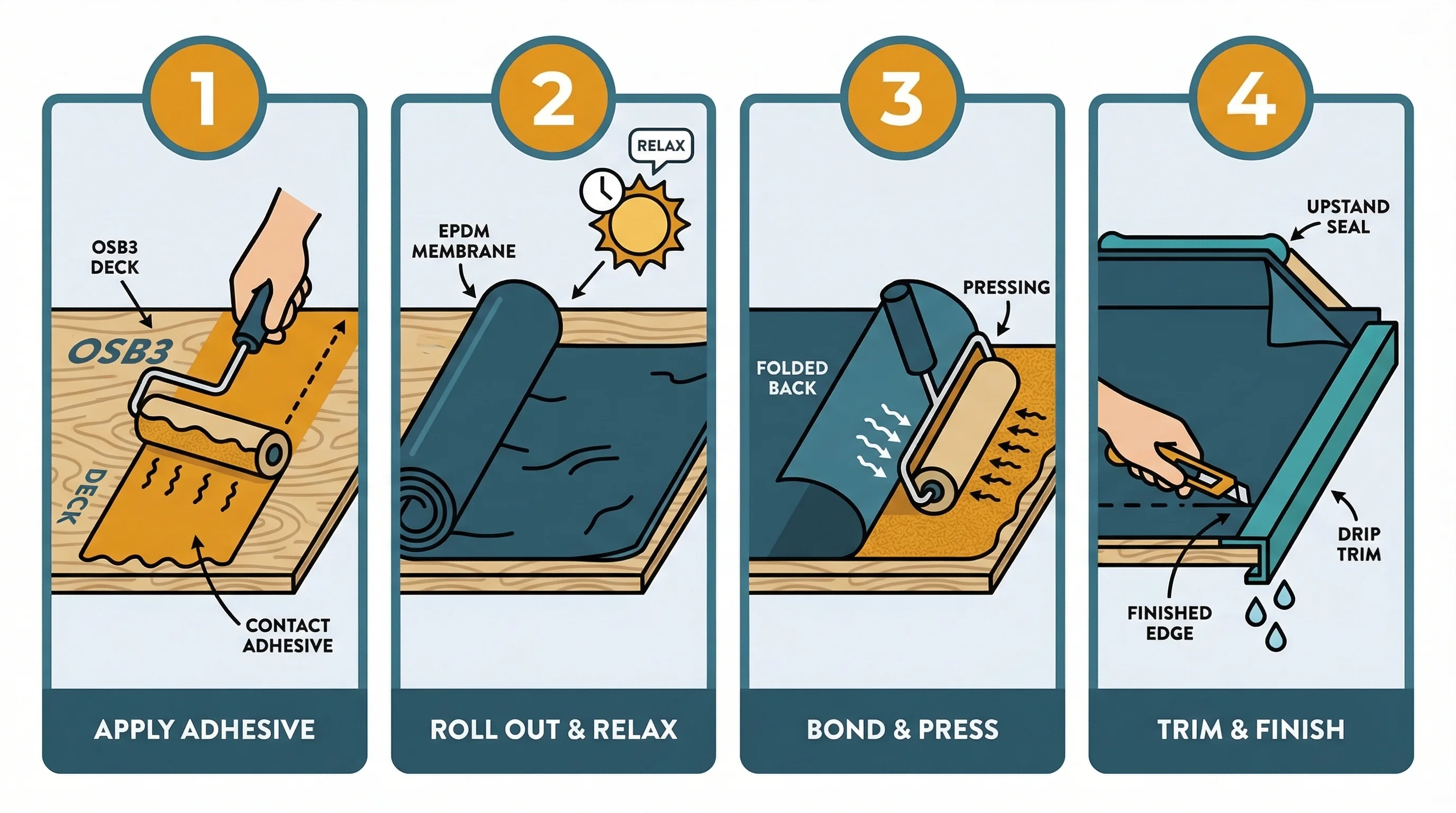

The standard domestic installation is fully bonded using adhesive. Here's the sequence:
Prepare the deck. It must be dry (no rain for at least 24 hours), clean (sweep off all dust, grit, and debris), and free of any protruding screw heads. Check every board is secure. One loose board creates a bulge in the finished membrane.
Lay out the membrane. Unroll it onto the deck and let it relax for at least 20 minutes (30 minutes in cooler weather). EPDM has memory from being rolled up and it needs time to flatten. Don't rush this. Fold the membrane back on itself halfway, so you're gluing one half at a time.
Apply adhesive. For the main body of the deck, use water-based bonding adhesive. Roll it onto the exposed deck surface with a medium-pile paint roller, covering the full area evenly. No puddles, no dry patches. Then apply a matching coat to the underside of the folded-back membrane. Wait for both surfaces to become tacky (typically 15 to 30 minutes depending on temperature). The adhesive should feel dry to the touch but slightly sticky.
Bond the membrane. Carefully lower the membrane onto the deck, starting from the fold line and working outwards. Use a heavy hand roller or a wallpaper seam roller to press the membrane firmly into the adhesive, working from the centre towards the edges. This pushes air bubbles out. Then repeat for the second half.
Perimeter strip. The 150mm strip around all edges gets contact adhesive instead of water-based. Contact adhesive creates a stronger bond at the points of greatest stress (wind uplift, thermal movement). Apply it to both surfaces, wait until touch-dry, then press firmly.
Edge trims and upstands. Install drip edge trims at the gutter edge, kerb trims at any raised edges, and wall flashing trims where the roof meets brick walls. Termination bars (aluminium strips screwed to the wall above the upstand) secure the membrane at the top of wall upstands. The upstand must be at least 150mm above the finished roof level. Seal the top of the termination bar with mastic.
Cut the membrane with heavy scissors, not a Stanley knife. A knife is harder to control and one slip scores the rubber permanently. Good fabric scissors give you a clean, controlled cut every time.
Temperature rules
Water-based adhesive works between 5C and 23C. Below 5C, it doesn't cure properly. Above 23C, it flashes off too fast and you won't get a bond. If you're installing outside that range, switch to contact adhesive for the full deck (not just the perimeter). Don't mix adhesive brands or types within a single installation.
No installation in rain. The deck must stay dry throughout the bonding process.
Joining sheets
Most extension roofs (up to about 50m2) can be covered with a single sheet. If your roof is larger or L-shaped, you'll need a seam joint. This uses 3-inch or 6-inch seam tape with a primer applied to both membrane surfaces first. The primer activates the rubber surface so the seam tape achieves a molecular bond, not just a surface stick.
Seam joints are the one part of EPDM installation where skill genuinely matters. A poorly primed seam will eventually peel. If your roof needs joints, consider whether a professional installer is worth the money for this step alone.
How much do you need
Measure the length and width of your flat roof in metres. Add 300mm overhang to each edge for trimming. That gives you the membrane size to order.
Worked example: a flat roof section measuring 5m x 4m. Add 300mm each side: 5.6m x 4.6m = 25.76m2 of membrane. Round up to 6m x 5m sheet (30m2) to give yourself working room.
For a complete DIY kit (membrane, water-based adhesive, contact adhesive, edge trims, corner patches, roller), expect to pay based on the roof area:
| Roof size | Kit cost (inc. VAT) | Cost per m2 (all-in) |
|---|---|---|
| 3m x 3.5m (10.5m2) | £270-320 | £26-30 |
| 4m x 5m (20m2) | £450-550 | £23-28 |
| 5m x 6m (30m2) | £600-750 | £20-25 |
| 7.5m x 7.5m (56m2) | £1,050-1,250 | £19-22 |
The per-m2 cost drops as the roof gets larger because the adhesive and trim costs are relatively fixed. These are full kit prices from suppliers like RoofGiant and Rubber4Roofs using ClassicBond 1.2mm membrane with Sure Edge trims.
Don't forget to budget for the deck (18mm OSB3 sheets, each covering 2.4m x 1.2m = 2.88m2) and insulation if you're building a new warm roof. The insulation alone can cost more than the membrane.
Cost and where to buy
Material cost
EPDM membrane on its own costs £8 – £12 per m2 depending on brand and thickness. Firestone RubberCover 1.14mm starts around £8-£12/m2. ClassicBond 1.5mm runs about £8-£12/m2. Hertalan 1mm is around £8-£12/m2 from Roofing Superstore.
EPDM membrane only
£8 – £12
Complete DIY kit (membrane + adhesive + trims)
£18 – £30
Installed cost (professional)
If you're paying a roofer, the installed cost depends enormously on whether you're just replacing the membrane on an existing sound deck, or building a full new flat roof with joists, insulation, and deck.
Membrane replacement on existing deck: £1,200 – £1,800 for a 30m2 roof. This assumes the deck is sound and just needs a new covering.
Full flat roof replacement (new deck, insulation, membrane): £2,800 – £5,400 for a 20 to 30m2 roof according to FMB member estimates. This includes stripping old covering, new OSB3 deck, PIR insulation, vapour control layer, EPDM membrane, and all edge details. Scaffolding (around £2,800-£5,400 per day) and skip hire (from £2,800-£5,400) are extra.
Professional install, membrane on existing deck (30m2)
£1,200 – £1,800
Professional install, full flat roof (20-30m2)
£2,800 – £5,400
Labour runs approximately £85 per hour for a specialist flat roofer. A straightforward 20m2 extension roof takes one to two days for a professional team.
Where to buy
Specialist EPDM suppliers offer the best value and the most helpful service. Rubber4Roofs, RoofGiant, and PermaRoof all sell complete kits cut to your roof dimensions. They include the membrane, both adhesive types, edge trims, corner pieces, and rollers. Several of these suppliers also provide detailed video tutorials, and forum users consistently recommend Rubber4Roofs for customer service.
Roofing merchants like Roofing Superstore and About Roofing stock membrane by the linear metre for those who want to specify components separately.
General merchants like Travis Perkins and Jewson stock EPDM but typically not the full kit system. Better for the deck materials (OSB3, insulation) than the membrane itself.
Screwfix and Toolstation carry some EPDM products but limited ranges. Not the place to buy a complete system.
Building regulations
Three regulations apply to EPDM flat roofs on extensions, and building control will check all three.
Thermal performance. New flat roofs must achieve a U-value of 0.18 W/m2K. Renovations (replacing an existing covering) must hit 0.25 W/m2K. This is set by Approved Document L. Meeting 0.18 W/m2K typically requires approximately 120mm of PIR insulation board (like Celotex GA4000 or Kingspan TR26) in a warm roof build-up.
Drainage fall. BS 6229:2018 requires a minimum achieved fall of 1:80. Design to 1:40 to account for construction tolerances. Building control will check this.
Fire classification. The complete roof assembly (the membrane alone is not enough) must achieve BROOF(t4) classification under BS EN 13501-5. This is the bit that catches people out. Your EPDM membrane might be BBA certified, but BBA certification of the membrane alone is not sufficient. The entire build-up (deck, insulation, membrane, adhesive) must be tested as a system. The Modular and Portable Building Association has flagged this as a genuine compliance gap in the domestic market. In practice, using a branded kit system (ClassicBond, Firestone RubberCover) with their specified insulation and adhesive products keeps you compliant because the manufacturer has tested the complete assembly.
Don't mix components from different EPDM systems. Using one manufacturer's membrane with another's adhesive and a third party's insulation means the complete assembly may not have been fire-tested as a system. Stick with one manufacturer's specified build-up and you're covered. Mix and match and you could fail building control inspection.
Alternatives
GRP fibreglass is EPDM's main competitor for flat roofs. GRP is applied as liquid resin and glass fibre matting that cures to form a rigid, jointless shell. It's harder and more puncture-resistant than EPDM, making it better for roofs that get walked on (balconies, roof terraces, areas where you need regular access for maintenance). Material costs run £15 – £25 per m2, roughly double EPDM. GRP requires specialist installation with strict temperature and humidity conditions during curing. It is not a DIY job. If your flat roof is a simple rectangle that nobody will ever walk on, EPDM is the better choice on cost, ease, and lifespan. If people will regularly access the roof, GRP earns its premium.
Modern high-performance felt (torch-on modified bitumen) is cheaper upfront and some professional roofers swear by it, claiming 30-year lifespans. It requires a trained installer with gas torch equipment. The lifespan claim is plausible for premium products, but felt still relies on lapped joints that are vulnerable to long-term failure. It's a valid professional-install option but not suitable for DIY.
PVC single-ply membrane is common on commercial buildings but rarely specified for domestic extensions. It's mechanically fixed rather than bonded, which means it's not suitable for small, simple roof areas where EPDM's adhesive-bonded approach is easier and cheaper.
For the standard domestic extension flat roof that nobody walks on, EPDM is the right default choice. It's the cheapest, the easiest to install, and the most forgiving of the three main options.
Where you'll need this
- Roof covering - the primary task where EPDM membrane is specified and installed as the flat roof covering on extension work

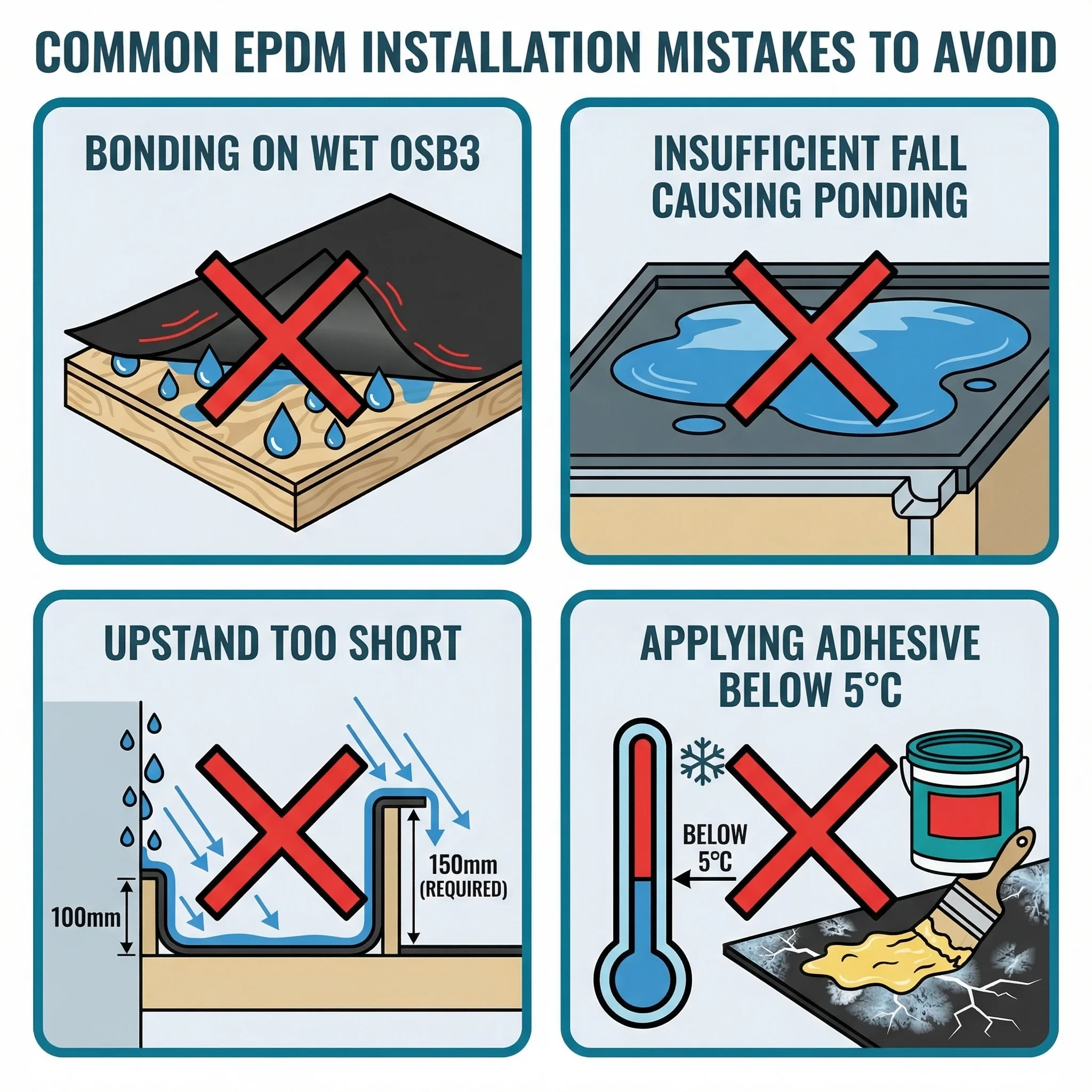

Common mistakes
Skipping the fall check. The single most common EPDM flat roof complaint is ponding water. In every case, the problem is the deck underneath, not the membrane. Water pools because the deck was built flat or with insufficient slope. This is a construction problem that's invisible once the membrane is bonded on top. Check the fall before you bond anything.
Installing on a wet deck. EPDM adhesive doesn't bond to damp timber. If it rained overnight and the OSB3 still has surface moisture, wait. One day's delay is nothing compared to a membrane that lifts six months later because the adhesive never cured.
Not letting the membrane relax. EPDM has memory from being rolled up. Bonding a membrane that's still trying to curl produces wrinkles that trap air and create stress points. Give it time to flatten before applying any adhesive.
Insufficient upstand height. A 100mm upstand might look fine when the roof is dry, but driving rain and wind pressure can push water above a low upstand. Check the measurement specified in the installation section above and insist your roofer meets it.
Walking on EPDM without protection. EPDM is soft rubber. Ladder feet, dropped tools, and gritty boots all leave marks or punctures. Lay protective boards (offcuts of OSB work fine) anywhere you need to stand or place equipment after the membrane is bonded. This applies during installation and for the life of the roof. If a tradesperson needs roof access for TV aerial work or gutter cleaning in five years' time, they need to use boards.
Ignoring green mould. North-facing or shaded EPDM roofs develop green algae growth over time. It's cosmetic, not a waterproofing problem, but left untreated it holds moisture against the surface. Treat it annually with a proprietary algae remover. Don't pressure wash EPDM.
