Eaves Support Tray: NHBC 7.2.14, Installation Detail and How to Spot a Botched Eaves

A roofer fits your breathable membrane and dresses it straight into the new gutter. It looks neat. Eight months later, your fascia is soft to the touch and there's black staining running down the soffit. The membrane has been pulled down by its own weight, water has been collecting in a pool behind the gutter rather than draining into it, and UV from the sun has shredded the exposed strip of membrane into brittle confetti. The fix means scaffolding, lifting the first course of tiles, removing the first batten, fitting the small plastic tray that should have been there from day one, then putting everything back. £350 – £650 for a job that would have cost twenty quid in materials if it had been done right the first time.

The eaves support tray is the cheapest material on a pitched roof. It is also the one most often missed. NHBC inspectors check for it. Building control inspectors expect to see it. Roofers who learned their trade before breathable membranes became standard sometimes still skip it. Knowing what it is, what correct installation looks like, and the one mistake that defeats its purpose is enough to keep your eaves dry for the next forty years.

What it is and what it's for

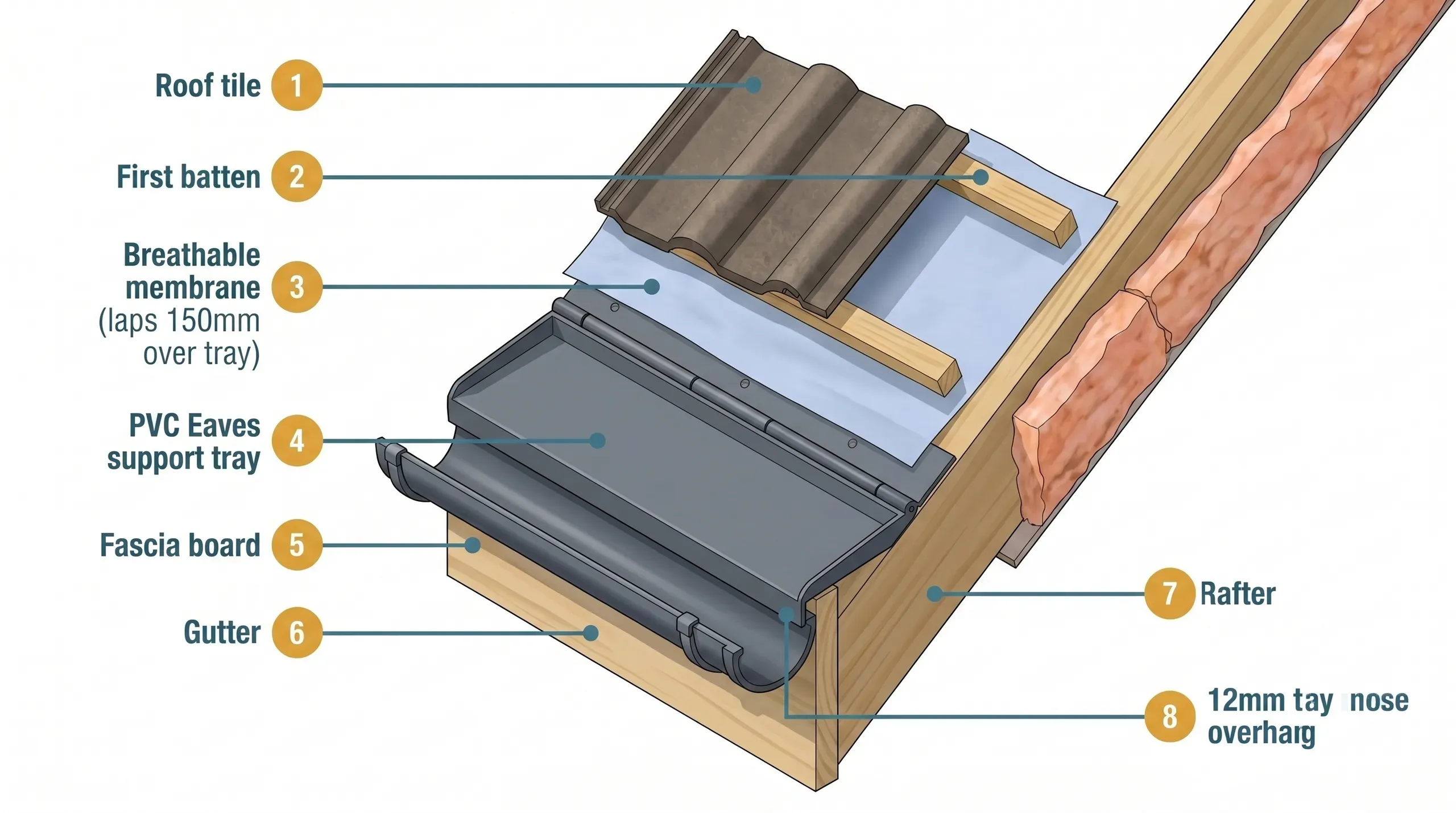

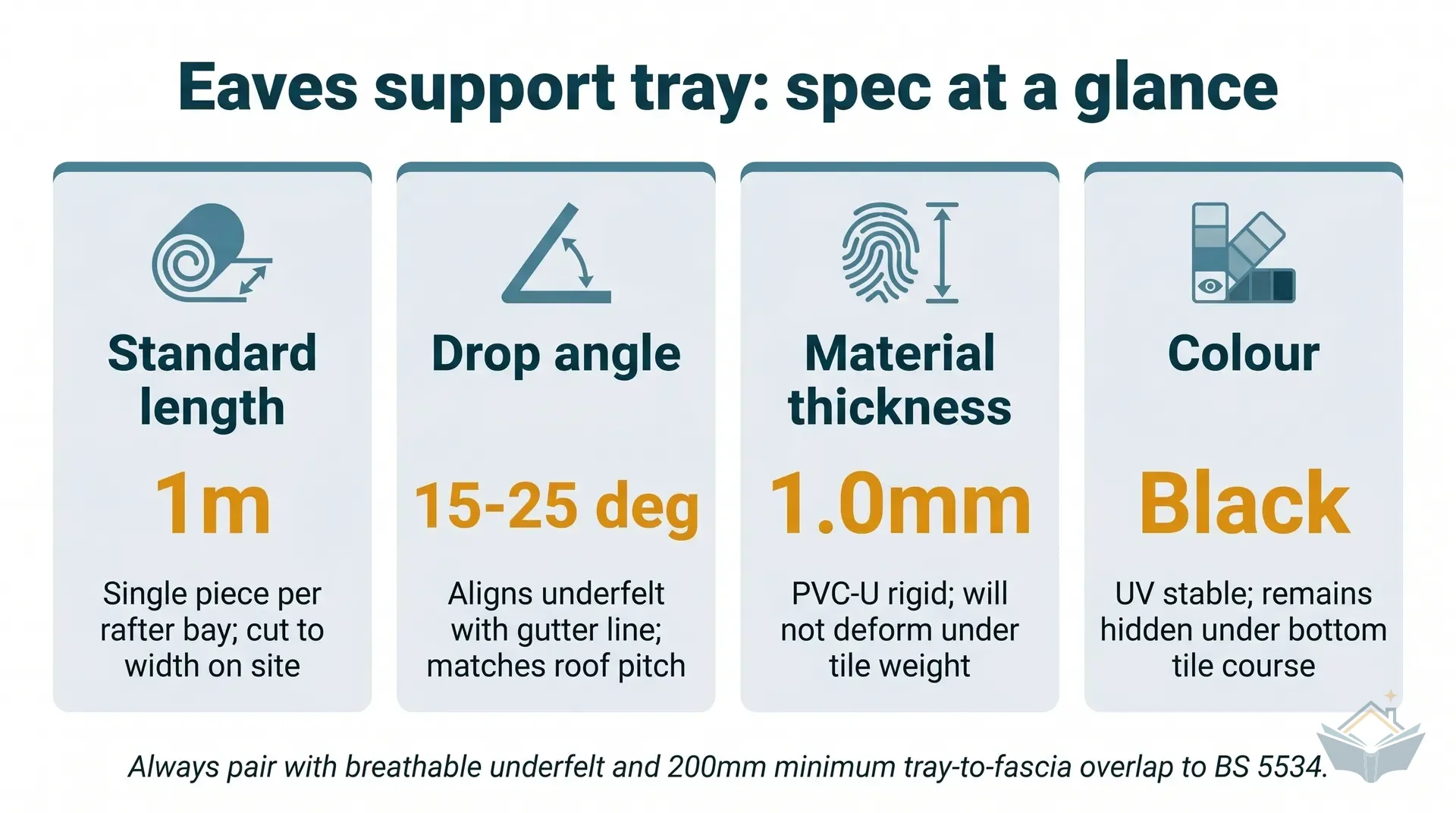

An eaves support tray is a rigid plastic channel, typically 1m or 1.5m long, that sits at the bottom of a pitched roof slope between the breathable membrane and the gutter. Its job is to carry the membrane over the top of the fascia board and project a defined drip line into the gutter. Without it, the membrane either sags into the gutter (where it pools water and slowly degrades the gutter and fascia) or stops short of the gutter (where wind-driven rain runs down behind the gutter onto the fascia and soffit).

Trays are made from PVC-U (rigid plastic, the most common material) or GRP (glass-reinforced plastic, used by Hambleside Danelaw on some lines). Both materials are UV-stable, which is the point. The membrane behind the tray is hidden from sunlight. Only the front edge of the tray is exposed, and that edge is engineered to take it.

The product is required by NHBC Standards 2025 clause 7.2.14, which specifies that roof underlay must be "supported by a continuous fillet or proprietary eaves support tray, laid to inclined falls, to prevent sagging." That requirement has appeared in every NHBC Standards version from 2010 to 2025. BS 5534 (the code of practice for slating and tiling) does not name the tray explicitly but references the Roof Tile Association installation guidance, which does. For any new build with NHBC warranty, no inspector is going to sign off a roof without one. For non-warranty builds, building control inspectors apply the same expectation. There is no version of the BS 5534 / NHBC framework that lets you skip it.

The product also matters even if your build has no warranty at all. A 2018 BRE Group study cited by trade roofers found that 25% of reported roof leaks were caused by water ingress at the eaves. The eaves support tray is not a marginal best-practice detail. It is one of the load-bearing elements of the whole pitched roof waterproofing strategy.

Types: standalone trays vs 3-in-1 units

This is where most homeowner-facing guides stop, and it is the single most useful piece of knowledge to have when ordering. There are two product types, and they look different at the merchant.

A standalone eaves support tray is just the tray. It carries the membrane and discharges into the gutter. It does nothing for ventilation and nothing for bird exclusion. If your roof needs ventilation at the eaves (most cold-roof designs do), you fit a separate over-fascia ventilator (a thin plastic strip with airflow slots) onto the top of the fascia first, then sit the tray on top of that. If your tiles are profiled (Marley Modern, Redland Mini Stonewold, most concrete interlocking tiles), you also need a comb filler (a flexible plastic comb that fills the gap between the underside of the tile and the top of the fascia) to keep birds, wasps, and squirrels out of the roof void.

A 3-in-1 unit combines all three functions in one moulded plastic part: support tray, over-fascia ventilator, and comb filler. The Manthorpe G1296 is the most common at British merchants. The Hambleside Danelaw HD3000VP and BMI Redland's RedVent system play in the same space. A 3-in-1 unit ticks every NHBC requirement at the eaves with one product.

For a new build, a 3-in-1 unit almost always makes more sense. It is faster to install, harder to mess up, and it costs roughly the same as buying a standalone tray, an over-fascia vent, and comb filler separately. For a refurb where you are only replacing rotten felt and the existing roof has a separate ventilation strategy (soffit vents, for example), a standalone tray is the right product. Don't fit a 3-in-1 unit on a roof that ventilates through the soffits and add a second airflow path you don't need.

The Hambleside Danelaw HD RFST is the price leader on standalone trays. The GRP construction is genuinely tough and the per-metre cost beats every PVC alternative. The Manthorpe G1281 is the version most builders' merchants stock for retrofit work because the wider 260mm body suits older fascias with deeper detail. The Klober KP973910 has the largest pack size (20), which suits a longer eaves run on a new build. The Manthorpe G1296 3-in-1 is the default new-build choice for any cold roof needing over-fascia ventilation.

How to work with it

You will not be installing this yourself unless you are doing the roof yourself. But the install is short, the components are visible for less than an hour before they get covered up, and the checks you can do in that window protect you from the most common failure mode in pitched roofing.

The sequence that has to happen in order

The eaves detail has to be built up in the right order or the result is wrong even if every individual component is correct. Working from the bottom up:

1. The fascia board is fitted to the rafter ends and set to the right height. Get this wrong (too low and you get gaps under the first tile, too high and the first tile kicks up and sits proud of the rest) and nothing further will rescue the detail. Test-fit two tiles before you fix the fascia.

2. If a separate over-fascia ventilator is being used (not a 3-in-1), it is nailed to the top of the fascia board.

3. The eaves support tray sits on top of the over-fascia vent (or directly on the fascia for a standalone install). The tray is nailed to the rafter ends with corrosion-resistant nails (galvanised or stainless). The front nose of the tray should overhang the fascia by 10-15mm so that water dripping off the front edge falls into the centre of the gutter, not behind it.

4. Adjoining trays overlap each other along their length. Manufacturer minimums vary from 100mm (Klober) to 150mm (Manthorpe, Hambleside Danelaw, Roof Tile Association guidance). Use 150mm as the safe default unless your specific brand documentation says otherwise.

5. The first roofing batten is nailed across the rafters above the tray. The tray's hinged section sits flat under the batten.

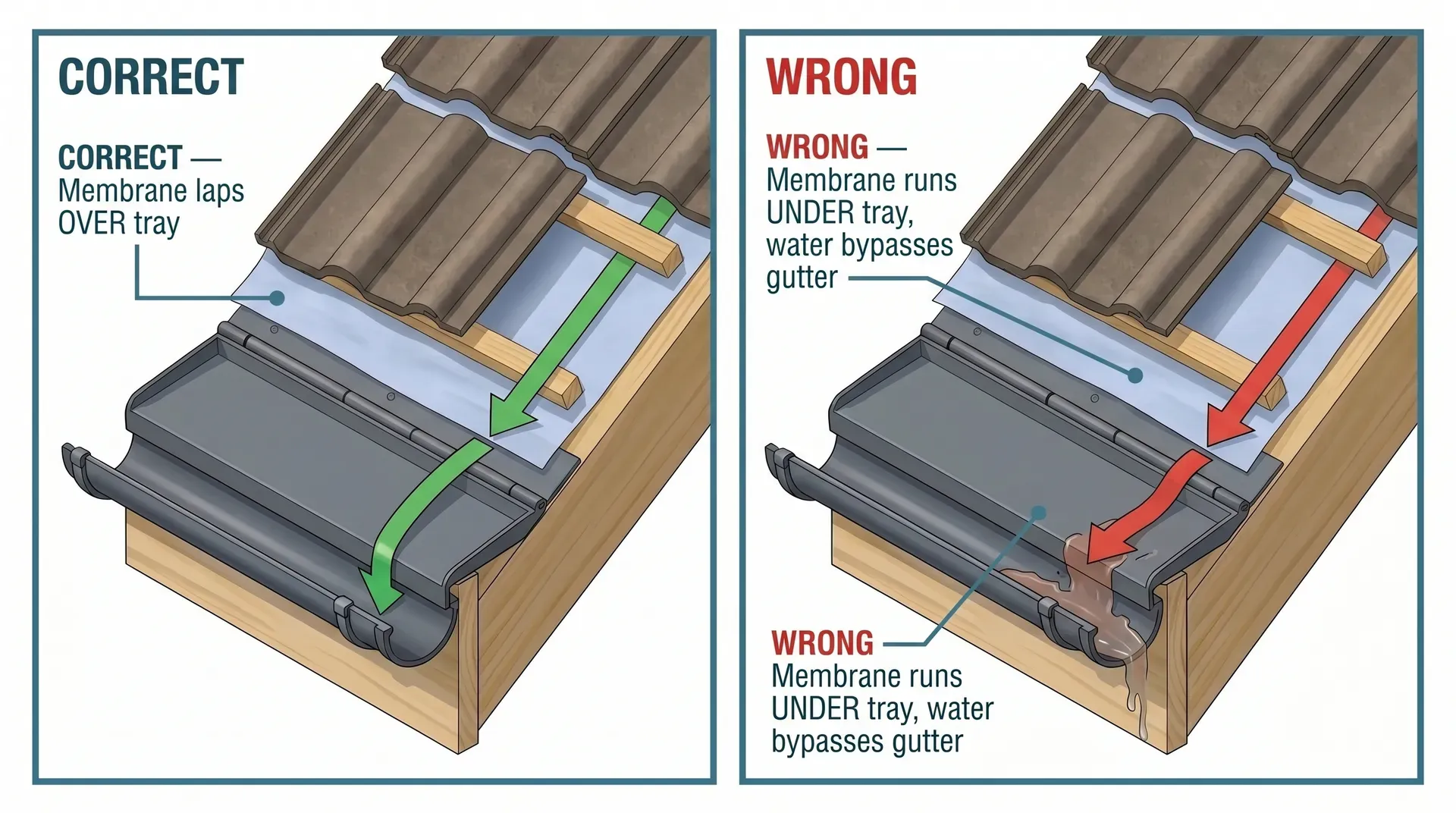

6. The breathable membrane is rolled out from the eaves upward, with the bottom edge lapping over the top of the tray by at least 150mm. The membrane goes ON TOP OF the tray, not under it. This is the single most-failed step in the whole sequence and the one to check before the first tile goes on.

7. The first course of tiles is laid, projecting 45-55mm into the gutter so the tile drip line and the tray drip line both discharge into the gutter centre.

Click to enlarge

Drape and overhang

The breathable membrane should sag slightly between rafters (about 15mm of drape, per BS 5534 and the Roof Tile Association guide) so water has a path to run down to the eaves. At the eaves itself, the membrane should lap over the tray by 150mm and stop short of the gutter line. Only the tray's front nose should be visible projecting into the gutter. Membrane that hangs into the gutter is a UV degradation problem within a season and a gutter blockage within a year.

Refurb is harder than new build

Retrofitting an eaves tray to an existing roof sounds simple. It is not. The first course of tiles or slates has to come off, not just be pushed back. On profiled tiles, that often means breaking the seal of any tile clips and dealing with a row that wants to slide. On natural slates or fibre-cement slates, you need a slate ripper (a long thin tool that hooks the fixing nails out from underneath) and proper slate clips for reinstatement. The first batten usually has to come off too. The job typically needs scaffolding (a working platform along the length of the eaves, not a ladder). And if the original membrane is cracked, brittle, or already torn at the eaves, the smart move is often to budget for a full re-roof rather than try to splice in trays under failing felt.

The trade quote for a retrofit on a typical UK semi or terrace is in the range of £350 – £650 for a single gable end or hip elevation, including scaffolding, depending on roof type and access. Detached hipped roofs sit at the top end of that range because there is more eaves to work along.

How much do you need

Quantity is straightforward: measure the total length of eaves on your roof in linear metres, then add 10% for overlaps and trim. A standard rear extension with two gable ends (rather than a hipped roof) has eaves only along the front and back. A 4m wide extension with two eaves runs needs about 8m linear. Add 10% and you are at 8.8m. Round up to the next pack size.

Trays are sold in 1m or 1.5m lengths. Per-pack pricing usually beats per-unit pricing by 30-50%, so for any meaningful run, buy a full pack rather than singles. A 10-pack of 1.5m trays gives you 15m gross, which is enough for a typical single-storey extension with overlaps and a couple spare for cuts.

If you are using 3-in-1 units (1m long), divide your eaves length by 1m, add 10% for overlaps and waste, and round up to the pack. The Manthorpe G1296 ships in packs of 10 (10m gross per pack).

For a complete extension roof with a typical 8-10m of eaves, one 10-pack of standalone trays or one 10-pack of 3-in-1 units is enough. There is no benefit to buying spares beyond the 10% allowance. The product does not go off in storage but it takes up shelf space.

Cost and where to buy

Standalone eaves trays are some of the cheapest roofing accessories you will ever buy. Pricing falls into three clear bands.

The cheapest path is the Hambleside Danelaw HD RFST in a 10-pack at £17 – £21, the lowest per-metre cost of any mainstream tray.

Branded mid-range options from Klober and Manthorpe are £3 – £4 per tray ex VAT, which works out to roughly two pounds per linear metre. The Manthorpe G1281 is the version most refurb specialists keep on the van.

For a full new-build eaves detail with ventilation included, the Manthorpe G1296 3-in-1 is the smart buy.

For homeowners buying small quantities at a national merchant, Toolstation and Screwfix carry unbranded trays at a slight premium per unit but in smaller packs.

Where to buy

Specialist roofing suppliers (Roof Giant, JJ Roofing Supplies, Roofing Superstore, SIG Roofing) carry the full range of branded products at the keenest prices. Delivery is typically 2-5 days. This is where you should buy if you are doing a full extension roof and want the Klober, Manthorpe, or Hambleside Danelaw lines.

Toolstation and Screwfix carry unbranded equivalents and are the right choice for small quantities (5-10 trays for a refurb) where same-day collection beats waiting for delivery. The unit price is higher but you save the delivery charge.

Travis Perkins, Jewson, and JT Atkinson stock branded eaves trays through their roofing departments but pricing varies by branch and stock is not always reliable. Worth checking only if you are already collecting other materials from them.

Wickes carries an alternative product, the IKO eaves protection strip, which is a 16m roll of flexible bitumen-impregnated polyester rather than a rigid tray, priced at £26 – £30. It works for low-budget refurbs where rigidity is not critical, but it does not satisfy NHBC 7.2.14 in the same way a proprietary rigid tray does.

Alternatives

There is essentially no proper alternative to a proprietary eaves support tray on a new build that needs to satisfy NHBC, BS 5534, or building control. The clauses name the tray (or "continuous fillet") specifically.

For an emergency refurb where cost is the priority and warranty compliance is not a factor, two budget options exist. DPC strip (a 450mm-wide roll of black plastic damp-proof course) was used by older builders as an improvised eaves drip before proprietary trays became standard. It works in the sense that it carries water over the fascia, but it sags between rafters within a year, has no UV stability rating, and is not accepted as a compliant solution by NHBC or any building control regime. It is mentioned here only because forum discussions raise it as a "what my dad used to do" option. Don't use it on anything that needs to be signed off.

IKO eaves protection strip (a flexible bitumen-impregnated polyester sold by Wickes) is a step up from DPC. It is UV-resistant, properly engineered, and it works for low-pitch roofs where a rigid tray would not flex enough. But it does not provide the defined drip line that a rigid tray gives, and most NHBC inspectors will still expect to see a proprietary rigid tray.

For breathable membranes that the manufacturer claims are "self-supporting" at the eaves (some Tyvek products), the manufacturer still specifies a UV-resistant eaves carrier in place of dressing the membrane into the gutter. There is no breathable membrane on the UK market that lets you skip the tray entirely.

Where you'll need this

• Roof covering - fitted at the bottom of every pitched-roof slope to carry the breathable membrane over the fascia and discharge water into the gutter

The eaves support tray turns up at the same point on any pitched roof regardless of project type. Any extension, loft conversion, garage conversion, or porch with a tile or slate roof needs one along every eaves line. Re-roofing work requires retrofit fitting if the existing roof was built before they became standard practice.

Common mistakes

Fitting the membrane under the tray instead of over it. The single most common defect, found in six out of eight community forum threads on the subject. If the membrane is under the tray, water running down the membrane discharges behind the gutter rather than into it. Result: rotted fascia, stained soffit, blocked airflow at the eaves. Check before the first tile goes on. The fix is free if you catch it then. The fix costs £350 – £650 if you catch it after the roof is finished.

Skipping the tray entirely "because the membrane is self-supporting". No breathable membrane on the UK market is approved for use without an eaves support feature. Tyvek Supro is sold as self-supporting in the body of the roof, but DuPont's own installation literature still specifies a UV-resistant eaves carrier at the bottom edge. Membrane left to dress directly into the gutter degrades from UV exposure within a season. The fascia rots within a few years. NHBC inspectors will pick this up immediately on a warranty inspection.

Fitting a standalone tray when the design needs a 3-in-1. If your roof is a non-ventilated cold roof or relies on over-fascia ventilation rather than soffit ventilation, a standalone tray leaves you with no airflow path. The roof void either condenses or you have to retrofit a separate over-fascia vent later. For most new-build cold roofs, the 3-in-1 is the default. Decide at order time, not on the day.

Using the wrong overlap between adjoining trays. Manufacturer minimums vary from 100mm to 150mm. Use 150mm as the safe default. A short overlap that survives the install can pop apart in a gale six months later, leaving an unsupported strip of membrane at the eaves.

Not nailing the tray to the rafters. Some installers try to friction-fit the tray between the fascia and the first batten. It works for a week. The first sustained wind event blows the tray off. Use corrosion-resistant nails (galvanised or stainless) into the rafter ends. Hand-nail or use a cordless coil nailer. A few seconds per tray.

Forgetting the comb filler on profiled tiles. Standalone trays do not include a comb filler. If your tiles are profiled (most concrete interlocking tiles), the gap between the underside of the first tile and the top of the fascia is wide enough for sparrows, starlings, and even squirrels to enter the roof void. A separate plastic comb closes the gap. The 3-in-1 units include this automatically.

Ordering the wrong tray length for a low-pitch roof. The Hambleside Danelaw HD3000 has a hinge specifically designed to prevent distortion at low pitches (down to 15 degrees). On a low-pitch lean-to extension roof, a generic flat tray will distort under tile load and pull the membrane off the line. Specify a hinged or articulated tray below 22 degrees.
