Chopped Strand Mat (CSM) for GRP Flat Roofs: Weights, Overlaps and How Not to Wreck Your Roof

A roofer turns up to laminate your extension roof on a damp February morning. The CSM rolls have been sitting in his unheated van overnight. He cuts a length, lays it on the deck, and rolls catalysed resin into it. Two hours later there are white opaque patches across the entire surface. Those white patches are dry mat. The fibres never wetted out properly because the binder absorbed atmospheric moisture before installation. Strip the whole laminate back to bare OSB3 and start again, or accept a roof that will delaminate within five years.

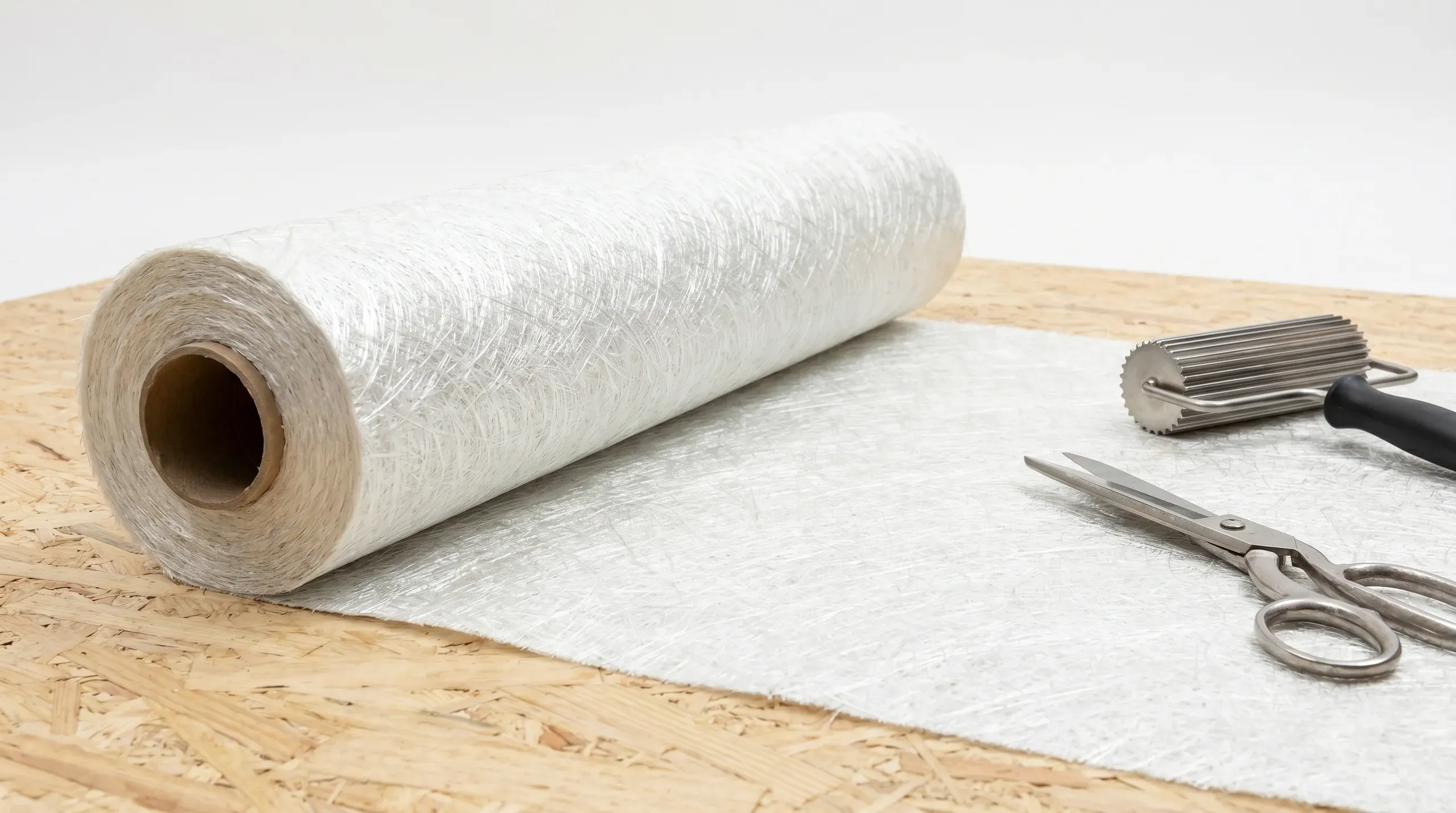

CSM (chopped strand mat) is the reinforcement layer in every GRP flat roof in the UK. It looks like a loose felt of white glass fibres. It feels papery. It does almost nothing on its own. But once polyester resin soaks into it and cures, it becomes the structural backbone of a 25-year waterproof shell. Get the wrong weight, the wrong binder, or store it badly, and the roof fails. This page covers what CSM actually is, how to choose between weights, how much to order, and the handling rules that prevent the failures that fill UK building forums.

What it is and what it does

Chopped strand mat is a non-woven fabric made from short glass fibre strands (typically 50mm long) laid down in random orientations and held loosely together by a chemical binder. The binder isn't structural. Its only job is to keep the mat from falling apart on the roll. When polyester resin hits the mat, the binder dissolves, the strands free up, and the mat softens and wraps around whatever surface it's pressed onto. The resin cures around the now-loose fibres, and you end up with a hard composite where the glass provides tensile strength and the resin provides the rigid waterproof matrix.

The randomness matters. Woven fibreglass cloth is stronger pound-for-pound but only in the directions the fibres run. CSM has equal strength in every direction because the strands are scattered at every angle. For a flat roof, where stress comes from foot traffic, thermal movement, and minor deck flexing, equal-direction (isotropic) strength is exactly what you want.

A standard residential GRP roof uses a single layer of CSM laminated onto OSB3 boards using polyester resin and an MEKP catalyst, then finished with a pigmented topcoat. The mat is the cheapest component in the system but the one most homeowners and inexperienced roofers get wrong.

Weights: 450g vs 600g

CSM is sold by weight per square metre, and for UK flat roofing only two weights matter. Lighter weights (100-300g) exist for boat hulls and automotive work. Heavier weights (above 600g) are industrial. For roofing it comes down to 450g/m² or 600g/m².

The simplest rule: 450g if no one will ever walk on it (a shed, a porch, a bay window). 600g if it's a garage or extension roof where someone will eventually need to access a rooflight, clear a gutter, or inspect a flue. For a typical 20m² single-storey extension roof, 600g is the right call. Some manufacturer kits default to 450g and rely on the topcoat plus a slip-resistant coating to claim foot-traffic compatibility. That works, but the 600g spec gives you more headroom.

Two layers of 450g delivers more strength than a single 600g layer, because the laps are staggered and there's no continuous weak axis. This is what spec sheets for balconies and walkway roofs typically call for. For a standard flat roof it's overkill.

A 450g mat is roughly 0.7mm thick when dry. After lamination the cured composite ends up 1-1.5mm per layer. A complete GRP roof system (OSB3 deck + base laminate + topcoat) is typically 3-4mm thick.

The binder: why this is not optional

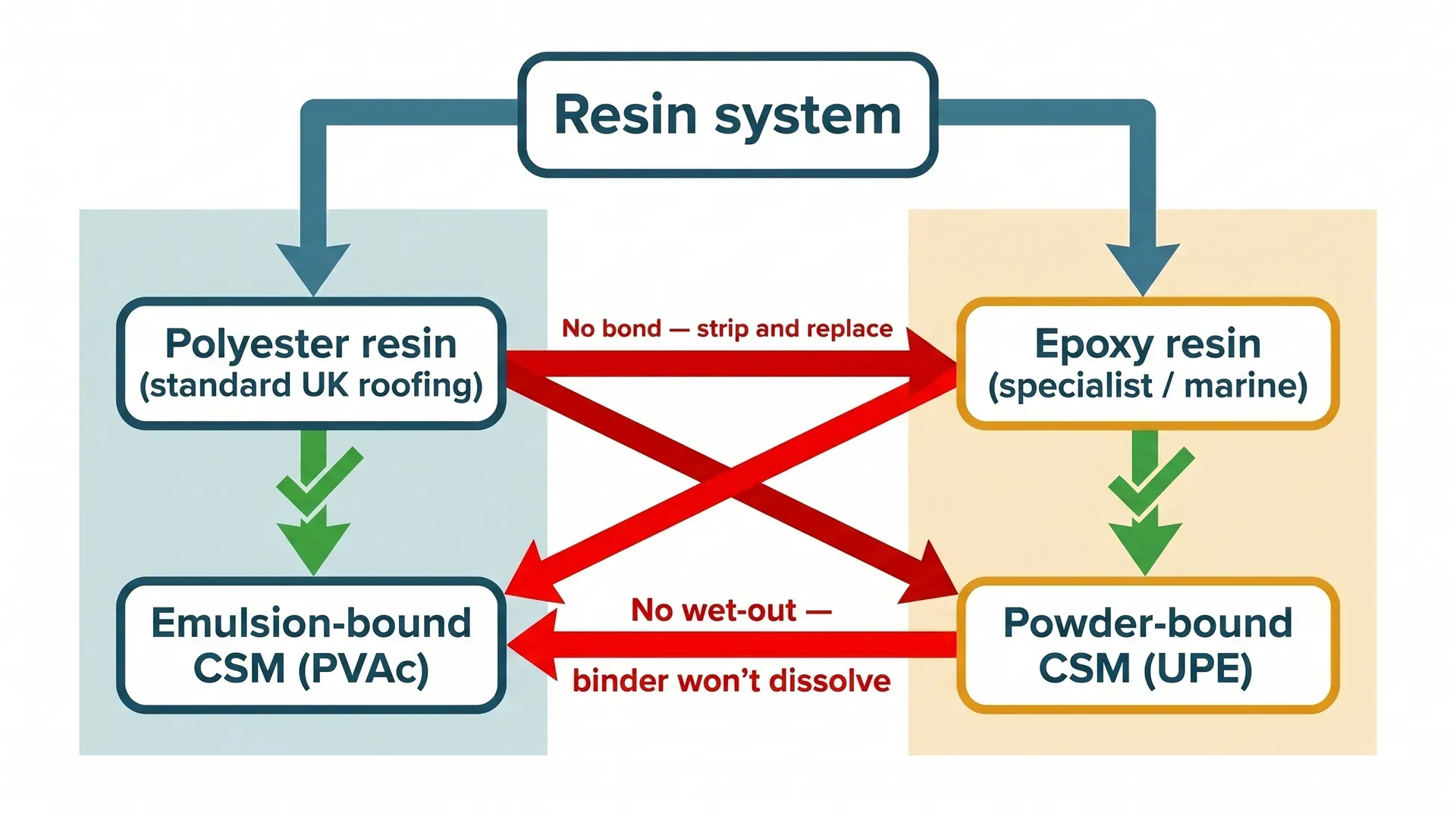

The binder is what keeps the loose strands stuck together on the roll. There are two binder chemistries, and choosing the wrong one for your resin system is one of the few CSM mistakes that produces a roof that will never bond, no matter what you do afterwards.

Emulsion-bound CSM uses a polyvinyl acetate (PVAc) emulsion that wraps each strand bundle in a thin polymer film. PVAc dissolves on contact with styrene. Polyester roofing resin contains styrene. Result: the binder dissolves, the fibres release, the mat softens, and you can roll out air bubbles and conform the mat to corners. This is the binder type used in every UK roofing CSM you'll find at Cure It, Roofing Megastore, GRP Materials Direct, IKO, Cromar, or any roofing merchant.

Powder-bound CSM uses unsaturated polyester powder spot-welded to the strands. It dissolves faster than emulsion (15-20% quicker wet-out) and gives a clearer cured laminate. But powder bond is designed for chemistry that doesn't include styrene, mainly epoxy resin work in marine, automotive, and specialist composites. Standard UK roofing systems use polyester resin, not epoxy, so powder-bound is the wrong choice.

The failure mode if you mix the wrong binder with the wrong resin is total: the mat won't wet out, the binder won't dissolve, and the laminate never bonds to anything. If you're buying CSM from a roofing merchant, this isn't a decision you'll consciously make. Their default product is emulsion-bound. The trap is buying CSM from a generic composites supplier (or a leftover roll from a friend's boat project) without checking. Easy Composites is explicit on this point: their 450g emulsion-bound mat is "not suitable for epoxy resin." Read it the other way too. Powder-bound mat from a composites supplier is not suitable for your polyester roofing resin.

Click to enlarge

Roll widths and what they mean for cutting

UK CSM rolls are sold in widths between approximately 950mm and 1000mm. Easy Composites sells 950mm-wide rolls. Cure It and most roofing-system suppliers use 950mm. Generic 1000mm rolls are common from composites suppliers like GRP UK Ltd. The exact width matters less than knowing what you have, because every adjacent strip needs to overlap the next by at least 50mm.

For a roof 4 metres wide, a 950mm roll gives you four runs across the width with 50mm laps between each (4 x 950mm = 3800mm, plus 4 x 50mm laps absorbed = 4000mm net). That's neat. A 1000mm roll on the same roof needs four runs but with the last strip cut narrower, or three full runs and a wider strip cut from a separate length. Either works. The point is to plan the layout before cutting.

Roll lengths vary by weight and supplier. A typical full 33kg 450g roll is 65-73m long, giving 60-70m² coverage at the rated weight. A half roll is around 32m. Off-the-roll metre sales are common for small repairs, with minimum order quantities (Easy Composites needs at least 3m).

CSM tears as well as cuts. Tearing along the length of the roll produces a feathered edge, fibres that aren't all the same length, fading into nothing. A scissor-cut edge is sharp and dense. The technique is to lay your scissor-cut edge against the previous run and overlap the feathered edge on top. The feathered overlap dissolves into the laminate and disappears. A reverse overlap (cut edge on top) leaves a visible raised line in the cured surface. This is one of the differences between a tradesman's roof and a beginner's.

How to calculate quantity

The maths is simple but easy to get wrong by under-ordering. Two factors to add to the bare roof area: overlap allowance and upstand wrap.

Start with the flat deck area. A 4m x 5m extension roof is 20m². Add 10% for overlap losses: 20m² x 1.1 = 22m². If the roof has upstands at any walls, add the upstand area: a 100mm-high upstand on three sides of a 4m x 5m roof adds (4 + 5 + 5) x 0.15m = 2.1m² (using 150mm to wrap up the wall plus 50mm onto the deck). Round up. Order 25m² of mat for a 20m² extension roof with three upstands.

For a 450g specification, 25m² needs roughly 11.4kg (25 ÷ 2.2 m²/kg). Buy a half roll (~16.5kg, 32m² coverage) with confidence. For 600g, 25m² needs about 15kg (25 ÷ 1.67), pushing you toward a full roll.

Always over-order rather than under. Mat is cheap. Resin and labour are not. Running short of CSM mid-laminate when the resin is mixed and the catalyst is ticking is one of the worst situations on a flat roofing job. Most installers order 15-20% extra on complex roofs.

How to handle and lay it

CSM handling is the part most published guides skim and the part that decides whether the roof lasts 25 years or 5.

Storage. Keep the rolls dry and warm. Original packaging on. Off the floor. Off any damp surface. The PVAc binder absorbs atmospheric moisture, and once it's softened by humidity it never recovers fully. A roll that's spent two weeks in an unheated garage in January will laminate badly even if you take it out into 20°C sunshine. Roofing merchants store CSM in heated warehouses for this reason. Buy what you need within a week of laying, not a month ahead.

Dry fitting. Before mixing any resin, lay the cut mat lengths out on the deck in their final positions. Walk the layout. Check overlaps. Check that no strip ends inside an upstand or tries to bridge a corner. Now roll each strip back up loosely in the order you'll re-lay them, in reverse. The first piece you'll laminate sits on top of the stack. This sounds fussy and it doubles the amount of time on the deck, but it eliminates the panic moment when wet resin is curing and you can't find the right cut piece.

Cut tools. A sharp Stanley knife or heavy-duty scissors. A straight edge for clean cuts. Tear along grain for feathered edges. Cut everything before mixing resin, once the catalyst is in the bucket, you have 15-30 minutes of working time depending on temperature, and it's not enough to be cutting strips.

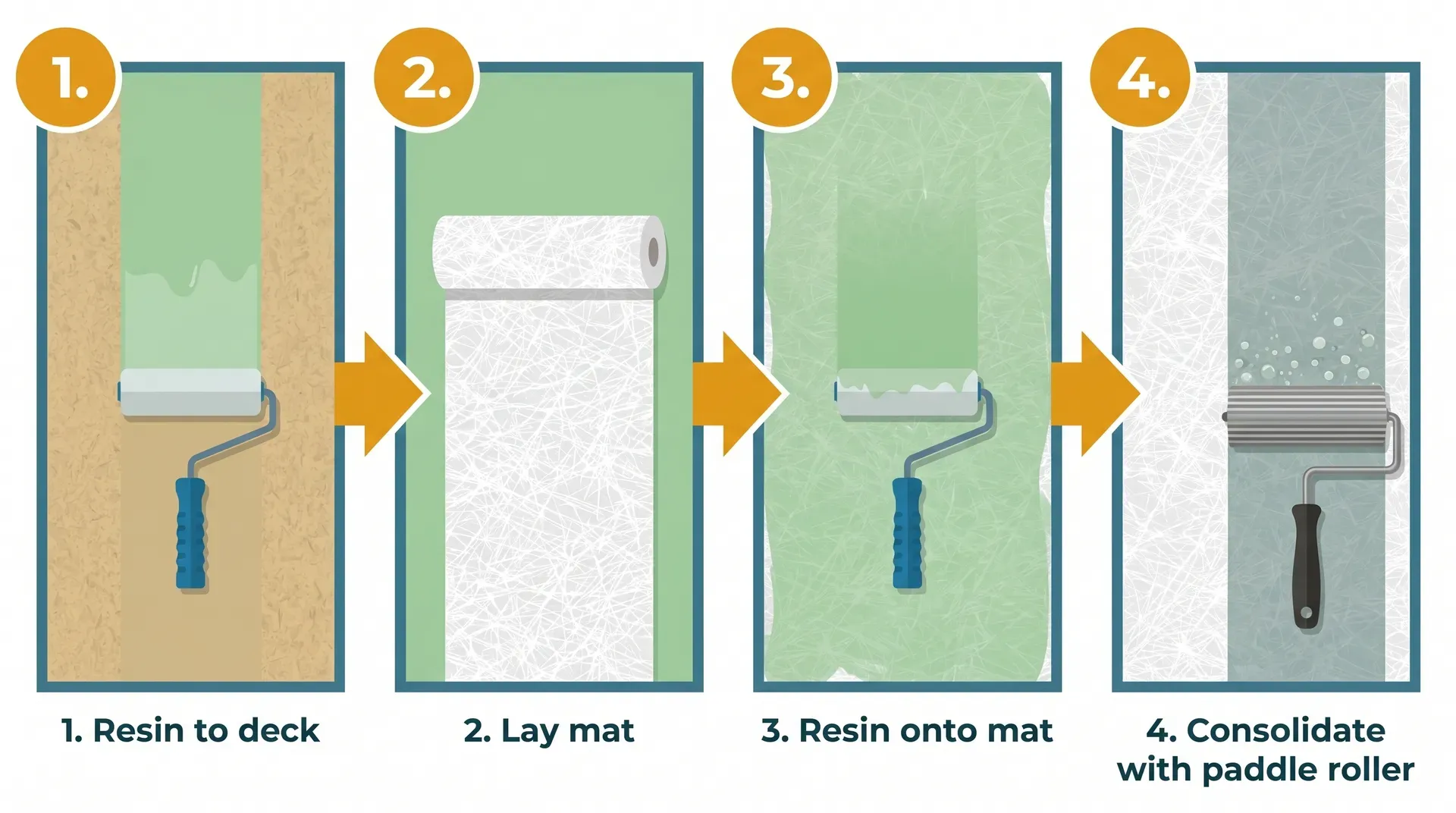

Lay-up technique. Apply resin to the OSB3 deck first (about 1/3 of your total resin), lay the mat onto the wet resin, then apply the rest of the resin onto the mat (the remaining 2/3). Don't drag the mat across already-applied resin; the strands will bunch up. Use a paddle roller (a ridged metal roller, not a paint roller) to consolidate. Work in one direction first to drive air out, then cross-roll at 90°. The mat goes from white opaque to translucent as the resin saturates the strands. Translucent everywhere means you've wetted out properly. White patches mean go back over them with more resin and the paddle.

Overlaps. Minimum 50mm at every joint. Stagger joints between adjacent strips so two laps never line up. On the second layer (if you're double-laminating), rotate the mat 90° from the first layer so the joint pattern is offset entirely.

Click to enlarge

Working time. At 15-20°C ambient, you have 20-30 minutes from catalyst-in to gel. At 25°C and above, that drops to 10-15 minutes. Direct sun on a black-painted deck can take you to gel in five minutes. Mix small batches: 4-5 litres of resin maximum at a time for beginners, even if you've got 25 litres to use. A bucket that gels before you can roll it out is wasted, and you'll be picking the lump out for an hour while the next sections cure unevenly.

Temperature limits. GRP polyester resin won't cure properly below 5°C or above approximately 30°C. Below 5°C the catalyst reaction stalls. Above 30°C the gel time becomes uncontrollable. The practical UK season for GRP work is roughly April to October. November-March work needs winter-formula resin and a dry covered structure.

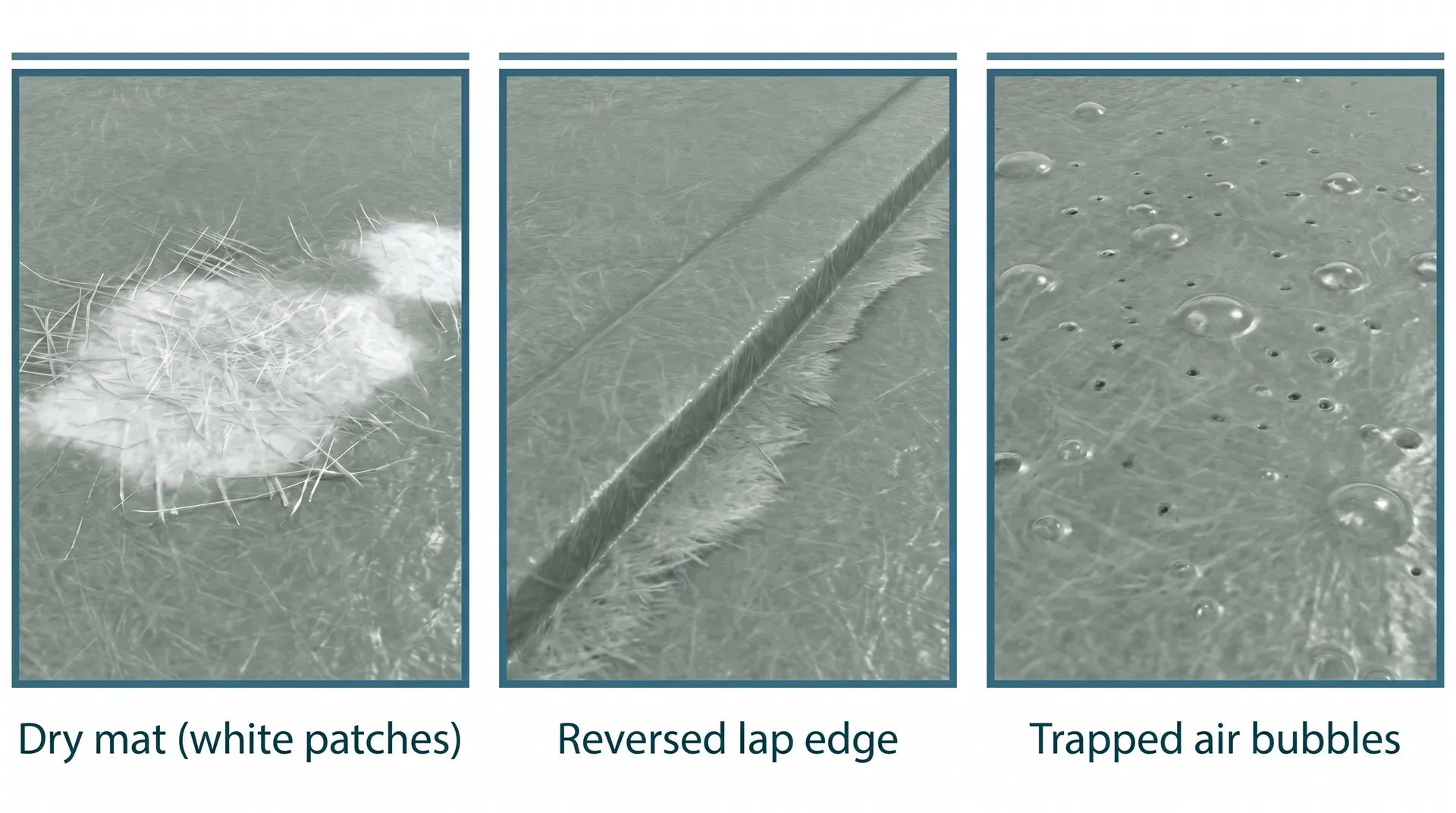

How to spot a problem before it's too late

A correctly laminated CSM section is fully translucent. You can see the OSB3 grain through it. The surface is smooth, with no raised laps, no air bubbles, and no white patches. Run your hand over it (gloved). It should feel uniformly hard with no soft or sticky spots after the cure window has passed.

The failure signs to spot before topcoat goes on:

White opaque patches mean dry mat, resin didn't fully saturate the fibres. Sand back to remove loose fibres, then add more resin and re-roll, or strip the patch and re-laminate before cure goes too far.

Visible raised lap edges mean the cut edge was placed on top of the feathered edge, or the lap wasn't consolidated with the paddle roller. Sand it flush before topcoat or you'll see the line forever.

Bubbles mean trapped air. Re-roll while the resin is still workable. Once cured, sand back and patch.

Loose fibres on the surface ("raggy mat") mean the mat strands lifted as the binder dissolved and weren't pressed back into the resin. Grind off before topcoat. Topcoating over raggy mat traps the loose fibres in the surface and produces a roof that fails inspection and weathers badly.

A real DIYnot case from 2023 documented a roof where the installer skipped consolidation and applied excessive topcoat to mask the failures. The owner spent thousands having the entire roof stripped and replaced 18 months later. The tell was visible on day one: the topcoat was lumpy where it had been used to fill bubble pockets in the laminate beneath.

Click to enlarge

Health and safety

Glass fibre is an irritant, not a chronic health hazard like asbestos, but it's still unpleasant. Cutting CSM releases short fibre dust that gets into skin pores, eyes, and lungs. The itching from glass fibre exposure is severe and lasts hours after the work finishes. Wear long sleeves and trousers, nitrile gloves, safety glasses, and a P2-rated dust mask whenever you're cutting or handling dry mat. Once the mat is wetted out with resin, dust isn't an issue but the styrene fumes are: you'll need adequate ventilation and a respirator suitable for organic vapours.

Acetone is the standard solvent for cleaning resin off tools and skin. Don't use it on skin. Use barrier cream before starting and wash with soap and water afterwards. Acetone strips the natural oils from skin and causes its own dermatitis problem.

Cured GRP is inert and harmless. The hazard window is the laminating phase only.

What to buy

For a single residential roof job, the practical options are a complete kit from one supplier or component purchases from a roofing merchant.

Cure It kits (sold via Roofing Superstore, JJ Roofing Supplies, and most builders' merchants) come pre-matched with 450g CSM, polyester resin, MEKP catalyst, topcoat, and bandage. The 33kg full roll of Cure It 450g CSM (~64-65m² coverage) is around £66 – £120.

Cromar Pro GRP offers 600gsm CSM rolls (1000mm wide x 55m, ~55m² coverage) sold by Builder Depot and other merchants. Good middle-ground brand for extension roofs that need foot-traffic spec.

Restec GRP Roof 1010 (Roof Giant) sells 450g CSM at £2 – £3 per m² ex VAT, and 600g at £2 – £4 per m². LABC approved with a 20-year materials guarantee. Sold per m², which is useful for repair jobs or when the kit sizes don't match your roof.

Generic 450g CSM from composites suppliers like GRP UK Ltd or CFS Fibreglass costs £2 – £7 per kg depending on quantity. Cheaper than branded roofing CSM but check the binder type before ordering. Bulk pallet rates (16+ rolls) bring the per-kg cost down further.

For a typical 20m² extension roof at 600g spec, the CSM cost is a minor fraction of the total system kit. The CSM is genuinely cheap. The cost of a GRP roof is in the resin, the topcoat, and the labour.

Where you'll need this

• Roof covering - CSM is the reinforcement layer in any GRP flat roof system, applied between the OSB3 deck preparation and the topcoat finish

CSM is a single-purpose material, it only appears in GRP roofing work. If your project doesn't include a flat or low-pitch roof using GRP, you won't encounter it. If it does, this is the layer that determines whether the roof lasts decades or fails within a few winters.

Common mistakes

Ordering powder-bound from a composites supplier. The binder won't dissolve in polyester roofing resin. The mat won't wet out. The roof can't be saved. Always buy emulsion-bound CSM for polyester systems.

Storing rolls in a damp van or unheated outbuilding. PVAc binder absorbs atmospheric moisture. Wet binder = poor wet-out = white patches in the cured laminate. Keep rolls dry, warm, and in original packaging until the morning of the job.

Cutting after mixing resin. The catalyst is ticking. You don't have time to be measuring and cutting. Pre-cut every length, dry-fit, re-roll in reverse order, then mix.

Insufficient overlap. 50mm minimum at every joint, no exceptions. Skimp the overlap and you've engineered a designed-in weak point. The cost of an extra metre of mat is nothing. The cost of a leak at a poorly-lapped joint is everything.

Cut edge placed on top of feathered edge. Visible raised line in the finished roof. Always lay the feathered (torn) edge on top of the previous strip's cut edge.

No paddle roller, or wrong roller. Air bubbles trapped in the laminate become weak spots that delaminate first. A 5-inch ridged metal paddle roller is the standard tool. A paint roller doesn't drive air out and shouldn't be on the deck.

Working in direct summer sun. Resin gels in five minutes at deck temperatures above 30°C. Schedule work for early morning, late afternoon, or shaded conditions. Reduce catalyst dose in hot weather (most manufacturers publish a temperature-vs-catalyst chart).

Walking on the laminate before it cures. A footprint in semi-cured laminate is permanent. Tape off the deck and stay off it overnight after lay-up.
