Stop Valves and Isolation Valves: Which Type, Where, and What to Buy
The complete UK guide to stop valves, isolation valves, gate valves, and ball valves for domestic plumbing. Types explained, where to install, brands worth buying, and prices from £3-18.
A burst pipe under your kitchen sink at 11pm on a Saturday. Water pooling across the new floor. You know you need to shut something off, but the only valve you can find is the mains stopcock under the stairs, and it hasn't been turned in five years. It doesn't move. You end up calling an emergency plumber at £150 call-out while a bucket fills up every four minutes. The fix, once someone arrives, takes eight minutes and costs £12 in parts. The missing piece was a single isolation valve on the cold supply to that tap. Fitted at first fix, it would have let you shut off the water in two seconds flat, without draining the house, without the plumber, without the ruined evening.
That's what stop valves and isolation valves are for. They're the cheapest plumbing components in your extension and the ones you'll be most grateful for when something goes wrong.
What they are and what they're for
A stop valve is any valve that shuts off the flow of water in a pipe. The Water Supply (Water Fittings) Regulations 1999 (the law governing all domestic plumbing in England and Wales) requires "a sufficient number of stopvalves for isolating parts of the pipework" and "an adequate number of servicing valves" so that any fitting can be maintained or replaced without draining the entire system.
In plain English: every tap, toilet, washing machine, dishwasher, and boiler in your extension should have its own shut-off valve. Your plumber knows this. But "sufficient" and "adequate" leave room for interpretation, and on a tight quote, some plumbers skip valves to save time. That's false economy. A missing isolation valve means draining down the whole system to change a tap washer.
The terms get confusing because people use "stop valve", "stopcock", "isolation valve", "service valve", and "gate valve" interchangeably. They're not the same thing. Each type works differently, suits different locations, and fails in different ways.

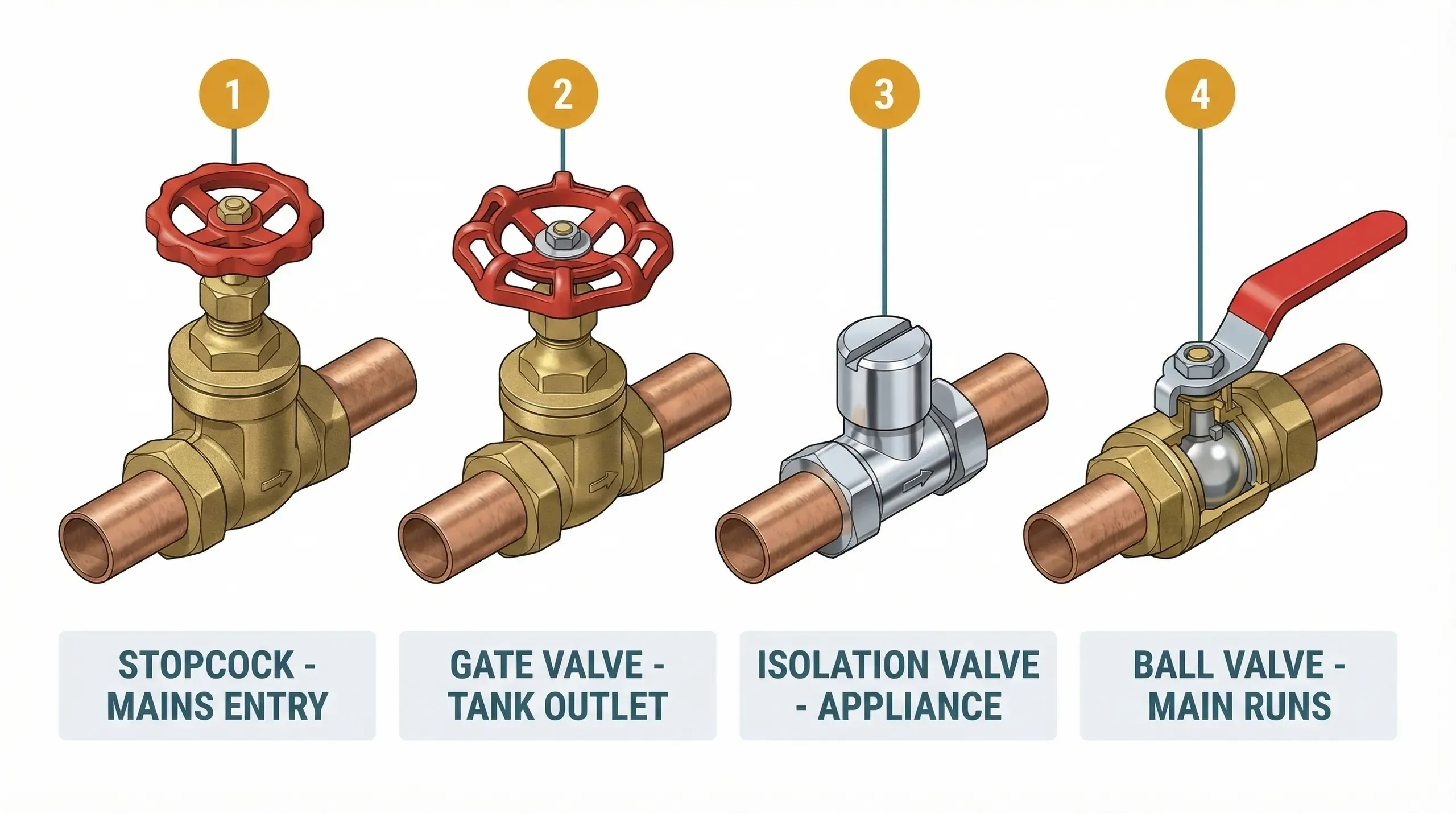

Types of valve: which one goes where
There are four valve types you'll encounter in domestic plumbing. Choosing the wrong one for the location is one of the most common first-fix mistakes.
| Type | How it works | Where to use it | Where NOT to use it | Typical price (15mm) |
|---|---|---|---|---|
| Stopcock | Compression washer, multi-turn handle (like an outdoor tap). Screws down to close. | Mains entry point inside the property. The one valve the water company expects to find. | Gravity-fed systems (insufficient pressure to lift the washer). Never use as an appliance isolator. | £8-15 |
| Gate valve | Multi-turn wheelhead. A wedge (gate) lowers across the pipe bore to block flow. | Gravity-fed cold tank outlets and hot cylinder outlets where pressure is low. The slow multi-turn action prevents water hammer. | Mains-pressure supply lines. Gate valves seize readily and are unreliable for regular operation. | £15-25 |
| Screwdriver-slot isolation valve | Quarter-turn slot operated by a flat-blade screwdriver. Small, compact, fits under basins. | Individual appliance isolation at mains pressure: taps, toilets, washing machines, dishwashers. Space-constrained locations. | Gravity-fed systems (reduced bore restricts flow). Not suitable as a main supply shut-off. | £3-9 |
| Lever ball valve | Quarter-turn lever handle. A chrome ball with a hole through it rotates to open or close. Visual status at a glance. | Main supply runs, boiler connections, manifold isolation, any location where quick shut-off or regular operation is needed. The best all-round choice for new installations. | Rarely wrong anywhere, but the lever needs clearance to turn. Won't fit in very tight spaces where a screwdriver-slot valve would. | £6-12 |
The type that matters most: lever ball valves
If you take one thing from this page, make it this. For new extension plumbing, lever ball valves are the right default choice for main runs and anywhere you need reliable, quick isolation. A quarter-turn of the lever shuts the water off completely. You can see at a glance whether the valve is open (lever aligned with the pipe) or closed (lever across the pipe). They don't seize the way gate valves do and they don't leak from the screw slot the way cheap isolation valves do.
Screwdriver-slot isolation valves have their place under basins and behind toilets where space is tight and you don't need to operate them regularly. But the quality spread is enormous. The £2 budget versions from unknown brands are the single most complained-about plumbing fitting on every UK DIY forum. They leak from the screw mechanism, seize in hard water areas, and sometimes fail on first operation after being left closed for a few months.
Gate valves should only be used on gravity-fed tank outlets (the cold water storage cistern in the loft and the hot water cylinder). Installing a gate valve on a mains-pressure supply is bad practice. They seize, they seep when "closed", and they're being replaced by ball valves in every modern installation. If your plumber installs gate valves on your extension's mains-fed pipework, query it.

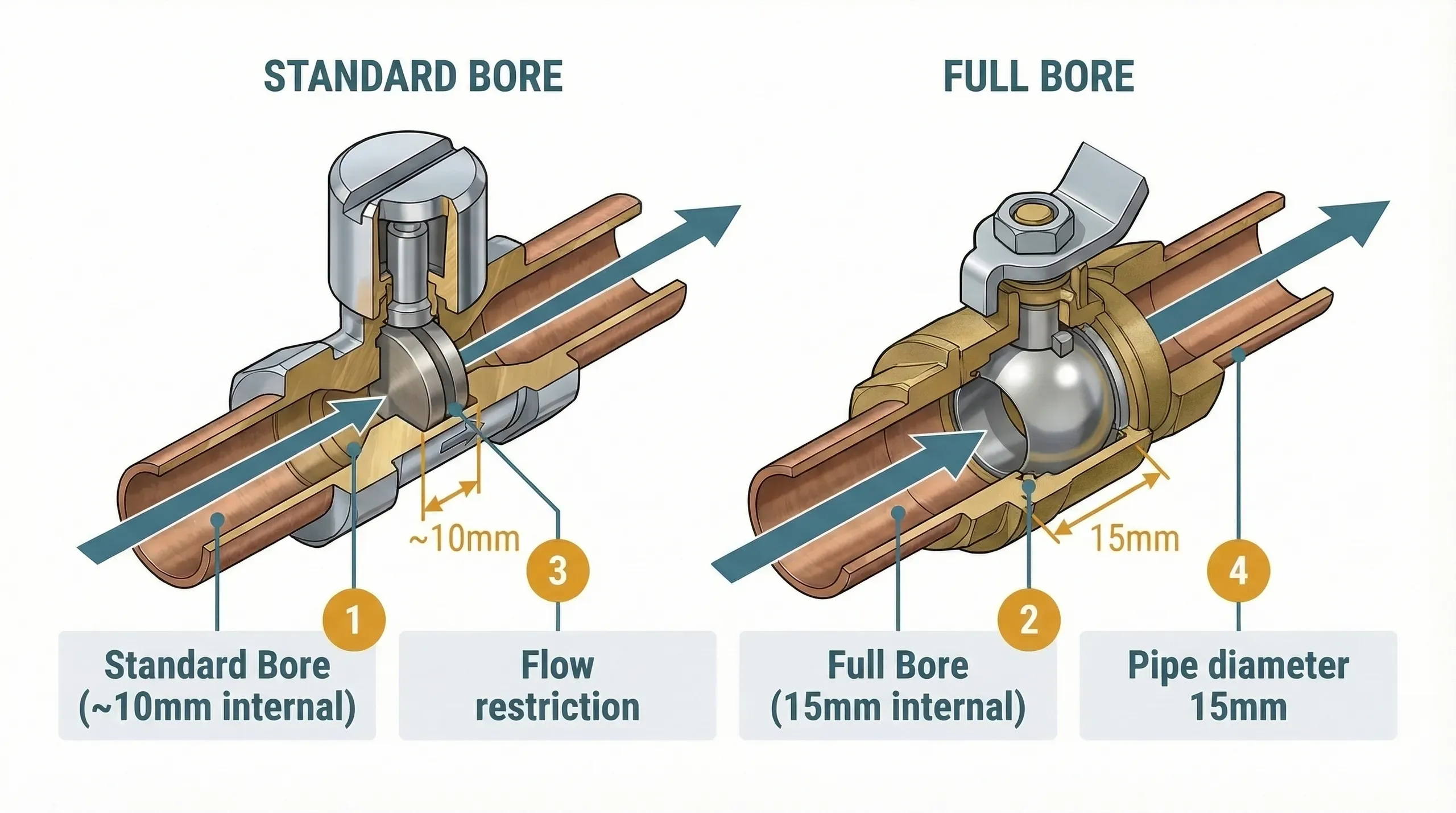

Full bore vs reduced bore
This is the detail most guides skip, and it matters if your extension connects to a gravity-fed hot water system.
A standard 15mm screwdriver-slot isolation valve has an internal bore of roughly 10mm. The ball or disc inside the valve body restricts the opening. A full bore valve has a true 15mm bore, giving 125% more cross-sectional flow area.
On mains-pressure supply (typically 2-4 bar in UK domestic properties, with a statutory minimum of 1 bar), that restriction barely matters. There's enough pressure to push adequate flow through the narrower bore.
On a gravity-fed system, the pressure depends entirely on the height difference between the cold water tank in the loft and the outlet. The rule of thumb is 0.1 bar per metre of vertical drop. A loft tank 3 metres above a shower head gives you 0.3 bar. At that pressure, a reduced-bore isolation valve chokes the flow enough to turn a decent shower into a dribble.
If your extension includes a shower fed from a gravity system (cold tank in the loft, hot water cylinder), insist on full bore isolation valves on both the hot and cold supply pipes to that shower. The cost difference between standard and full bore is negligible (often less than £2 per valve) but the flow difference is noticeable.
Where to install isolation valves in an extension
The Water Fittings Regulations 1999 (Paragraphs 10, 11, 16, and 17 of Schedule 2) set the legal baseline. But good plumbing practice goes further than the minimum legal requirement. Here's what your plumber should be fitting:
At the mains entry point: A WRAS-approved stopcock or lever ball valve. This is your property's master shut-off. If you're extending, the existing mains stopcock stays where it is. If the extension adds a new supply branch, fit a lever ball valve where the branch tees off the main supply.
Kitchen sink: One isolation valve on the cold supply, one on the hot. Under the sink, within arm's reach.
Washing machine: A dedicated isolation valve on the cold supply. Lever type is preferable here because you'll operate it more often than a screwdriver type (disconnecting hoses for cleaning or replacement).
Dishwasher: Same as the washing machine. Dedicated cold supply isolation.
Toilet: One isolation valve on the cold supply to the cistern. The Regulations (Paragraph 16) specifically require a servicing valve on every cistern inlet.
Boiler: Isolation on the cold water feed, and on both heating flow and return pipes. Your heating engineer will handle this, but verify the valves are accessible after any boxing-in.
Outside tap: Fit the isolation valve inside the building, before the pipe passes through the external wall. This lets you shut off the outdoor supply in winter to prevent frost damage without going outside.
Accessibility after boxing in
Here's a regulation point that catches people out. The Water Fittings Regulations state that no fitting "designed to be operated or maintained" shall be a concealed water fitting. In practice, this means every isolation valve must remain accessible after your plumber boxes in the pipework. That doesn't mean the valve has to be visible. It means you need an access panel, a removable section of boxing, or the valve positioned before the pipe enters the concealed section.
If your builder plasterboards over an isolation valve with no access panel, that valve is useless. It might as well not be there. Raise this with your plumber at first fix, before the plasterer arrives.
Verify that every isolation valve is accessible before plastering begins. Once plasterboard is up and skimmed, cutting access panels is messy, expensive, and often reveals that the valve is in exactly the wrong position for a neat panel. This is a first-fix checkpoint, not something to discover at second fix.

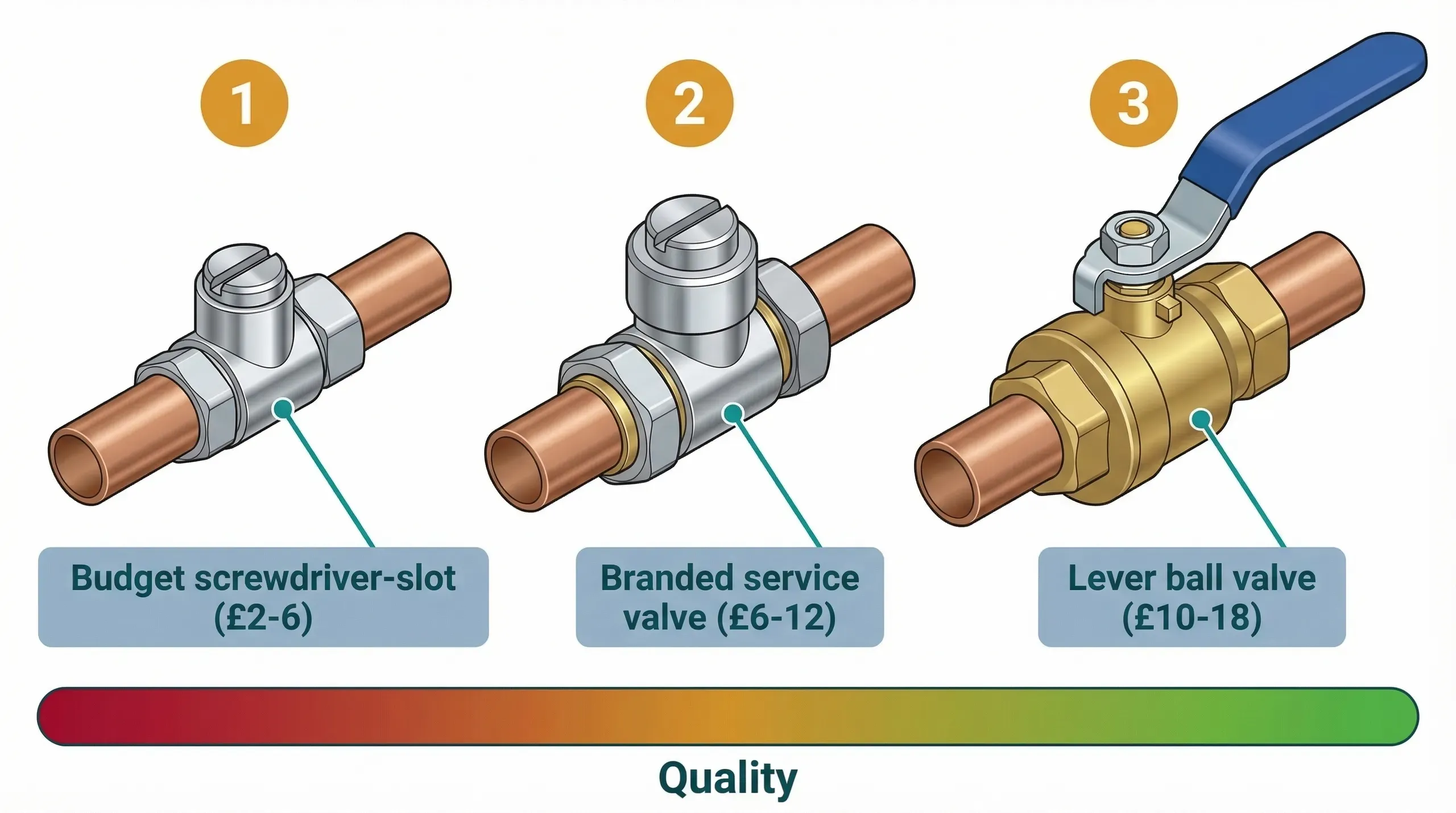

What to buy
Budget tier: £2 – £6 per valve
Flomasta (Screwfix's own brand) and unbranded equivalents. A 15mm screwdriver-slot isolation valve starts at around £2.5. A 22mm version is around £6 – £7. These work. They're fine for low-importance locations like a toilet cistern supply at mains pressure. But the community consensus from plumbers on every UK forum is consistent: cheap isolation valves leak from the screw head and seize in hard water areas at higher rates than branded alternatives.
The Flomasta Full Bore Isolating Valve at around £3.55 (15mm) is the best value in this tier if you need a screwdriver-slot type.
Mid-range tier: £6 – £12 per valve
Pegler service valves (£6 – £9 at Toolstation and Screwfix) and JG Speedfit push-fit isolation valves (£8 – £10). This is where the quality step-up happens. Pegler is one of two brands recommended repeatedly by working plumbers. The Pegler chrome-plated service valve in 15mm runs around £7 and is a reliable, well-made fitting.
JG Speedfit push-fit isolation valves suit plastic pipework (Speedfit, Hep2O) and eliminate the need for compression fittings. At £8 – £10 for a 15mm valve, they cost more than compression-type equivalents but install faster with no tools.
Premium tier: £10 – £18 per valve
Pegler PB300 lever ball valves (£11 – £12 for 15mm, £14 – £16 for 22mm) and Altecnic Intaball (£10 – £12 for 15mm, £18 for 22mm). These are WRAS-approved, full bore, lever-operated valves with hard chrome balls and anti-blowout stems. They're what professional plumbers fit on their own houses.
For main supply runs, boiler connections, and any gravity-fed system, this tier is the right choice. The Altecnic Intaball 22mm at around £18 is rated to 16 bar and will outlast everything else in the system.
Using Pegler lever ball valves at £12 each instead of budget screwdriver types at £3 costs an extra £70 – £100 across a whole extension. On a project costing tens of thousands, that's invisible. Specify branded lever valves to your plumber and offer to supply them yourself if needed.
How to work with them
Isolation valves are fitted by your plumber at first fix. You shouldn't need to install them yourself. But you do need to know how to operate them, how to check they work, and how to stop them seizing.
Operating a screwdriver-slot valve
The slot on the valve body sits in line with the pipe when open, and across the pipe when closed. Use a flat-blade screwdriver (or a coin in an emergency) to turn the slot a quarter-turn. That's it. If the slot is difficult to turn, don't force it with pliers. Forcing a seized valve often cracks the valve body or breaks the internal seal, turning a seized valve into a leaking valve.
Operating a lever ball valve
The lever sits parallel to the pipe when open, perpendicular when closed. Turn it 90 degrees. The visual feedback is immediate and unambiguous. This is one reason lever valves are preferred in emergencies.
The annual exercise that prevents seizure
Valves seize because mineral deposits (limescale in hard water areas) build up around the moving parts when the valve sits in one position for months or years. The fix is simple: once a year, turn every isolation valve fully closed, then fully open again. Just one full cycle. This breaks up any early deposit and keeps the valve free.
The catch-22 that forum users report constantly is this: if you've never exercised a valve and you try to close it after several years, the act of forcing it can break the seal and start a leak. That's why annual exercise from day one matters. Your plumber should exercise every valve during the pressure test at first fix. After that, it's your job.
Compression vs push-fit connections
Compression fittings use brass olives tightened with a nut. They work on copper pipe and are the traditional method. Push-fit fittings (JG Speedfit, Hep2O) simply push onto the pipe with no tools. Push-fit is faster and suits plastic pipe systems, but push-fit valves cost more and can't be used in concealed locations without manufacturer approval.
Most extension plumbing in the UK uses a mix: copper pipe on main runs with compression valves, and push-fit on branch connections to individual appliances. Your plumber will choose based on the pipe system they're using. If you're supplying the valves yourself, confirm whether the pipework is 15mm copper, 22mm copper, or 15mm plastic before ordering.
Common mistakes
Not installing enough isolation valves. The legal minimum is vague ("sufficient" and "adequate"). Some plumbers interpret this as one valve per room rather than one per appliance. Insist on individual appliance isolation. The material cost is trivial. The first time you need to change a tap without draining the house, you'll understand why.
Using gate valves on mains-pressure supplies. Gate valves are for gravity-fed tank outlets only. On mains pressure, they seize, seep, and give no visual indication of whether they're open or closed. If you see wheelhead gate valves being installed on your new extension's mains-fed pipework, question it.
Buying the cheapest valves available. A £1.5 isolation valve and a £7 Pegler valve look similar. The difference is in the machining quality of the ball, the seal materials, and the body alloy. Cheap valves use softer brass that deforms under compression, leading to leaks. The community evidence on this is overwhelming: nine out of twelve plumbing forum threads analysed for this guide cite cheap isolation valve failure as the single biggest valve problem in domestic plumbing.
Boxing in valves without access panels. An isolation valve behind plasterboard with no access is not an isolation valve. It's a decorative brass fitting encased in your wall. Plan access panels at first fix, before plastering.
Forgetting the outdoor tap isolator. An outside tap without an internal isolation valve means you can't shut it off for winter without turning off the whole house. Frozen outdoor pipes that burst in January are a predictable, preventable problem.
Ignoring the arrow on budget valves. On many cheaper screwdriver-slot isolation valves, the arrow stamped on the body doesn't simply indicate flow direction. It marks which end can safely be disconnected under pressure (the end where the ball is retained by a spring clip). Disconnect the wrong end and the ball can unseat. Always check the manufacturer's instructions, and when in doubt, shut off the supply upstream before disconnecting either end.
Alternatives
For appliance connections, flexi-hoses with built-in isolation (sometimes called "flexi-tap connectors with isolator") combine the valve and the connection hose into one unit. They're common under kitchen sinks and basins. The downside is that if the flexi hose fails (and they do, typically after 5-10 years), you're replacing the valve as well.
If your plumber is using a manifold system (a central distribution board with individual branch pipes to each outlet), the manifold itself provides isolation for each branch. Individual inline valves may not be needed at the appliance end, though many plumbers fit them anyway as belt-and-braces.
Full-bore ball valves as gate valve replacements
Where your existing house has old gate valves on gravity-fed tank outlets, a full-bore lever ball valve is the modern replacement. The advantage over a gate valve is reliability: ball valves don't seize in the same way because the chrome ball rotates through the PTFE seats rather than a wedge grinding against a brass seat. The quarter-turn operation is also faster than multiple turns of a wheelhead. If your plumber is working near existing gate valves during the extension, it's worth asking them to swap any accessible gate valves for ball valves at the same time. The labour is minimal when the system is already drained down, and you eliminate a future failure point.
Smart shut-off valves and leak detection
For mains entry, a smart shut-off valve (Wi-Fi connected, automatic leak detection) is an emerging option. The Grohe Sense Guard is the most established product available through UK retailers, fitting directly onto 1-inch mains pipework. It monitors water flow patterns and shuts off the supply automatically if it detects continuous flow consistent with a leak, a burst, or a frozen pipe. You can also trigger a manual shut-off from your phone when you're away from the property.
These systems typically cost £400 – £600 or more in the UK, plus installation. That puts them in a different category from the manual valves covered in the rest of this guide. But for a property left unoccupied during a long build, or for homeowners who travel frequently, the insurance value is real. Some home insurers offer premium discounts for properties fitted with automatic leak detection, though the discount rarely covers the cost of the device on its own. The main payoff is avoiding a catastrophic water damage claim rather than saving on premiums.
Where you'll need this
Stop valves and isolation valves appear at two distinct stages of any extension or renovation project:
- First fix plumbing - installing isolation points on all supply runs while pipes are exposed and accessible, before plastering
- Second fix plumbing - connecting final fixtures to the isolation valves installed at first fix, verifying every valve operates correctly
These are among the cheapest materials in your plumbing specification and the most valuable when something needs servicing. Specify branded lever ball valves for main runs and quality isolation valves at every appliance. The total cost for proper isolation across an entire extension is under £150. The cost of not having it is one emergency plumber call-out.
